- Usage:indoor
- Tube Chip Color:FULL COLOR
- Display Function:video
- Warranty: 3 Years:LED chip: Epistar
- Certificate: CCC CE ROHS ISO:Life span: 100000 Hours
- Screen Dimension: Customized Size:Cabinet material: Die-casting Aluminum
- Application: Advertising:Control system: Nova
- Scan: 1/32:Service Access:Front/Rear
- Screen Dimension:960*960
- Pixels:6mm
- Application:Indoor
- Color:full color

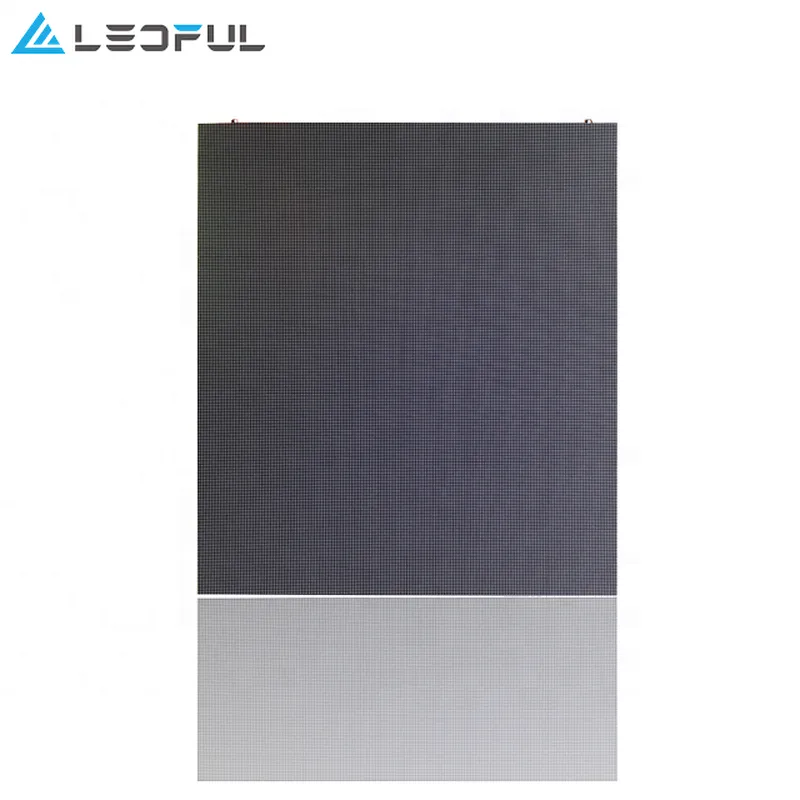

- Panel Size:960*960mm
- Pixel Pitch:6mm
- Place of Origin:Guangdong, China (Mainland)
- Model Number:IF6
- Brand Name:LEDFUL
IF Series



IF2.5 | IF3 | IF4 | IF5 | IF6
★Black SMD LED makes perfect
★Front maintenance & Front installation
★Wifi, 4G, cloud, usb, remote control
★Thin, light weight, easy installation
★Low brightness with High grayscale operation
Product | IF6 |
Pixel Pitch(mm) | 6 |
Pixel Matrix Per Sq.m | 27777 |
Pixel Configuration | SMD3528 |
Brightness (nits) | 1200 |
Scan | 1/16 |
Module Dimension | 192x192mm / 0.63x0.63ft |
Cabinet Dimension | 960x960mm / 3.15x3.15ft |
Cabinet Resolution | 160x160 |
Cabinet Weight | 28.8kg/63.5 Ib(Iron) |
Power Con. (Max / Avg) | 350/ 100 w/sq.m |
Refresh Rate (HZ) | 1920 |
Service Access | Front / Rear |
Grey Scale (bit) | 16 |
Viewing Angle (H/V) | 160 / 160 |
IP Rate | IP31 |
Input Voltage (AC) | 110V / 240V |

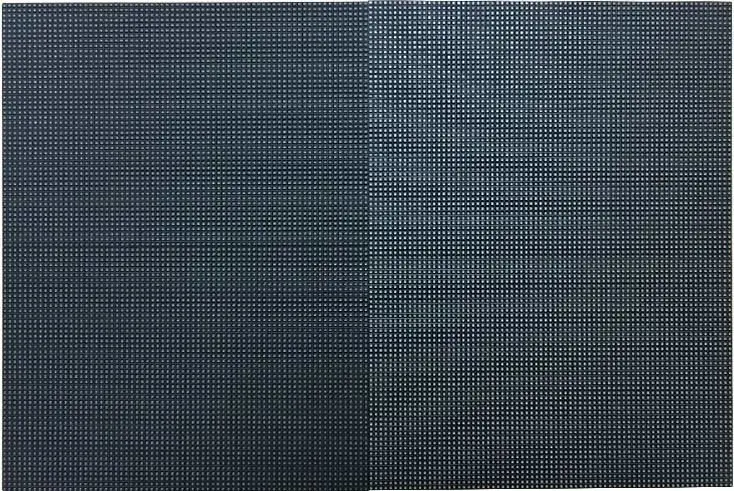

Black SMD LED

Front Maintenance Saving Space
No back space for LED display maintenance? Go with front. LED modules, power supply, receiver card, cables, etc can be taken out from front side.

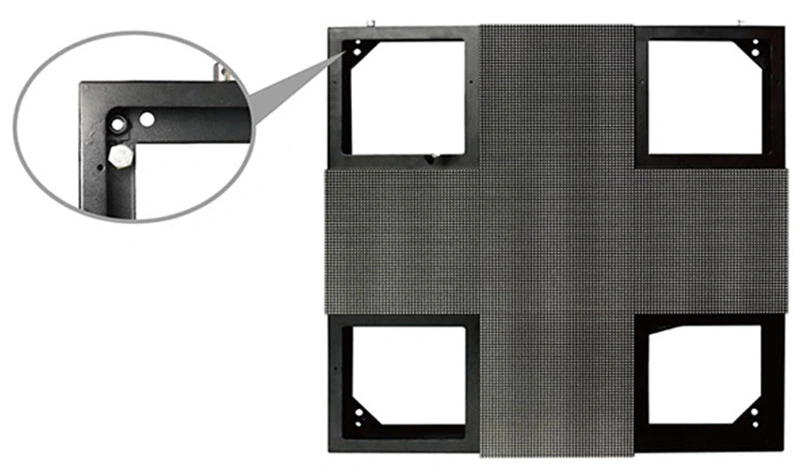

Front Installation Saving Structure
Not only front maintenance, but also front installation. LED display can be installed in front after removing 4 corners modules. Therefore the whole LED display thickness is the cabinet thickness.

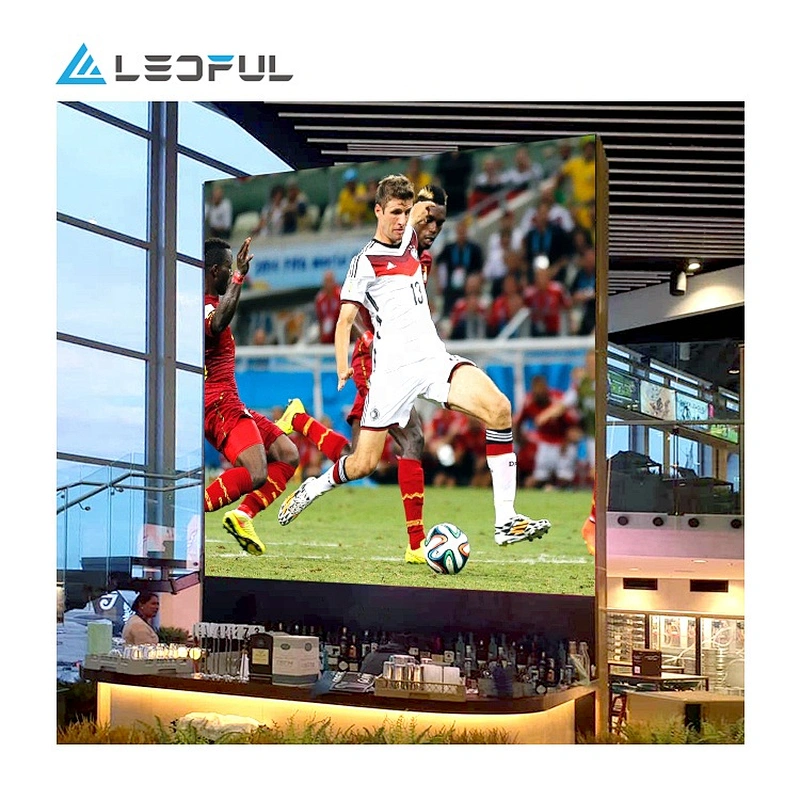

LED Display Wall Mounted Installation
Not only front maintenance, but also front installation. LED display can be installed in front after removing 4 corners modules. Therefore the whole LED display thickness is the cabinet thickness.

Wide Viewing Angle

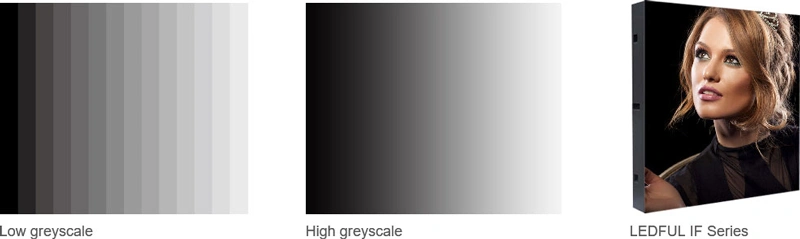

Low brightness with High grayscale
Low brightness with High grayscale to make the LED display in ultimate view performance

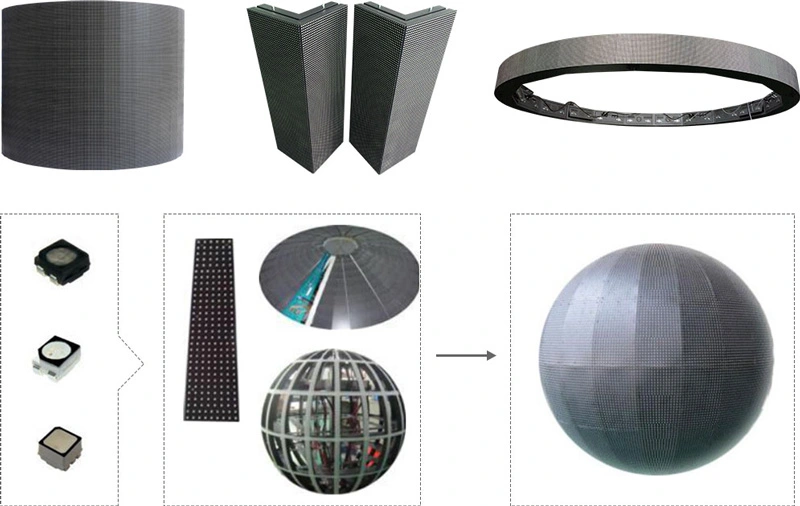

Various Shaped LED Display
Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc. LEDFUL supply more design and more solutions.

IF Series More Features & More Advantages
★Excellent heat dissipation and noiselessness
★High-performance metal plate cabinet design
★Macro molecular flexible mask with glare-less surface on LED modules
★High definition and could be adjusted with various pixel pitch, so it can meet the request of the clients according different application environments.
★Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light to make LED display great performance.

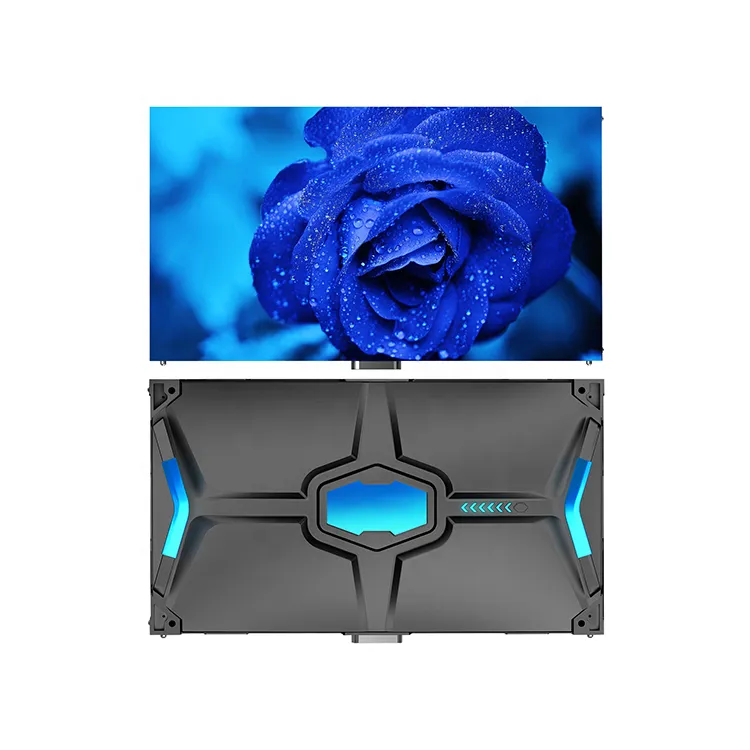

U Series
High Refresh Indoor Small Pitch p1.8 LED Display Cabinet

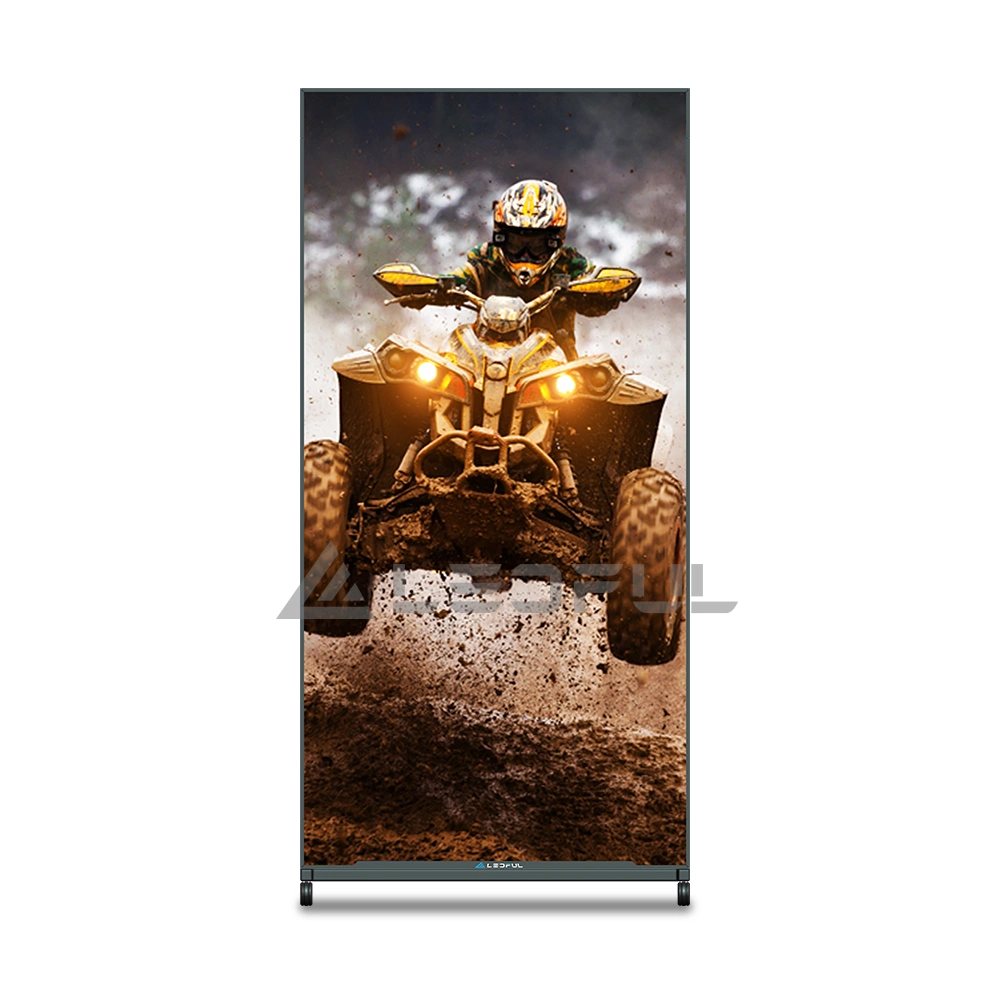

LPoster Series
High Refresh Aluminum P2.5 Indoor Poster LED Screen
X Series
Stage Background Rental SMD 500*500mm P3.9 Indoor LED Display screens for Advertising





Who We Are


Why Choose LEDFUL
Deep Customized & OEM. Listen to you, think more for you. Lifelong maintenance with reasonable price. Clear cost initially to save your time and money. Provide with innovative and satisfying products. Excellent product quality, quick and professional services. Always ready for your any change on LED display details. Recommend the best proper solution for your LED project. Catch things what you missed before LED display production. Take good care of each detail for your products, packages,shipping.







Packaging
1.Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;
2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.
Shipping
1. By sea or by air;
2. Customer specified freight forwarder or negotiable mode of transport;
3. Delivery Time: 15-25 days for batch goods.

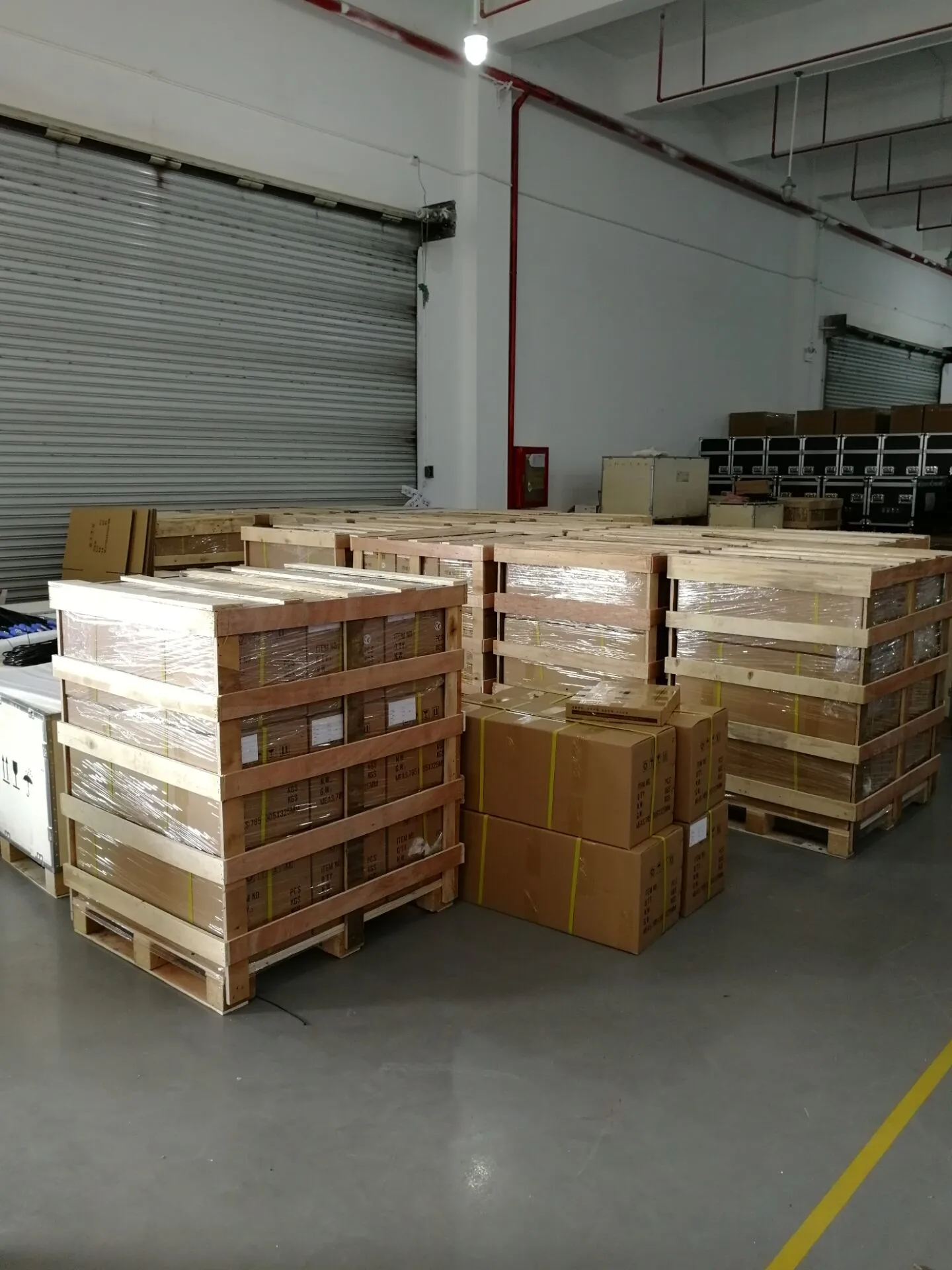

Plywood box
