- Usage:Indoor
- Display Function:Video
- Pixels:p3
- Certificate:CE ROHS FCC
- Brightness:1000cd/sqm
- Warranty:3~5 Years
- Color:Full-color
- Power Supply:Meanwell
- IP rate:IP31
- Brand:LEDFUL
- Place of Origin:CN;GUA
- Application:advertising
- Color:fullcolor
- Panel Size:960*960mm
- Pixel Pitch:3mm
- Model Number:IF series
- Brand Name:LEDFUL


Value | IF2.5 | IF2.5S | IF3 | IF4 | IF5 | IF6 | |||||
Pixel Pitch(mm) | 2.5 | 2.5 | 3 | 4 | 5 | 6 | |||||
Pixel Matrix Per Sq.m | 160000 | 160000 | 111111 | 62500 | 40000 | 27777 | |||||

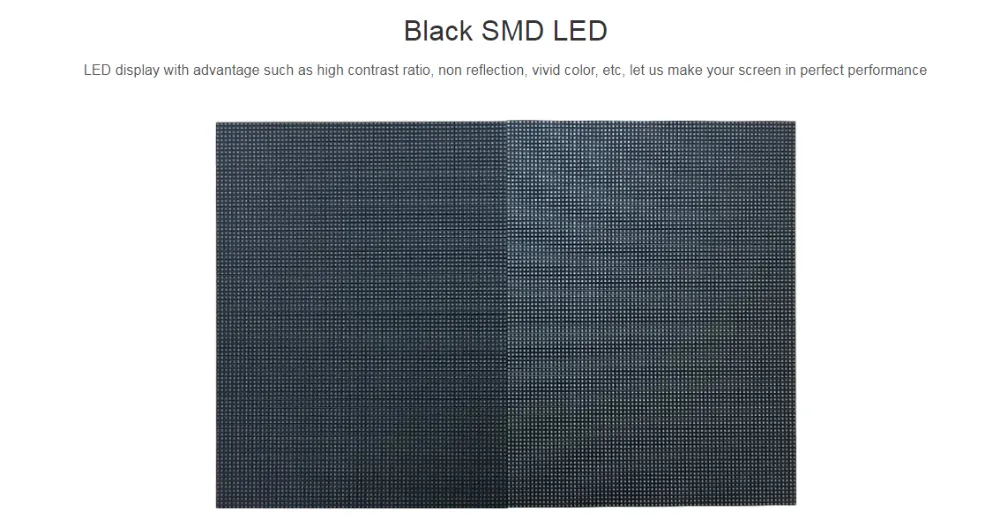

Pixel Configuration | SMD2121 | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD3528 | |||||
Brightness (nits) | 1000 | 1000 | 1200 | 1200 | 1200 | 1200 | |||||
Scan | 1/32 | 1/32 | 1/32 | 1/16 | 1/16 | 1/16 | |||||
Module Dimension | 160x160mm / 0.53x0.53ft | 320x160mm / 1.05x0.53ft | 192x192mm / 0.63x0.63ft | 256x128mm/ 0.84x0.42ft | 320x160mm / 1.05x0.53ft | 192x192mm / 0.63x0.63ft | |||||
Cabinet Dimension | 480x480mm / 1.57x1.57ft | 640x640mm / 2.1x2.1ft | 576x576mm / 1.89x1.89ft | 768x768mm / 2.52x2.52ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | |||||
Cabinet Resolution | 192x192 | 256x256 | 192x192 | 192x192 | 192x192 | 160x160 | |||||
Cabinet Weight | 7.6kg /17Ib ( Iron) | 13kg / 30Ib (Iron) | 11kg /24Ib (Iron) | 19.5kg /43 Ib ( Iron) | 29kg /64 Ib ( Iron) | 28.8kg/63.5 Ib(Iron) | |||||
Power Con. (Max / Avg) | 600 / 150 w/sq.m | 600 / 150 w/sq.m | 550 / 138 w/sq.m | 600/ 150 w/sq.m | 450/ 120 w/sq.m | 350/ 100 w/sq.m | |||||
Refresh Rate (HZ) | 3840 | 3840 | 3840 | 1920 | 1920 | 1920 | |||||

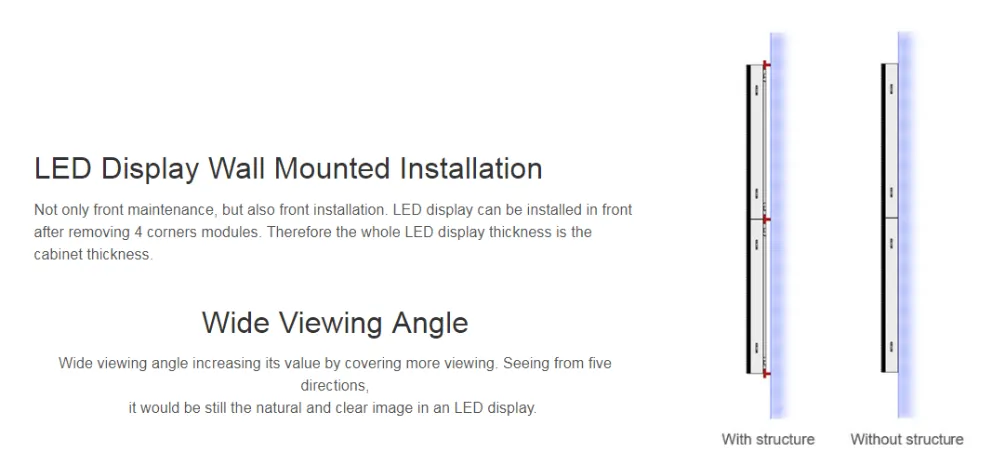

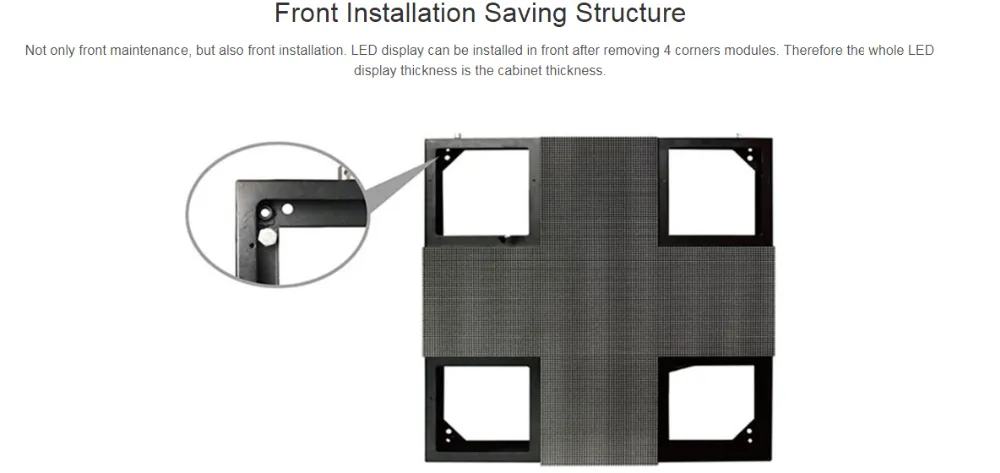

Service Access | Front / Rear | ||||||||||

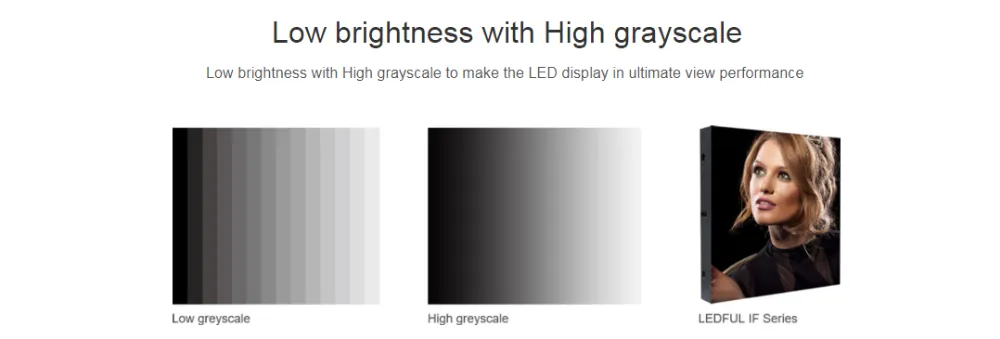

Grey Scale (bit) | 16 | ||||||||||
Viewing Angle (H/V) | 160 / 160 | ||||||||||
IP Rate | IP31 | ||||||||||










1.OEM Manufacturing welcome: Product, Package...
2.Customized and professional products.
3.We will reply you for your inquiry in 24 hours.
4.After sending, we will track the products for you.
5.If you have any questions,we will offer the solve way for you.
6.3-5 years warranty will be provided by us.

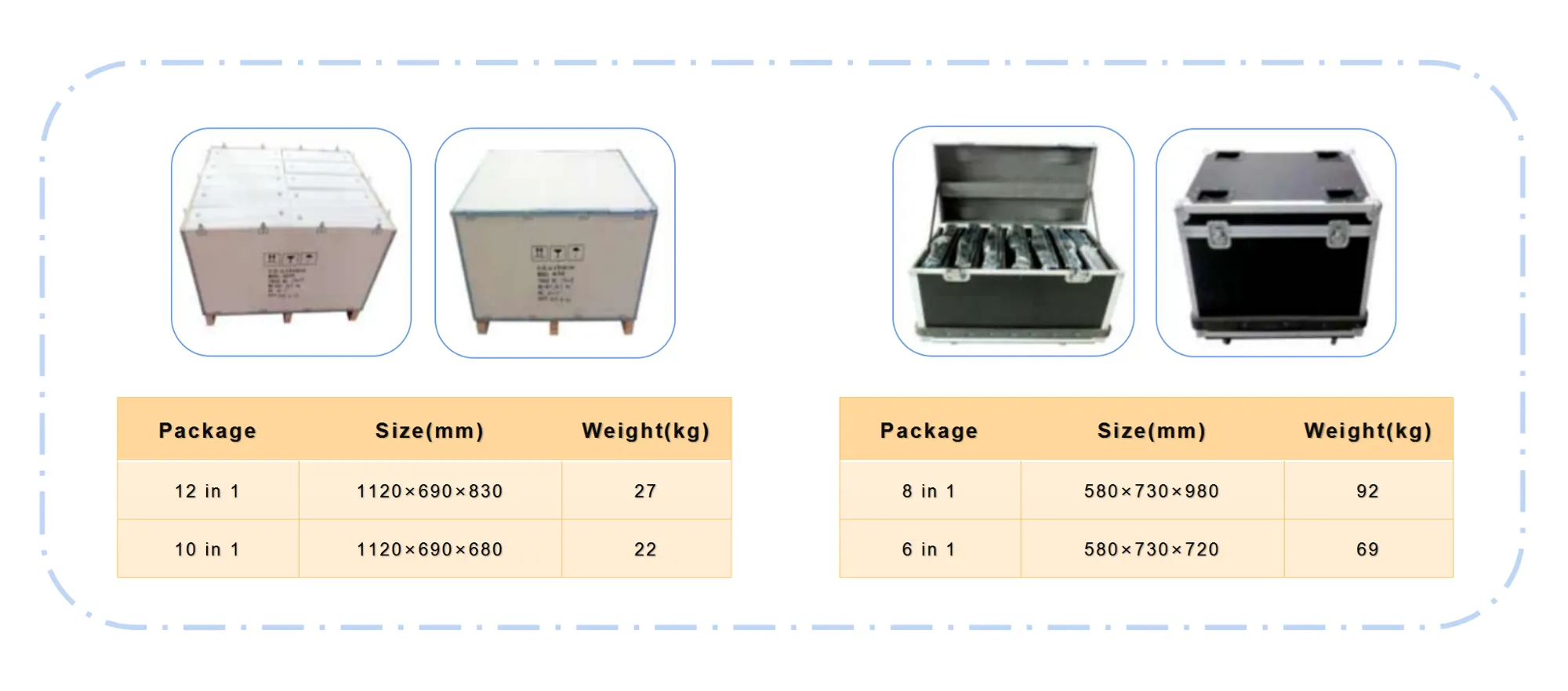

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
