Categories: U Series

Product Description

  • Usage:Indoor
  • Tube Chip Color:FULL COLOR
  • Display Function:Video
  • Pixels:1.25mm
  • Place of Origin:Guangdong, China (Mainland)
  • Brand Name:LEDFUL
  • Model Number:U1.2
  • Screen Dimension:600x337.5mm
  • Warranty: 3 Years:LED chip: Epistar
  • Certificate: CCC CE ROHS ISO:Life span: 100000 Hours
  • Screen Dimension: Customized:Cabinet material: Die-casting Aluminum
  • Application:Indoor Fine Pitch:Control system: Linsn /Nova
  • Service Access:Front:Refresh Rate (HZ):≥3840
Product Description



U Series

Fine Pitch LED Display


Product
U1.2
Pixel Pitch(mm)
1.25
Cabinet Weight
7.8kg /17.2Ib
Pixel Matrix Per Sq.m
640000
Service Access
Front
Pixel Configuration
SMD1010
Refresh Rate (HZ)
≥3840
Brightness (nits)
≥1000
Grey Scale (bit)
16
Scan
1/27
Viewing Angle (H/V)
160 / 160
Module Dimension
200x168.75mm
Power Con. (Max / Avg)
700 / 200 w/sq.m
Cabinet Resolution
480x270
IP Rate
IP41
Cabinet Dimension
600x337.5x80mm
Input Voltage (AC)
110V / 240V

U1.2 | U1.4 | U1.5 | U1.8

★Front maintenance & Front Installation.

★High Refresh and High Grey Scale.

★Cabinet Dimension Ratio 16:9.

★Dual Backup Power & Data.

★Ultra Light and Ultra Thin.

★Cable Free Connection.

Detailed Images

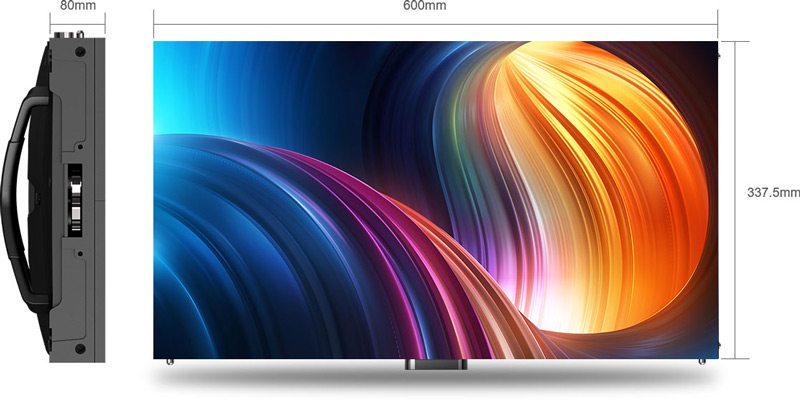

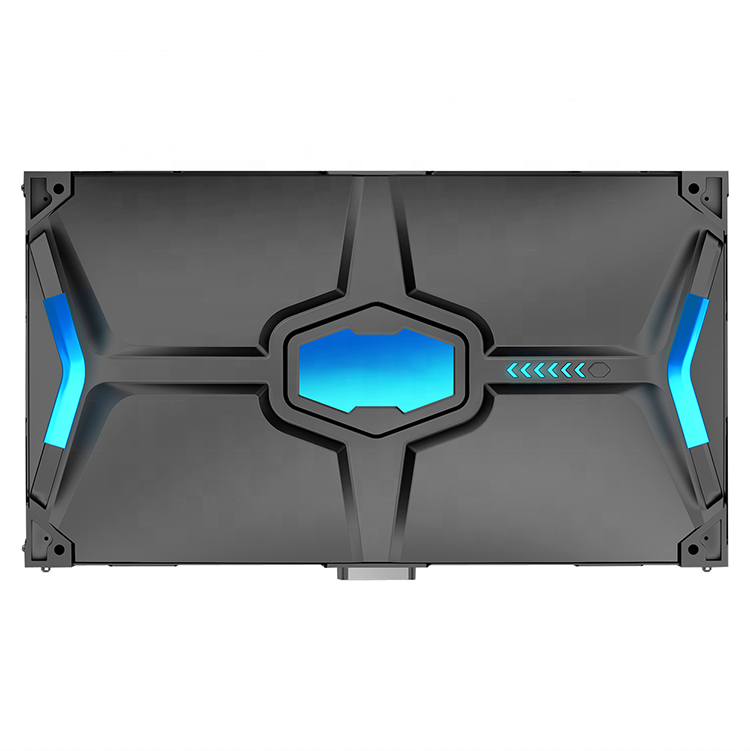

Product Size

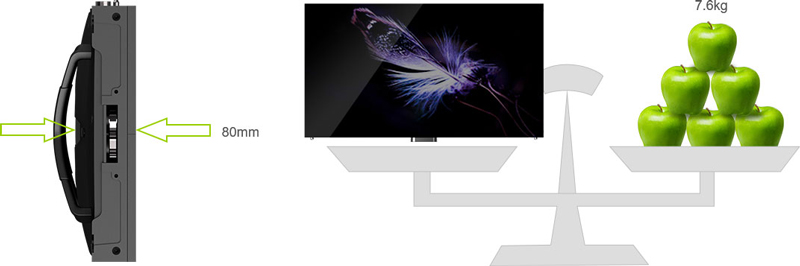

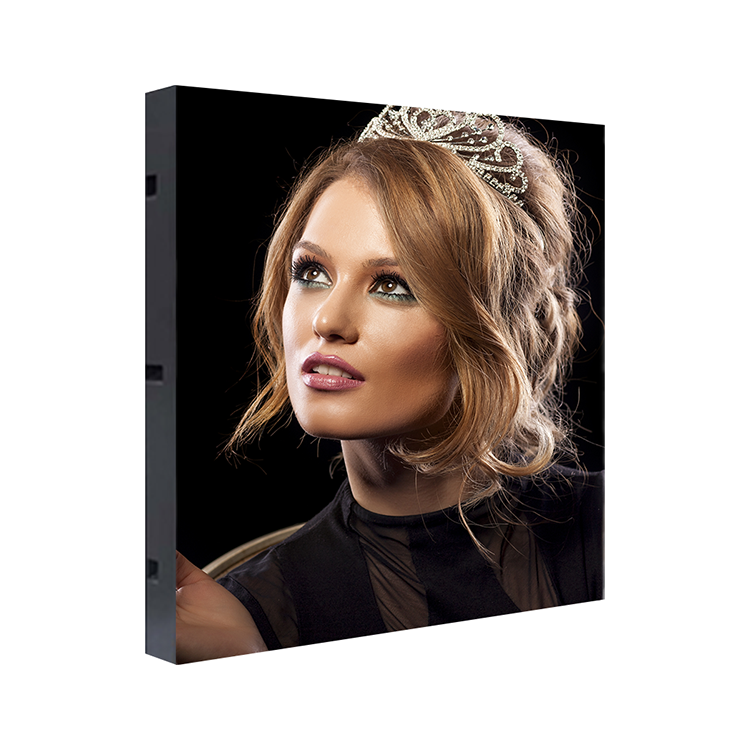

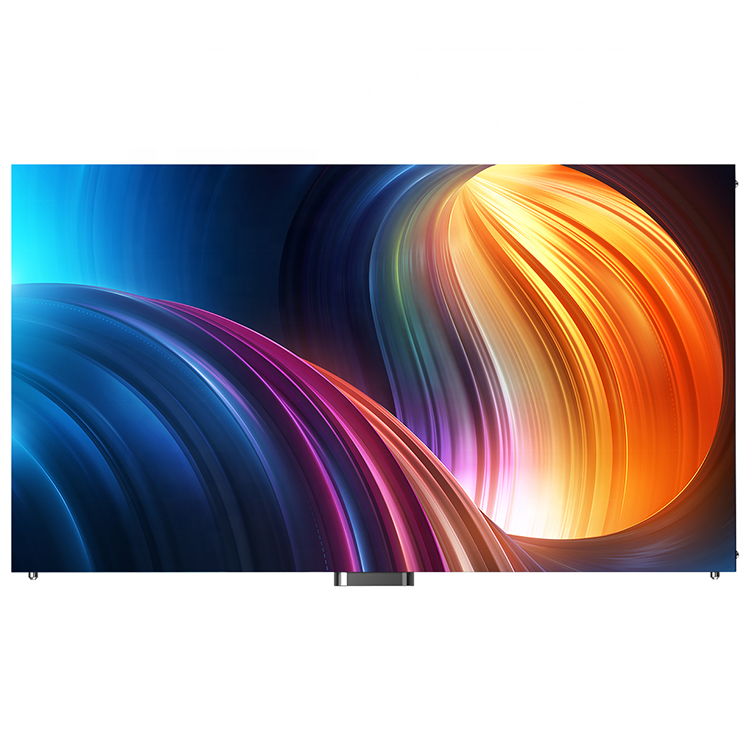

Ultra-light and Ultra-thin





Worked every details just for amazing experience

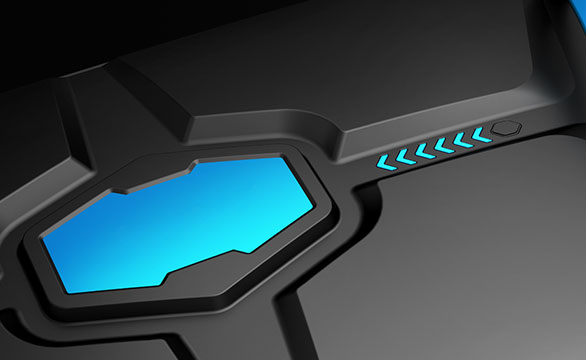

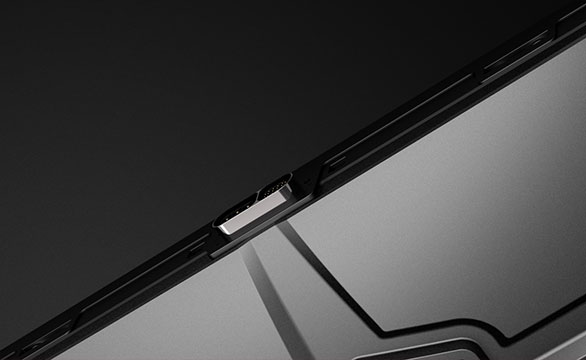

Cable free connection make easier front installation

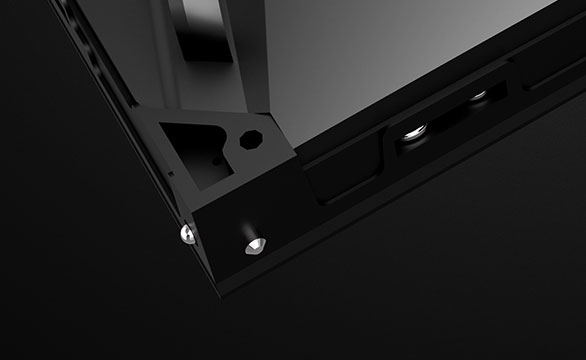

Alignment hole, Locating pin, Precisely seamless

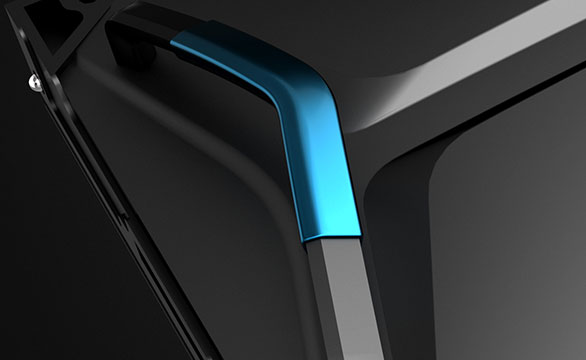

Anti-skid handle easier for installation and transit

Modular die casting aluminum provides perfect flatness

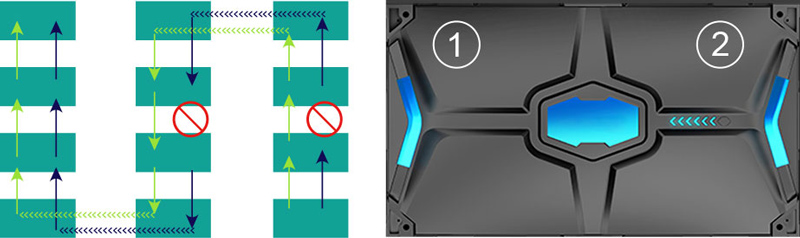

Dual Backup Interface |Challenging All Possibilities

Supporting Dual Control system, Dual Power Supply Backup, each unit cabinet control module, automatic detection of the two input signal integrity, when the whole screen signal break, the backup signal from another automatic access, Automatically Switch the picture in an LED Screen when it occurs any problem to make sure a stable and reliable image.

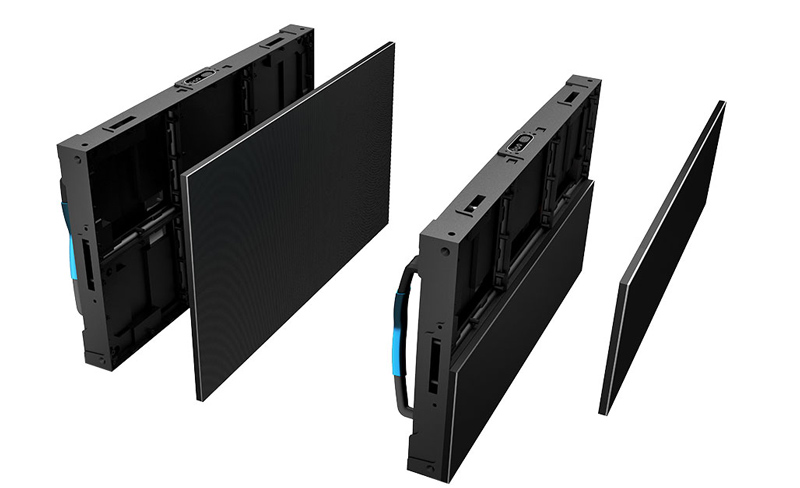

Front Maintenance | Front Installation

The U series LED modules, receiver card, power supply are all front maintenance, cabinet with front installation holes has fully described the strength of its light weight, meet the needs of small space or where the needs of the cabinet thickness, enhanced the vision of the space as well as its visionary effect. It allows for easy maintenance, saving time and labor on site.





Ultra Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.




Ultra High Definition

It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.




Ultra Fast Response

The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.




High Contrast Ratio

High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance when works on the color and has very good contrast.

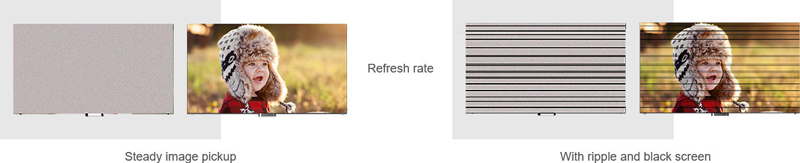

High Refresh Rate

It could be reach 3840HZ.




16 bit Grey Scale

It has almost the perfect gray scale and gives true color of the images, there will have no data loss and you could see every details clearly.

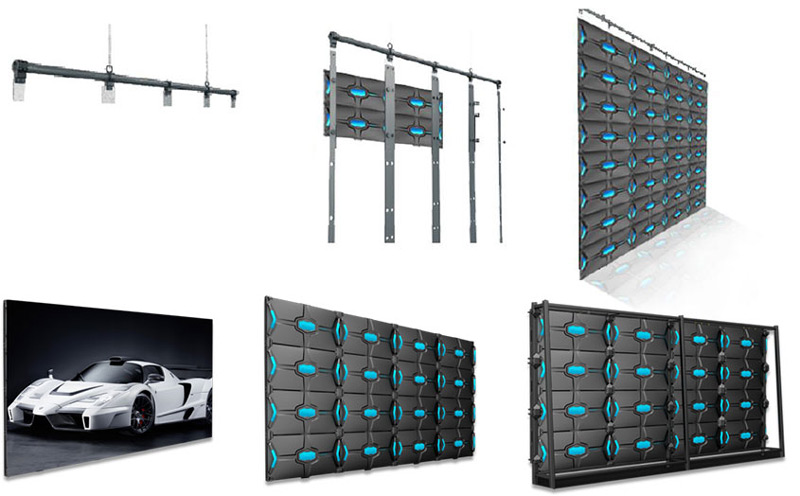

Installation easier and faster

HD LED advertising: almost the perfect gray scale and gives true color of the images

Other Products

IF Series

Commercial Indoor P2.5 Ultra Thin LED Display for Shopping Mall

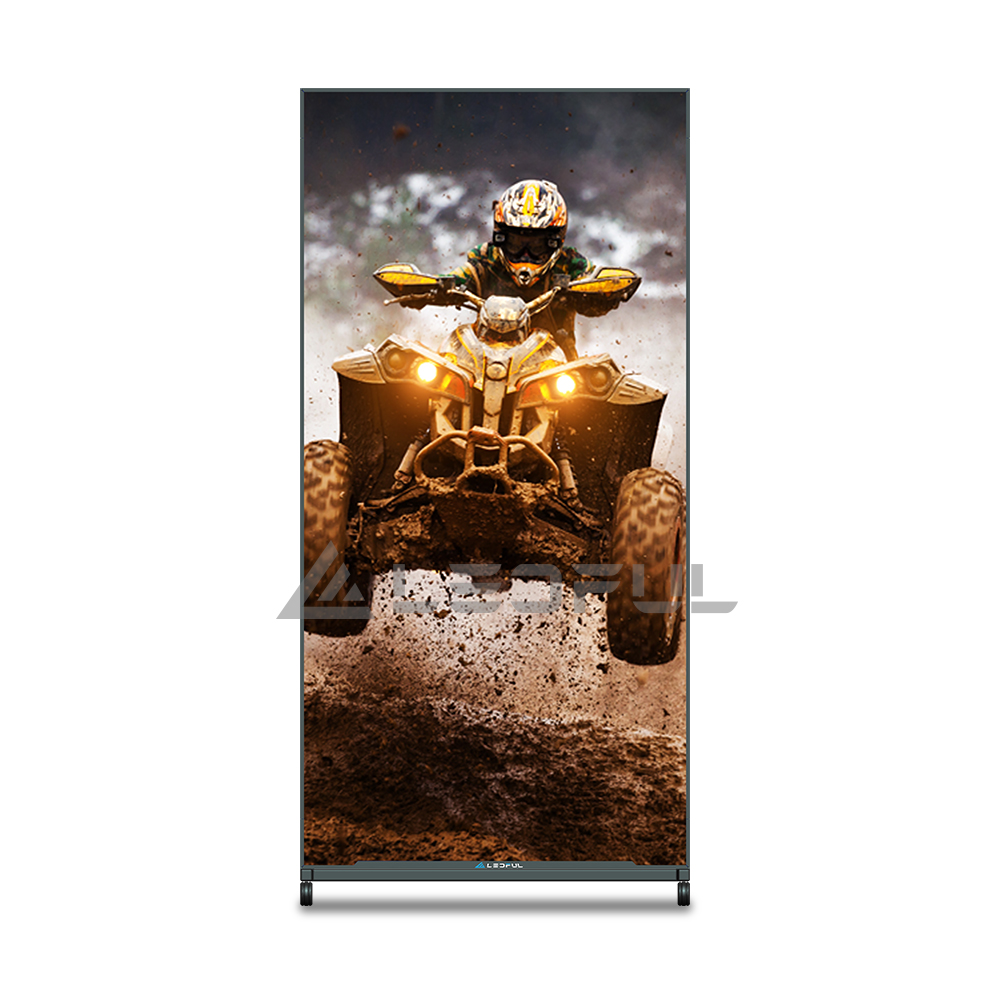

LPoster Series

High Refresh Full Color Indoor P1.8 LED Poster Frame

X Series

Easy Installation Flexible Stage Indoor P2.8 LED Display Screens

Our Company


Who We Are

  LEDFUL founded in 2008. Total 209 employees in LEDFUL. 3~5 years warranty on LED screen. Exported to 83 countries and regions. Top reliable LED display manufacturer. Over 5,600 successful projects in the world. R&D staff occupied 10% of all the employees. CE, RoHS, FCC, CCC, ISO9001:2008 standard.

Top LED Display Manufacturer


Why Choose LEDFUL

    Deep Customized & OEM. Listen to you, think more for you. Lifelong maintenance with reasonable price. Clear cost initially to save your time and money. Provide with innovative and satisfying products. Excellent product quality, quick and professional services. Always ready for your any change on LED display details. Recommend the best proper solution for your LED project. Catch things what you missed before LED display production. Take good care of each detail for your products, packages,shipping.


Best Balance of Quality & Price

Certifications

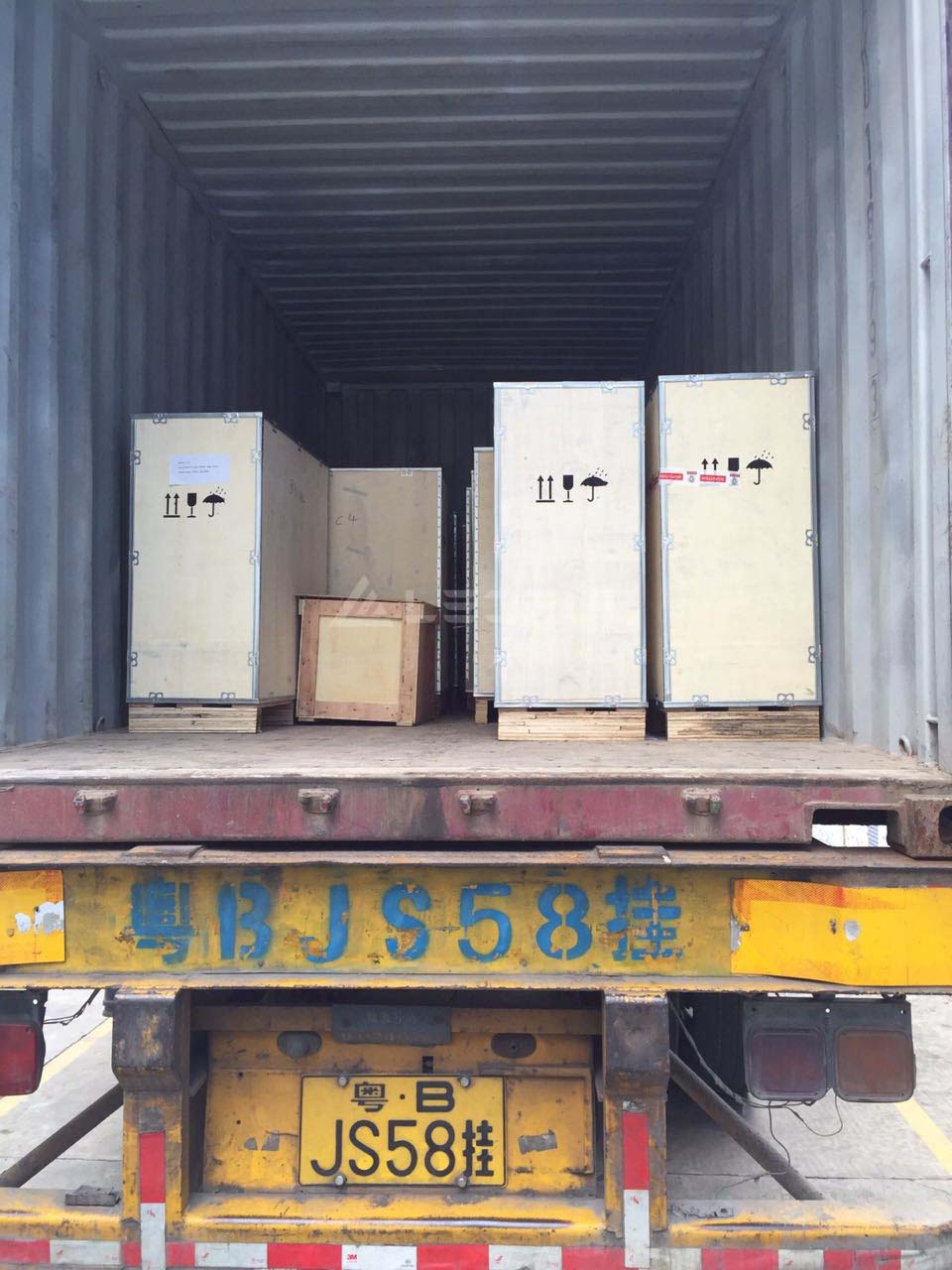

Packing & Delivery

Packaging
1.Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;
2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.

Shipping
1. By sea or by air;
2. Customer specified freight forwarder or negotiable mode of transport;
3. Delivery Time: 15-25 days for batch goods.

Plywood box
Flight case
Expandable Polyethylene
FAQ

Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer

Q2: What is the control system?
A: We use Nova control system.

Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
