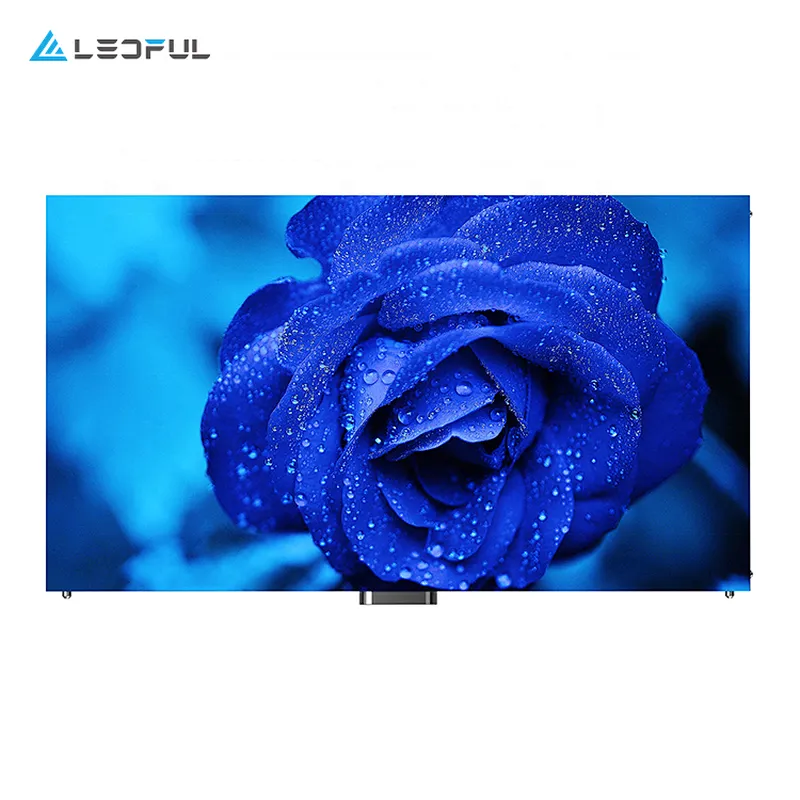

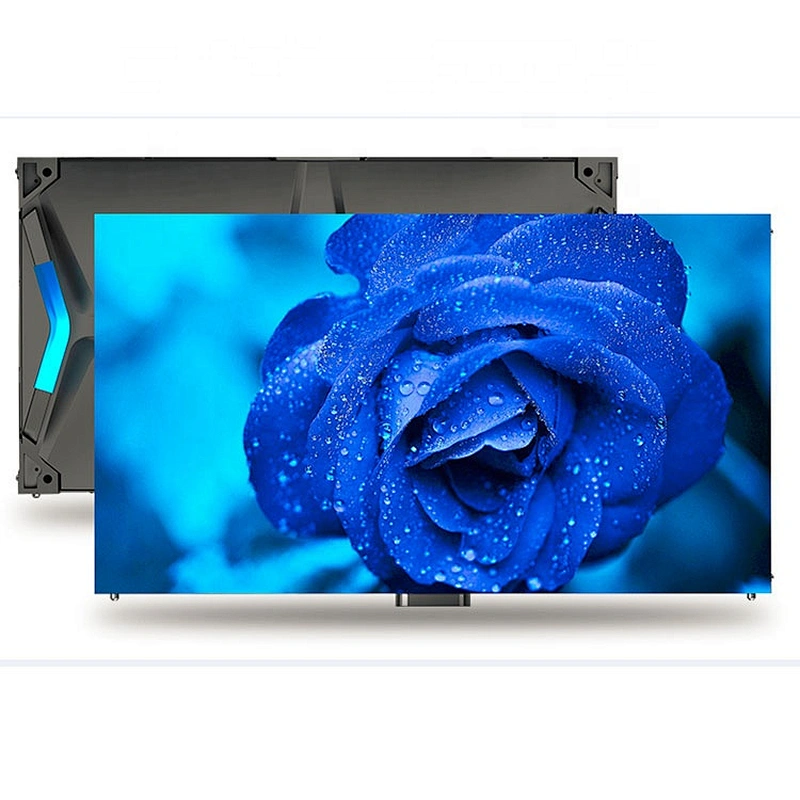

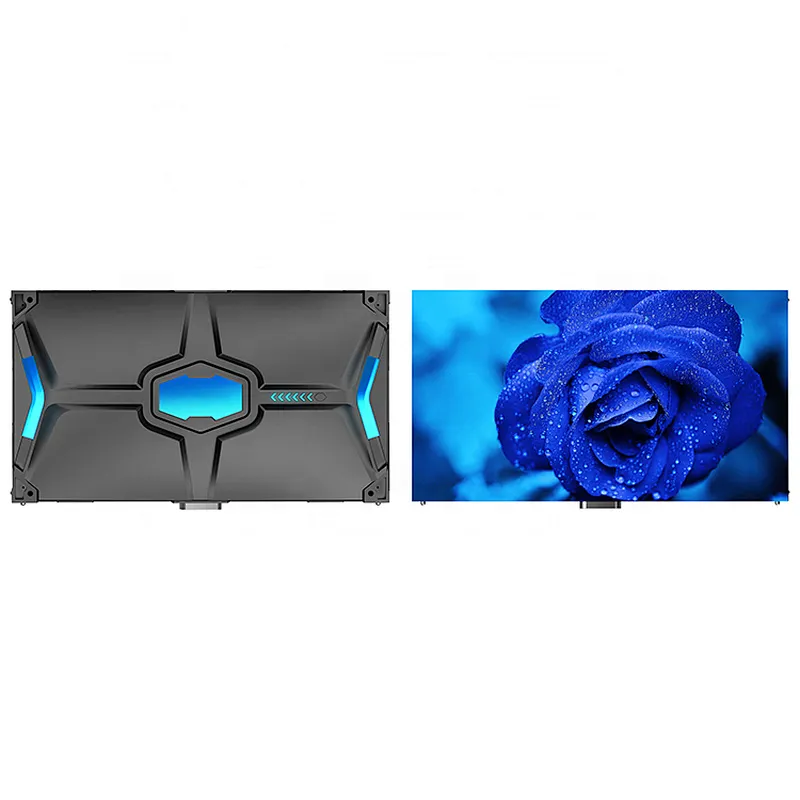

Front Service flexible magnet 600x337mm Indoor P1.2 LED Display Panels
Front Service flexible magnet 600x337mm Indoor P1.2 LED Display Panels
Front Service flexible magnet 600x337mm Indoor P1.2 LED Display Panels
Front Service flexible magnet 600x337mm Indoor P1.2 LED Display Panels
Front Service flexible magnet 600x337mm Indoor P1.2 LED Display Panels
Front Service flexible magnet 600x337mm Indoor P1.2 LED Display Panels
Front Service flexible magnet 600x337mm Indoor P1.2 LED Display Panels

Front Service flexible magnet 600x337mm Indoor P1.2 LED Display Panels

  • Minimum order quantity:1
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: U Series

    Product Description

    • Warranty:3 Years
    • LED chip:Epistar
    • Certificate:CCC CE ROHS ISO
    • Life span:100000 Hours
    • Cabinet material:Die-casting Aluminum
    • Brightness:1000cd/sqm
    • Service Access:Front
    • Control system:Novastar
    • Screen Dimension:Customized
    • Refresh rate:3840Hz

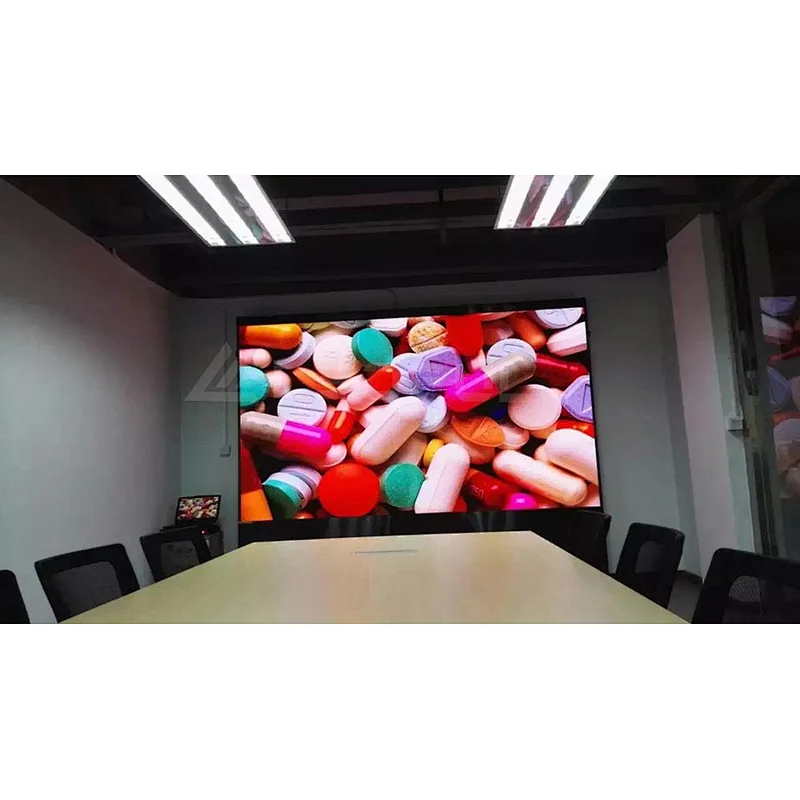

    • Application:Indoor conference
    • Color:Full color
    • Panel Size:600*337.5mm
    • Pixel Pitch:1.2
    • Place of Origin:Guangdong, China (Mainland)
    • Model Number:U1.2
    • Brand Name:LEDFUL
    Product Description



    U Series

    Fine Pitch LED Display




    U1.2 | U1.4 | U1.5 | U1.8

    ★Front maintenance & Front Installation
    ★High Refresh and High Grey Scale
    ★Cabinet Dimension Ratio 16:9
    ★Dual Backup Power & Data
    ★Ultra Light and Ultra Thin
    ★Cable Free Connection





    Product Name
    U1.2
    Pixel Pitch(mm)
    1.25
    Pixel Matrix Per Sq.m
    640000
    Pixel Configuration
    SMD1010
    Brightness (nits)
    ≥1000
    Scan
    1/27
    Module Dimension
    200x168.75mm / 0.66x0.55ft
    Cabinet Resolution
    480x270
    Cabinet Dimension
    600x337.5x80mm / 1.97x1.11x0.26ft
    Cabinet Weight
    7.8kg /17.2Ib ( Die-casting Aluminum)
    Service Access
    Front
    Refresh Rate (HZ)
    ≥3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    Power Con. (Max / Avg)
    700 / 200 w/sq.m
    IP Rate
    IP41
    Input Voltage (AC)
    110V / 240V
    Products Show

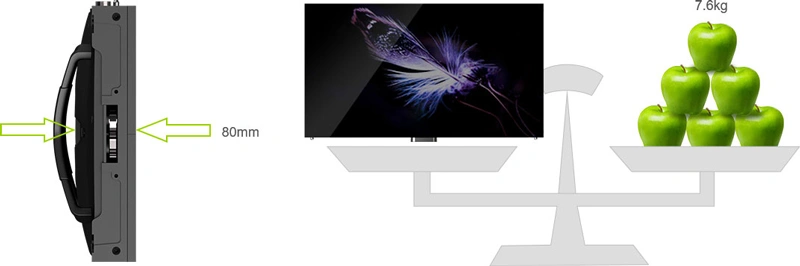

    Ultra-light and Ultra-thin

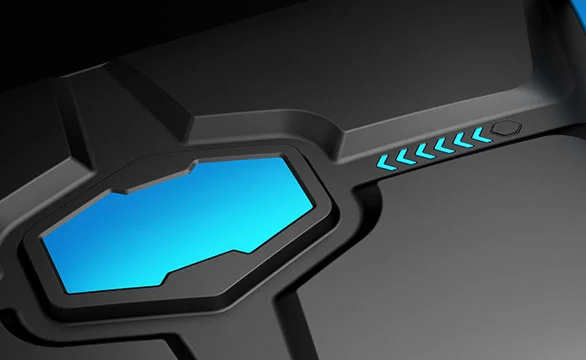

    Excellence Appearance

    Combing aesthetics and ergonomic design, it has came out with a hard, smooth molding the die-casting aluminum material has provided the excellent quality, it featured the unique cabinet ratio design, every detail has its excellent performance.




    Worked every details just for amazing experience

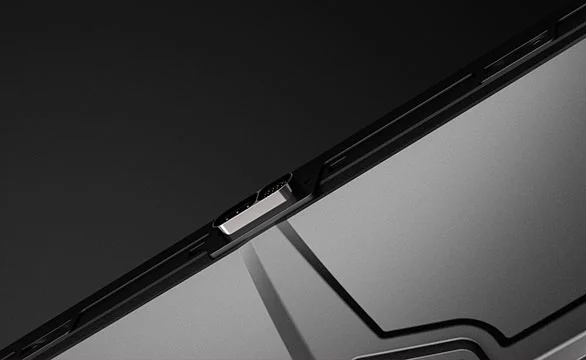

    Cable free connection make easier front installation

    Alignment hole, Locating pin, Precisely seamless

    Anti-skid handle easier for installation and transit

    Modular die casting aluminum provides perfect flatness

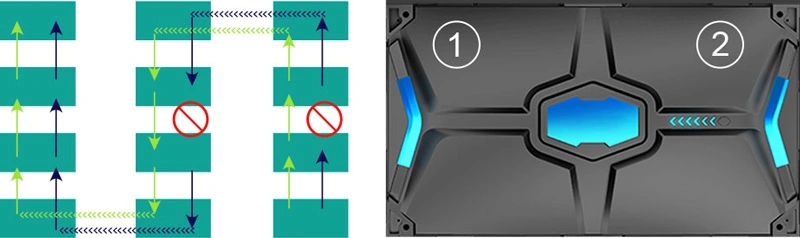

    Dual Backup Interface |Challenging All Possibilities

    Supporting Dual Control system, Dual Power Supply Backup, each unit cabinet control module, automatic detection of the two input signal integrity, when the whole screen signal break, the backup signal from another automatic access, Automatically Switch the picture in an LED Screen when it occurs any problem to make sure a stable and reliable image.

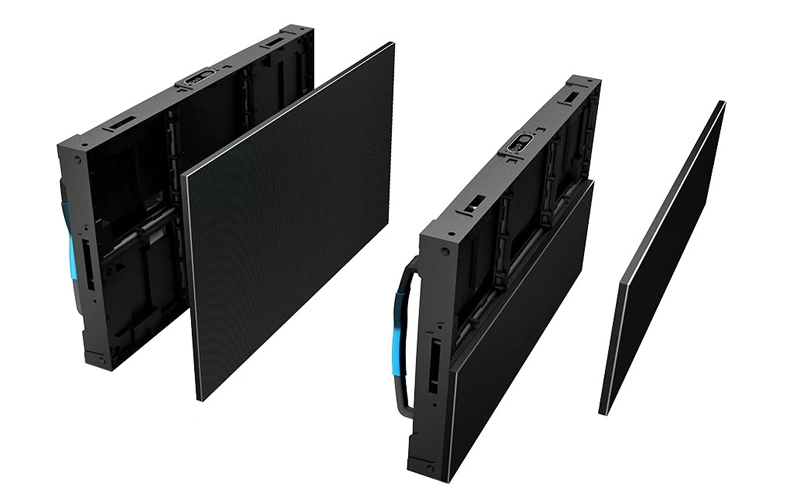

    Front Maintenance | Front Installation

    The U series LED modules, receiver card, power supply are all front maintenance, cabinet with front installation holes has fully described the strength of its light weight, meet the needs of small space or where the needs of the cabinet thickness, enhanced the vision of the space as well as its visionary effect. It allows for easy maintenance, saving time and labor on site.

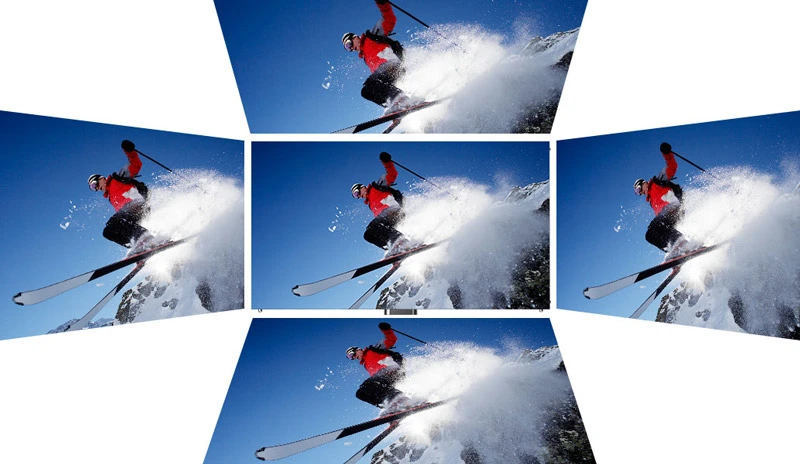

    Ultra Wide Viewing Angle

    Both 160° from horizontal & vertical for the viewing angle. Seeing from five directions, it would be still the natural and clear image in an LED display.

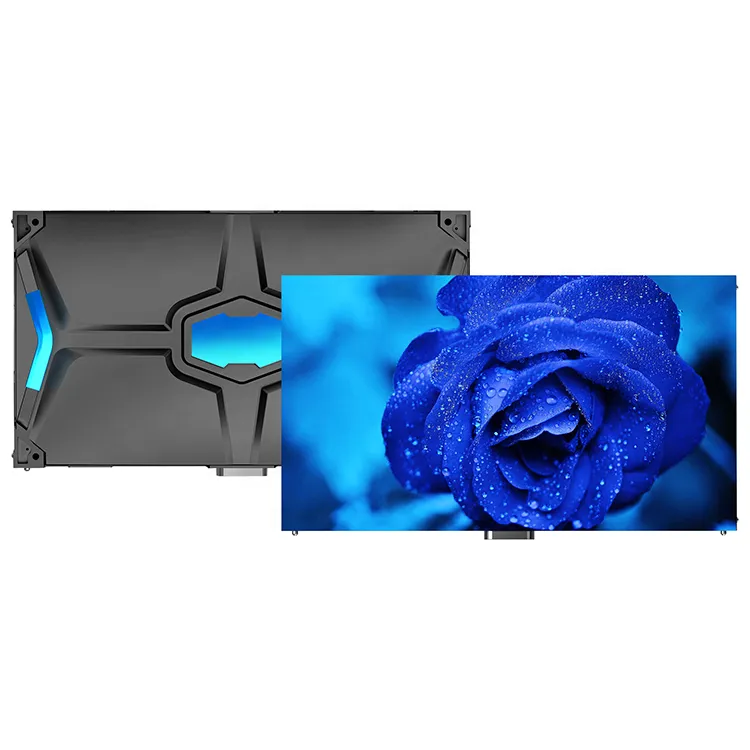

    Ultra High Definition

    It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.

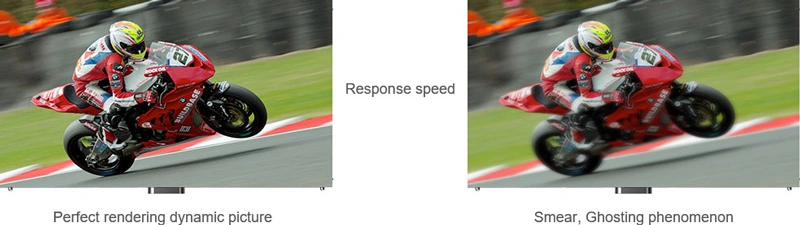

    Ultra Fast Response

    The response speed exceeds the response limit of the naked eyes, while playing the high speed dynamic images in an LED Screen, it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

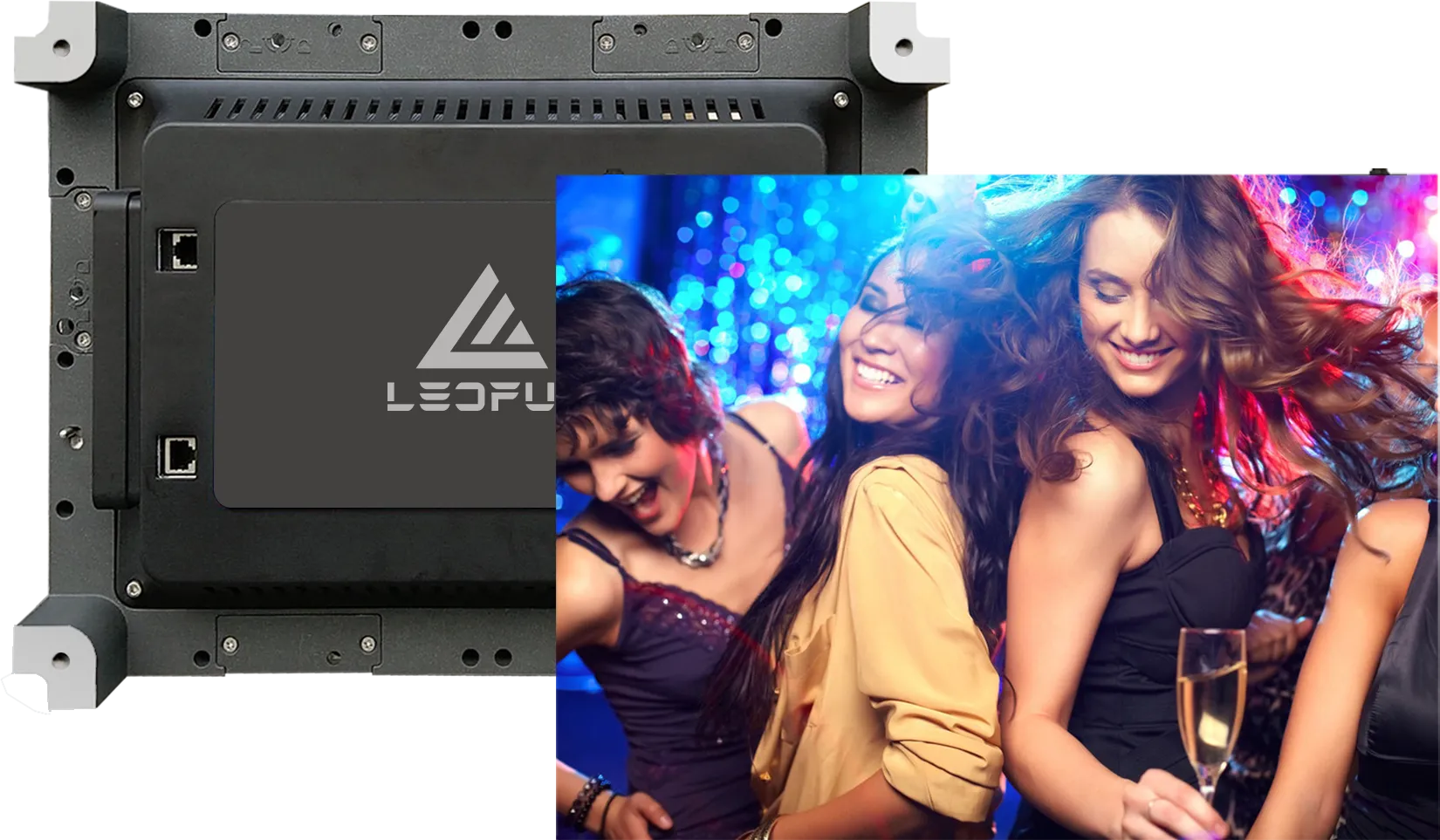

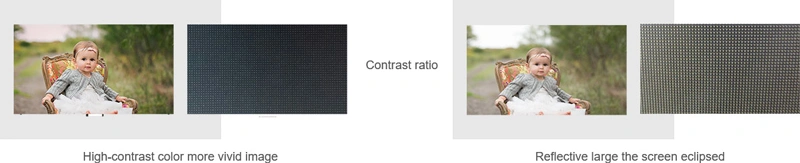

    High Contrast Ratio

    High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance when works on the color and has very good contrast.

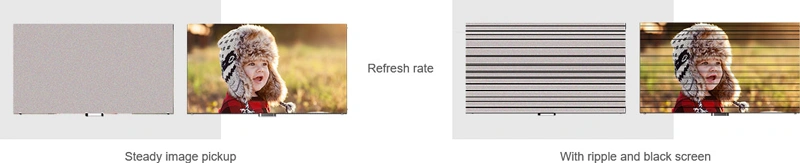

    High Refresh Rate

    It could be reach 3840HZ.

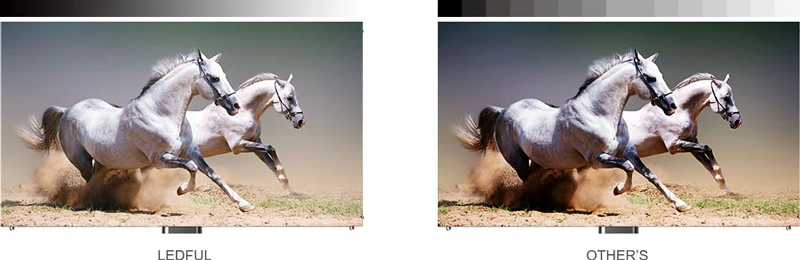

    16 bit Grey Scale

    It has almost the perfect gray scale and gives true color of the images, there will have no data loss and you could see every details clearly.

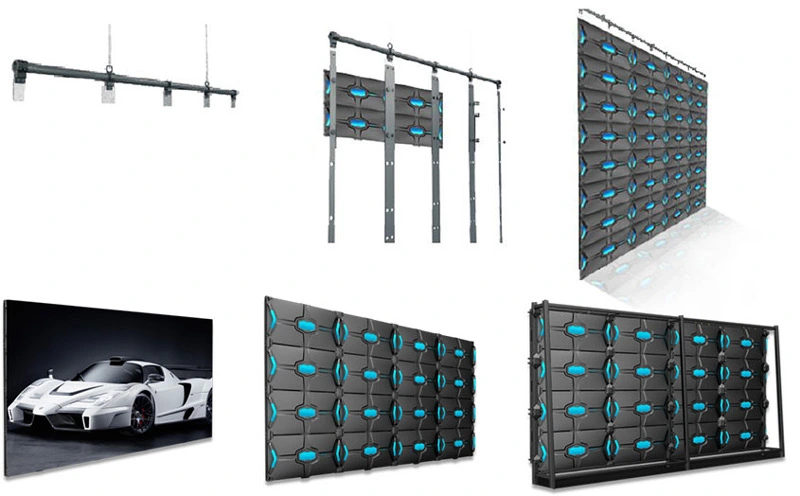

    Installation easier and faster

    HD LED advertising: almost the perfect gray scale and gives true color of the images

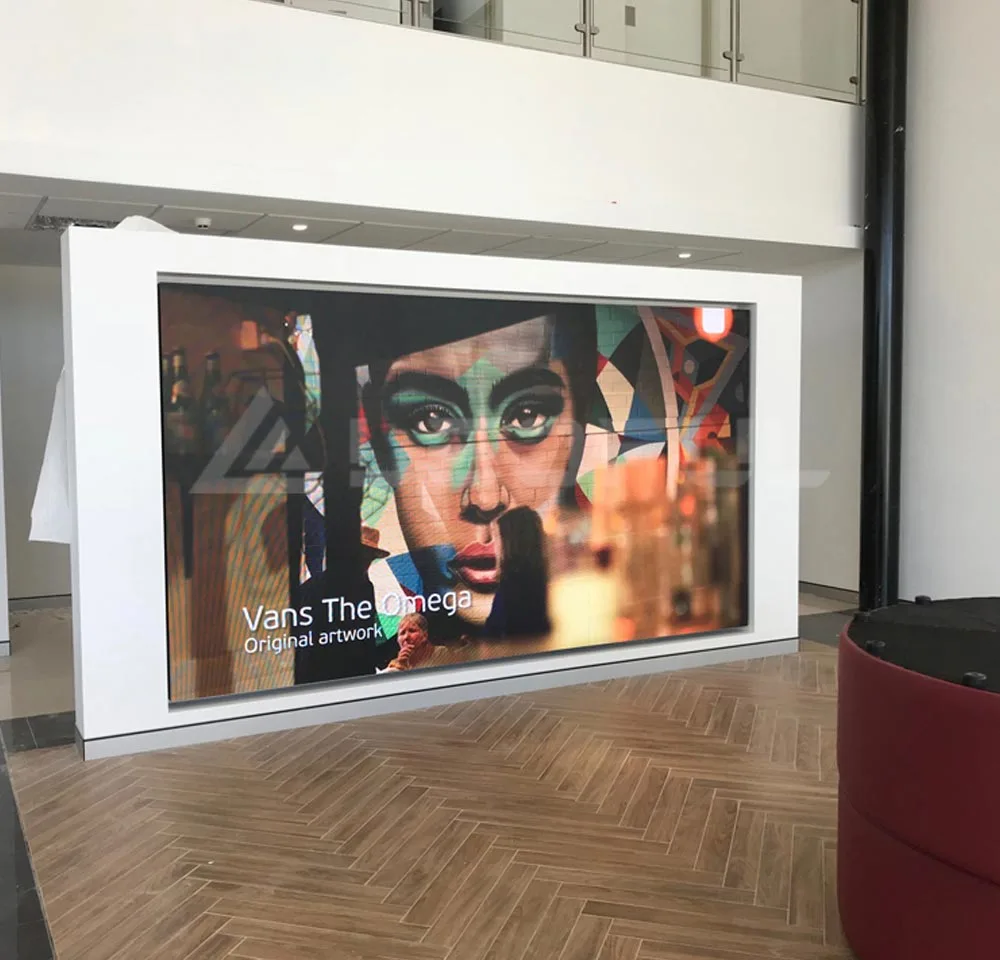

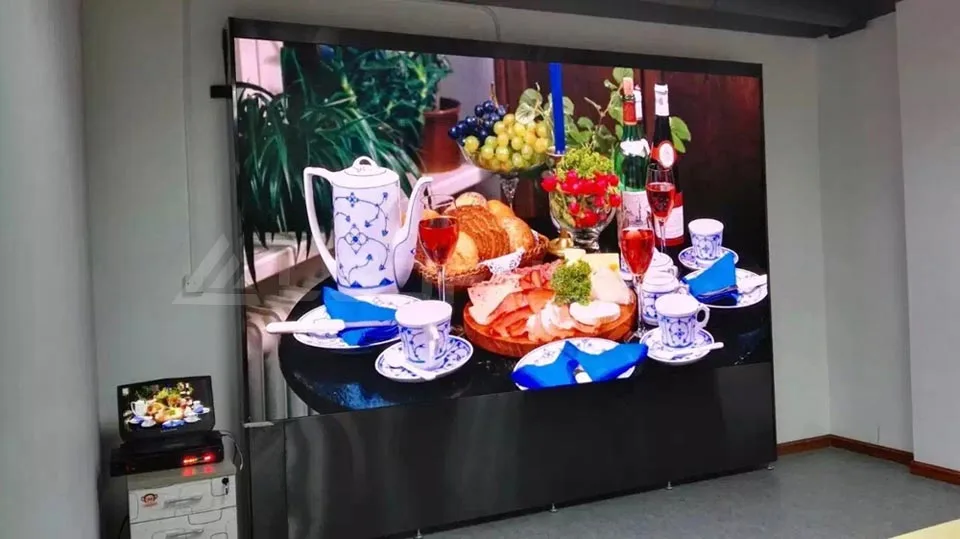

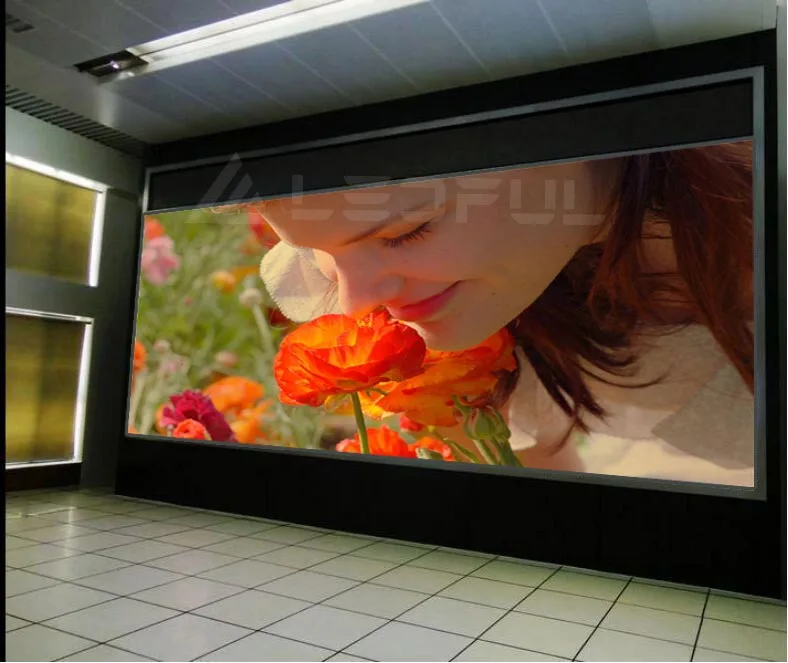

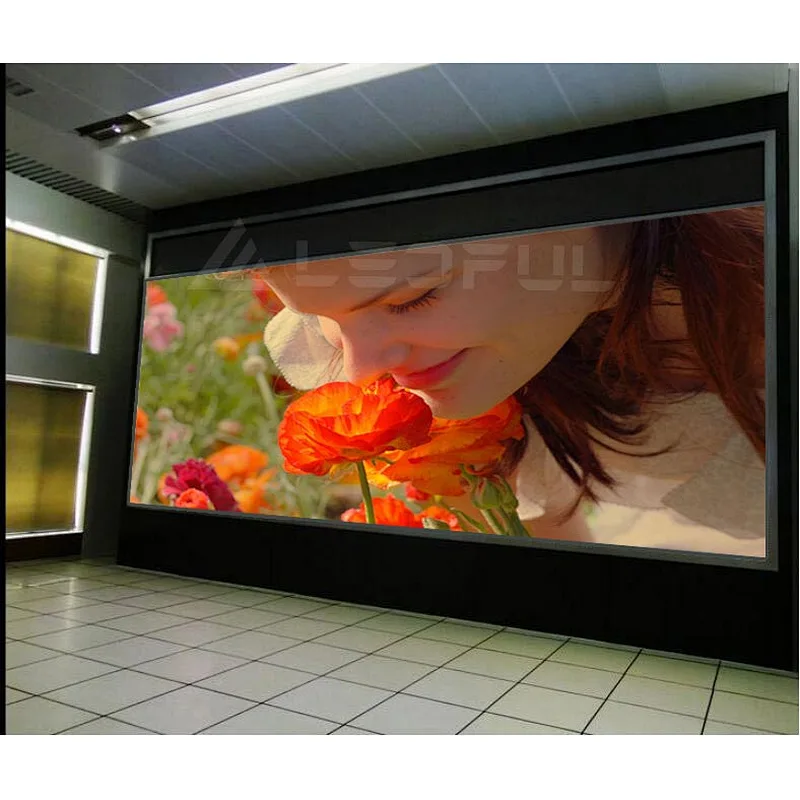

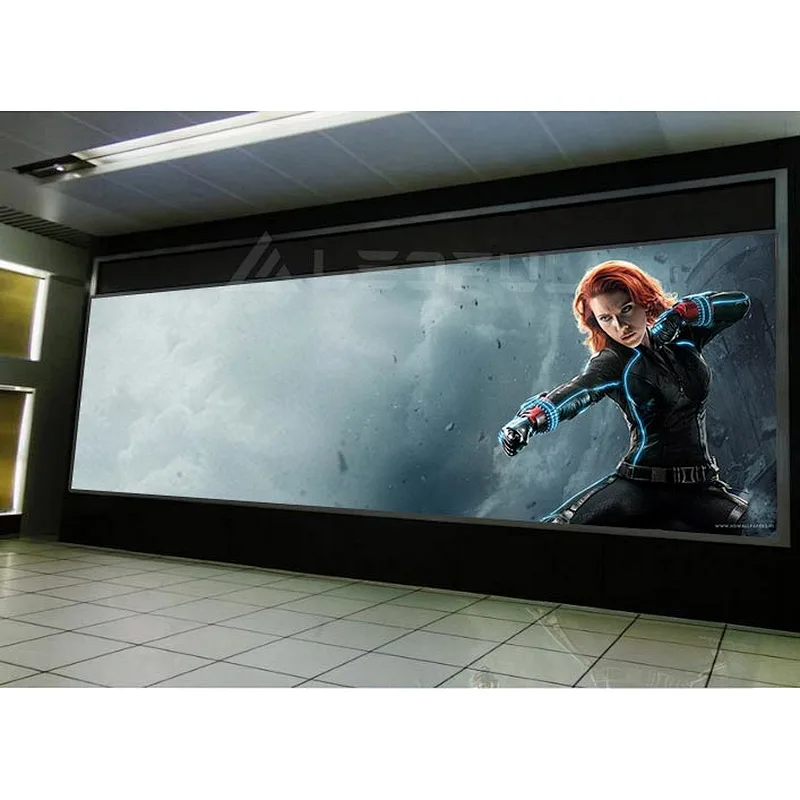

    Applications
    Our Company

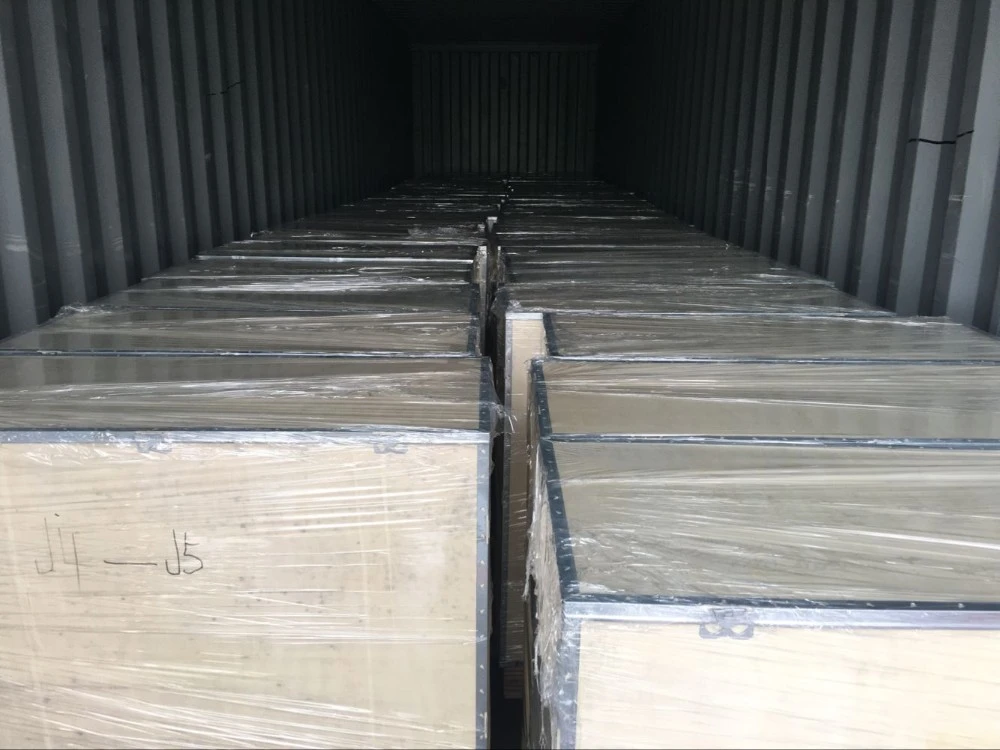

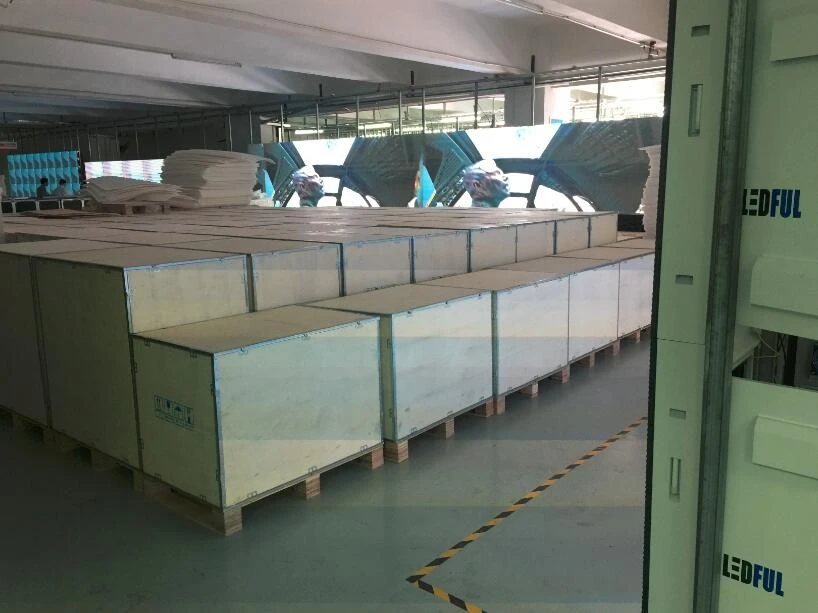

    Packing & Delivery

    Packaging

    1.Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;

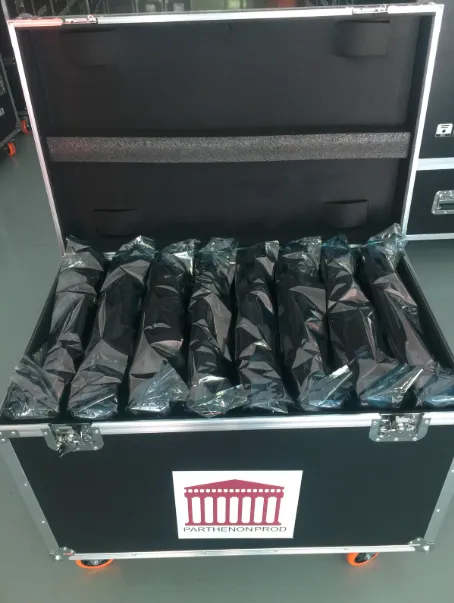

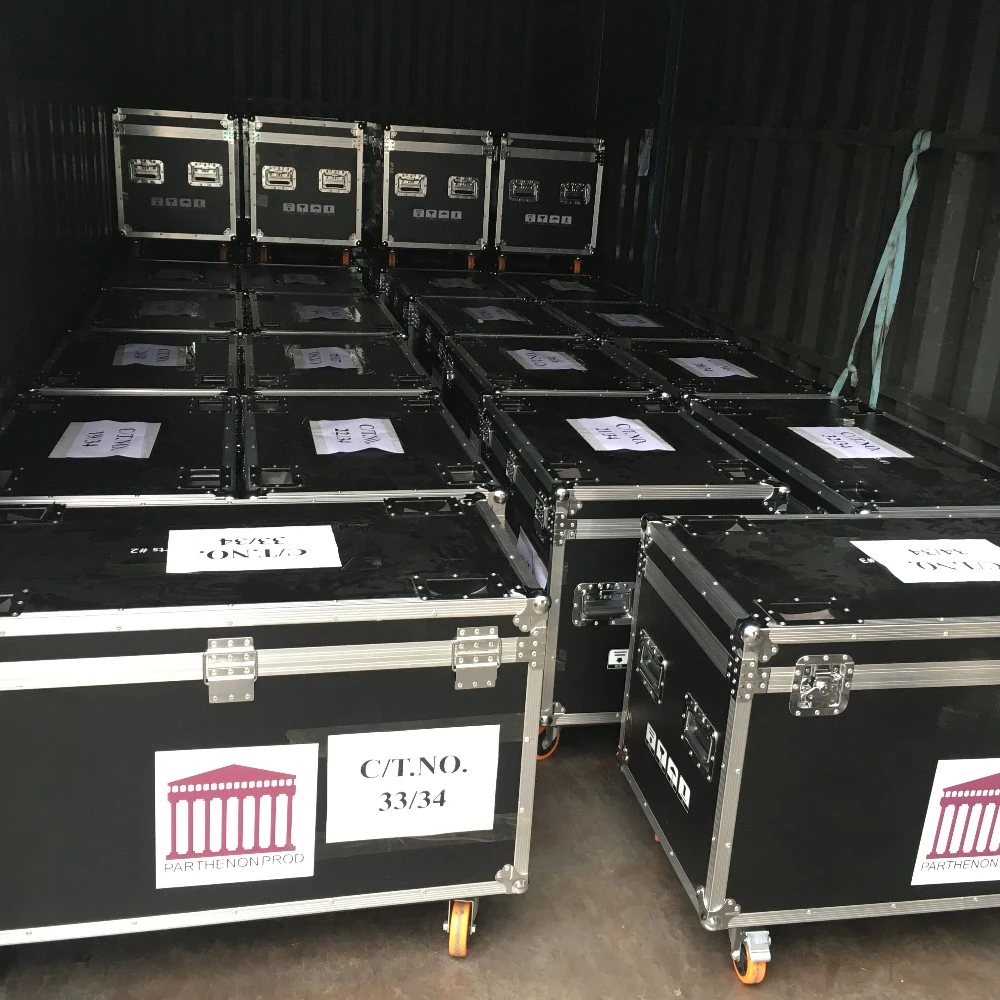

    2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.


    Shipping
    1. By sea or by air;
    2. Customer specified freight forwarder or negotiable mode of transport;
    3. Delivery Time: 15-25 days for batch goods.




    Our Service

    1)Reply your inquiry in 24 working hours.
    2)Customized design is available ,OEM & ODM are welcomed.
    3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
    4)Guidance service: We can guide on line if customers have questions about the installation and usage.
    For large project, we provide your engineer free training, or our engineer can go to customer's country for on-site guidance.
    5) Warranty period: 3-5 years after shipment.

    FAQ

    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2: What is the control system?
    A: We use Nova control system.

    Q3. How about your delivery time?
    A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q4. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q5: How can you ensure your led display product quality?
    A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
