Combing aesthetics and ergonomic design, it has came out with a hard, smooth molding the die-casting aluminum material has provided the excellent quality, it featured the unique cabinet ratio design, every detail has its excellent performance.
- Usage:Indoor
- Display Function:Video
- Warranty:3 Years
- Certificate:CCC CE ROHS ISO

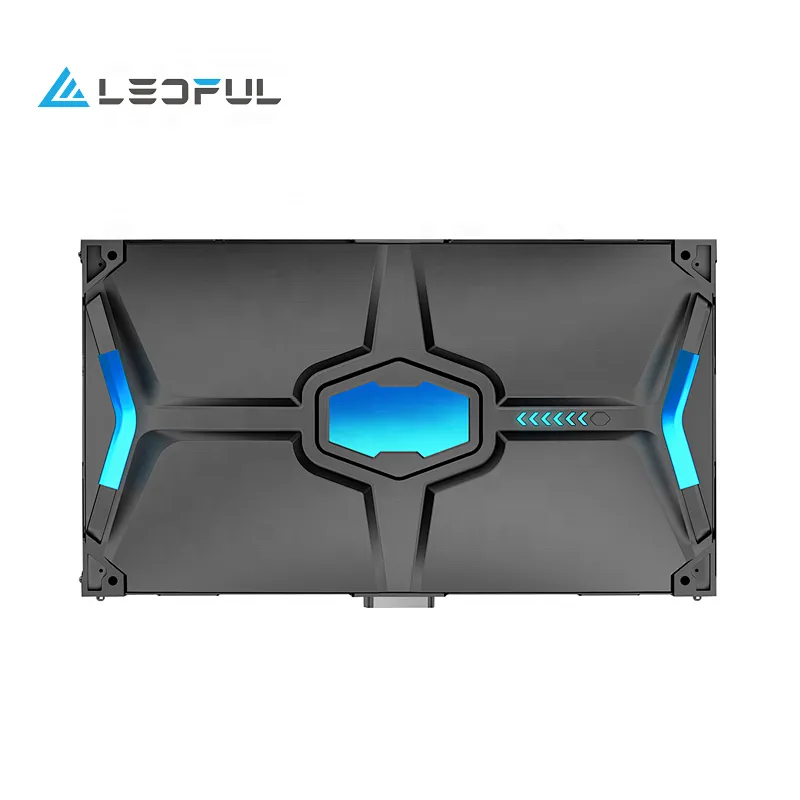

- Cabinet material:Die-casting Aluminum
- Service Access:Front
- LED chip:Epistar
- Life span:100000 Hours
- Screen Dimension:Customized
- Refresh Rate (HZ):≥3840
- Application:Indoor Small Pitch
- Color:Full Color
- Panel Size:600x337.5mm
- Pixel Pitch:1.5mm
- Place of Origin:Guangdong, China (Mainland)
- Model Number:U1.5
- Brand Name:LEDFUL
Product Description
U Series
Fine Pitch LED Display
Parameter | ||||||||
Value | U1.2 | U1.4 | U1.5 | U1.8 | ||||
Pixel Pitch(mm) | 1.25 | 1.44 | 1.56 | 1.875 | ||||
Pixel Matrix Per Sq.m | 640000 | 480711 | 409600 | 284444 | ||||
Pixel Configuration | SMD1010 | SMD1010 | SMD1010 | SMD1010 | ||||
Brightness (nits) | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ||||
Scan | 1/27 | 1/30 | 1/27 | 1/30 | ||||
Module Dimension | 200x168.75mm / 0.66x0.55ft | 300x168.75mm / 0.98x0.55ft | 200x168.75mm / 0.66x0.55ft | 300x168.75mm / 0.98x0.55ft | ||||
Cabinet Resolution | 480x270 | 417x234 | 385x216 | 320x90 | ||||
Cabinet Dimension | 600x337.5x80mm / 1.97x1.11x0.26ft | |||||||
Cabinet Weight | 7.8kg /17.2Ib ( Die-casting Aluminum) | |||||||
Service Access | Front | |||||||
Refresh Rate (HZ) | ≥3840 | |||||||
Grey Scale (bit) | 16 | |||||||
Viewing Angle (H/V) | 160 / 160 | |||||||
Power Con. (Max / Avg) | 700 / 200 w/sq.m | |||||||
IP Rate | IP41 | |||||||
Input Voltage (AC) | 110V / 240V | |||||||
Products Show
U1.2 | U1.4 | U1.5 | U1.8
★Front maintenance & Front Installation
★High Refresh and High Grey Scale
★Cabinet Dimension Ratio 16:9
★Dual Backup Power & Data
★Ultra Light and Ultra Thin
★Cable FreeConnection

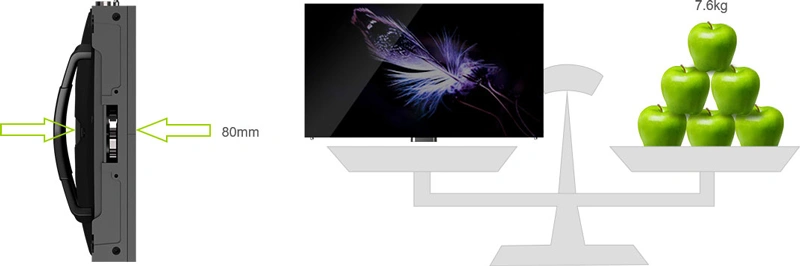

Ultra-light and Ultra-thin

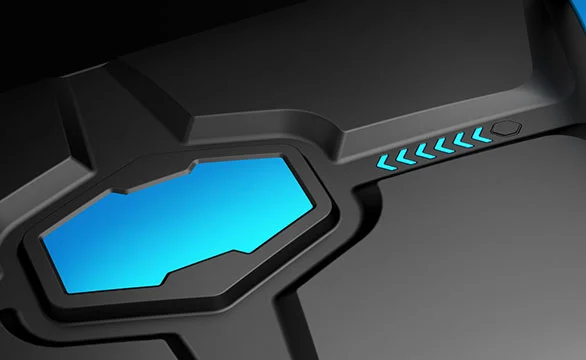

Excellence Appearance
Worked every details just for amazing experience

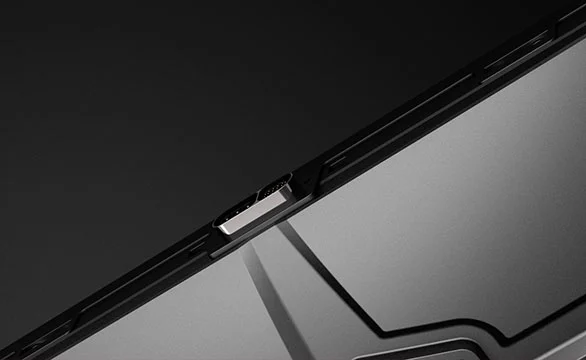

Cable free connection make easier front installation
Alignment hole, Locating pin, Precisely seamless
Anti-skid handle easier for installation and transit
Modulardie casting aluminum provides perfect flatness

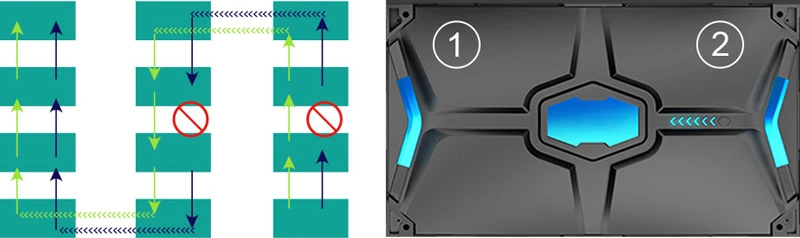

Dual Backup Interface |Challenging All Possibilities
Supporting Dual Control system, Dual Power Supply Backup, each unit cabinet control module, automatic detection of the two input signal integrity

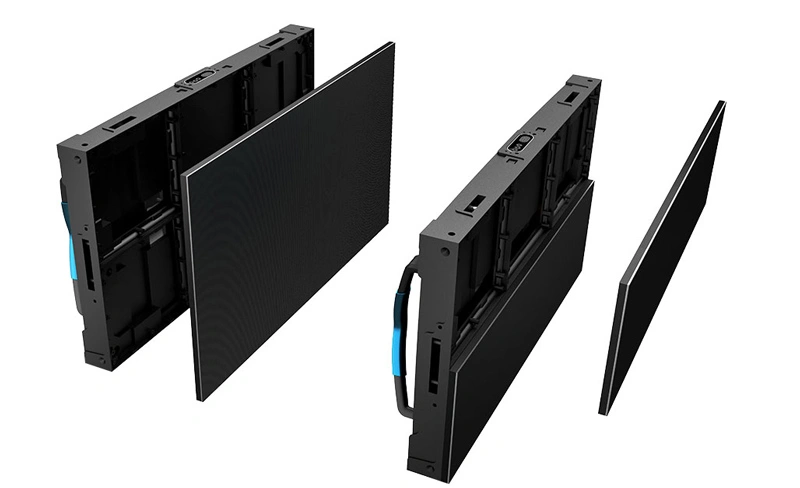

Front Maintenance | Front Installation
The U series LED modules, receiver card, power supply are all front maintenance
Ultra High Definition
It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.

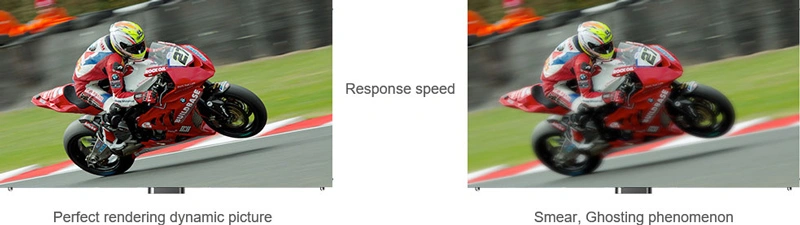

Ultra Fast Response
The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
there will be no ghosting&twisting

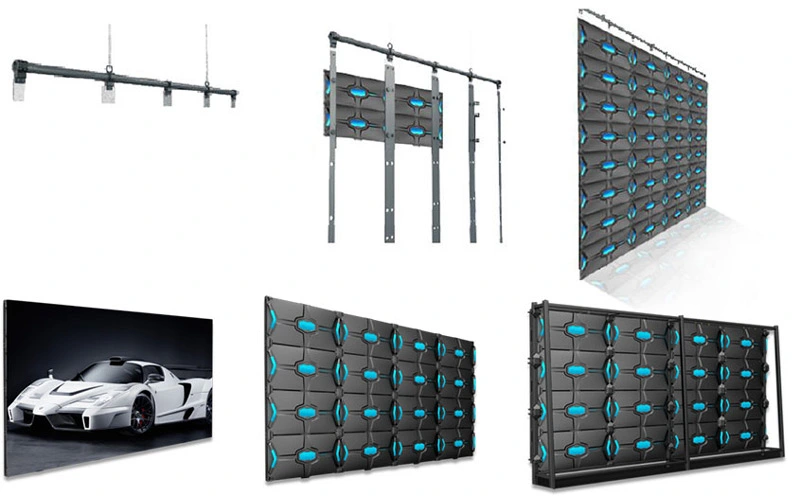

Installationeasier and faster

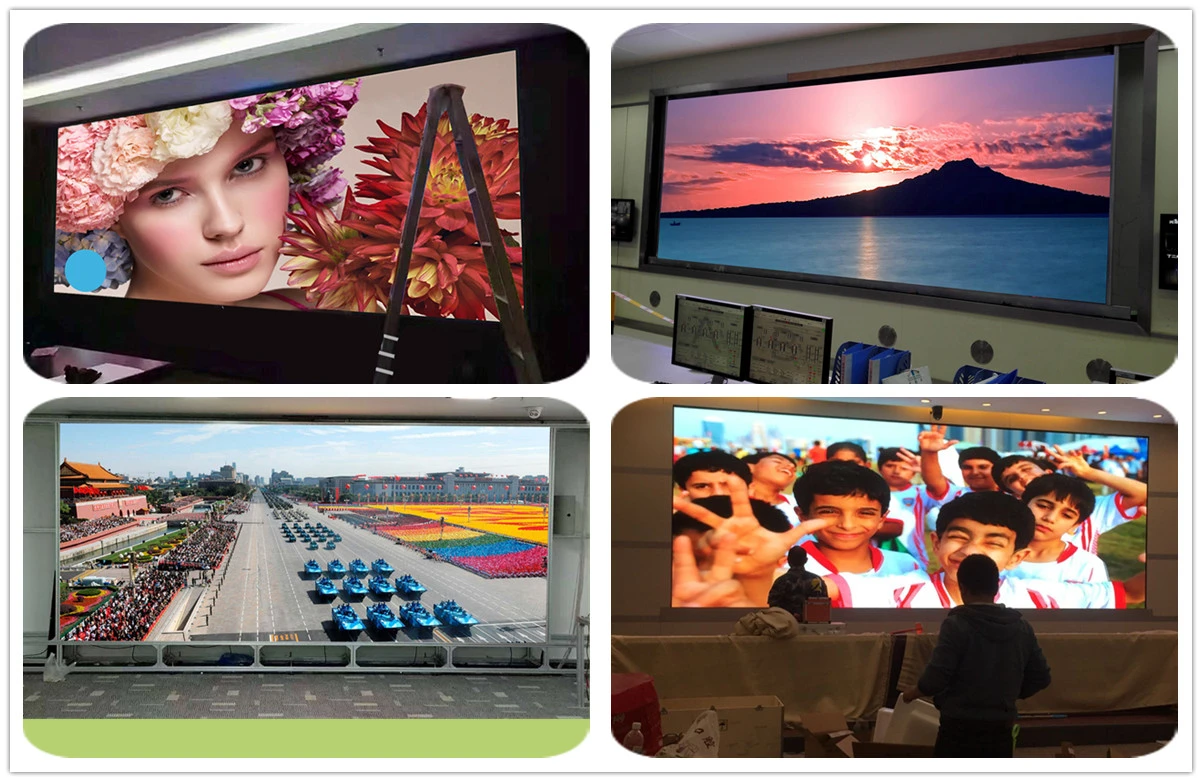

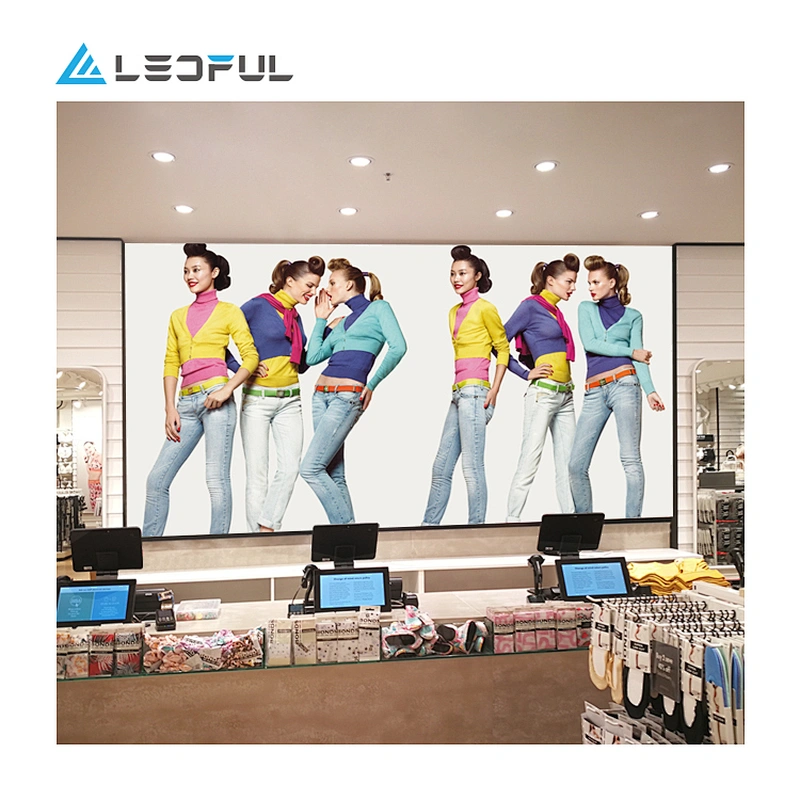

HD LED advertising: almost the perfect gray scale and gives true color of the images
More Products

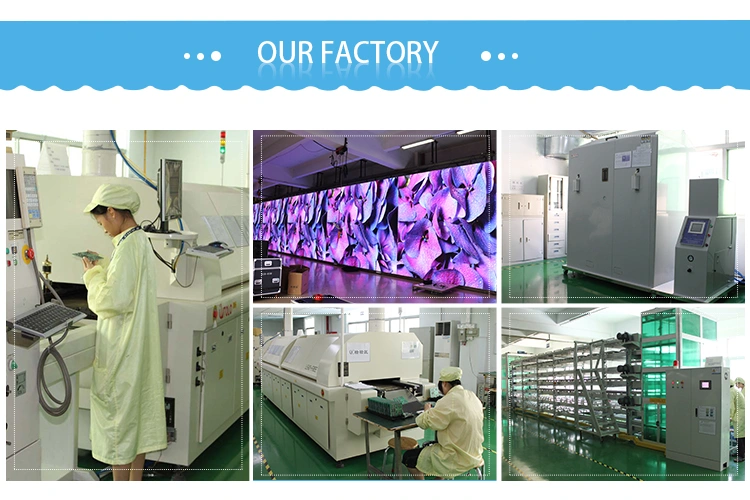

Our Company
>>>>>Why Choose LEDFUL
▲Deep Customized & OEM
▲Listen to you, think more for you.
▲Lifelong maintenance with reasonable price
▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products
▲Excellent product quality, quick and professional services
▲Always ready for your any change on LED display details.
▲Recommend the best proper solution for your LED project.
▲Catch things what you missed before LED display production.
▲Take good care of each detail for your products, packages,shipping
▲Listen to you, think more for you.
▲Lifelong maintenance with reasonable price
▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products
▲Excellent product quality, quick and professional services
▲Always ready for your any change on LED display details.
▲Recommend the best proper solution for your LED project.
▲Catch things what you missed before LED display production.
▲Take good care of each detail for your products, packages,shipping
>>>>>Best Balance of Quality & Price
Certifications

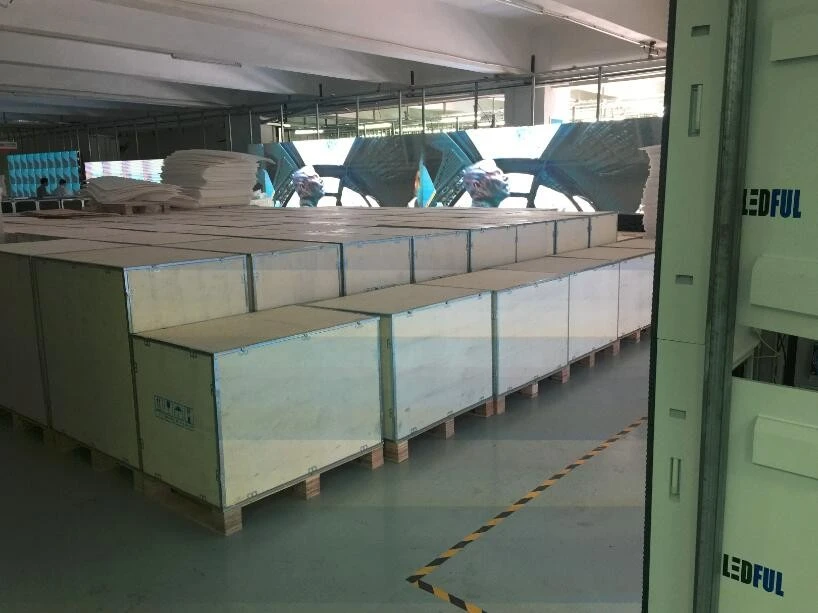

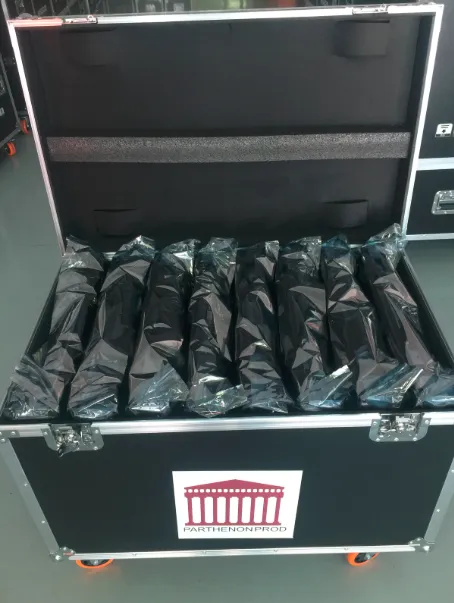

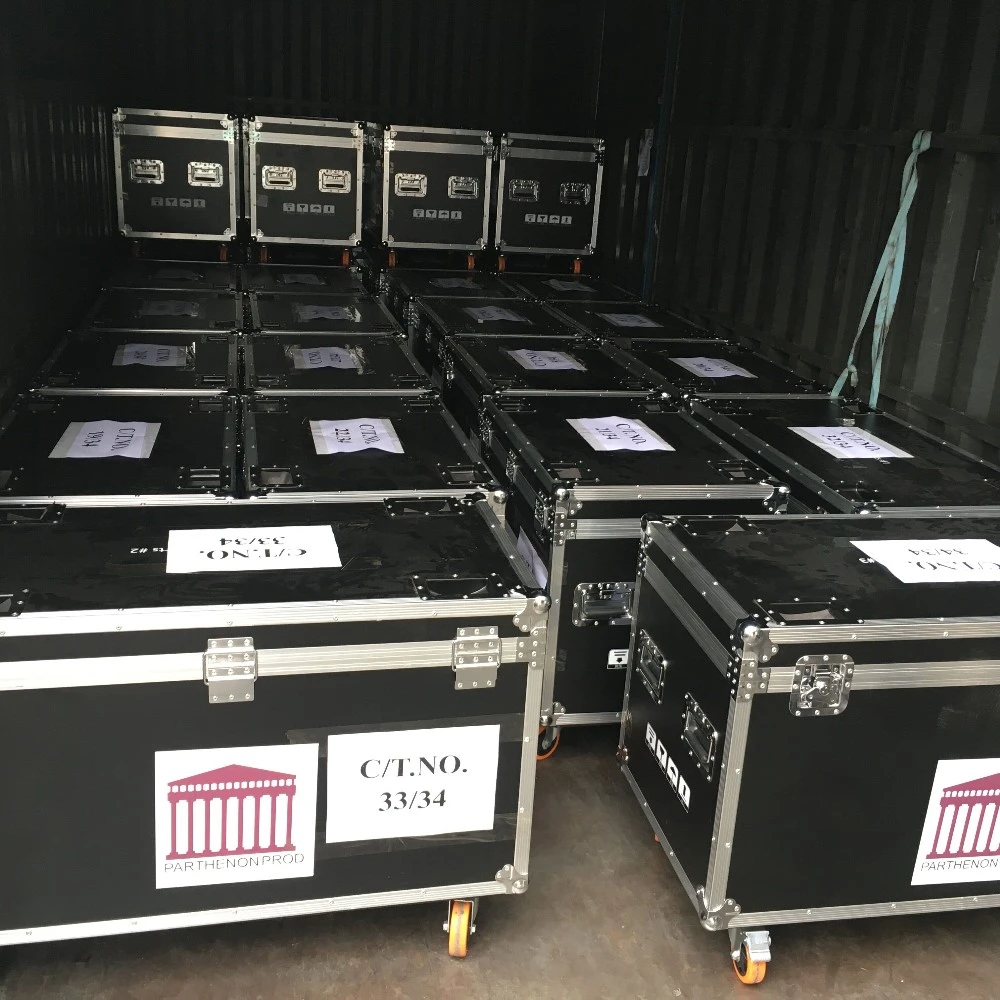

Packing & Delivery
