- Usage:Indoor
- Tube Chip Color:FULL COLOR
- Display Function:Video
- Application:Indoor Advertising
- Certificate:CE ROHS FCC ISO9001 CCC
- Brightness:1200cd/sqm
- Warranty:3~5 Years
- Power Supply:Meanwell
- IP rate:IP31
- Life span:100,000 Hours
- Place of Origin:CN;GUA
- Application:advertising
- Color:fullcolor
- Panel Size:960*960mm
- Pixel Pitch:4
- Model Number:IF4
- Brand Name:LEDFUL

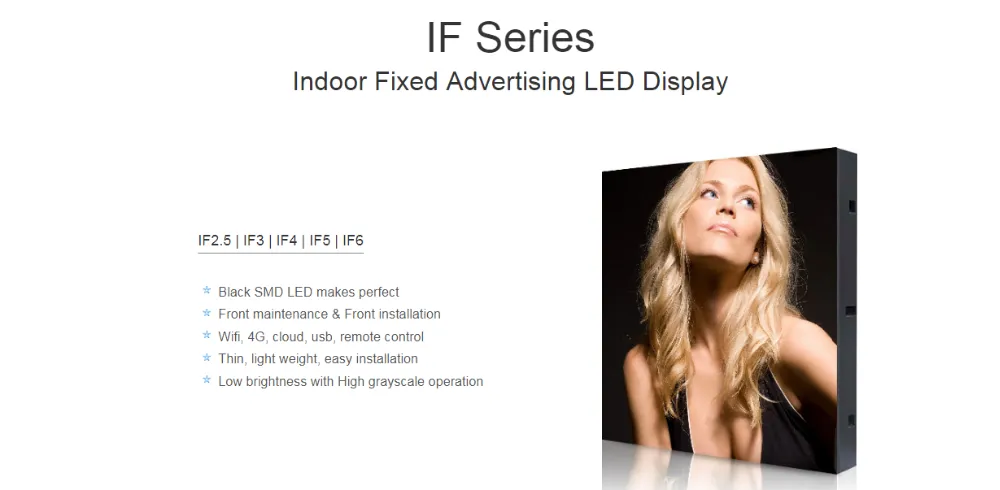

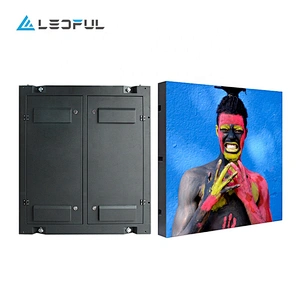

Product Description
Value | IF2.5 | IF2.5S | IF3 | IF4 | IF5 | IF6 | |||||
Pixel Pitch(mm) | 2.5 | 2.5 | 3 | 4 | 5 | 6 | |||||
Pixel Matrix Per Sq.m | 160000 | 160000 | 111111 | 62500 | 40000 | 27777 | |||||

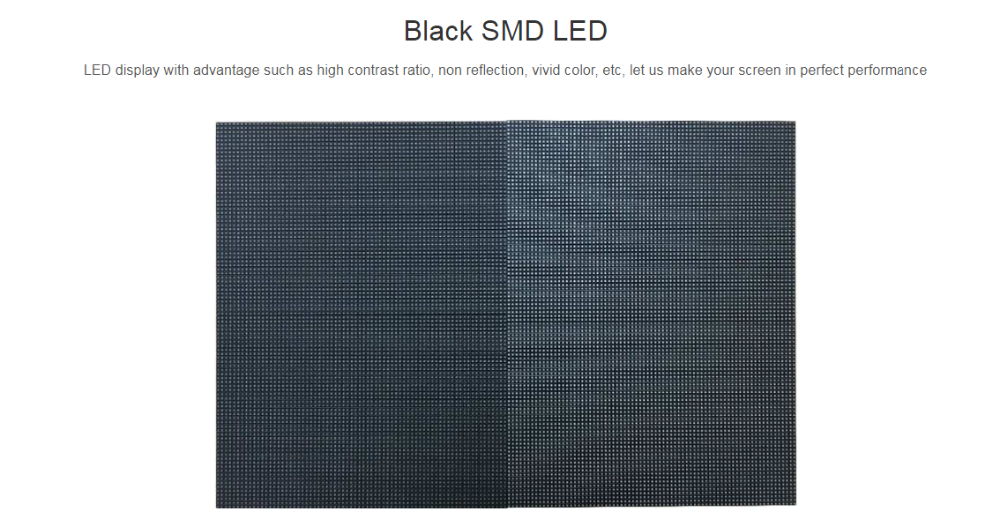

Pixel Configuration | SMD2121 | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD3528 | |||||
Brightness (nits) | 1000 | 1000 | 1200 | 1200 | 1200 | 1200 | |||||
Scan | 1/32 | 1/32 | 1/32 | 1/16 | 1/16 | 1/16 | |||||
Module Dimension | 160x160mm / 0.53x0.53ft | 320x160mm / 1.05x0.53ft | 192x192mm / 0.63x0.63ft | 256x128mm/ 0.84x0.42ft | 320x160mm / 1.05x0.53ft | 192x192mm / 0.63x0.63ft | |||||
Cabinet Dimension | 480x480mm / 1.57x1.57ft | 640x640mm / 2.1x2.1ft | 576x576mm / 1.89x1.89ft | 768x768mm / 2.52x2.52ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | |||||
Cabinet Resolution | 192x192 | 256x256 | 192x192 | 192x192 | 192x192 | 160x160 | |||||
Cabinet Weight | 7.6kg /17Ib ( Iron) | 13kg / 30Ib (Iron) | 11kg /24Ib (Iron) | 19.5kg /43 Ib ( Iron) | 29kg /64 Ib ( Iron) | 28.8kg/63.5Ib(Iron) | |||||
Power Con. (Max / Avg) | 600 / 150 w/sq.m | 600 / 150 w/sq.m | 550 / 138 w/sq.m | 600/ 150 w/sq.m | 450/ 120 w/sq.m | 350/ 100 w/sq.m | |||||
Refresh Rate (HZ) | 3840 | 3840 | 3840 | 1920 | 1920 | 1920 | |||||

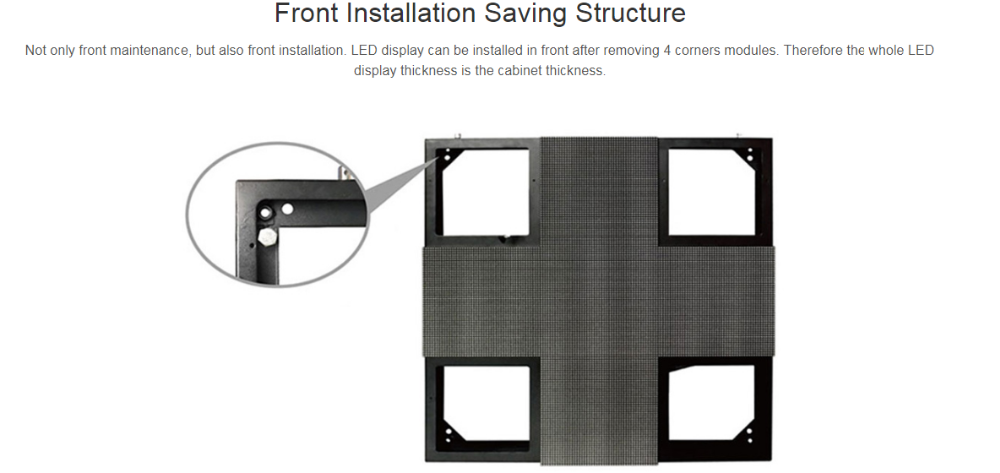

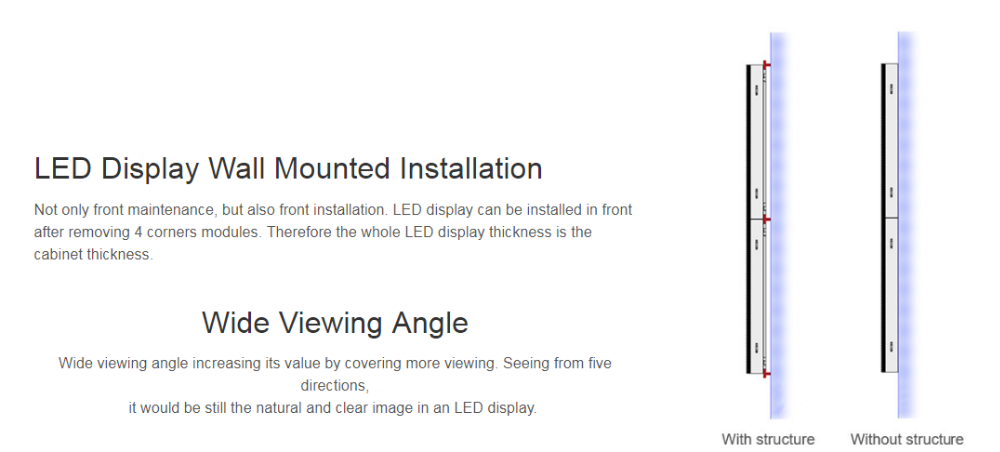

Service Access | Front / Rear | ||||||||||

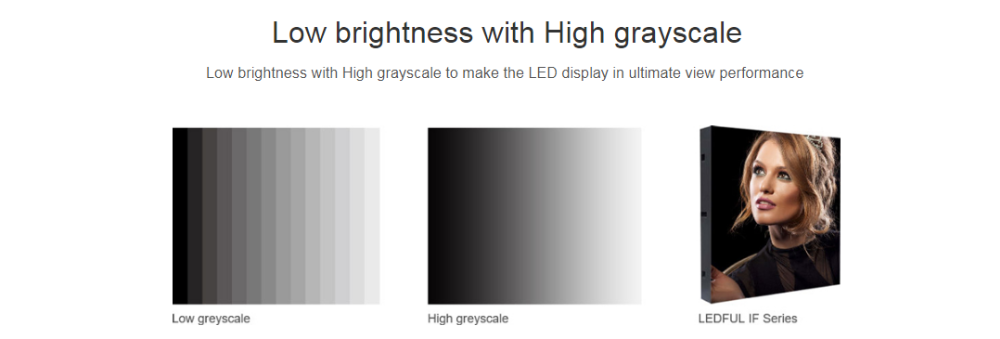

Grey Scale (bit) | 16 | ||||||||||
Viewing Angle (H/V) | 160 / 160 | ||||||||||
IP Rate | IP31 | ||||||||||
Input Voltage (AC) | 110V / 240V | ||||||||||

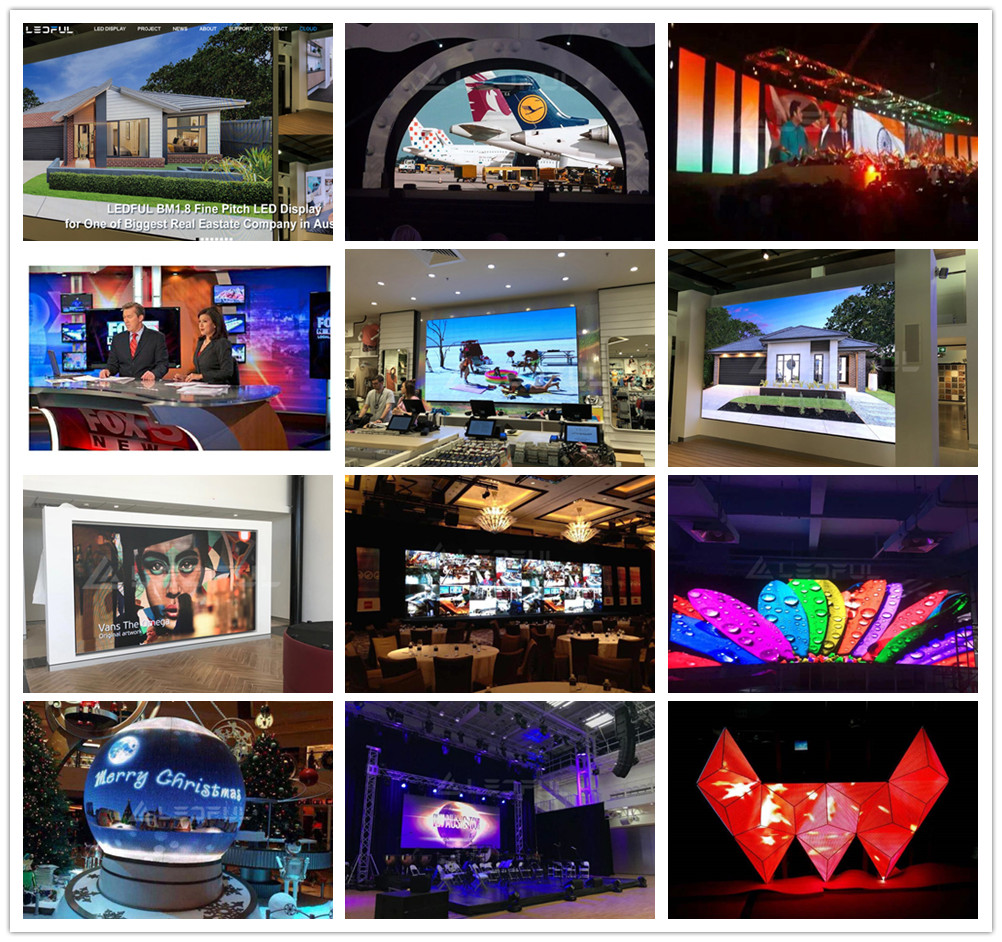

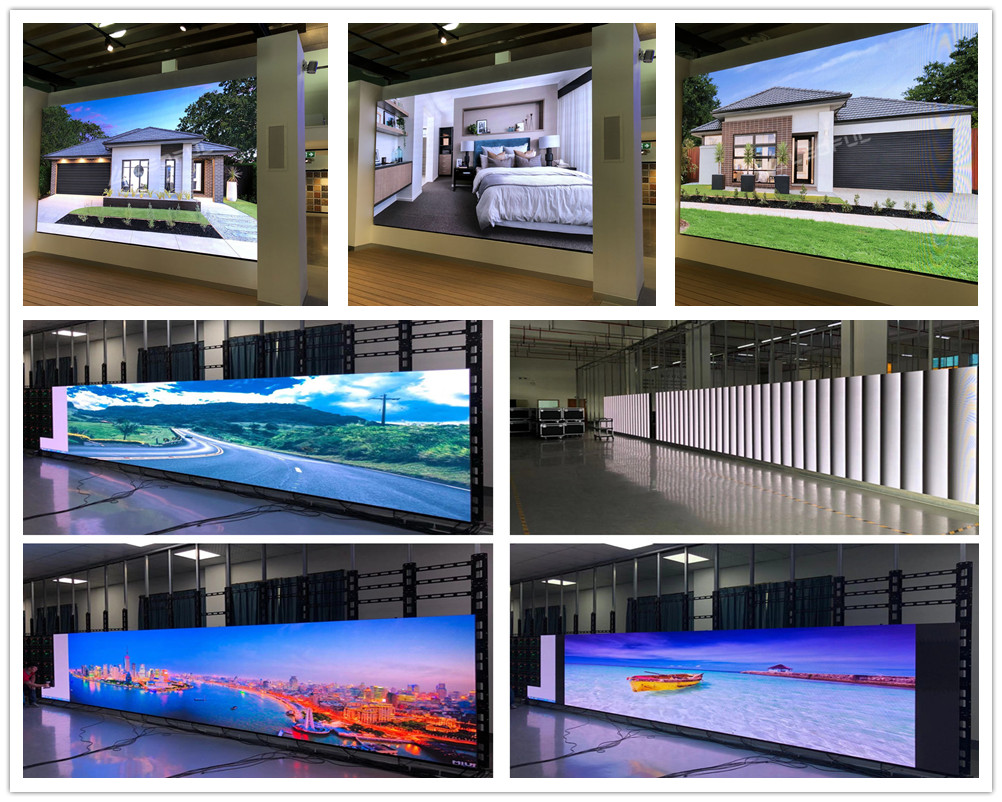

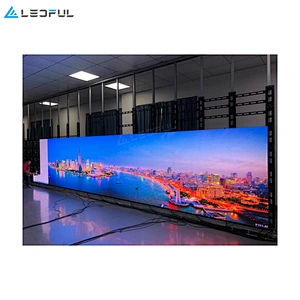

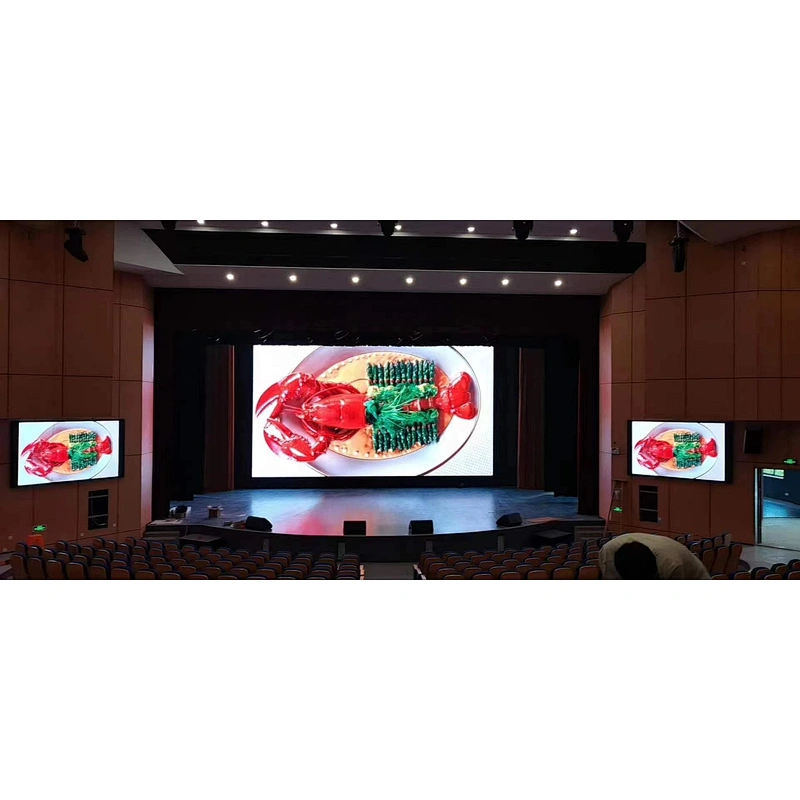

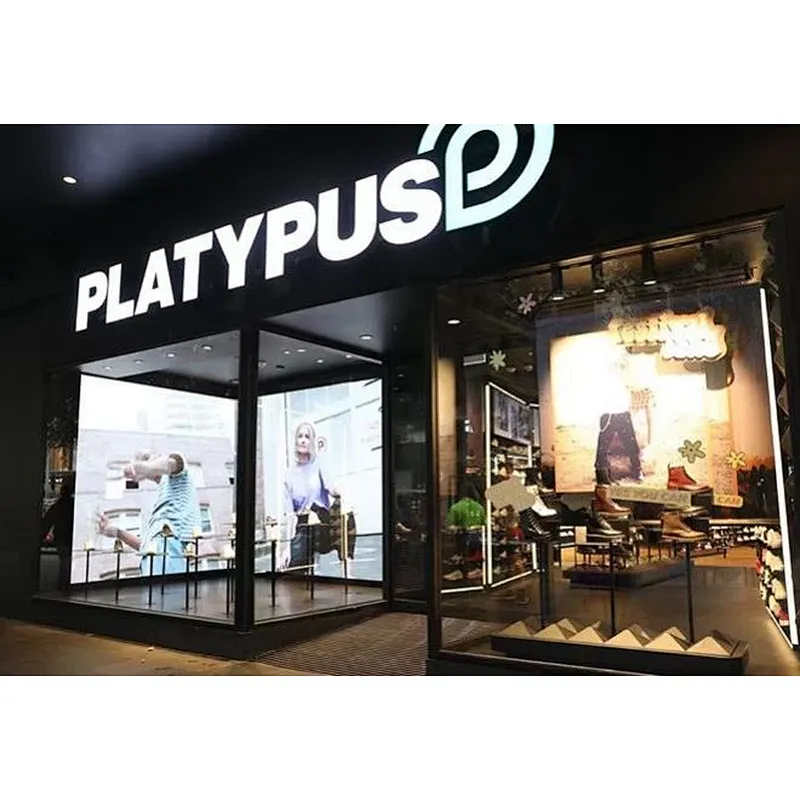

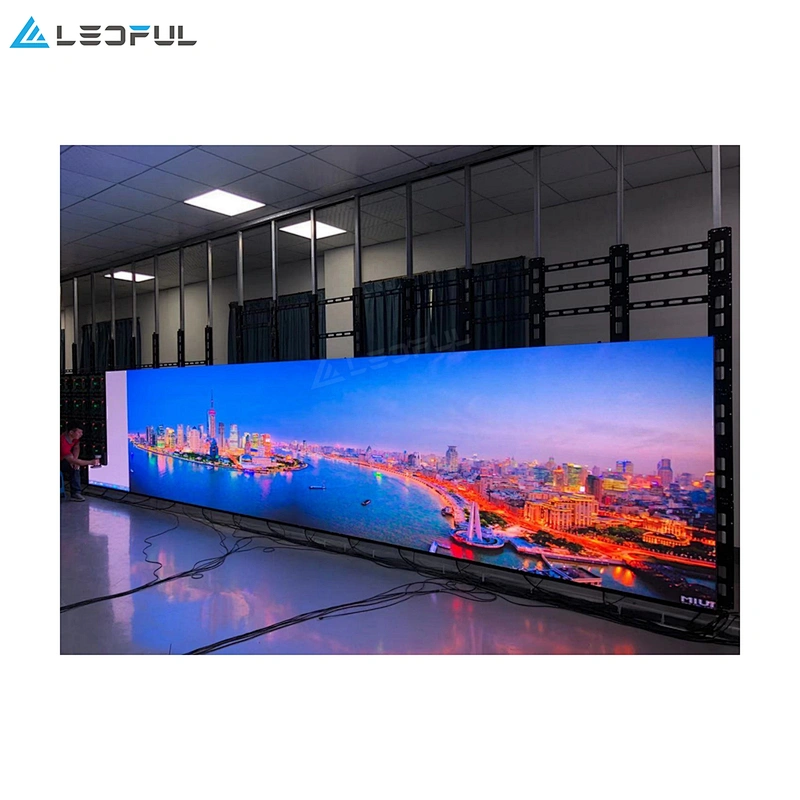

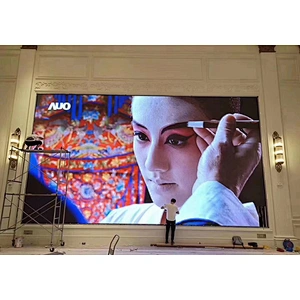

Cases
Below are the customer reviews of our products, you can see their recognition of our product quality and service attitude
Our ultimate pursuit is to satisfy our customers. LEDFUL has been focusing on the export of LED display for 12 years, relying on the sincere service to customers, high requirements for products and high standards for details
Our Company
Top LED Display Manufacturer
LEDFUL founded in 2008 Total 209 employees in LEDFUL
3~5 years warranty on LED screen Exported to 83 countries and regions Over 5,600 successful projects in the world R&D staff occupied 10% of all the employees.CE, RoHS, FCC, CCC, ISO9001:2008 standard
Certificate
Exhibition
Our Service
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A:T/T
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply free sample, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q9: What is the control system?
A: We use Nova control system.
Q10. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q11. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q12: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
