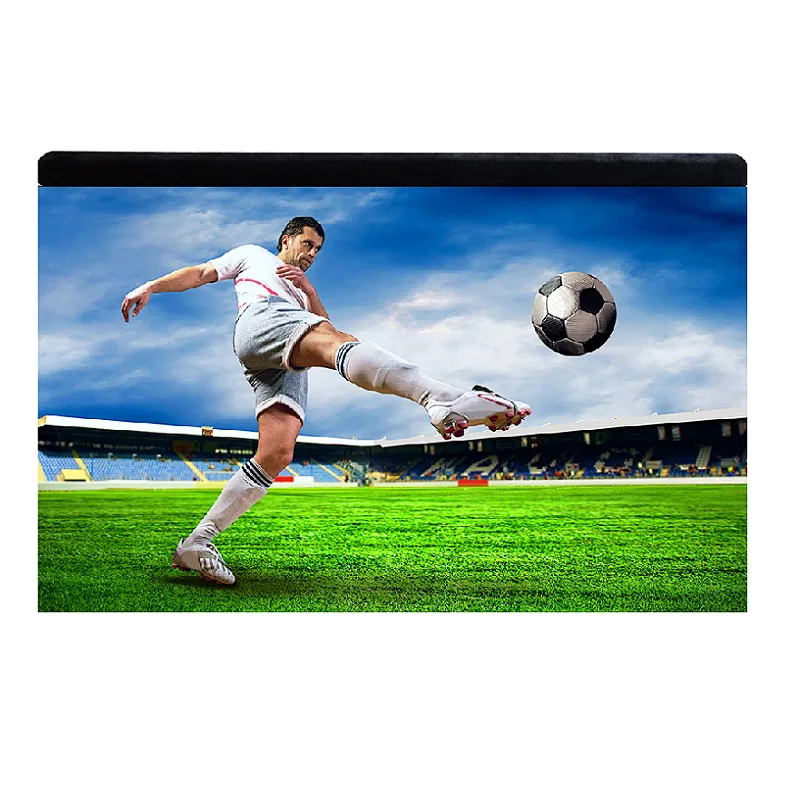

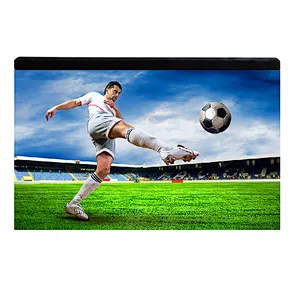

1024*1024mm Easy installation HD Indoor stadium LED display screen for sports
1024*1024mm Easy installation HD Indoor stadium LED display screen for sports
1024*1024mm Easy installation HD Indoor stadium LED display screen for sports
1024*1024mm Easy installation HD Indoor stadium LED display screen for sports
1024*1024mm Easy installation HD Indoor stadium LED display screen for sports
1024*1024mm Easy installation HD Indoor stadium LED display screen for sports
1024*1024mm Easy installation HD Indoor stadium LED display screen for sports

1024*1024mm Easy installation HD Indoor stadium LED display screen for sports

USD567.00 -USD588.00
  • Delivery:
  • Minimum order quantity:1
  • Supply Ability:2000 / Month
  • Country of Origin:YANTIAN, SHEKOU

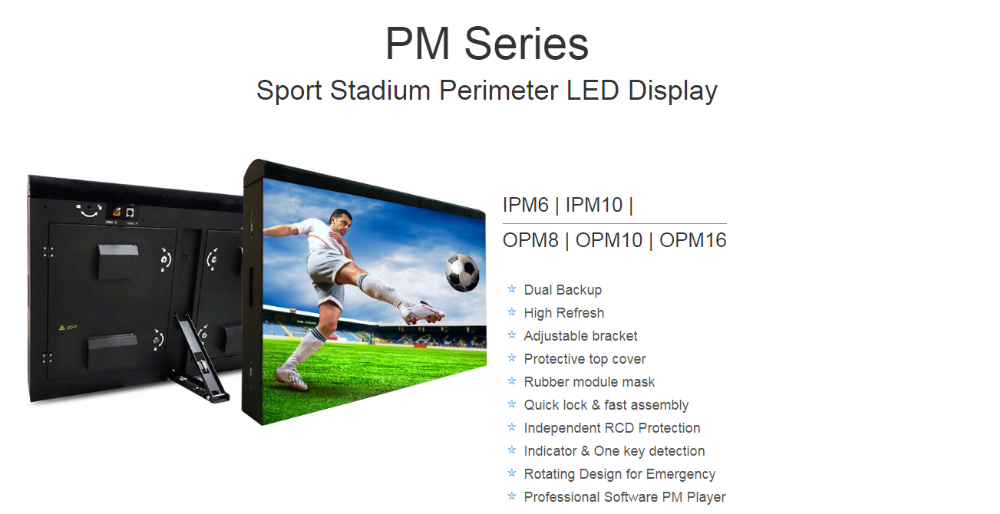

  • Categories: PM Series
    Model NO.: OPM16
    • Place of Origin:CN;GUA
    • Application:Sports Parameter
    • Color:Full Color
    • Panel Size:1024X1024mm
    • Pixel Pitch:16mm
    • Model Number:OPM16
    • Brand Name:LEDFUL
    • Usage:OUTDOOR
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Pixels:16mm
    • Screen Dimension:1024x1024mm/3.36x3.36ft
    • Power Supply:Meanwell
    • Warranty:3~5 Years
    • Function:Play Video
    • Color:Full-color
    • Life span:100000 Hours
    Product Description
    THE APPLICATION

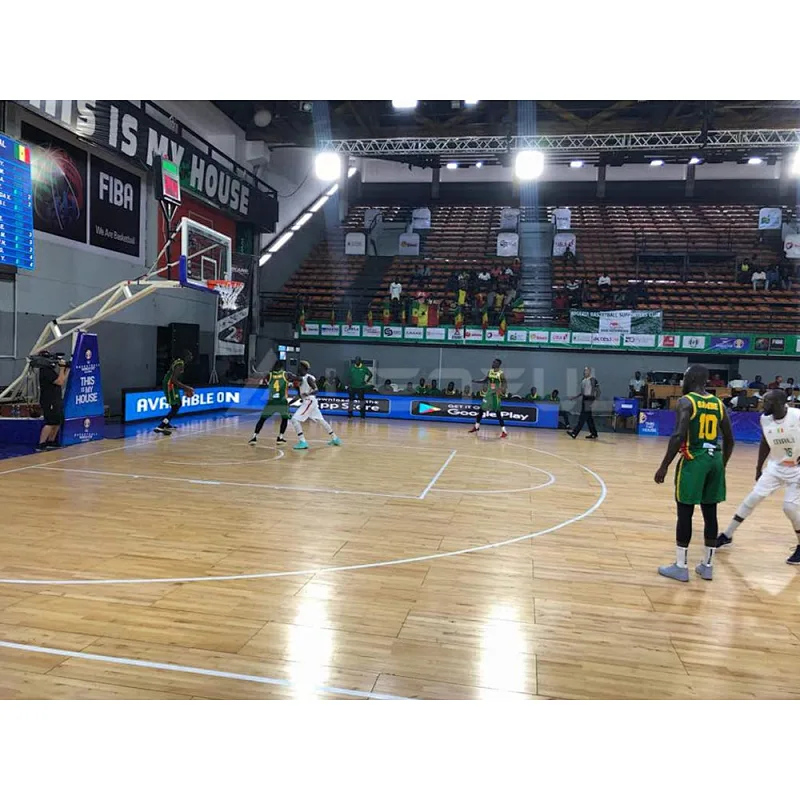

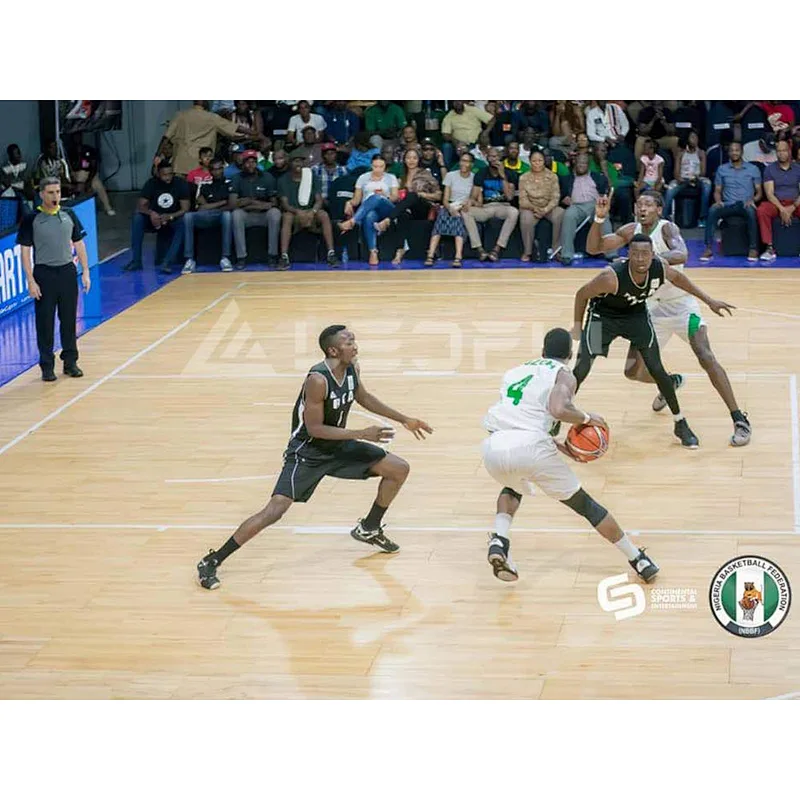

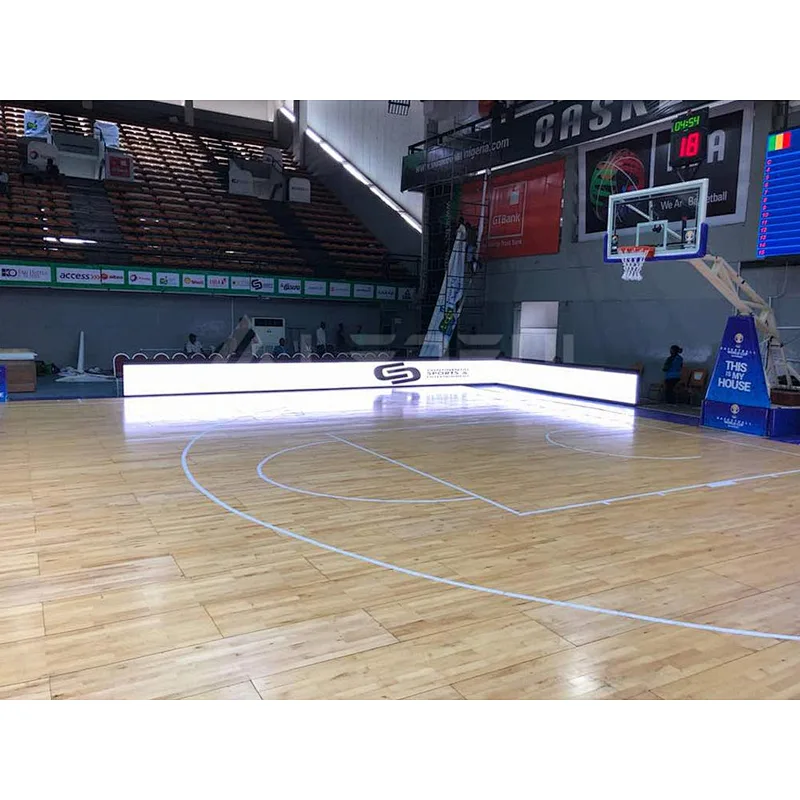

    Designed for indoor and outdoor sports stadium, such as soccer stadium, basketball court, ice hockey ground.
    Outdoor PM
    OPM16
    Pixel Pitch(mm)
    16
    Pixel Matrix Per Sq.m
    3906
    Pixel Configuration
    SMD3535
    Brightness (nits)
    8000
    Scan
    1/1
    Module Dimension
    256x256mm/0.84x0.84ft
    Cabinet Dimension
    1024x1024mm/3.36x3.36ft
    Cabinet Resolution
    64x64
    Cabinet Weight
    46kg / 101Ib (Iron)
    Power Con. (Max / Avg)
    690 / 130 w/sq.m
    IP Rate
    IP65
    Service Access
    Front / Rear
    Refresh Rate (HZ)
    ≥2880
    Grey Scale (bit)
    16bit

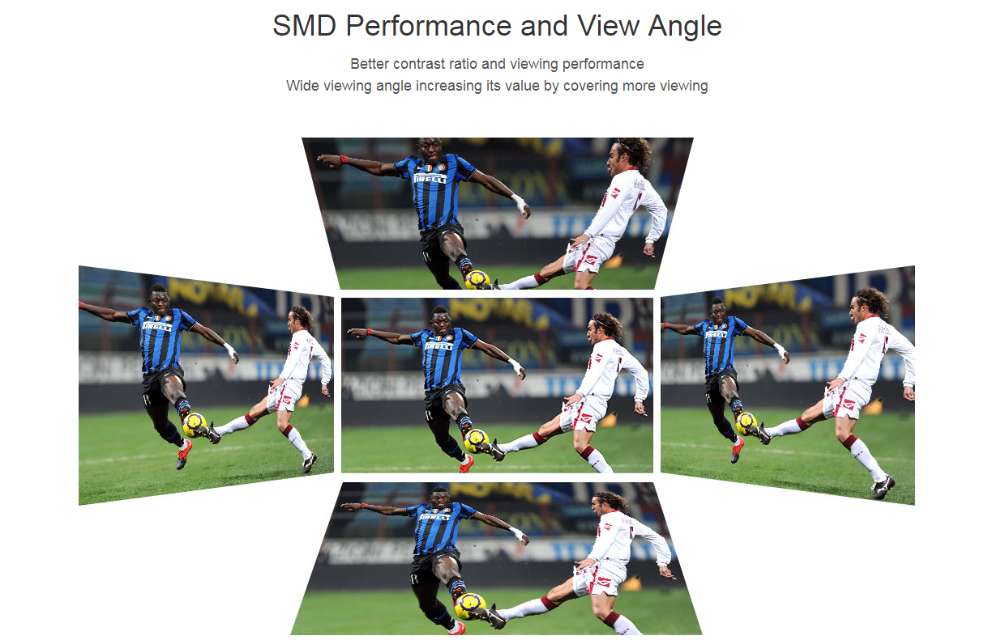

    Viewing Angle (H/V)
    140 / 140
    Input Voltage (AC)
    110V / 240V

    Specifications

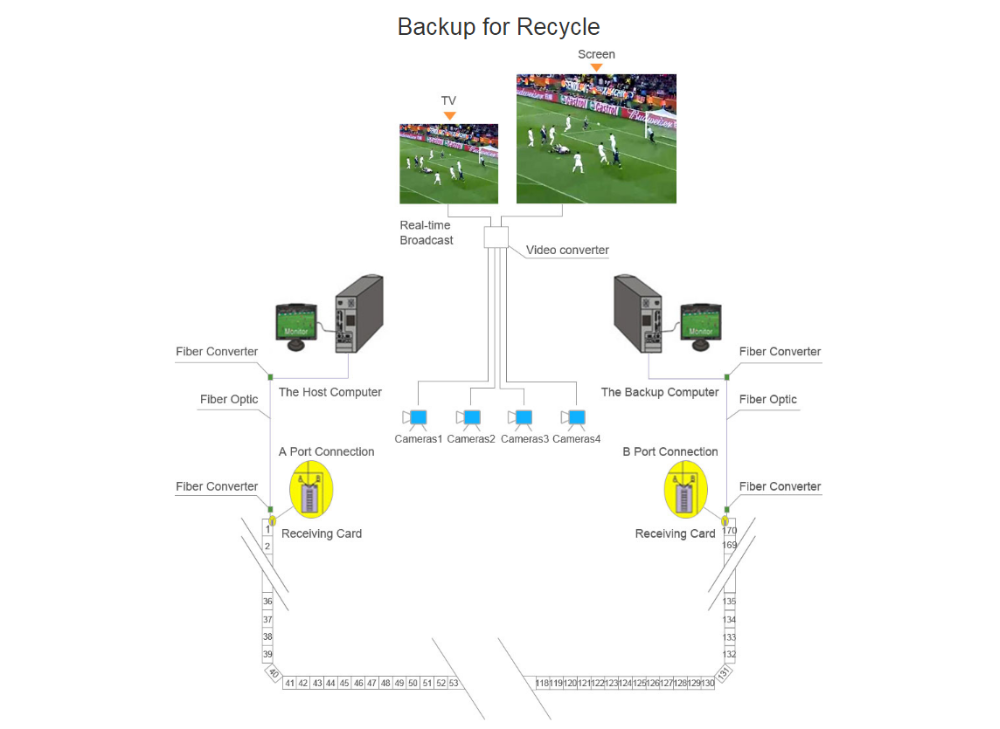

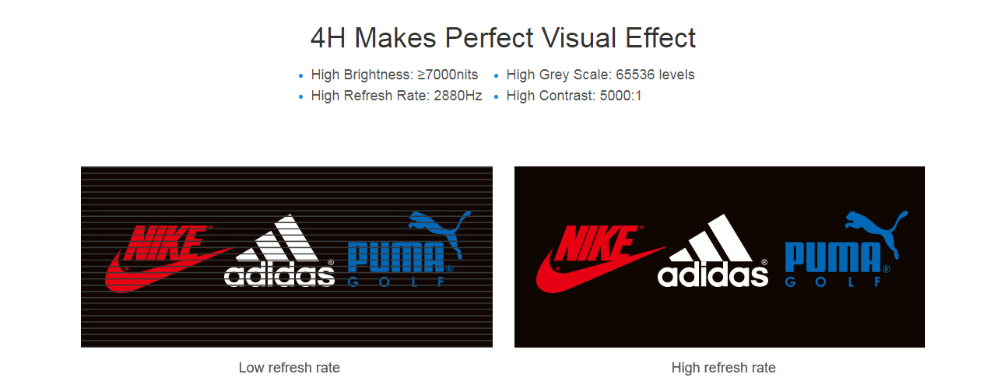

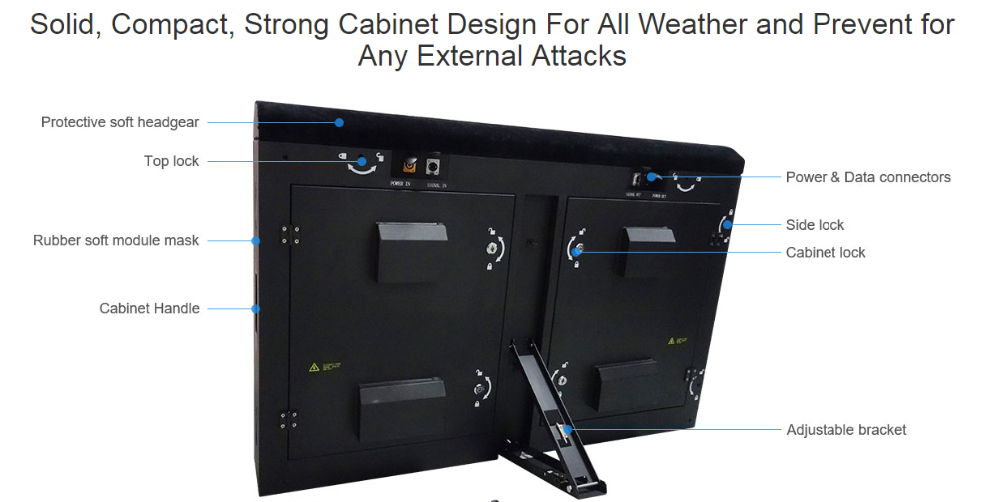

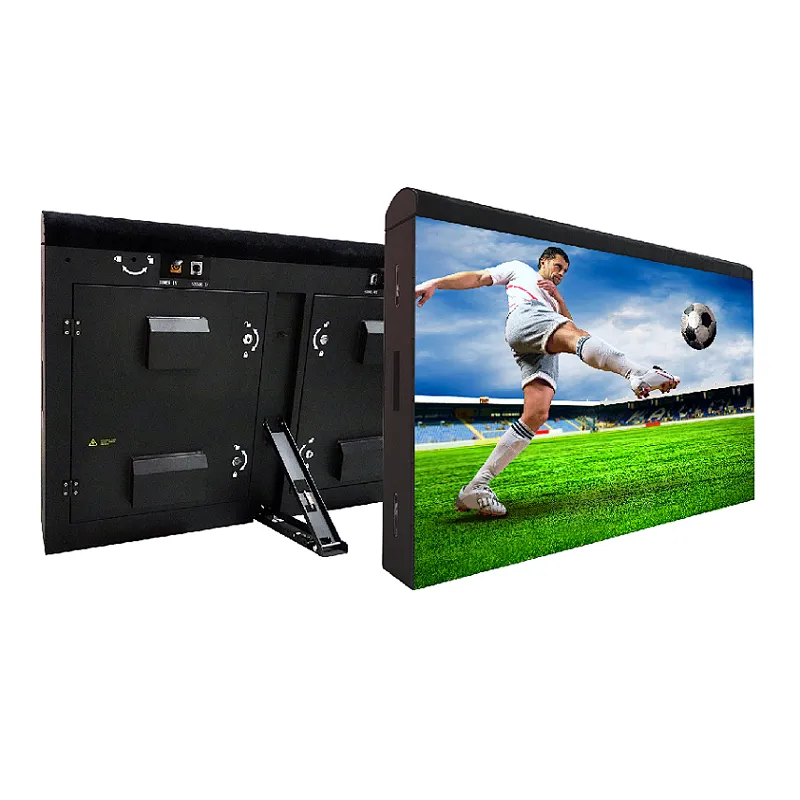

    1. Dual Backup                                                                                           2. High Refresh

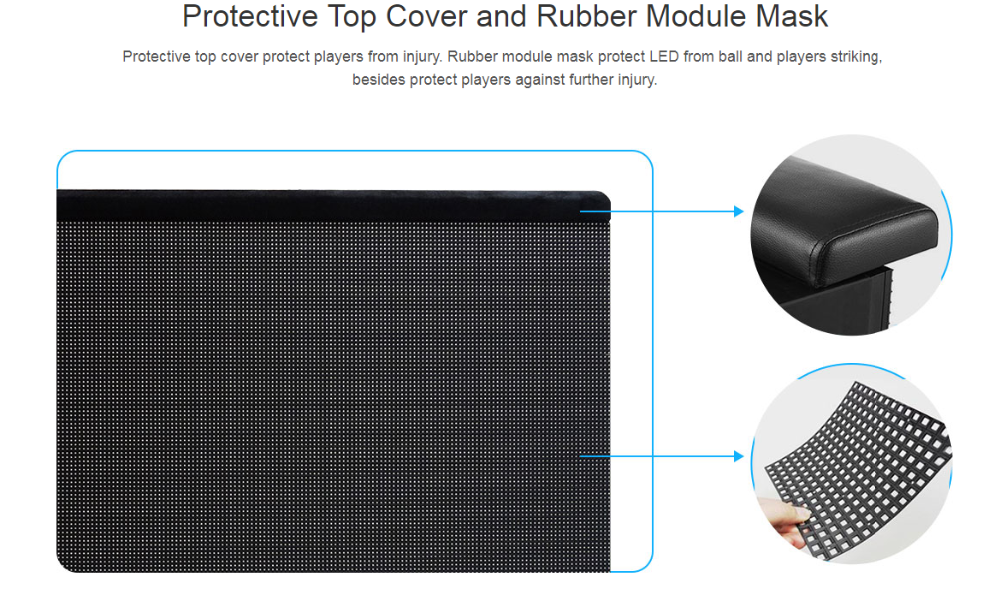

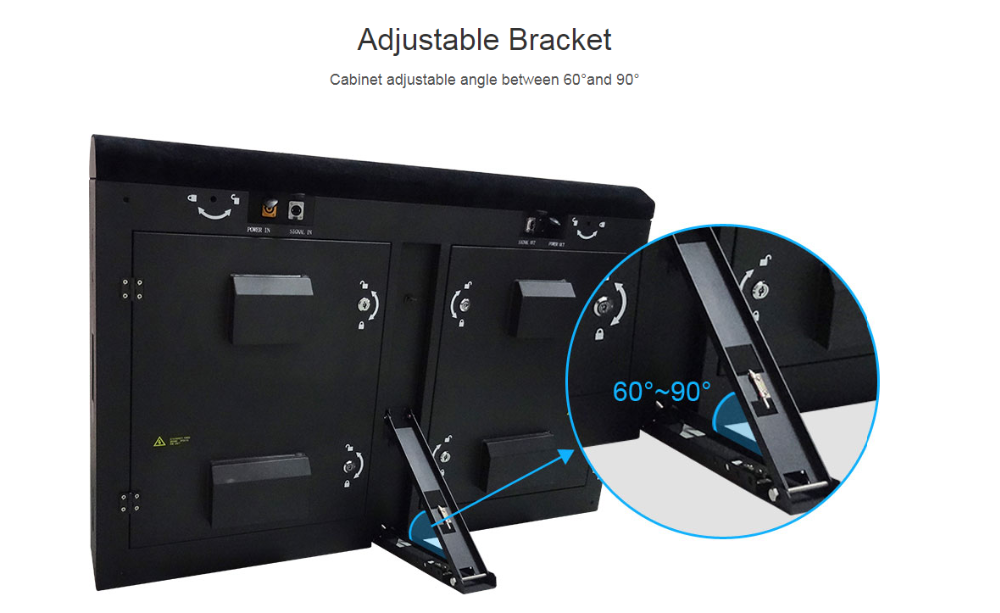

    3. Adjustable bracket                                                                                4. Protective top cover
    5. Rubber module mask                                                                           6. Quick lock & fast assembly

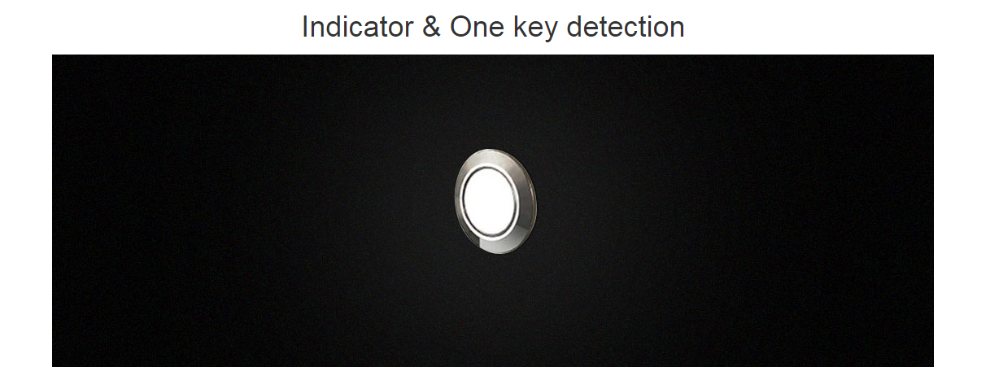

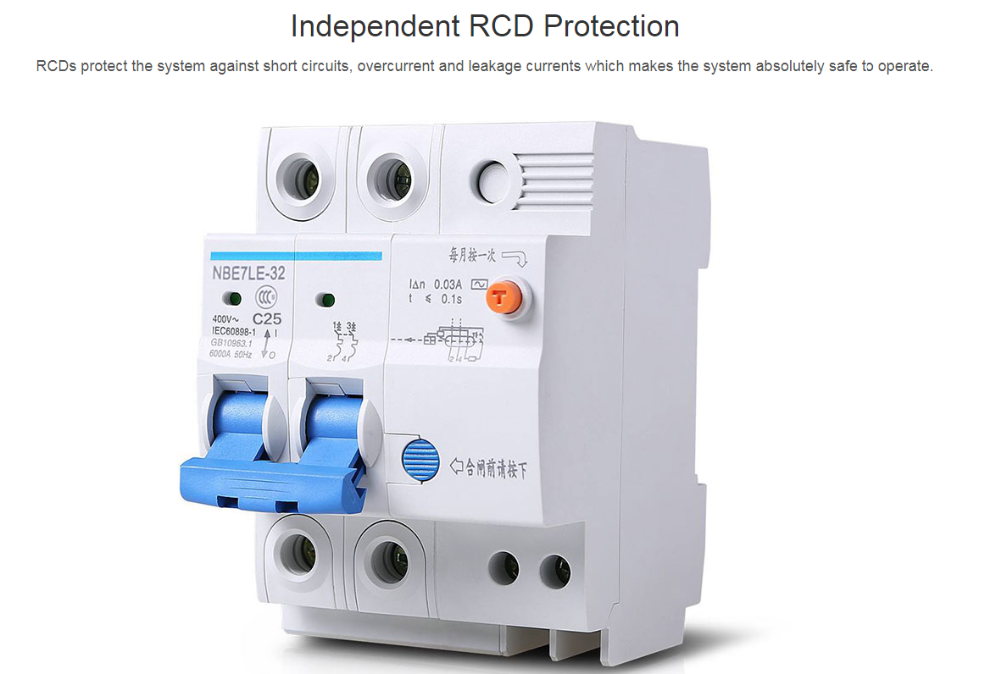

    7. Independent RCD Protection                                                              8. Indicator & One key detection

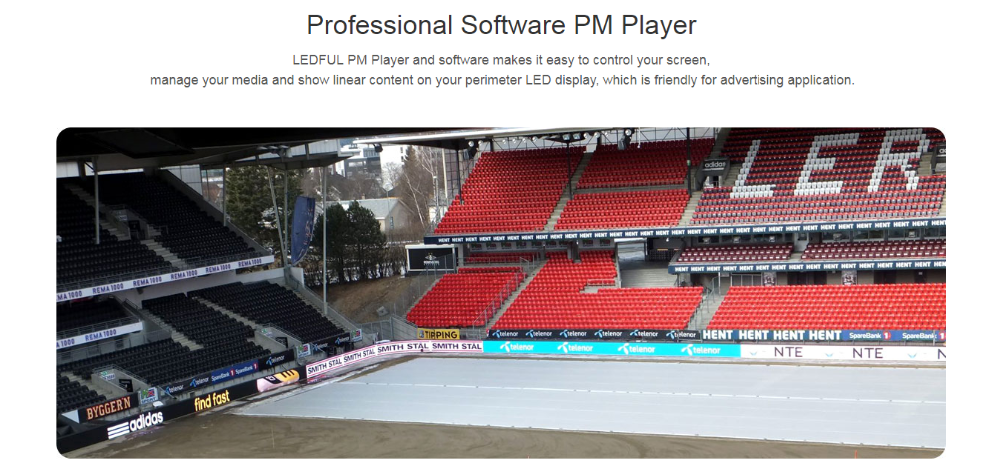

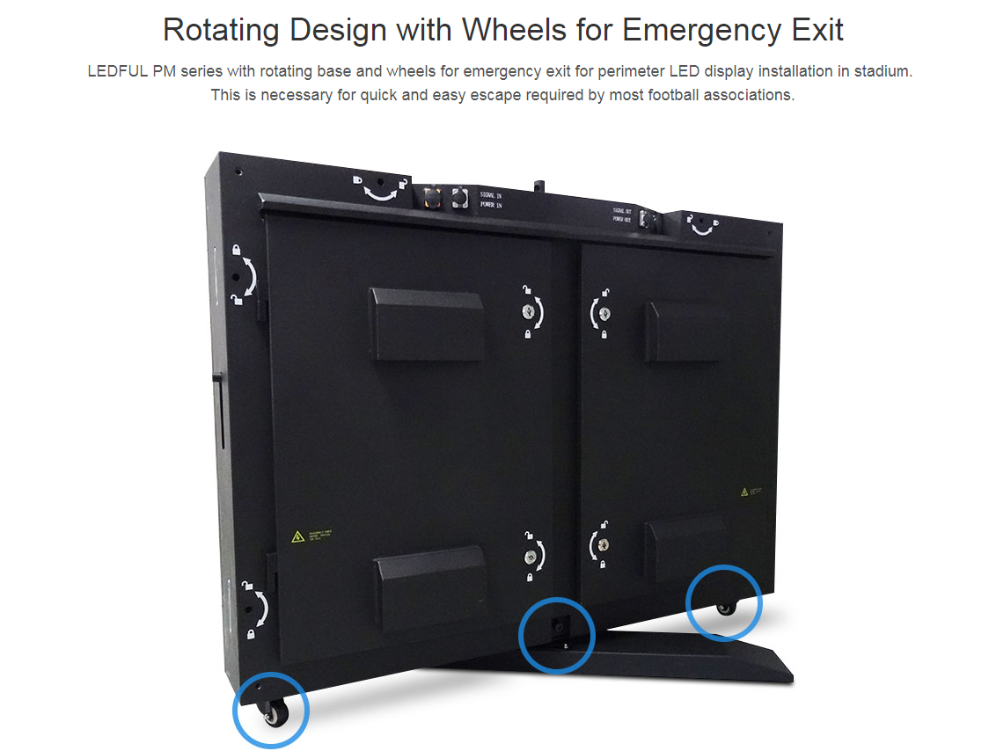

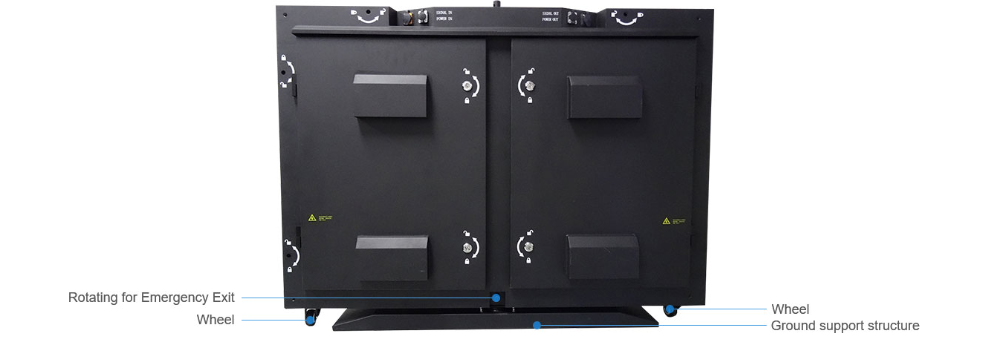

    9. Rotating Design for Emergency                                                        10. Professional Software PM Player

    Our Company

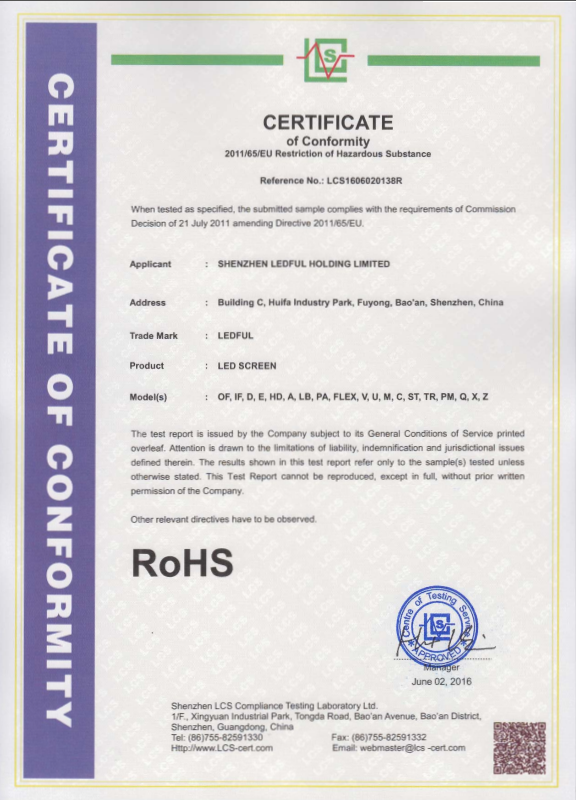

    Certificate

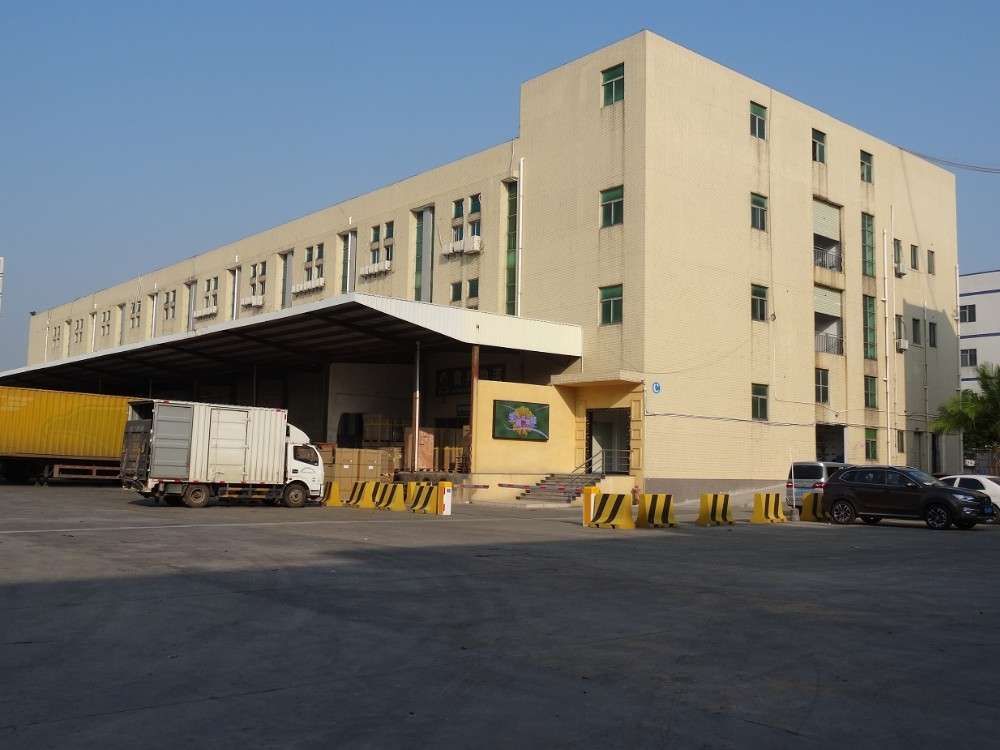

    Our Company

    LEDFUL is located in the Baoan District, Shenzhen, Guangdong. We are a professional manufacturer of LED display,
    set design, development, manufacturing as a professional manufacturer.We focus on a series of fashion accessories,
    a wide range of diversity, reasonable price and on-time delivery. P

    Packing & Delivery
    Our Service

    1. OEM Manufacturing welcome: Product, Package...
    2. Customized in size, chips,packages and control system
    3. We will reply you for your inquiry in 24 hours.
    4. after sending, we will track the products for you once every two days, until you get the products. When you got the
       goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
       the solve way for you.

    5. 3-5 years warranty will be provided by us.

    FAQ

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
    we can pack the goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
    before you pay the balance.

    Q3. What is your terms of delivery?
    A: FOB


    Q4. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
       the courier cost.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test for 72hrs before delivery.

    Q8: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,
      no matter where they come from.
