★Dual Backup
★High Refresh
★Adjustable bracket
★Protective top cover
★Rubber module mask
★Quick lock & fast assembly
★Independent RCD Protection
★Indicator & One key detection
★Rotating Design for Emergency
★Professional Software PM Player
- Usage:Indoor
- Tube Chip Color:FULL COLOR
- Display Function:Video
- Warranty: 3 Years:LED chip: Epistar
- Certificate: CCC CE ROHS ISO:Life span: 100000 Hours
- Screen Dimension: Customized:Cabinet material: Die-casting Aluminum
- Application: Sports Stadium Perimeter:Control system: Linsn /Nova
- Input Voltage (AC): 110V / 240V:Viewing Angle (H/V): 140 / 140
- Screen Dimension:1280*960mm
- Pixels:10mm
- Application:Indoor Peremeter LED Screen
- Color:Full Color
- Panel Size:960x960mm
- Pixel Pitch:10mm
- Place of Origin:Guangdong, China (Mainland)
- Model Number:IPM10
- Brand Name:LEDFUL
Product Description
PM Series

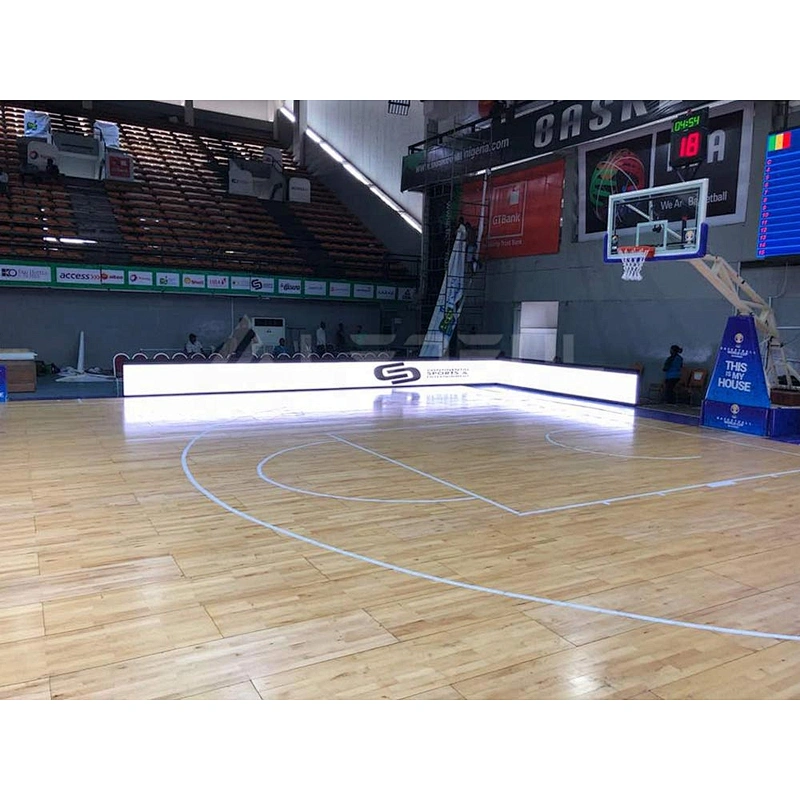

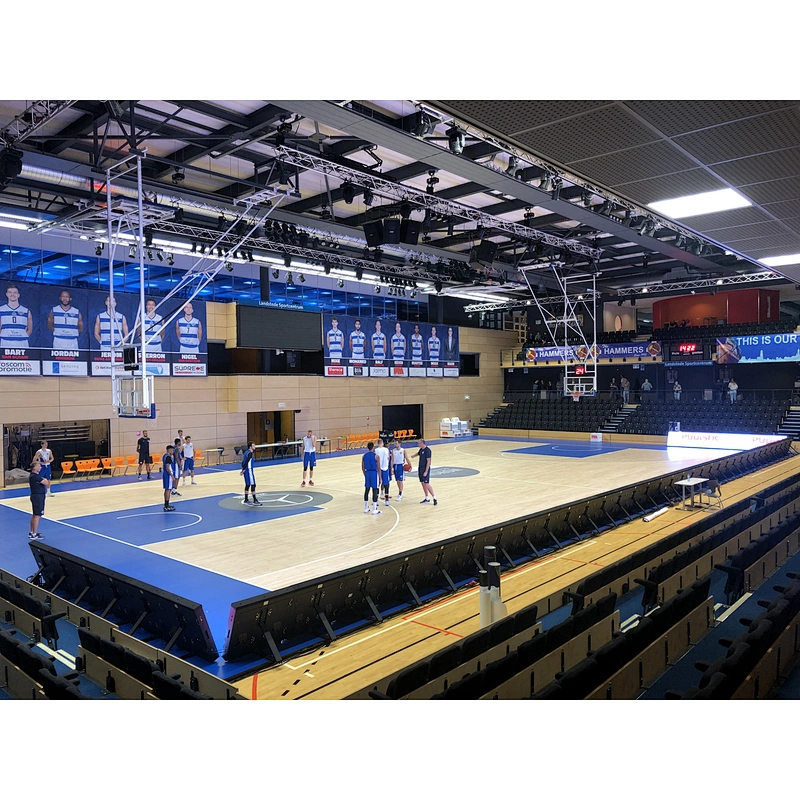

Sport StadiumPeriMeter LED Display
IPM6 | IPM10 |OPM8 | OPM10 | OPM16
Product Name | IPM10 |
Pixel Pitch(mm) | 10 |
Pixel Matrix Per Sq.m | 10000 |
Pixel Configuration | SMD3528 |
Brightness (nits) | 1800 |
Scan | 1/4 |
Module Dimension | 320x160mm/1.05x0.52ft |
Cabinet Dimension | 1280x960mm/4.2x3.15ft |
Cabinet Resolution | 128x96 |
Cabinet Weight | 44kg / 97Ib (Iron) |
Power Con. (Max / Avg) | 500 / 90 w/sq.m |
IP Rate | IP43 |
Service Access | Front / Rear |
Refresh Rate (HZ) | 2880 |
Grey Scale (bit) | 14bit |
Viewing Angle (H/V) | 140 / 140 |
Input Voltage (AC) | 110V / 240V |
Products Show

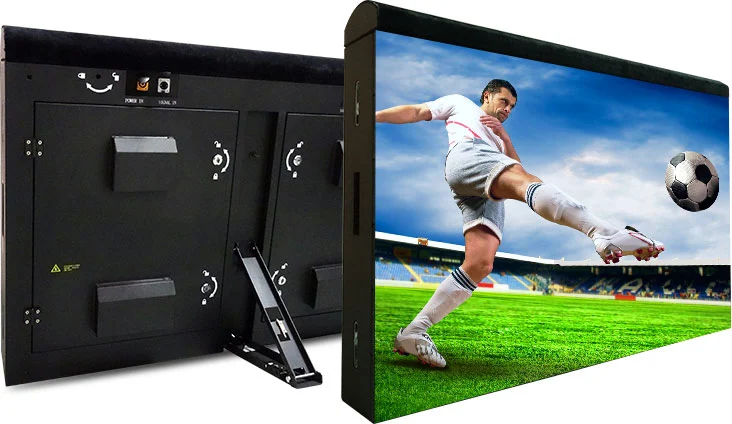

Solid, Compact, Strong Cabinet Design For All Weather and Prevent for Any External Attacks

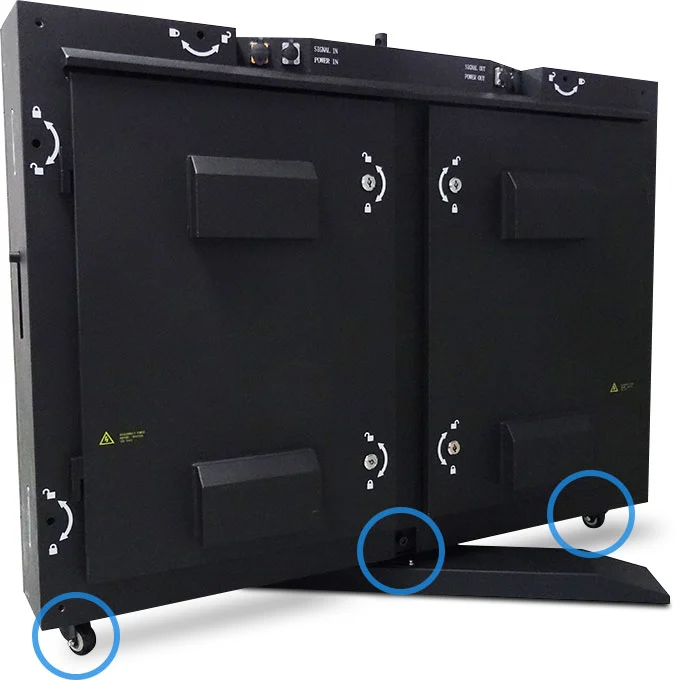

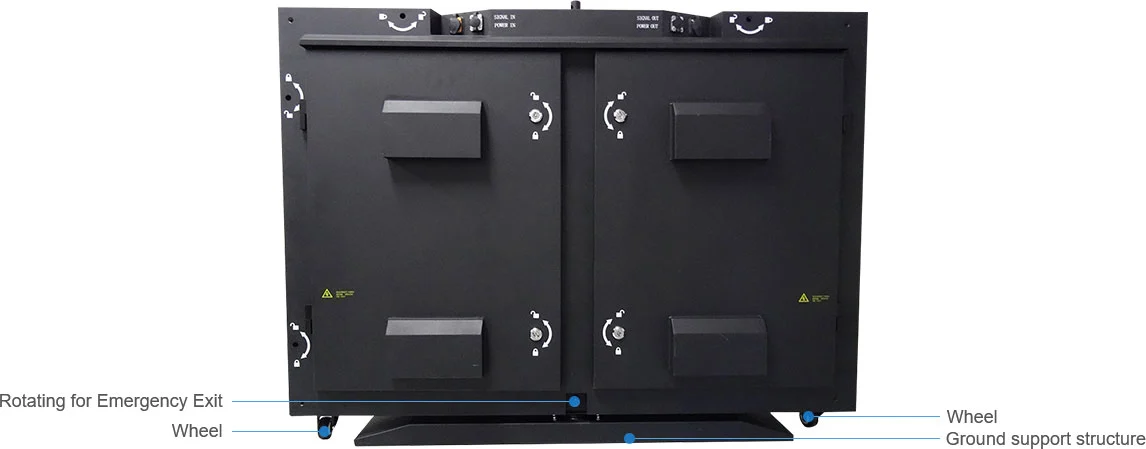

Rotating Design with Wheels for Emergency Exit
LEDFUL PM series with rotating base and wheels for emergency exit for perimeter LED display installation in stadium. This is necessary for quick and easy escape required by most football associations.

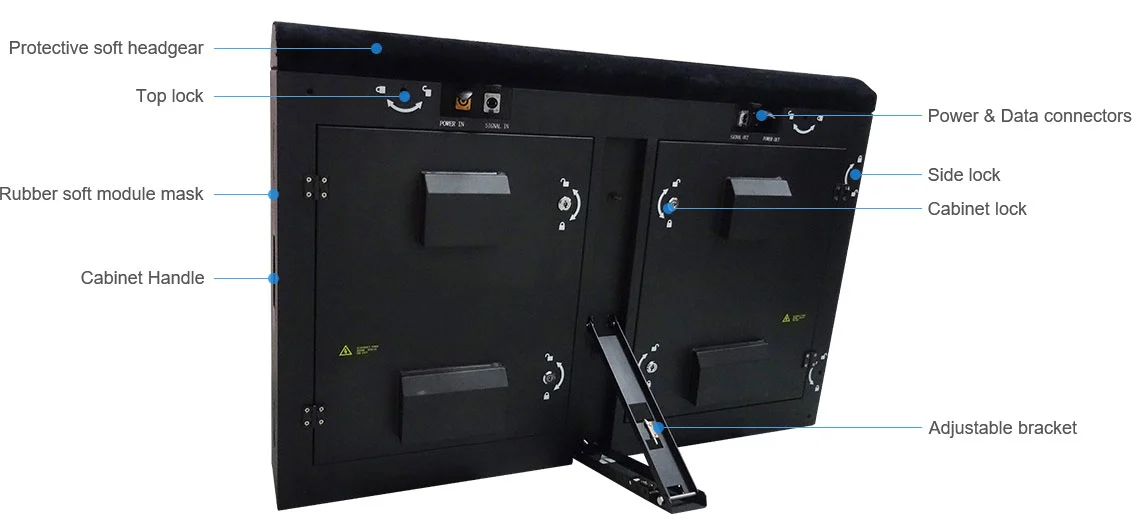

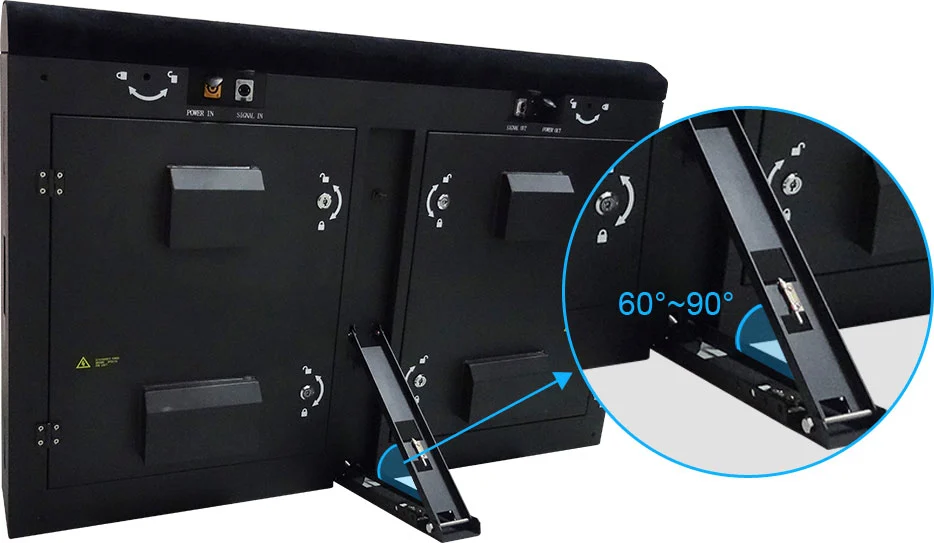

AdjustableBracket
Cabinet adjustable angle between 60°and 90°

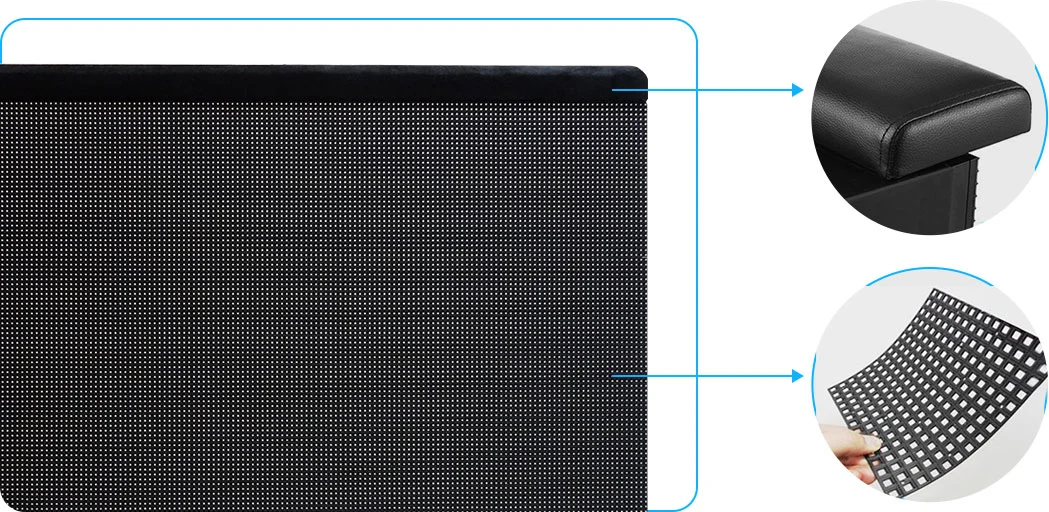

Protective Top Cover and Rubber Module Mask
Protective top cover protect players from injury. Rubber module mask protect LED from ball and players striking, besides protect players against further injury.
Professional Software PM Player
LEDFUL PM Player and software makes it easy to control your screen, manage your media and show linear content on your perimeter LED display, which is friendly for advertising application.
4H Makes Perfect Visual Effect
★High Brightness: ≥7000nits ★High Grey Scale: 65536 levels

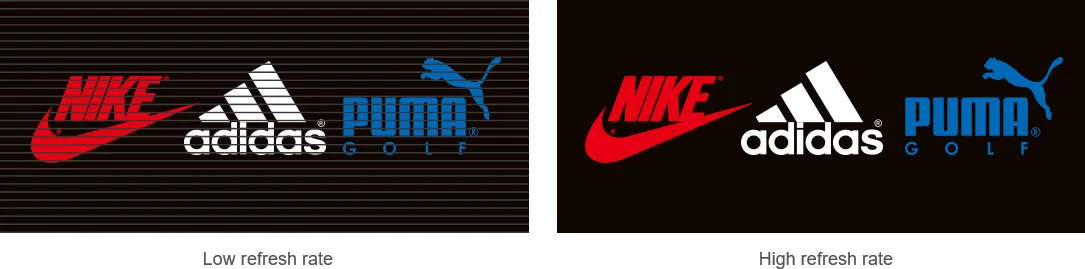

★High Refresh Rate: 2880Hz ★High Contrast: 5000:1
SMD Performance and View Angle
Better contrast ratio and viewing performance
Wide viewing angle increasing its value by covering more viewing
Energy Saving Stadium Perimeter LED Display
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency

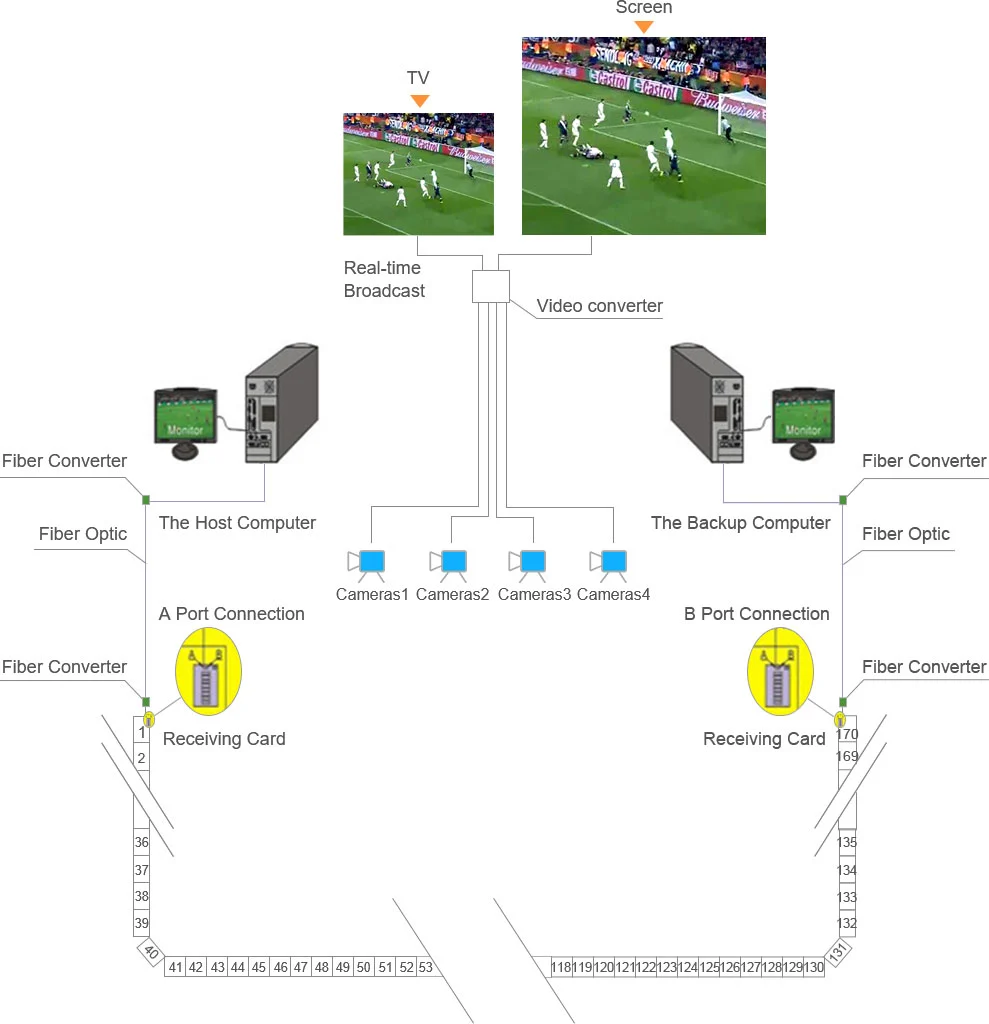

Backupfor Recycle
Recommend Products

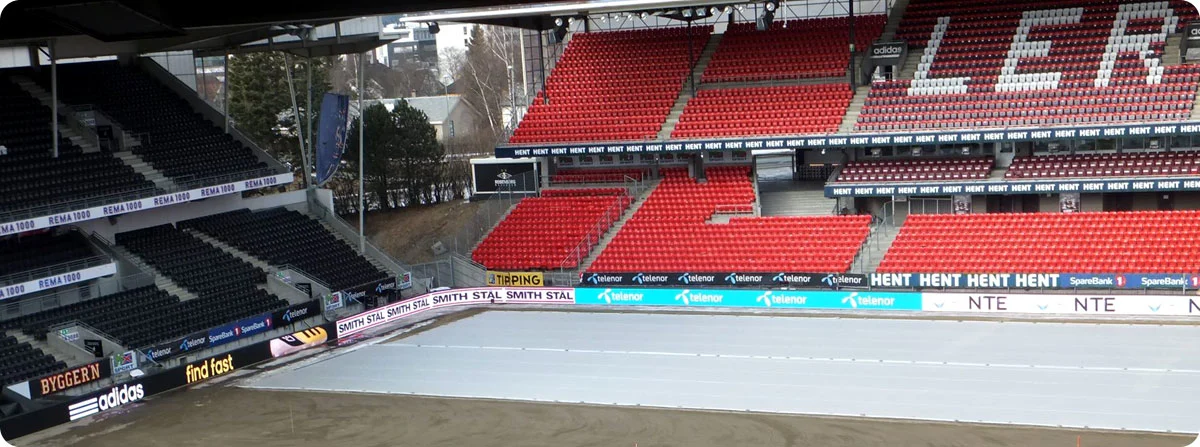

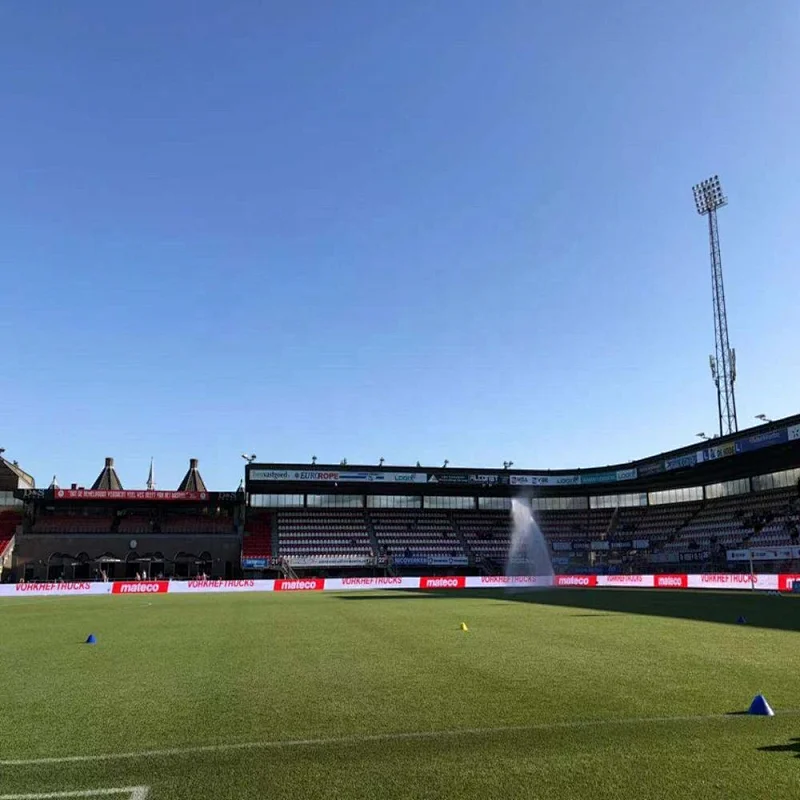

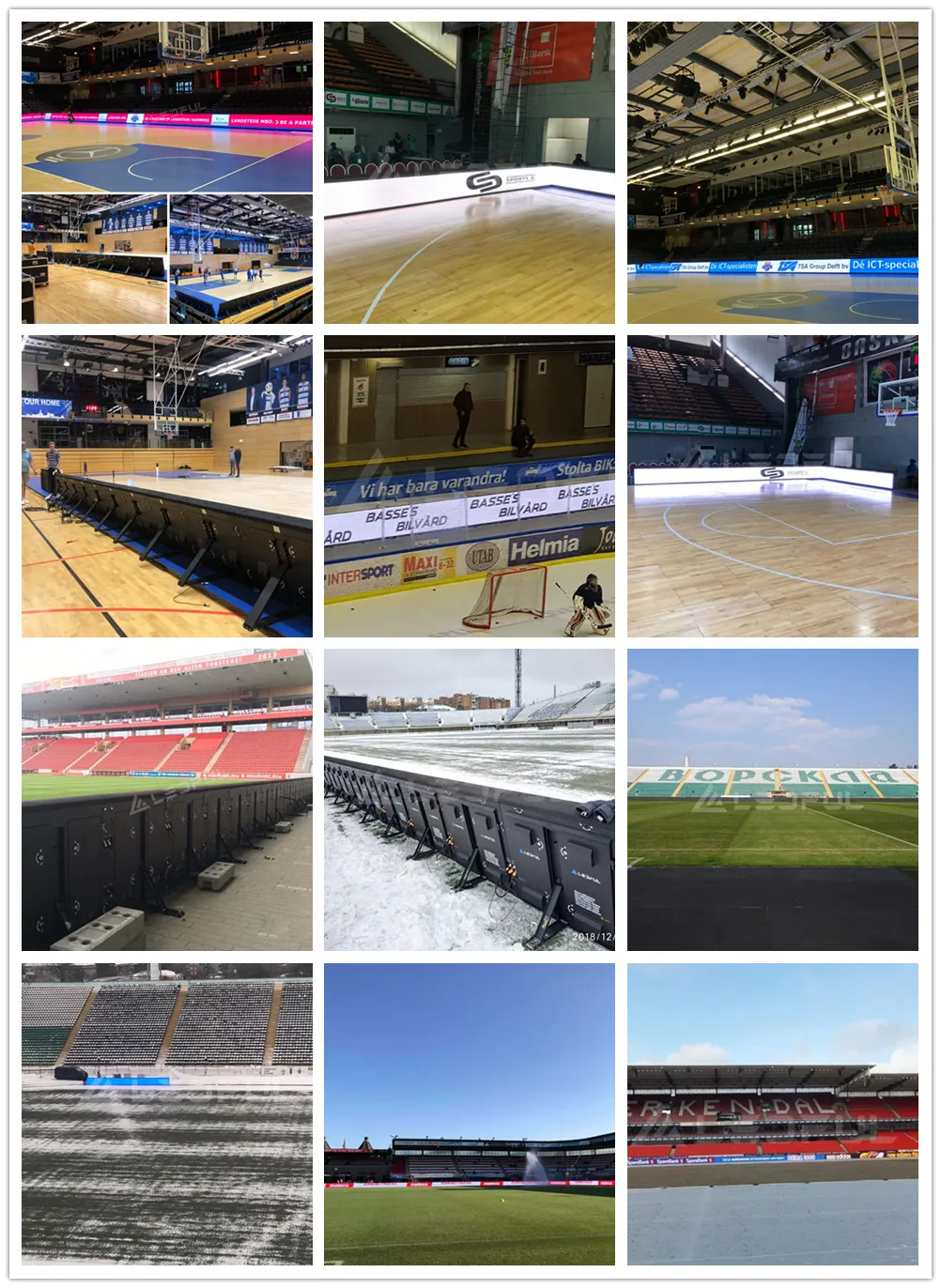

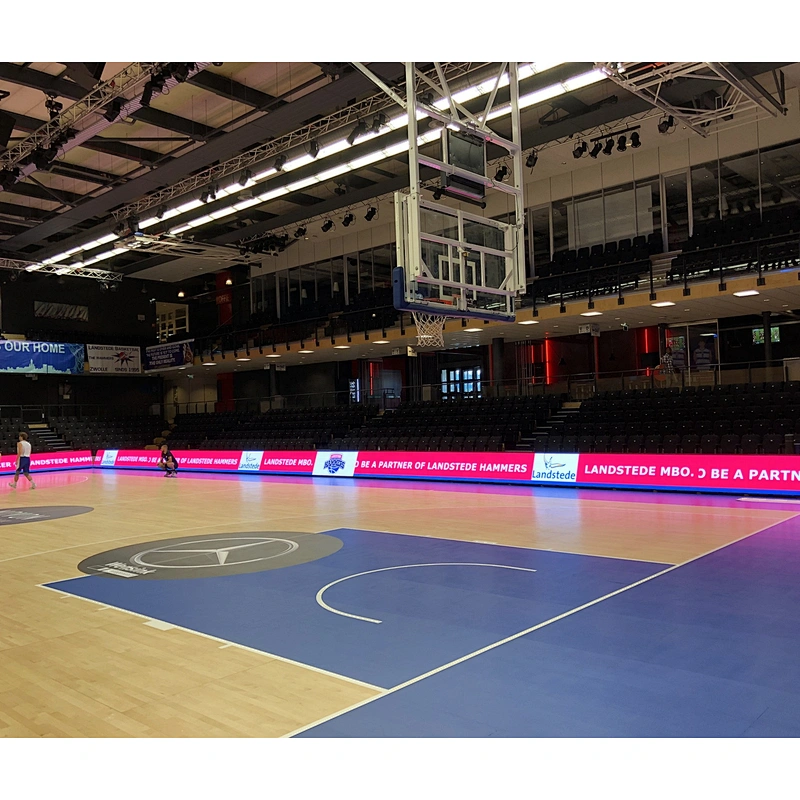

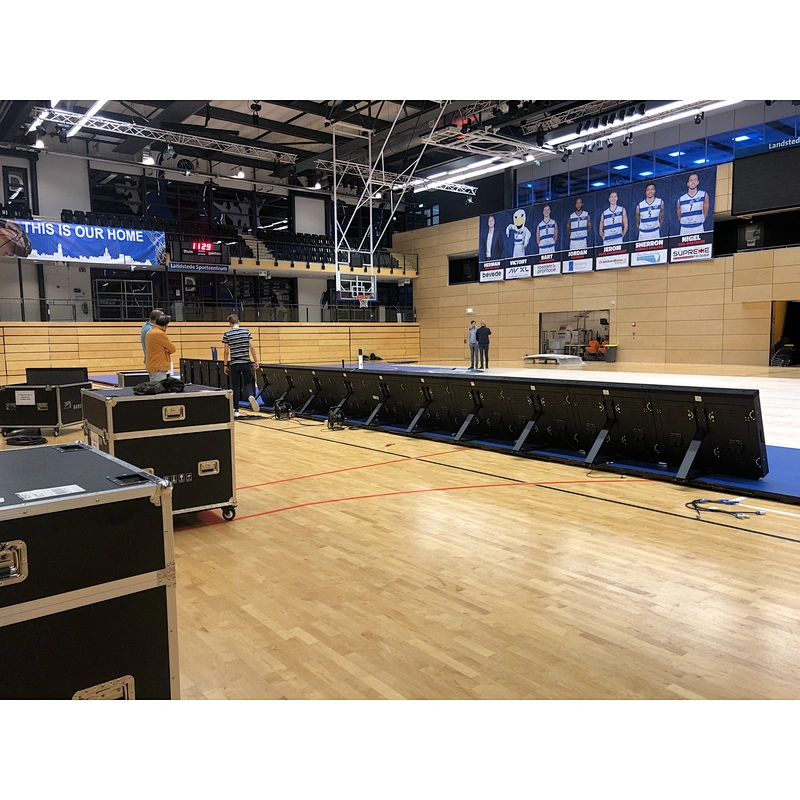

Applications
Our Company

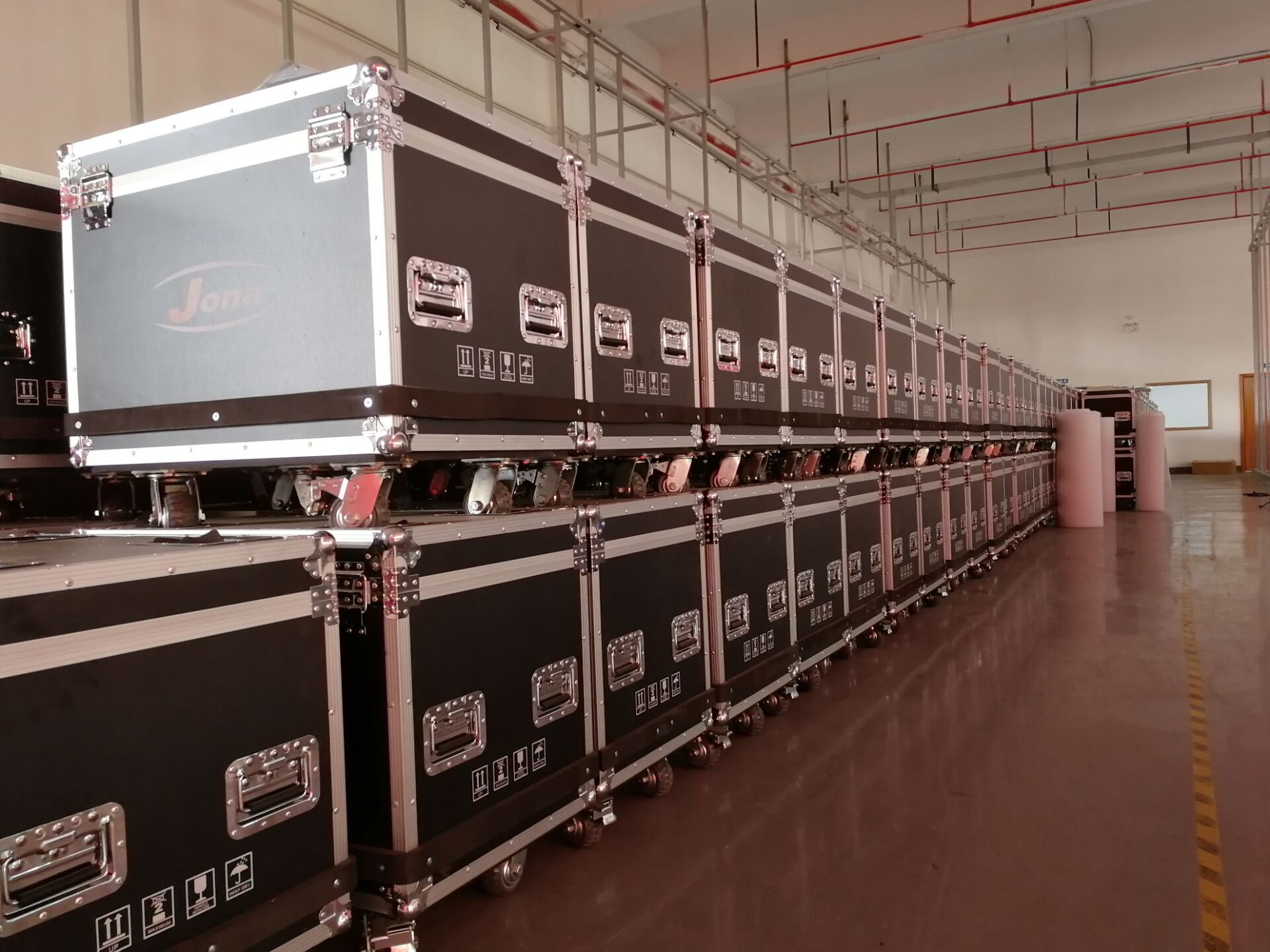

Packing & Delivery
FAQ
Q1. Are you trading company or manufacturer ?
A: We are LED display manufacturer
Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 12 years, and professional R&D team and skilled QC team with standard process to assure quality products.
