★Dual Backup
★High Refresh
★Adjustable bracket
★Protective top cover
★Rubber module mask
★Quick lock & fast assembly
★Independent RCD Protection
★Indicator & One key detection
★Rotating Design for Emergency
★Professional Software PM Player
- Application:Sports Parameter
- Color:Full Color
- Panel Size:960x960mm
- Pixel Pitch:10mm
- Place of Origin:Guangdong, China (Mainland)
- Model Number:OPM10
- Brand Name:LEDFUL
- Usage:OUTDOOR
- Tube Chip Color:FULL COLOR
- Display Function:Video
- Pixels:10mm
- Screen Dimension:1280*960mm
- LED chip:Epistar
- Life span:100000 Hours
- Input Voltage (AC):110V / 240V
- Warranty:3 Years
- Certificate:CCC CE ROHS ISO
Product Description
PM Series
Sport Stadium Perimeter LED Display
IPM6 | IPM10 |OPM8 | OPM10 | OPM16
Parameter | ||||||||||
Indoor / Outdoor PM | IPM6 | IPM10 | OPM8 | OPM10 | OPM16 | |||||
Pixel Pitch(mm) | 6 | 10 | 8 | 10 | 16 | |||||
Pixel Matrix Per Sq.m | 27777 | 10000 | 15625 | 10000 | 3906 | |||||
Pixel Configuration | SMD3528 | SMD3528 | SMD3535 | SMD3535 | SMD3535 | |||||
Brightness (nits) | 2200 | 1800 | 6800 | 7500 | 8000 | |||||
Scan | 1/8 | 1/4 | 1/3 | 1/2 | 1/1 | |||||
Module Dimension | 192x192mm/0.63x0.63ft | 320x160mm/1.05x0.52ft | 320x160mm/1.05x0.52ft | 320x160mm/1.05x0.52ft | 256x256mm/0.84x0.84ft | |||||
Cabinet Dimension | 960x960mm/3.15x3.15ft | 960x960mm/3.15x3.15ft | 960x960mm/3.15x3.15ft | 960x960mm/3.15x3.15ft | 1024x1024mm/3.36x3.36ft | |||||
Cabinet Resolution | 160x160 | 128x96 | 160x120 | 128x96 | 64x64 | |||||
Cabinet Weight | 40kg / 88Ib (Iron) | 44kg / 97Ib (Iron) | 49kg / 108Ib (Iron) | 48kg / 105Ib (Iron) | 46kg / 101Ib (Iron) | |||||
Power Con. (Max / Avg) | 550 / 100 w/sq.m | 500 / 90 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m | 690 / 130 w/sq.m | |||||
IP Rate | IP43 | IP65 | ||||||||
Service Access | Front / Rear | Front / Rear | ||||||||
Refresh Rate (HZ) | 2880 | ≥2880 | ||||||||
Grey Scale (bit) | 14bit | 16bit | ||||||||
Viewing Angle (H/V) | 140 / 140 | 140 / 140 | ||||||||
Input Voltage (AC) | 110V / 240V | 110V / 240V | ||||||||

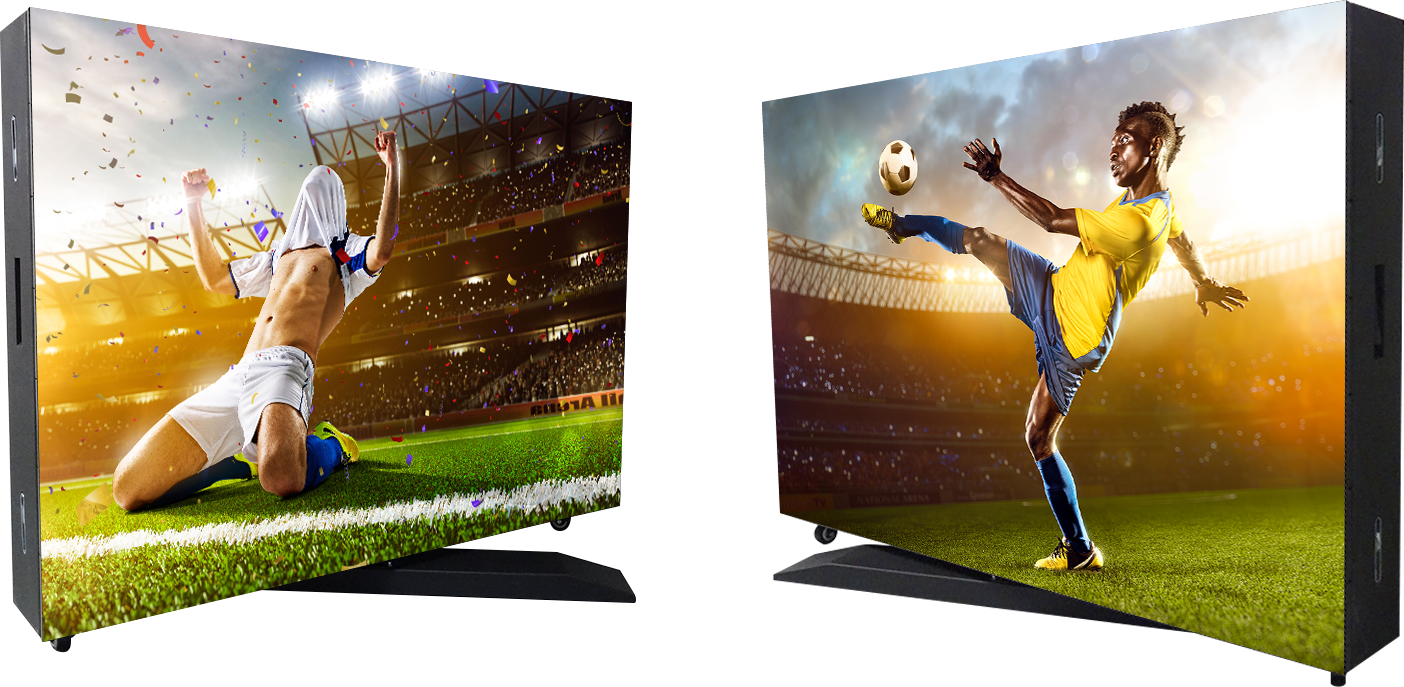

Products Show

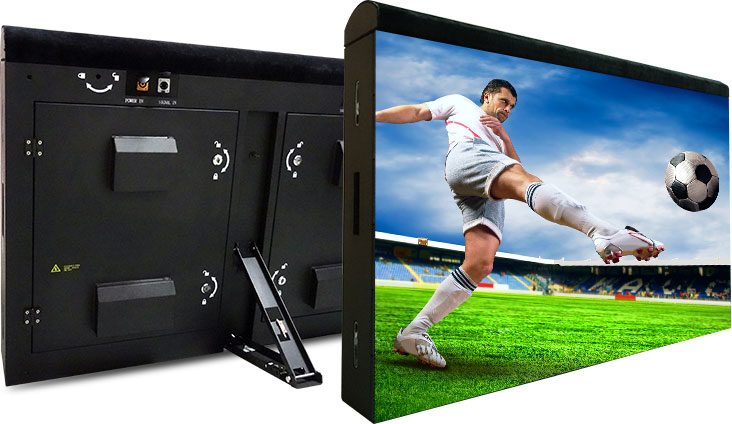

Solid, Compact, Strong Cabinet Design
For All Weather and Prevent for Any External Attacks

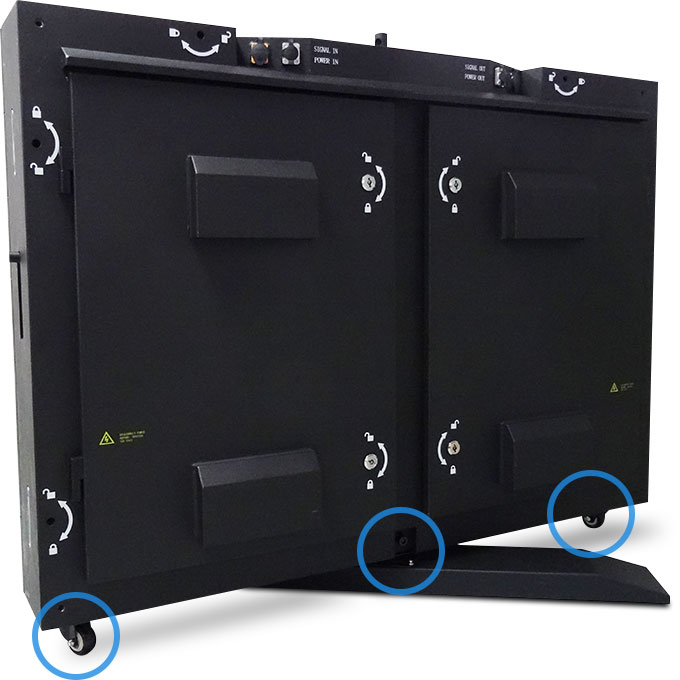

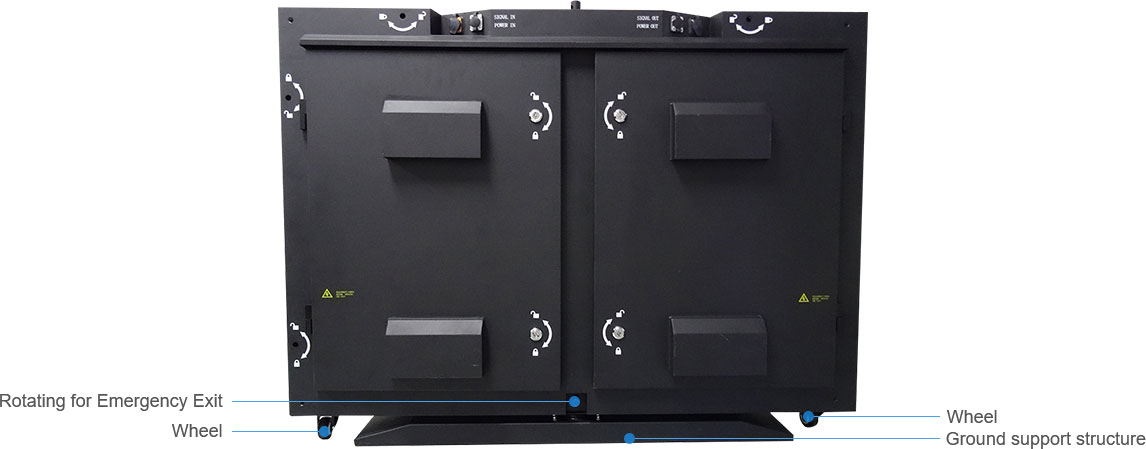

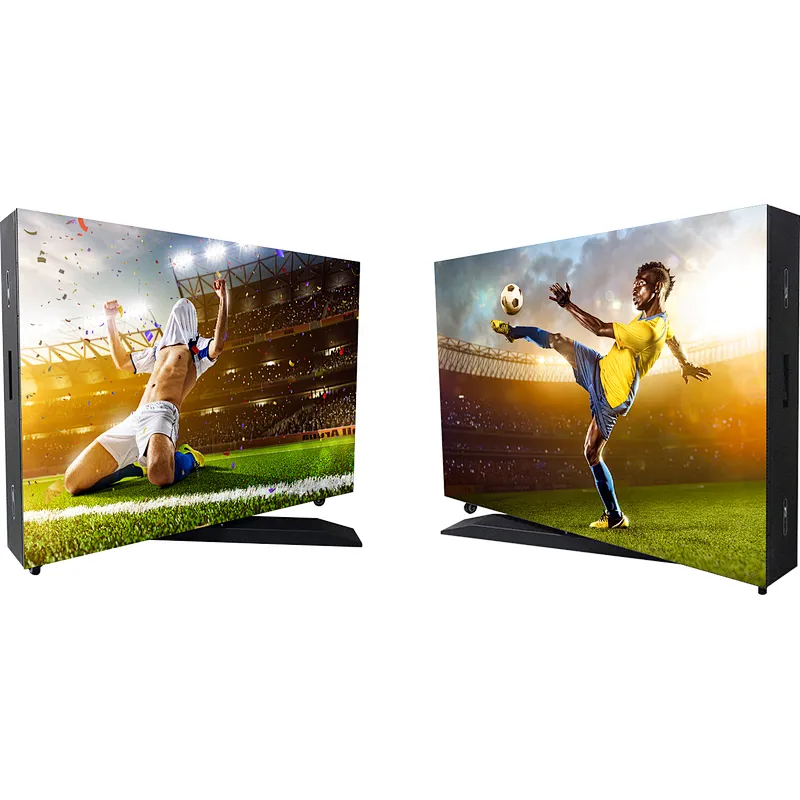

Rotating Design with Wheels for Emergency Exit
LEDFUL PM series with rotating base and wheels for emergency exit
for perimeter LED display installation in stadium.
This is necessary for quick and easy escape required by most football associations.

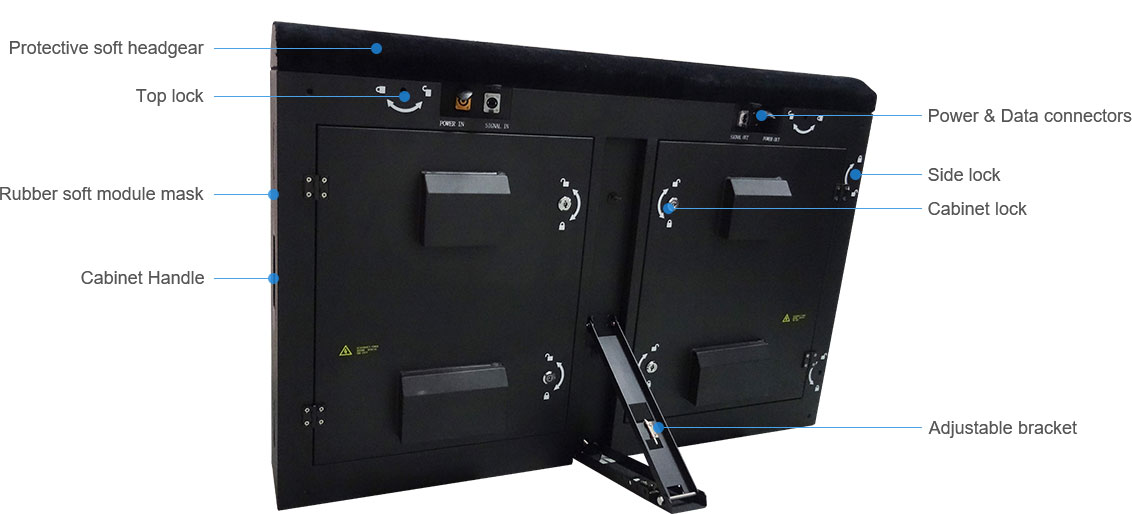

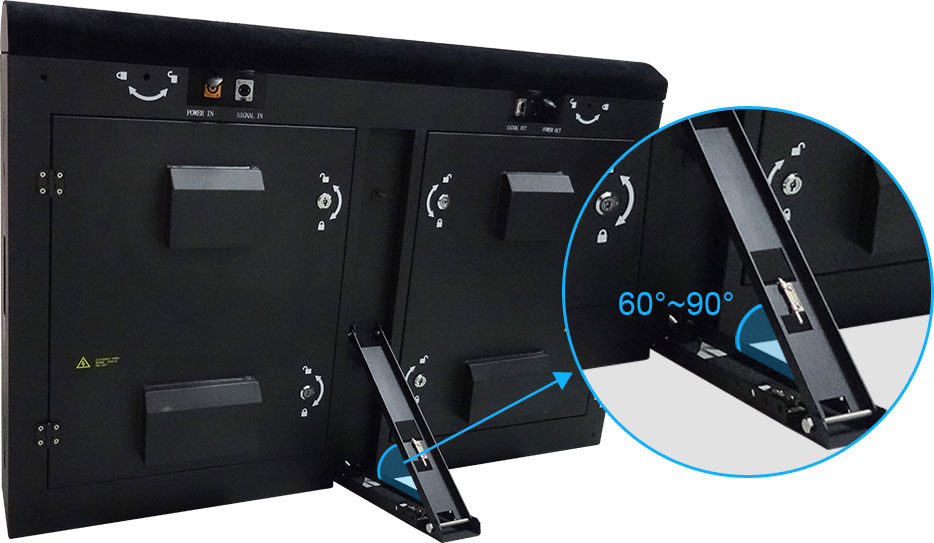

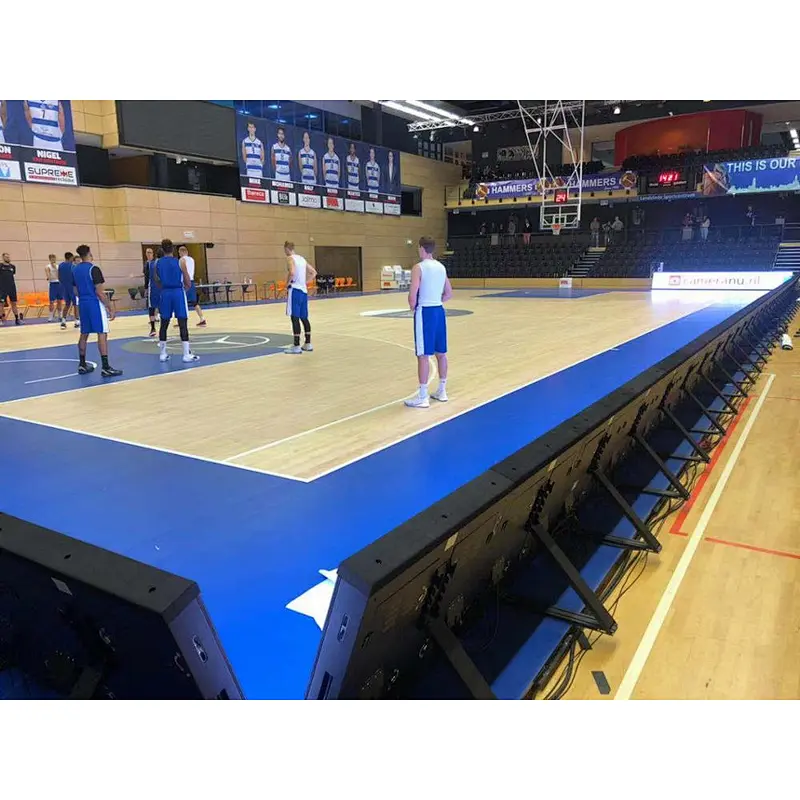

Adjustable Bracket
Cabinet adjustable angle between 60°and 90°

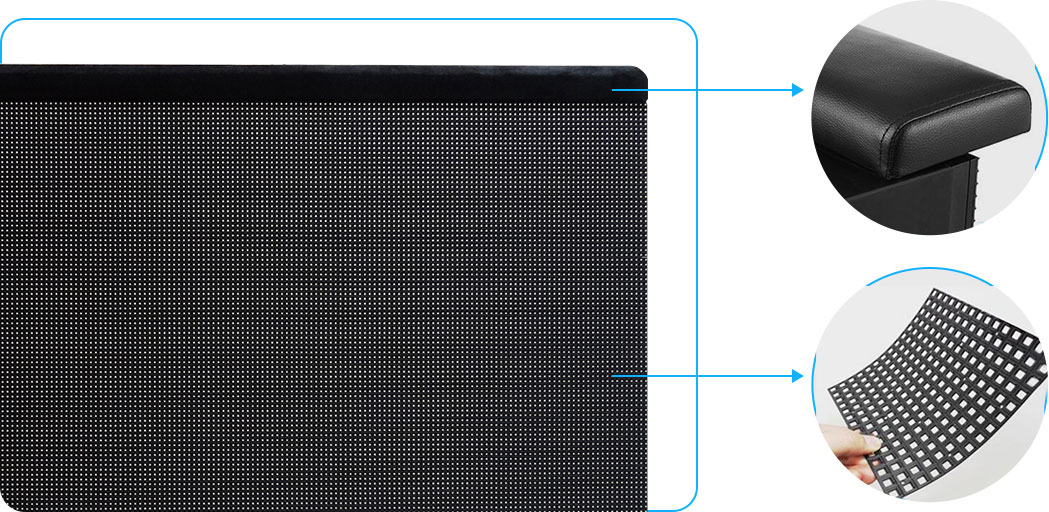

Protective Top Cover and Rubber Module Mask
Protective top cover protect players from injury. Rubber module mask protect LED from ball and players striking, besides protect players against further injury.

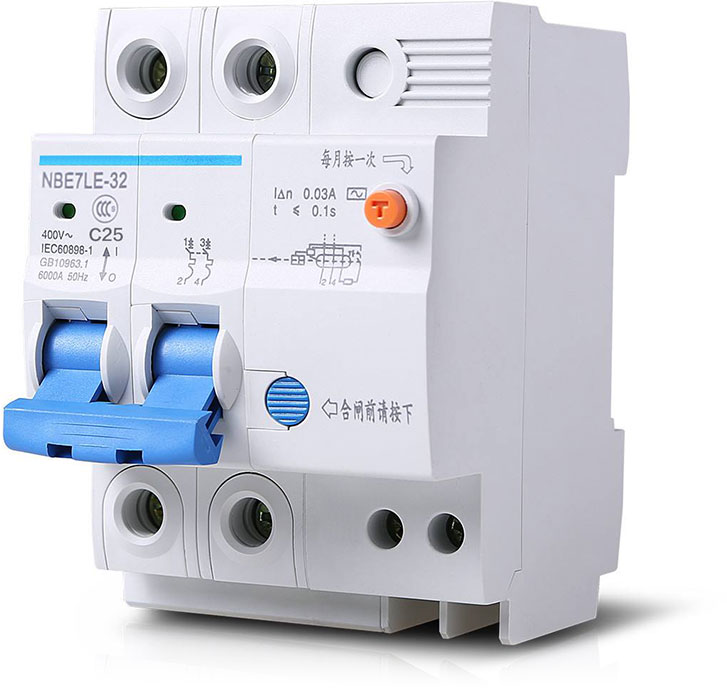

Independent RCD Protection
RCDs protect the system against short circuits, overcurrent and leakage currents which makes the system absolutely safe to operate.
Professional Software PM Player
LEDFUL PM Player and software makes it easy to control your screen, manage your media and show linear content on your perimeter LED display, which is friendly for advertising application.
4H Makes Perfect Visual Effect
★High Brightness: ≥7000nits ★High Grey Scale: 65536 levels

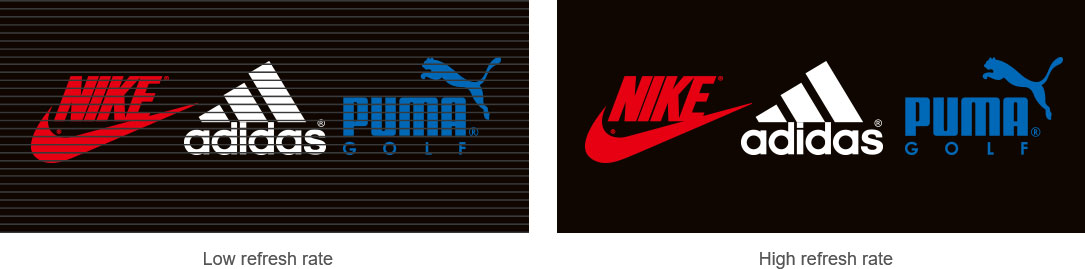

★High Refresh Rate: 2880Hz ★High Contrast: 5000:1
Energy Saving Stadium Perimeter LED Display
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency

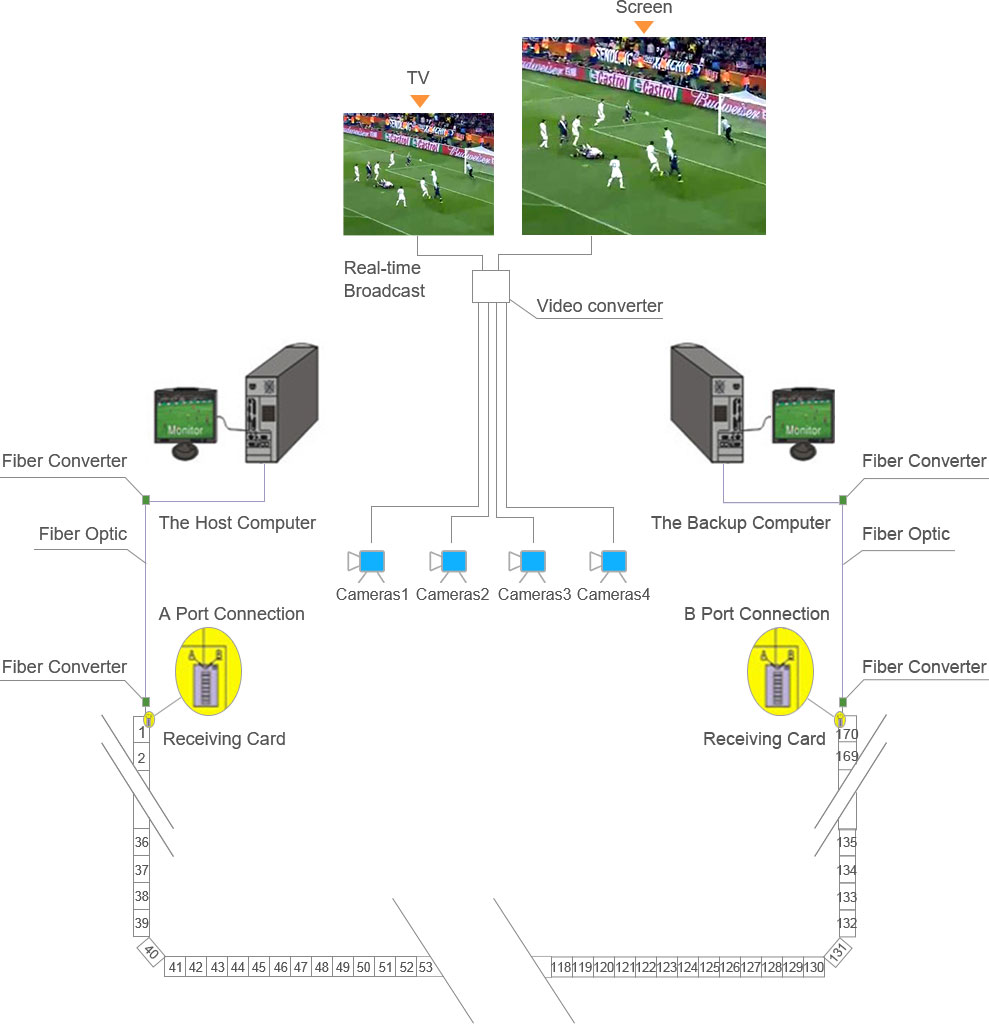

Backup for Recycle

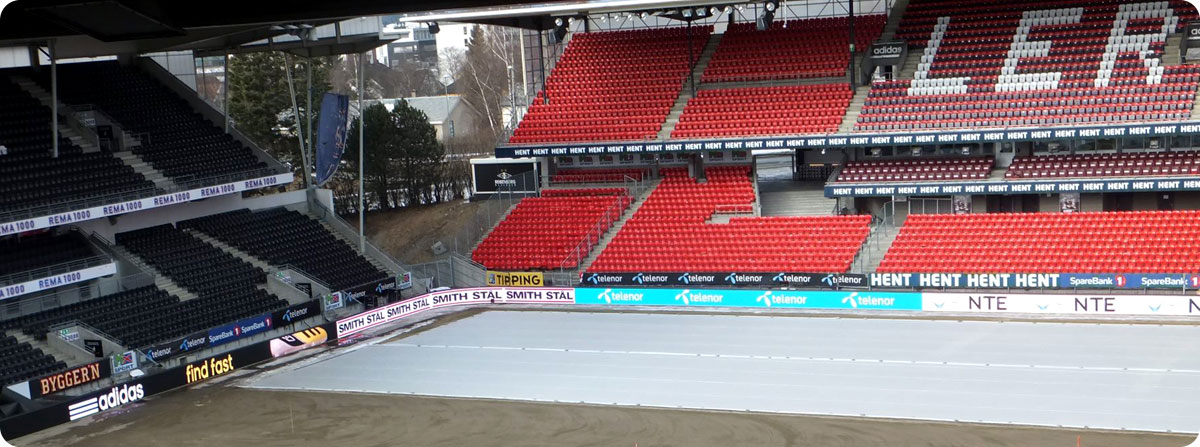

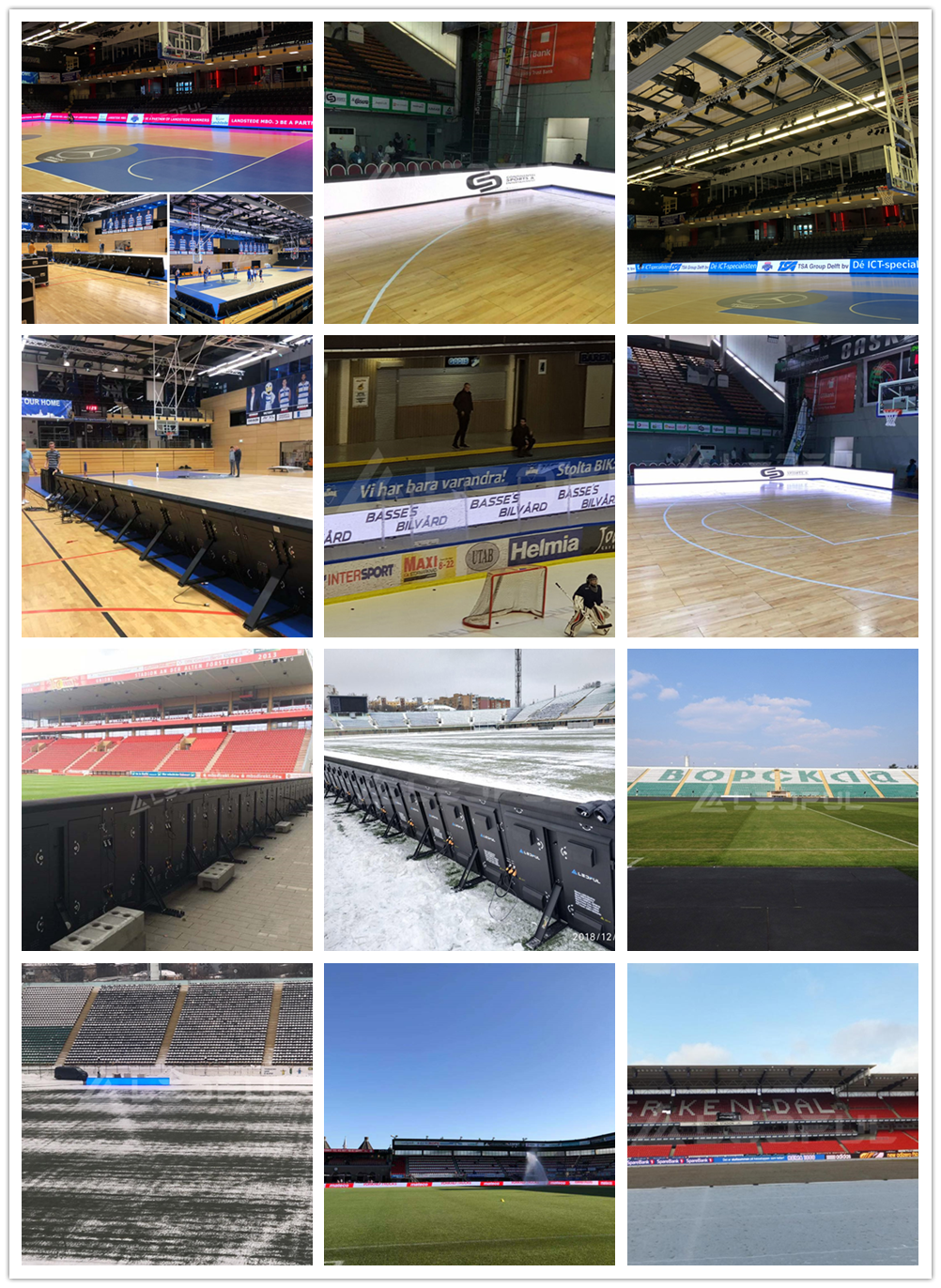

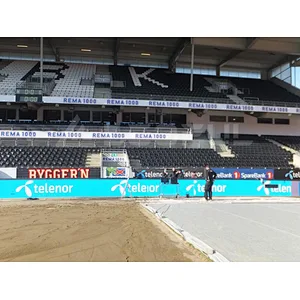

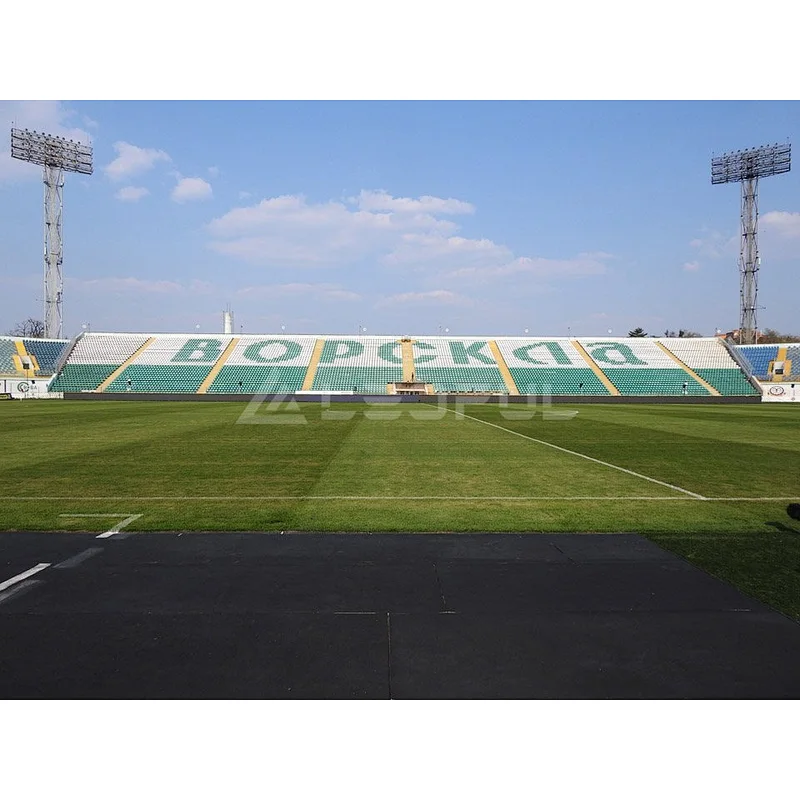

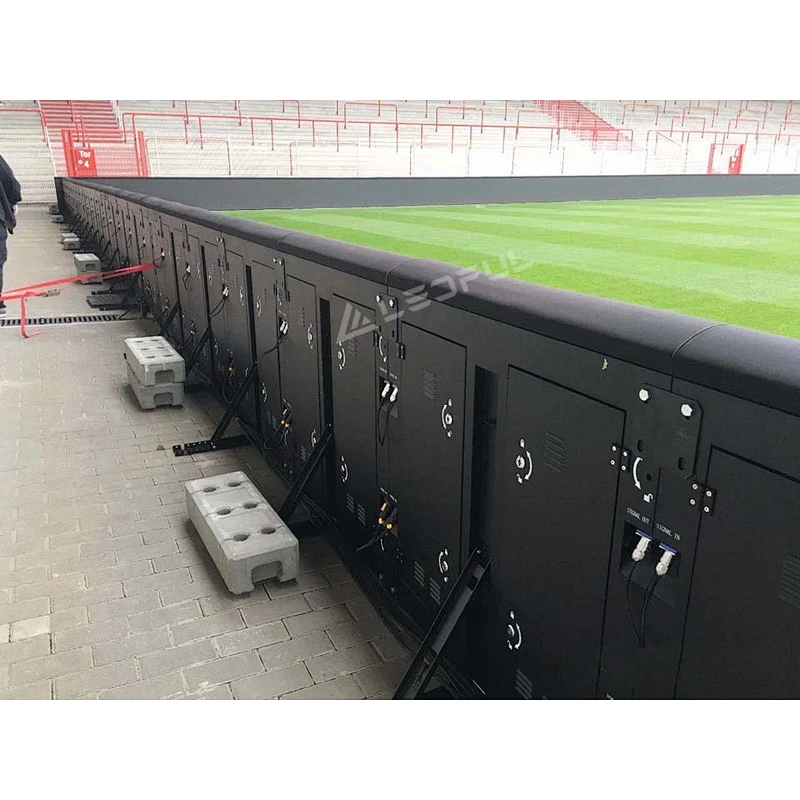

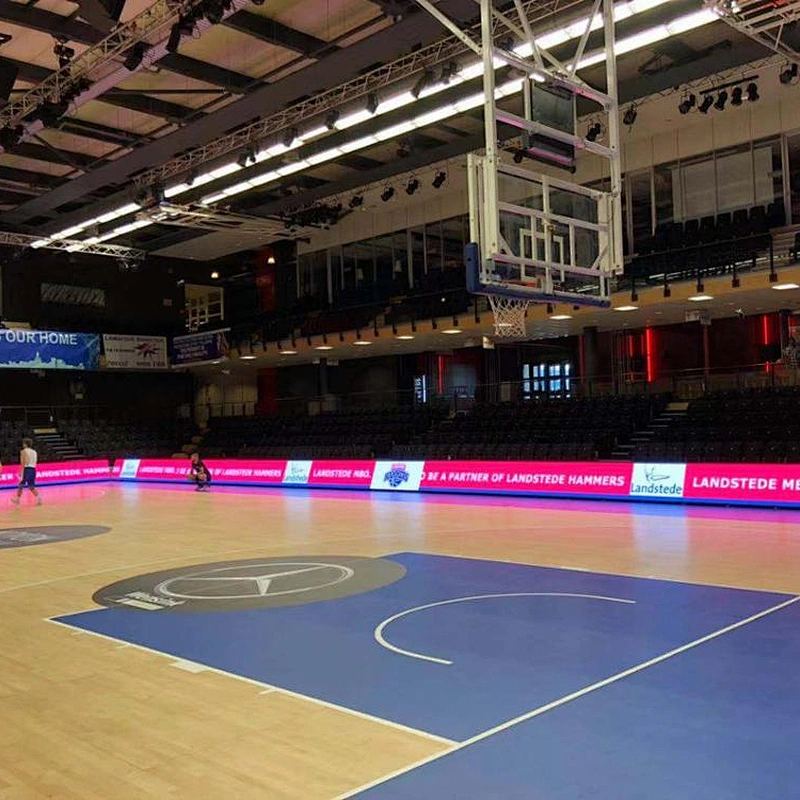

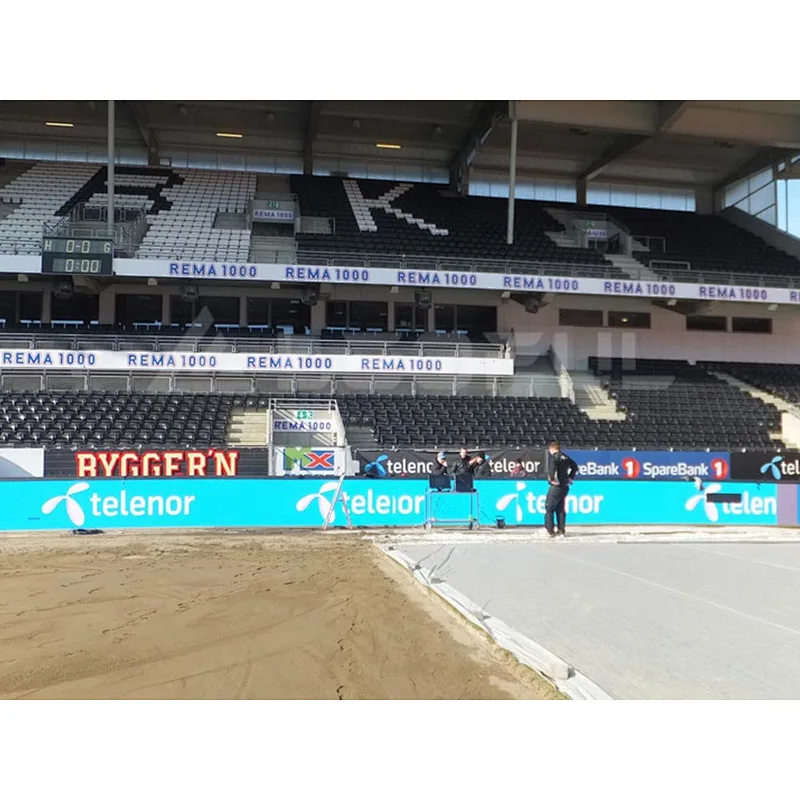

Applications
Recommend Products

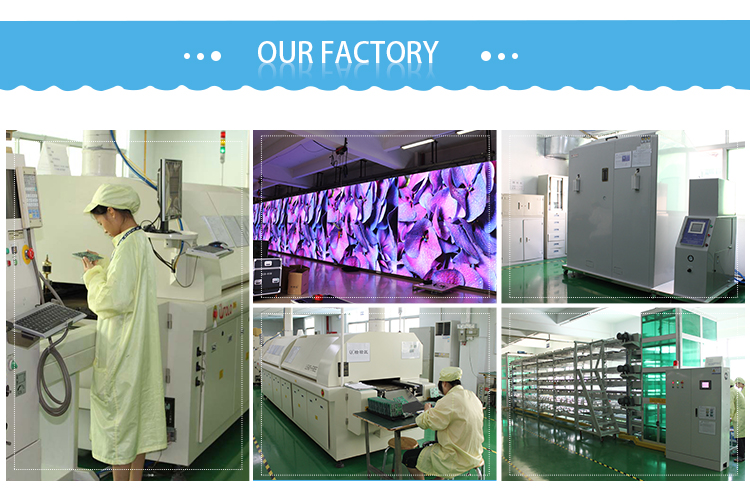

Our Company
Why Choose LEDFUL
▲Deep Customized & OEM
▲Listen to you, think more for you.
▲Lifelong maintenance with reasonable price
▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products
▲Excellent product quality, quick and professional services
▲Always ready for your any change on LED display details.
▲Recommend the best proper solution for your LED project.
▲Catch things what you missed before LED display production.
▲Take good care of each detail for your products, packages,shipping
>>>Best Balance of Quality & Price<<<
▲Listen to you, think more for you.
▲Lifelong maintenance with reasonable price
▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products
▲Excellent product quality, quick and professional services
▲Always ready for your any change on LED display details.
▲Recommend the best proper solution for your LED project.
▲Catch things what you missed before LED display production.
▲Take good care of each detail for your products, packages,shipping
>>>Best Balance of Quality & Price<<<

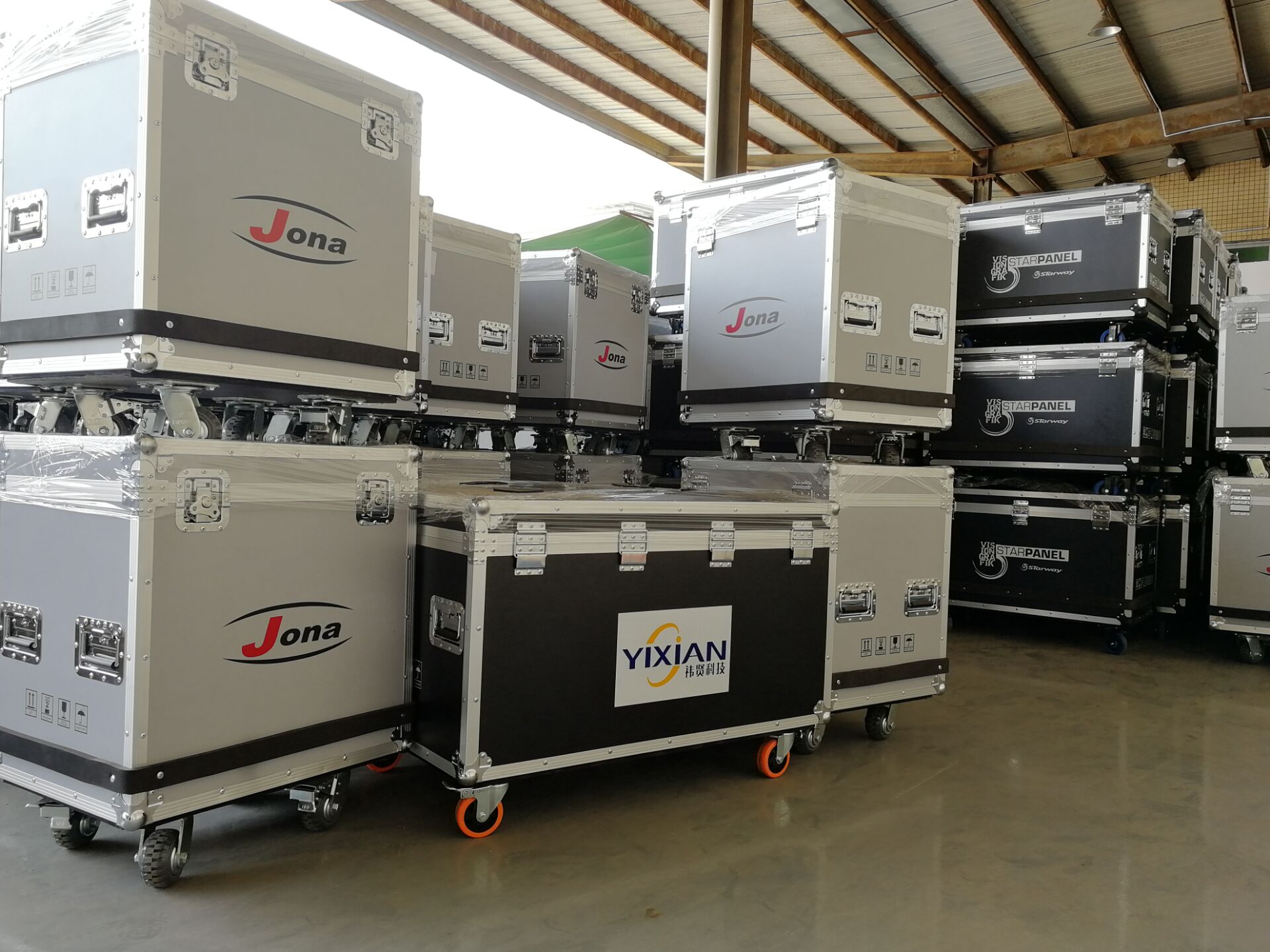

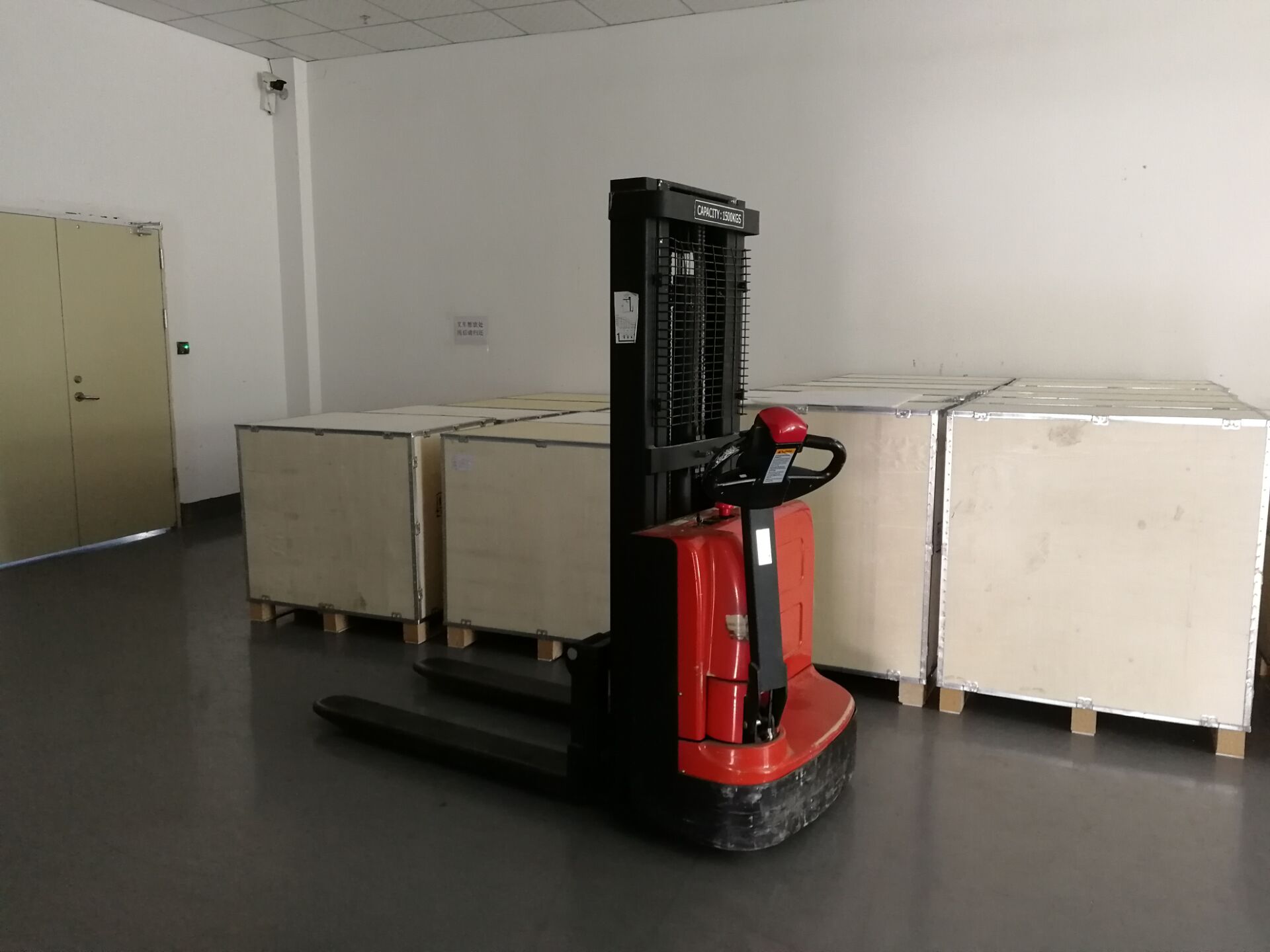

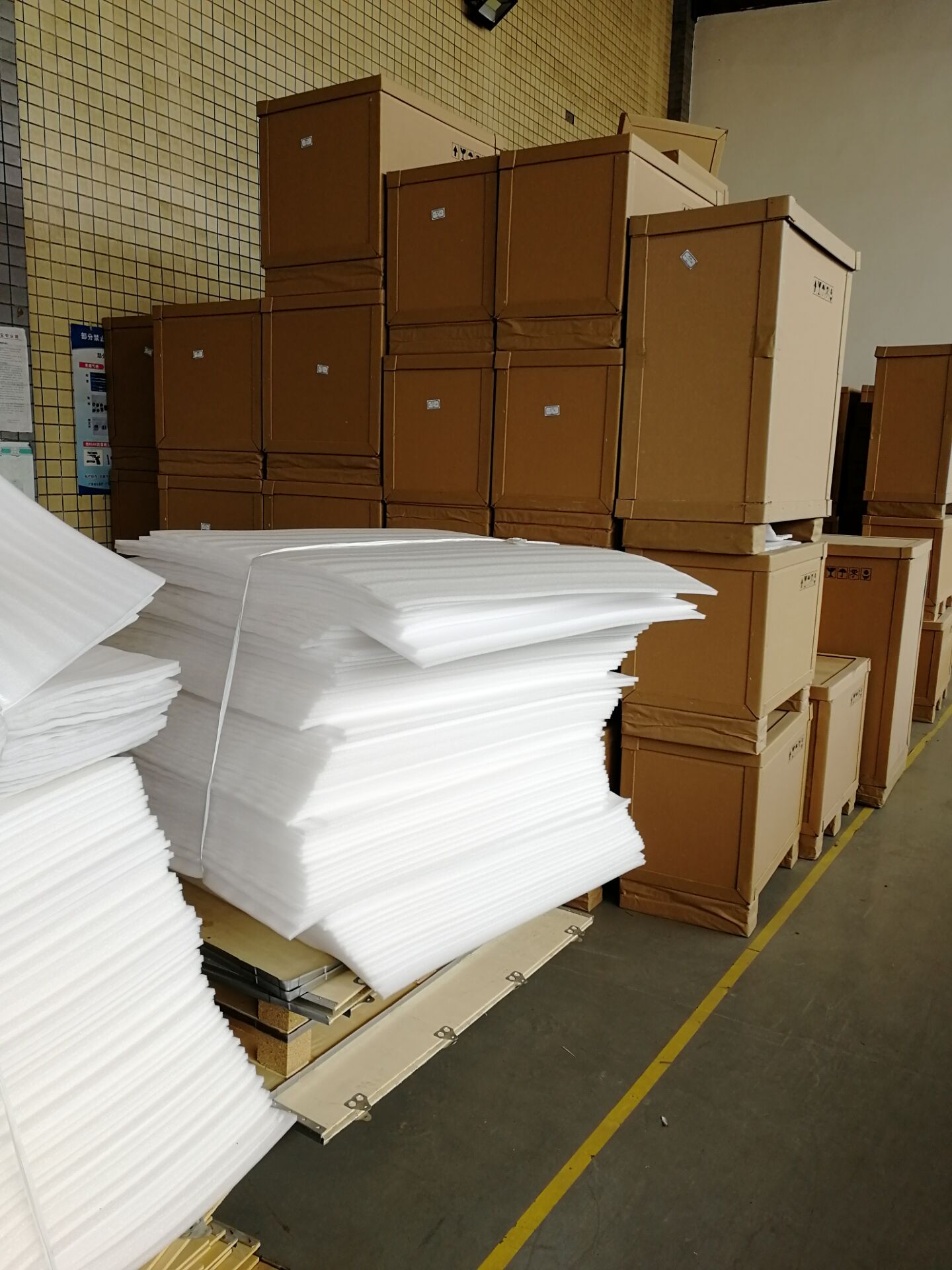

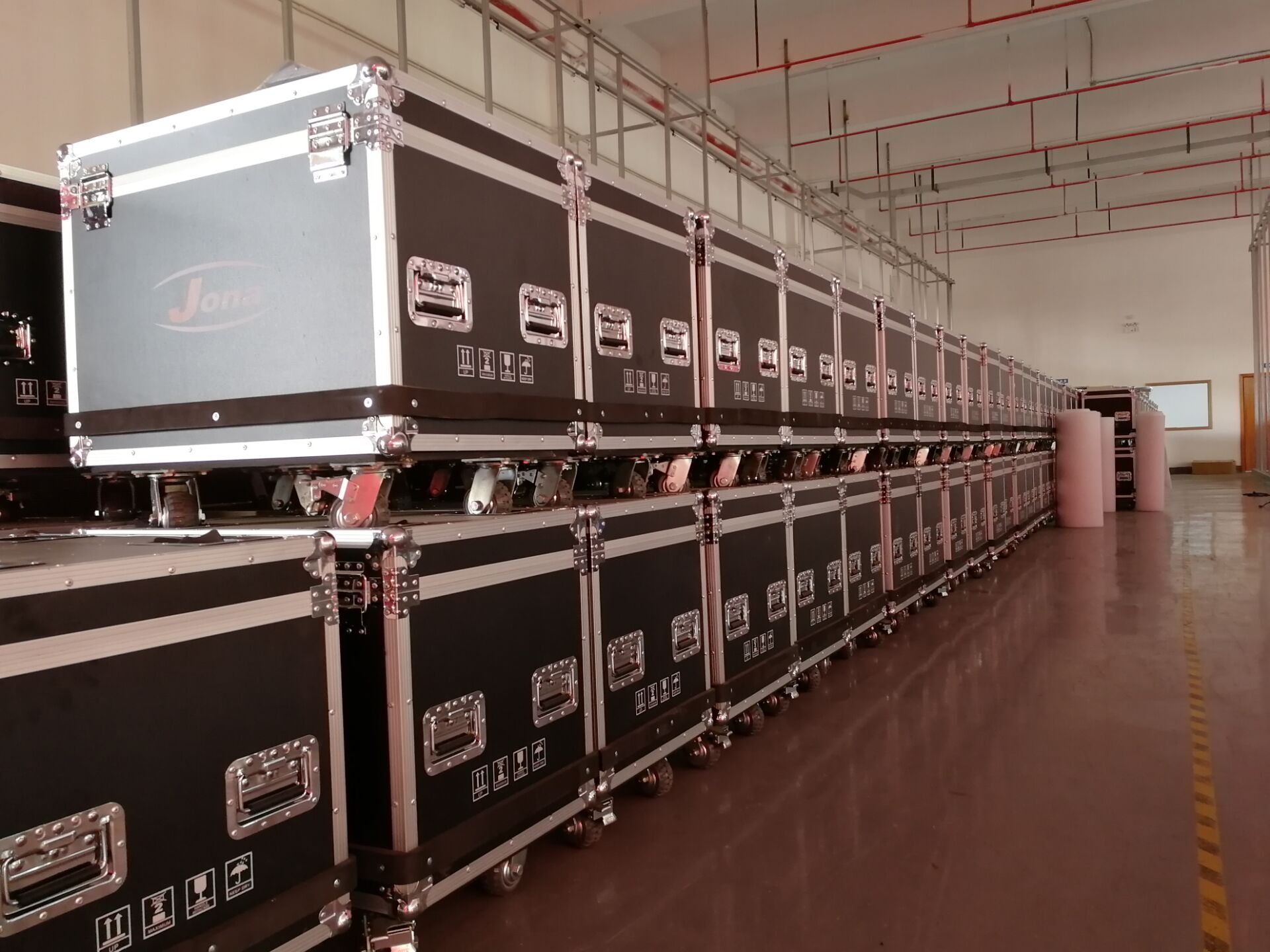

Packing & Delivery
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
