- Display Function:Video
- Power Supply:Meanwell
- Warranty:3~5 Years
- Color:Full-color
- Brightness:8000nits

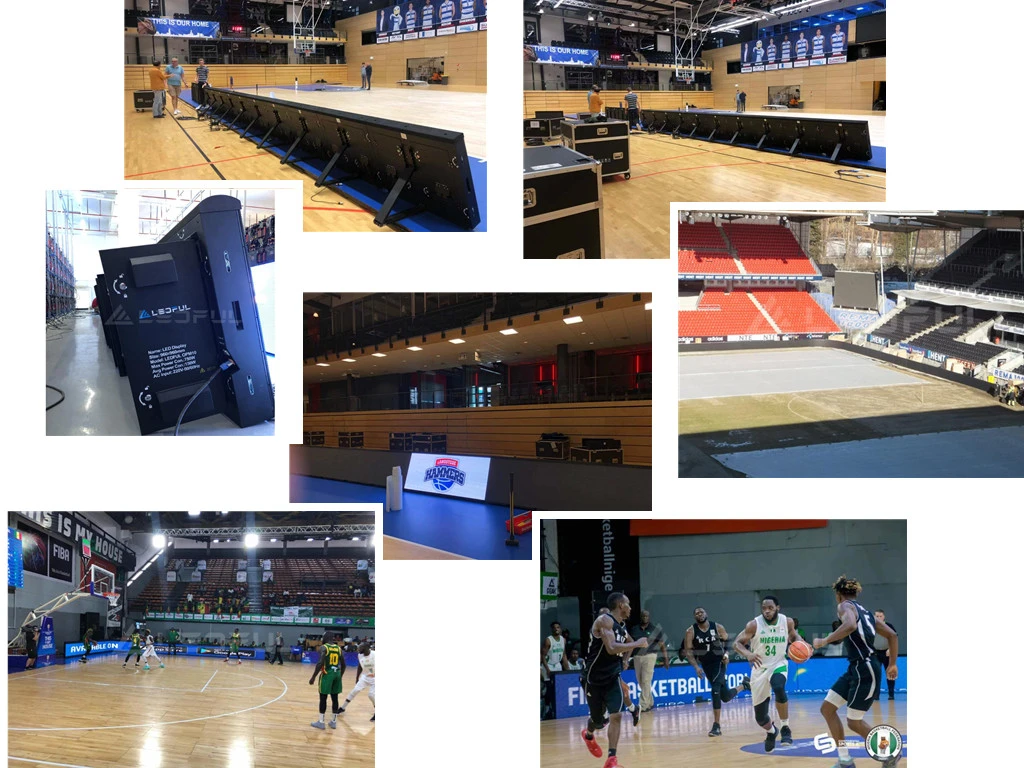

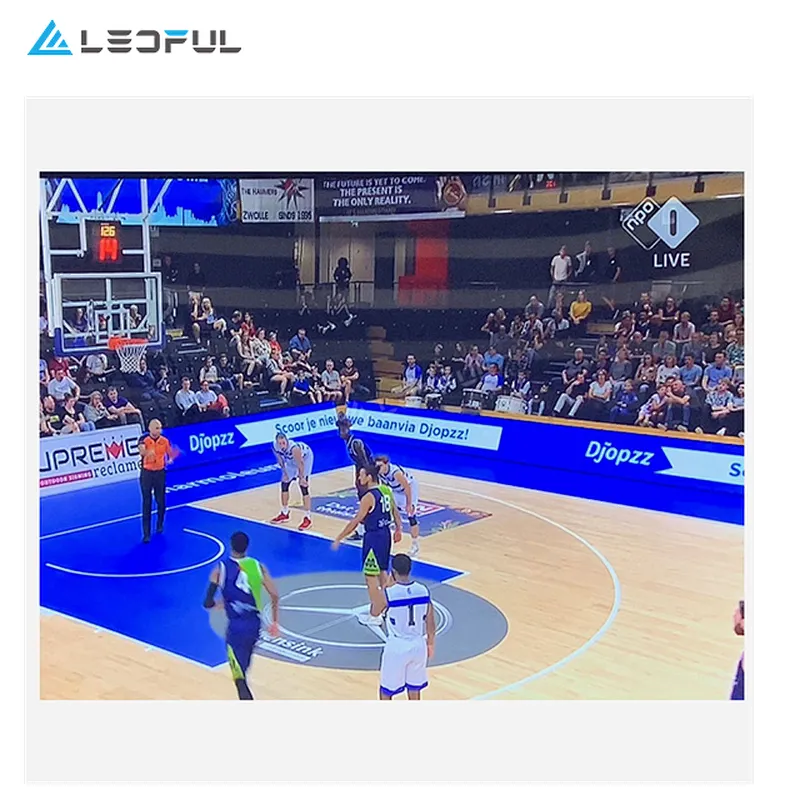

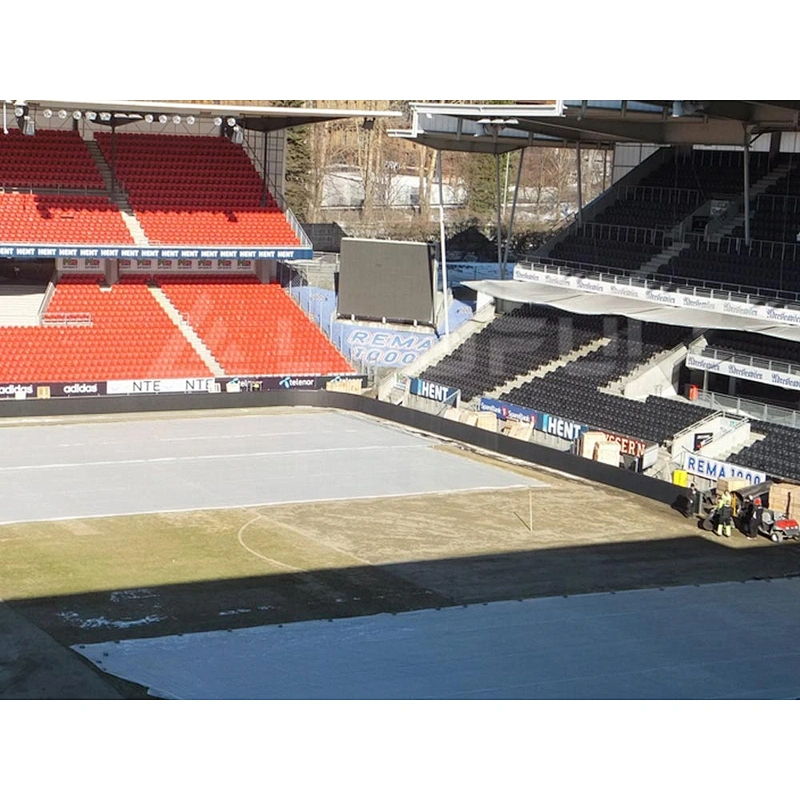

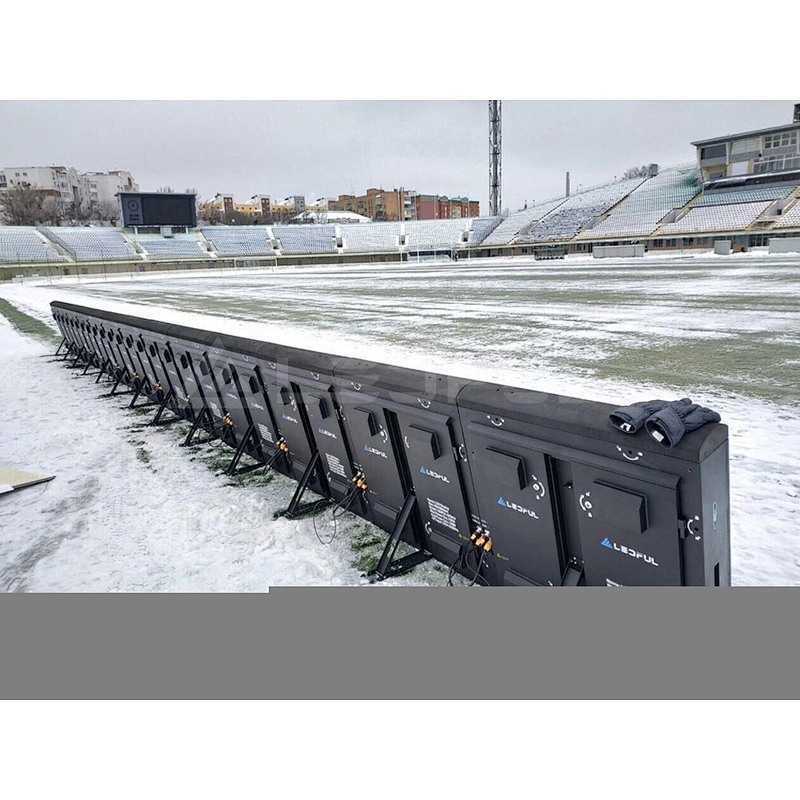

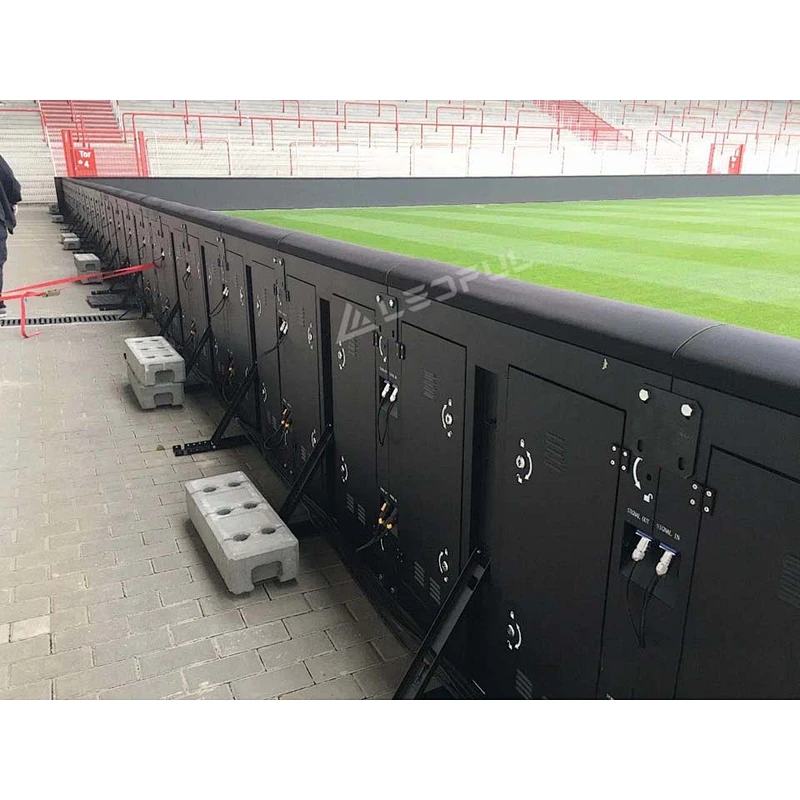

- Application:Sport Stadium Perimeter LED Display
- LED chip:Nationstar
- Certificate:CCC CE ROHS ISO
- Installation:fixed installation
- Screen Dimension:1024x1024mm/3.36x3.36ft
- Place of Origin:CN;GUA
- Application:sport advertising
- Color:fullcolor
- Panel Size:1024*1024mm
- Pixel Pitch:16mm
- Model Number:OPM16
- Brand Name:LEDFUL


Outdoor PM | OPM16 | ||||
Pixel Pitch(mm) | 16 | ||||
Pixel Matrix Per Sq.m | 3906 | ||||
Pixel Configuration | SMD3535 | ||||
Brightness (nits) | 8000 | ||||
Scan | 1/1 | ||||
Module Dimension | 256x256mm/0.84x0.84ft | ||||
Cabinet Dimension | 1024x1024mm/3.36x3.36ft | ||||
Cabinet Resolution | 64x64 | ||||
Cabinet Weight | 46kg / 101Ib (Iron) | ||||
Power Con. (Max / Avg) | 690 / 130 w/sq.m | ||||
IP Rate | IP65 | ||||
Service Access | Front / Rear | ||||

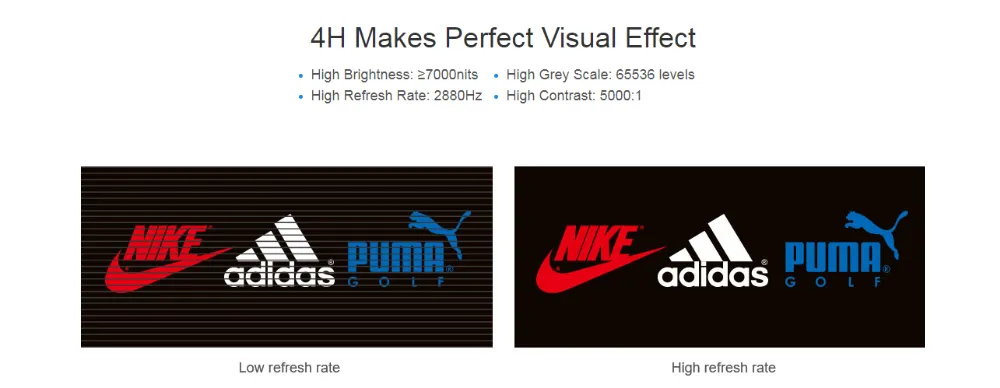

Refresh Rate (HZ) | ≥2880 | ||||
Grey Scale (bit) | 16bit | ||||
Viewing Angle (H/V) | 140 / 140 | ||||
Input Voltage (AC) | 110V / 240V |












Specifications

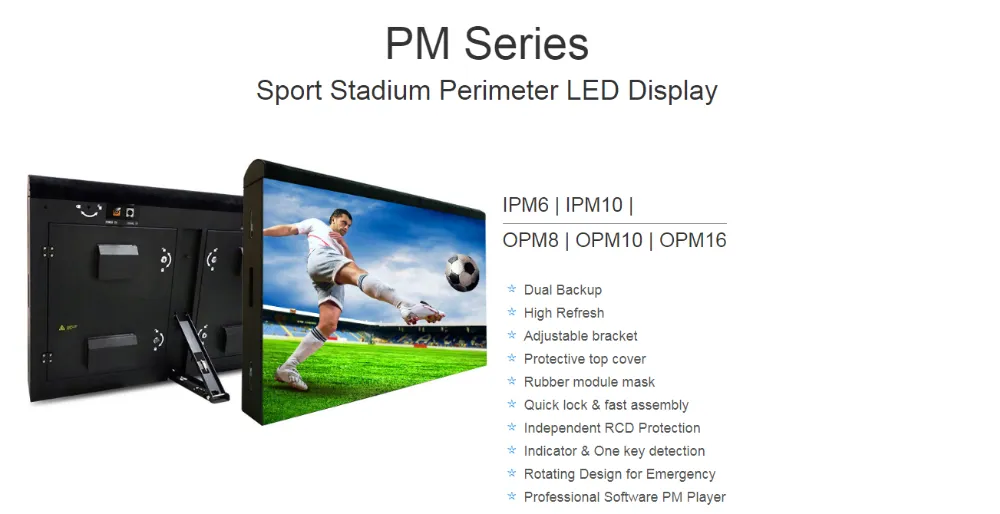

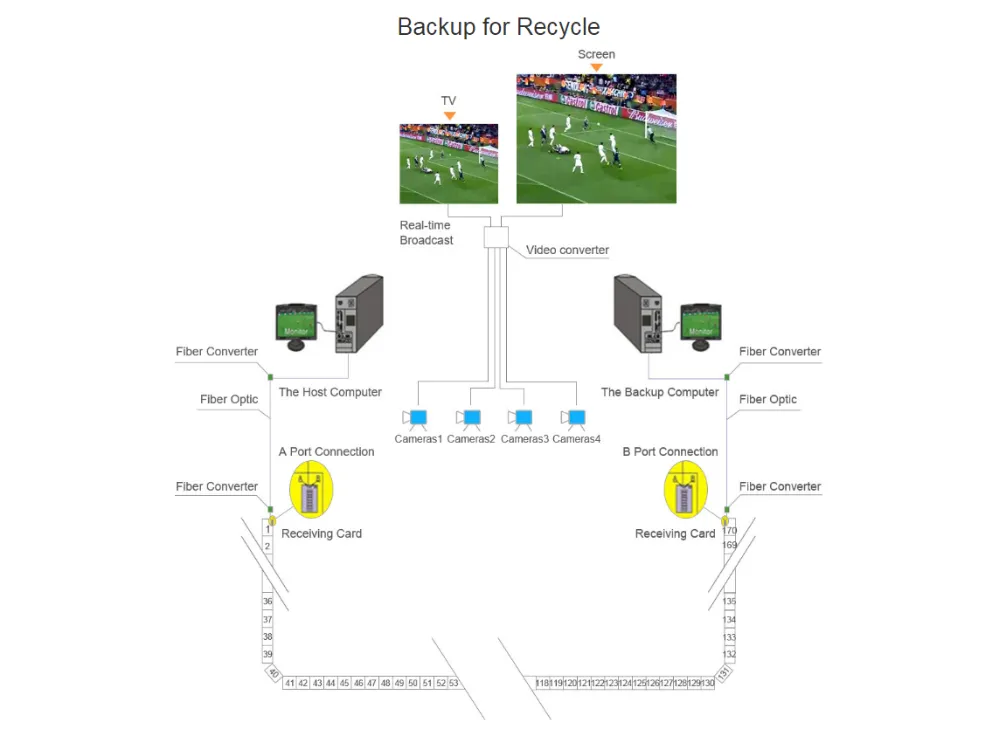

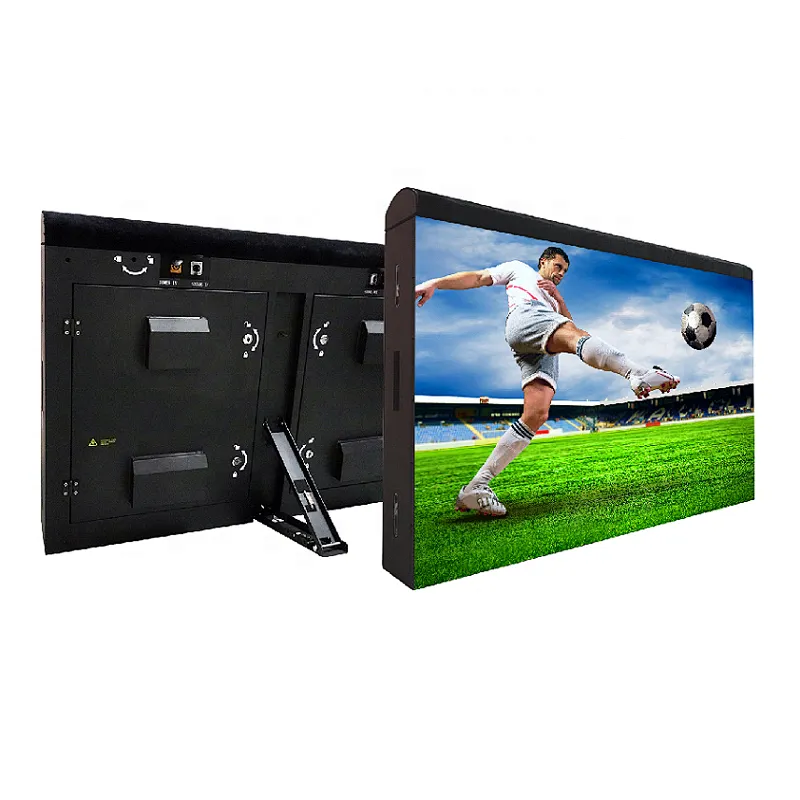

1. Dual Backup 2. High Refresh

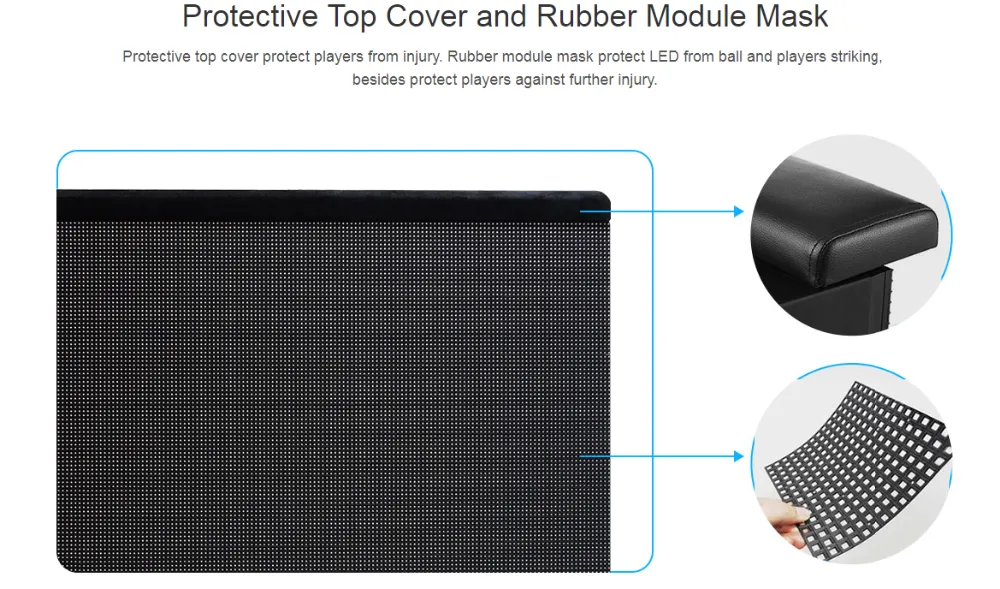

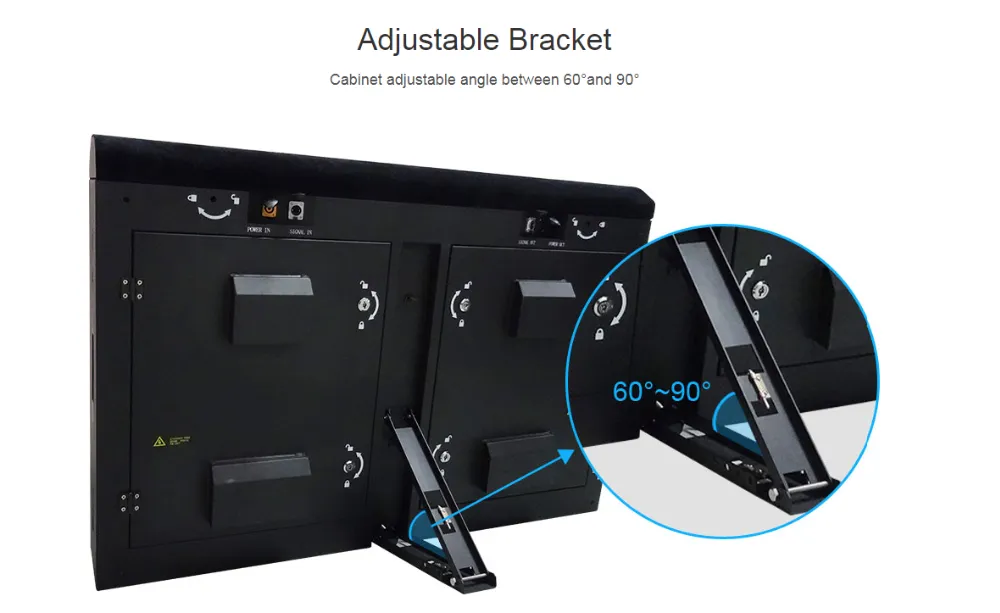

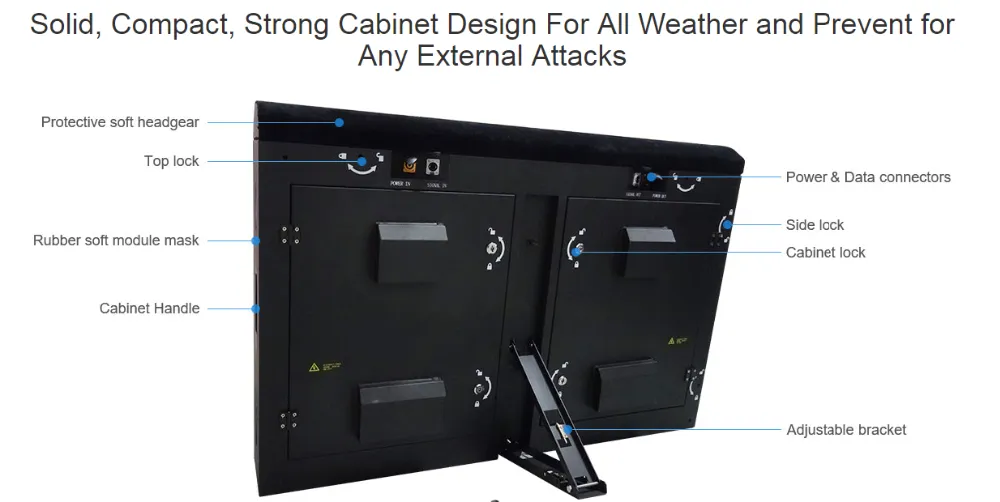

3. Adjustable bracket 4. Protective top cover
5. Rubber module mask 6. Quick lock & fast assembly

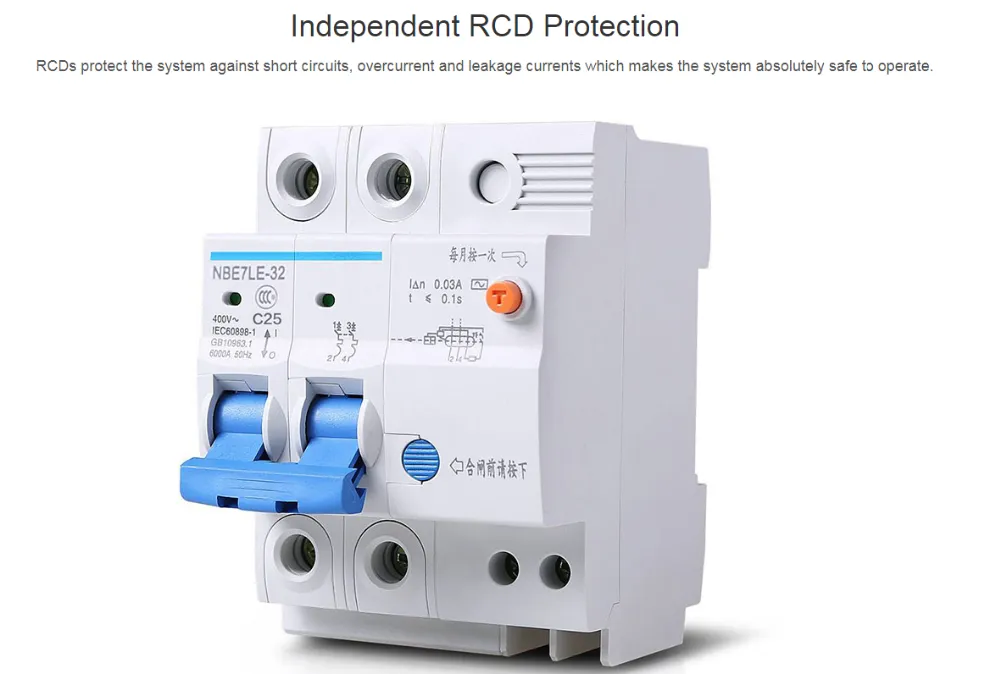

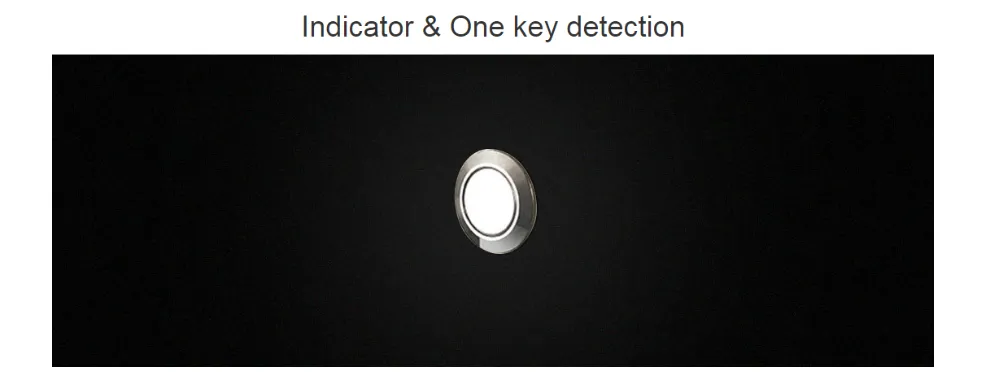

7. Independent RCD Protection 8. Indicator & One key detection

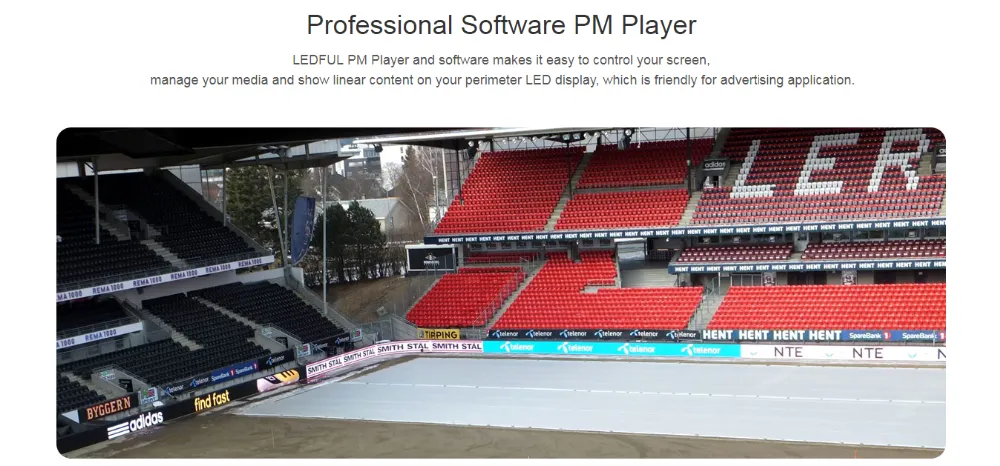

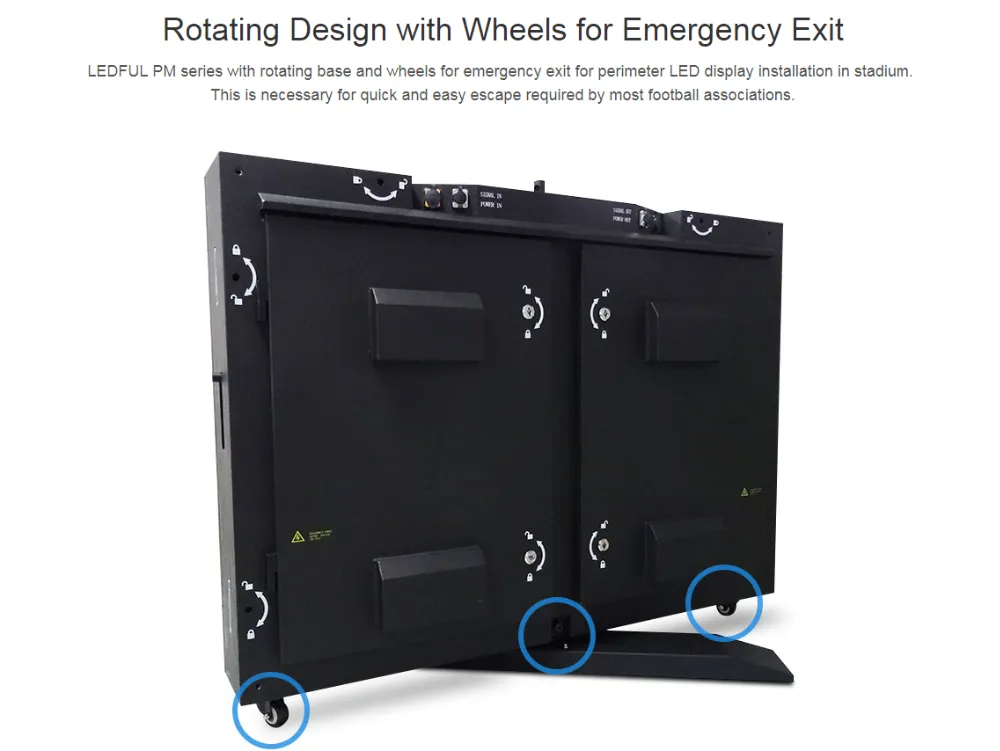

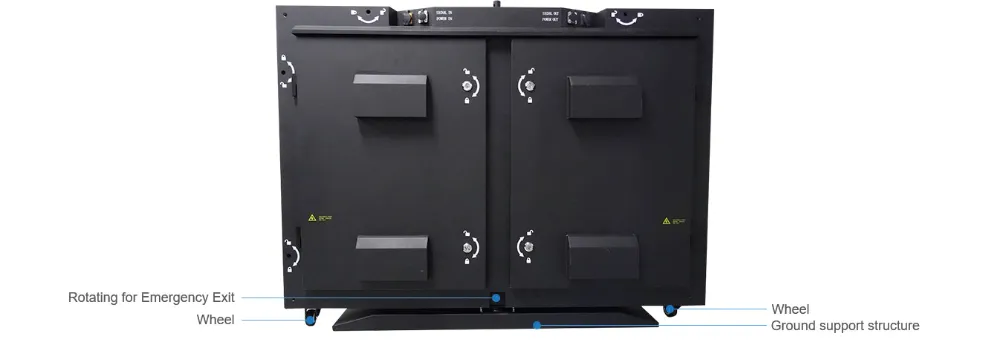

9. Rotating Design for Emergency 10. Professional Software PM Player












Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
