- Place of Origin:CN;GUA
- Usage:Outdoor
- Tube Chip Color:FULL COLOR
- Display Function:Graphics
- Pixels:10mm
- Model Number:FS10
- Product name:Outdoor Front Service Fixed Display
- Grey Scale (bit):16
- Brightness (nits):7500
- Pixel Configuration:SMD2727
- Cabinet Resolution:96x96
- Module Dimension:320x320mm / 1.05x1.05ft
- Cabinet Dimension:960x960x130mm / 3.15x3.15x0.43ft
- Cabinet Weight:35kg / 77Ib ( Iron)
- Input Voltage (AC):110 / 240
Product Description

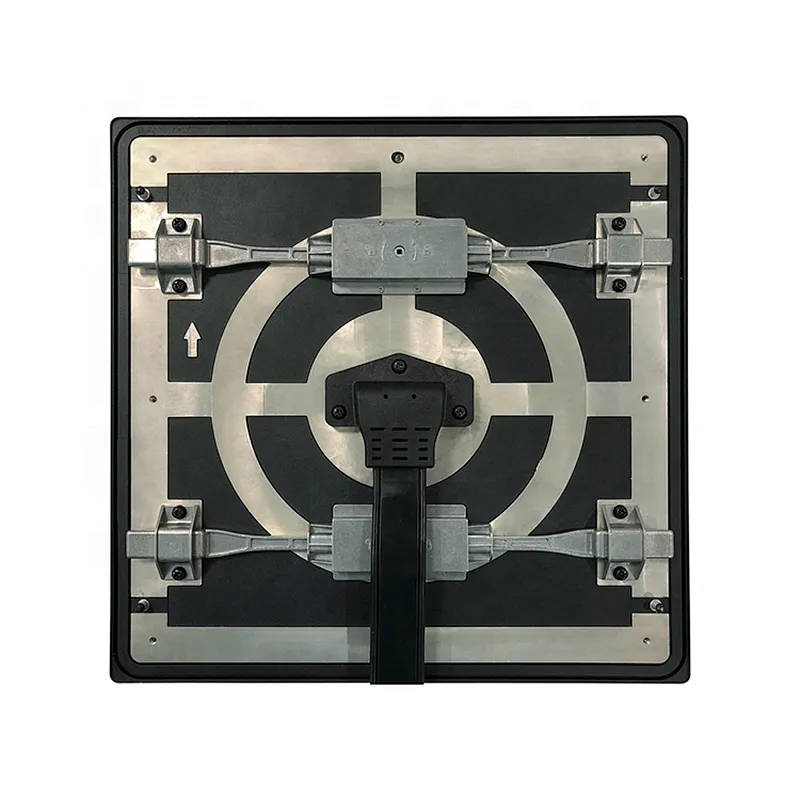

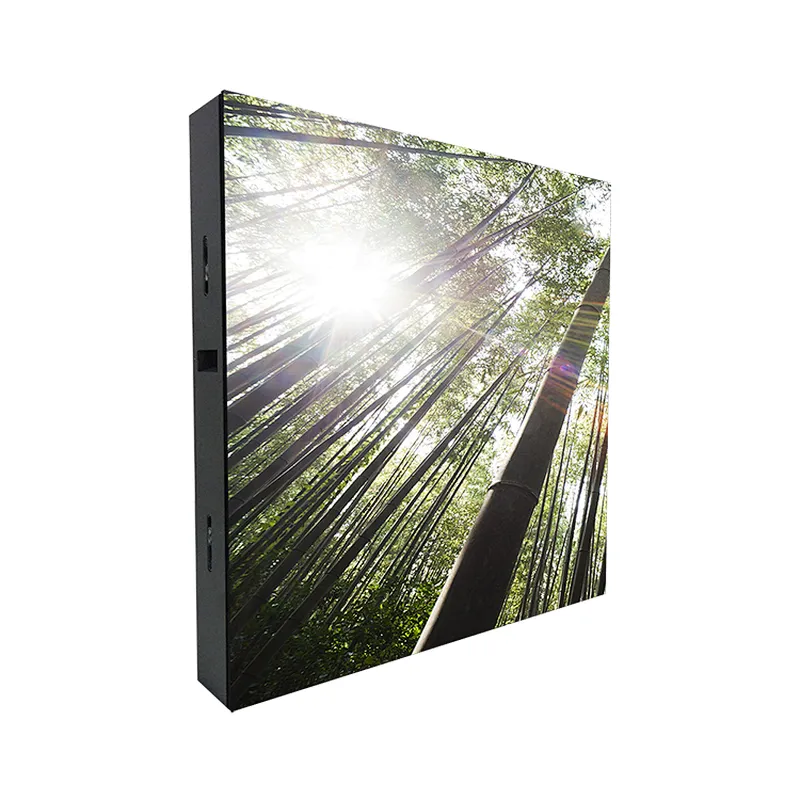

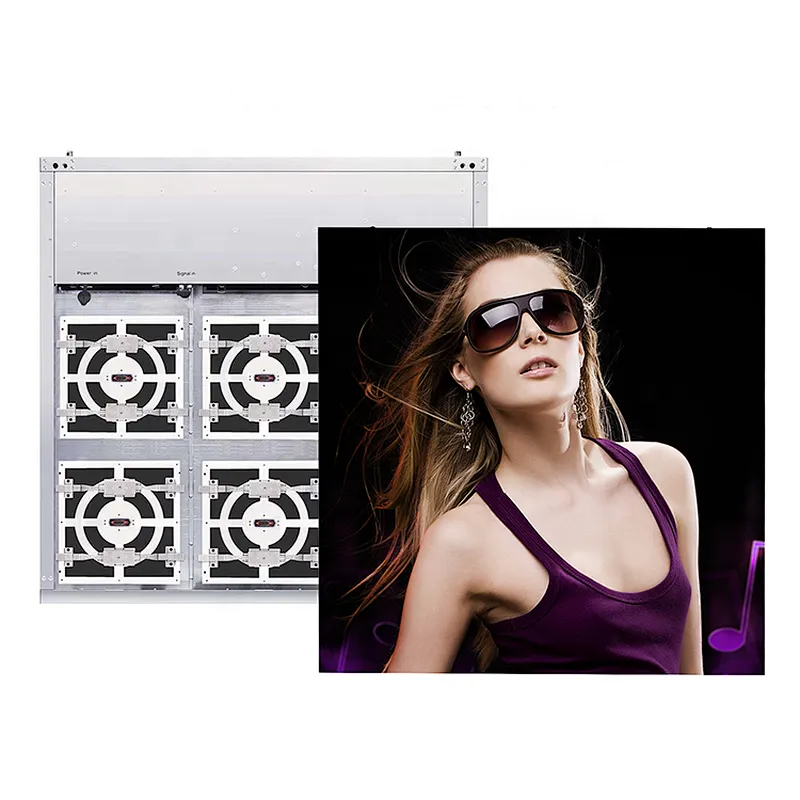

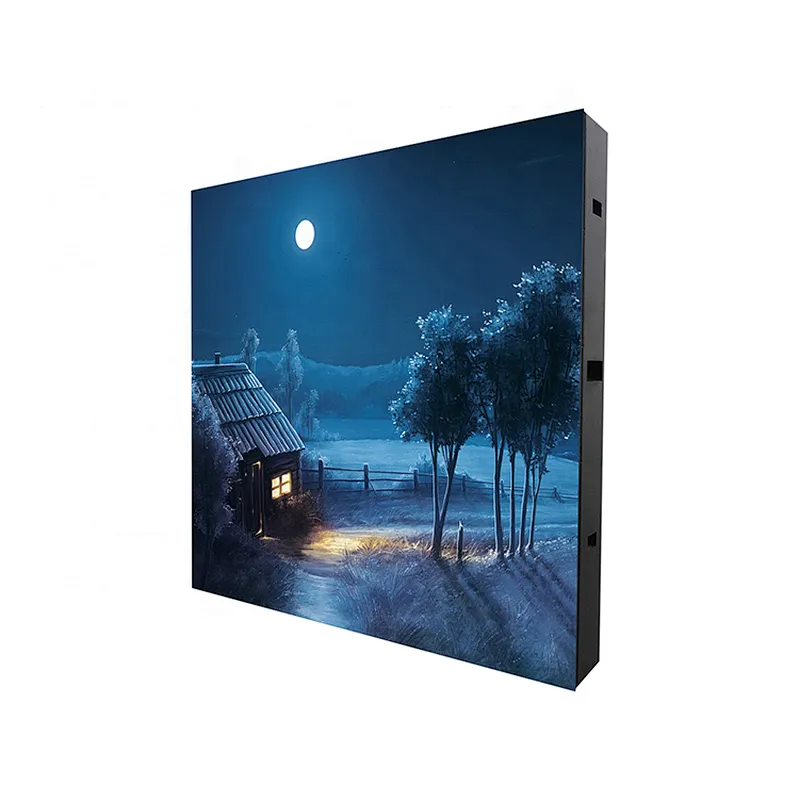

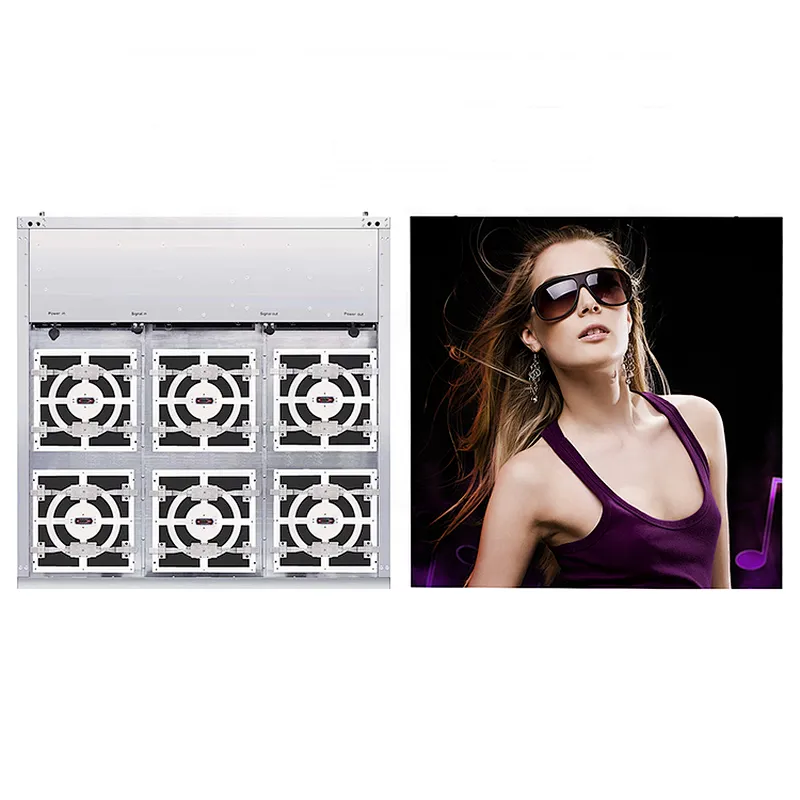

Clean and clear on backside outdoor front access LED display
| Value | FS10 |
| Pixel Pitch(mm) | 10mm |
| Pixel Matrix Per Sq.m | 10000 |
| Pixel Configuration | SMD2727 |
| Brightness (nits) | 7500 |
| Scan | 1/2 |
| Cabinet Resolution | 96x96 |
| Module Dimension | 320x320mm / 1.05x1.05ft |
| Cabinet Weight | 35kg / 77Ib ( Iron) |
| Cabinet Dimension | 960x960x130mm / 3.15x3.15x0.43ft |
| Service Access | Front |
| Refresh Rate (HZ) | ≥1920 |
| Grey Scale (bit) | 16 |
| Viewing Angle (H/V) | 160 / 160 |
| Power Con. (Max / Avg) | 750 / 150 w/sq.m |
| IP Rate | IP68 |
| Input Voltage (AC) | 110 / 240 |
| * Specifications and photos are subject to change without prior notice. | |
