• Usage:OUTDOOR
• Tube Chip Color:FULL COLOR
• Screen Dimension:960*960mm
• Product name:Led Video Display Panel
• Application:Outdoor Advertising Led Screen
• Certificate:CE ROHS FCC
• Module size:320*320mm
• Brightness:6500cd/sqm
• Color:Full-color
• Refresh rate:1920Hz
• Place of Origin:CN;GUA
• Application:Outdoor advertising
• Color:colorful
• Panel Size:960*960
• Pixel Pitch:6mm
• Model Number:FS6
• Brand Name:LEDFUL

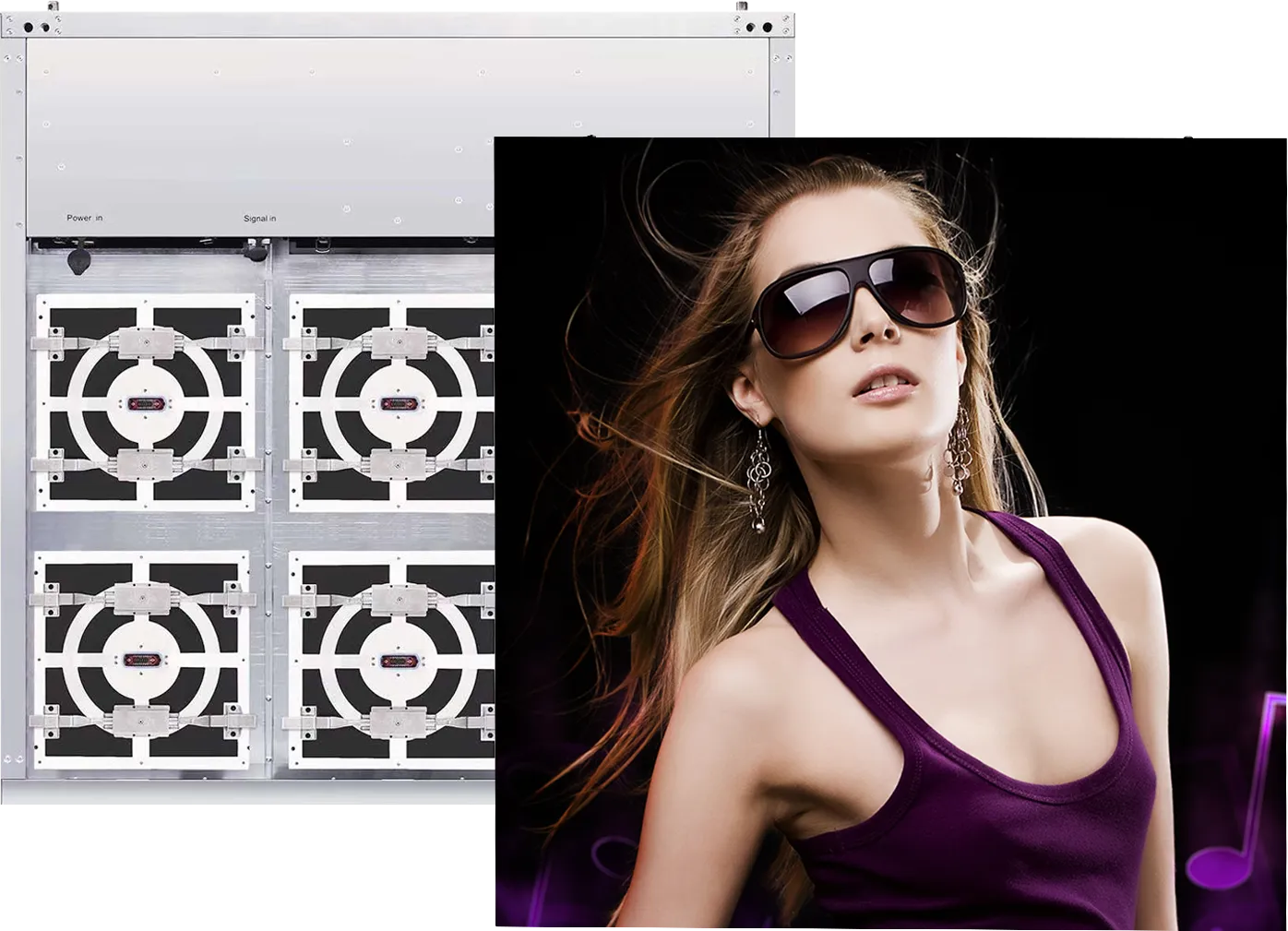

2020 New Design

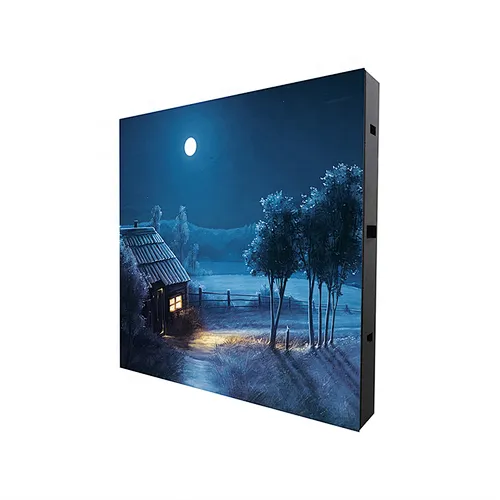

Outdoor Front Service Fixed LED Display

Product Description

FS 6

Outdoor Commercial Advertising LED Display

* 3 times aging process
* Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
* Long service time and low attenuation by applying dual channels for heat dissipation
* High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function
* No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection

from deformation

Specification

Parameter	FS6
LED Chip	Epistar
Control System	Nova
Pixel Configuration	SMD2727
Pixel Pitch	6 mm
Material	Aluminum
Brightness	6500 nits
Protective Grade	IP65
Certification	CE RoHS FCC CCC ISO9000
Input Voltage	AC110 / 220 50-60 HZ
Refresh Rate	≥ 1920 HZ
Temperature	-20°C~60°C
Life Span	100,000 hours
Grey Scale	16 bits

Feature

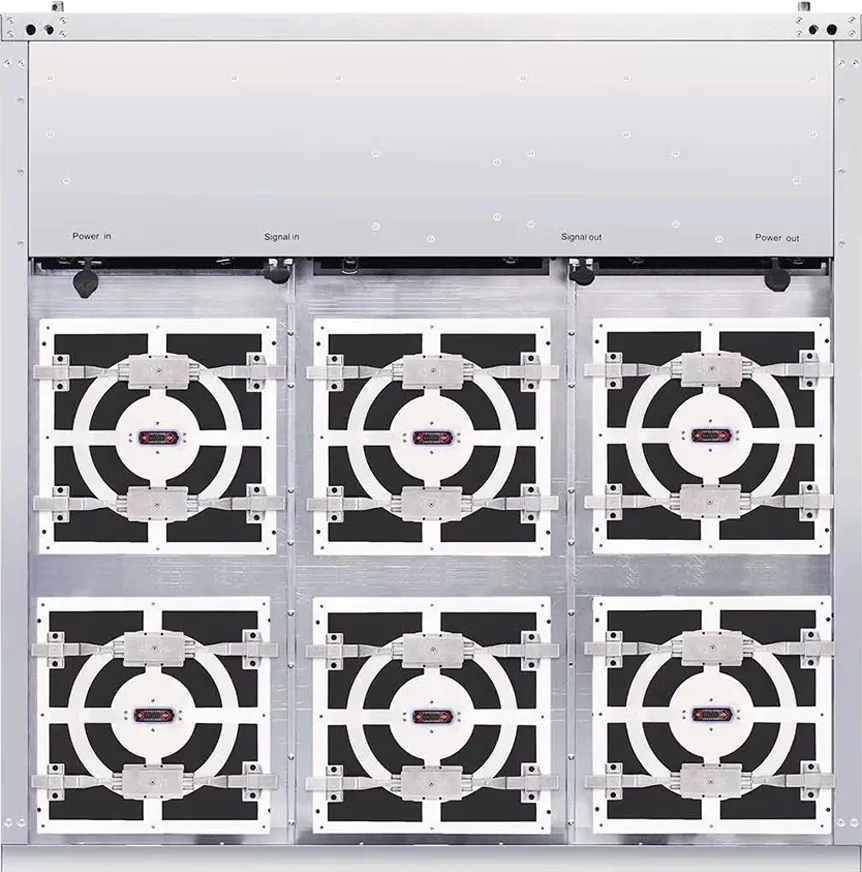

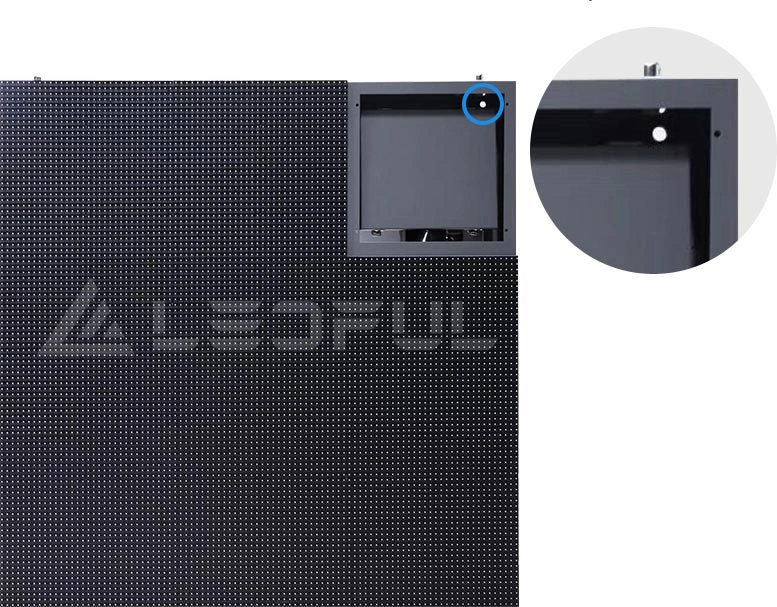

Full Front Service

Full front service, modules, power supply, receiver card, cables, etc can be replaced in front side.

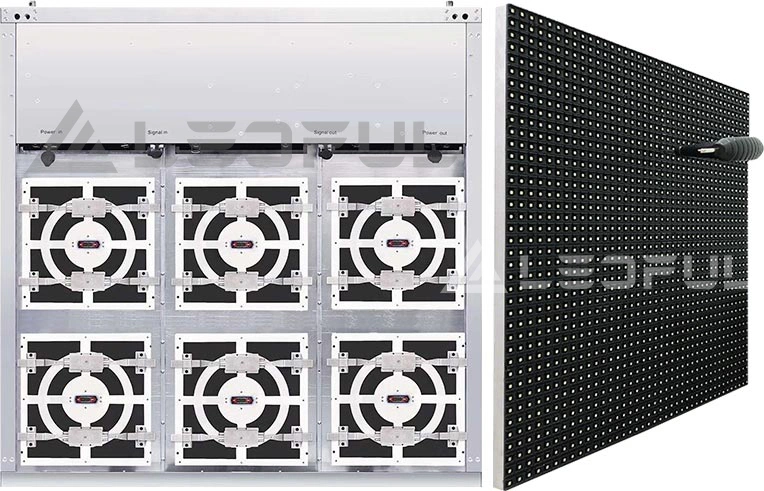

Front Installation

Front installation, the cabinets can be installed in front and mounted directly on the wall.

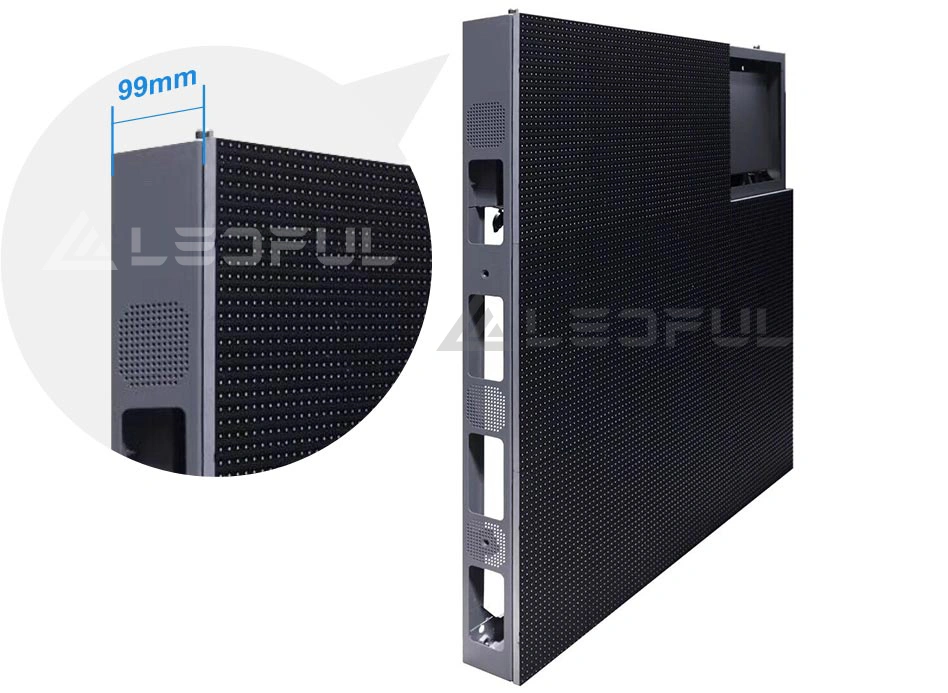

Super Thin

Super thin, it is only 99mm depth including LED modules

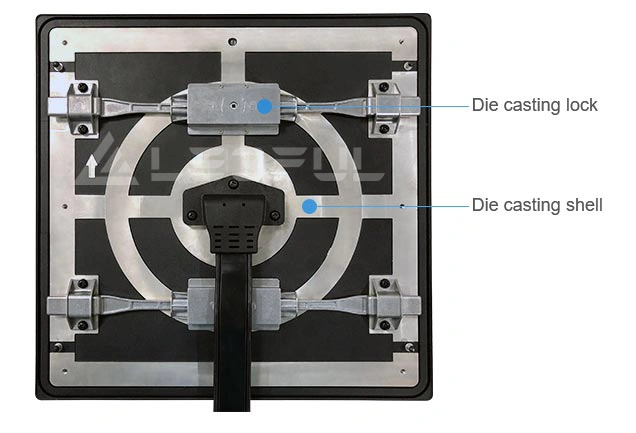

Die Casting Module

All Die casting, die casting modules make less tolerance,
die casting shell make better cooling,
die casting lock make longer durability.

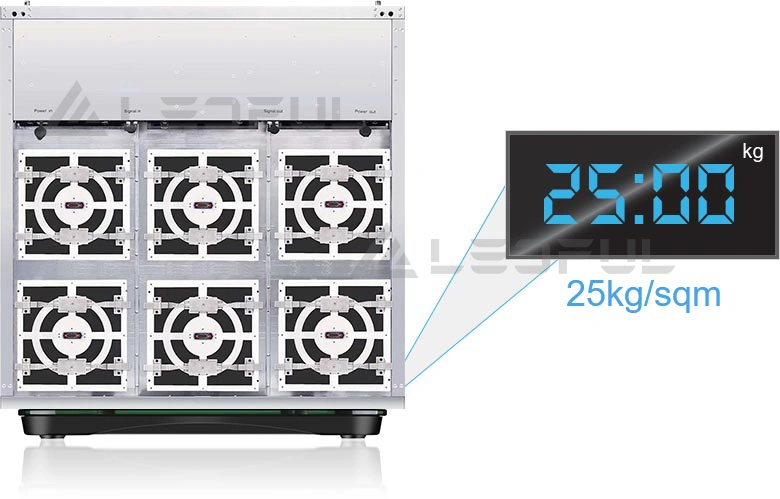

Light Weight

Light weight, it is only 25kg/sqm with aluminum profile cabinet.

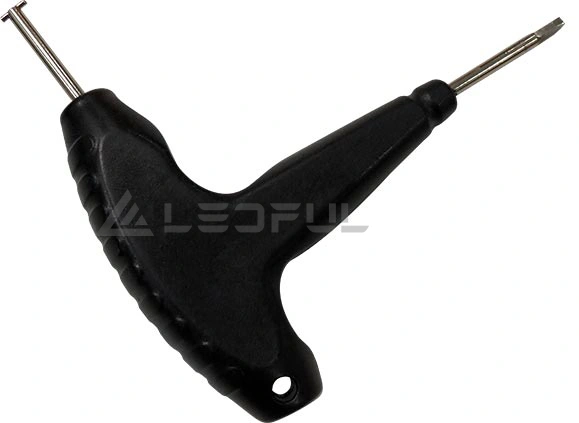

Easy & Quick Installation & Maintenance

Easy and Quick, customized, smart and quick front maintenance tool.
One side is for lock, the other side is for pulling, easy and fast front service

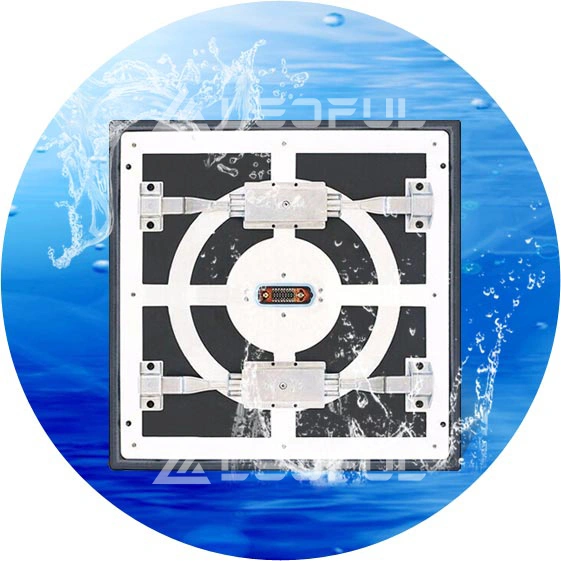

All Weather Resistant with IP67

All weather resistant with IP68 which can be put inside water.

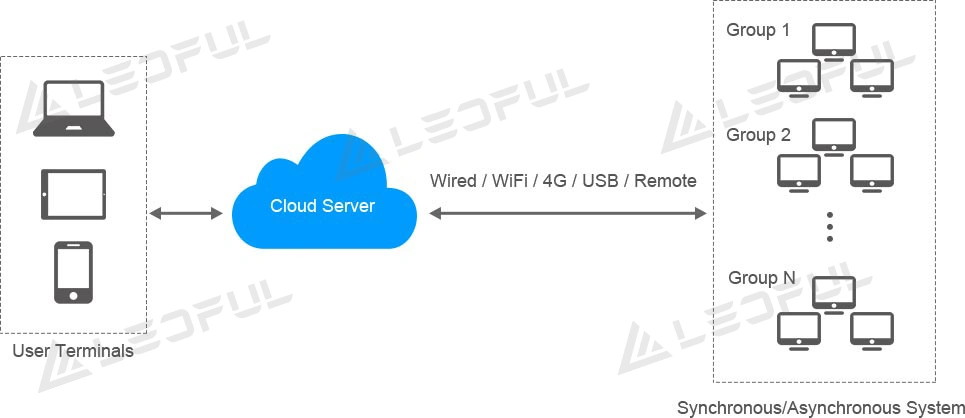

How to control LED display?

By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together?

No problem, your laptop can manage all of them whenever and wherever.

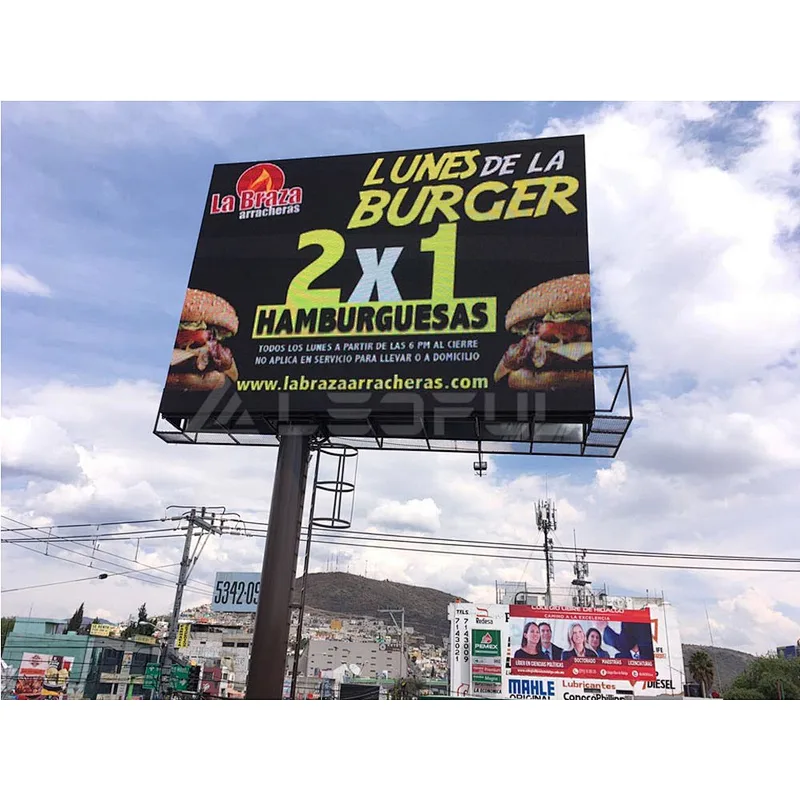

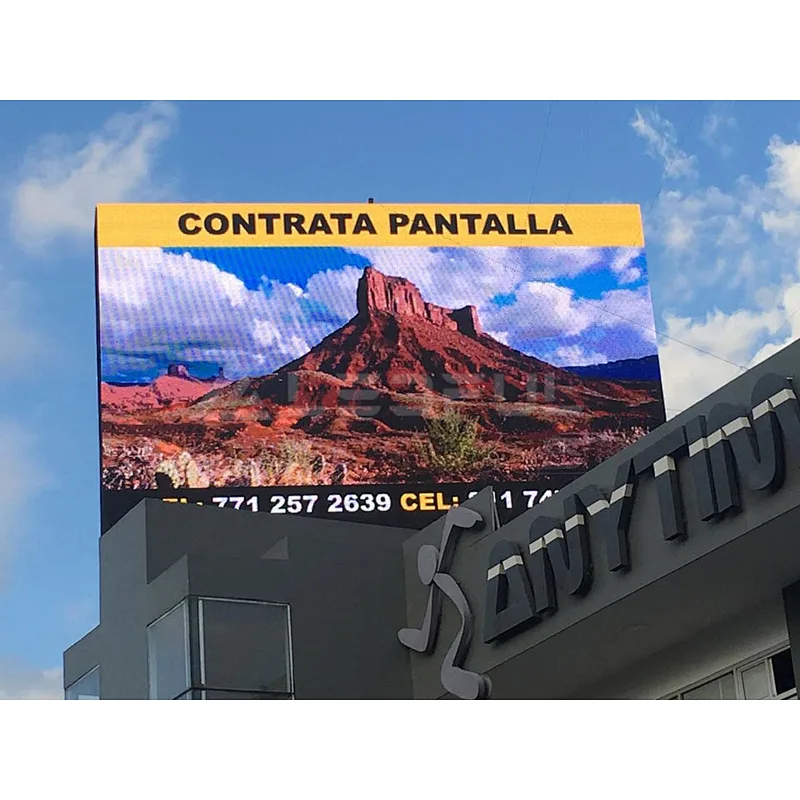

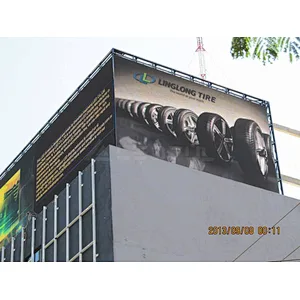

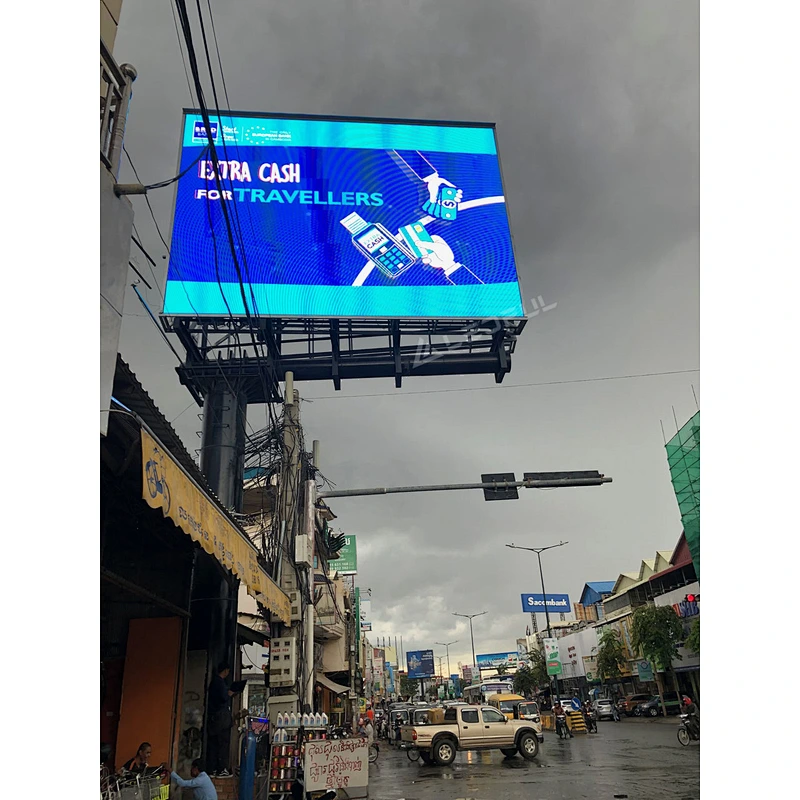

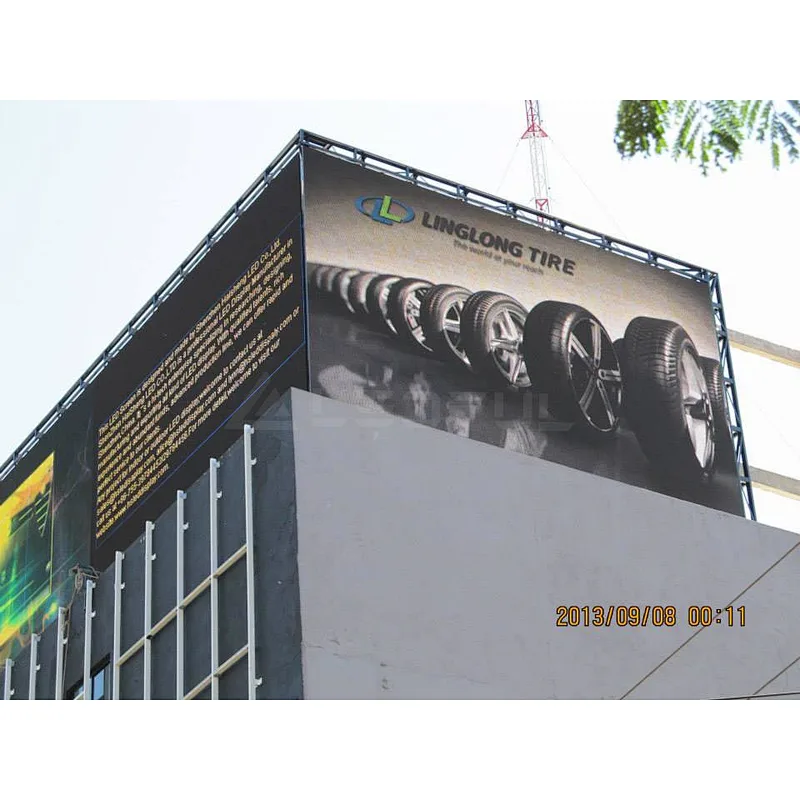

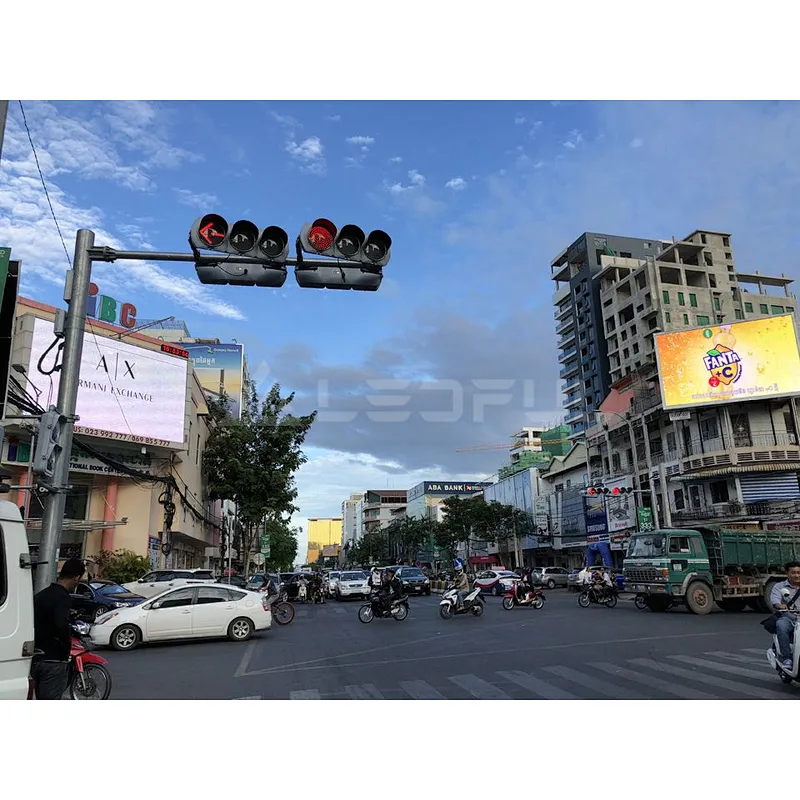

Marketing Solution

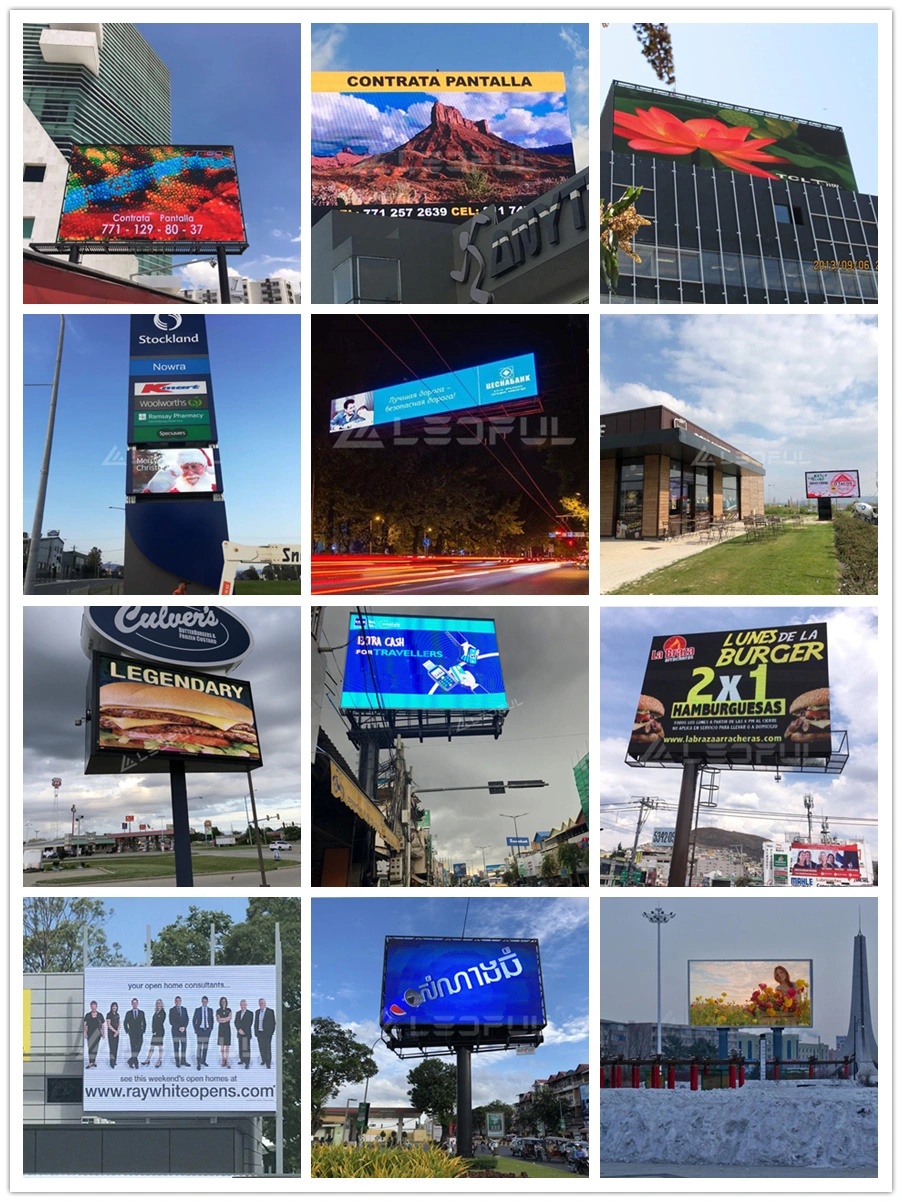

Clients Evaluation

Company Information

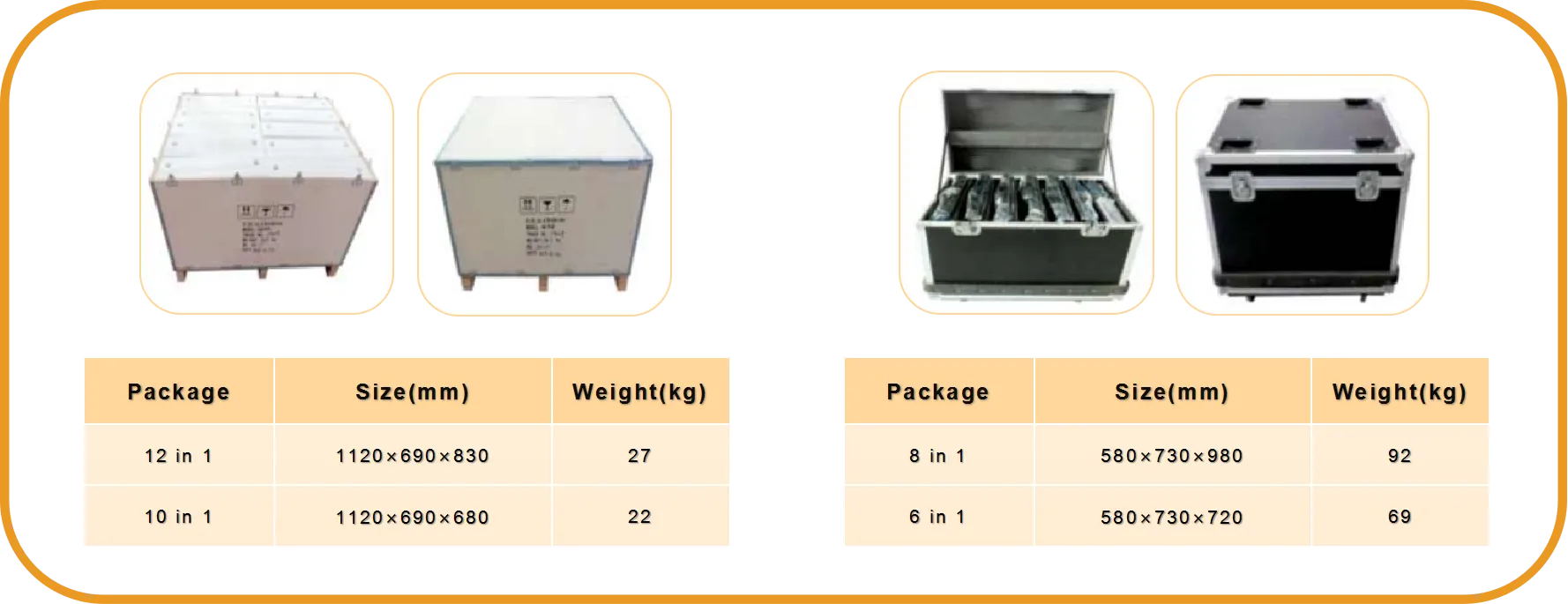

Packing & Delivery

FAQ

Q1 Are you trading company or manufacturer ?

A1 LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry

withprofessionalR&D team and skilled QC teamfor 12 years.

Q2 What is the control system? How is it?

A2 We use Nova control system.
SupportAPP/ Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control.

Q3 What is your best service?

A3One to one sales engineer to customer responsibility system.
We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well.

.......

Q4 What’s the delivery time?

A4 Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time

depends on the items and the quantity of your order.

Q5 How about your Warranty Term?

A53-years warranty.
Structure design, installation problem, program the screen, how to use the screen…...
Don’t worry, we have professional after-sale team to solve your any questions after you placed an order.

and your exclusive sales engineer will also help you get over any problems.
