digital electronic P8 clean and clear outdoor advertising  LED tv screen
digital electronic P8 clean and clear outdoor advertising  LED tv screen
digital electronic P8 clean and clear outdoor advertising  LED tv screen
digital electronic P8 clean and clear outdoor advertising  LED tv screen
digital electronic P8 clean and clear outdoor advertising  LED tv screen
digital electronic P8 clean and clear outdoor advertising  LED tv screen
digital electronic P8 clean and clear outdoor advertising  LED tv screen

digital electronic P8 clean and clear outdoor advertising LED tv screen

  • Minimum order quantity:1
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN, SHEKOU
  • Categories: FS Series

    Product Description

    • Usage:OUTDOOR
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Pixels:8mm
    • Screen Dimension:960*960mm
    • Product name:Outdoor Fixed Led Display
    • Warranty:3~5 Years
    • Function:Play Video
    • Color:Full-color
    • Life span:100000 Hours
    • Place of Origin:CN;GUA
    • Application:Outdoor Front Service
    • Color:Full Color
    • Panel Size:960x960mm
    • Pixel Pitch:8mm
    • Model Number:FS8
    • Brand Name:LEDFUL
    Product Description

    THE APPLICATION

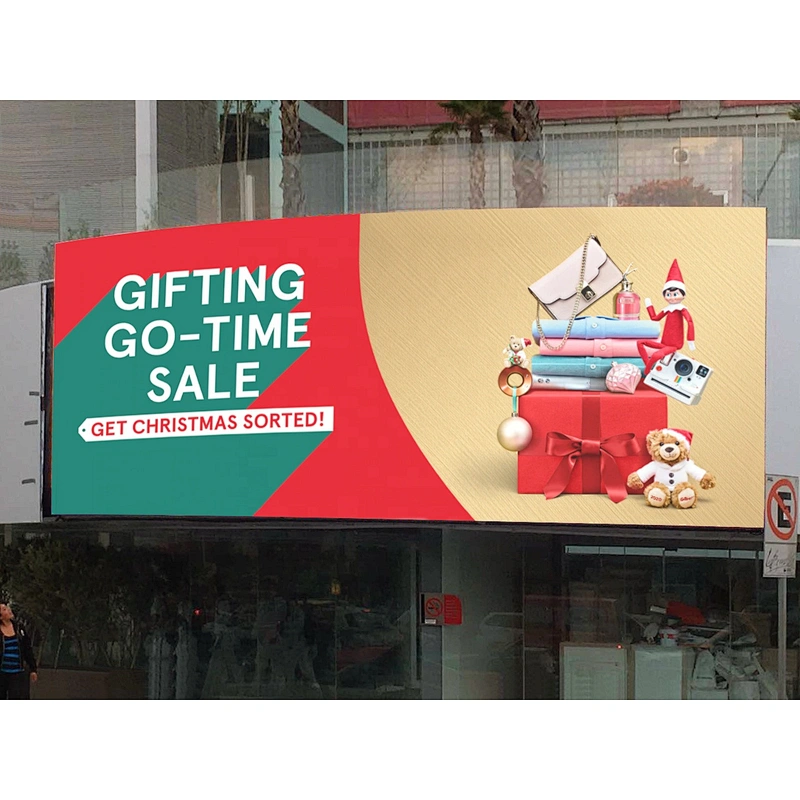

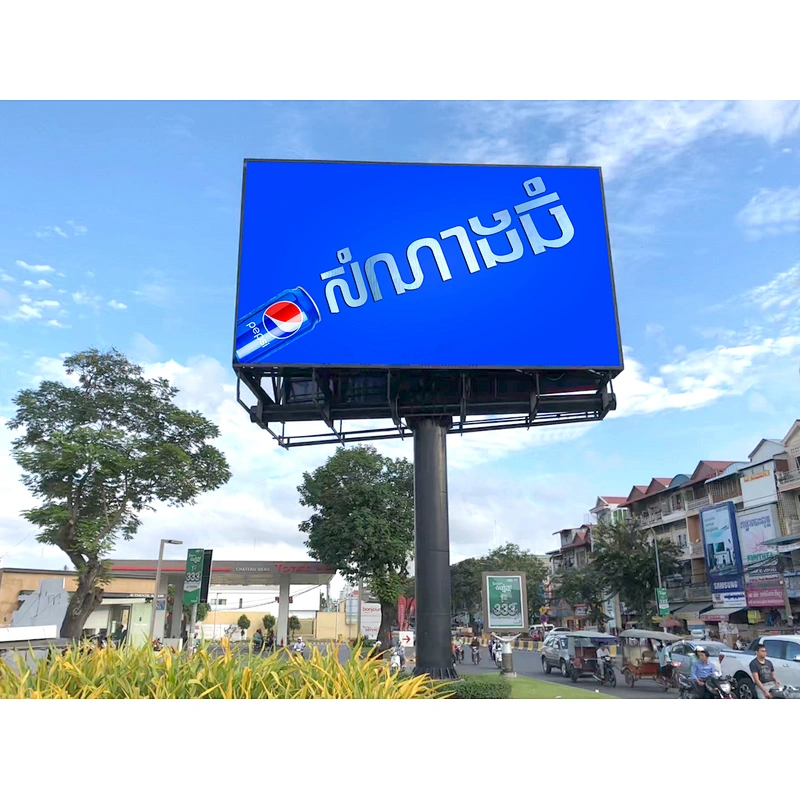

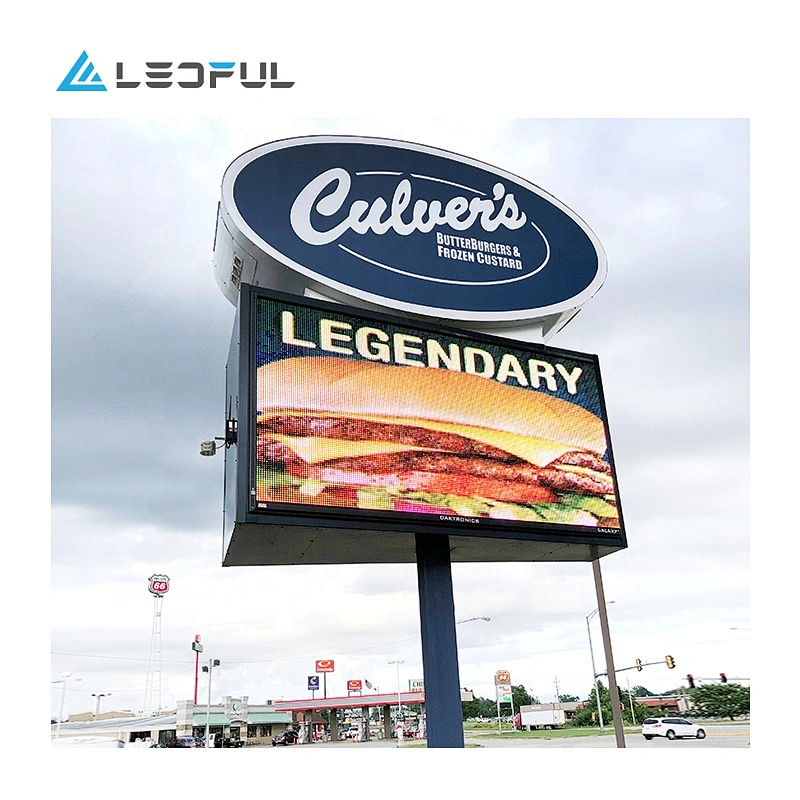

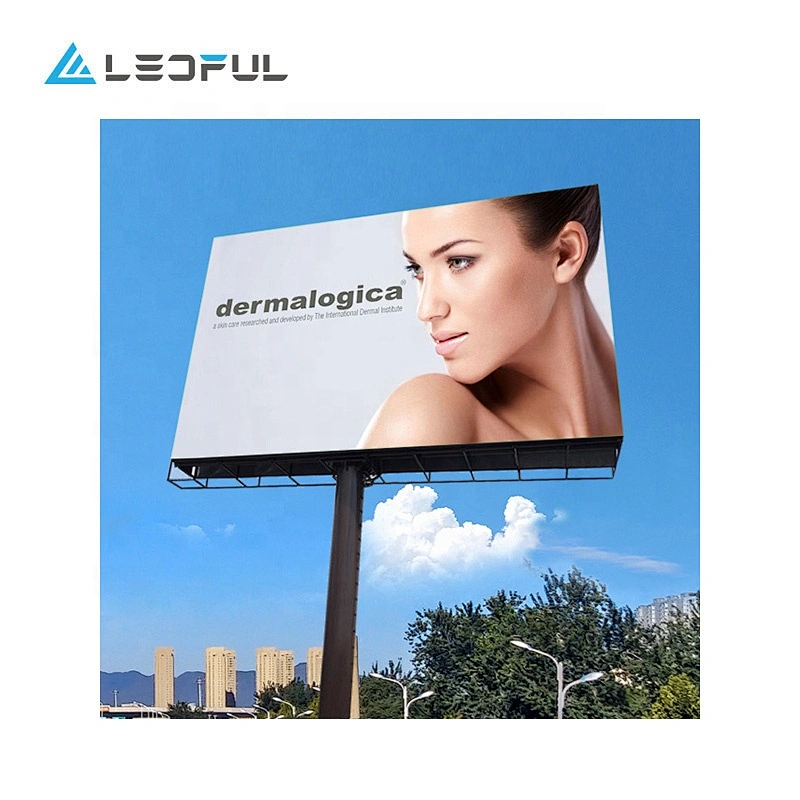

    Outdoor fixed applications such as commercial advertising, theme park, stadium scoreboard, shopping mall, transportation center, school, hotels, chain storeetc.
    Parameter
    Value
    FS6
    FS8
    FS10
    Pixel Pitch(mm)
    6.67
    8
    10
    Pixel Matrix Per Sq.m
    22477
    15625
    10000
    Pixel Configuration
    SMD2727
    SMD2727
    SMD2727
    Brightness (nits)
    6500
    6800
    7500
    Scan
    1/6
    1/5
    1/2
    Module Dimension
    320x320mm / 1.05x1.05ft
    320x320mm / 1.05x1.05ft
    320x320mm / 1.05x1.05ft
    Cabinet Dimension
    960x960mm / 3.15x3.15ft
    960x960mm / 3.15x3.15ft
    960x960mm / 3.15x3.15ft
    Cabinet Resolution
    144x144
    120x120
    96x96
    Cabinet Weight
    37kg / 81Ib ( Iron)
    36kg / 79Ib (Iron)
    35kg / 77Ib ( Iron)
    Power Con. (Max / Avg)
    800 / 170 w/sq.m
    780 / 160 w/sq.m
    750 / 150 w/sq.m
    Service Access
    Front
    Refresh Rate (HZ)
    ≥1920
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    140 / 140
    IP Rate
    IP68
    Input Voltage (AC)
    110V / 240V

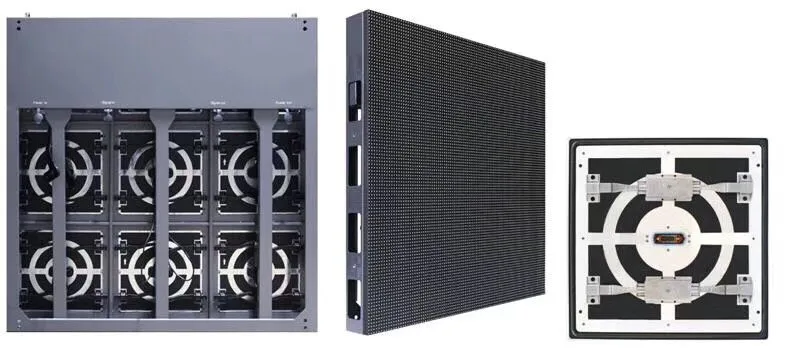

    The Third Generation Front Service LED Display from LEDFUL
    * LEDFUL first design for front service LED display is plastic shell with plastic lock,
    * second design is plastic shell with die casting aluminum lock,
    * now the third design is die casting aluminum shell and die casting aluminum lock.

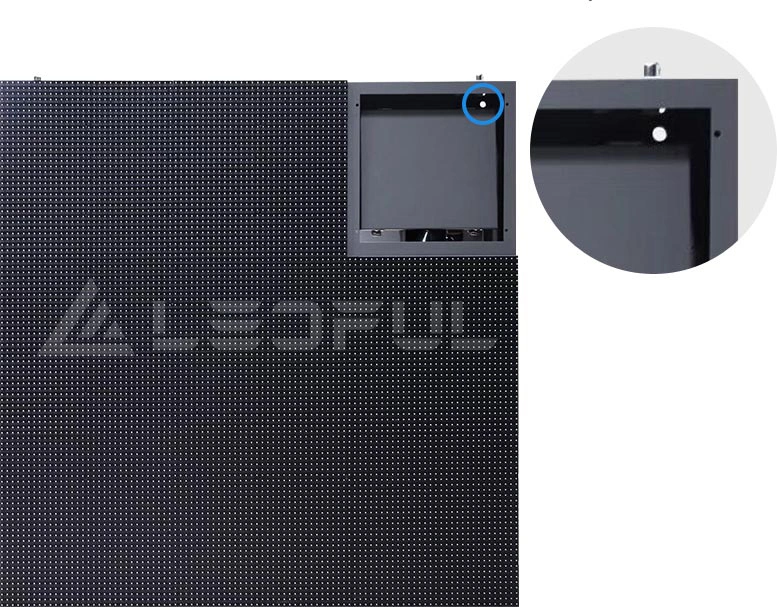

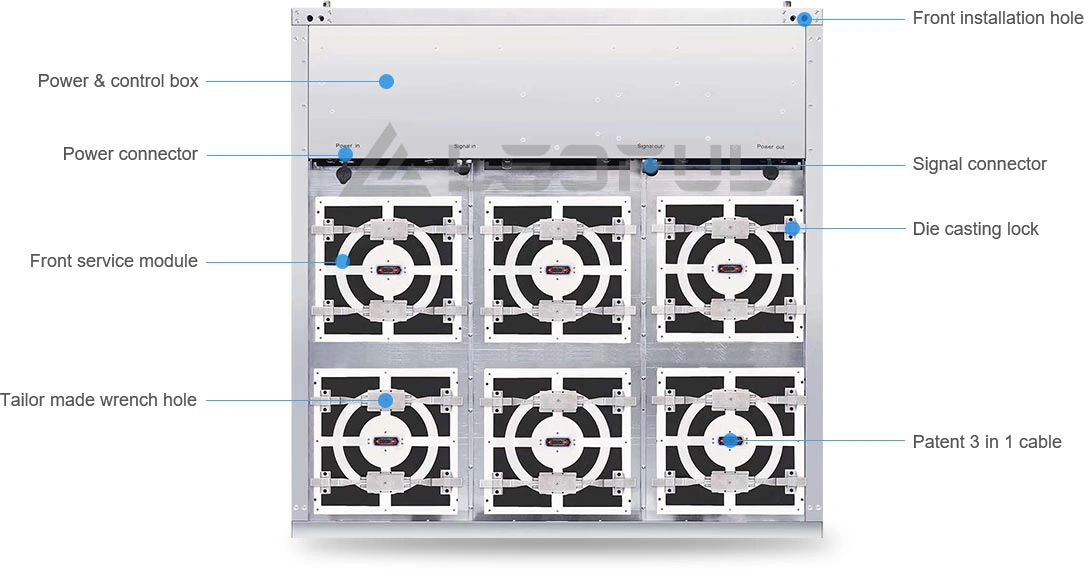

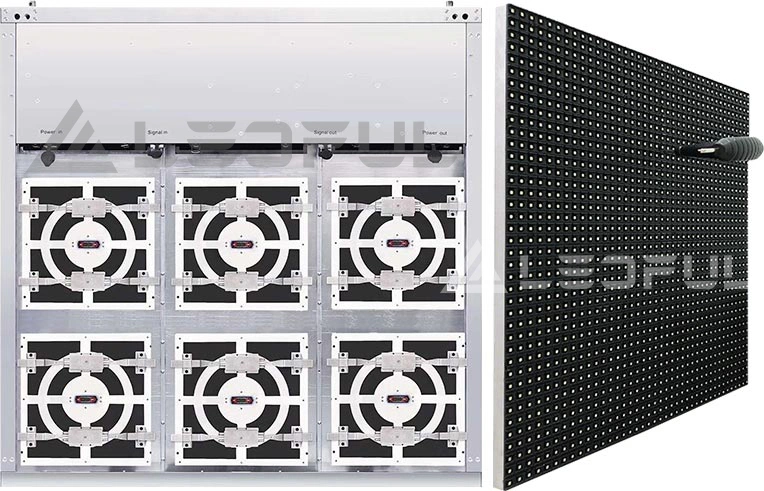

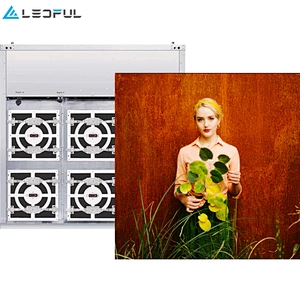

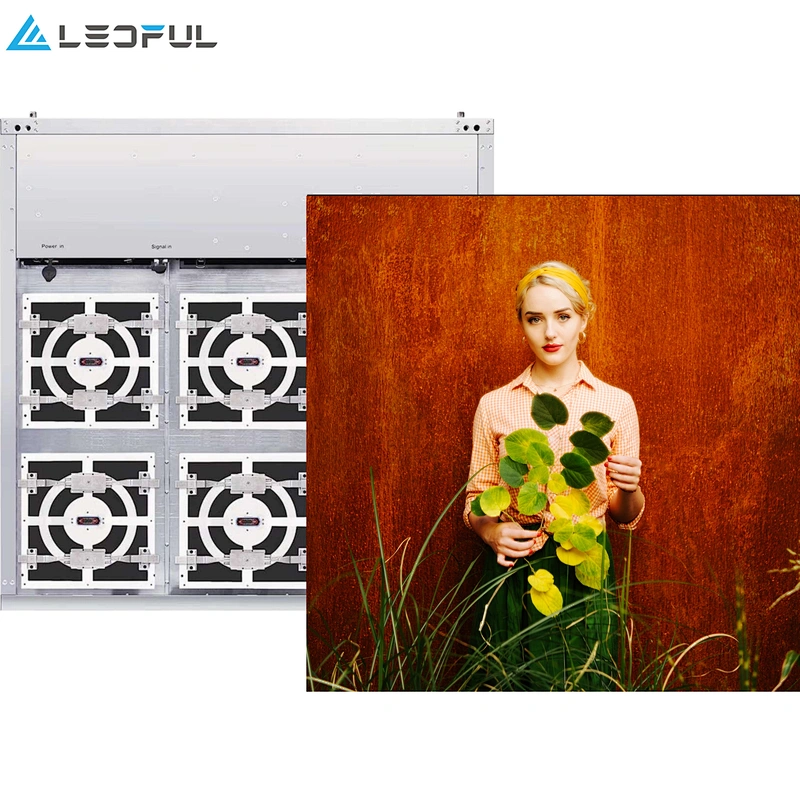

    Full Front Service

    Full front service, modules, power supply, receiver card, cables, etc can be replaced in front side.




    Front Installation
    Front installation, the cabinets can be installed in front and mounted directly on the wall.

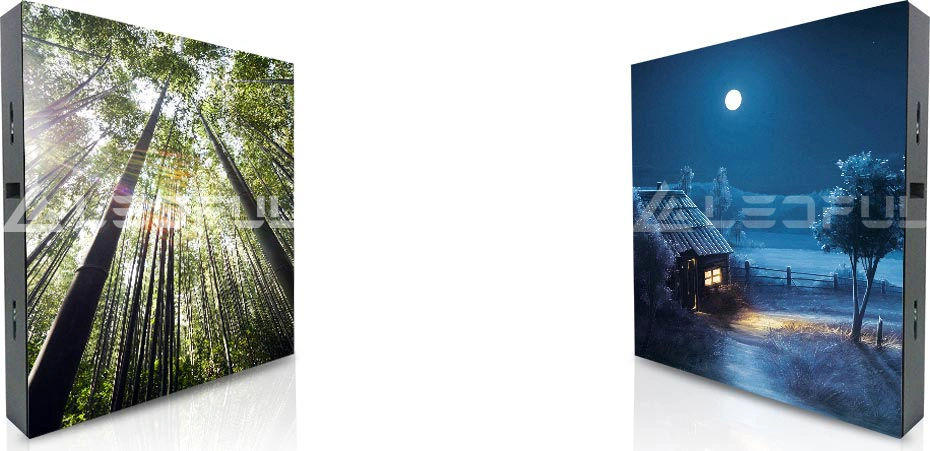

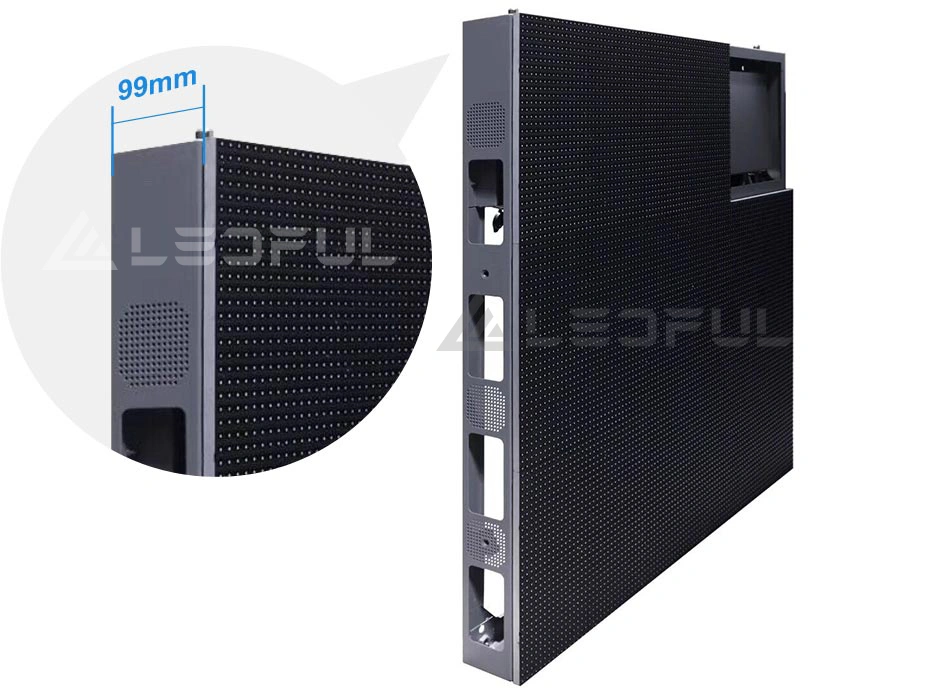

    Super Thin
    Super thin, it is only 99mm depth including LED modules

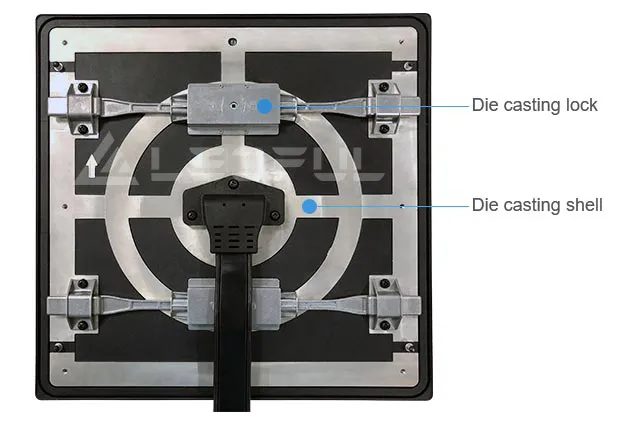

    Die Casting Module
    All Die casting, die casting modules make less tolerance,
    die casting shell make better cooling,
    die casting lock make longer durability.

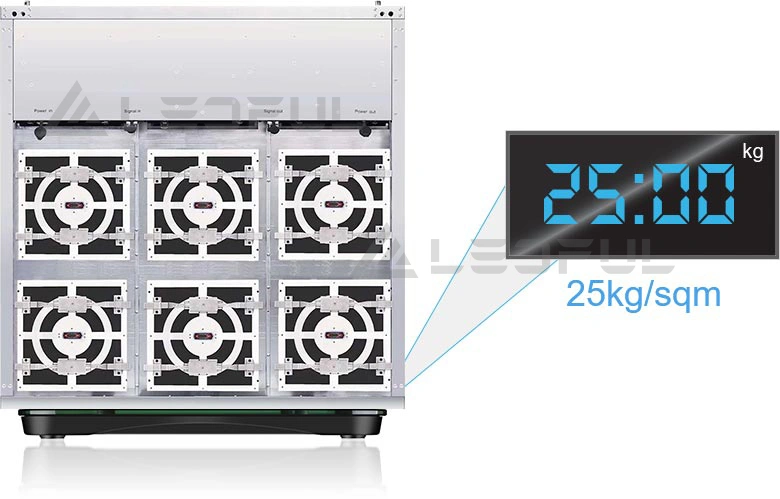

    Light Weight
    Light weight, it is only 25kg/sqm with aluminum profile cabinet.

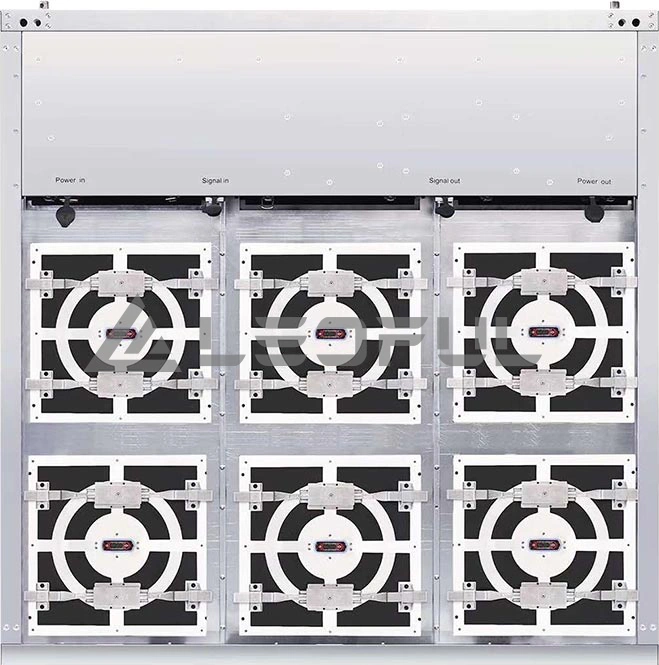

    Clean and Clear
    Clean and Clear, no cables visible on open backside

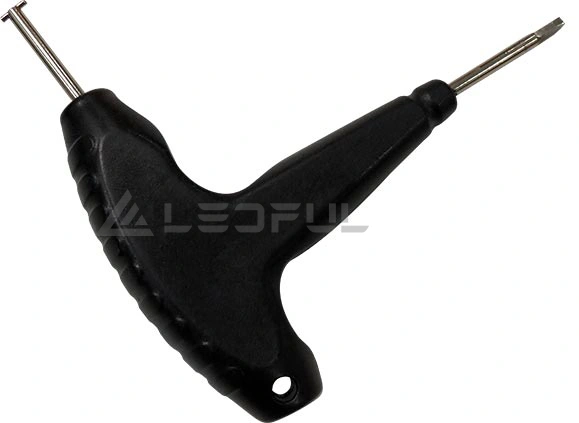

    Easy & Quick Installation & Maintenance
    Easy and Quick, customized, smart and quick front maintenance tool.
    One side is for lock, the other side is for pulling, easy and fast front service

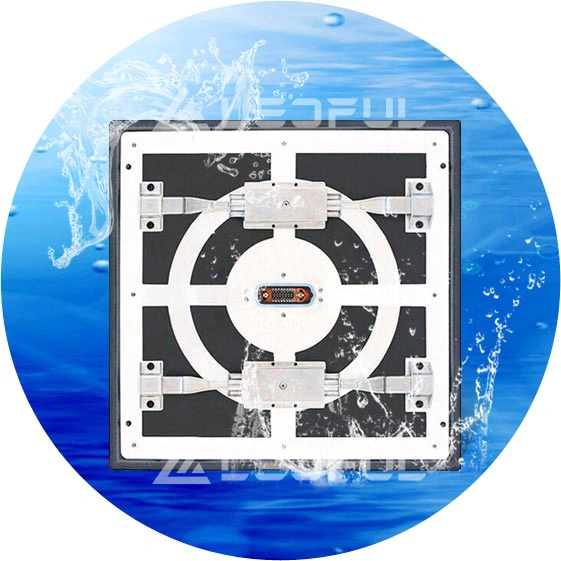

    All Weather Resistant with IP67
    All weather resistant with IP68 which can be put inside water.

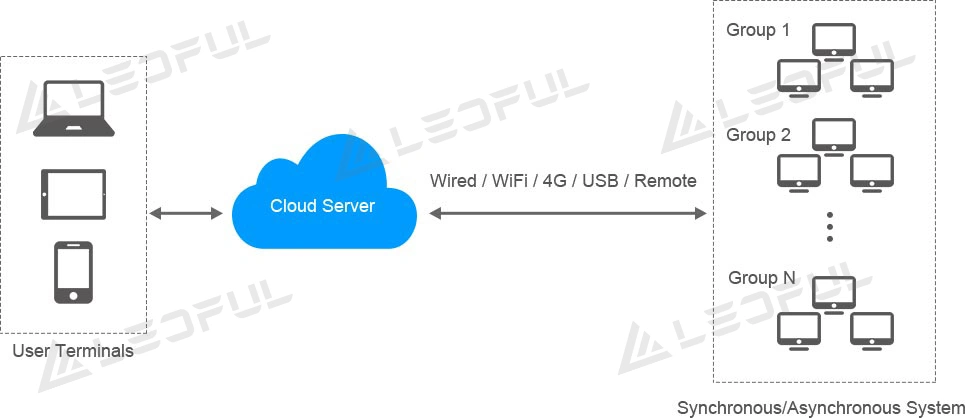

    How to control LED display?
    By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc.
    Yes, you can control in your convenient management.
    Many screens together?
    No problem, your laptop can manage all of them whenever and wherever.




    Ultra High / Low Temperature
    FS series design for working in all weather outdoor environments.
    High protection grade of IP65 suitable for winter  andcold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.




    High Brightness & Auto Brightness
    High bright and contrast ratio to make vivid color facing to the Sunlight.
    Auto brightness saving energy besides protecting people in night time.

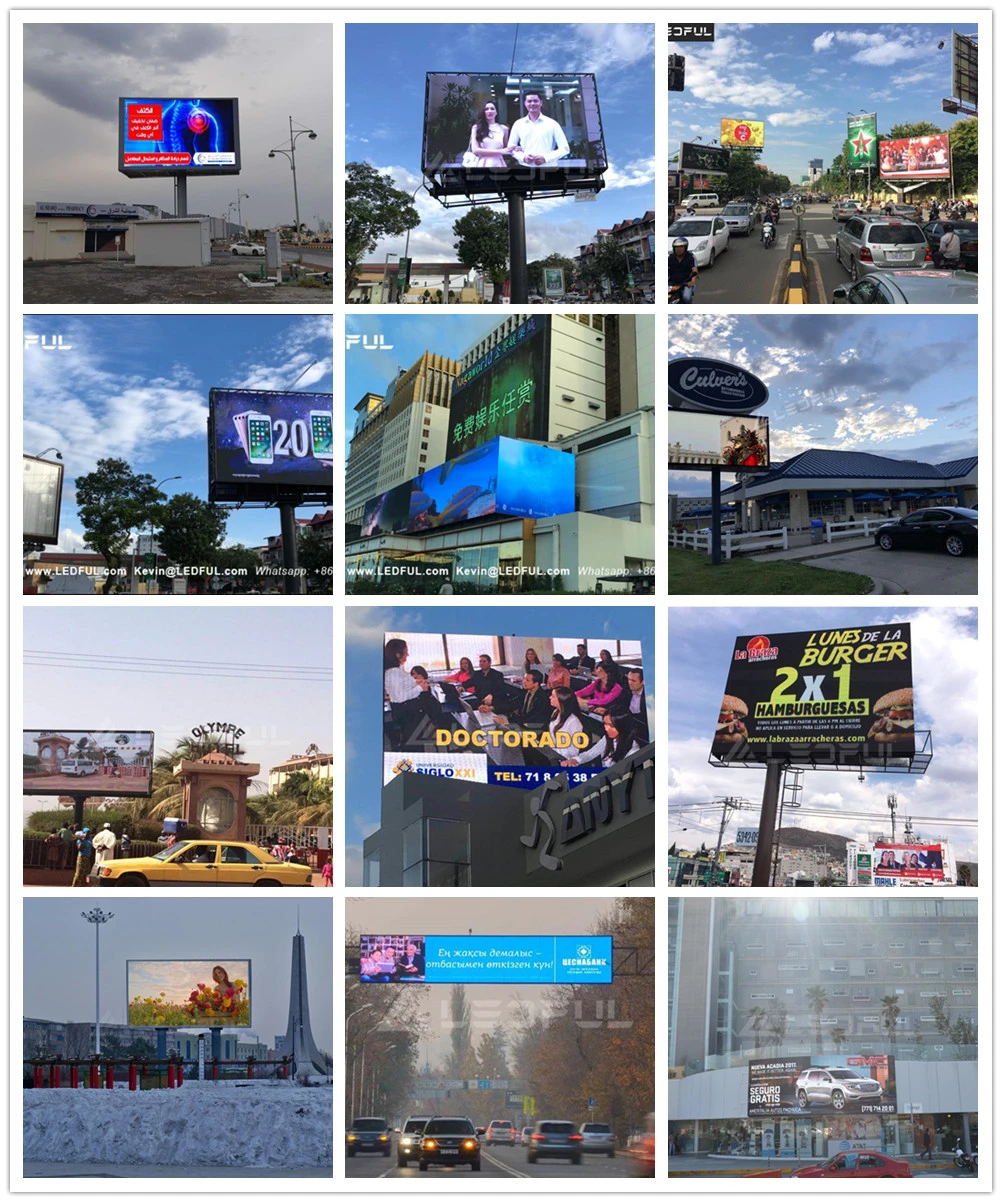

    Application
    Recommend Products
    Our Company
    >>>>>Why Choose LEDFUL
    ▲Deep Customized & OEM
    ▲Listen to you, think more for you.
    ▲Lifelong maintenance with reasonable price
    ▲Clear cost initially to save your time and money.
    ▲Provide with innovative and satisfying products
    ▲Excellent product quality, quick and professional services
    ▲Always ready for your any change on LED display details.
    ▲Recommend the best proper solution for your LED project.
    ▲Catch things what you missed before LED display production.
    Take good care of each detail for your products, packages,shipping
                                                          >>>>>Best Balance of Quality & Price
    Certificate

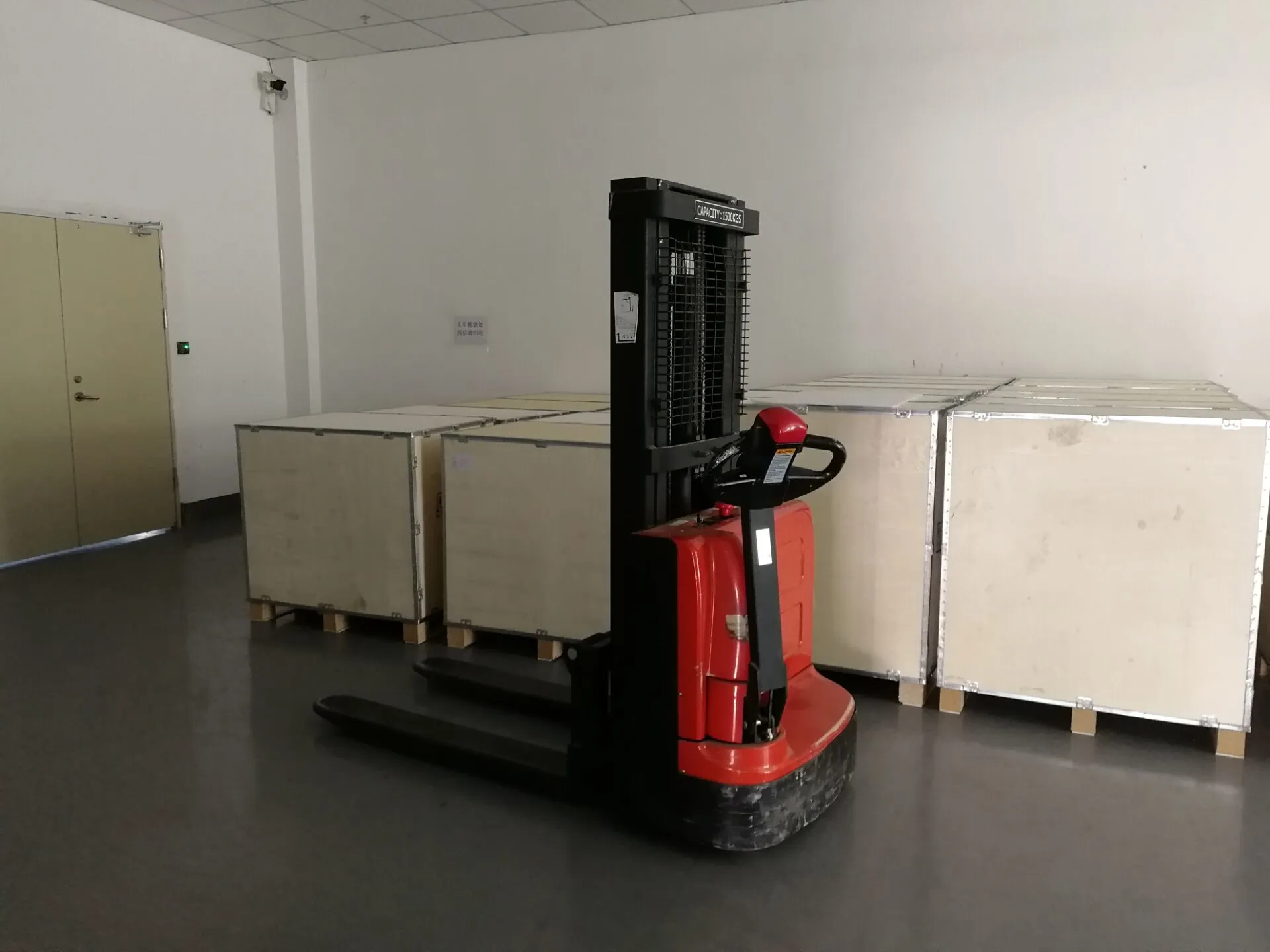

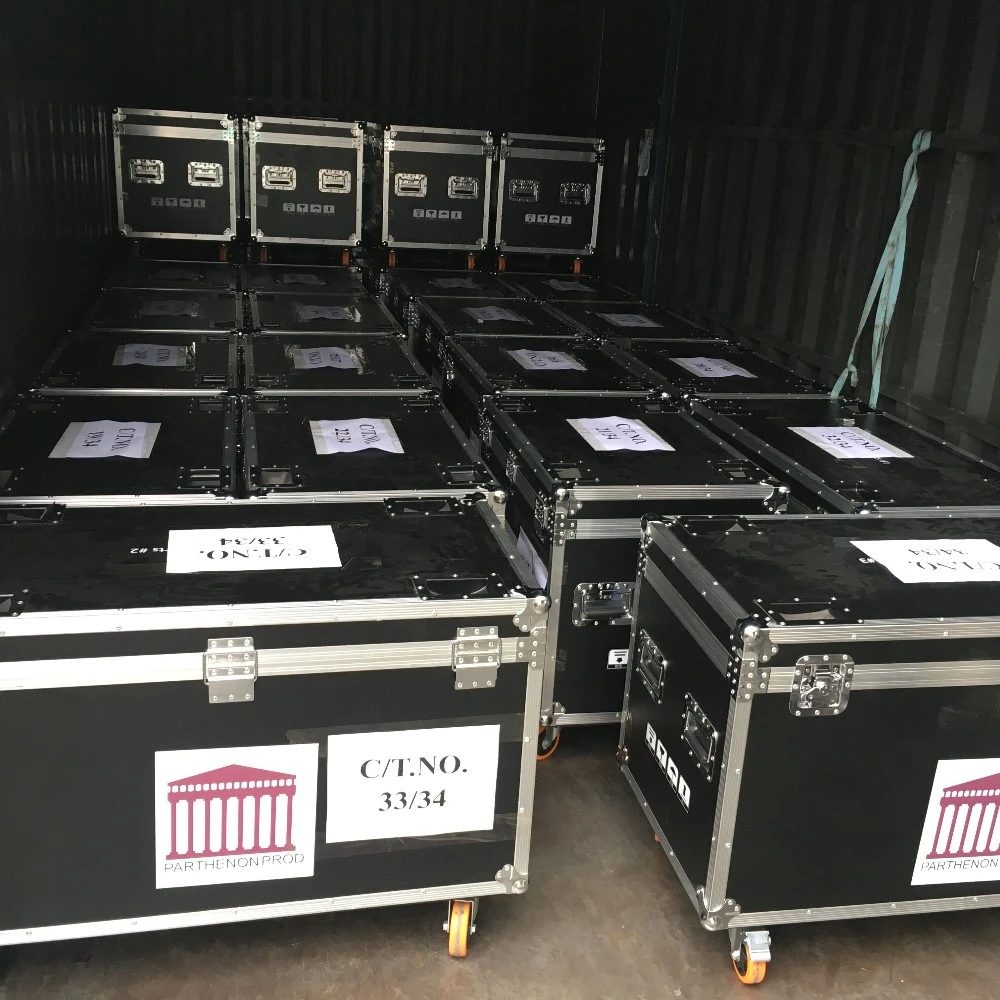

    Packing & Delivery
    Our Service
    FAQ

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
    before you pay the balance.

    Q3. What is your terms of delivery?
    A: EXW


    Q4. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test for 72hrs before delivery.

    Q8: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,
      no matter where they come from.
