- Life span:60000~100000hours
- Application:Adervertising
- Refresh rate:≥1920Hz
- Brightness:7500cd/sqm
- Cabinet weight:35kg/77lb(Iron)
- Pixel configuration:SMD2727
- IP rate:IP68
- Cabinet size:960*960mm
- Pixel density:10000dots/m2

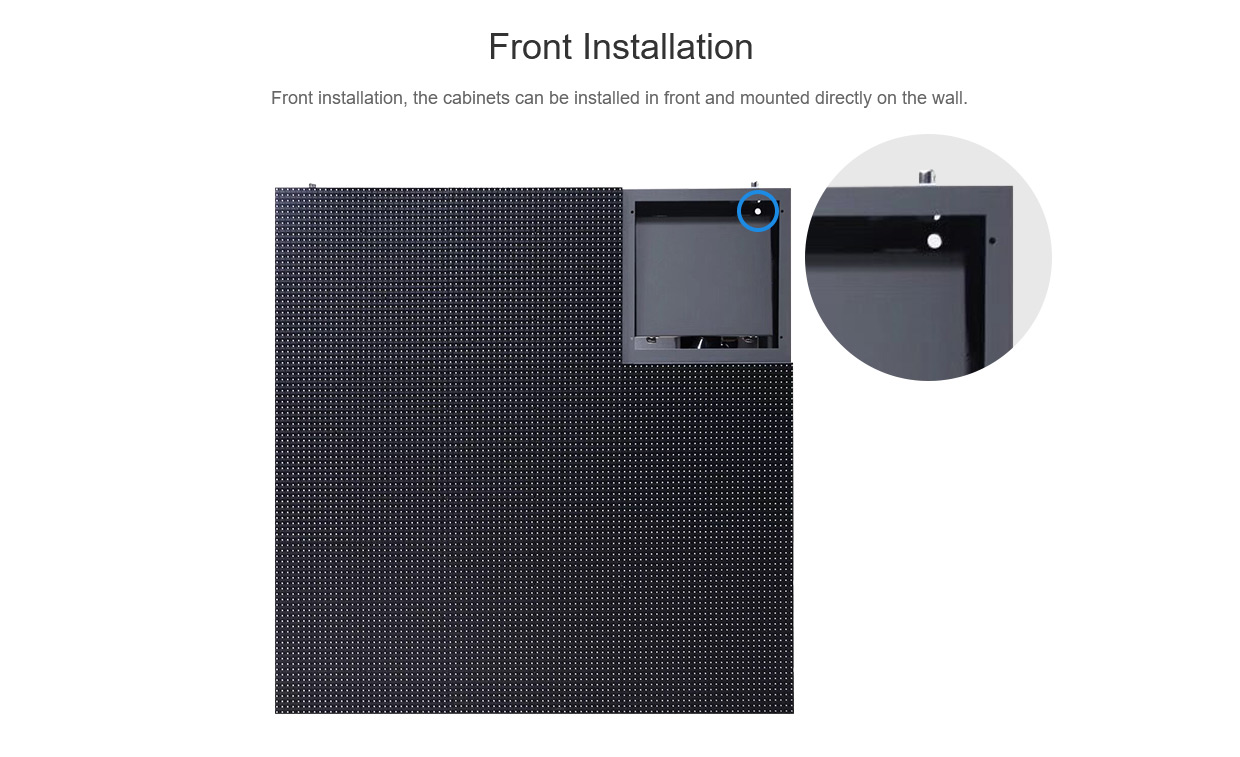

- Installation:front installation
- Application:outdoor commercial advertising
- Color:full color
- Panel Size:960*960mm
- Pixel Pitch:10mm
- Place of Origin:Guangdong,China
- Model Number:FS10
- Brand Name:LEDFUL
Products Description

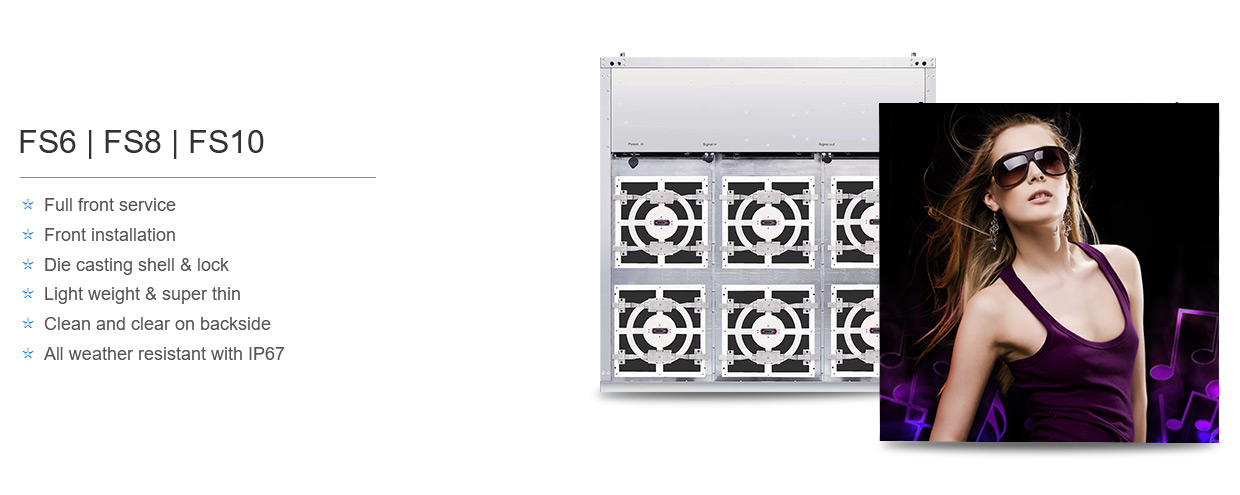

FS Series

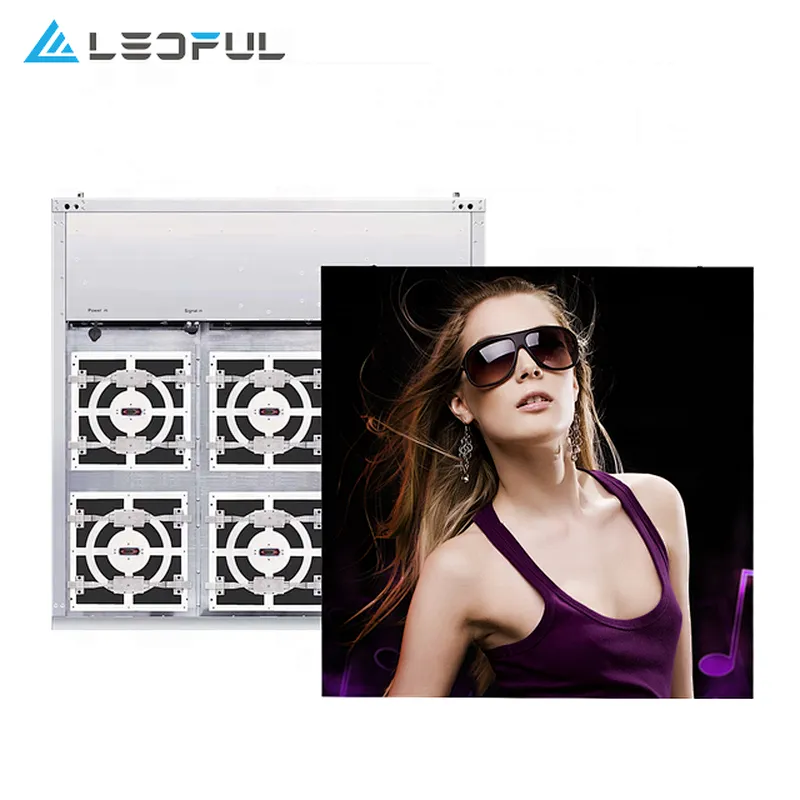

Outdoor Front Service Fixed LED Display
Value | FS6 | FS8 | FS10 | ||
Pixel Pitch(mm) | 6.67 | 8 | 10 | ||
Pixel Matrix Per Sq.m | 22477 | 15625 | 10000 | ||
Pixel Configuration | SMD2727 | SMD2727 | SMD2727 | ||
Brightness (nits) | 6500 | 6800 | 7500 | ||
Scan | 1/6 | 1/5 | 1/2 | ||
Module Dimension | 320×320m/1.05×1.05ft | 320×320m/1.05×1.05ft | 320×320m/1.05×1.05ft | ||
Cabinet Dimension | 960×960m/3.15×3.15ft | 960×960m/3.15×3.15ft | 960×960m/3.15×3.15ft | ||
Cabinet Resolution | 144×144 | 120×120 | 96×96 | ||
Cabinet Weight | 37kg/81lb (Iron) | 36kg/79lb (Iron) | 35kg/77lb (Iron) | ||
Power Con. (Max/Avg) | 800/170 w/sq.m | 780/160 w/sq.m | 750/150 w/sq.m | ||
Service Access | Front | ||||
Refresh Rate (HZ) | ≥1920 | ||||
Grey Scale (bit) | 16 | ||||
Viewing Angle (H/V) | 140/140 | ||||
IP Rate | IP68 | ||||
Input Voltage (AC) | 110V/240V | ||||

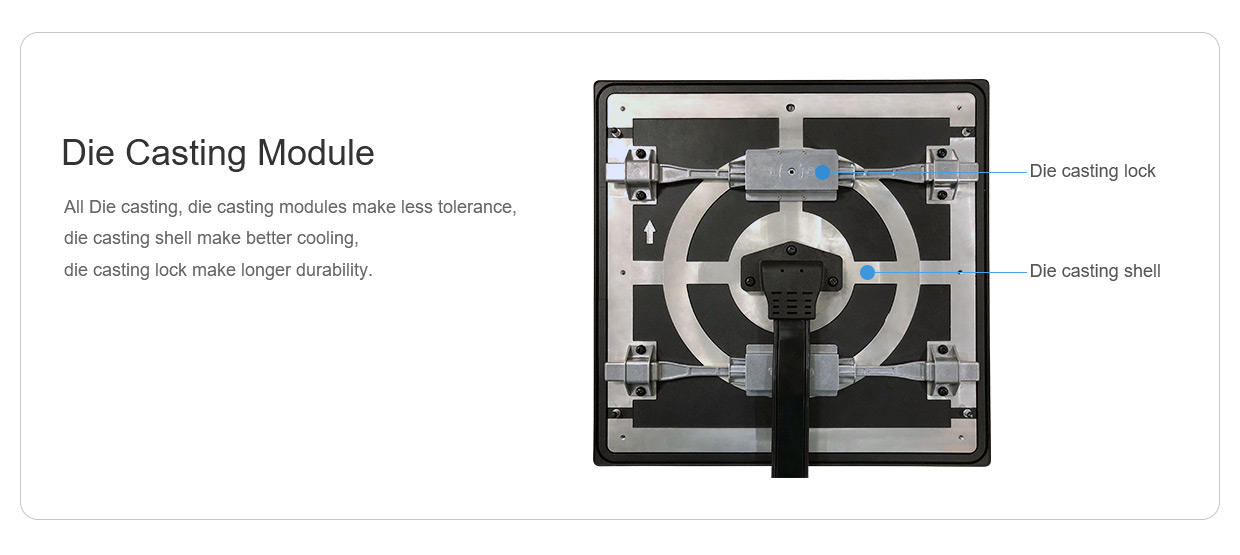

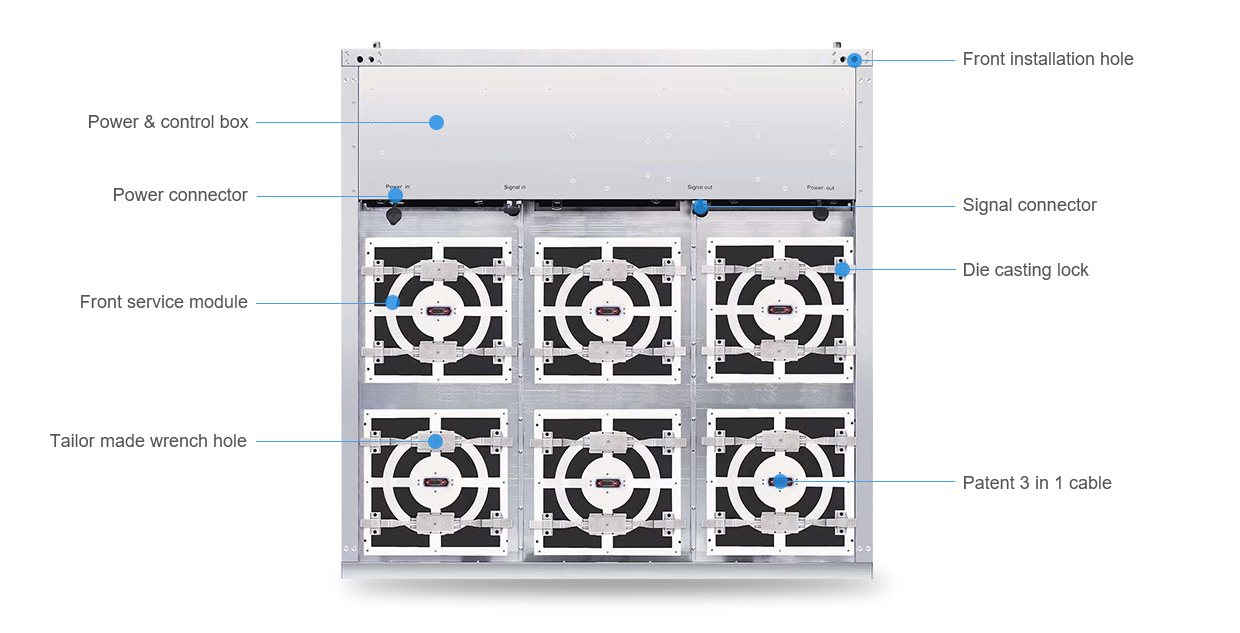

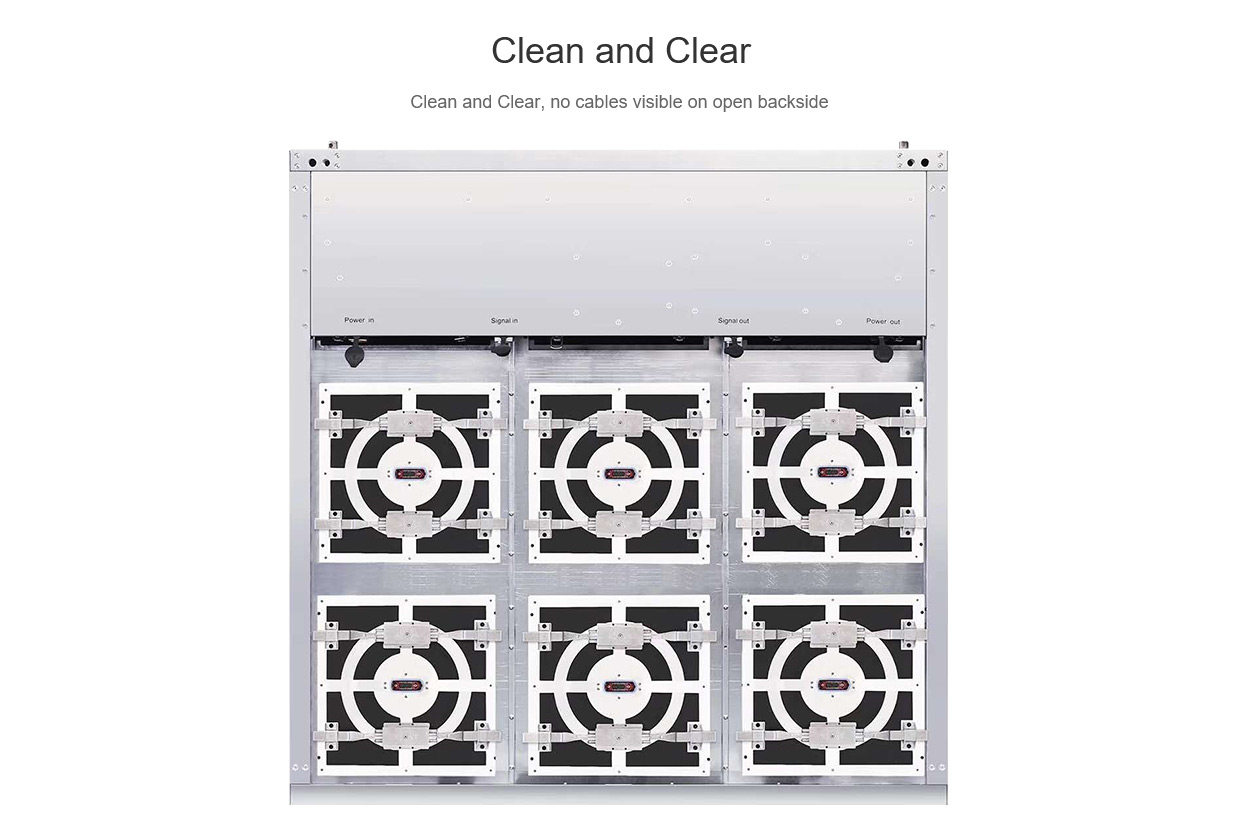

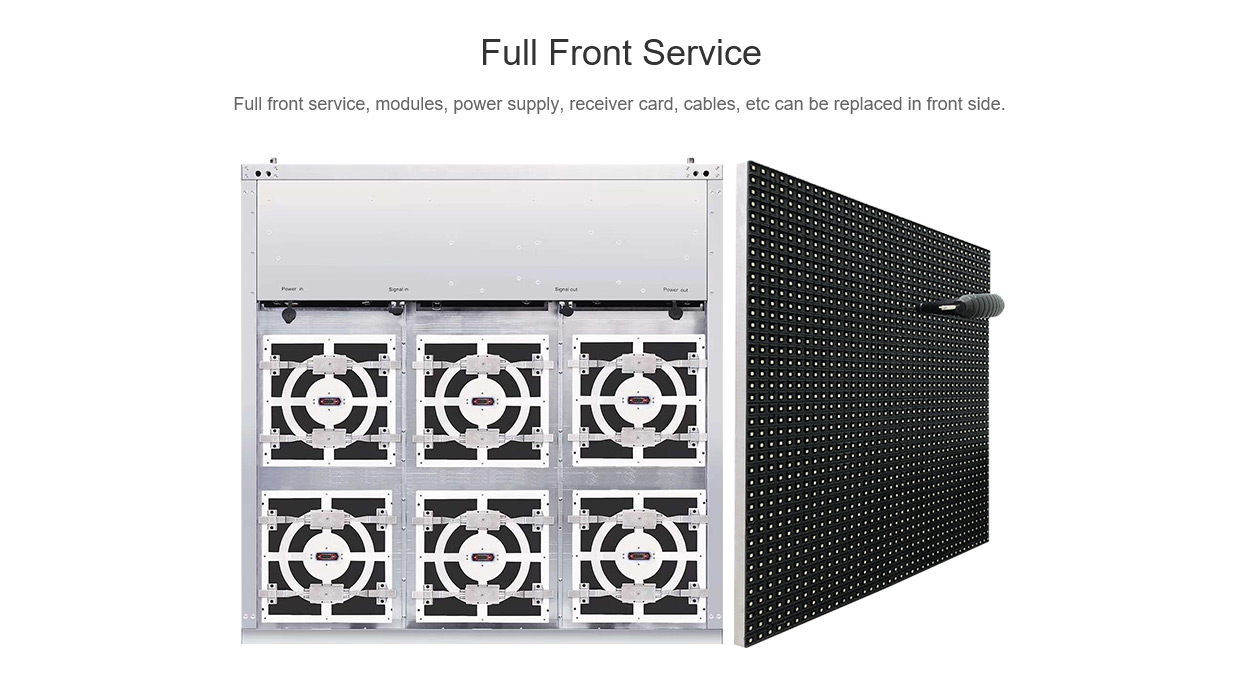

The Third Generation Front Service LED Display from LEDFUL
*LEDFUL first design for front service LED display is plastic shell with plastic lock,
* second design is plastic shell with die casting aluminum lock,
* now the third design is die casting aluminum shell and die casting aluminum lock.
*LEDFUL first design for front service LED display is plastic shell with plastic lock,
* second design is plastic shell with die casting aluminum lock,
* now the third design is die casting aluminum shell and die casting aluminum lock.

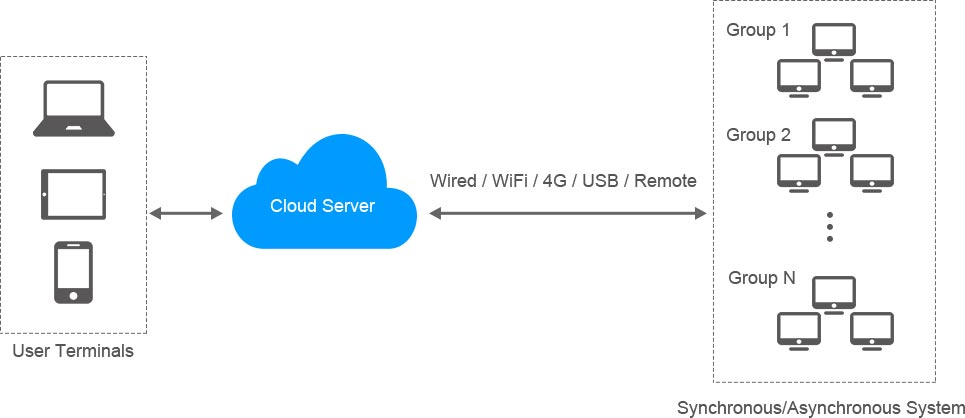

How to control LED display?
By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.

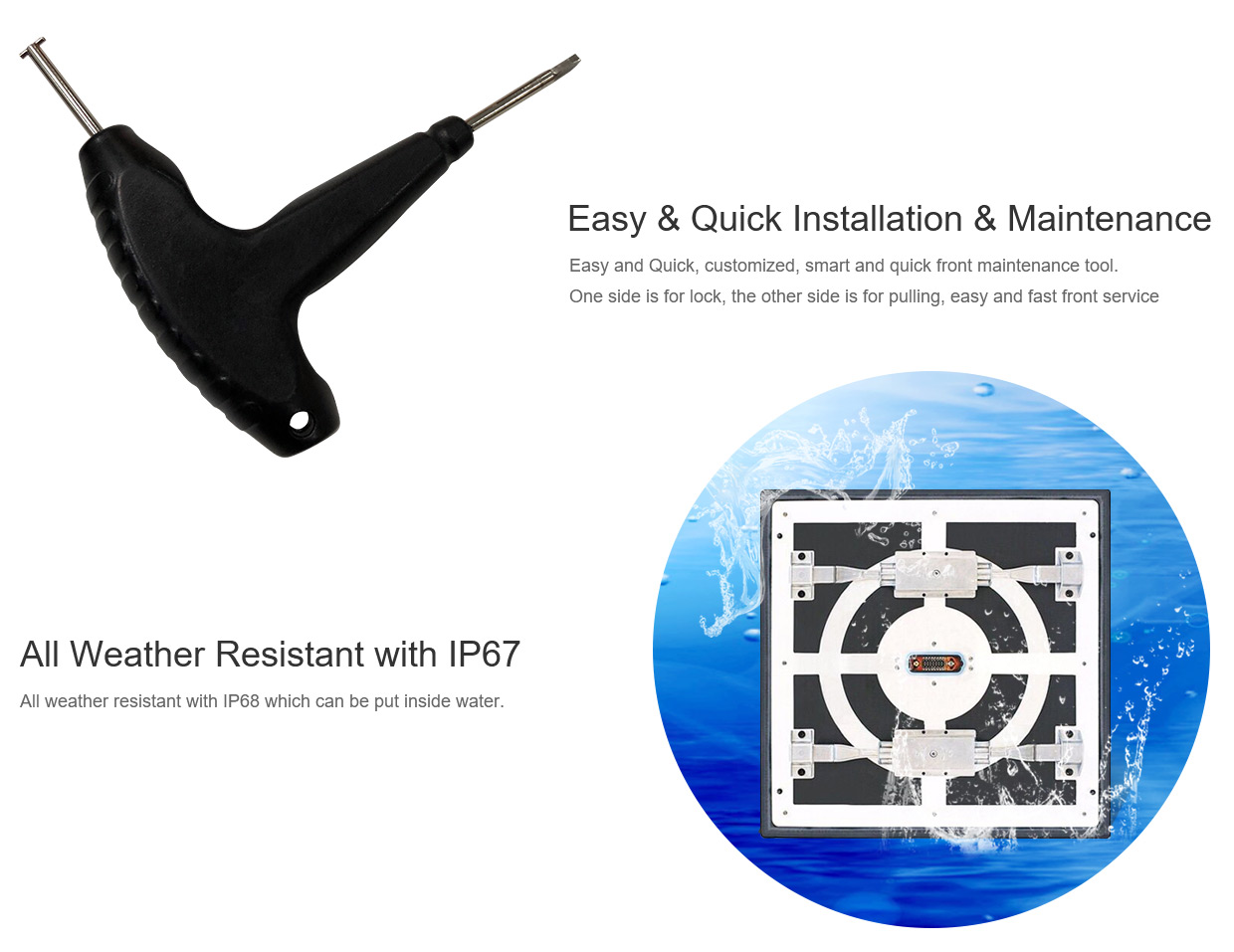

Ultra High / Low Temperature
FS series design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.

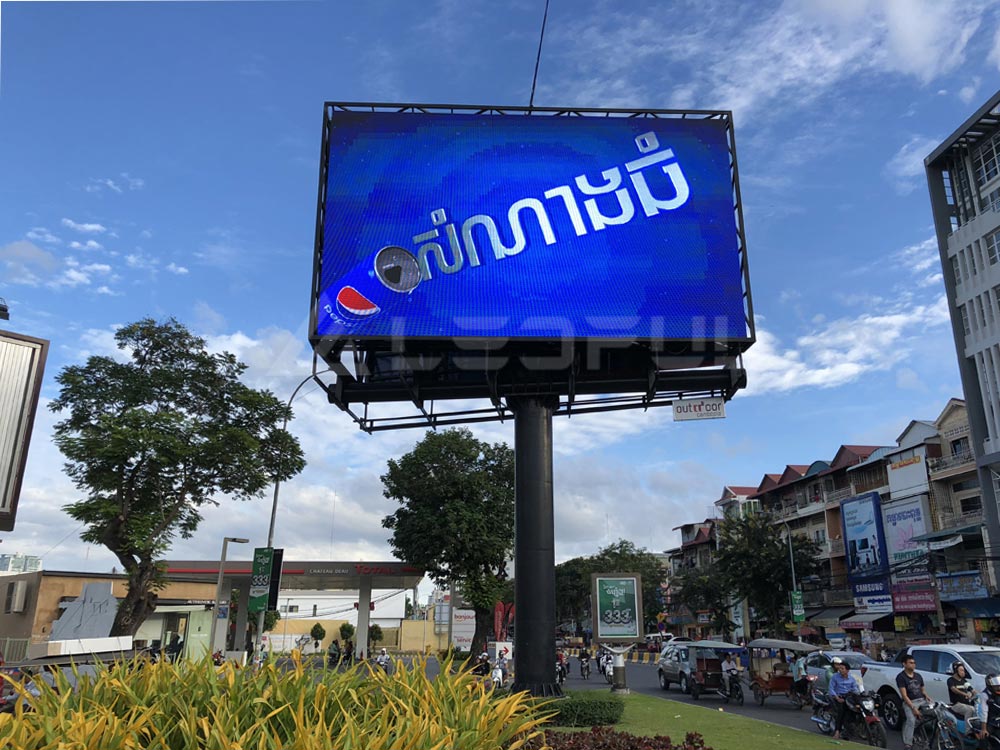

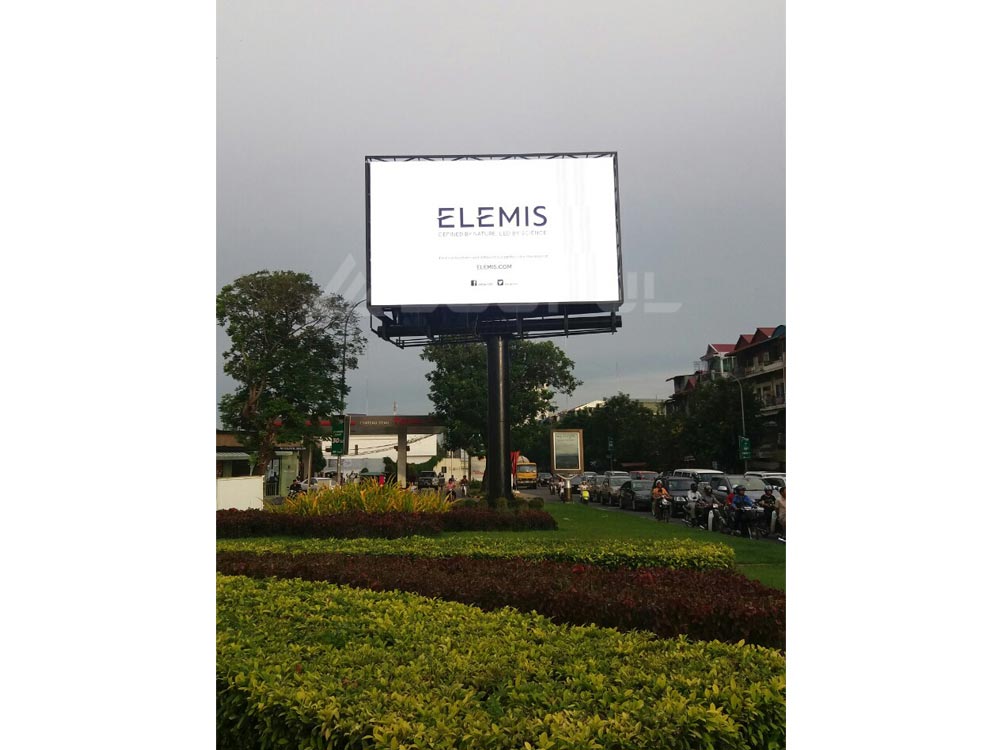

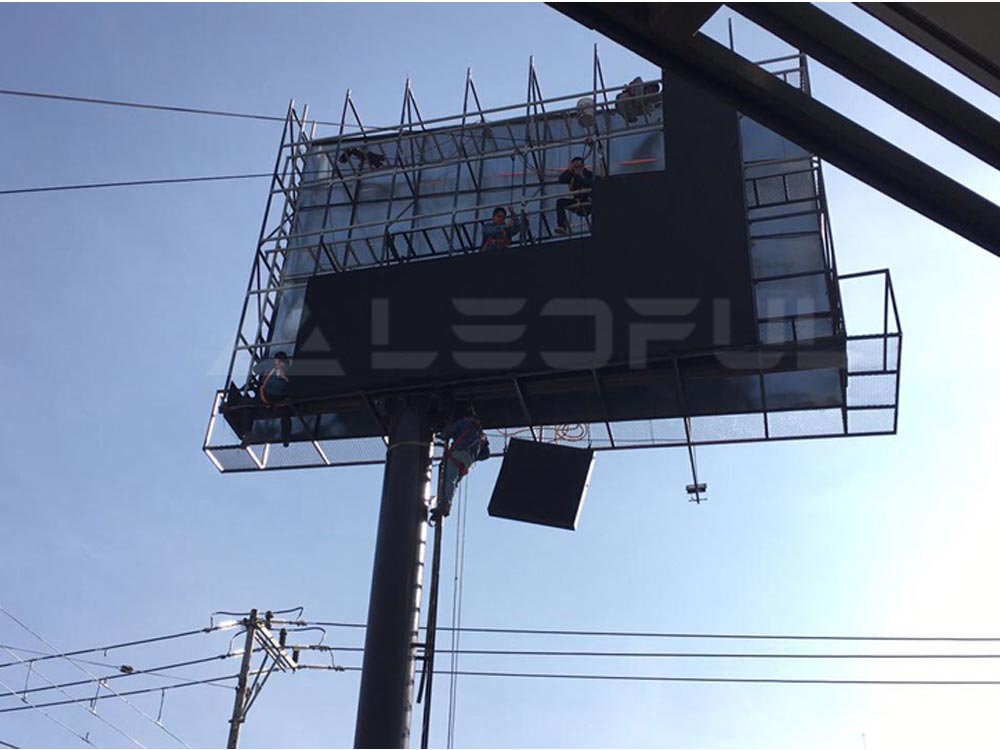

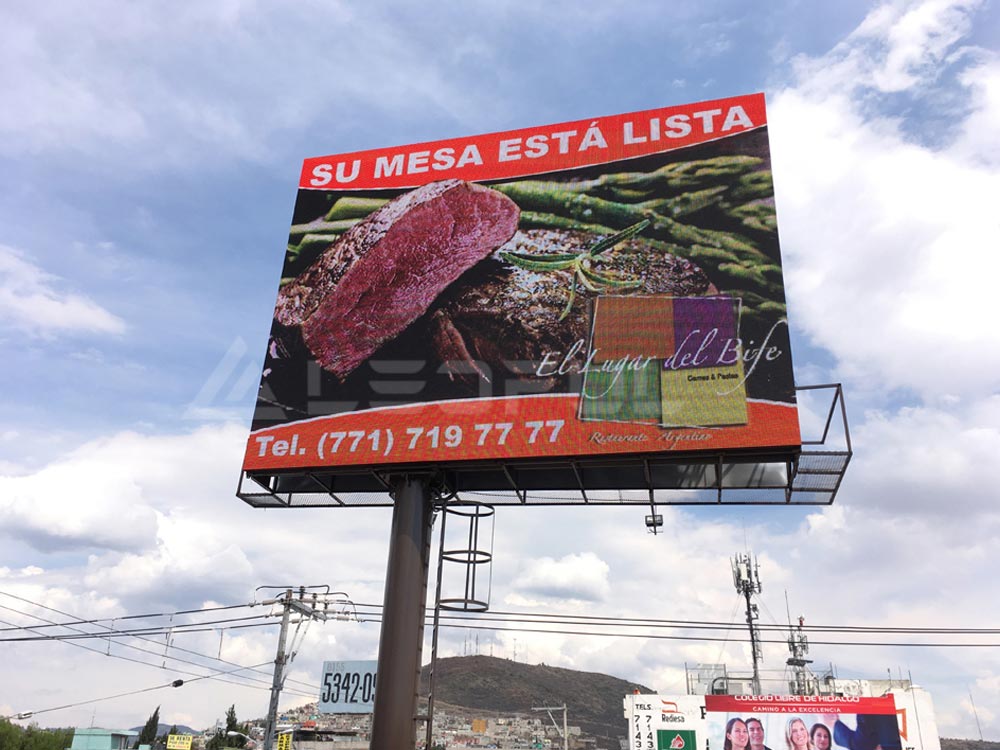

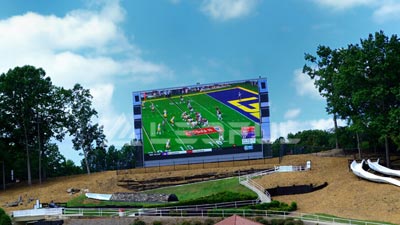

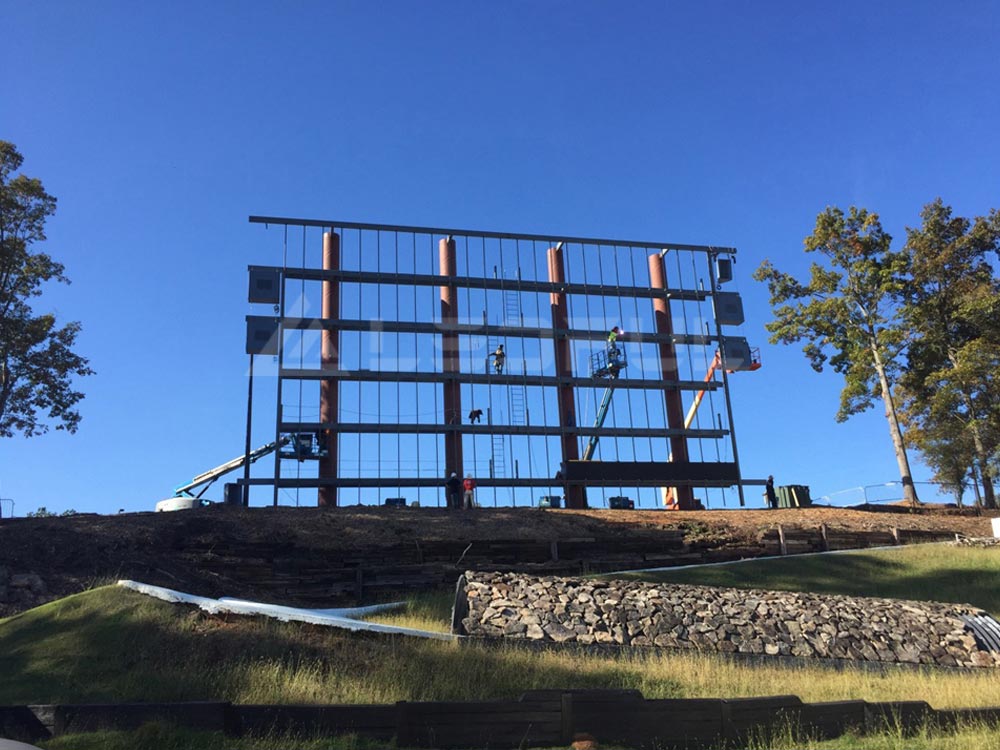

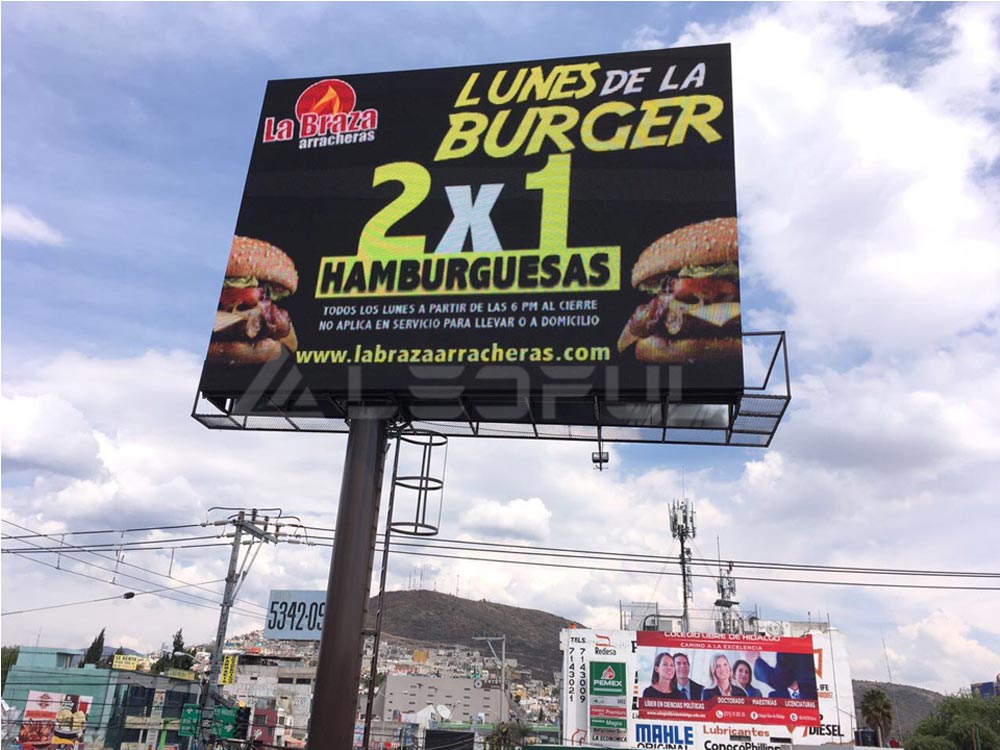

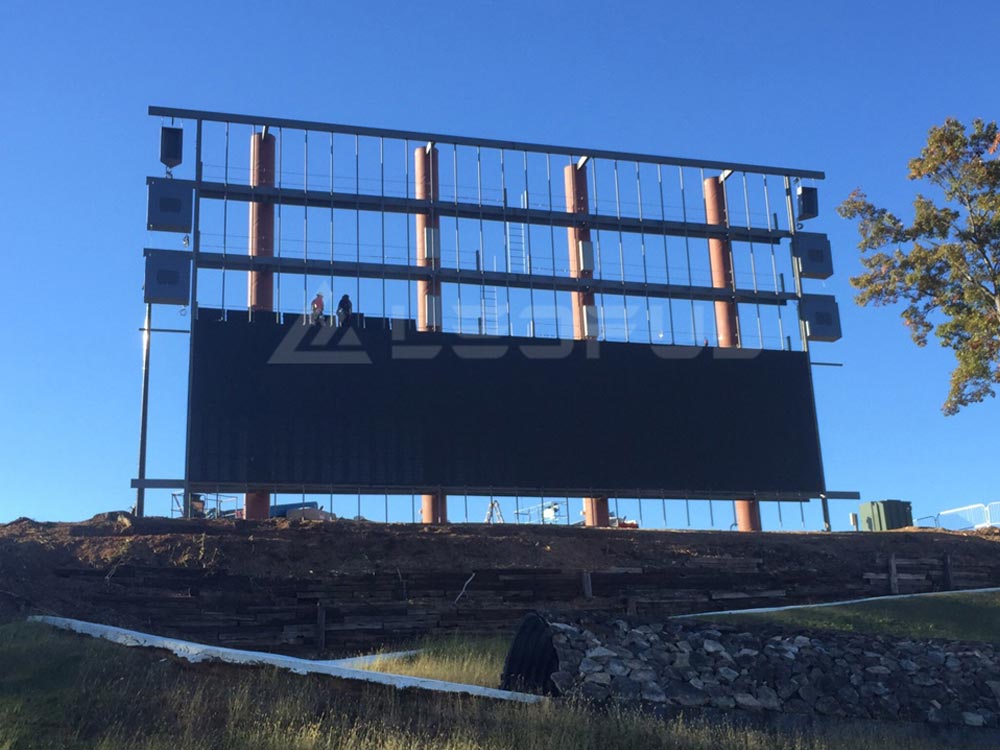

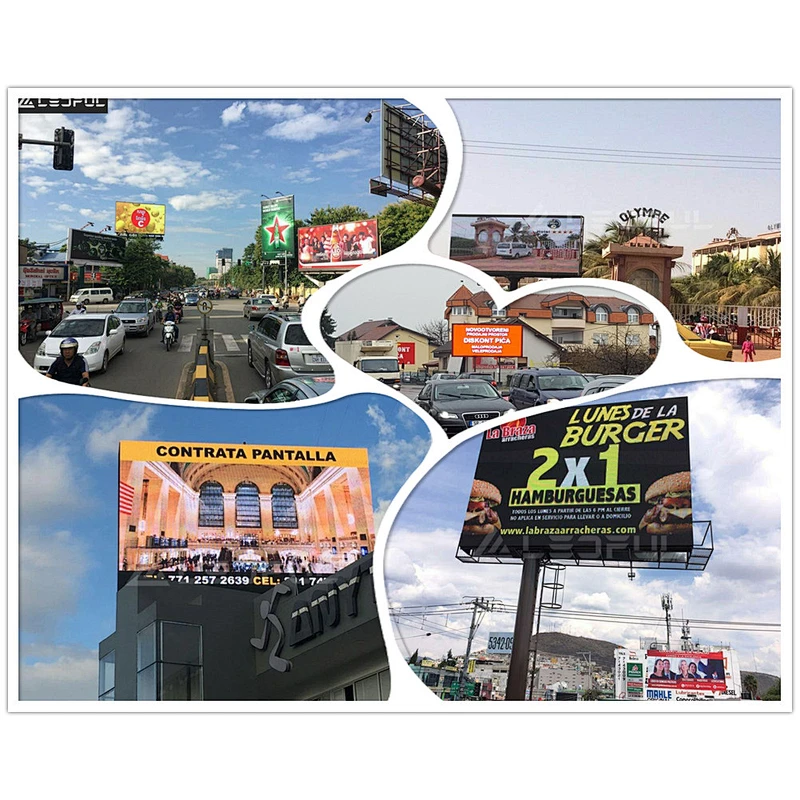

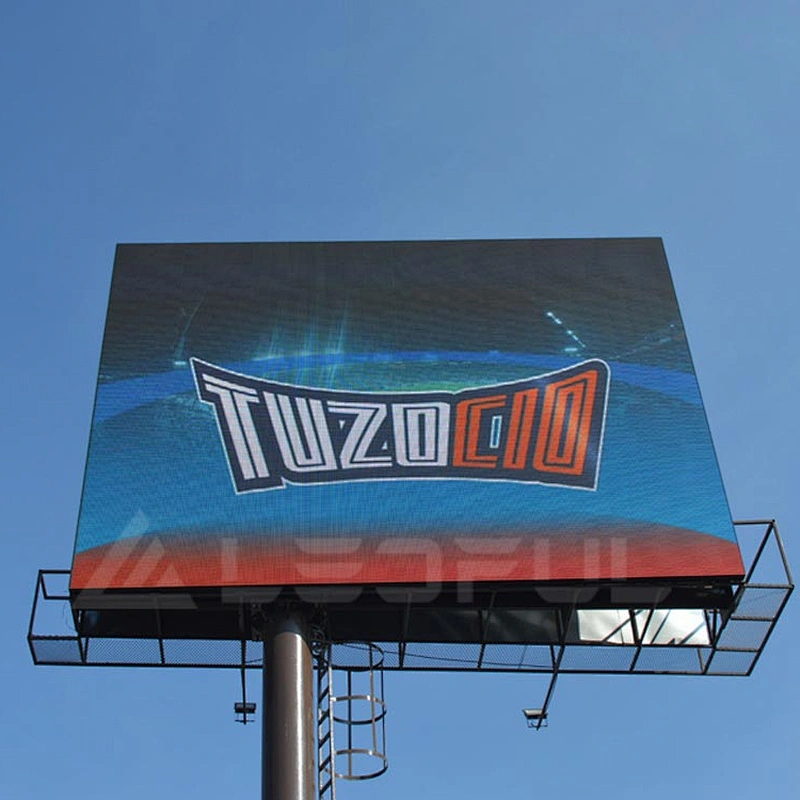

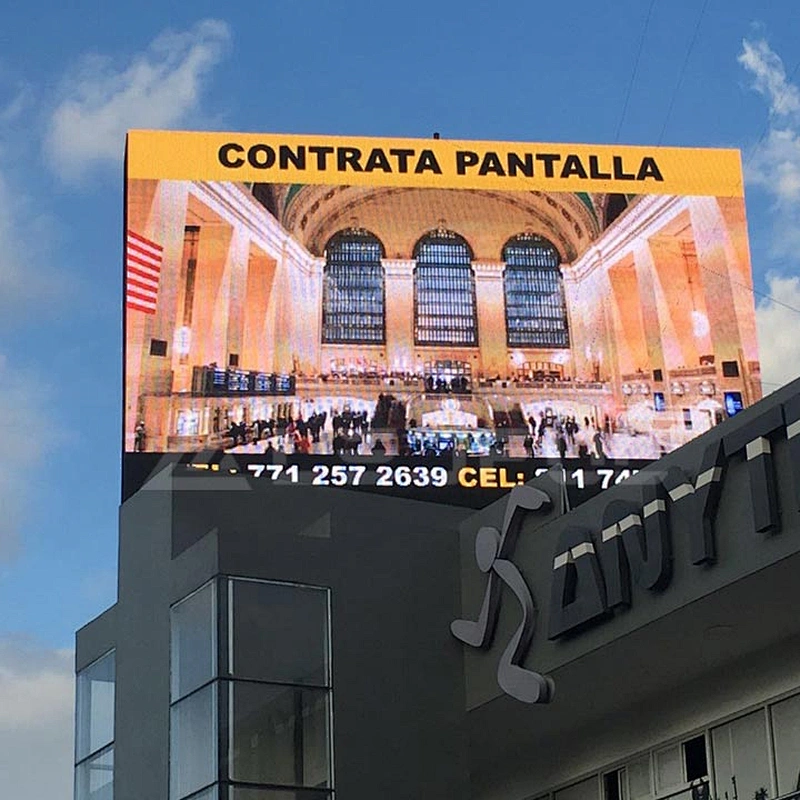

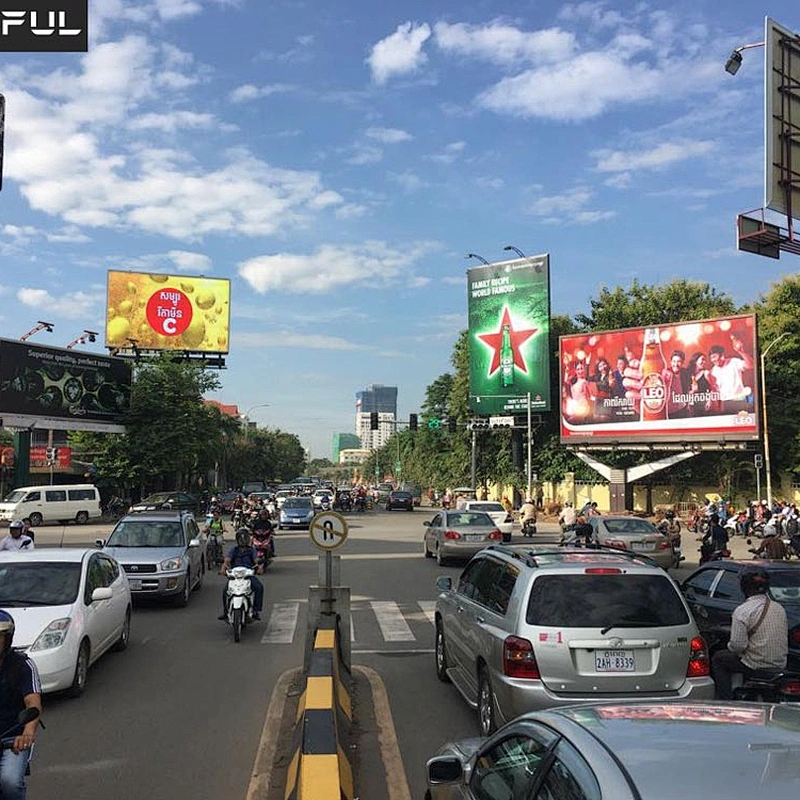

Application

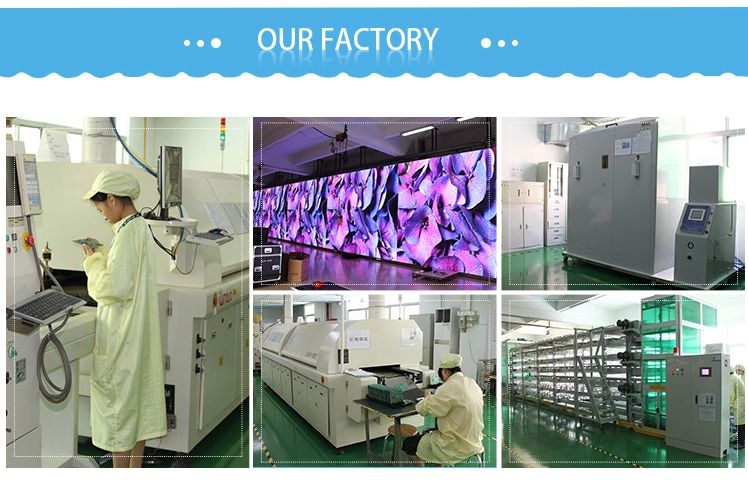

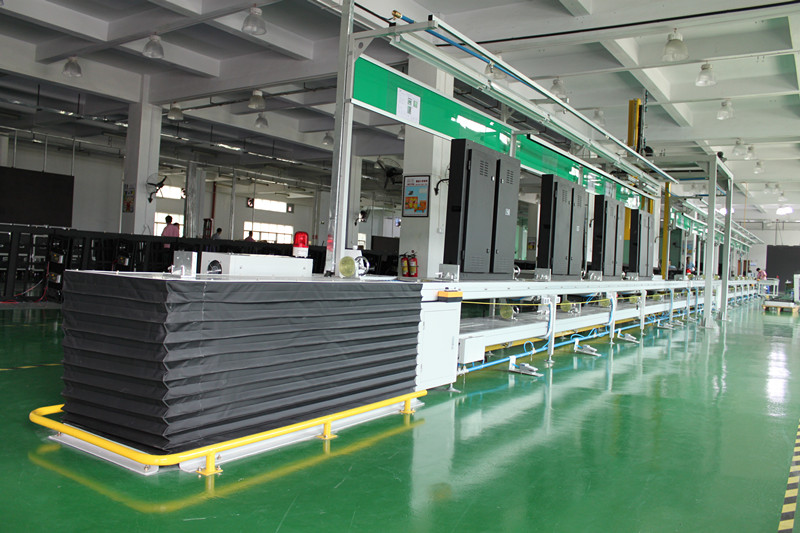

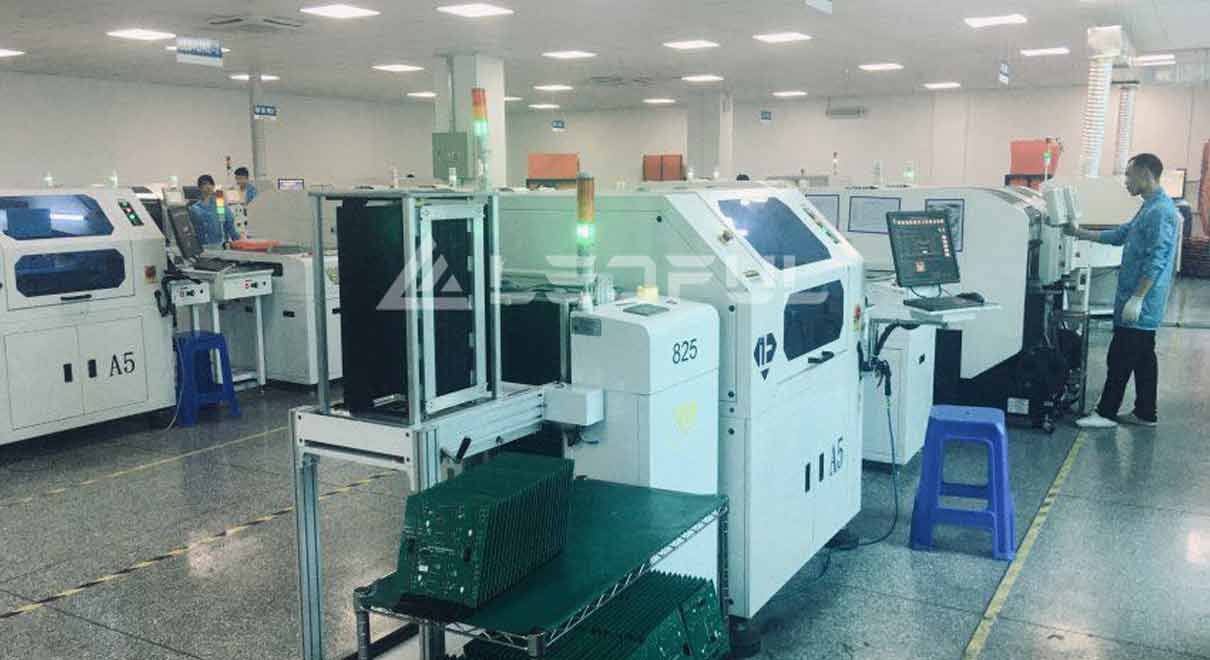

Company Introduction
LEDFUL is located in the Baoan District, Shenzhen, Guangdong. We are a professional manufacturer of LED display, set design, development, manufacturing as a professional manufacturer.We focus on a series of fashion accessories, a wide range of diversity, reasonable price and on-time delivery.

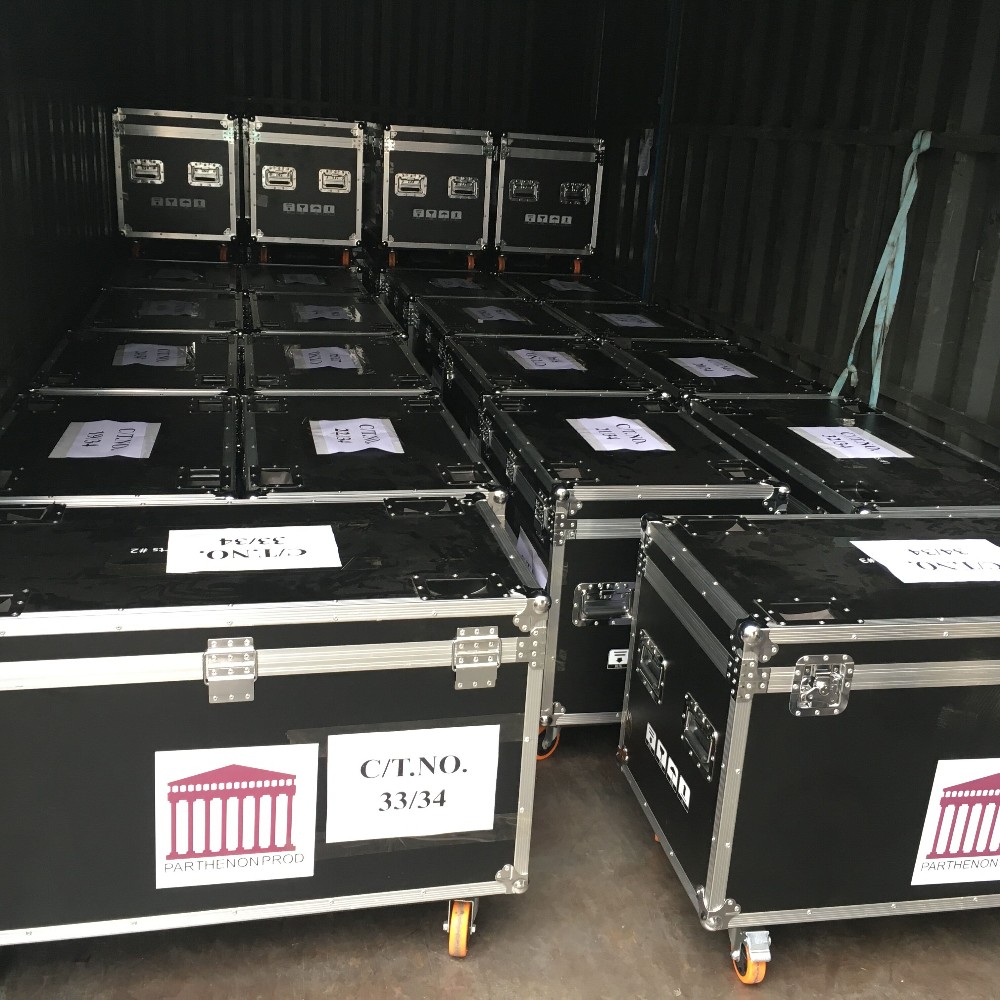

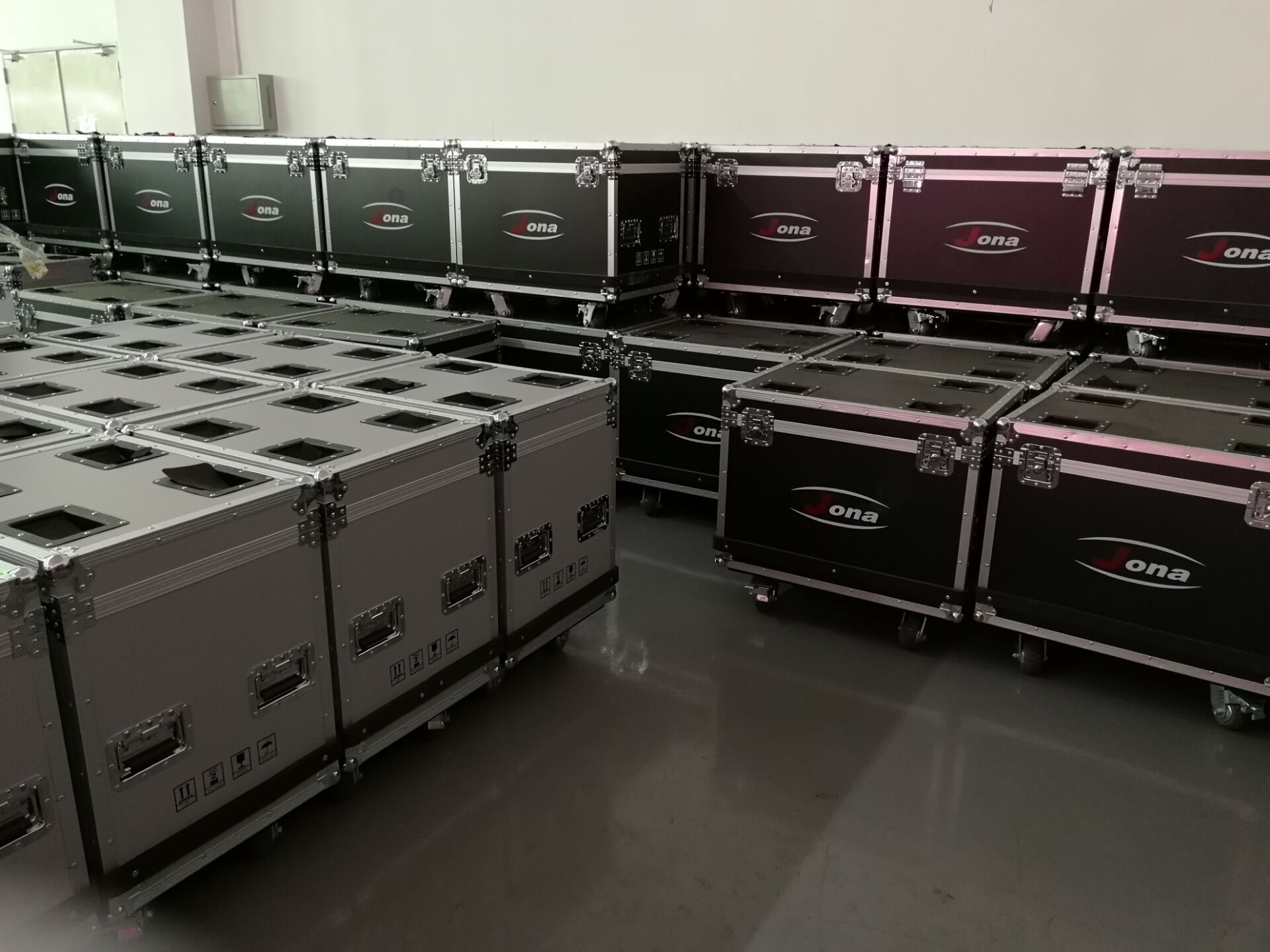

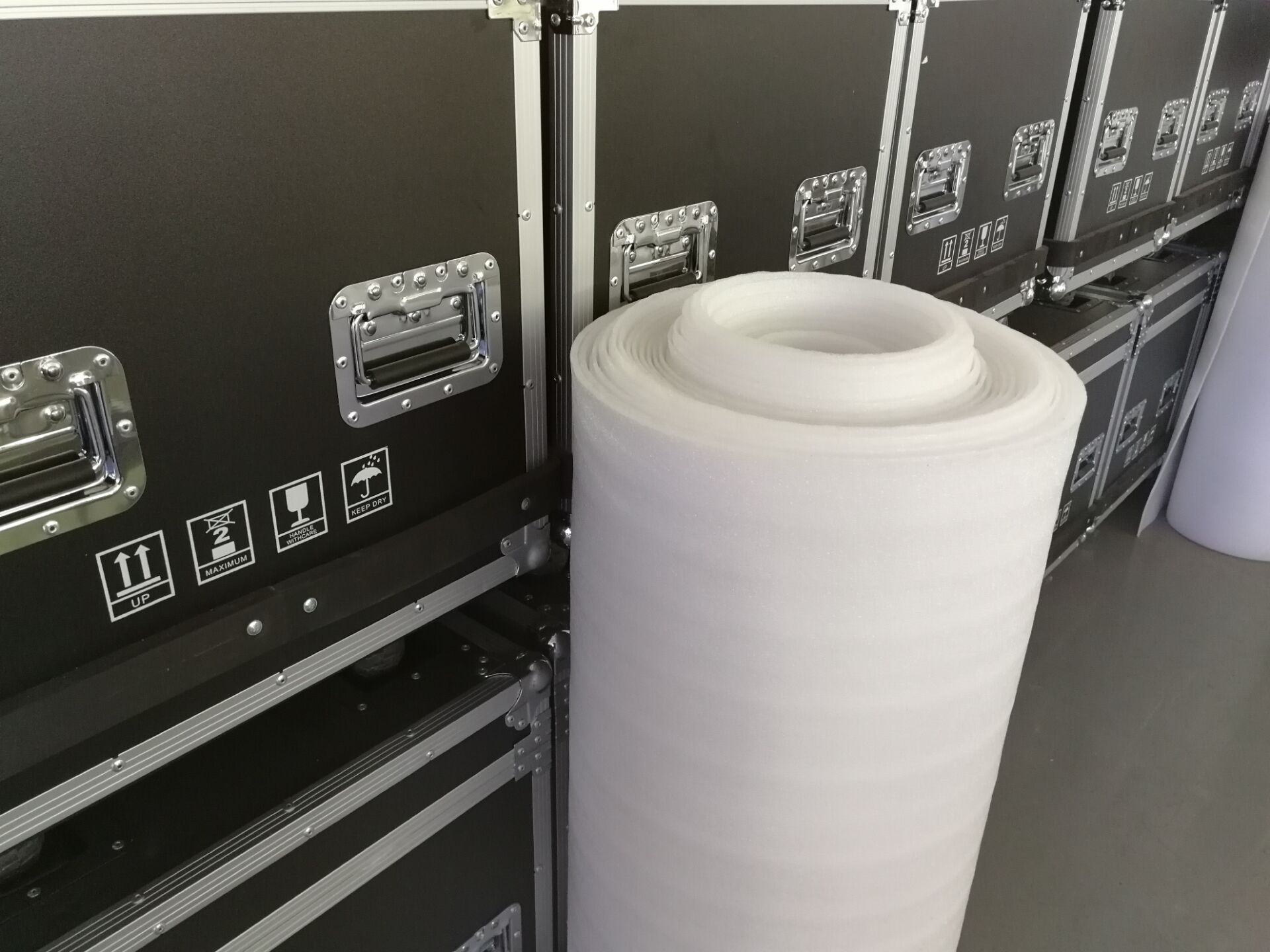

Packing&Shipping
1.Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure,
shock and moisture, and effectively prevents damage during transportation;

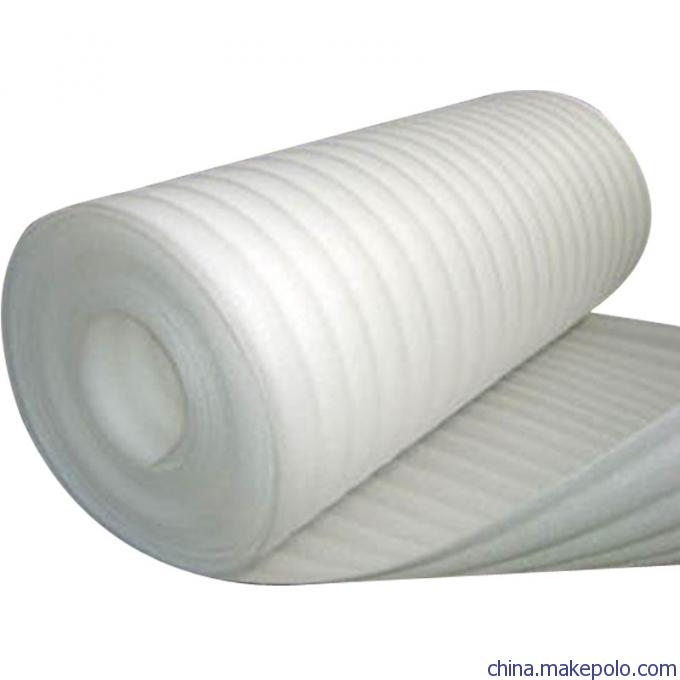

2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.
shock and moisture, and effectively prevents damage during transportation;
2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.

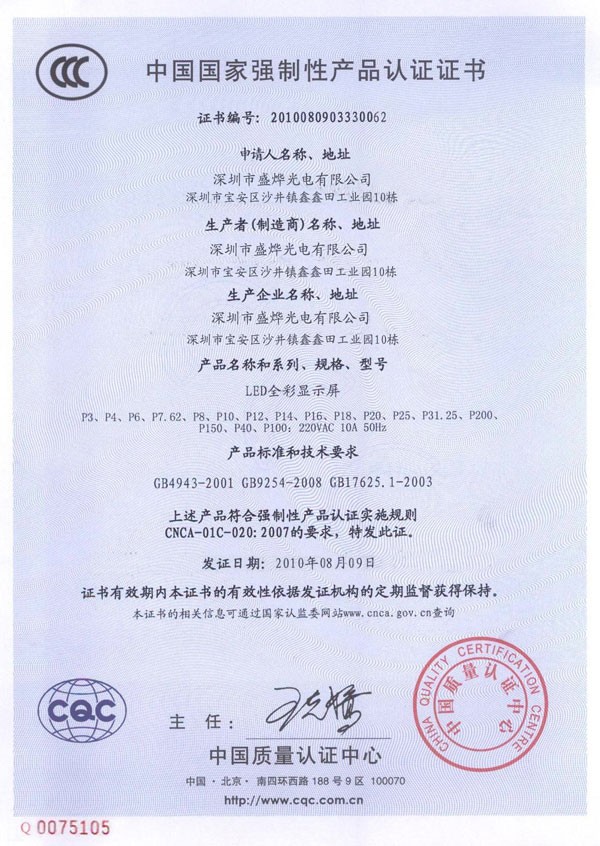

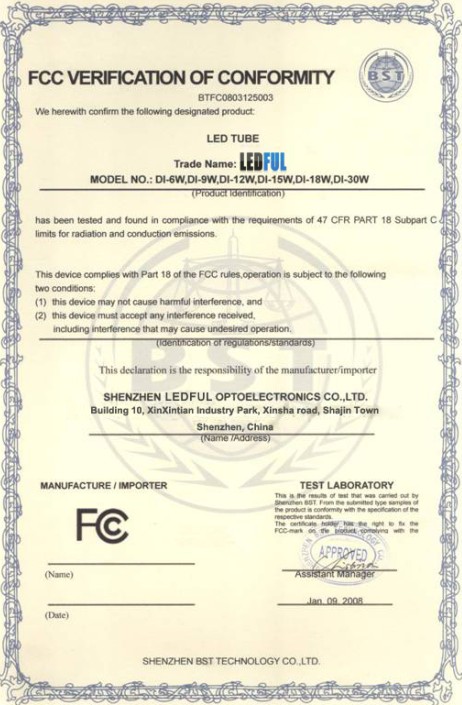

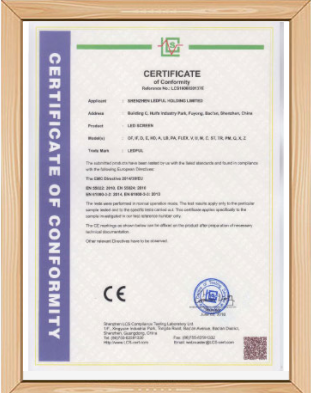

Certificate
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
A: We are led display manufacturer
Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
