- Front Installation
- Full Front Service
- Black SMD LED
- Die Casting Aluminum

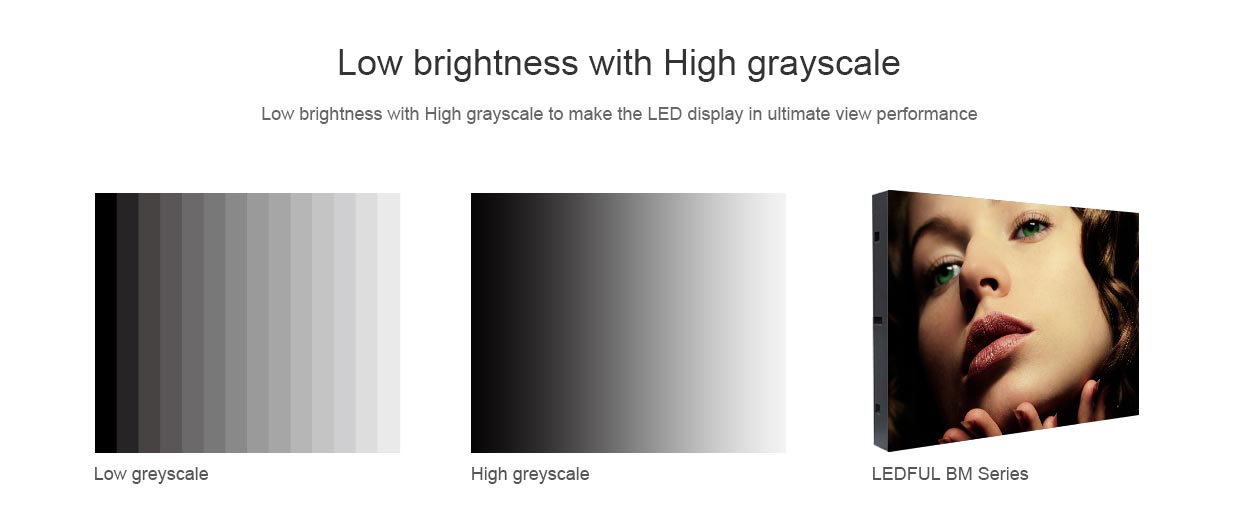

- High Grayscale
- High Refresh
- Light and Thin
- Pixel Pitch(mm):1.667
- Application:Concert
- Item:Led Display Wall
- Color:Full-color
- Certificate:CE ROHS FCC
- Brightness:1000nits
- Warranty:3years
- Product name:Led Video Display Panel
- Module size:384*288 mm
- Service Access:Full Front
- Place of Origin:CN;GUA
- Application:fine pitch advertising screens
- Color:colorful
- Panel Size:640x480mm
- Pixel Pitch:1.667
- Model Number:BM1.6
- Brand Name:LEDFUL
Product Description
BM Series
·Fine Pitch·Wall Mounted·Front Installation·Full Front Service LED display
BM1.6 | BM1.8 | BM2 | BM2.5 | BM3 | BM4

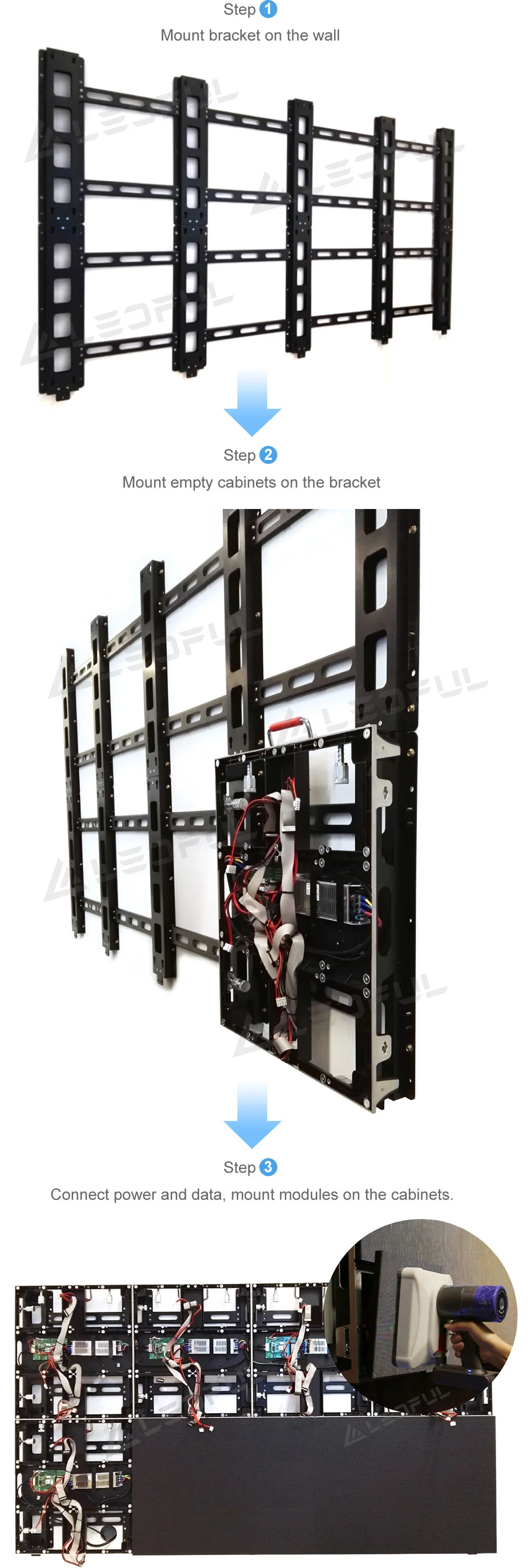

How to install LED cabinets in front side?

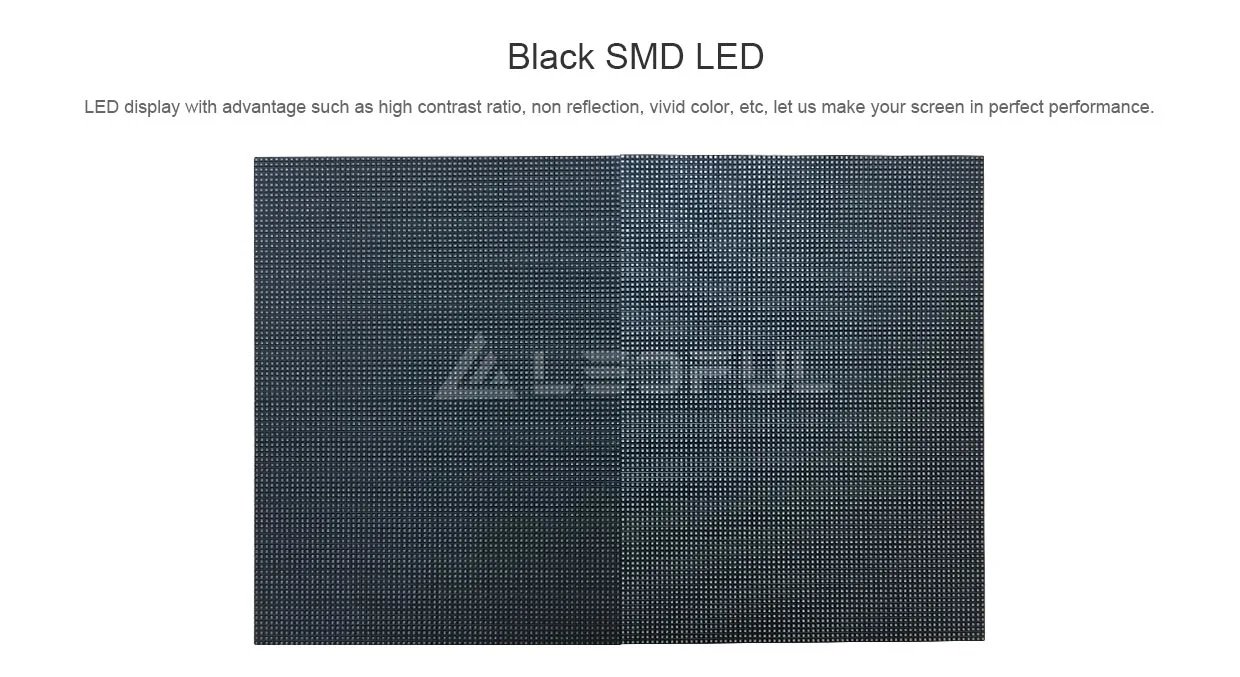

Black SMD LED
LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.

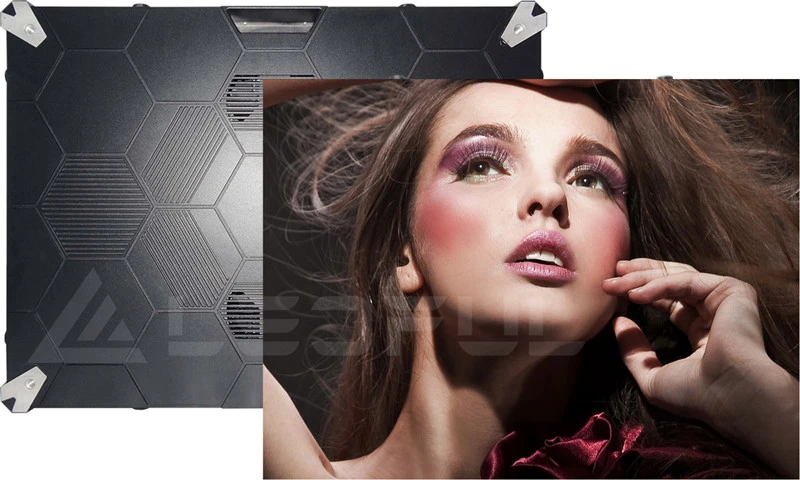

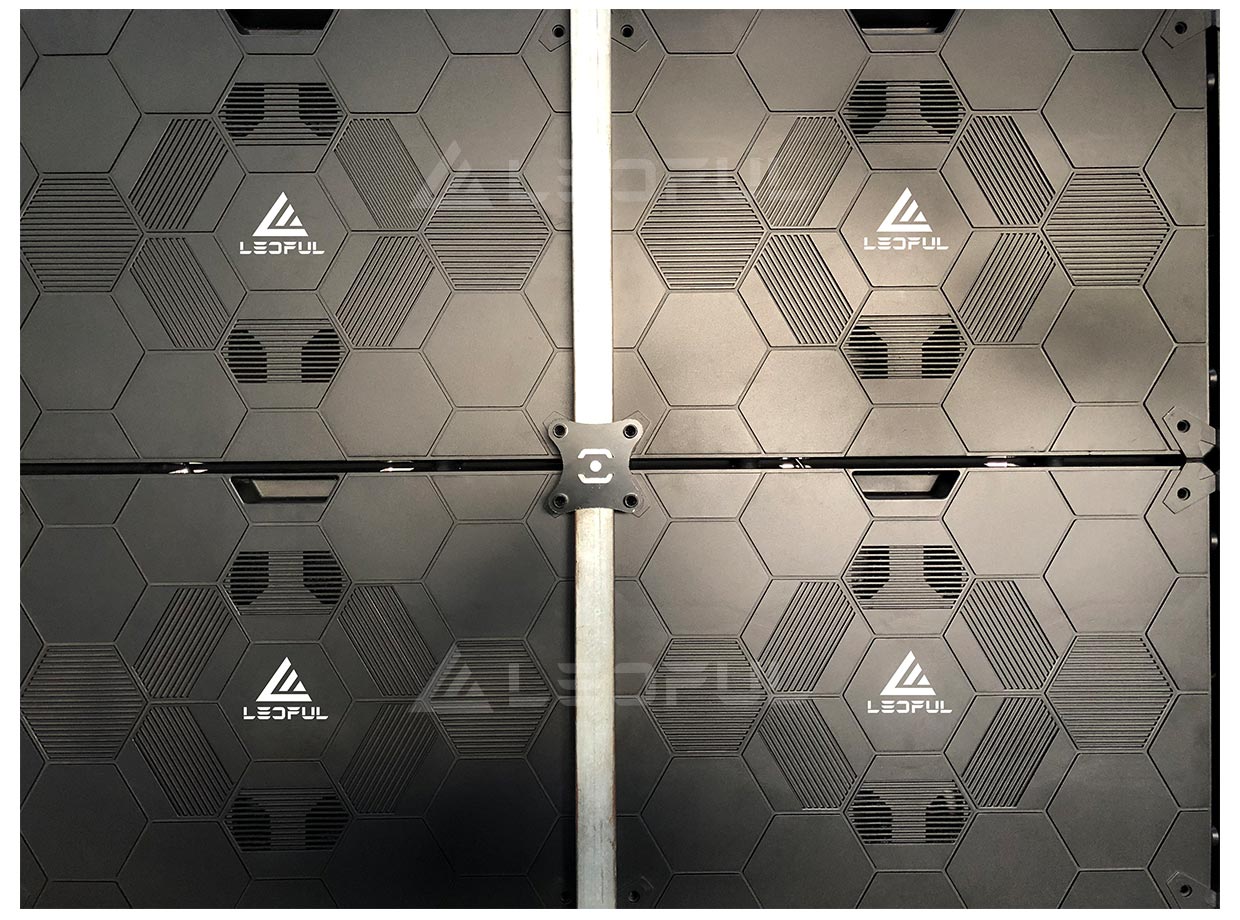

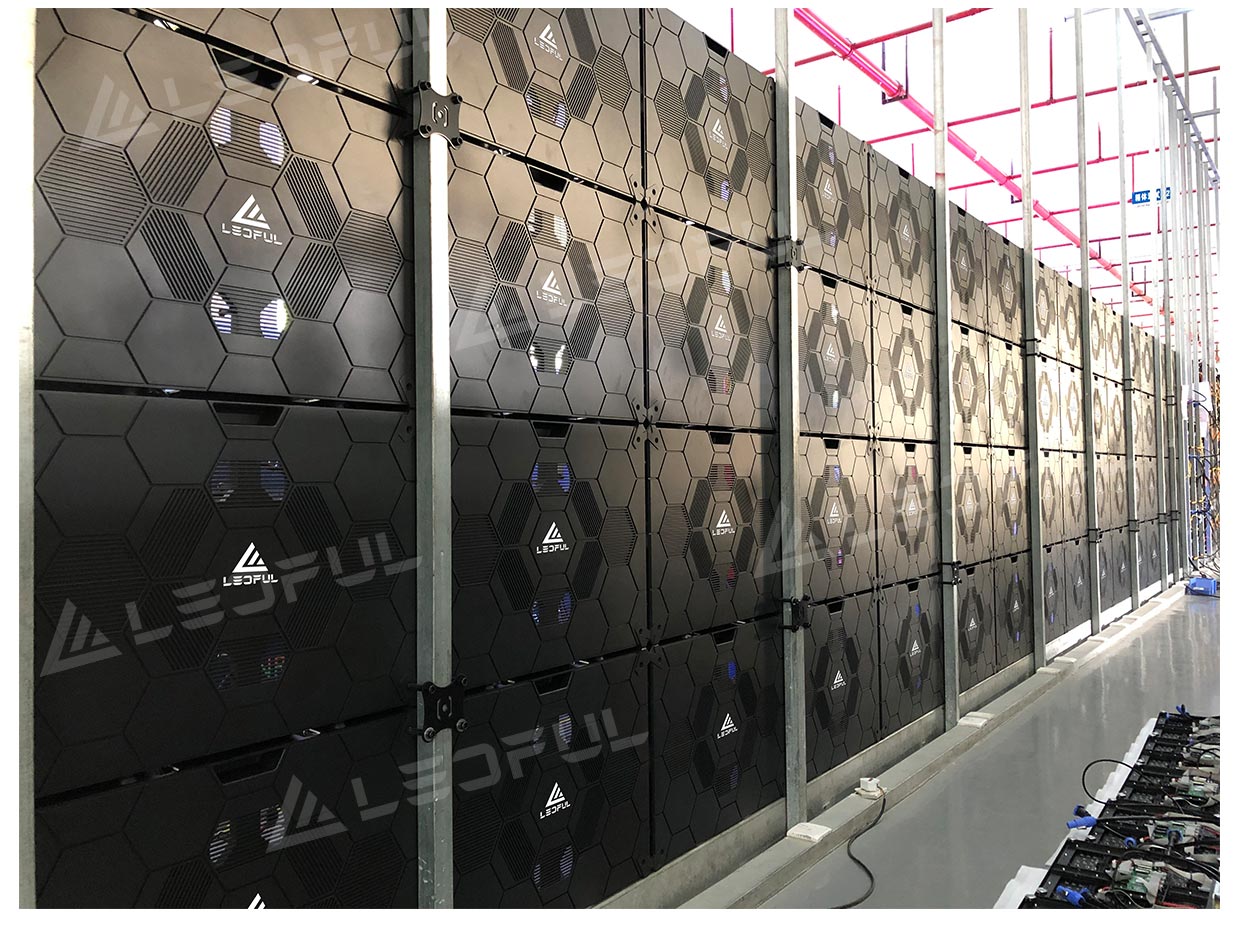

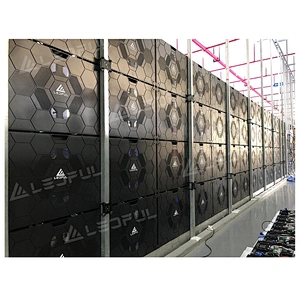

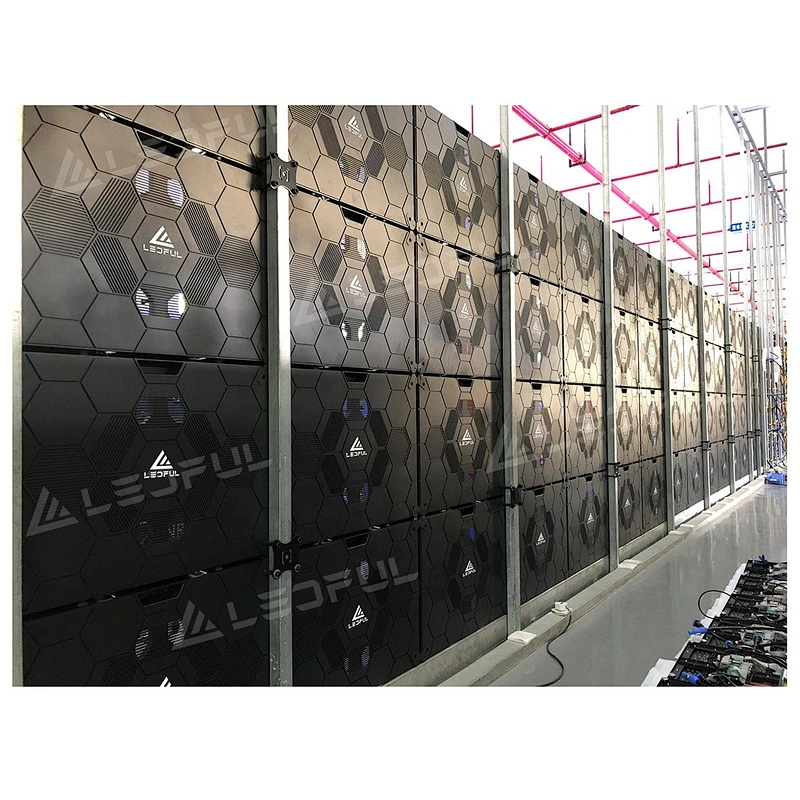

Back view and aging photos

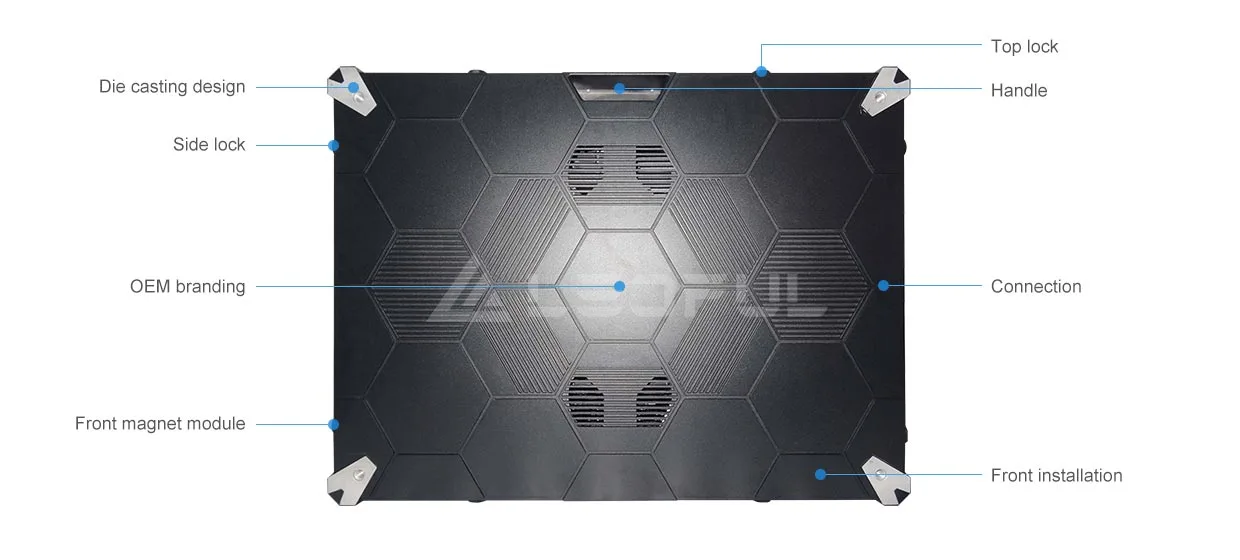

Details Images
Value | BM1.6 | BM1.8 | BM2 | BM2.5 | BM3 | BM4 | |||||
Pixel Pitch(mm) | 1.667 | 1.86 | 2 | 2.5 | 3.33 | 4 | |||||
Pixel Matrix Per Sq.m | 360,000 | 288,888 | 250,000 | 160,000 | 90,000 | 62,500 | |||||
Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | |||||
Brightness (nits) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |||||
Scan | 1/48 | 1/43 | 1/40 | 1/32 | 1/24 | 1/20 | |||||
Cabinet Resolution | 384x288 | 344x258 | 320x240 | 256X192 | 192X144 | 160X120 | |||||
Power Con. (Max / Avg) | 500/150 w/sq.m | ||||||||||
Module Dimension | 320x160mm / 1.06x0.53ft | ||||||||||
Cabinet Weight | 9kg / 19.84Ib ( Die-casting Aluminum) | ||||||||||
Cabinet Dimension | 640x480mm / 2.1x1.57ft | ||||||||||
Service Access | Full Front | ||||||||||
Refresh Rate (HZ) | ≥3840 | ||||||||||
Grey Scale (bit) | 16 | ||||||||||
Viewing Angle (H/V) | 160 / 160 | ||||||||||
IP Rate | IP41 | ||||||||||
Input Voltage (AC) | 110V / 240V | ||||||||||

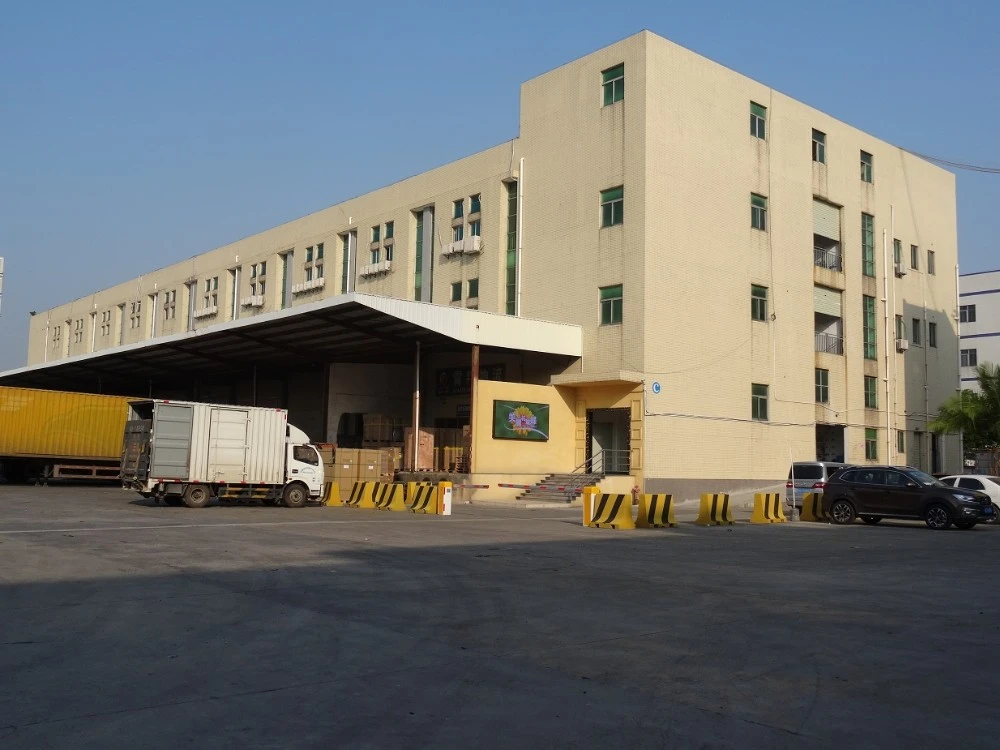

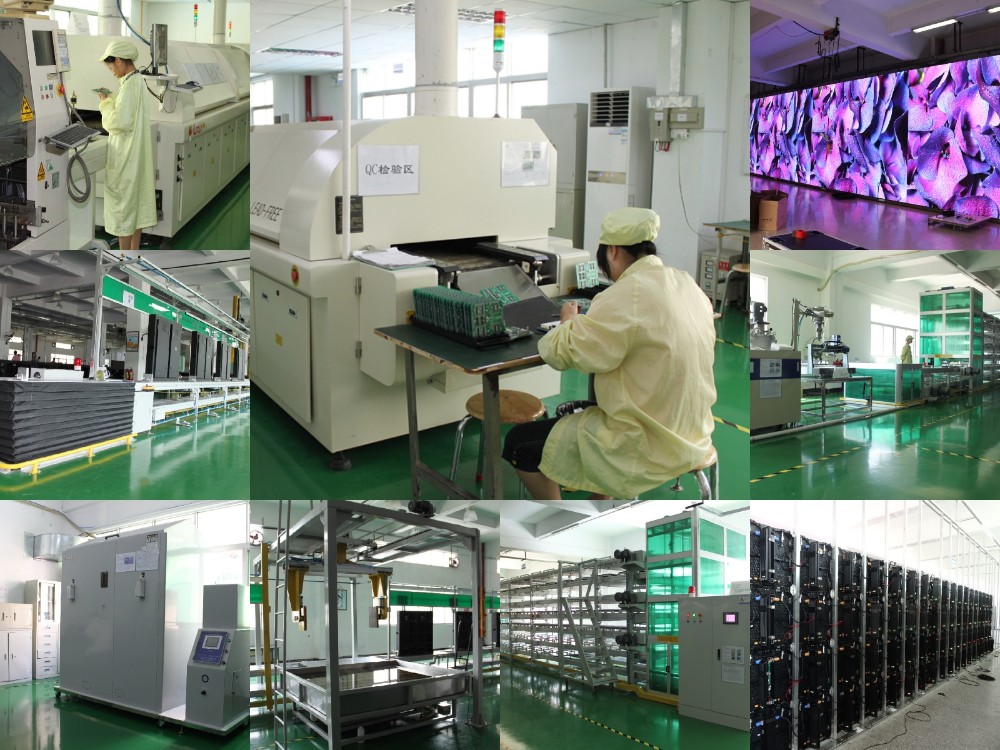

Company Profile
Top LED Display Manufacturer
1.One-stop solution provider
2.More designs and more solutions Wireless control, 4G, Wifi, Cluster control

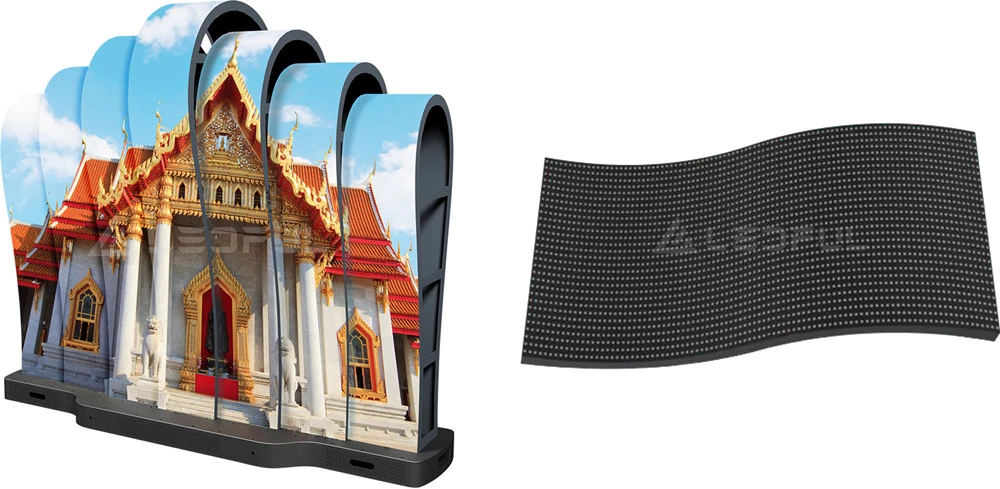

3.Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic, customized Focus on the improvement LED cabinets
4.High efficient and enthusiastic team to make reliable LED display
Professional, High Efficient and Caring
1.Deep Customized & OEM Listen to you, think more for you.
2.Reasonable price Clear cost initially to save your time and money.
3.Provide with innovative and satisfying products.
3.Provide with innovative and satisfying products.
4.Excellent product quality, quick and professional services.
5.Always ready for your any change on LED display details.
5.Always ready for your any change on LED display details.
6.Recommend the best proper solution for your LED project.
7.Catch things what you missed before LED display production.
8.Take good care of each detail for your products, packages,shipping.
Certifications
Our Advantages
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
