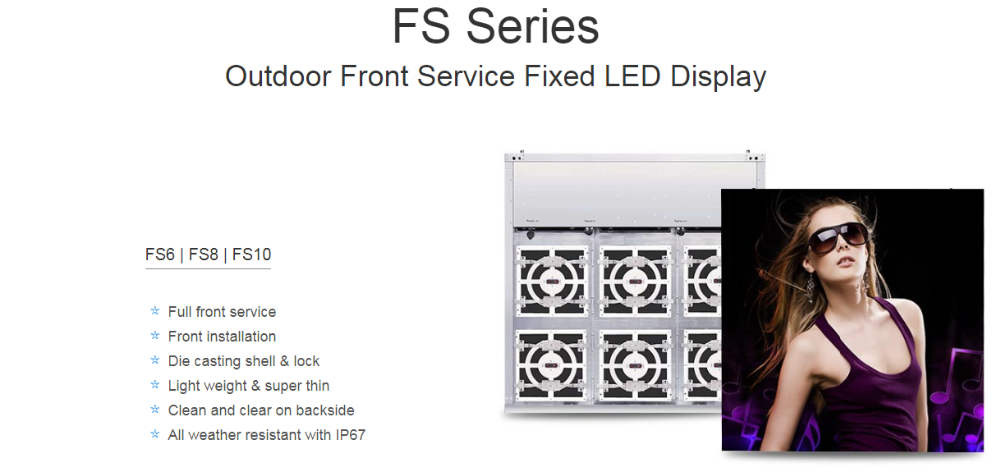

front service P6-10mm super slim outdoor  LED screen
front service P6-10mm super slim outdoor  LED screen
front service P6-10mm super slim outdoor  LED screen
front service P6-10mm super slim outdoor  LED screen
front service P6-10mm super slim outdoor  LED screen
front service P6-10mm super slim outdoor  LED screen
front service P6-10mm super slim outdoor  LED screen

front service P6-10mm super slim outdoor LED screen

  • Minimum order quantity:1
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN, SHEKOU
  • Categories: Top Sale Products

    Product Description

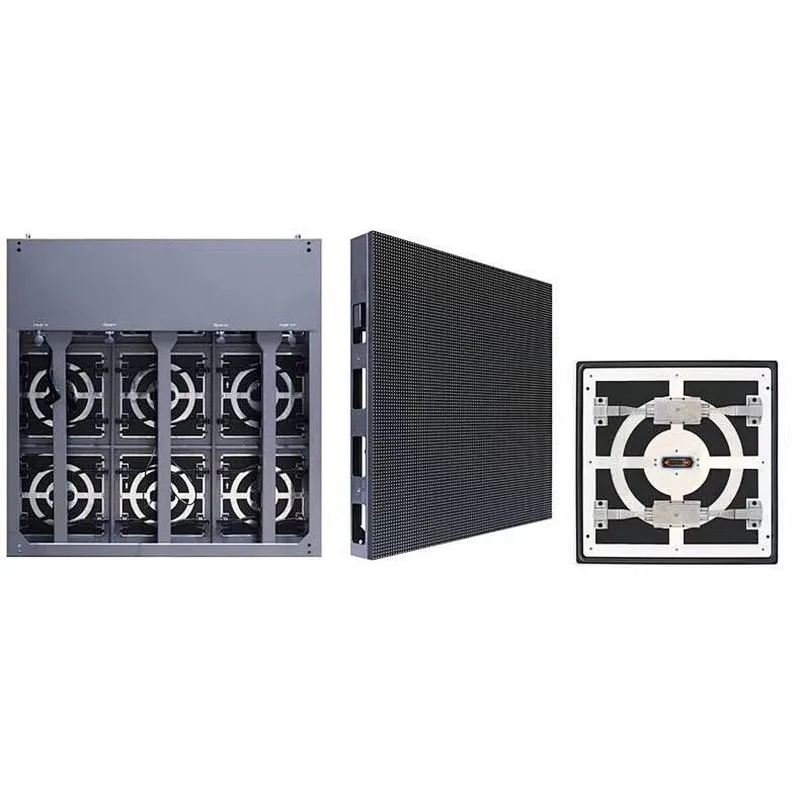

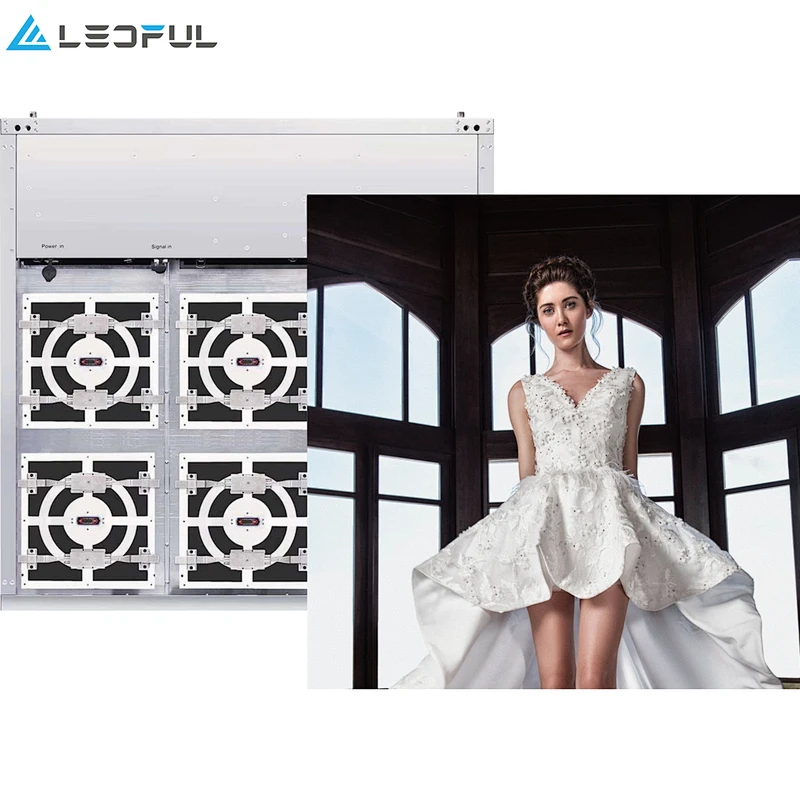

    • Product name:Outdoor Fixed Led Display
    • Warranty:3~5 Years
    • Function:Play Video
    • Life span:100,000 Hours
    • Brightness:≥6500nits
    • Application:Live Events Led Display
    • LED chip:Nationstar
    • Certificate:CE ROHS FCC ISO9001 CCC
    • Installation:Fixed Installation
    • Screen Dimension:960*960mm
    • Pixel Pitch:10mm
    • Place of Origin:CN;GUA
    • Brand Name:LEDFUL
    • Model Number:FS6 FS8 FS10
    • Application:Outdoor advertising
    • Panel Size:960*960mm
    • Color:Full Color
    Product Description
    THE APPLICATION

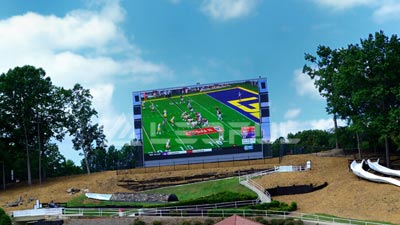

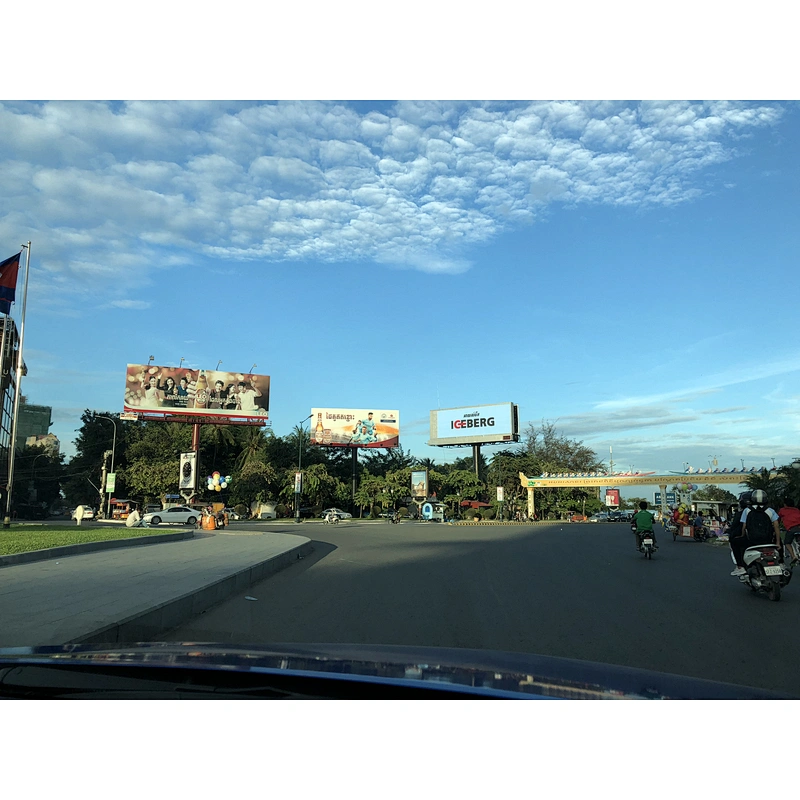

    outdoor fixed applications such as commercial advertising, theme park, stadium scoreboard, shopping mall, transportation center, school, hotels, chain store etc.
    Value
    FS6
    FS8
    FS10
    Pixel Pitch(mm)
    6.67mm
    8mm
    10mm
    Pixel Matrix Per Sq.m
    22477
    15625
    10000
    Pixel Configuration
    SMD2727
    SMD2727
    SMD2727

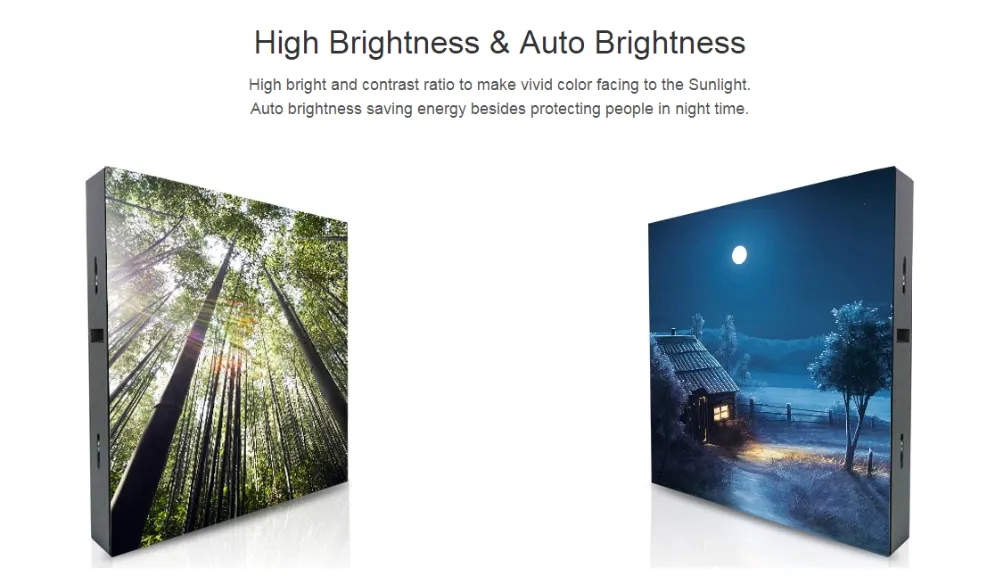

    Brightness (nits)
    6500
    6800
    7500
    Scan
    1/6
    1/5
    1/2
    Cabinet Resolution
    144x144
    96x96
    96x96
    Module Dimension
    320x320mm / 1.05x1.05ft
    320x320mm / 1.05x1.05ft
    320x320mm / 1.05x1.05ft
    Cabinet Weight
    37kg / 81Ib ( Iron)
    36kg / 79Ib (Iron)
    35kg / 77Ib ( Iron)
    Cabinet Dimension
    960x960x130mm / 3.15x3.15x0.43ft
    960x960x130mm / 3.15x3.15x0.43ft
    960x960x130mm / 3.15x3.15x0.43ft
    Service Access
    Front
    Front
    Front
    Refresh Rate (HZ)
    ≥1920
    ≥1920
    ≥1920
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    Power Con. (Max / Avg)
    800/ 170 w/sq.m
    780 / 160 w/sq.m
    750 / 150 w/sq.m

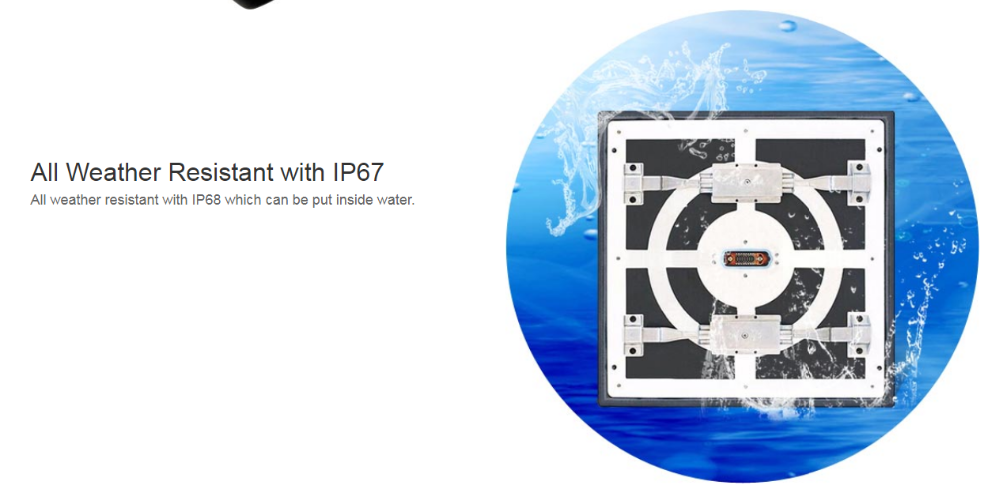

    IP Rate
    IP68
    Input Voltage (AC)
    110 / 240
    110 / 240
    110 / 240

    Specifications

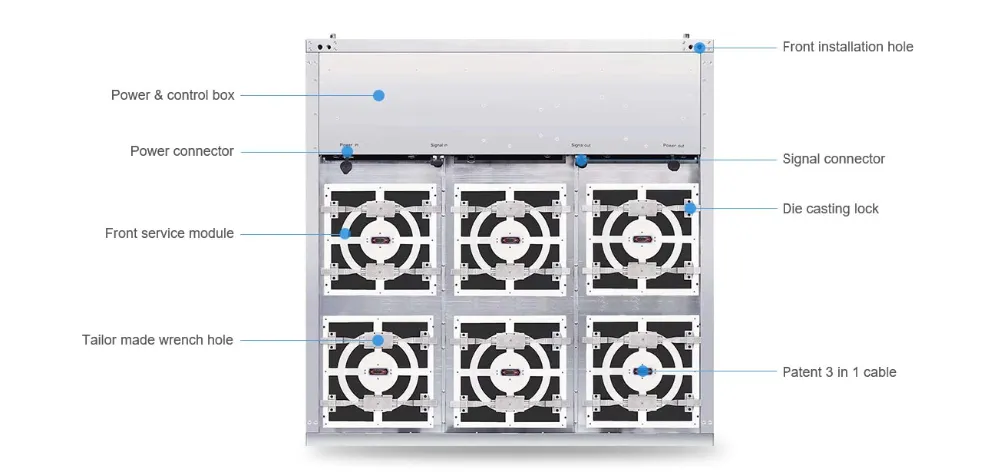

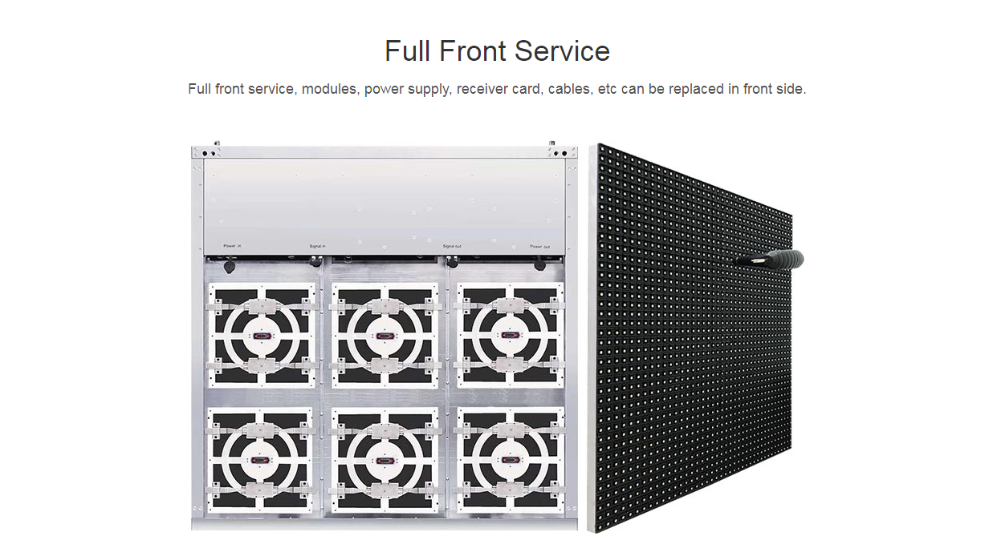

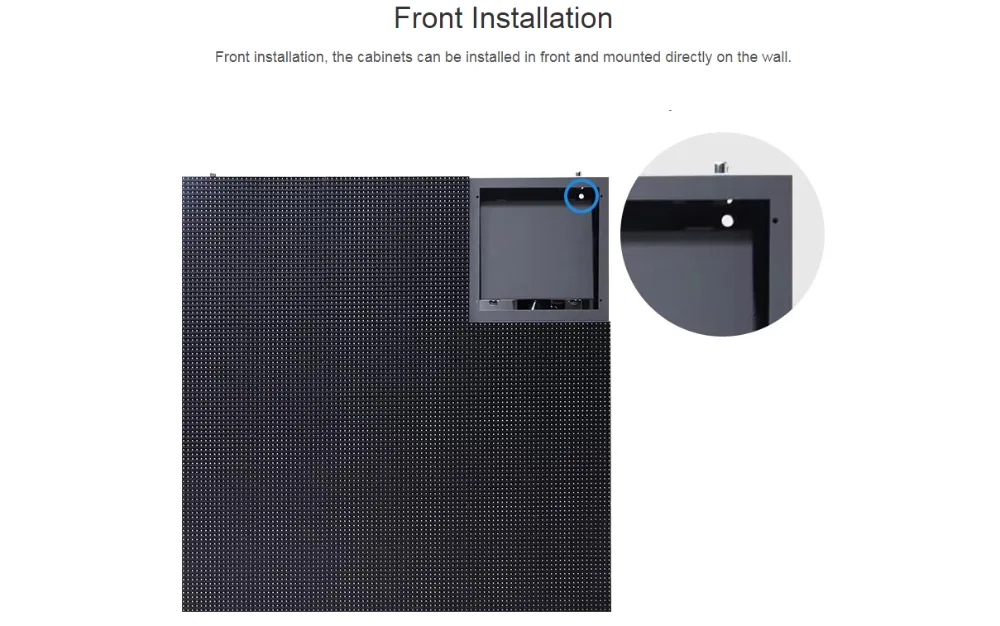

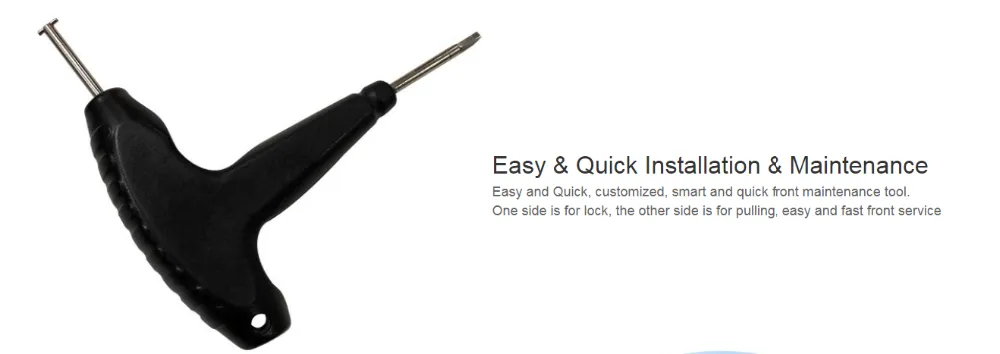

    1.Full Front Maintenance
    2.Curved Installation
    3.No Light Leakage
    4.Climbing support

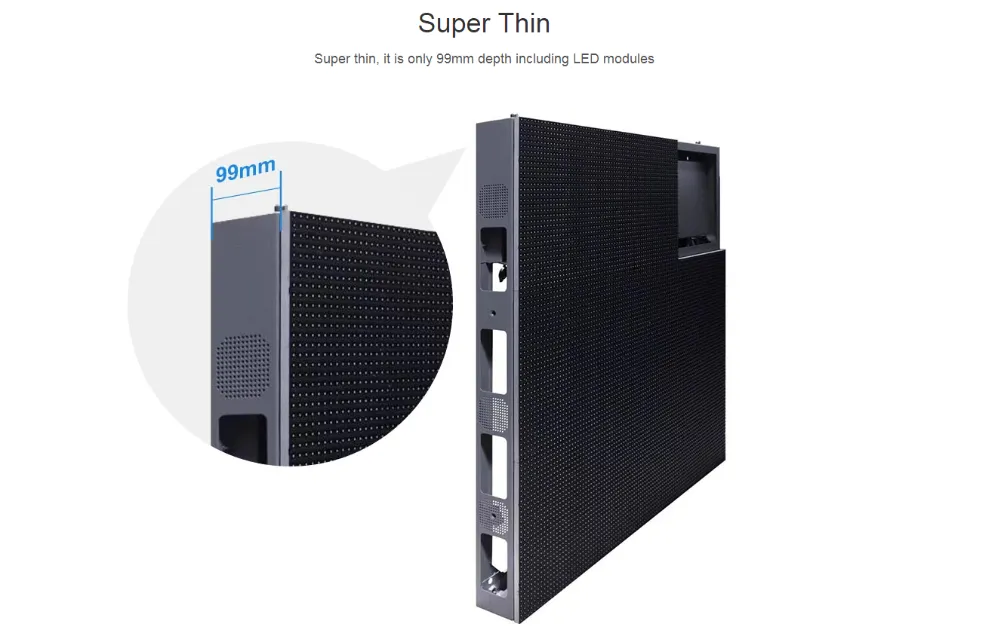

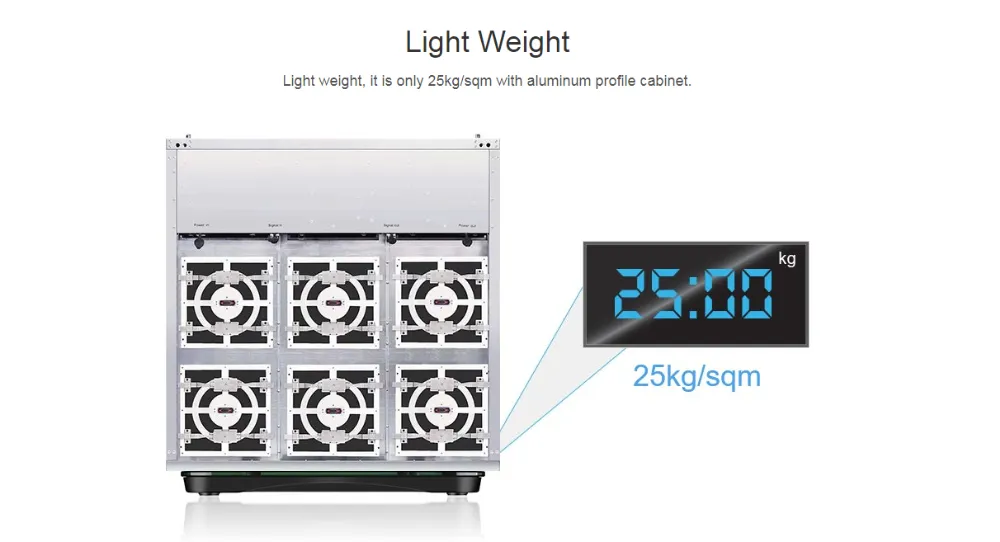

    5.Light and Thin

    Our Company
    Certificate

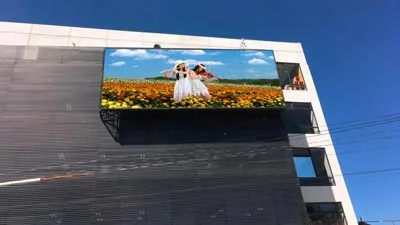

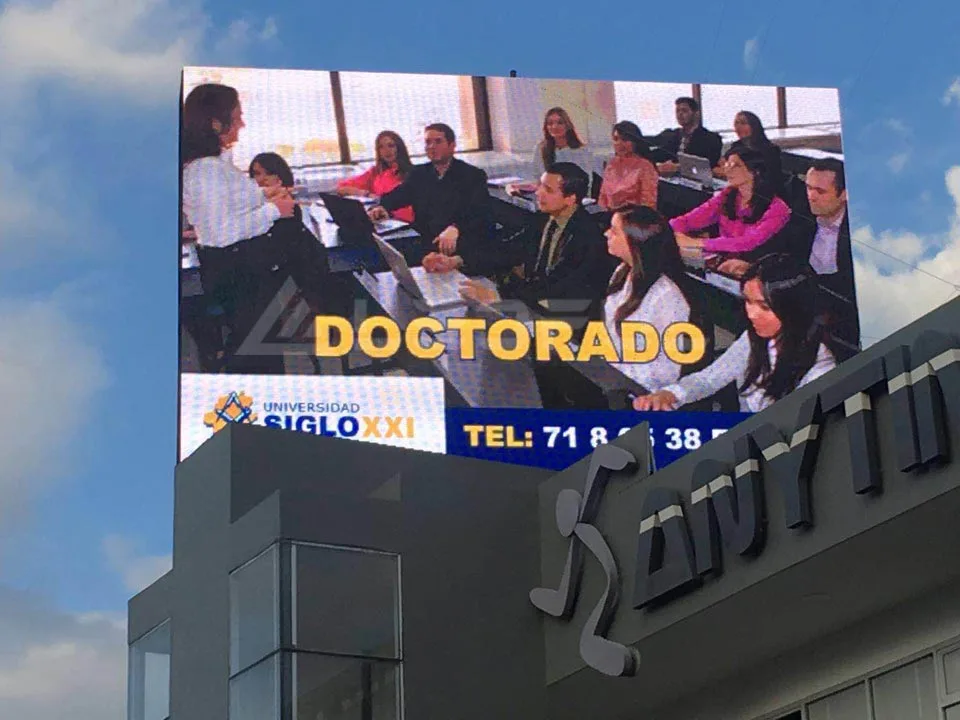

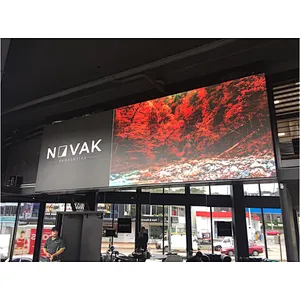

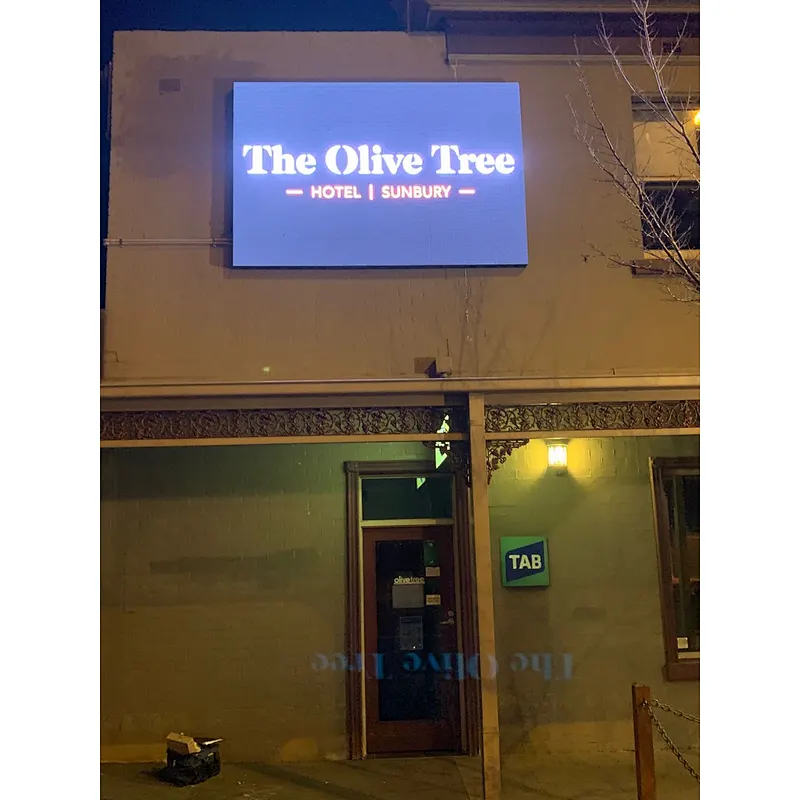

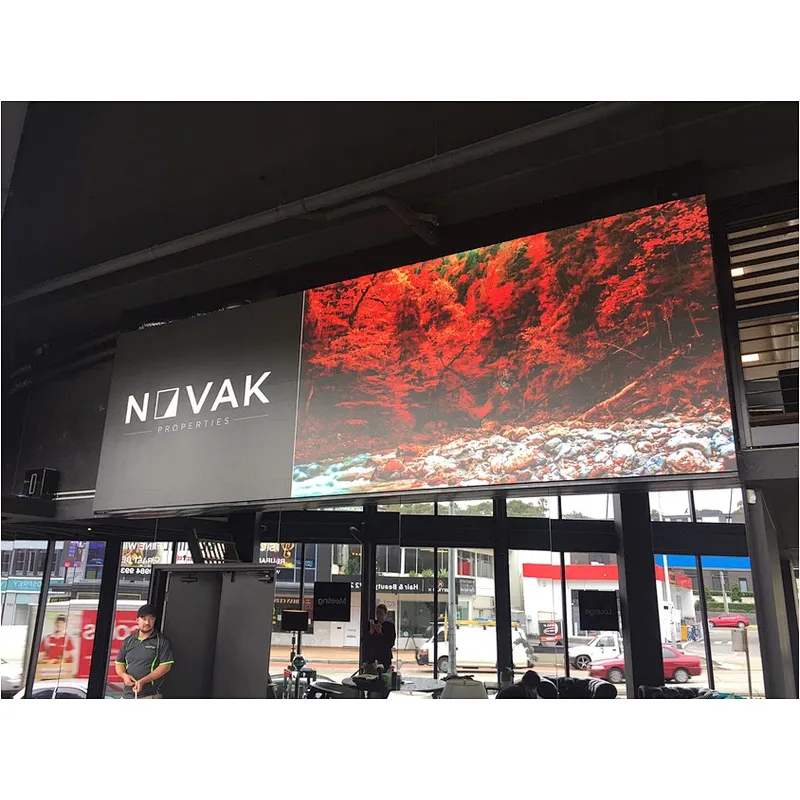

    Our Cases


    Packing & Delivery
    Our Service

    1. OEM Manufacturing welcome: Product, Package...
    2. Customized in size, chips,packages and control system
    3. We will reply you for your inquiry in 24 hours.
    4. after sending, we will track the products for you once every two days, until you get the products. When you got the
       goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
       the solve way for you.

    5. 3-5 years warranty will be provided by us.

    FAQ

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
    we can pack the goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
    before you pay the balance.

    Q3. What is your terms of delivery?
    A: FOB


    Q4. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
       the courier cost.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test for 72hrs before delivery.

    Q8: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,
      no matter where they come from.
