- Place of Origin:CN;GUA
- Usage:Indoor
- Tube Chip Color:FULL COLOR
- Display Function:Graphics
- Pixels:1.875mm
- Screen Dimension:16:9
- Product name:Fine Pitch LED Display
- Grey Scale (bit):16
- Brightness (nits):≥1000
- Pixel Configuration:SMD1010
- Cabinet Resolution:320x90
- Module Dimension:300x168.75mm/0.98x0.55feet

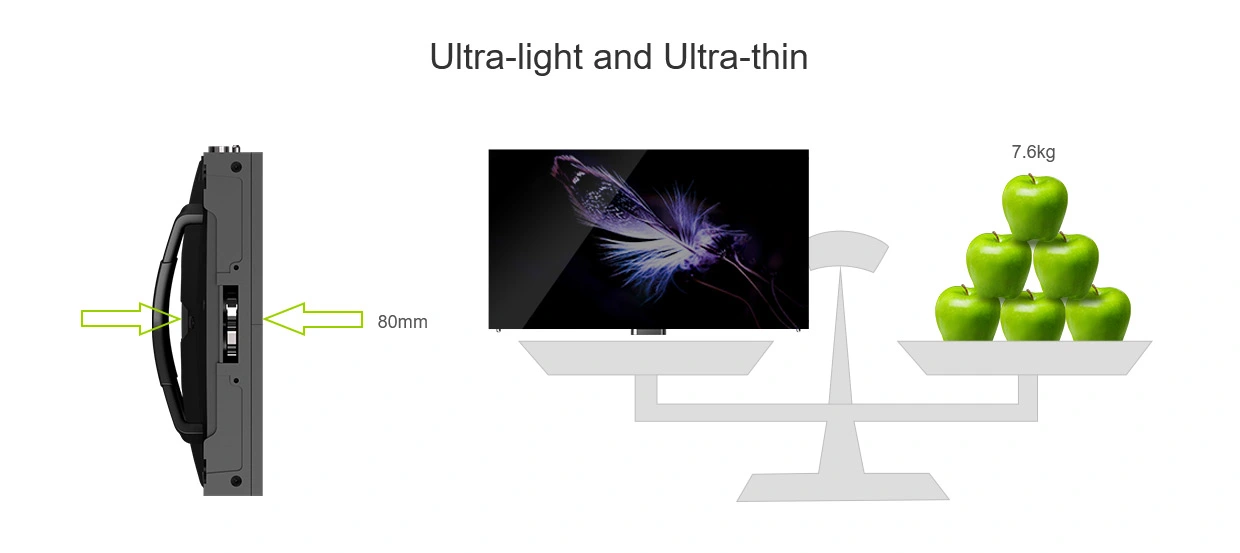

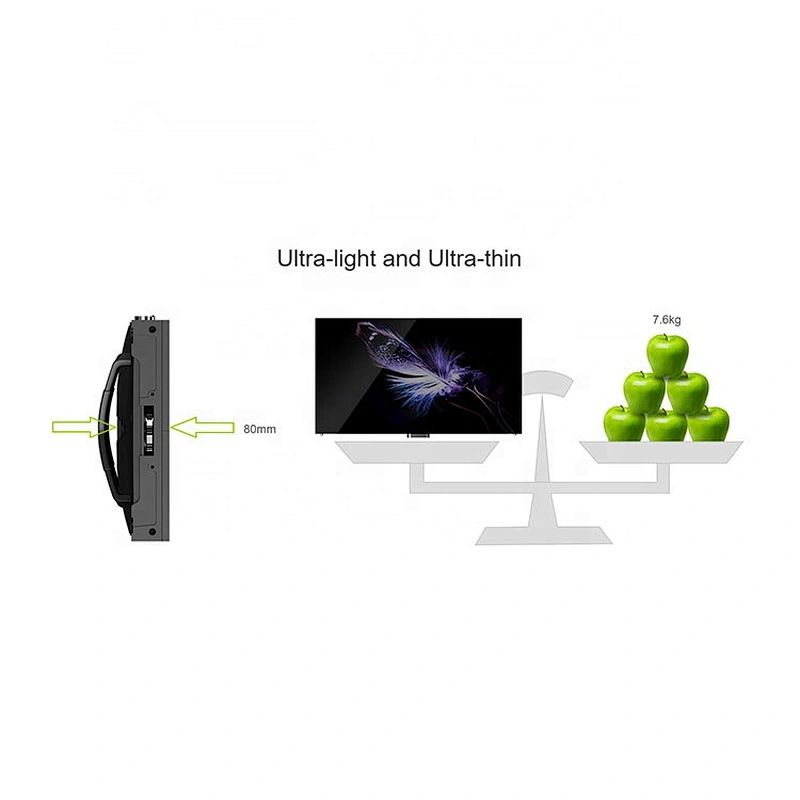

- Cabinet Dimension:600x337.5x80mm / 1.97x1.11x0.26feet
- Cabinet Weight:7.8kg /17.2Ib ( Die-casting Aluminum)
- Input Voltage (AC):110 / 240
Product Description

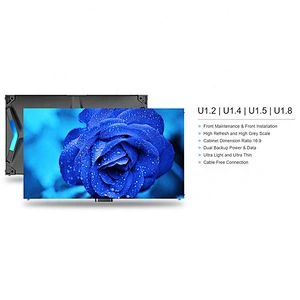

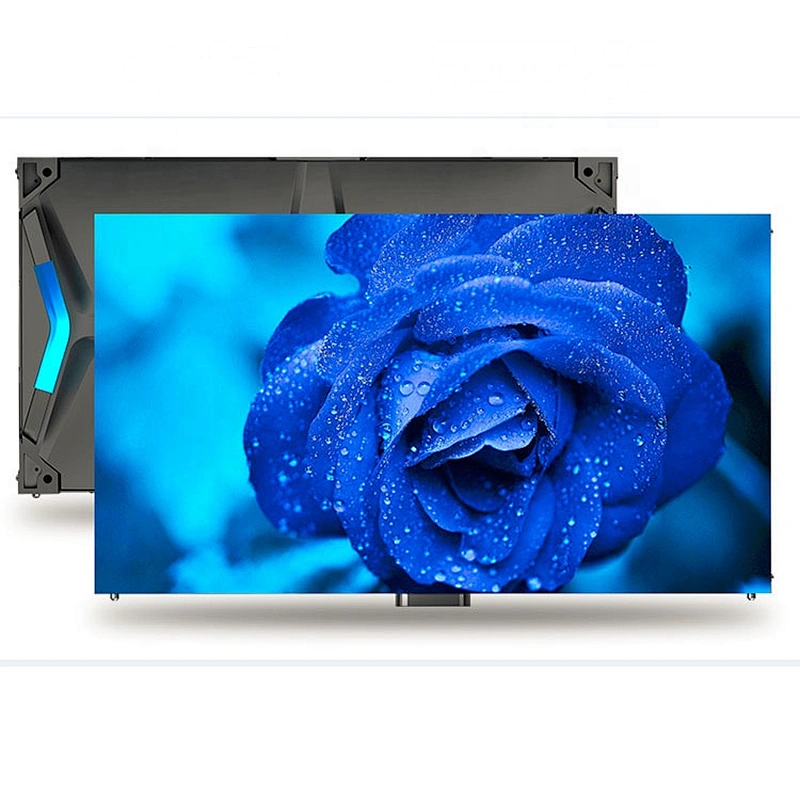

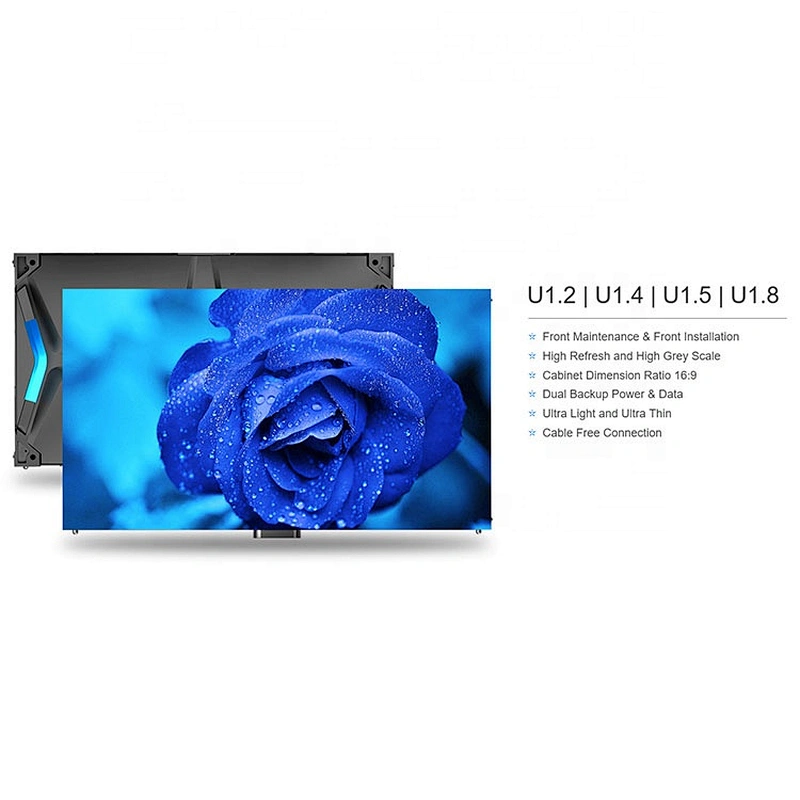

High Refresh and High Grey Scale Fine Pitch LED Display Wholesale Online
| U Series | U1.8 |
| Pixel Pitch(mm) | 1.875mm |
| Pixel Matrix Per Sq.m | 284444 |
| Pixel Configuration | SMD1010 |
| Brightness (nits) | ≥1000 |
| Scan | 1/30 |
| Cabinet Resolution | 320x90 |
| Module Dimension | 300x168.75mm/0.98x0.55feet |

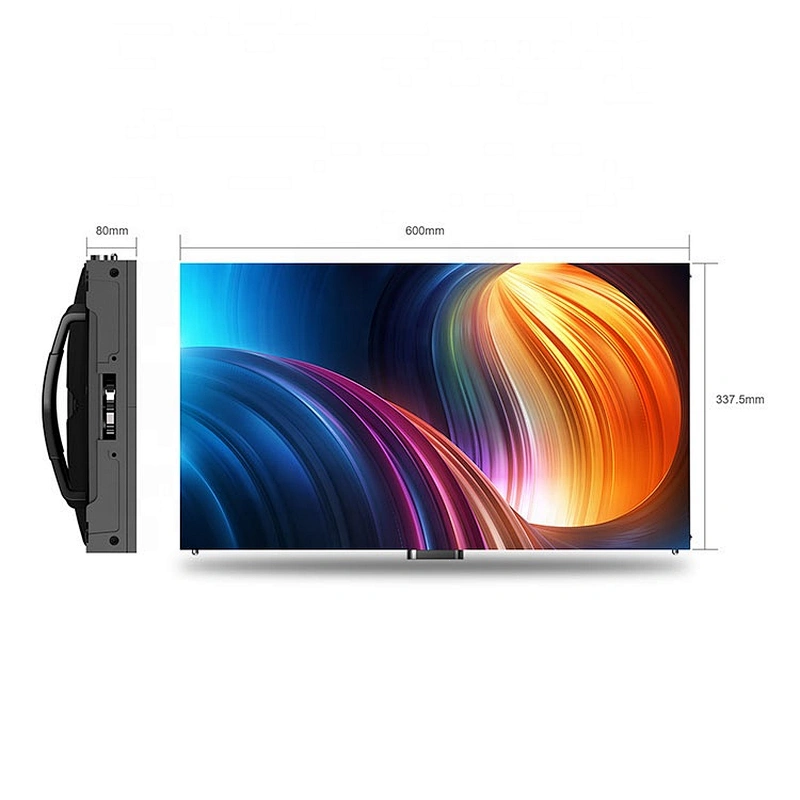

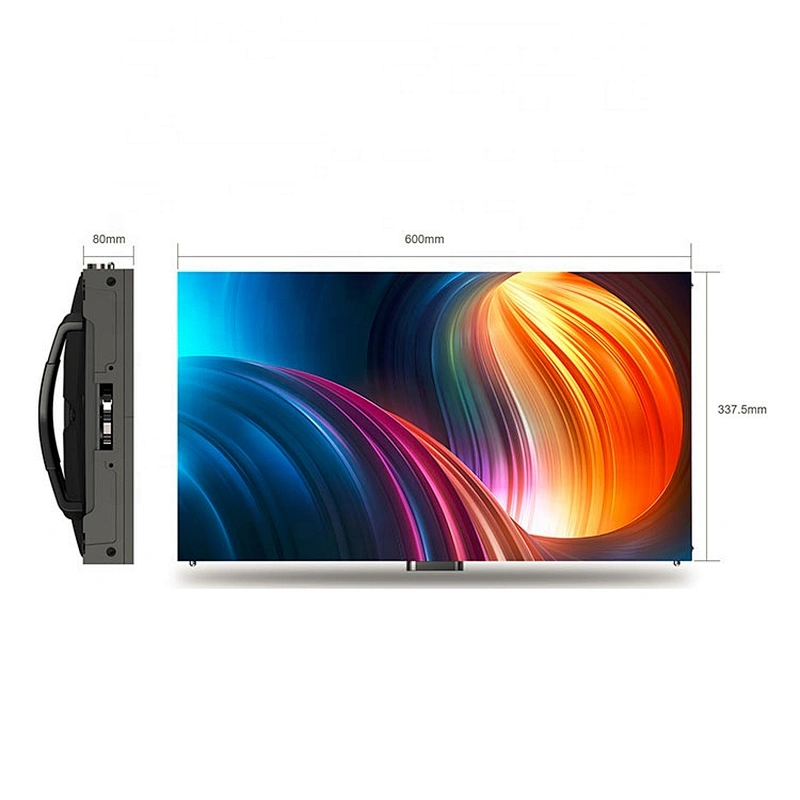

| Cabinet Dimension | 600x337.5x80mm / 1.97x1.11x0.26feet |
| Cabinet Weight | 7.8kg /17.2Ib ( Die-casting Aluminum) |
| Service Access | Front |
| Refresh Rate (HZ) | ≥3840 |
| Grey Scale (bit) | 16 |
| Viewing Angle (H/V) | 160 / 160 |
| Power Con. (Max / Avg) | 800 / 250 w/sq.m |
| IP Rate | IP31 |
| Input Voltage (AC) | 110 / 240 |
| * Specifications and photos are subject to change without prior notice. | |
