This is necessary for quick and easy escape required by most football associations.
- Usage:Indoor
- Display Function:Video
- LED chip:Epistar
- Life span:100000 Hours
- Control system:Linsn /Nova
- Input Voltage (AC):110V / 240V
- Viewing Angle (H/V):140 / 140
- Warranty:3 Years
- Certificate:CCC CE ROHS ISO

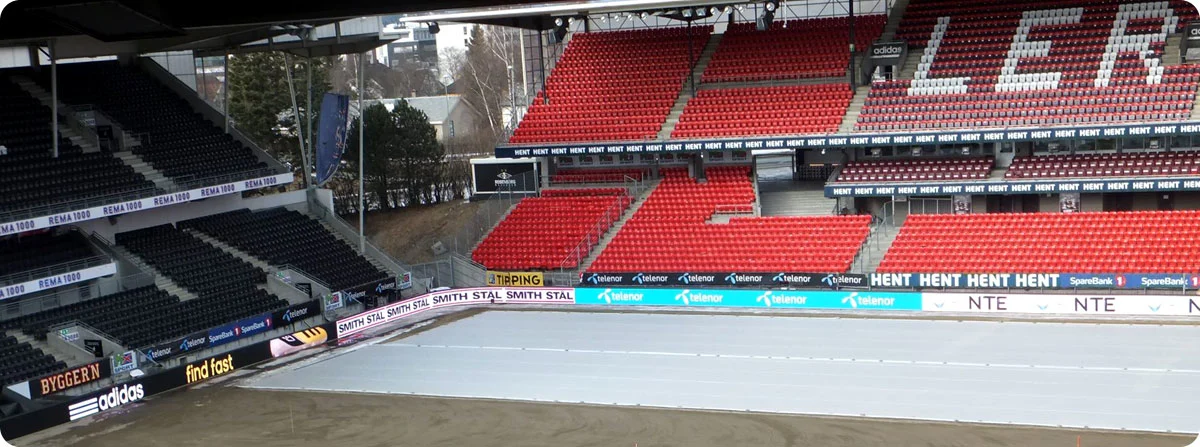

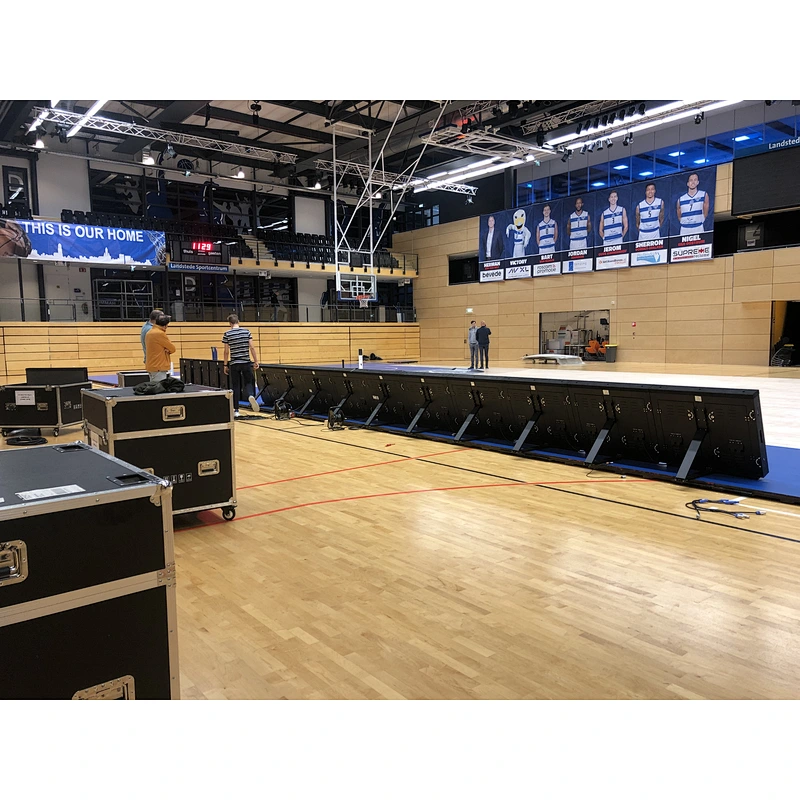

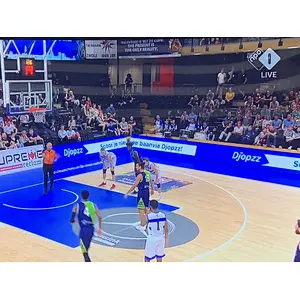

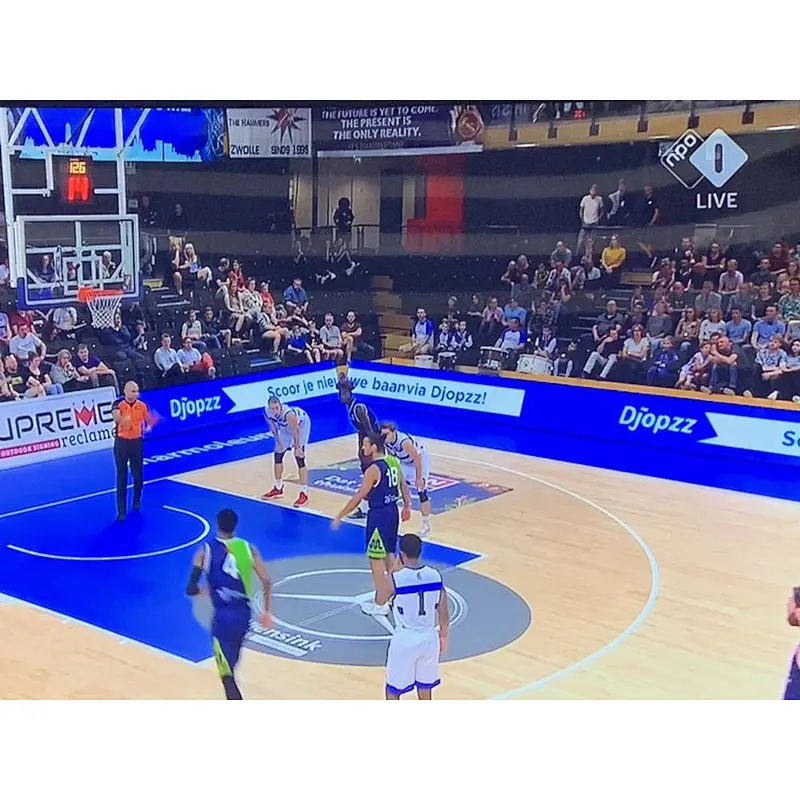

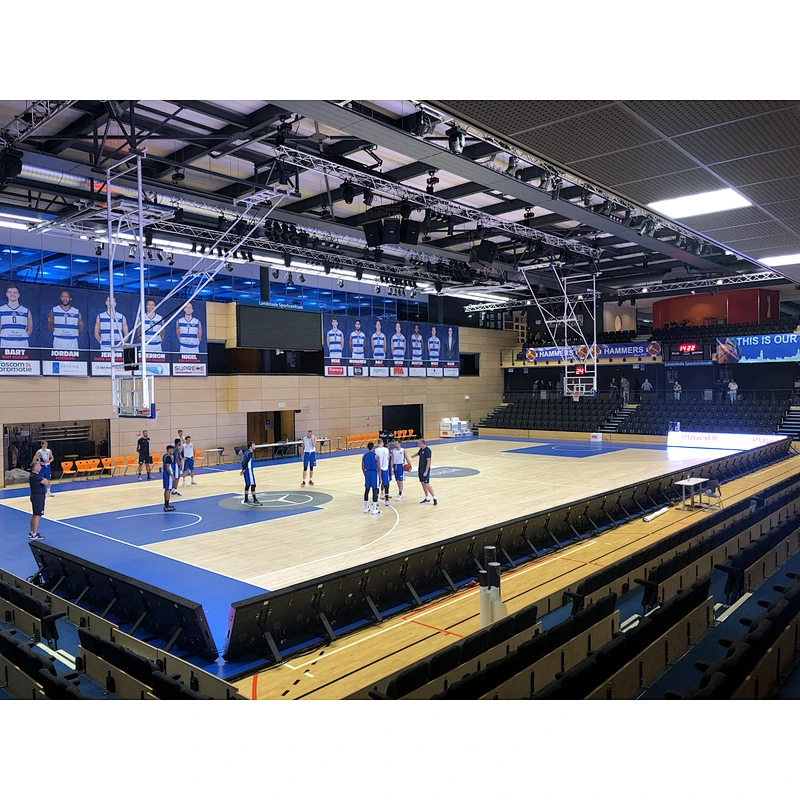

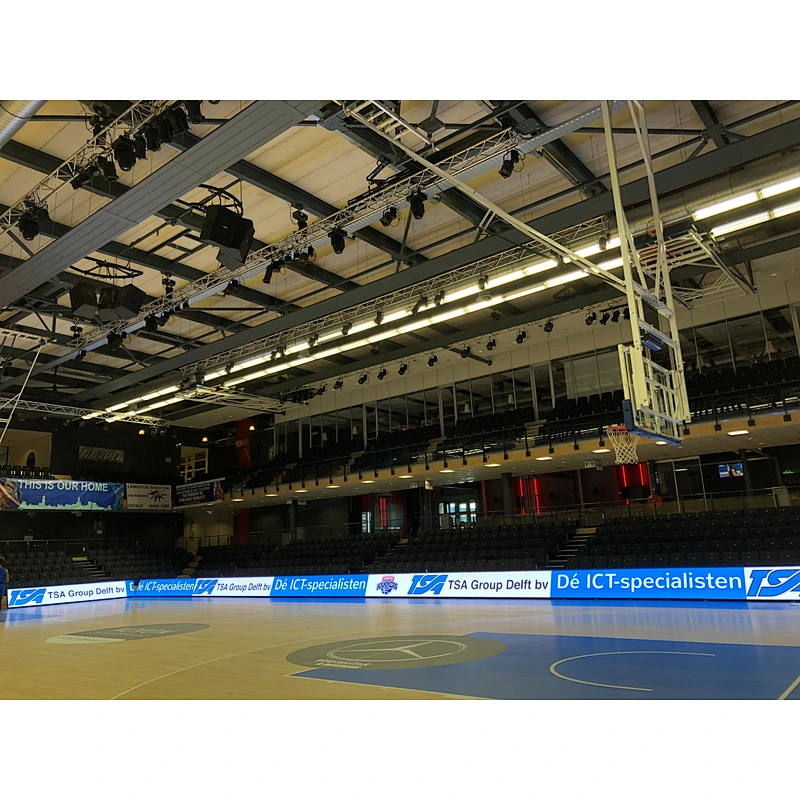

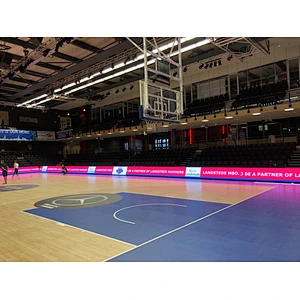

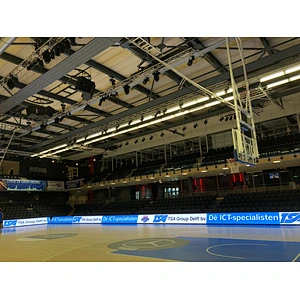

- Application:Sports Stadium Perimeter
- Application:Sports Parameter
- Color:Full Color
- Panel Size:960x960mm
- Pixel Pitch:6mm
- Place of Origin:Guangdong, China (Mainland)
- Model Number:IPM6
- Brand Name:LEDFUL
Product Description
PM Series

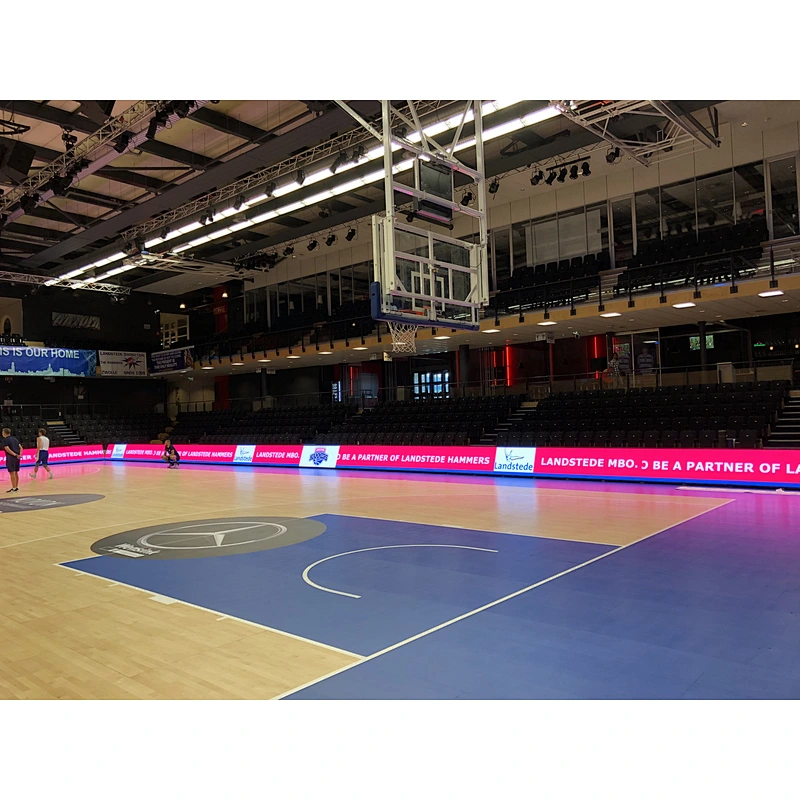

Sport Stadium PeriMeter LED Display
IPM6 | IPM10 |OPM8 | OPM10
★Dual Backup
★High Refresh
★Adjustable bracket
★Protective top cover
★Rubber module mask
★Quick lock & fast assembly
★Independent RCD Protection
★Indicator & One key detection
★Rotating Design for Emergency
★ProfessionalSoftwarePM Player
★High Refresh
★Adjustable bracket
★Protective top cover
★Rubber module mask
★Quick lock & fast assembly
★Independent RCD Protection
★Indicator & One key detection
★Rotating Design for Emergency
★ProfessionalSoftwarePM Player
Indoor / Outdoor PM | IPM6 | IPM10 | OPM8 | OPM10 | OPM16 | |||
Pixel Pitch(mm) | 6 | 10 | 8 | 10 | 16 | |||
Pixel Matrix Per Sq.m | 27777 | 10000 | 15625 | 10000 | 3906 | |||
Pixel Configuration | SMD3528 | SMD3528 | SMD3535 | SMD3535 | SMD3535 | |||
Brightness (nits) | 2200 | 1800 | 6800 | 7500 | 8000 | |||
Scan | 1/8 | 1/4 | 1/3 | 1/2 | 1/1 | |||
Module Dimension | 192x192mm | 320x160mm | 320x160mm | 320x160mm | 256x256mm | |||
Cabinet Dimension | 960x960mm | 1280x960mm | 1280x960mm | 1280x960mm | 1024x1024mm | |||
Cabinet Resolution | 160x160 | 128x96 | 160x120 | 128x96 | 64x64 | |||
Cabinet Weight | 40kg / 88Ib | 44kg / 97Ib | 49kg / 108Ib | 48kg / 105Ib | 46kg / 101Ib | |||
Power Con. (Max / Avg) | 550 / 100 w/sq.m | 500 / 90 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m | 690 / 130 w/sq.m | |||
IP Rate | IP43 | IP65 | ||||||
Service Access | Front / Rear | Front / Rear | ||||||
Refresh Rate (HZ) | 2880 | ≥2880 | ||||||
Grey Scale (bit) | 14bit | 16bit | ||||||
Viewing Angle (H/V) | 140 / 140 | 140 / 140 | ||||||
Input Voltage (AC) | 110V / 240V | 110V / 240V | ||||||
Products Show

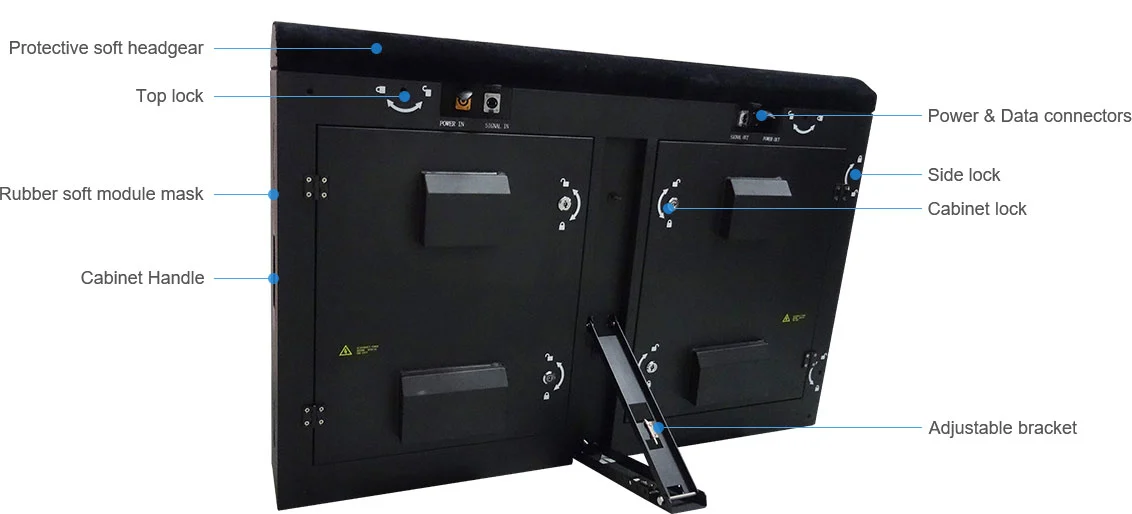

Solid, Compact, Strong Cabinet Design
For All Weather and Prevent for AnyExternal Attacks

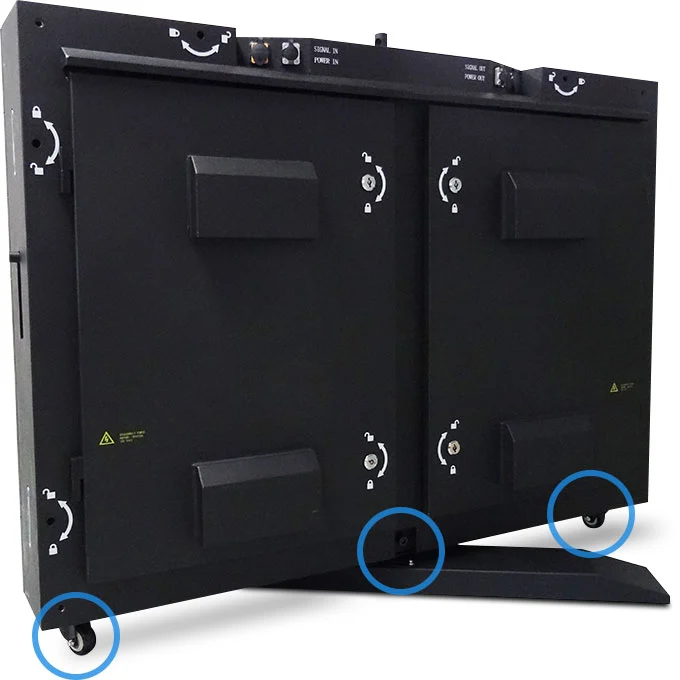

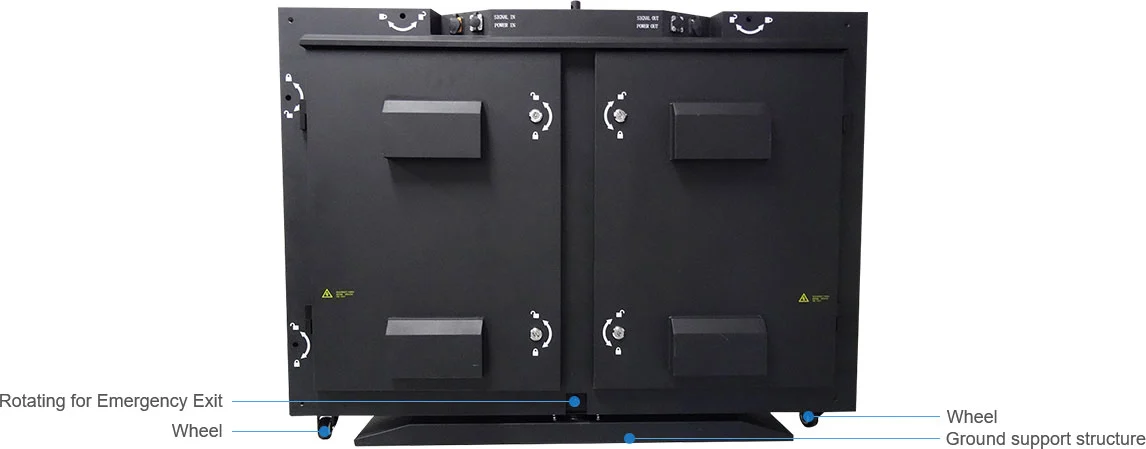

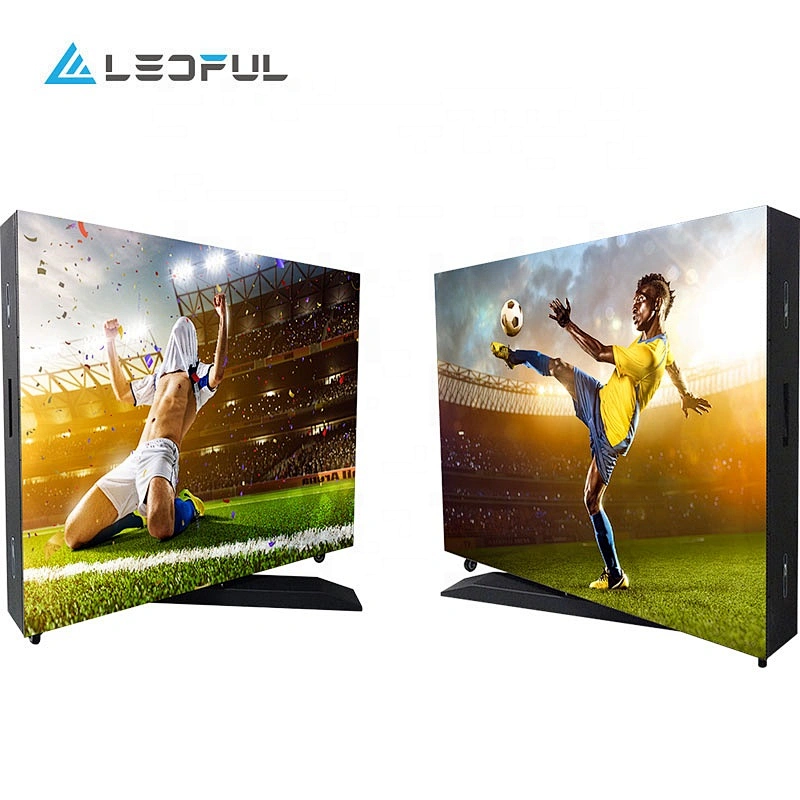

Rotating Design with Wheels for Emergency Exit

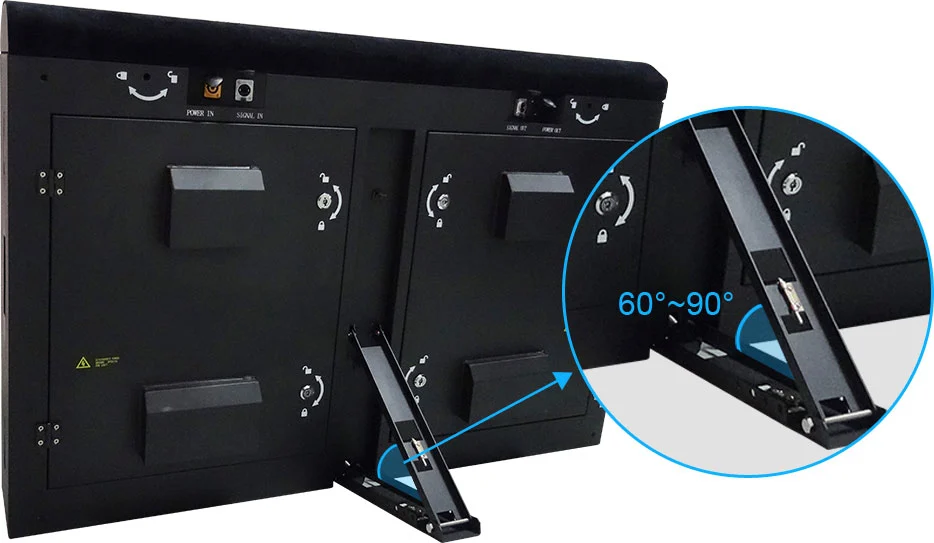

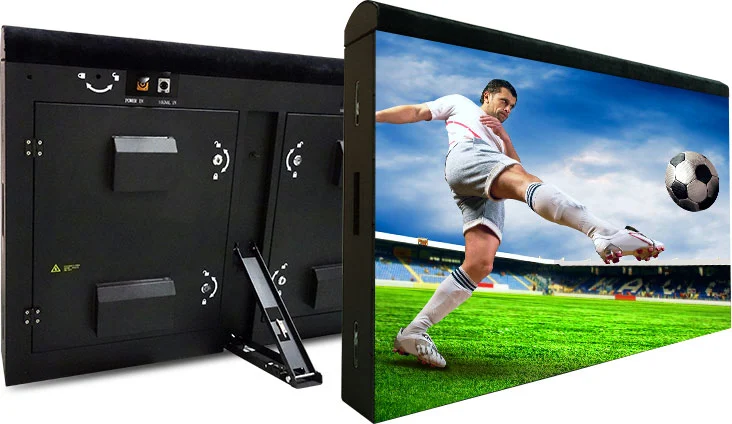

Adjustable Bracket
Cabinet adjustable angle between 60°and 90°

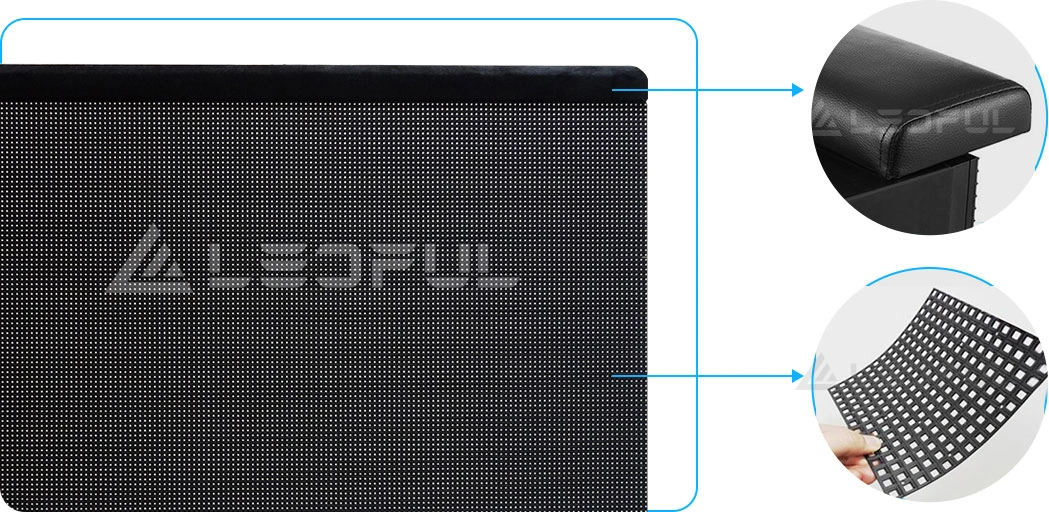

Protective Top Cover and Rubber Module Mask
Protect players from injury

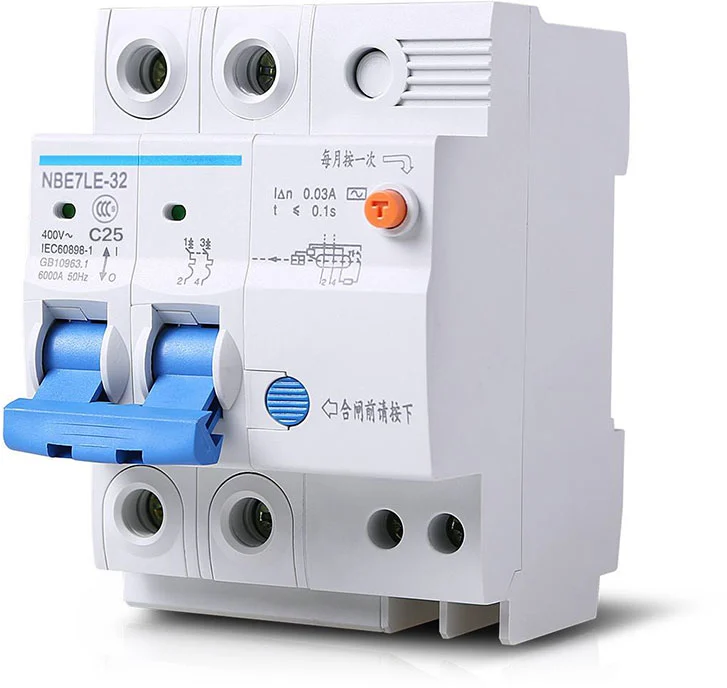

Independent RCD Protection
RCDs protect the system against short circuits, overcurrentandleakage currents
which makes the system absolutely safe to operate.
Professional Software PM Player
LEDFUL PM Player and software makes it easy to control your screen.
Manage your media and show linear content on your perimeter LED display.
4H Makes Perfect Visual Effect
* High Brightness: ≥7000nits * High Grey Scale: 65536 level

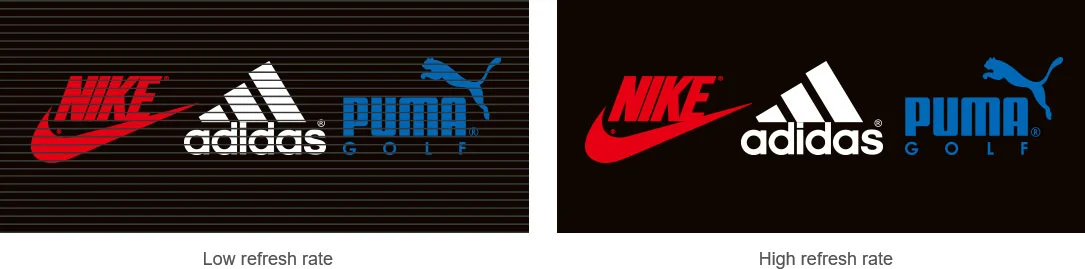

* High Refresh Rate:2880Hz * High Contrast: 5000:1

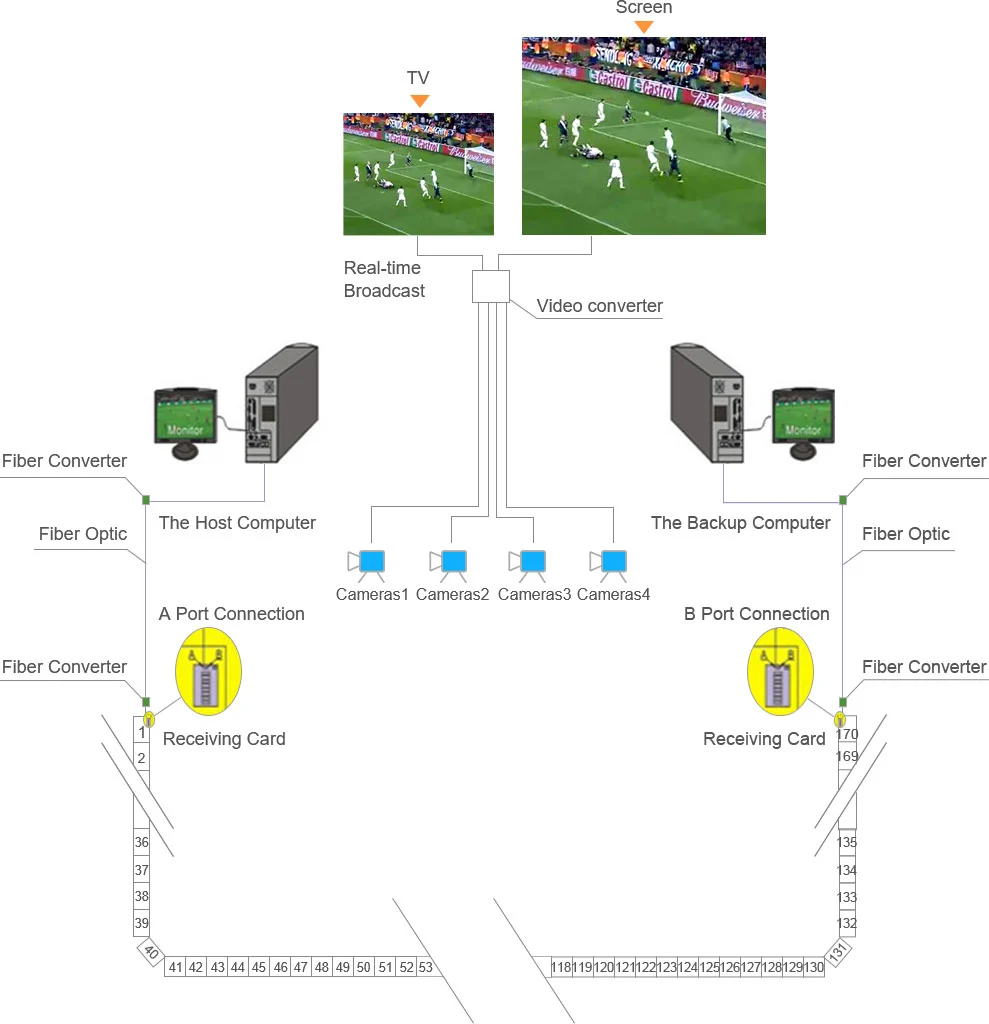

Backup for Recycle
Energy Saving Stadium Perimeter LED Display
★ Using high efficiency IC driver
★ Improved PCB design
★ Improved PCB design
★ Power conversion efficiency
Recommend Products

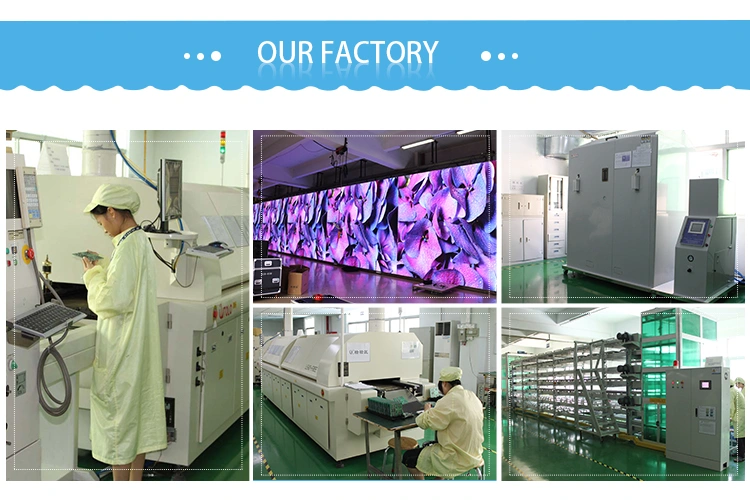

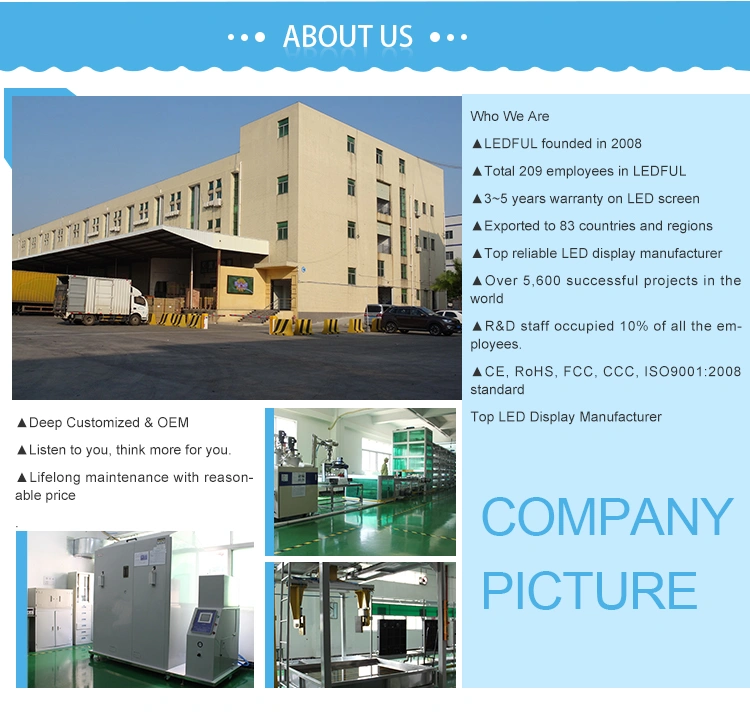

Our Company
Why Choose LEDFUL<<<<<<<<
★Listen to you, think more for you.
★Lifelong maintenance with reasonable price.
★Clear cost initially to save your time and money.
★Provide with innovative and satisfying products.
★Excellent product quality, quick and professional services
★Always ready for your any change on LED display details.
★Recommend the best proper solution for your LED project.
★Catch things what you missed before LED display production.
★Take good care of each detail for your products, packages,shipping
>>>>>>>>>>>>>>>Best Balance of Quality & Price
>>>>>>>>>>>>>>>Best Balance of Quality & Price
Certifications
Packing & Delivery

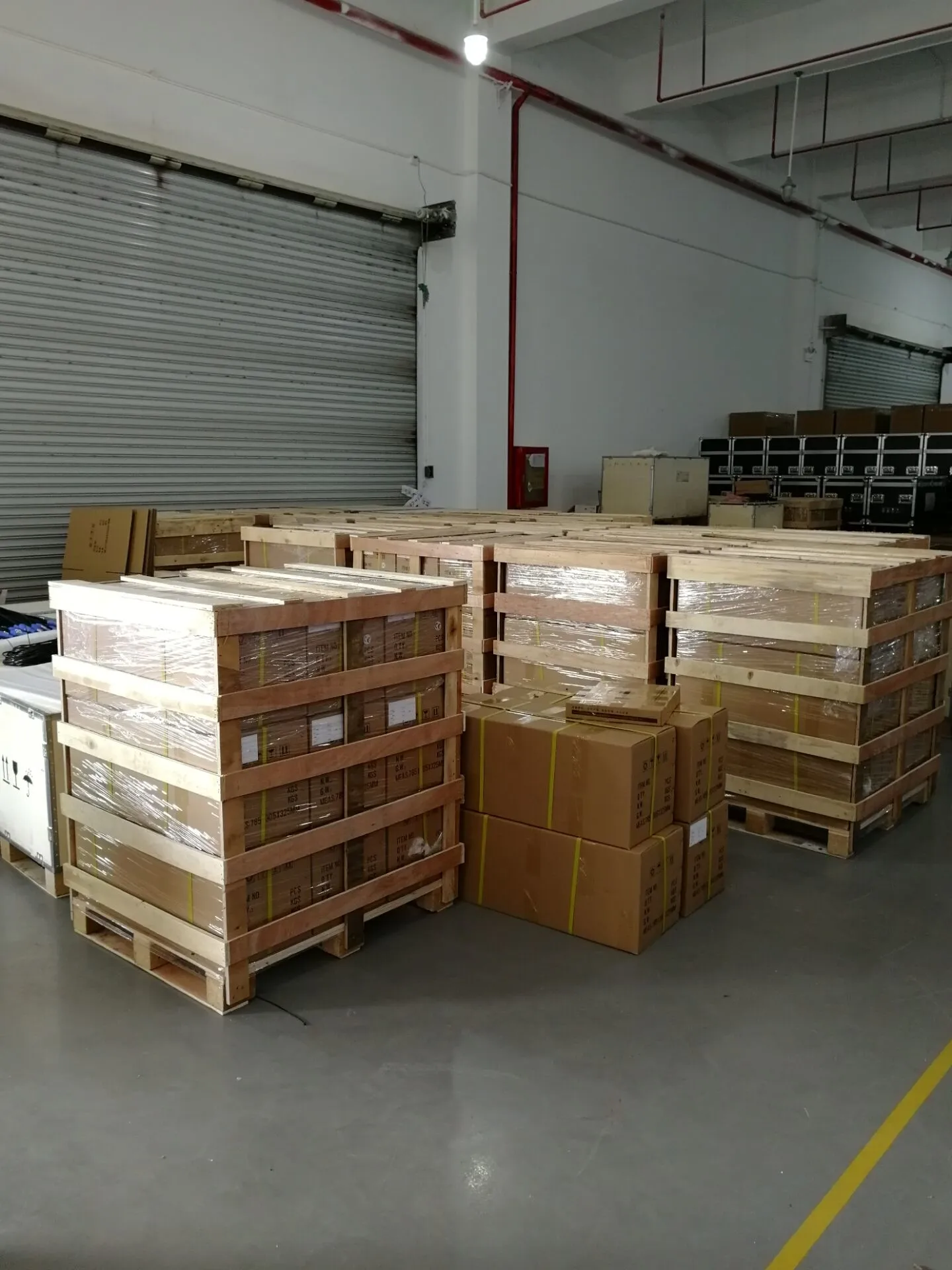

Plywood box
Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside

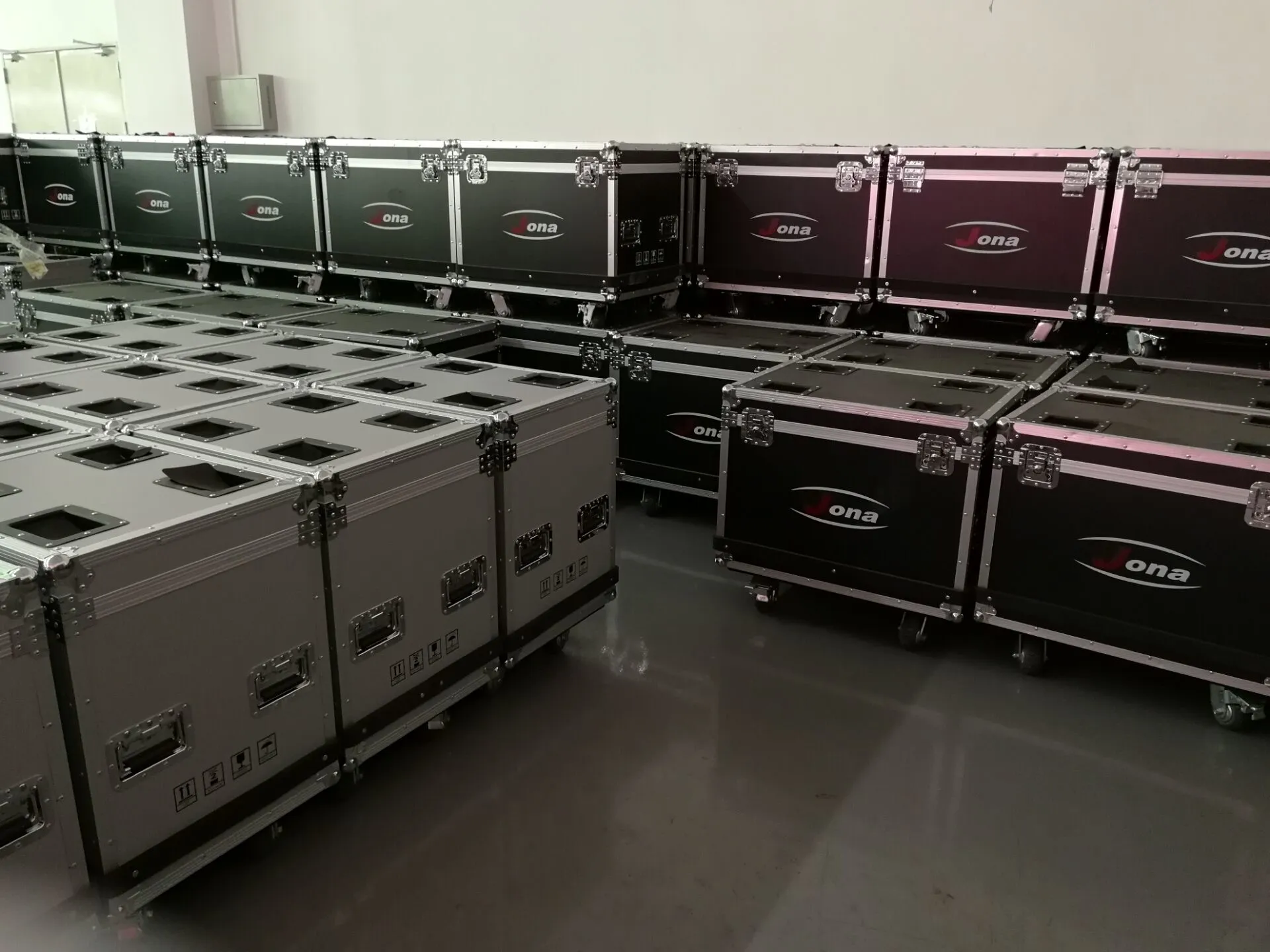

Flight case
EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.
Expandable Polyethylene
Resistant to pressure, shock and moisture, and effectively prevents damage during transportation
Our Service
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&Dteam and skilled QC team with standard process to assure quality products.
