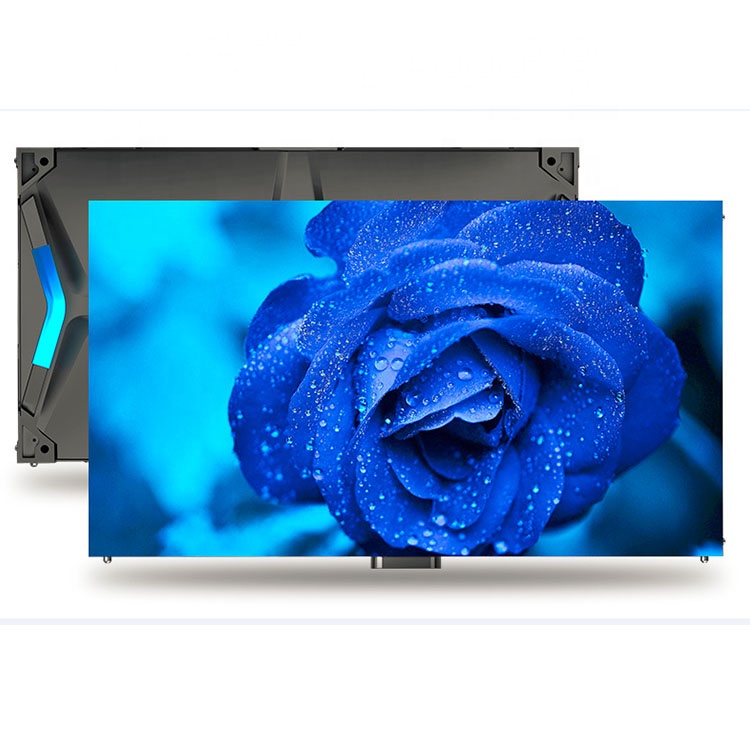

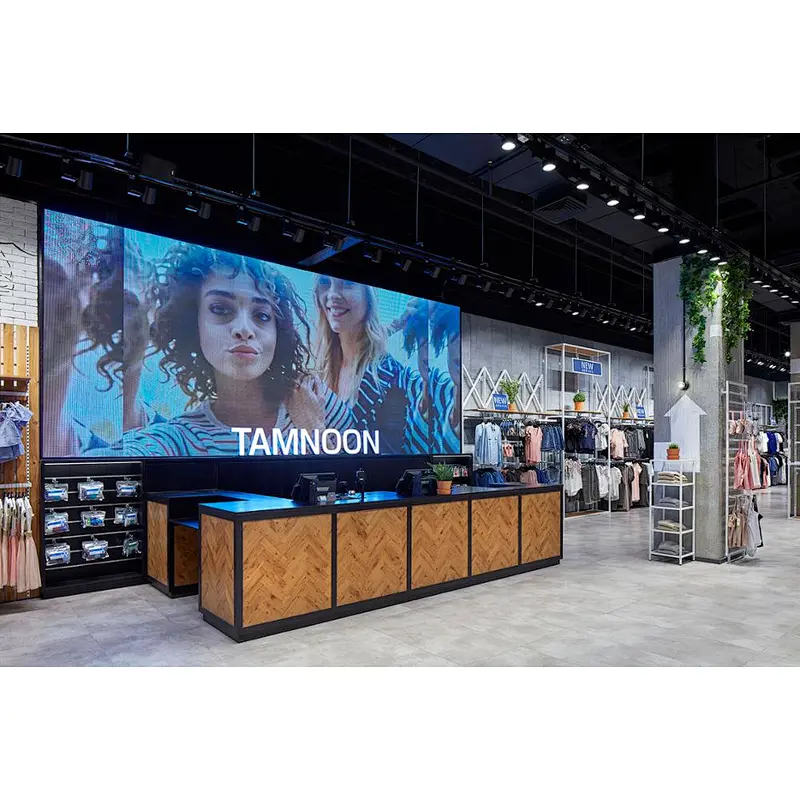

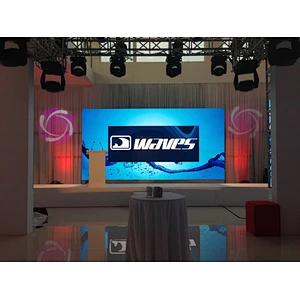

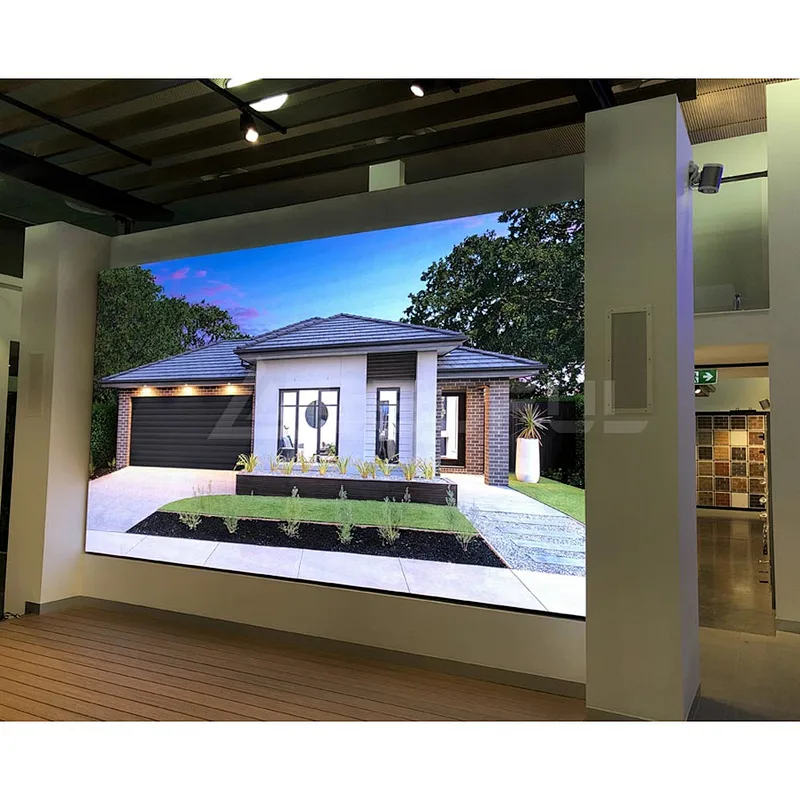

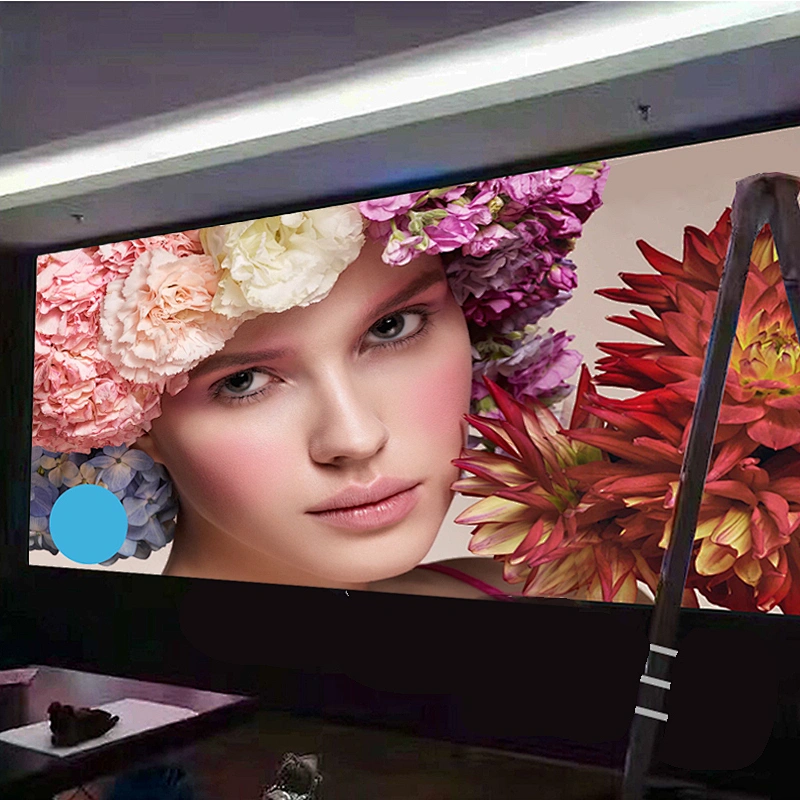

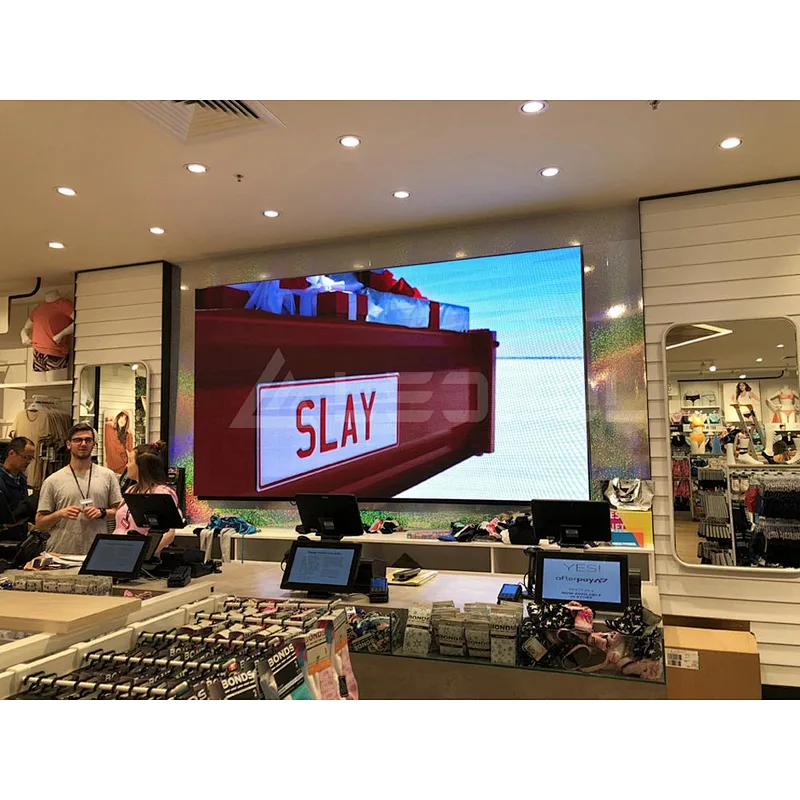

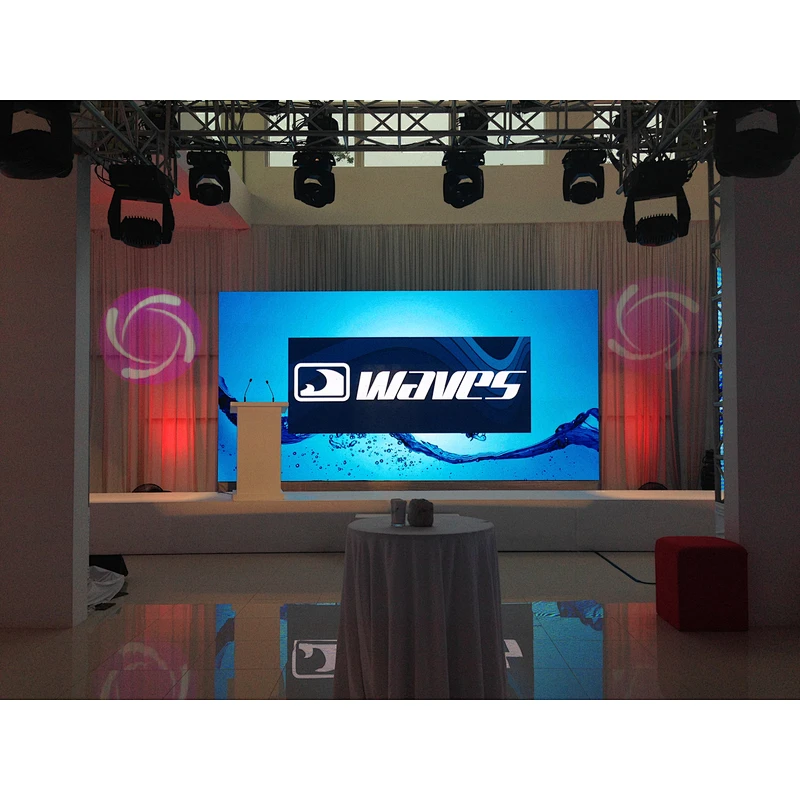

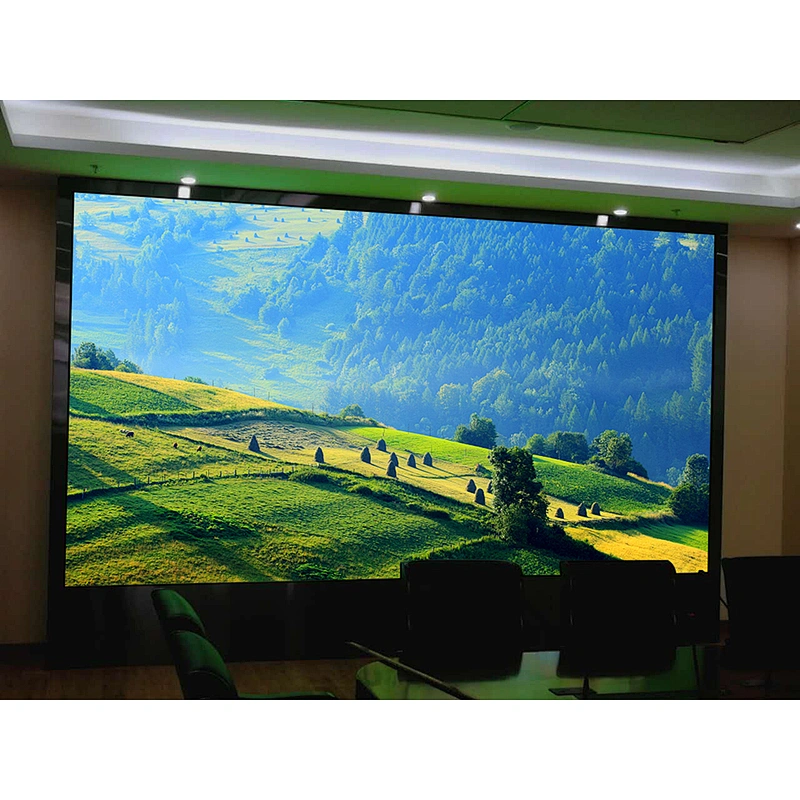

New Indoor Small Pitch High definition P1.2 HD LED Display Screen from China Manufacturer

Place of Origin:CN;GUA
Application:Indoor Small Pitch
Color:Full Color
Panel Size:600x337.5mm
Pixel Pitch:1.2mm
Model Number:U1.2
Brand Name:LEDFUL
Usage:Indoor
Pixels:1.25mm
Screen Dimension:16:9
Product name:Fine Pitch LED Display
Grey Scale (bit):16
Brightness (nits):1000
Pixel Configuration:SMD1010
Cabinet Resolution:600x337.5mm
Module Dimension:200x168.75mm / 0.66x0.55feet
Cabinet Weight:7.8kg /17.2Ib ( Die-casting Aluminum)

Product Description

U1.2 | U1.4 | U1.5 | U1.8

★ Front maintenance & Front Installation
★ High Refresh and High Grey Scale
★ Cabinet Dimension Ratio 16:9
★ Dual Backup Power & Data

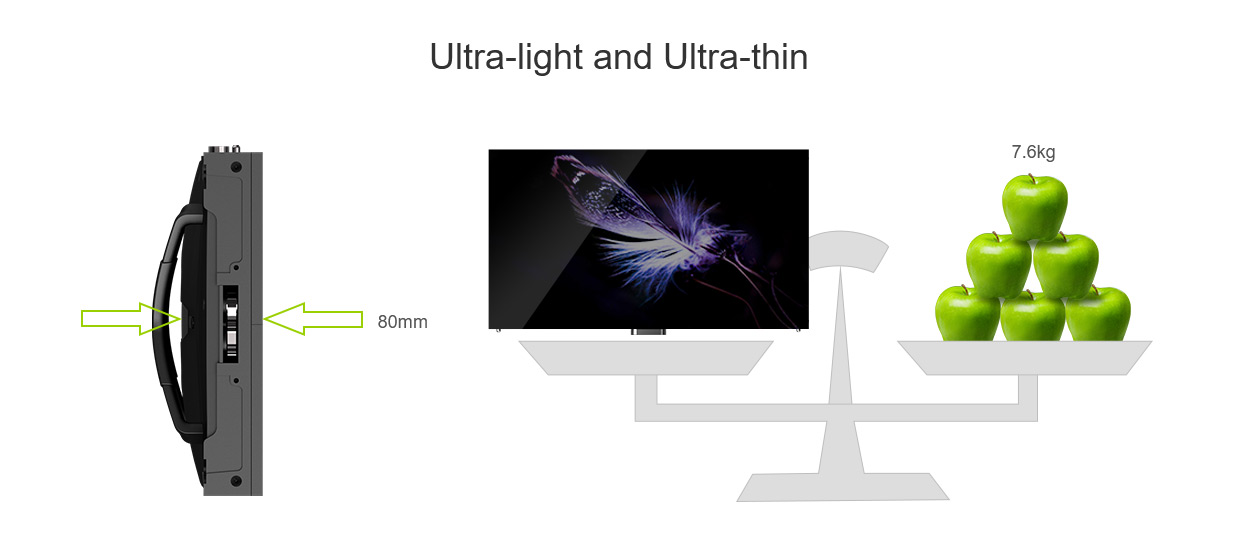

★ Ultra Light and Ultra Thin
★ Cable Free Connection

U Series
Fine Pitch LED Display
Value	U1.2	U1.4	U1.5	U1.8
Pixel Pitch(mm)	1.25	1.44	1.56	1.875
Pixel Matrix Per Sq.m	640000	480711	409600	284444
Pixel Configuration	SMD1010	SMD1010	SMD1010	SMD1010
Brightness (nits)	≥1000	≥1000	≥1000	≥1000
Scan	1/27	1/30	1/27	1/30
Module Dimension	200x168.75mm	300x168.75mm	200x168.75mm	300x168.75mm
Cabinet Resolution	480x270	417x234	385x216	320x90

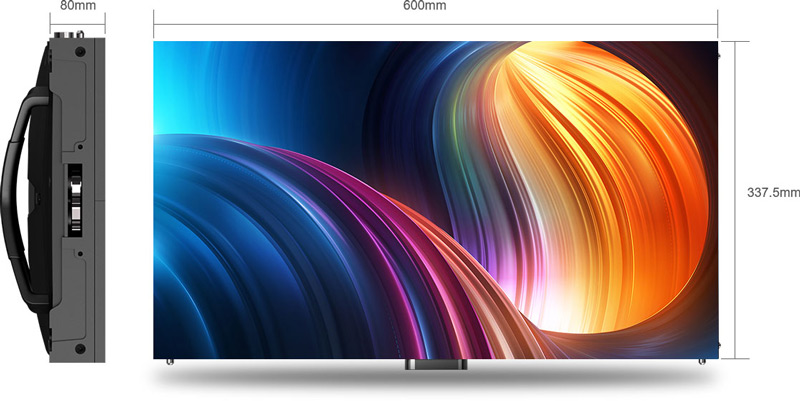

Cabinet Dimension	600x337.5x80mm / 1.97x1.11x0.26ft
Cabinet Weight	7.8kg /17.2Ib ( Die-casting Aluminum)
Service Access	Front
Refresh Rate (HZ)	≥3840
Grey Scale (bit)	16
Viewing Angle (H/V)	160 / 160
Power Con.	700 / 200 w/sq.m (Max / Avg)
IP Rate	IP41
Input Voltage (AC)	110V / 240V

Advantages and Features

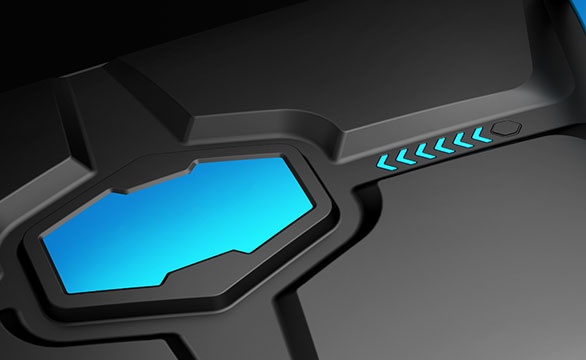

Excellence Appearance

Combining aesthetics and ergonomic design,

it has came out with a hard, smooth molding the die-casting aluminum material has provided the excellent quality,

it featured the unique cabinet ratio design,

every detail has its excellent performance.

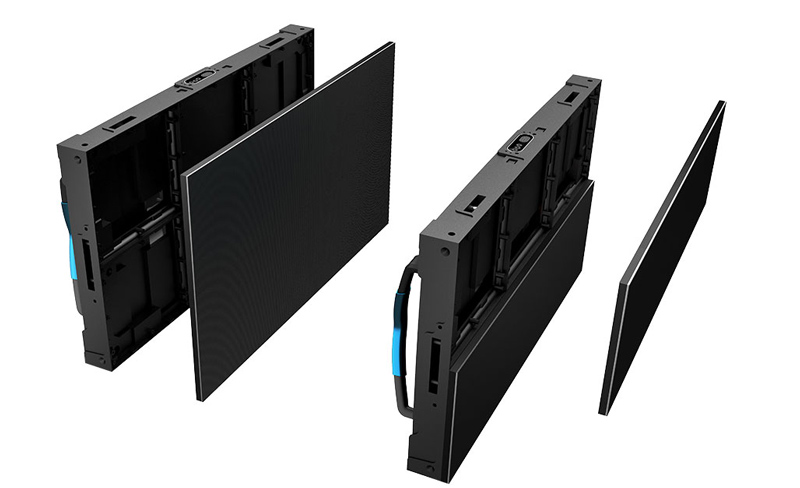

Front Maintenance | Front Installation

The U series LED modules, receiver card, power supply are all front maintenance.

It allows for easy maintenance, saving time and labor on site.

Worked every details just for amazing experience

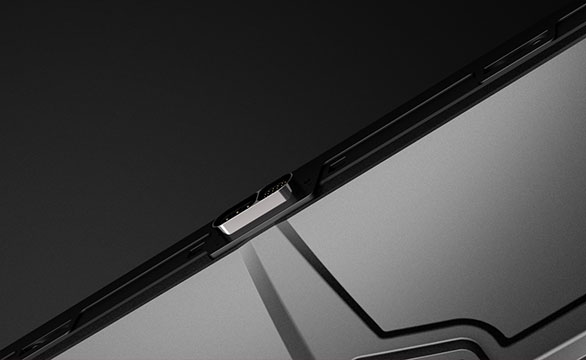

Cable free connection make easier front installation

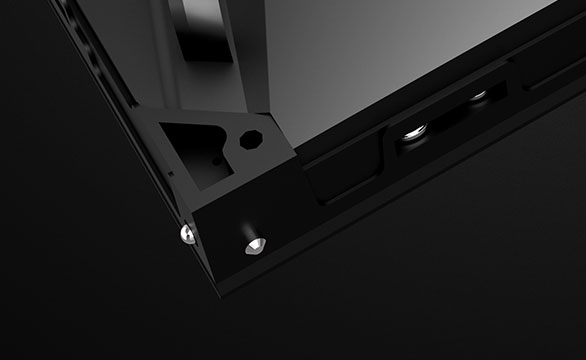

Alignment hole, Locating pin, Precisely seamless

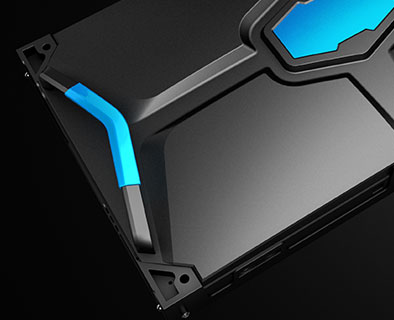

Anti-skid handle easier for installation and transit

Modular die casting aluminum provides perfect flatness

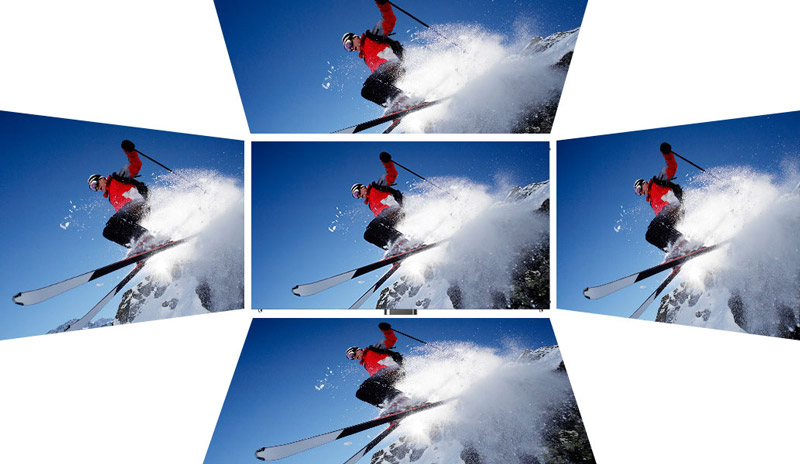

Ultra Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.

Seeing from five directions, it would be still the natural and clear image in an LED display.

Ultra High Definition

It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.

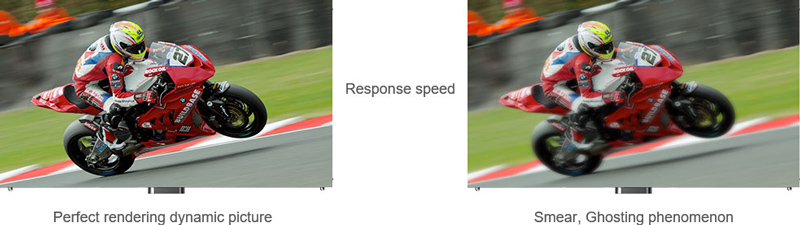

Ultra Fast Response

Playing the high speed dynamic images without ghosting&twisting

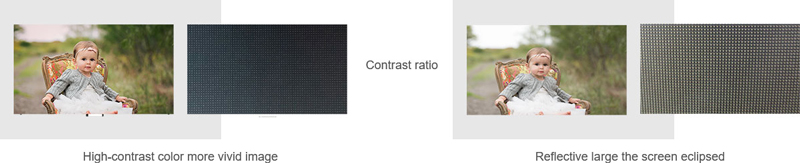

High Contrast Ratio

High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance when works on the color and has very good contrast.

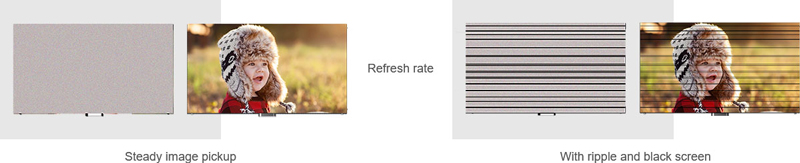

High Refresh Rate

It could be reach 3840HZ.

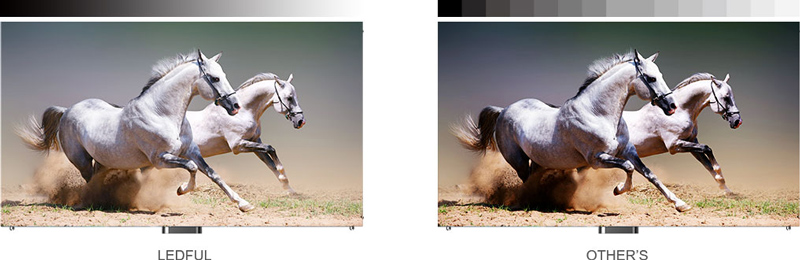

16 bit Grey Scale

It has almost the perfect gray scale and gives true color of the images, there will have no data loss and you could see every details clearly.

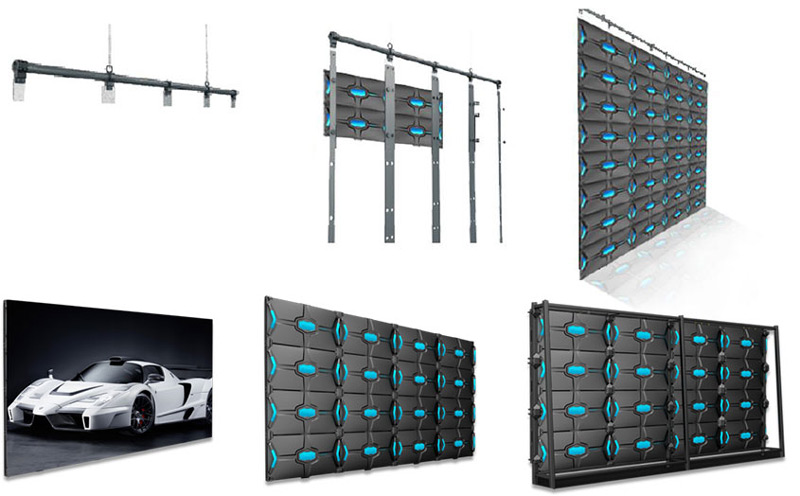

Installation easier and faster

HD LED advertising: almost the perfect gray scale and gives true color of the images

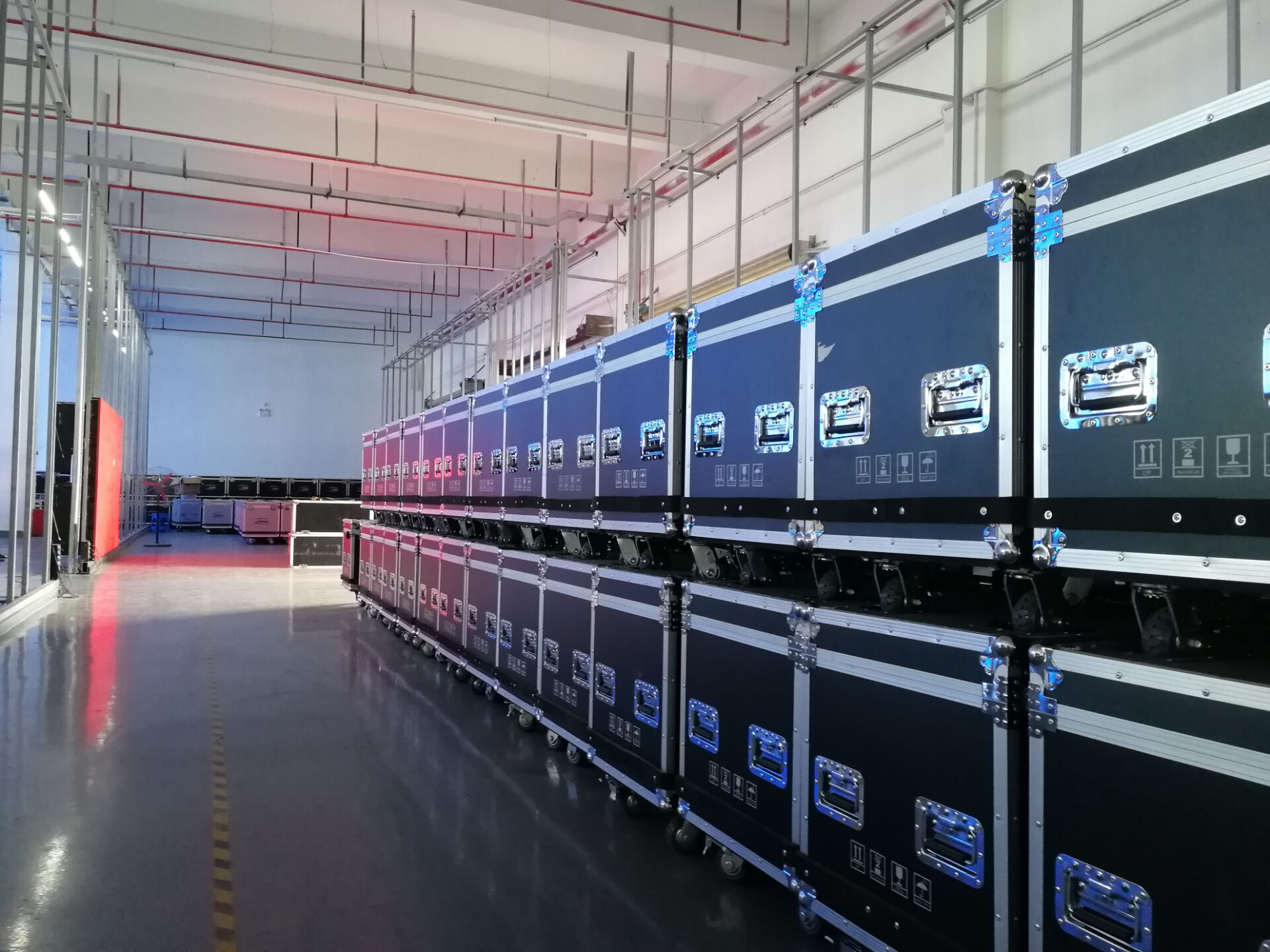

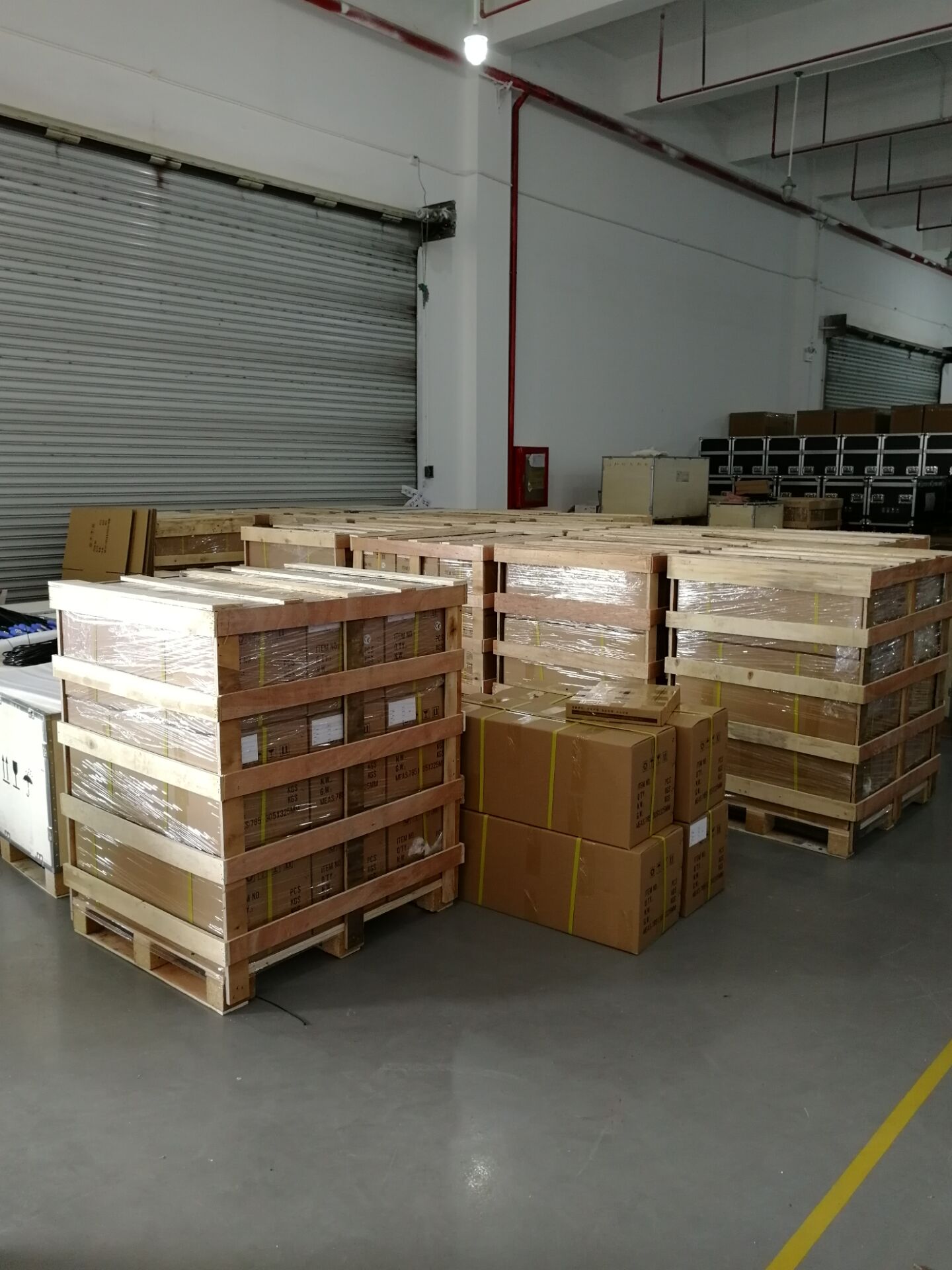

Flight case

EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.

Plywood box

Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside.

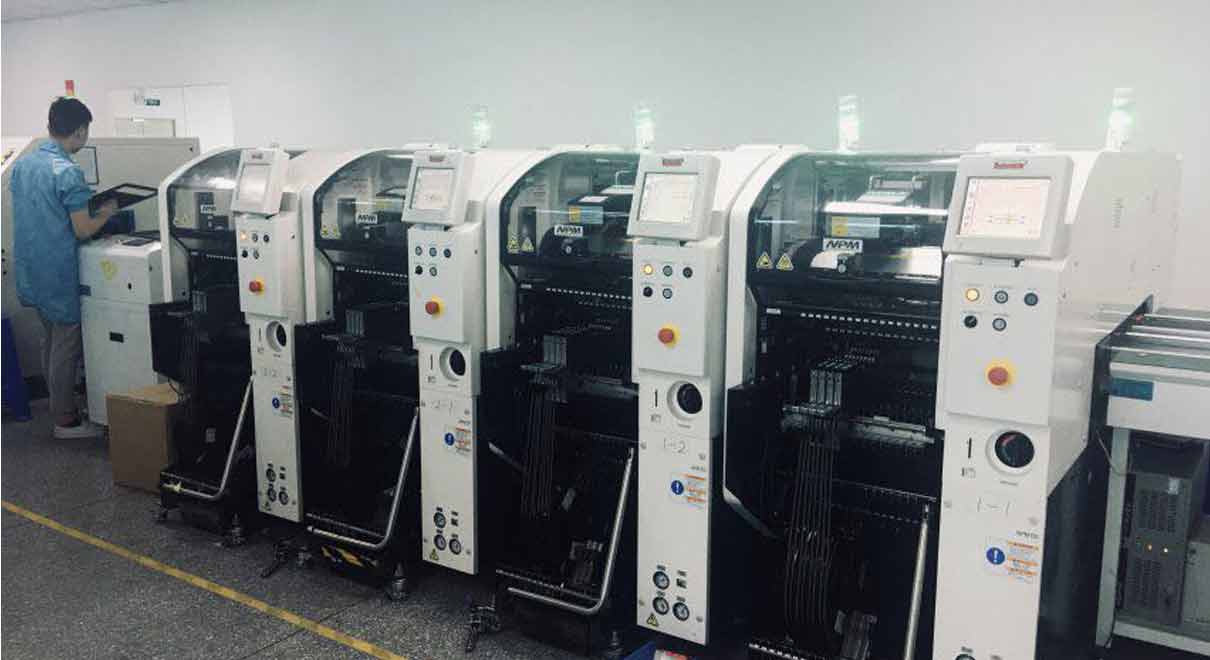

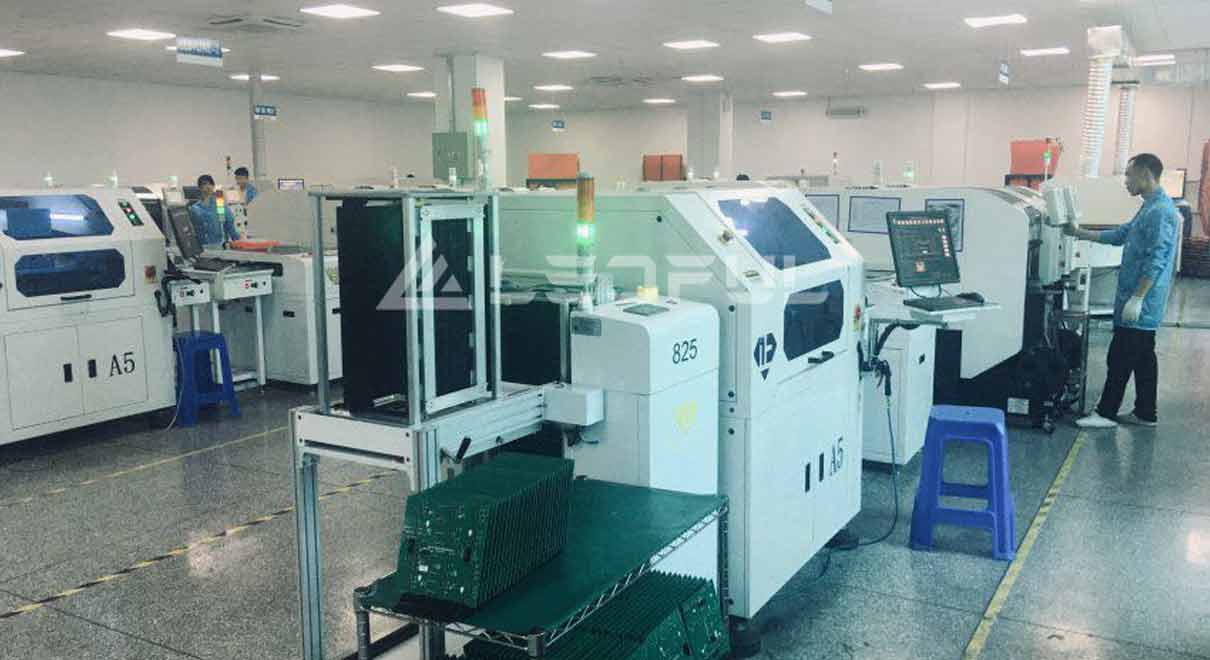

Company Introduction

>>>>>Why Choose LEDFUL

▲Deep Customized & OEM
▲Listen to you, think more for you.
▲Lifelong maintenance with reasonable price
▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products
▲Excellent product quality, quick and professional services
▲Always ready for your any change on LED display details.
▲Recommend the best proper solution for your LED project.
▲Catch things what you missed before LED display production.
▲Take good care of each detailfor your products, packages,shipping

>>>>>>Best Balance of Quality & Price

Certifications

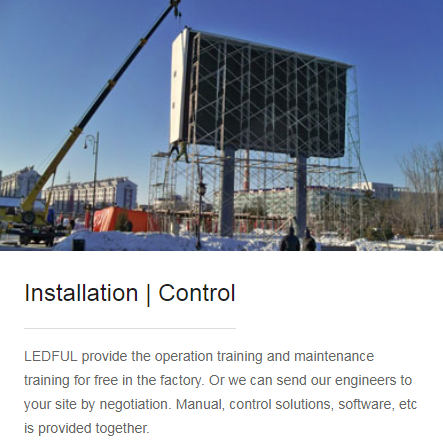

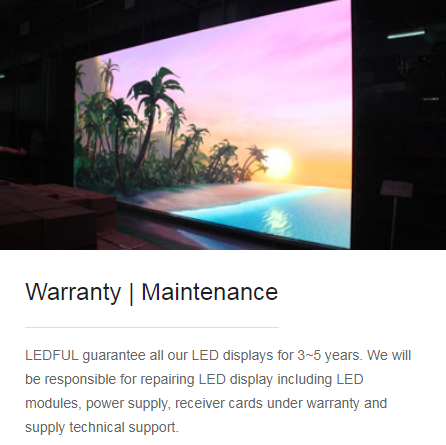

Our Service

FAQ

Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer

Q2: What is the control system?
A: We use Nova control system.

Q3. How about your delivery time?

A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5: How can you ensure your led display product quality?

A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled
QC team with standard process to assure quality products.
