P10 Easy installation LED screens commercial advertising bill boarding display
P10 Easy installation LED screens commercial advertising bill boarding display
P10 Easy installation LED screens commercial advertising bill boarding display
P10 Easy installation LED screens commercial advertising bill boarding display
P10 Easy installation LED screens commercial advertising bill boarding display
P10 Easy installation LED screens commercial advertising bill boarding display
P10 Easy installation LED screens commercial advertising bill boarding display

P10 Easy installation LED screens commercial advertising bill boarding display

  • Minimum order quantity:1
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: Top Sale Products

    Product Description

    • Usage:OUTDOOR
    • Display Function:Video
    • Pixels:10mm
    • Screen Dimension:960*960mm

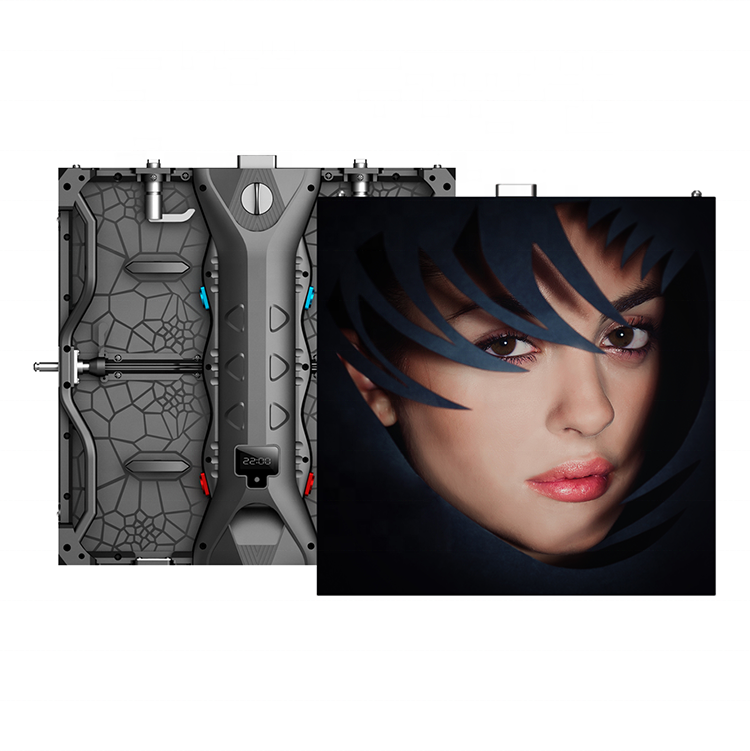

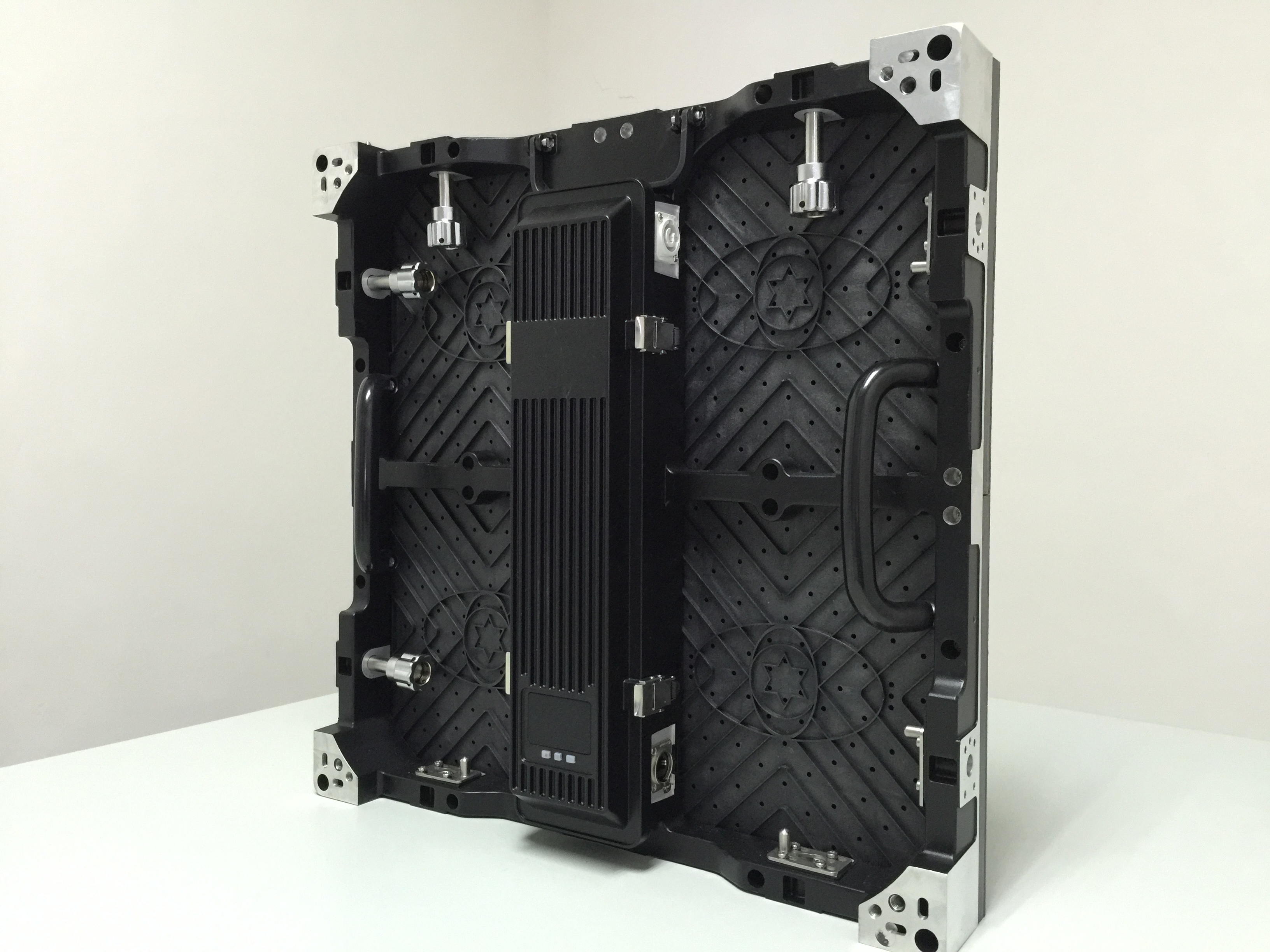

    • Product name:Led Video Display Panel
    • Certificate:CE ROHS FCC
    • Brightness:7500
    • Color:Fullcolor
    • Viewing angle:140 /140
    • Input Voltage:110 / 240
    • Place of Origin:CN;GUA
    • Application:advertising
    • Color:fullcolor
    • Panel Size:960*960mm
    • Pixel Pitch:10
    • Model Number:OF10S
    • Brand Name:LEDFUL
    Product Description

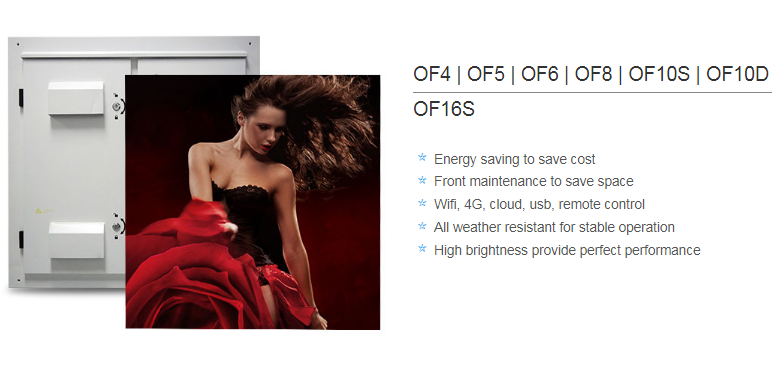

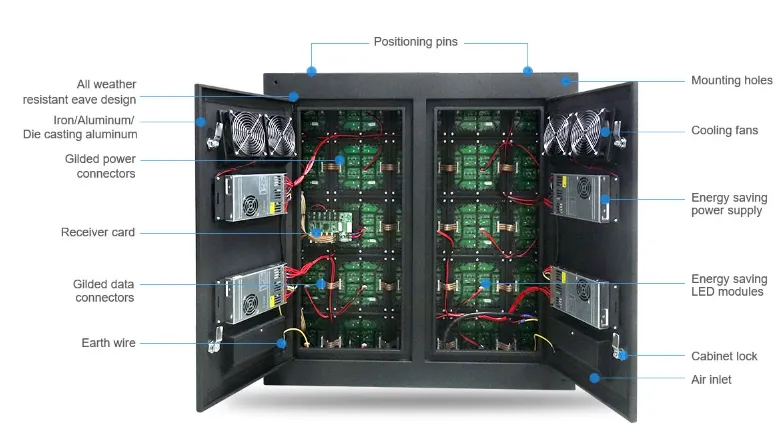

    OF Series

    Outdoor Commercial Advertising LED Display

    Value
    OF4
    OF5
    OF6
    OF8
    OF10S
    OF16S
    Pixel Pitch(mm)
    4
    5
    6
    8
    10
    16
    Pixel Matrix Per Sq.m
    62500
    40000
    27777
    15625
    10000
    3906
    Pixel Configuration
    SMD1921
    SMD2727
    SMD2727
    SMD3535
    SMD3535
    SMD3535
    Brightness (nits)
    6500
    6500
    6500
    6800
    7500
    8000
    Scan
    1/8
    1/8
    1/4
    1/3
    1/2
    1/1
    Module Dimension
    192x192mm / 0.63x0.63ft
    160x160mm / 0.52x0.52ft
    192x192mm / 0.63x0.63ft
    320x160mm / 1.05x0.52ft
    320x160mm / 1.05x0.52ft
    256x256mm / 0.84x0.84ft
    Cabinet Dimension
    960x960mm / 3.15x3.15ft
    960x960mm / 3.15x3.15ft
    960x960mm / 3.15x3.15ft
    960x960mm / 3.15x3.15ft
    960x960mm / 3.15x3.15ft
    1024x1024mm /3.36x3.36ft
    Cabinet Resolution
    192x192
    192x192
    160x160
    120x120
    96x96
    64x64
    Cabinet Weight
    44kg / 97Ib ( Iron)
    43kg / 95Ib (Iron)
    42kg / 93Ib (Iron)
    41kg / 90Ib (Iron)
    40kg / 88Ib ( Iron)
    46kg / 101Ib (Iron)
    Power Con. (Max / Avg)
    750 / 150 w/sq.m
    730 / 130 w/sq.m
    700 / 120 w/sq.m
    680 / 120 w/sq.m
    650 / 110 w/sq.m
    750 / 150 w/sq.m
    Service Access
    Front / Rear
    Refresh Rate (HZ)
    ≥1920
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    140 / 140
    IP Rate
    IP65
    Input Voltage (AC)
    110V / 240V


    Where is LED display installed?

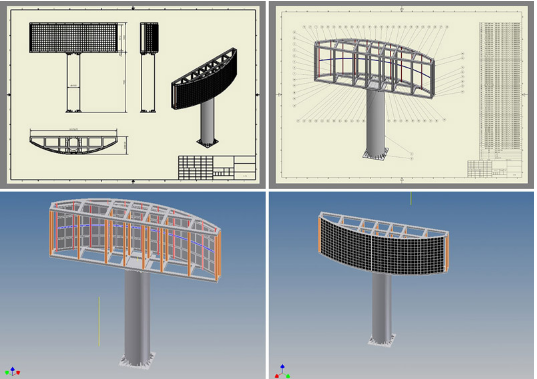

    LEDFUL provide structure frame design drawing and installation suggestions.

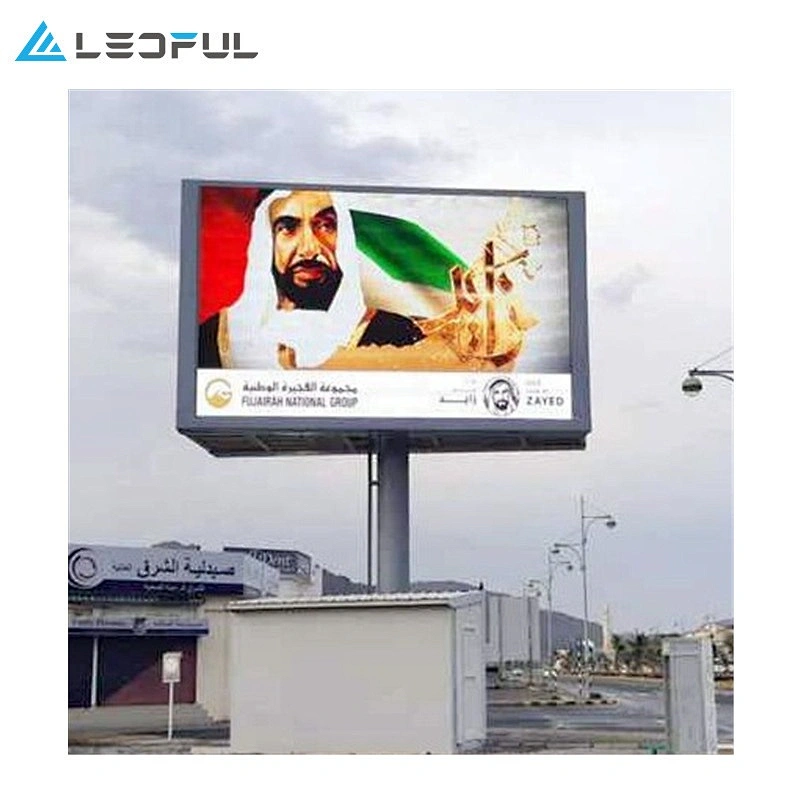

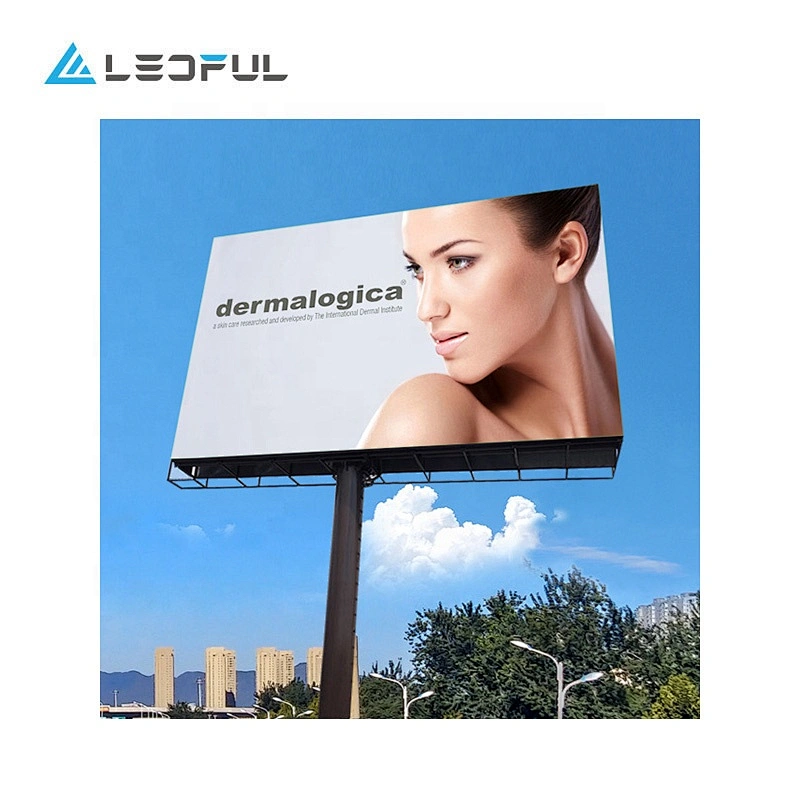

    Pillar / Pole LED display

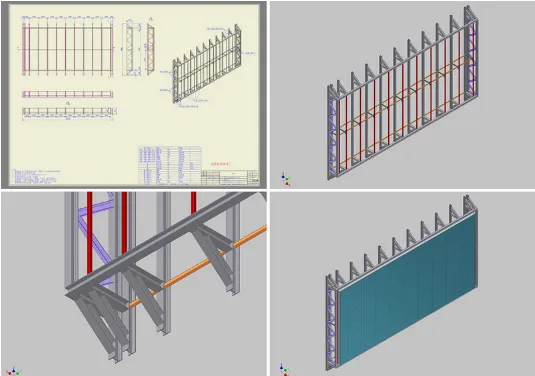

    Wall mounted LED display


    How to control LED display?

    By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.


    Ultra High / Low Temperature

    OF series design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.

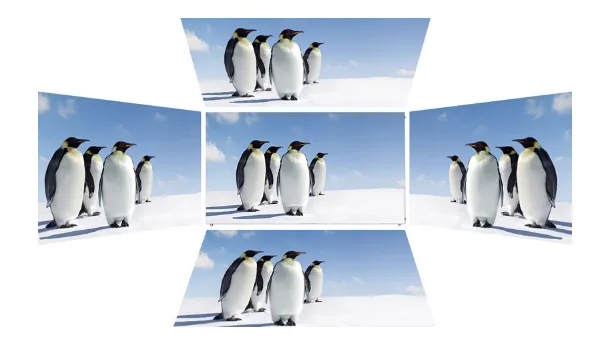

    SMD Performance and View Angle

    Better contrast ratio and viewing performance Wide viewing angle increasing its value by covering more viewing

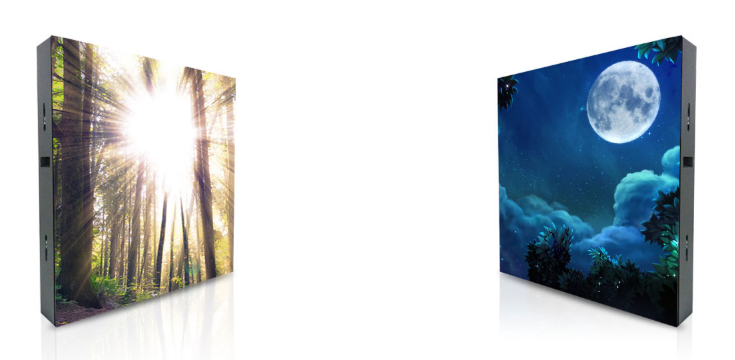

    High Brightness & Auto Brightness

    High bright and contrast ratio to make vivid color facing to the Sunlight.
    Auto brightness saving energy besides protecting people eyes in night time.

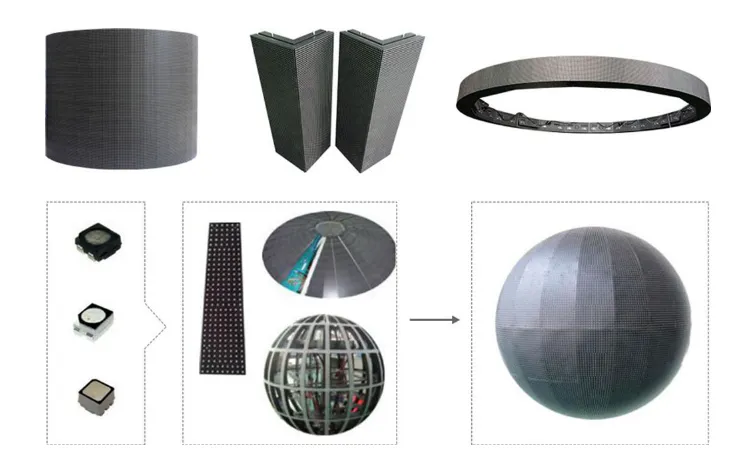

    Various Shaped LED Display

    Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc.
    LEDFUL supply more design and more solutions.


    Application

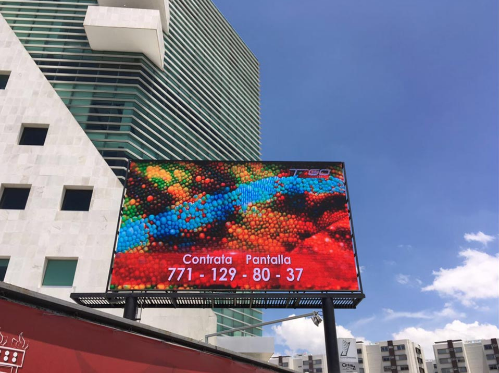

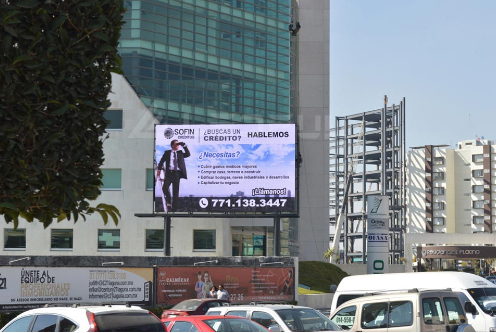

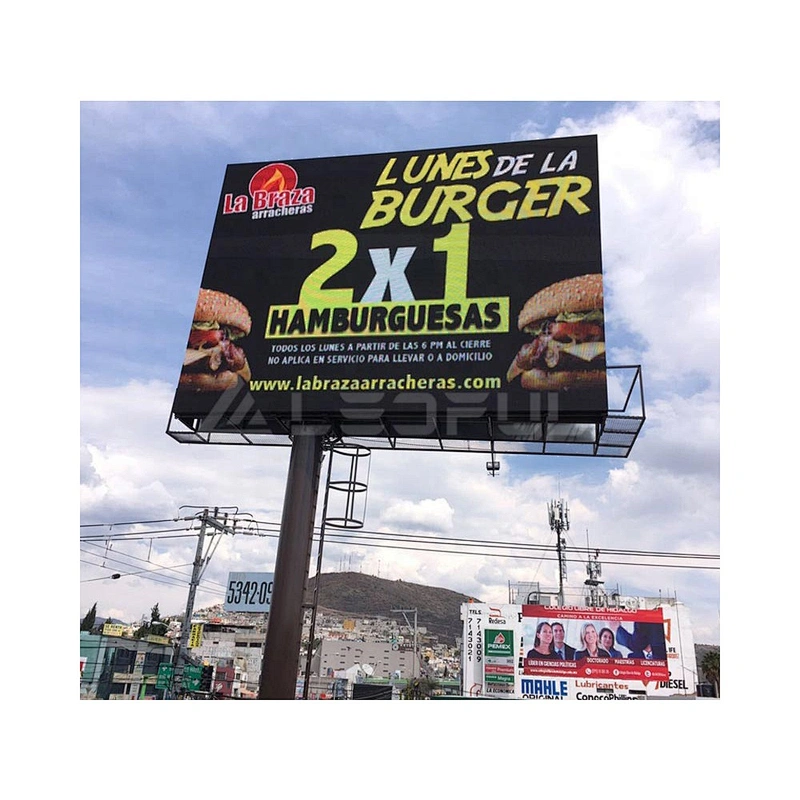

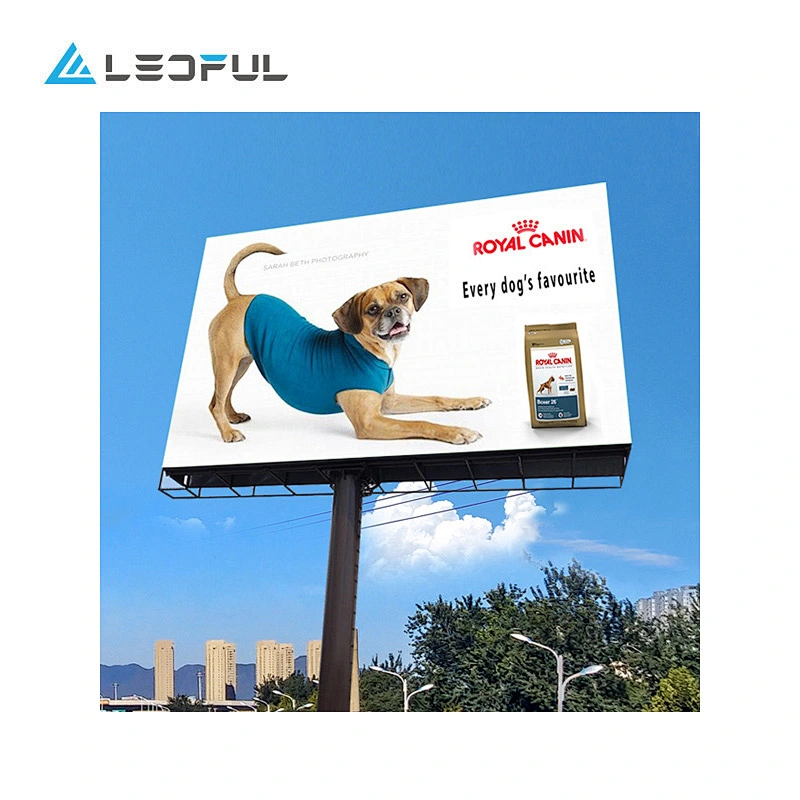

    Outdoor Single Pole Advertising Display

    Product Model: OF10S
    Pitch: 10mm
    Size: 44.24 sqm
    Location: Mexico

    Below are the customer reviews of our products, you can see their recognition of our product quality and service attitude

    Our ultimate pursuit is to satisfy our customers. LEDFUL has been focusing on the export of LED display for 12 years, relying on the sincere service to customers, high requirements for productsand high standards for details
    Related Products

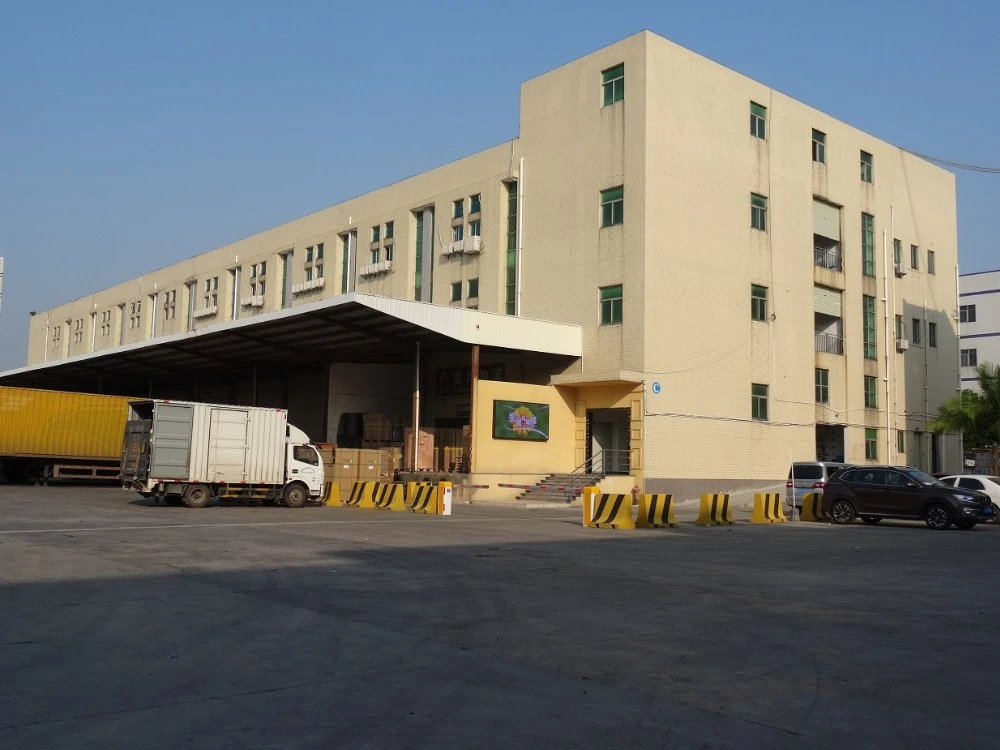

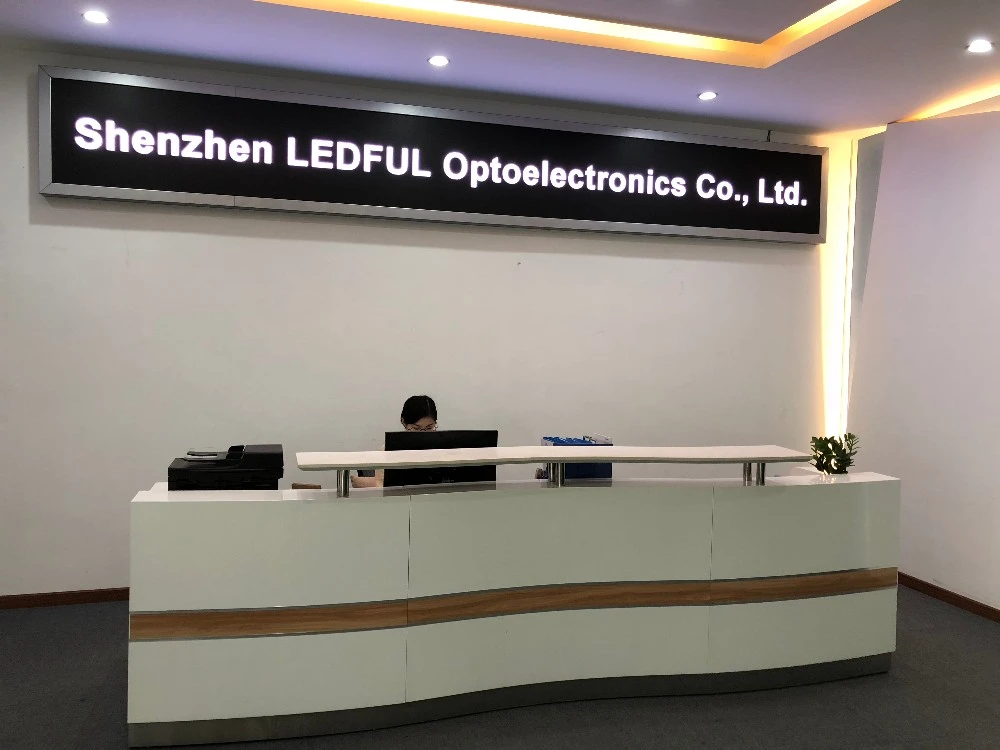

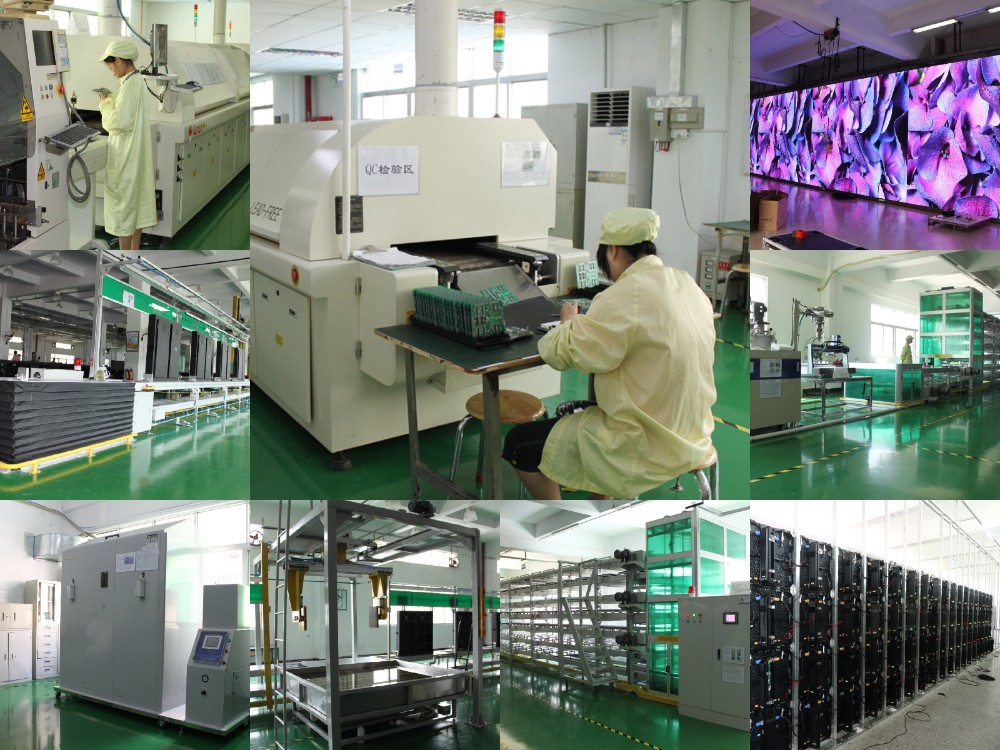

    Our Company


    Top LED Display Manufacturer

    LEDFUL founded in 2008 Total 209 employees in LEDFUL
    3~5 years warranty on LED screen Exported to 83 countries and regions
    Over 5,600 successful projects in the world R&D staff occupied 10% of all the employees.

    CE, RoHS, FCC, CCC, ISO9001:2008 standard


    Professional, High Efficient and Caring

    One-stop solution provider
    More designs and more solutions Wireless control, 4G, Wifi, Cluster control

     High efficient and enthusiastic team to make reliable
    Our Service

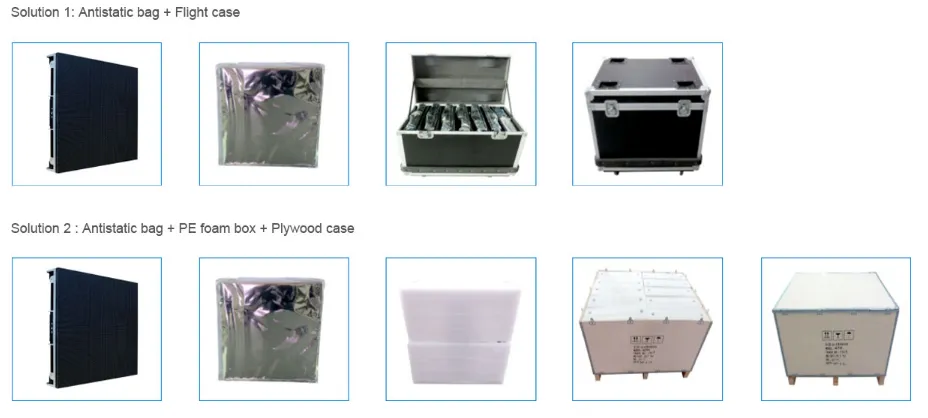

    Packing & Delivery
    FAQ

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the
    goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    Q3. What is your terms of delivery?
    A: EXW

    Q4. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
    the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test for 72hrs before delivery.

    Q8: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
