P2.5 big giant large ultra wide viewing angle LED display screen from China Manufacturer

Product name:Led Video Display Panel
Certificate:CE ROHS FCC
Brightness:800cd/sqm
Warranty:3 Years
Module size:200*150
Viewing angle:160H/160V
Refresh rate:3840
Input Voltage:110 / 240
Life span:100000hours
LED chip:Epistar
Place of Origin:CN;GUA
Application:Indoor advertising
Color:Full Color
Panel Size:400*300mm
Pixel Pitch:2.5mm
Model Number:HD2.5
Brand Name:LEDFUL

Product Description

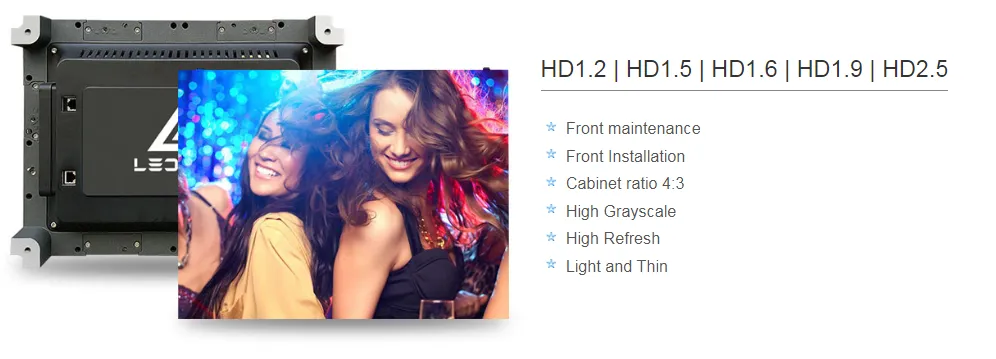

HD Series

P2.5 big giant large ultra wide viewing angle LED display screen

Full Front Maintenance

LED modules, power supply, receiver card, hub card, cables are all front service.

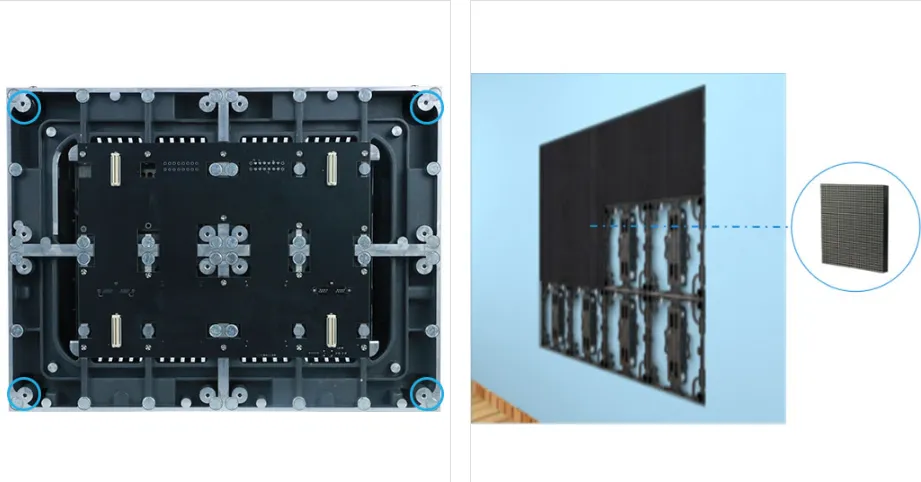

Front Installation

Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall.

Assembly modules onto the cabinet.

Ultra Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.

Seeing from five directions, it would be still the natural and clear image in an LED display.

Ultra High Definition

A truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.

Ultra Fast Response

The response speed exceeds the response limit of the naked eyes,

while playing the high speed dynamic images in an LED Screen,

it will have more advantages, no ghosting&twisting and perfectly provide the dynamic images.

High Contrast Ratio

High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance

when works on the color and has very good contrast.

High Refresh Rate

It could be reach 3840HZ.

16 bit Grey Scale

It has almost the perfect gray scale and gives true color of the images,

there will have no data loss and you could see every details clearly.

Parameter

HD Series	HD2.5
Pixel Pitch(mm)	2.5mm
Pixel Matrix Per Sq.m	160000
Pixel Configuration	SMD2121
Scan	1/30
Cabinet Resolution	160x120
Brightness (nits)	800
Module Dimension	200x150mm / 0.66x0.49feet

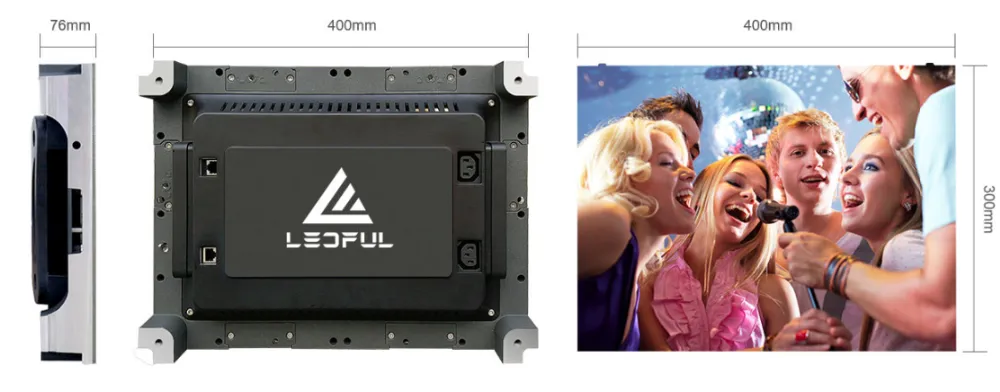

Cabinet Dimension	400x300x75mm / 1.31x0.98x0.25feet
Cabinet Weight	4.6kg /10.1Ib ( Die-casting Aluminum)
Service Access	Front
Refresh Rate (HZ)	≥3840
Grey Scale (bit)	16
Viewing Angle (H/V)	160 / 160
Power Con. (Max / Avg)	500/ 200 w/sq.m
IP Rate	IP31
Input Voltage (AC)	110 / 240

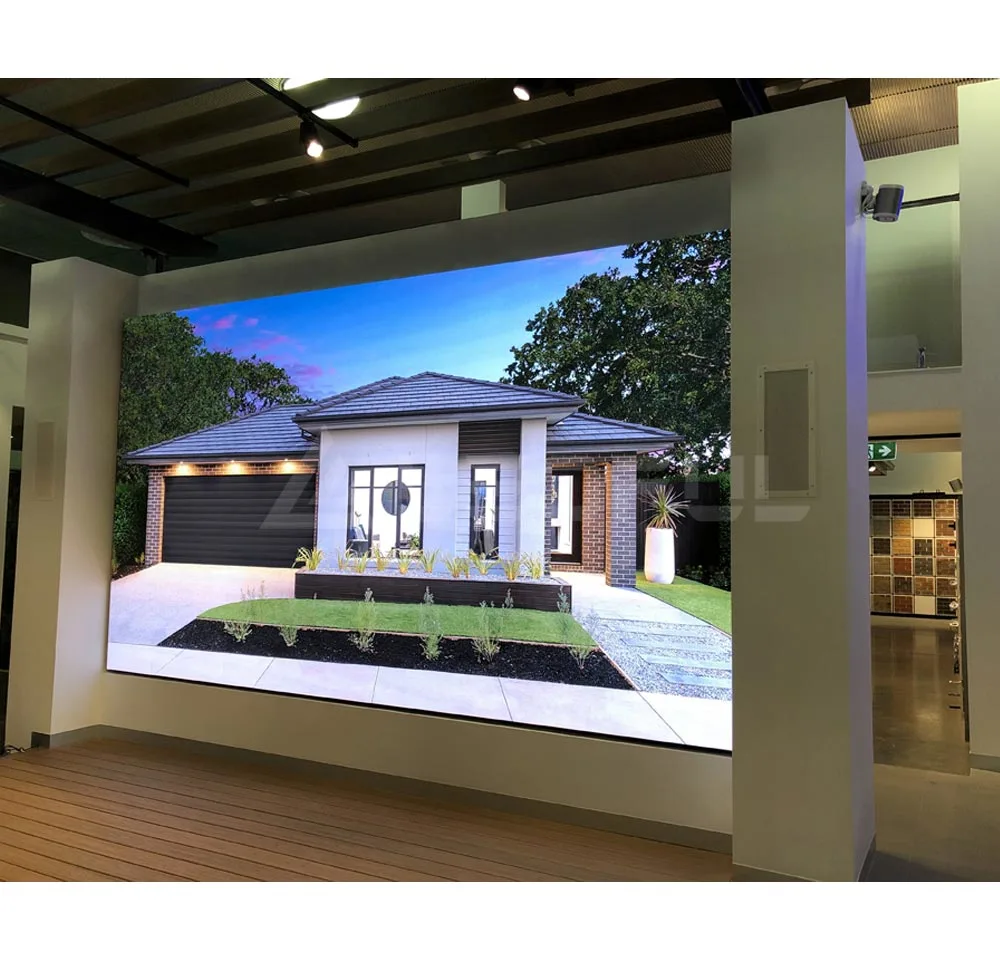

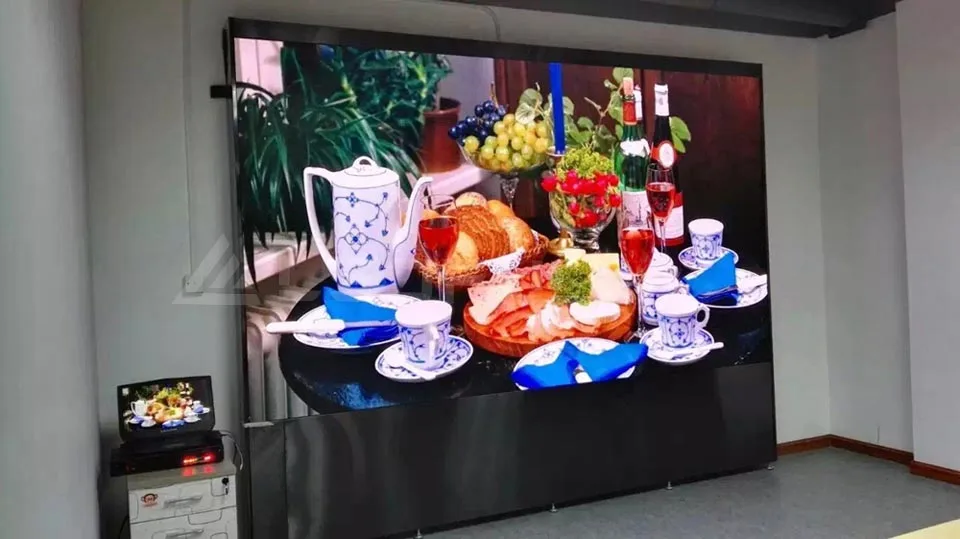

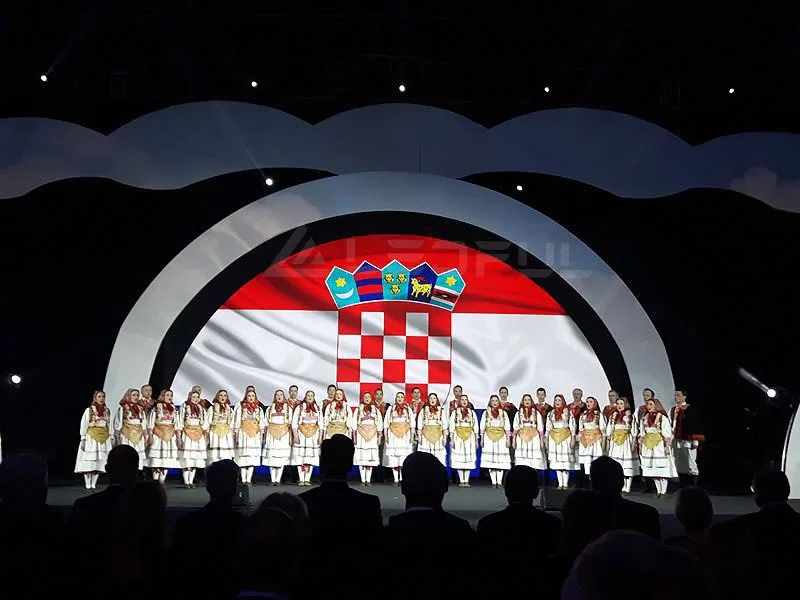

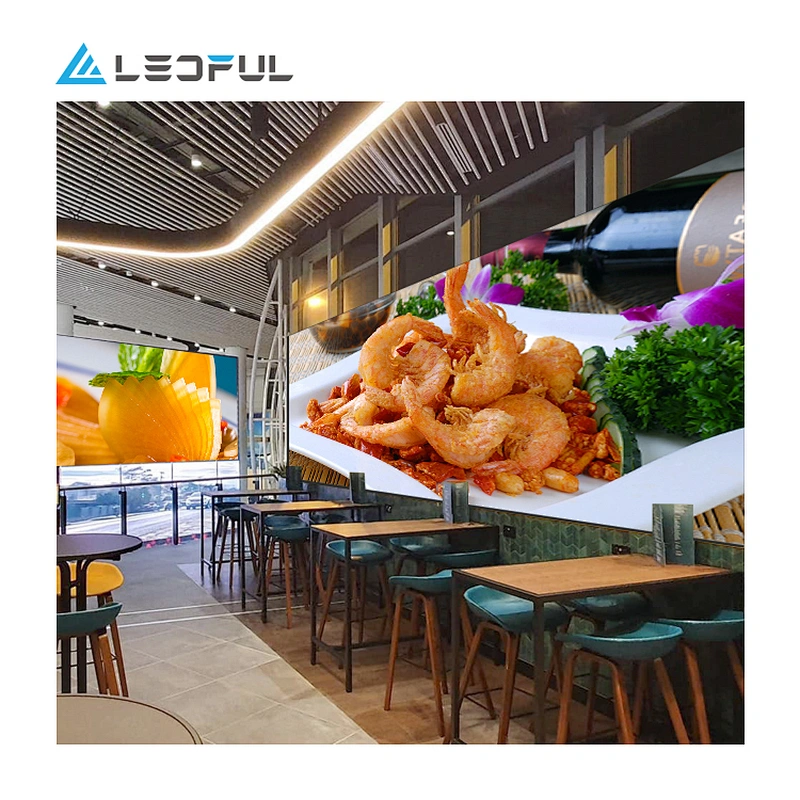

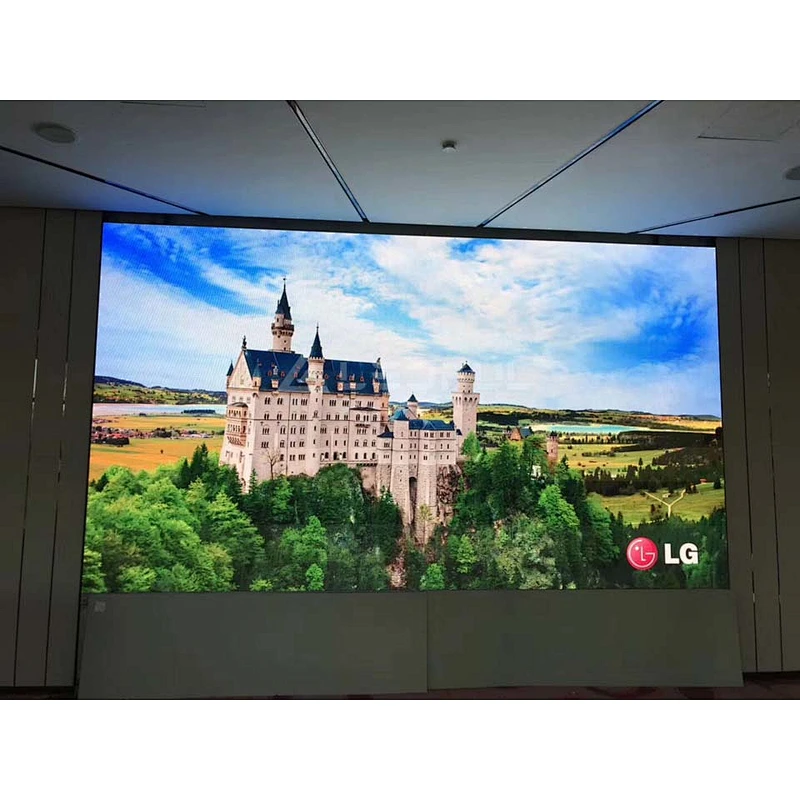

Application

Related Products

Our Company

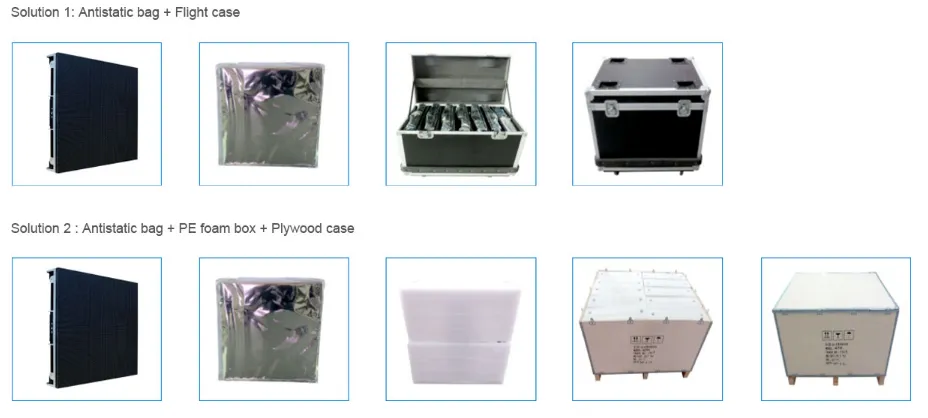

Packing & Delivery

FAQ

Q1: Are you trading company or manufacturer ?

A: LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and skilled QC team for 12 years.

Q2: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/ PC/Cloud control. It’s very easy and convenient to control.

Q3: What is your best service?
A:One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well.
5…6…etc.

Q4: How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific
delivery time depends on the items and the quantity of your order.

Q5:How about your Warranty Term?
A:3-year warranty. Structure design, installation problem, program the screen, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
