P3.9 wonderful design large screen advertising LED display board

USD1248.00 -USD1288.00
  • Delivery:
  • Minimum order quantity:2
  • Supply Ability:2000 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: 500*500 M Series

    Product Description

    • Place of Origin:CN;GUA
    • Application:advertising
    • Color:fullcolor
    • Panel Size:500*500
    • Pixel Pitch:3.9
    • Model Number:MO3.9
    • Brand Name:LEDFUL
    • Tube Chip Color:FULL COLOR
    • Screen Dimension:500*500
    • Product name:Led Video Display Panel
    • Application:Indoor Advertising
    • Certificate:CE ROHS FCC
    • Brightness:5000
    • Viewing angle:H160/V160
    • Module size:250mm*250mm
    • Refresh rate:3840
    • Feature:Easy Installation
    Product Description

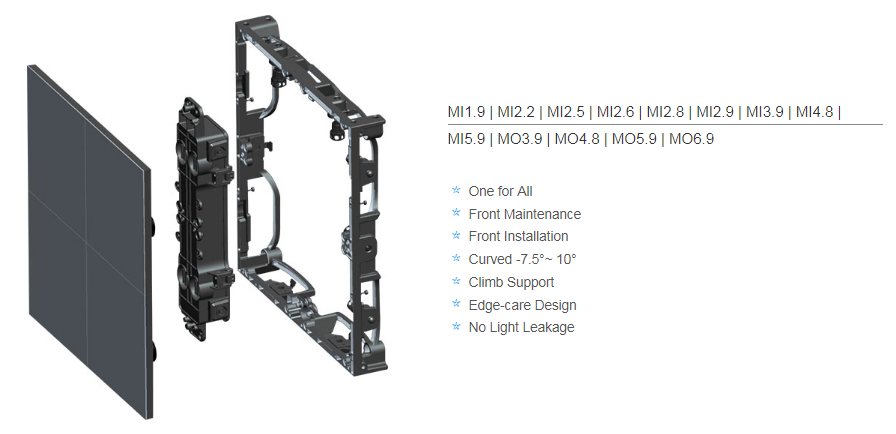

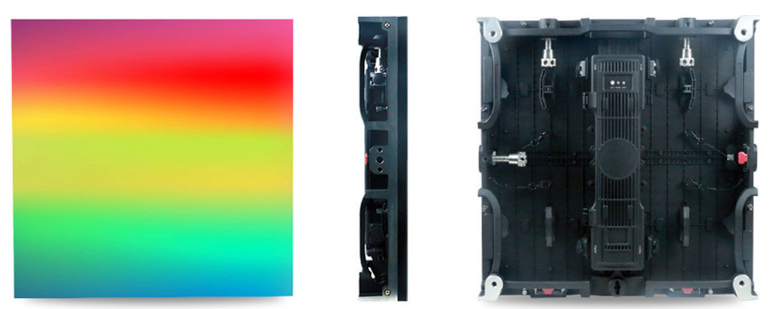

    M Series

    Multi Functional Rental LED Display

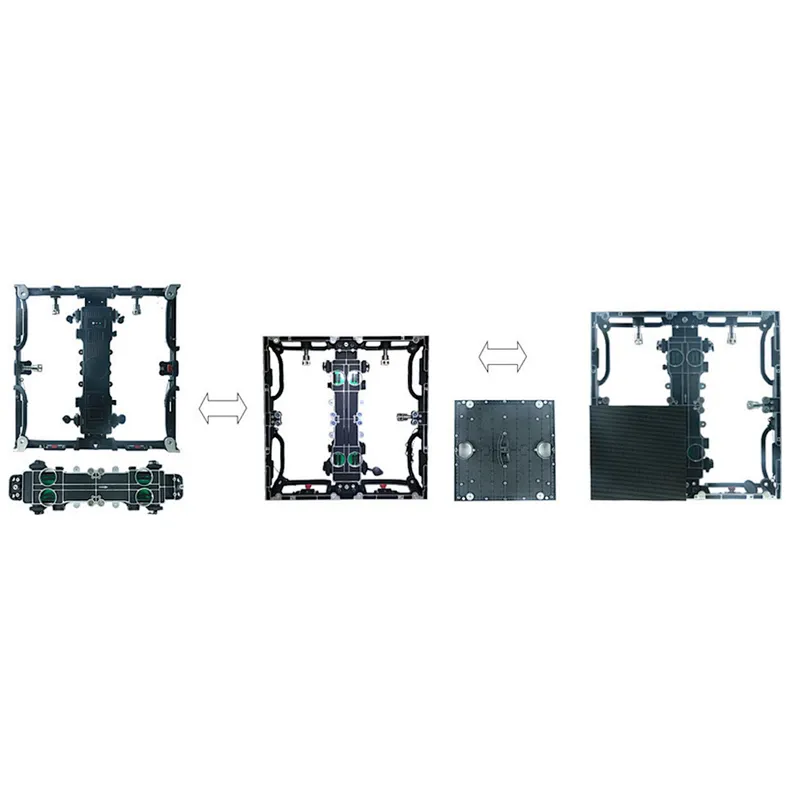

    One for All

    Indoor and Outdoor, P1.9 to P6.9, share the same cabinet frame, control box and accessories.
    Stacking, hanging, or wall mounted, flat or curved. One (M series) for All your requirements.

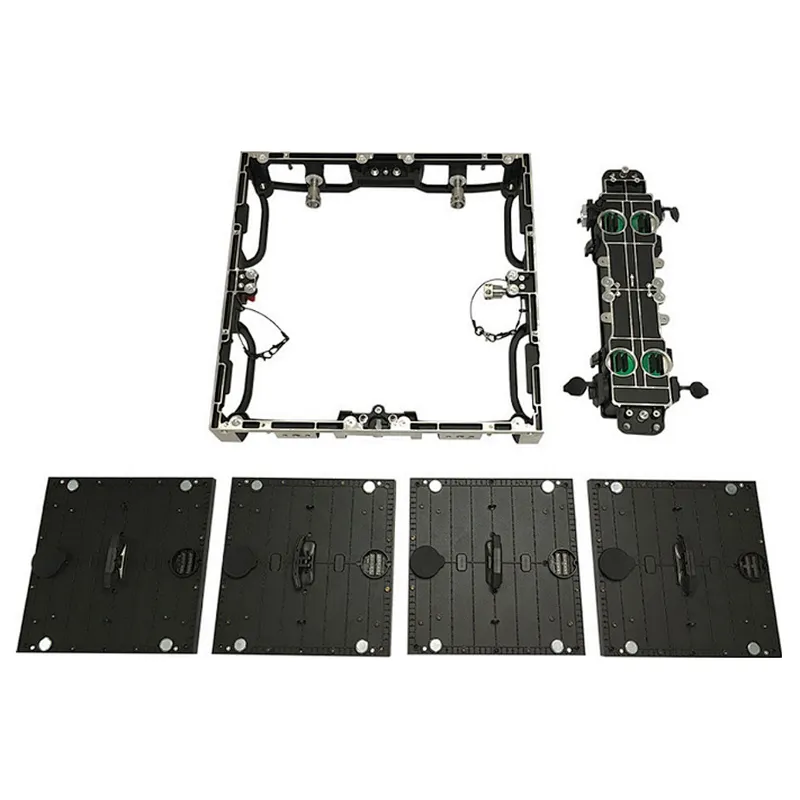

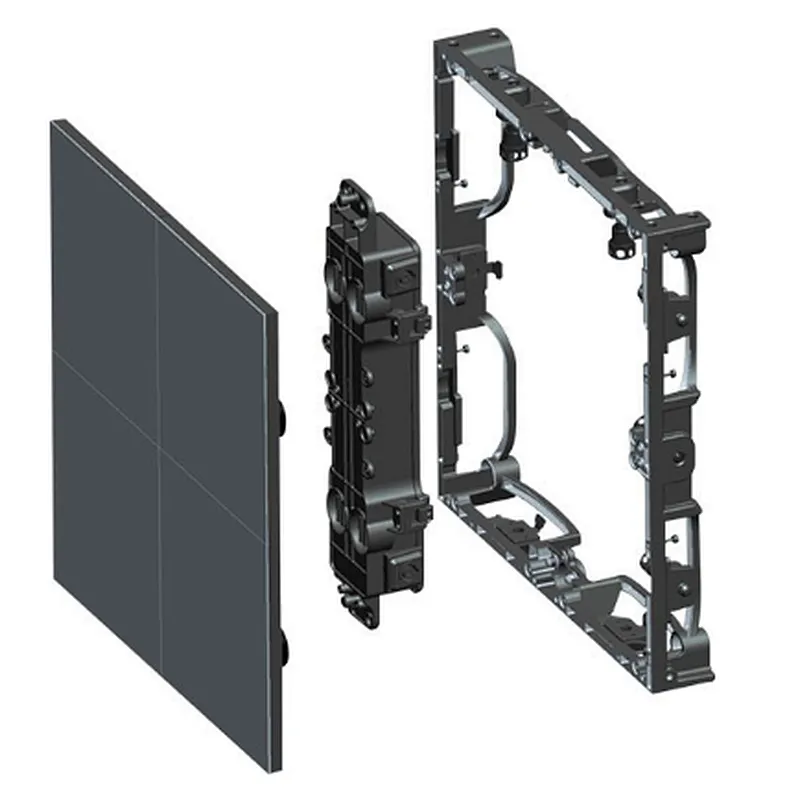

    Full Front Maintenance

    Not only module front service, but also power supply, receiver card, hub, etc.

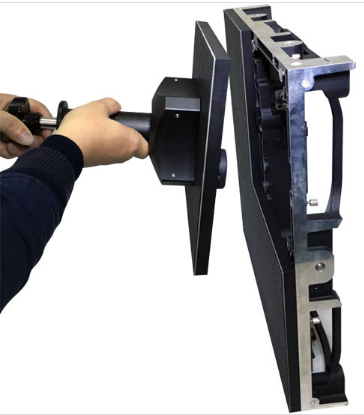

    Disassemble modules by front maintenance tool

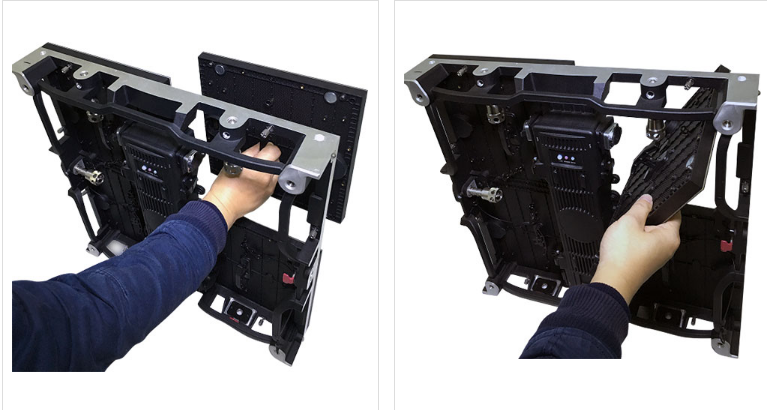

    Loose set screw to disassemble complete control box


    Time Saving

    Remove the LED modules without disconnect cables, it will save a lot of time in the show.

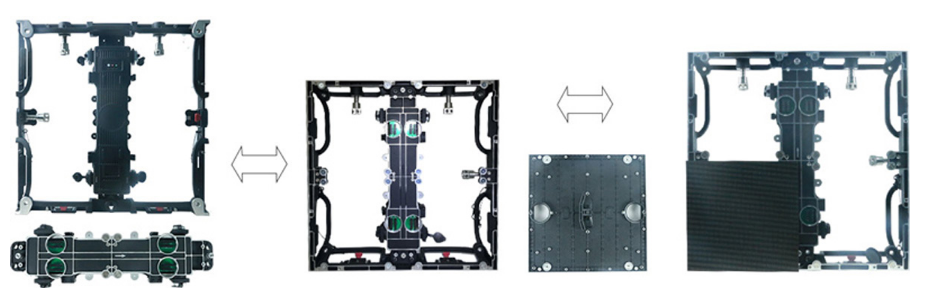

    How to Set Safety Stock & Save Material Cost?

    Different LED display pixel pitch match the same cabinet frame, control box, power supply, data and power cable, flight case packing, etc.
    So you only need buy different pixel pitch modules to upgrade your screen resolution.

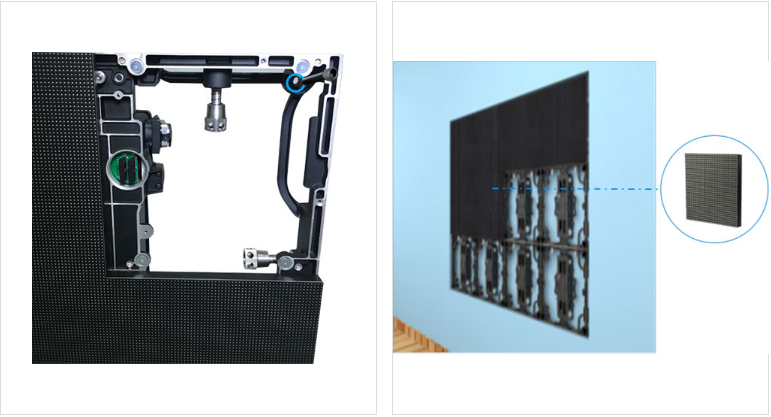

    Wall Mounted for Fixed Installation

    Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall.
    Assembly modules onto the cabinet.

    Each corner of cabinet has a screw hole,
    screw the M8 bolts to fix bare cabinets on the wall.

    Assemble modules onto the cabinet in order.

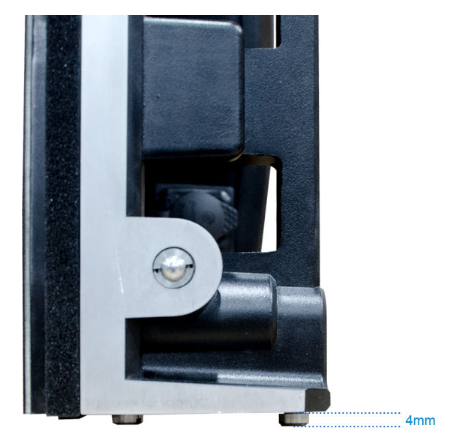

    Edge-care Design

    4mm stands at the bottom of cabinet, prevent edge pixels damage when put cabinet upright on the ground.

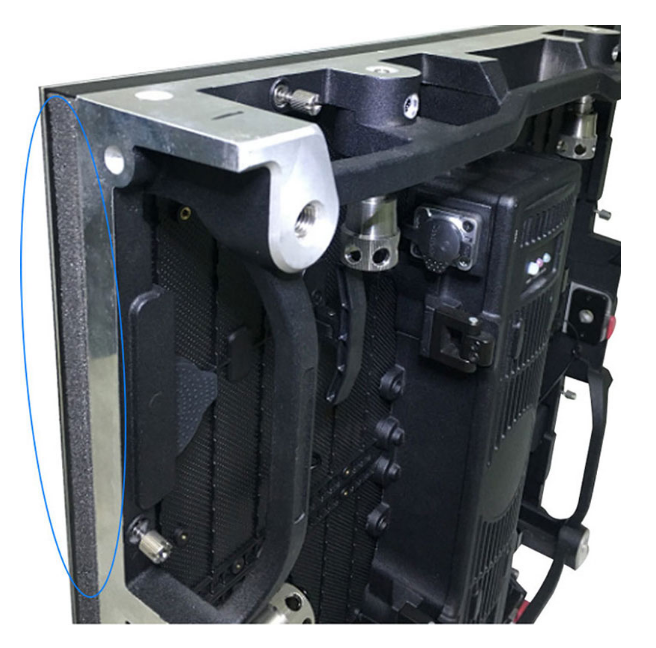

    No Light Leakage Trouble
    No light leakage design with specific strips on side of cabinet and behind neighbour module
    .

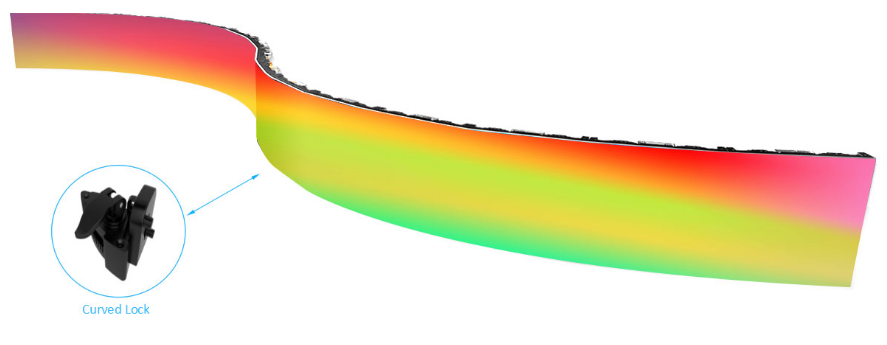

    Curved Installation

    Curved with every 2.5°between -7.5°and 10°, which can make convex and concave.

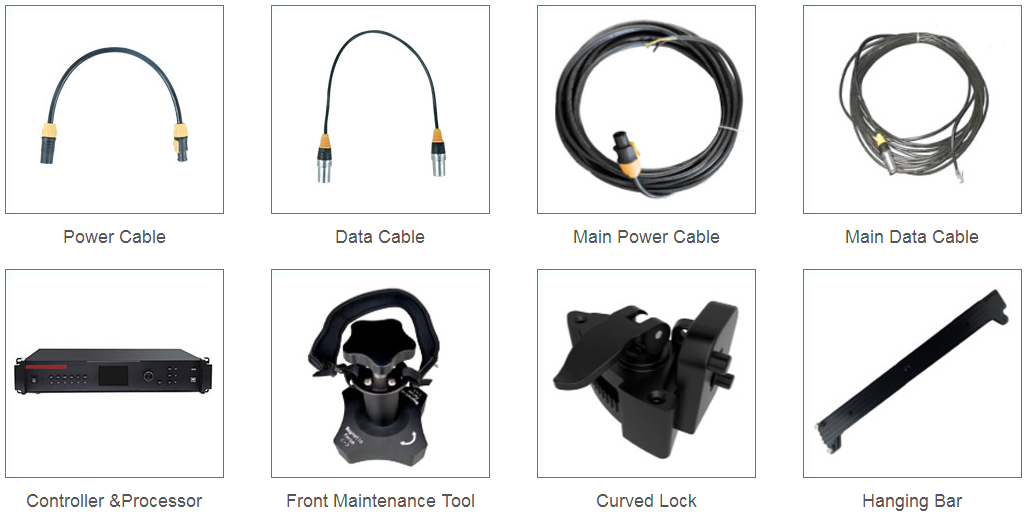

    Accessories

    Parameter
    M Series Indoor
    MO 3.9
    Pixel Pitch(mm)
    3.91
    Pixel Matrix Per Sq.m
    65536
    Pixel Configuration
    SMD1921
    Brightness (nits)
    5000
    Scan
    1/16
    Cabinet Resolution
    240x240
    Rotation Angle
    -2° and +5°
    Power Con. (Max / Avg)
    720/240 w/sq.m
    Module Dimension
    250x250mm / 0.82x0.82ft
    Cabinet Weight
    8kg / 17.6Ib ( Die-casting Aluminum)
    Cabinet Dimension
    500x500x87mm / 1.64x1.64x0.29ft
    Service Access
    Front / Rear
    Refresh Rate (HZ)
    ≥3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    IP Rate
    IP65
    Input Voltage (AC)
    110V / 240V

    * Specifications and photos are subject to change without prior notice.

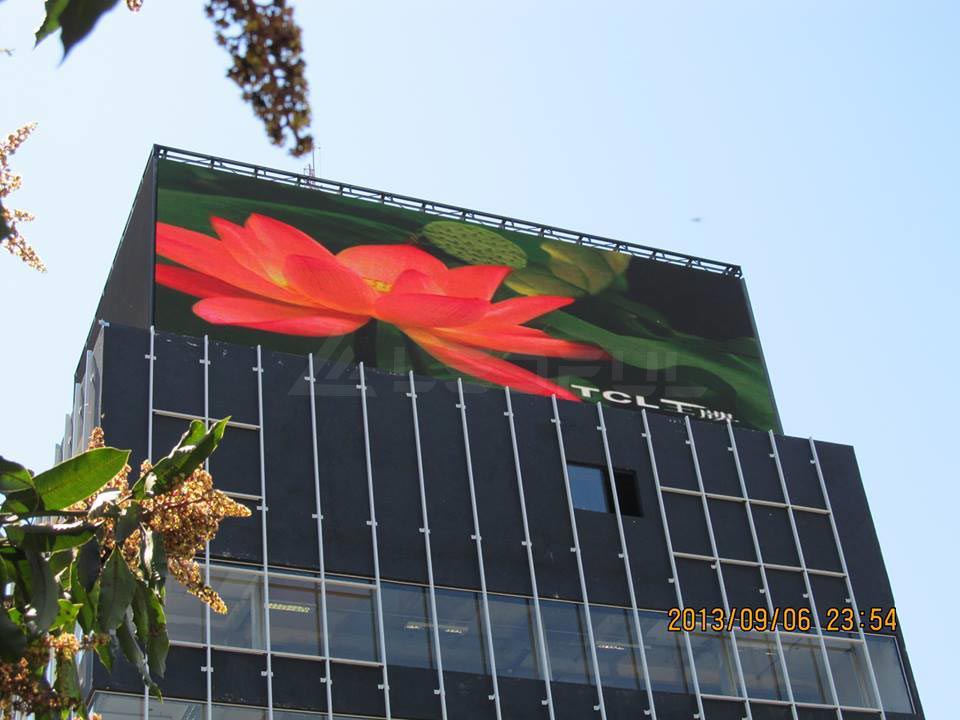

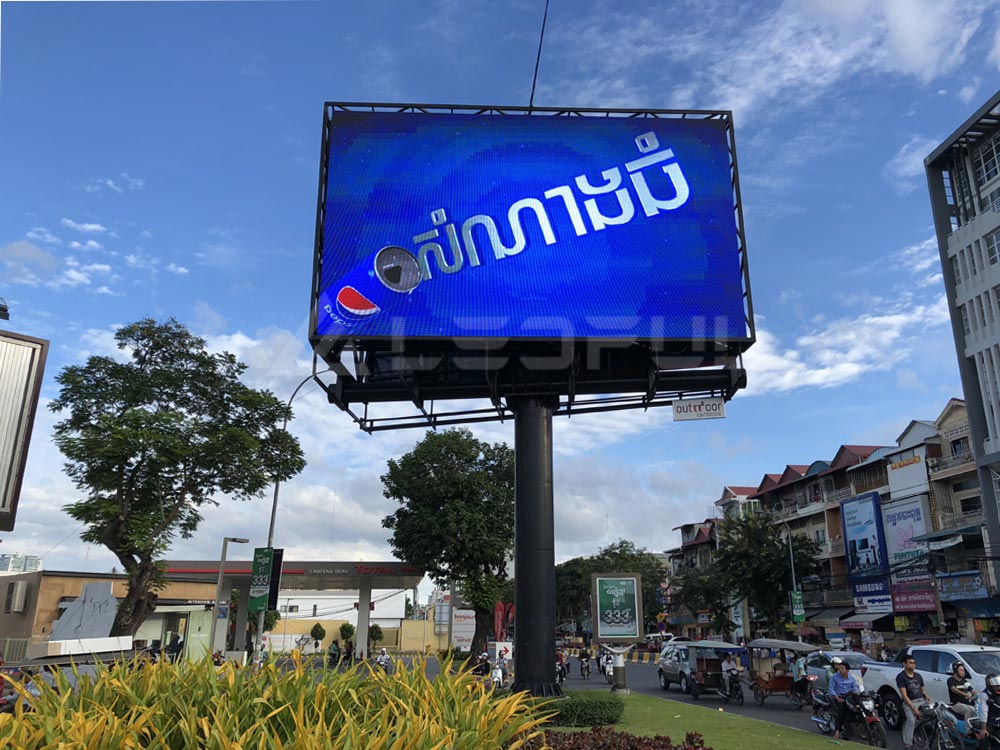

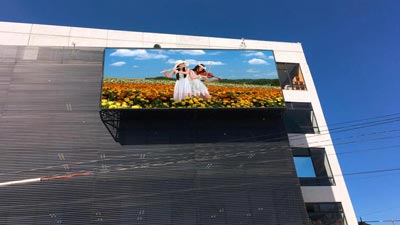

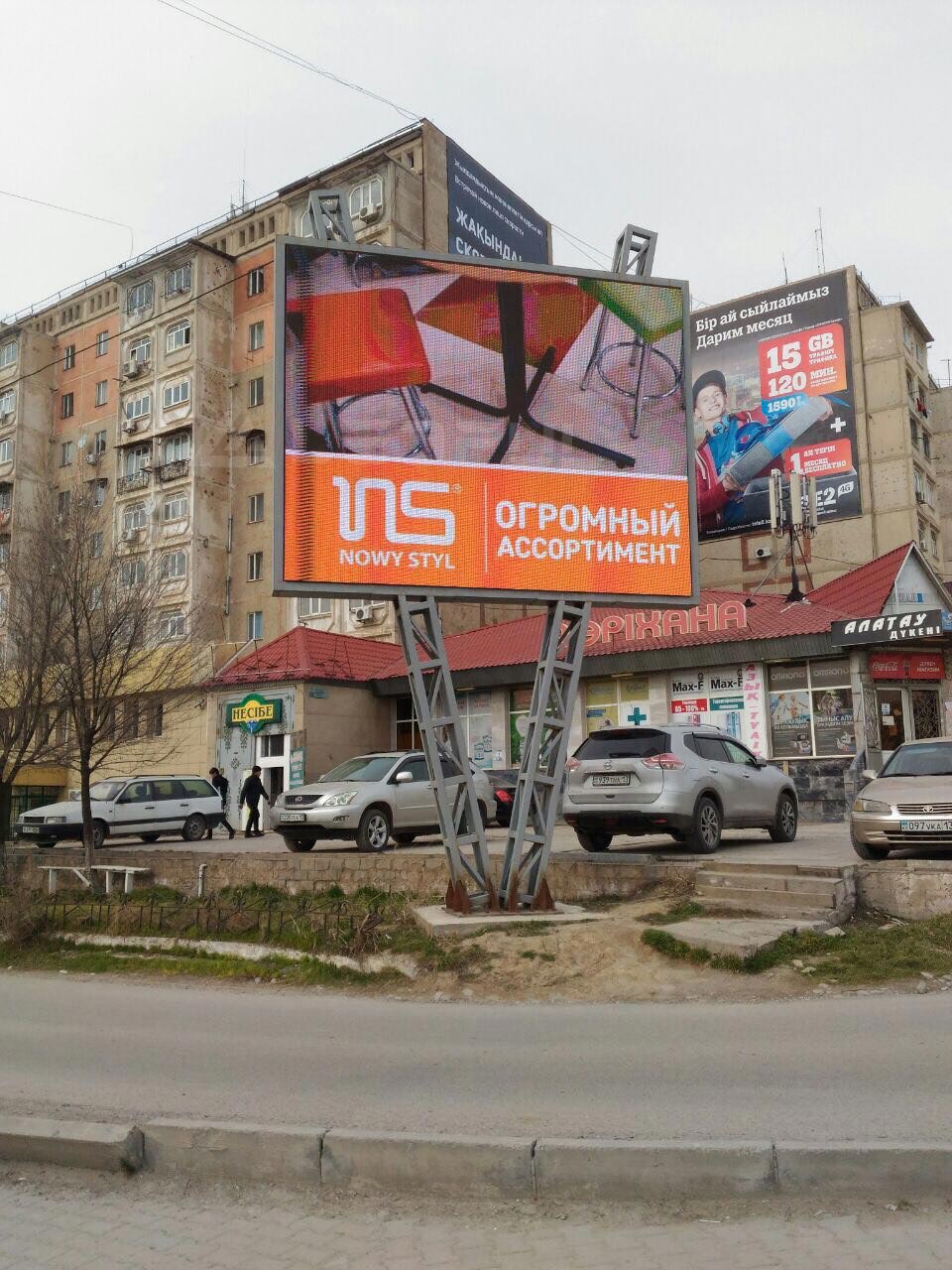

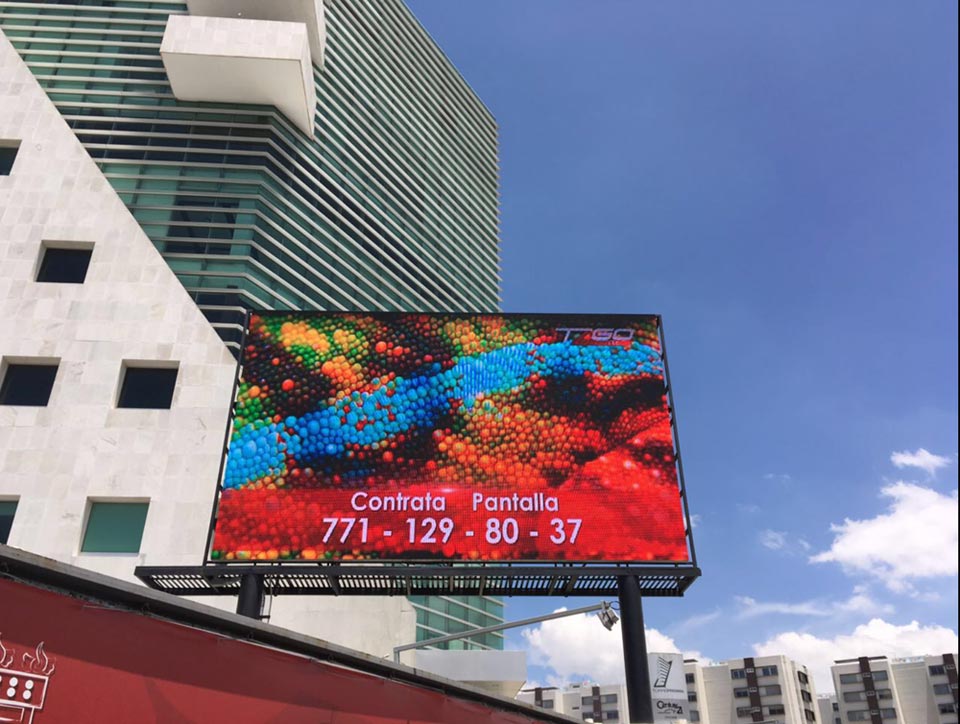

    Application

    The advertising on the LED panel is quiet and would not cause the boredom of the audience. Not like TV and radio advertising, the advertising on the LED display is not in street, stadium and such public place.

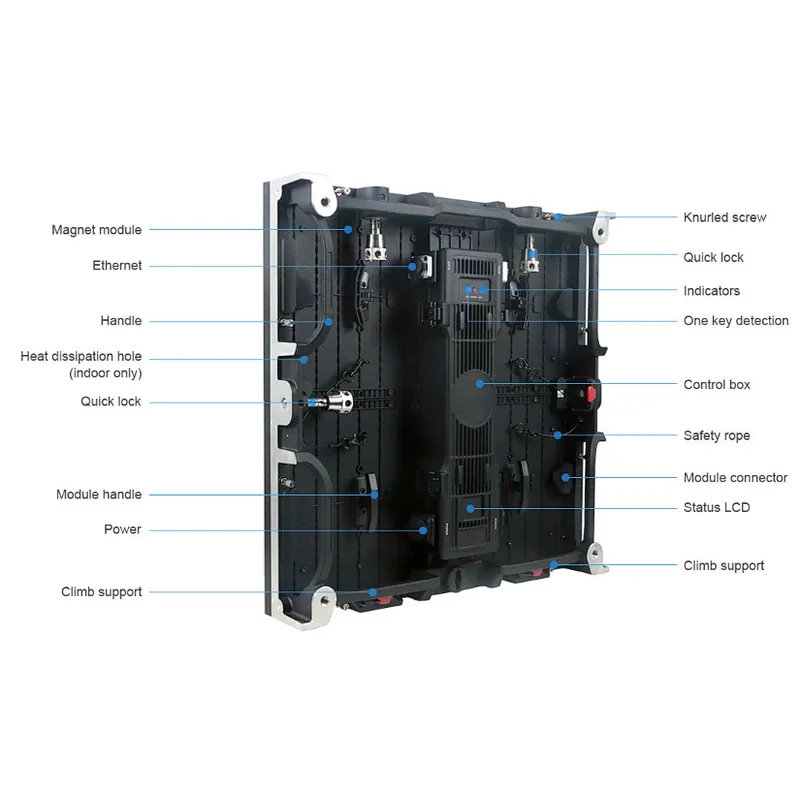

    LEDFUL M series feature:

    One for All, Front Maintenance, Front Installation, Curved -7.5°~ 10°, Climb Support, Edge-care Design, No Light Leakage

    Our Company


    Top LED Display Manufacturer

    LEDFUL founded in 2008
    Total 209 employees in LEDFUL,3~5 years warranty on LED screen
    Exported to 83 countries and regions,Over 5,600 successful projects in the world
    R&D staff occupied 10% of all the employees.CE, RoHS, FCC, CCC, ISO9001:2008 standard


    Professional, High Efficient and Caring

    One-stop solution provider
    More designs and more solution,Wireless control, 4G, Wifi, Cluster control,Truss hanging, stacking, touring, LED ceiling, video floor,Focus on the improvement and innovation of rental LED cabinets,High efficient and enthusiastic team to make reliable LED display
    Our partners are Media Companies, Stage Designer, Project Manager,
    Pro Audio, Light and Video companies, AV Rental Equipment companies,
    Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.


    Product Certificates

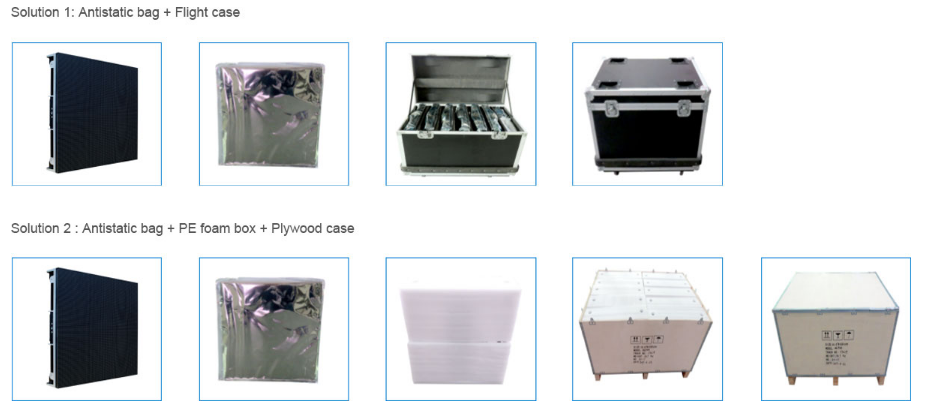

    Packing & Delivery


    How We Protect Your LED Display?


    Our Service
    FAQ

    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q3. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)
    P2/3/4/5/6mm: From 2/3/4/5/6 meter and more
    P10/12/16/20/25: From 10/12/16/20/25 meter and more
    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5:How To Play The TVs On LED Display Panel?
    1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.
    2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.
    3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
