  • Minimum order quantity:1
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: 500*500 M Series

    Product Description

    • Usage:Indoor
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Warranty: 3 Years:LED chip: Epistar
    • Certificate: CCC CE ROHS ISO:Life span: 100000 Hours
    • Screen Dimension: Customized:Cabinet material: Die-casting Aluminum
    • Application: Stage Rental:IC: ICN2038s
    • Control system: Linsn /Nova:Input Voltage (AC): 110V / 240V
    • Screen Dimension:500*500mm
    • Pixels:3.91mm
    • Place of Origin:Guangdong, China (Mainland)
    • Model Number:MI3.9
    • Brand Name:LEDFUL
    Product Description



    M Series

    Multi Functional Rental LED Display



    MI1.9 | MI2.2 | MI2.5 | MI2.6 | MI2.8 | MI2.9 | MI3.9 | MI4.8 | MI5.9 | MO3.9 | MO4.8 | MO5.9 | MO6.9

    ★One for All
    ★Front Maintenance
    ★Front Installation
    ★Curved -7.5°~ 10°
    ★Climb Support
    ★Edge-care Design
    ★No Light Leakage

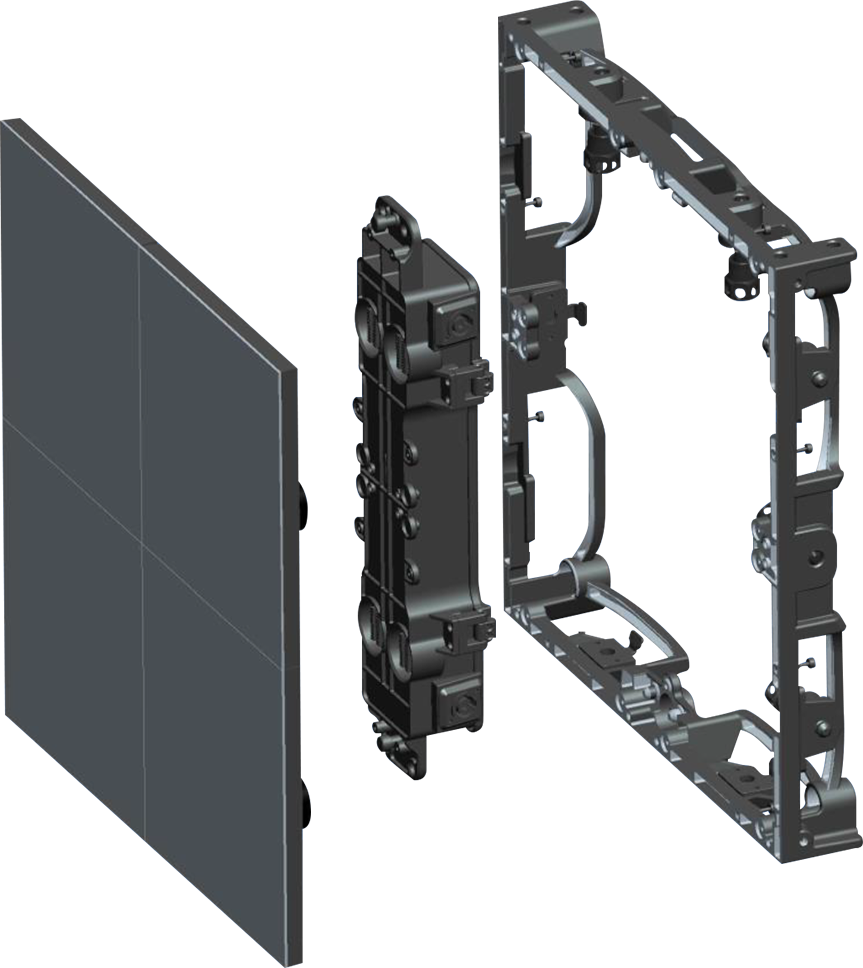

    One for All

    Indoor and Outdoor, P1.9 to P6.9, share the same cabinet frame, control box and accessories.
    Stacking, hanging, or wall mounted, flat or curved. One (M series) for All your requirements.
    Product Name
    MI 3.9
    Pixel Pitch(mm)
    3.9
    Pixel Matrix Per Sq.m
    65536
    Pixel Configuration
    SMD2020
    Brightness (nits)
    1200
    Scan
    1/16
    Cabinet Resolution
    128x128
    Rotation Angle
    -5° and +5°
    Power Con. (Max / Avg)
    600/200 w/sq.m
    Module Dimension
    250x250mm / 0.82x0.82ft
    Cabinet Weight
    8kg / 17.6Ib ( Die-casting Aluminum)
    Cabinet Dimension
    500x500x87mm / 1.64x1.64x0.29ft
    Service Access
    Front / Rear
    Refresh Rate (HZ)
    ≥3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    IP Rate
    IP40
    Input Voltage (AC)
    110V / 240V

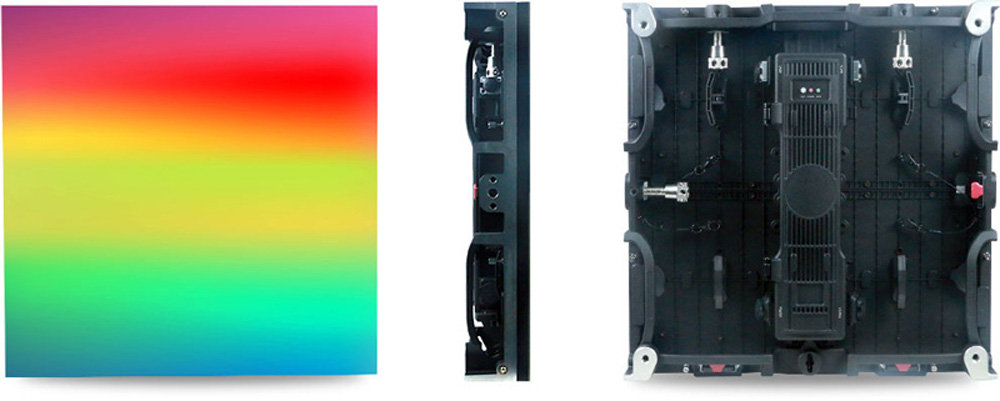

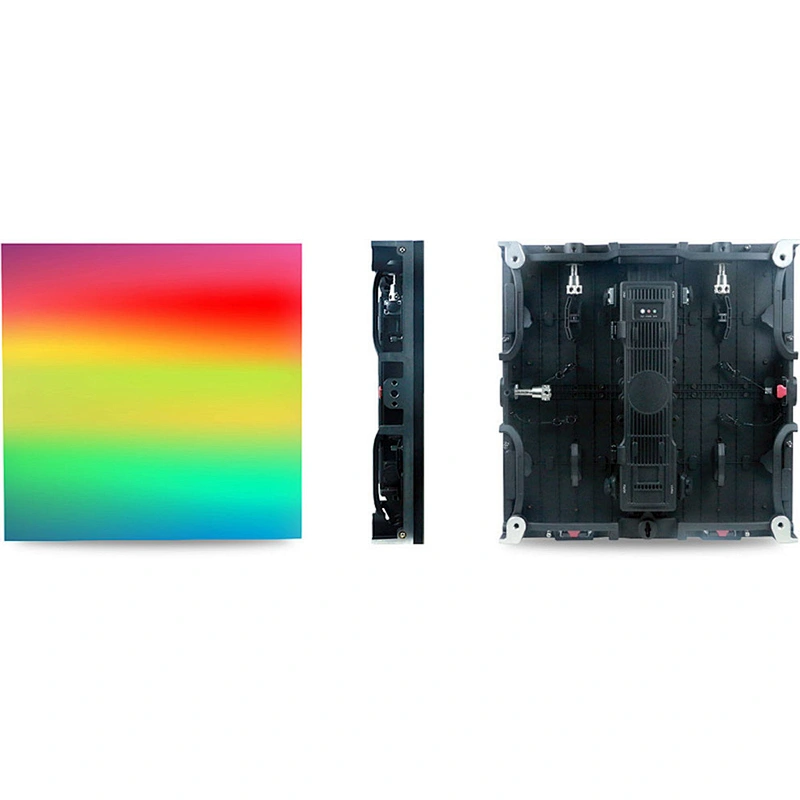

    Products Show

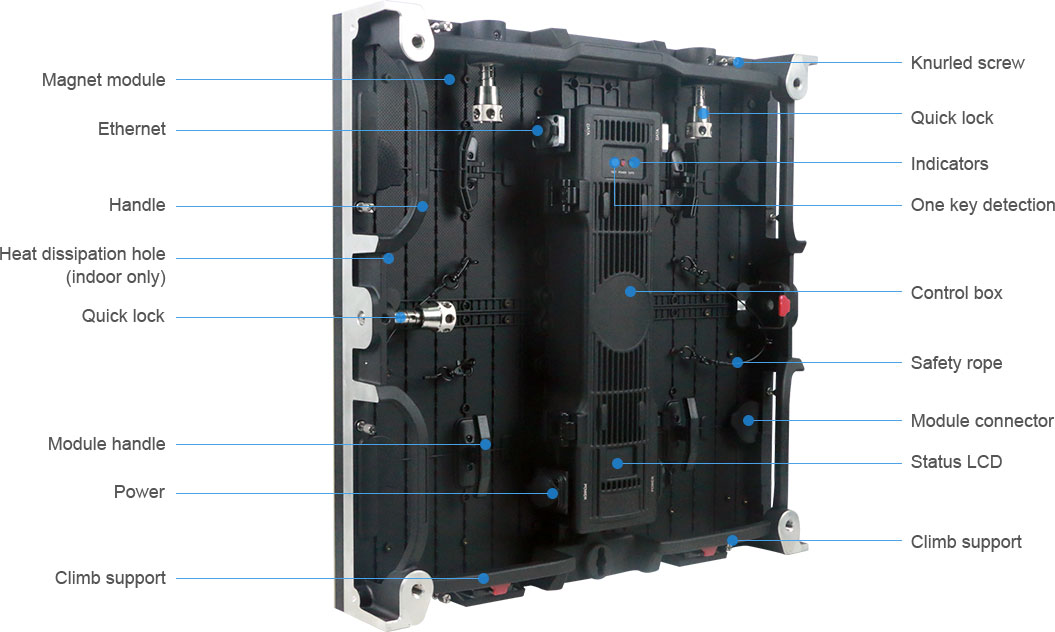

    Details

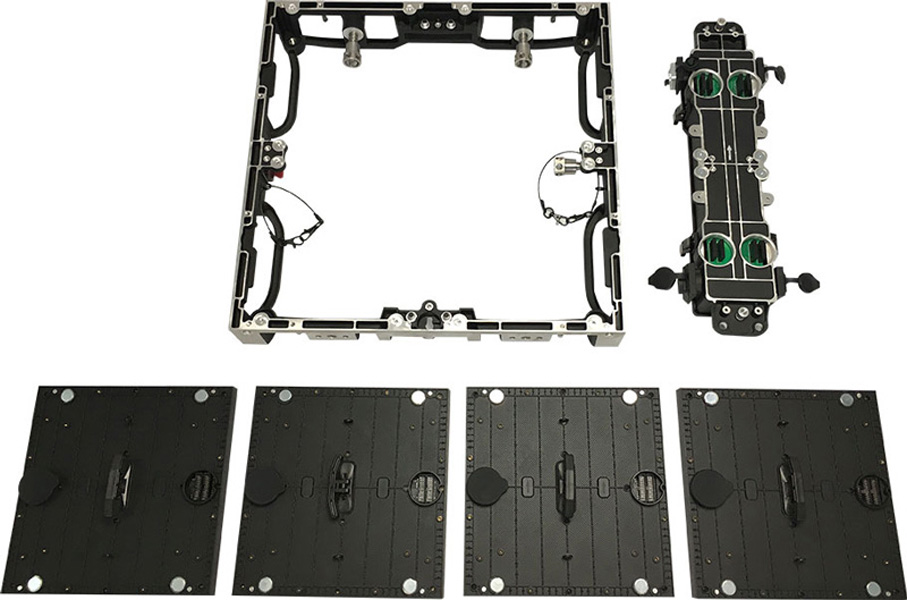

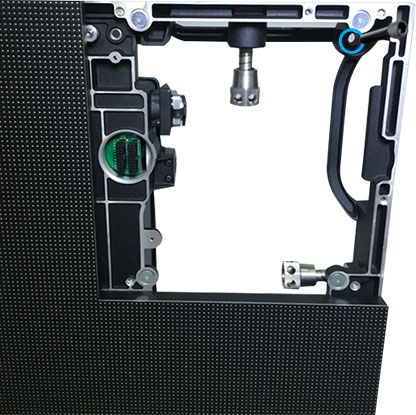

    Full Front Maintenance

    Not only module front service, but also power supply, receiver card, hub, etc.

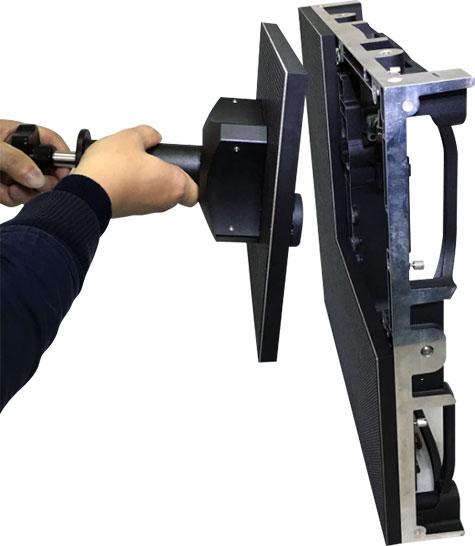

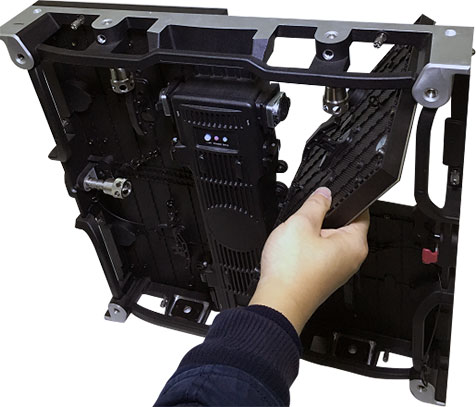

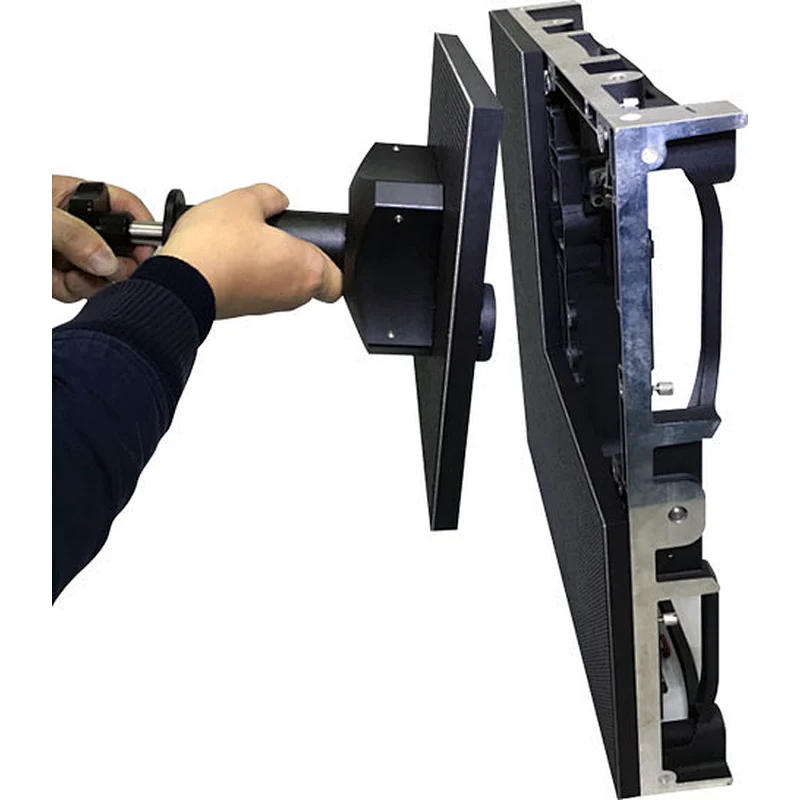

    Disassemble modules by front maintenance tool

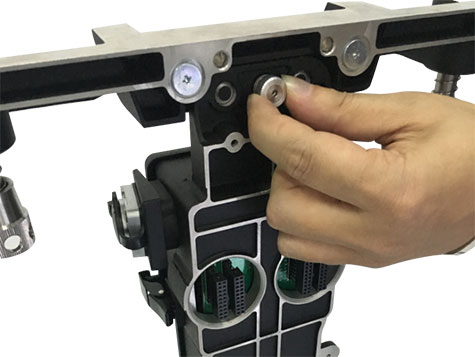

    Loose set screw to disassemble complete control box




    Time Saving

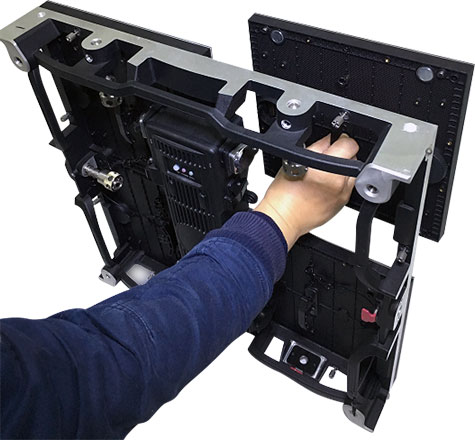

    Remove the LED modules without disconnect cables, it will save a lot of time in the show.




    How to Set Safety Stock & Save Material Cost?

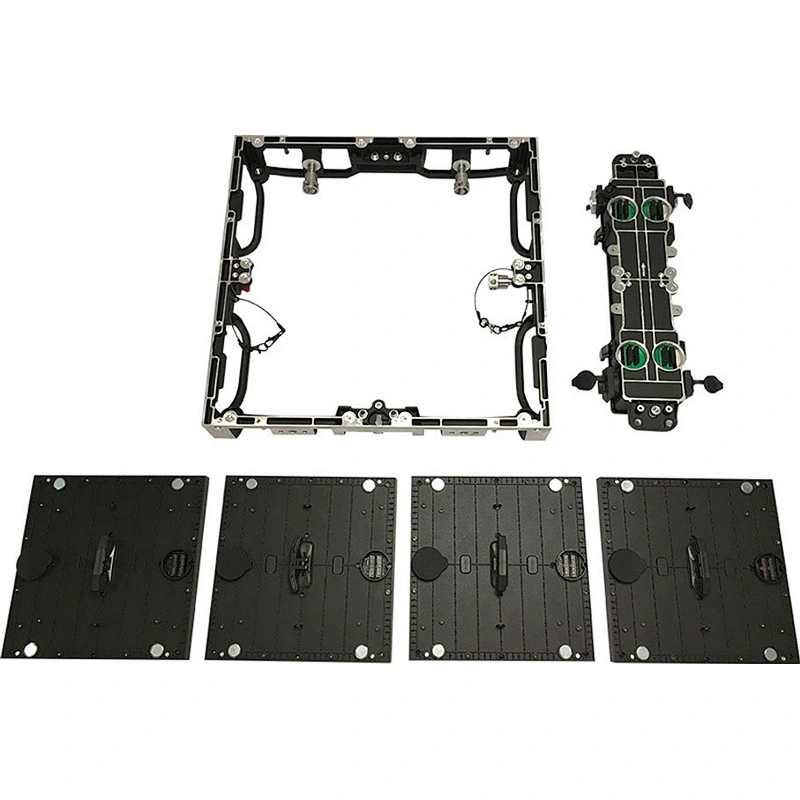

    Different LED display pixel pitch match the same cabinet frame, control box, power supply, data and power cable, flight case packing, etc. So you only need buy different pixel pitch modules to upgrade your screen resolution.




    Saving Shipping Cost & Tax Cost

    LED modules weight and volume is much lower than cabinet. So it will save shipping cost and tax cost.

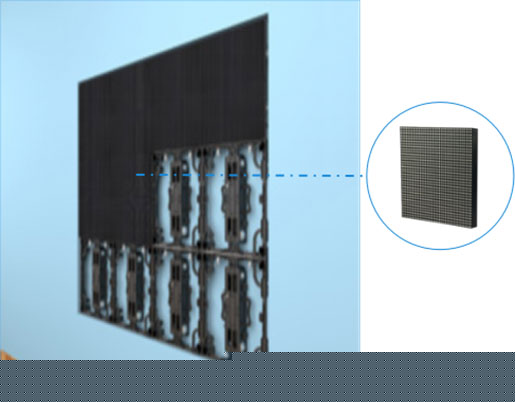

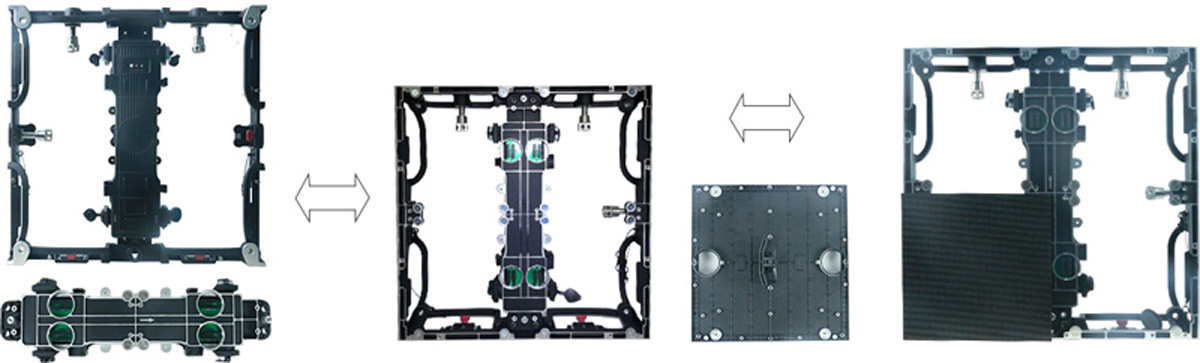

    Wall Mounted for Fixed Installation

    Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall.
    Assembly modules onto the cabinet.

    Each corner of cabinet has a screw hole,  screw the M8 bolts to fix bare cabinets on the wall.

    Assemble modules onto the cabinet in order.

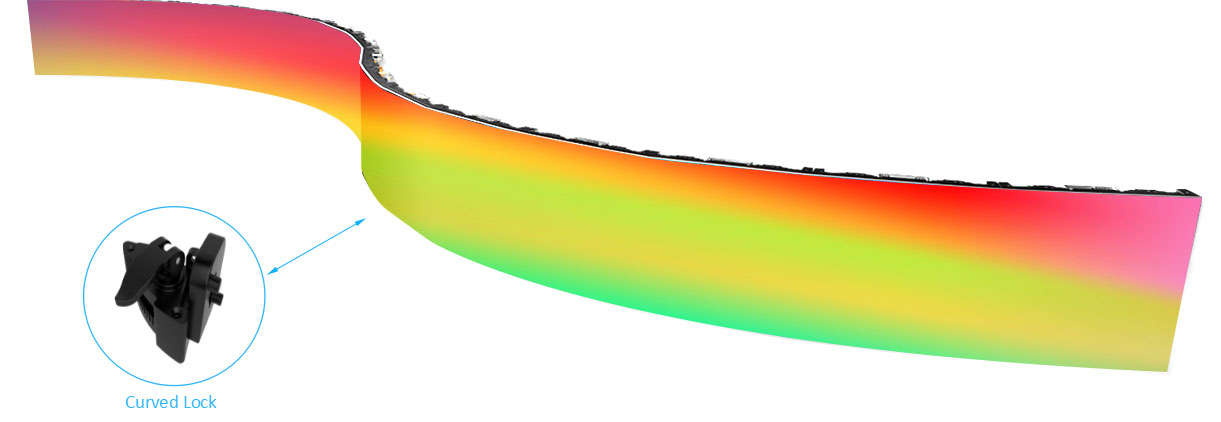

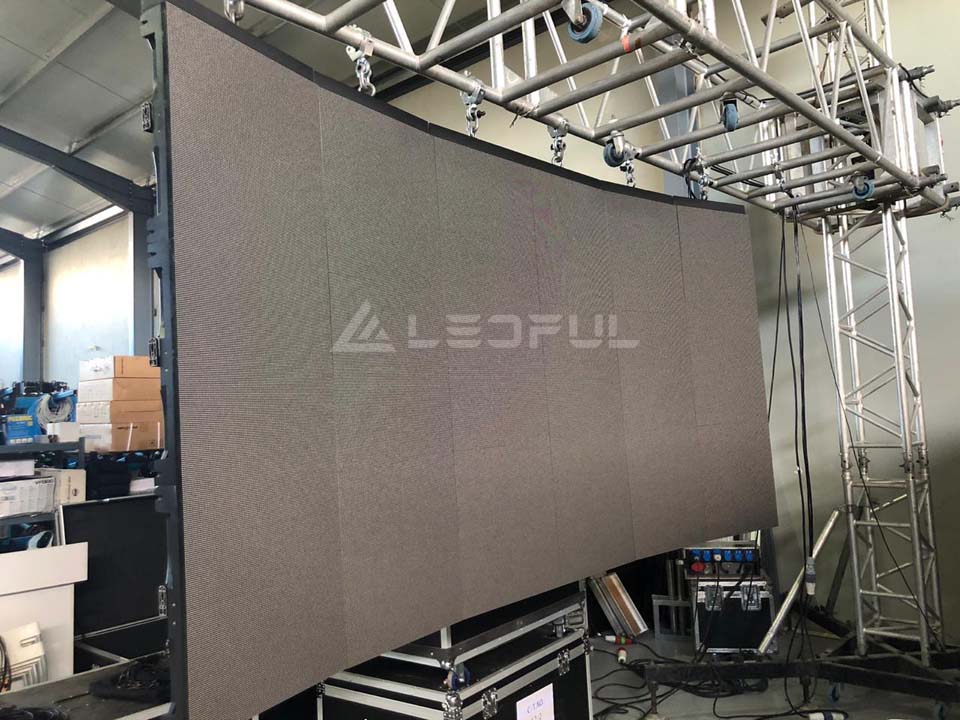

    Curved Installation

    Curved with every 2.5°between -7.5°and 10°, which can make convex and concave.




    Climbing Support

    Climbing structure can help you make convenient maintenance

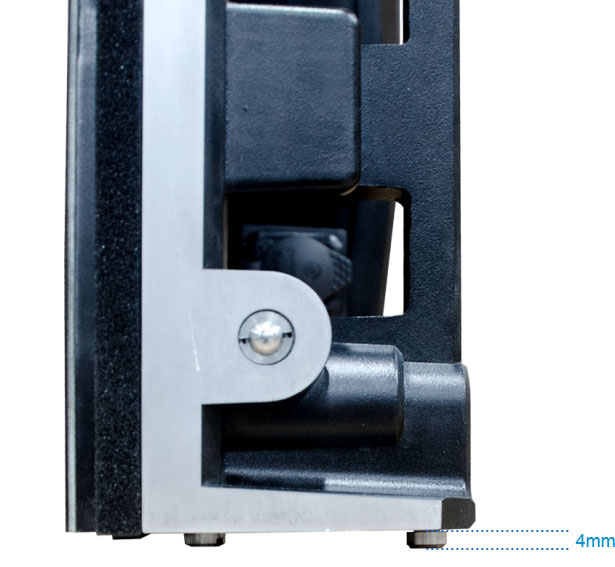

    Edge-care Design

    4mm stands at the bottom of cabinet, prevent edge pixels damage when put cabinet upright on the ground.

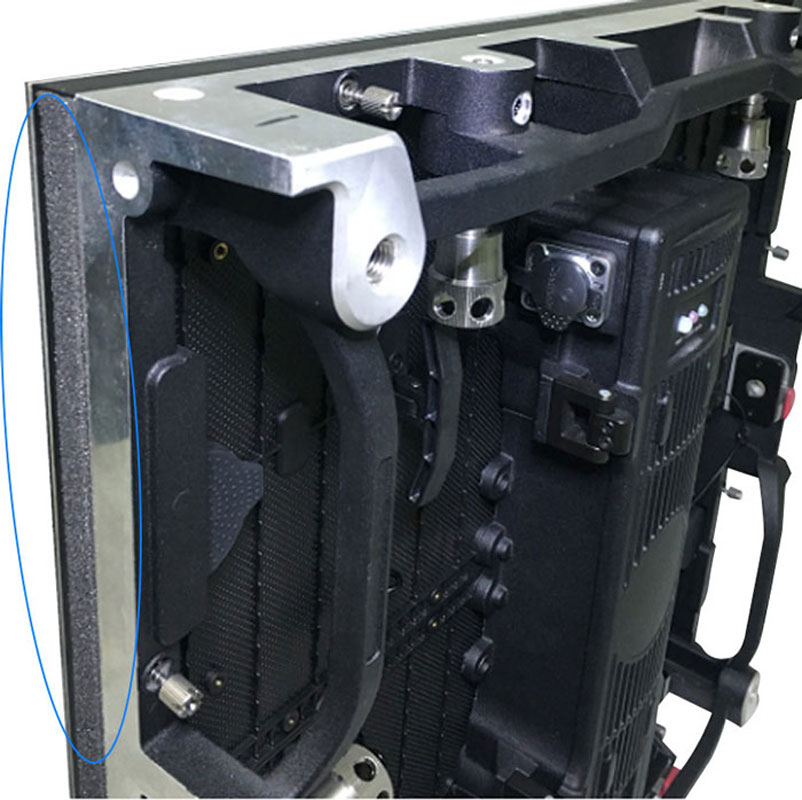

    No Light Leakage Trouble

    No light leakage design with specific strips on side of cabinet and behind neighbour module.

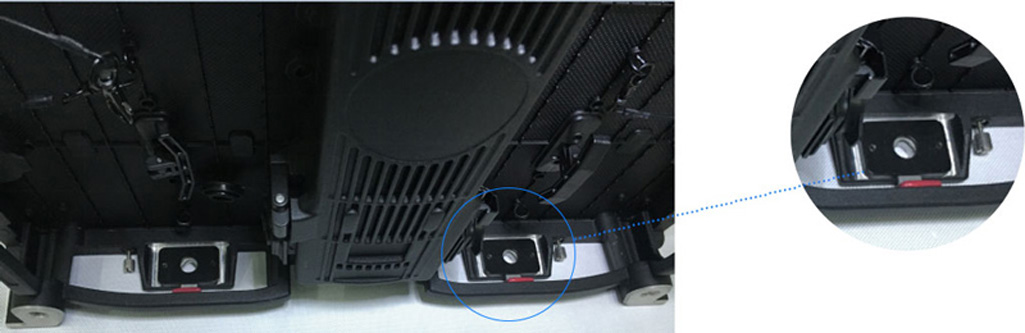

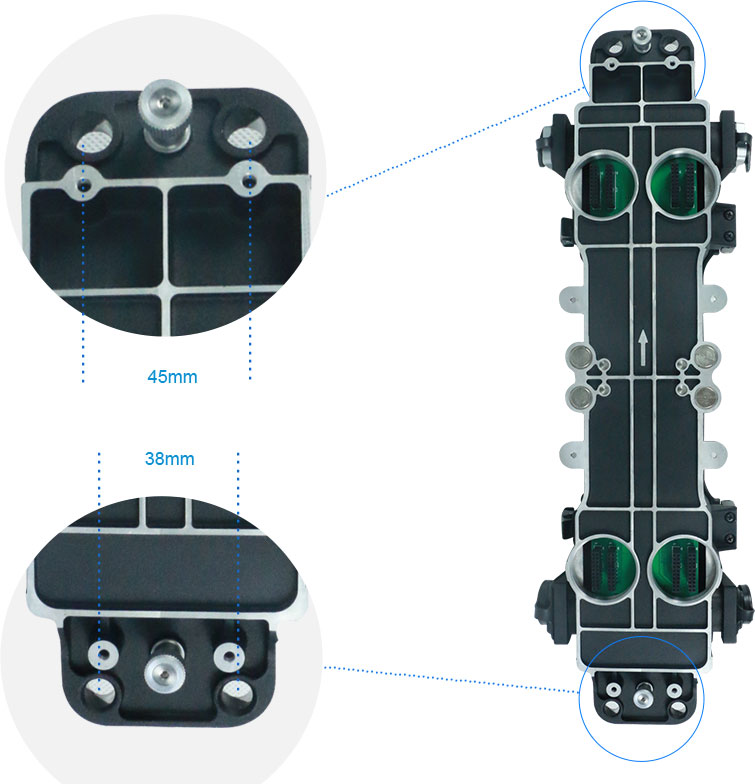

    Say NO to Reversed Mounting

    Different spacing of location pins on up and down sides of control box.

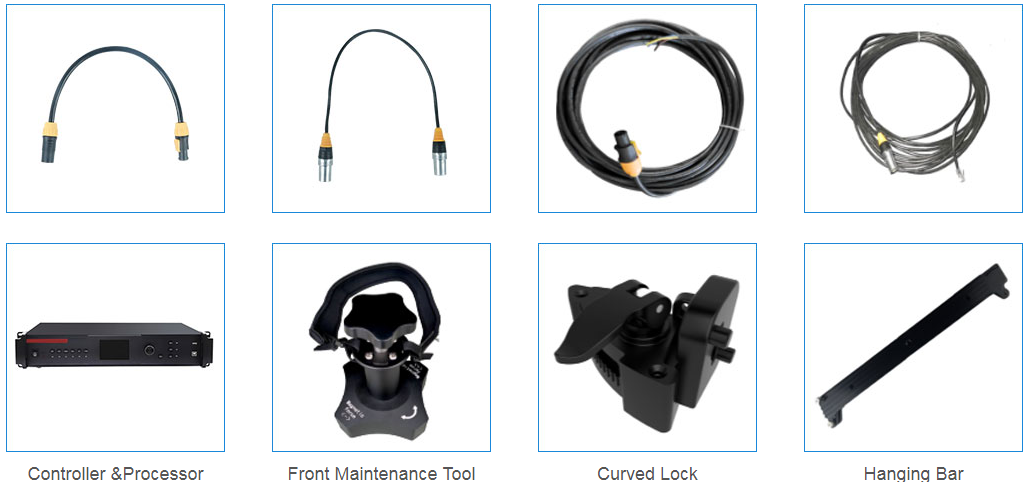

    Accessories

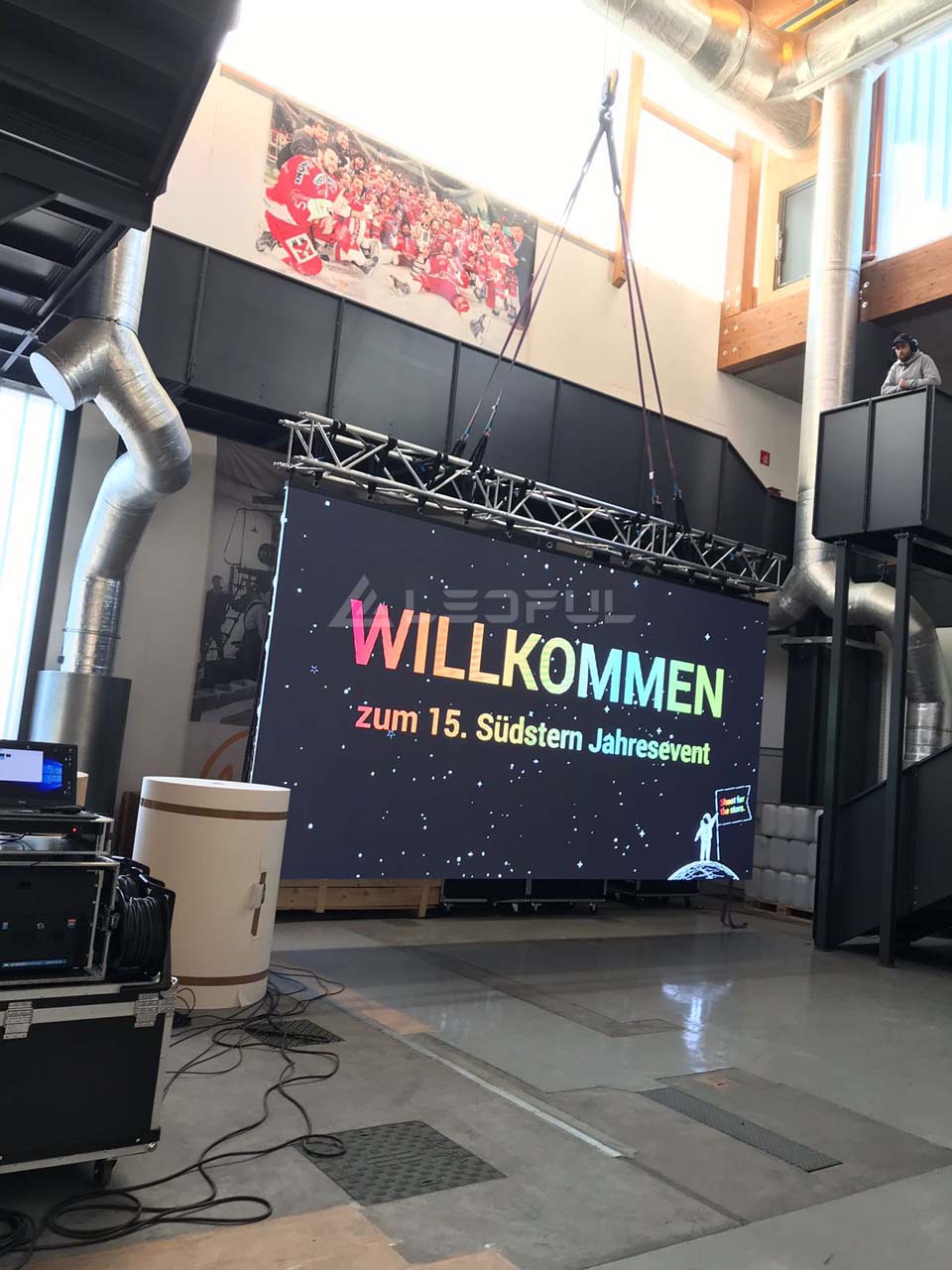

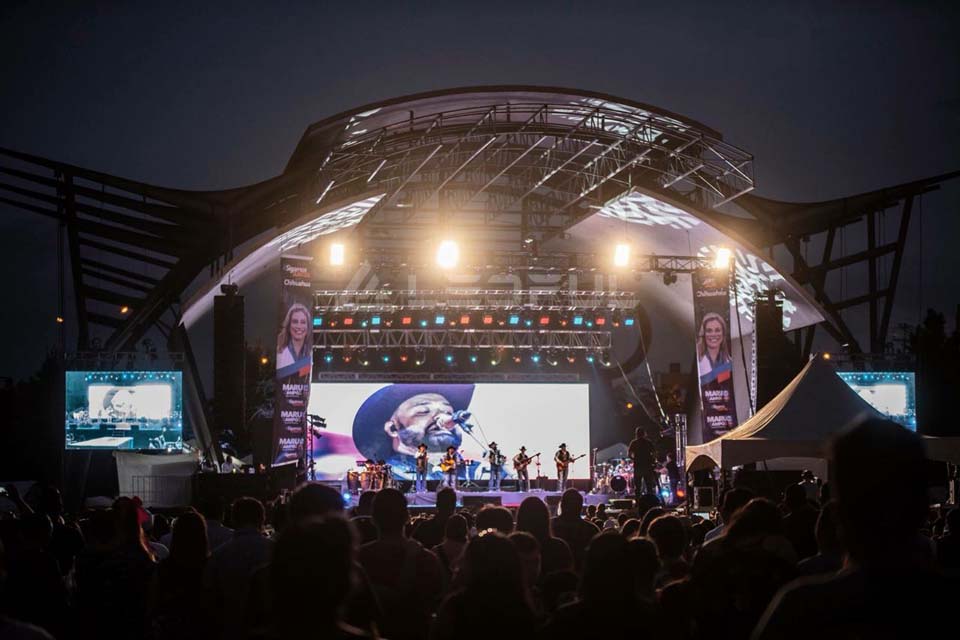

    Applications

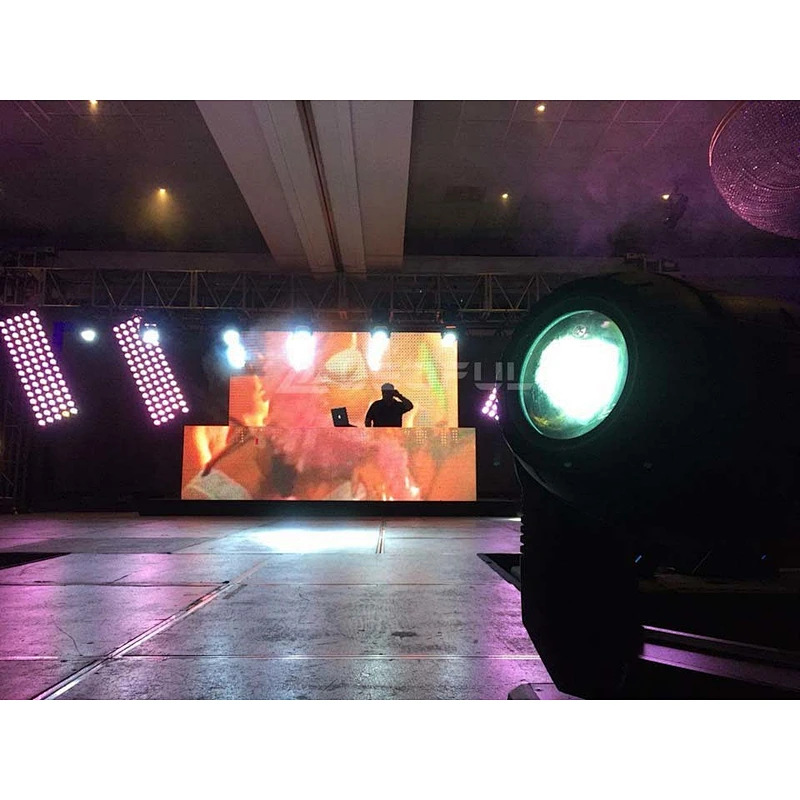

    Rental applications such as live concert,shows,event, exhibitions,TV station,live broadcasting and theme parks and football matches.


    Our Company

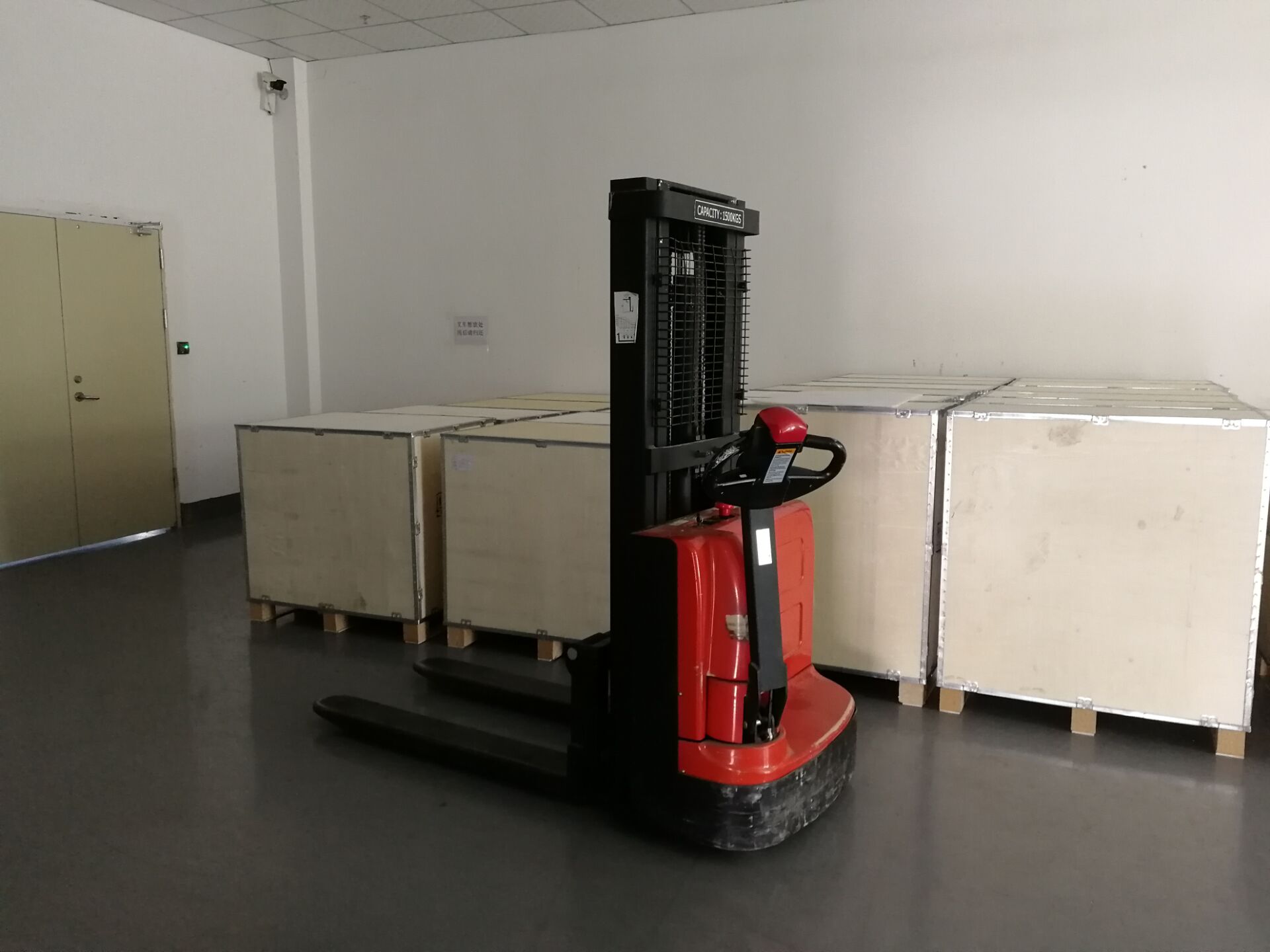

    Packing & Delivery

    Packaging
    1.Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;
    2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.

    Shipping
    1. By sea or by air;
    2. Customer specified freight forwarder or negotiable mode of transport;
    3. Delivery Time: 15-25 days for batch goods.

    Plywood box
    Flight case
    EPE(Expandable Polyethylene)

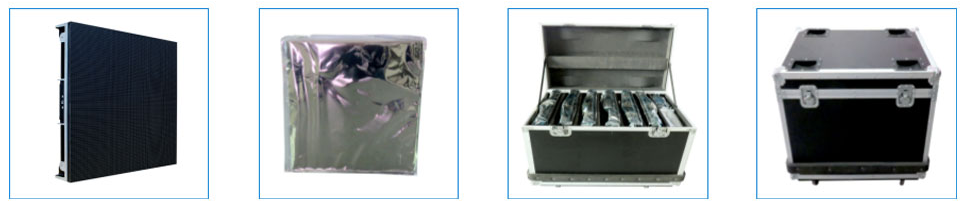

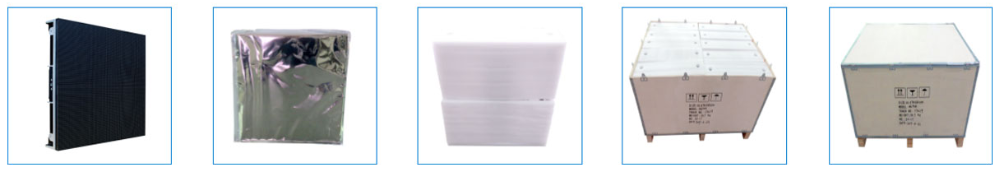

    How We Protect Your LED Display?


    Solution 1: Antistatic bag + Flight case


    Solution 2: Antistatic bag + PE foam box + Plywood case

    Our Service


    1)Reply your inquiry in 24 working hours.

    2)Customized design is available ,OEM & ODM are welcomed.

    3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs

    4)Guidance service: We can guide on line if customers have questions about the installation and usage.

    For large project, we provide your engineer free training, or our engineer can go to customer's country for on-site guidance.

    5) Warranty period: 3 years after shipment.


    FAQ

    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2: What is the control system?
    A: We use Nova control system.

    Q3. How about your delivery time?
    A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q4. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q5: How can you ensure your led display product quality?
    A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
