- Display Function:Video
- Application:Indoor Advertising
- Certificate:CE ROHS FCC
- Viewing angle:H160/V160
- Color:Fullcolor
- Module size:250mm*250mm
- Refresh rate:3840
- Cabinet size:500x500mm
- Feature:Easy Installation
- Pixels:2.2mm
- Place of Origin:CN;GUA
- Application:advertising
- Color:fullcolor
- Panel Size:500*500
- Pixel Pitch:2.2
- Model Number:MI2.2
- Brand Name:LEDFUL

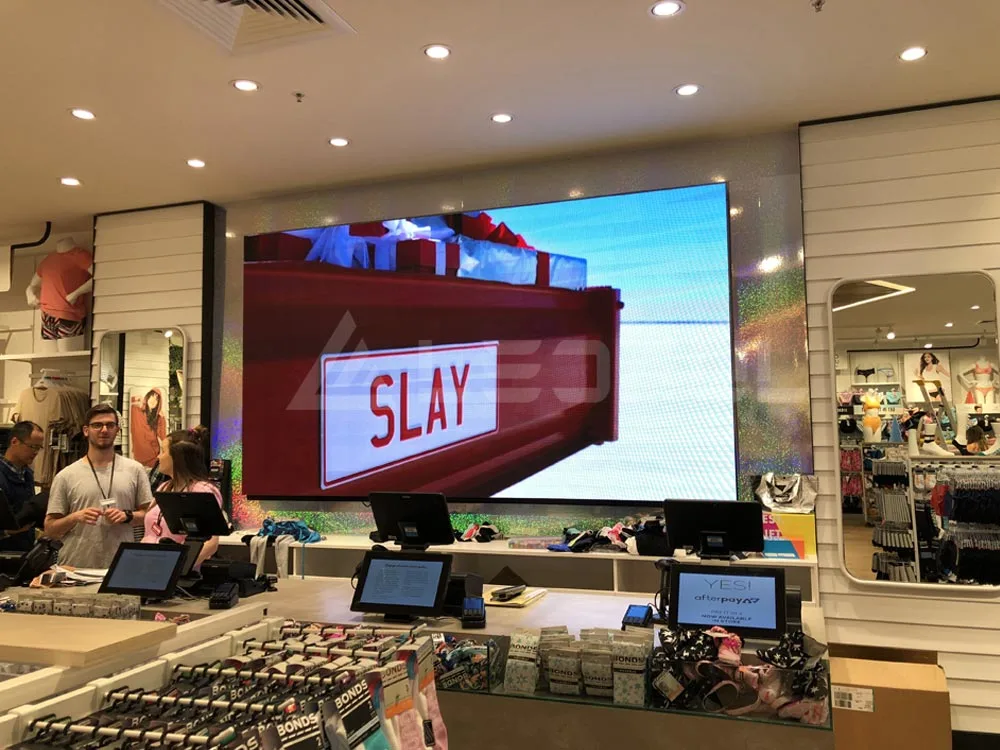

The advertising on the LED panel is quiet and would not cause the boredom of the audience. Not like TV and radio advertising, the advertising on the LED display is not in street, stadium and such public place.

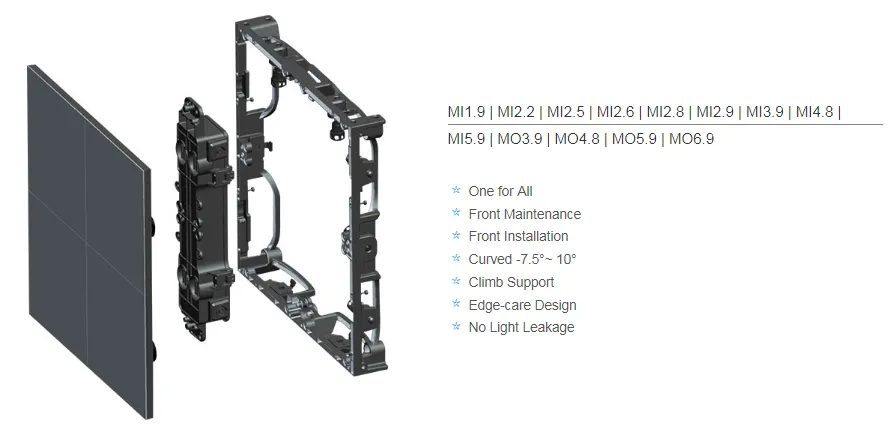

LEDFUL M series feature:
One for All, Front Maintenance, Front Installation, Curved -7.5°~ 10°, Climb Support, Edge-care Design, No Light Leakage

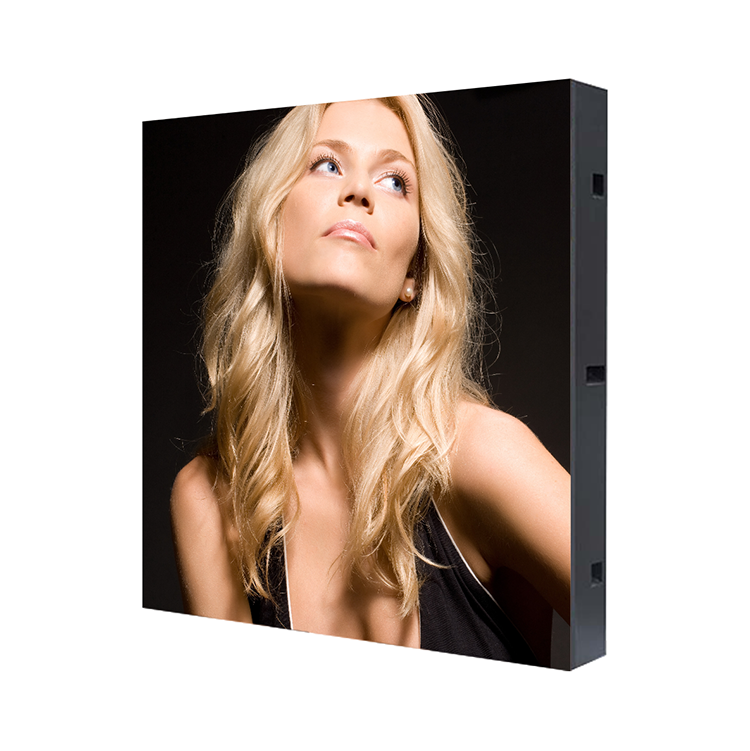

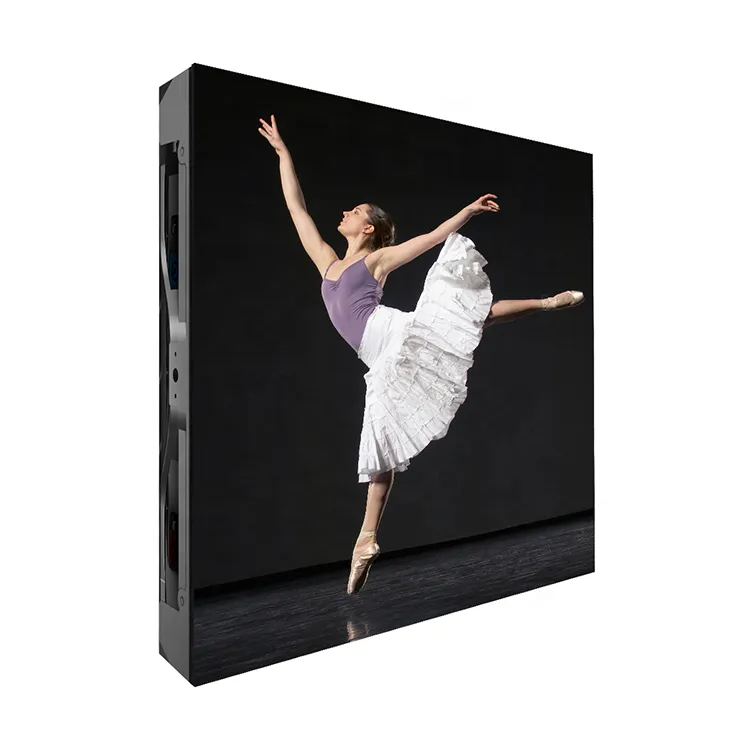

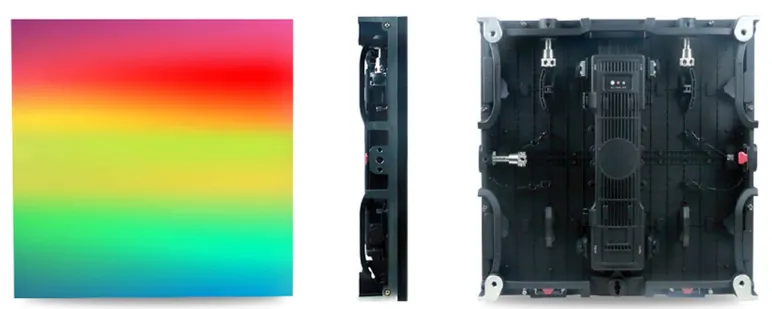

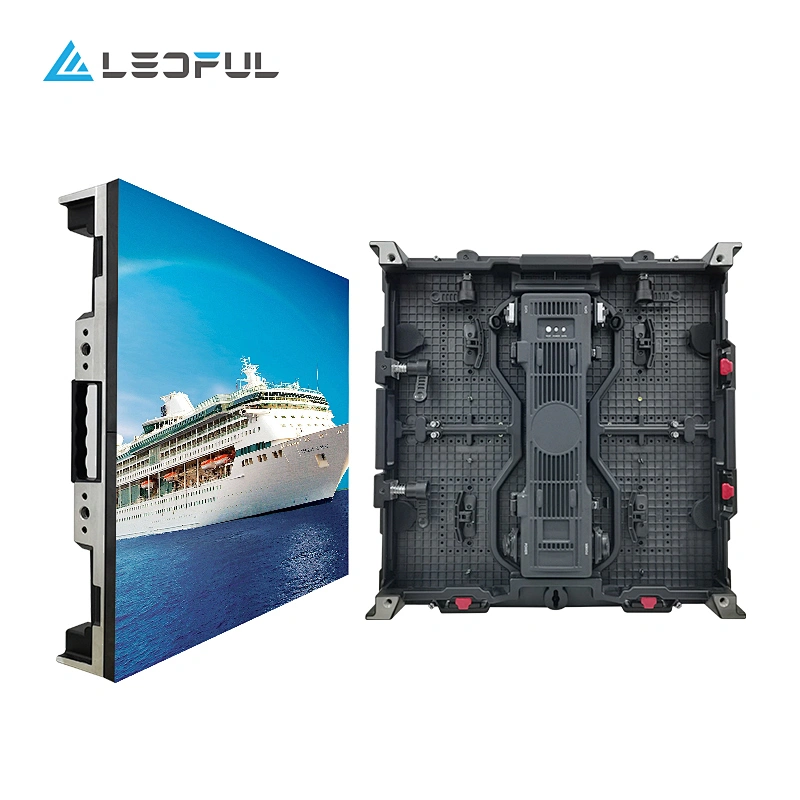

M Series
Multi Functional Rental LED Display
One for All
Full Front Maintenance
Not only module front service, but also power supply, receiver card, hub, etc.

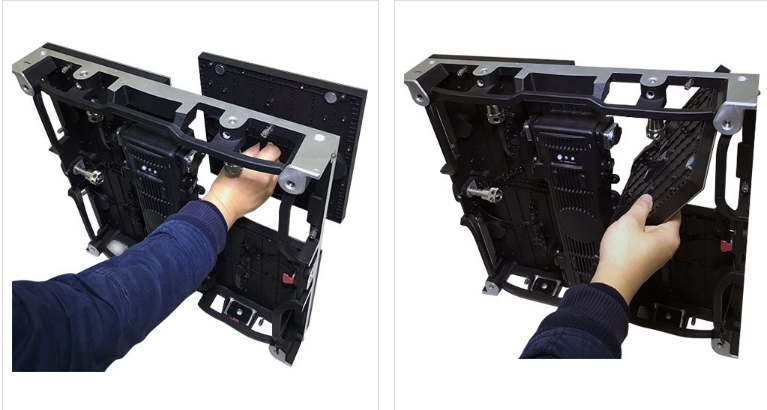

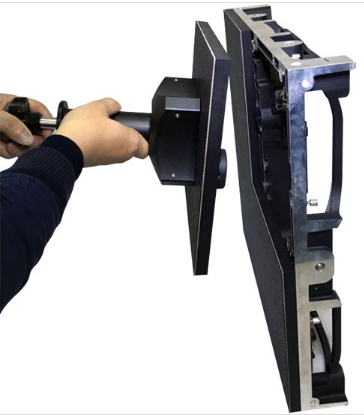

Disassemble modules by front maintenance tool

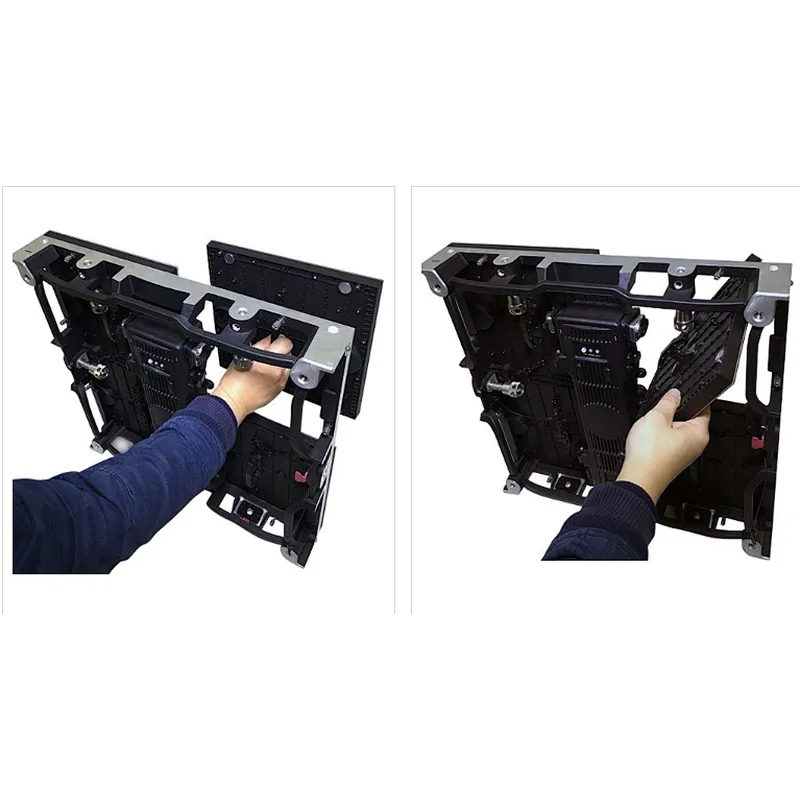

Loose set screw to disassemble complete control box
Time Saving
Remove the LED modules without disconnect cables, it will save a lot of time in the show.
How to Set Safety Stock & Save Material Cost?

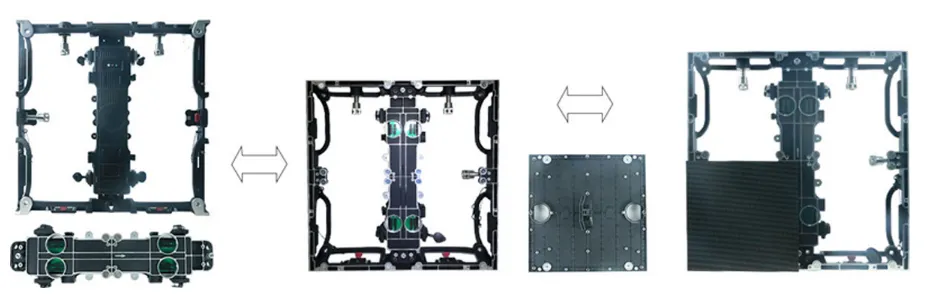

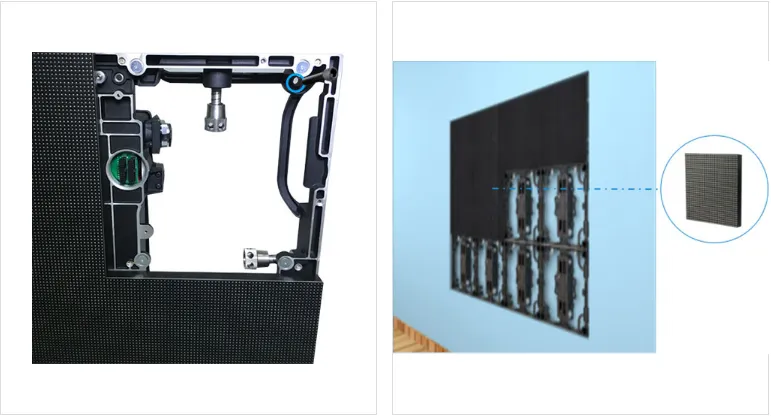

Wall Mounted for Fixed Installation
Each corner of cabinet has a screw hole,
screw the M8 bolts to fix bare cabinets on the wall.
Assemble modules onto the cabinet in order.

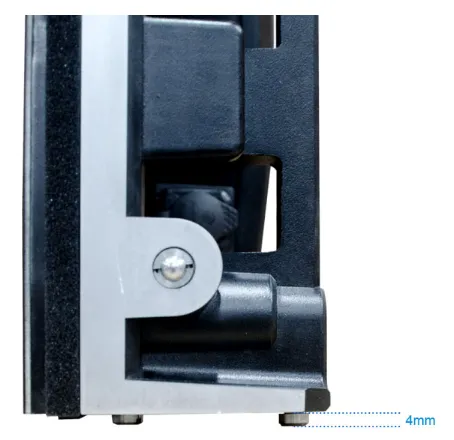

Edge-care Design
4mm stands at the bottom of cabinet, prevent edge pixels damage when put cabinet upright on the ground.

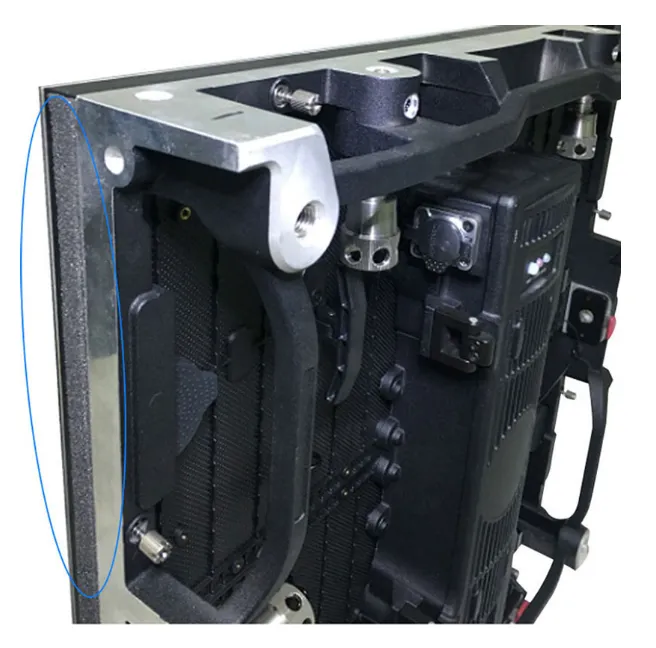

No Light Leakage Trouble
No light leakage design with specific strips on side of cabinet and behind neighbour module.
Curved Installation
Curved with every 2.5°between -7.5°and 10°, which can make convex and concave.

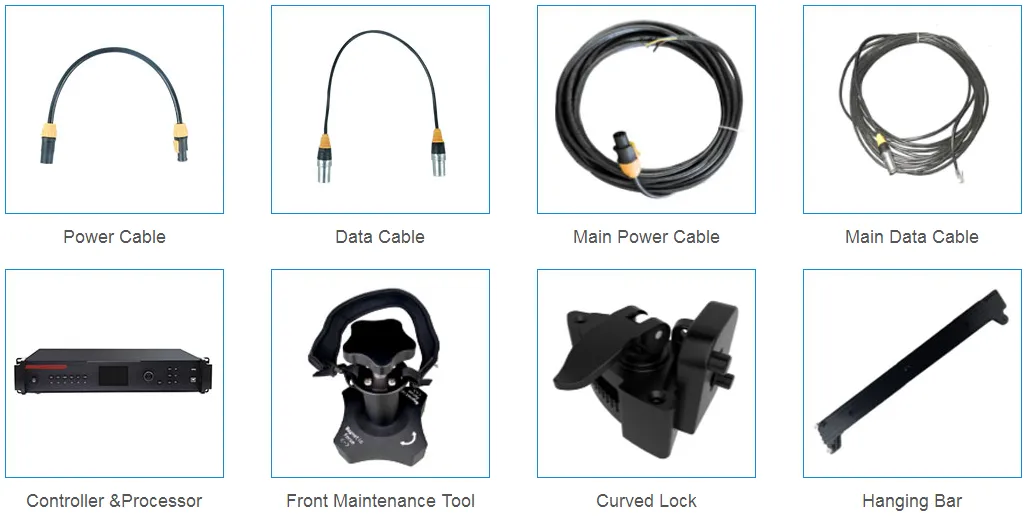

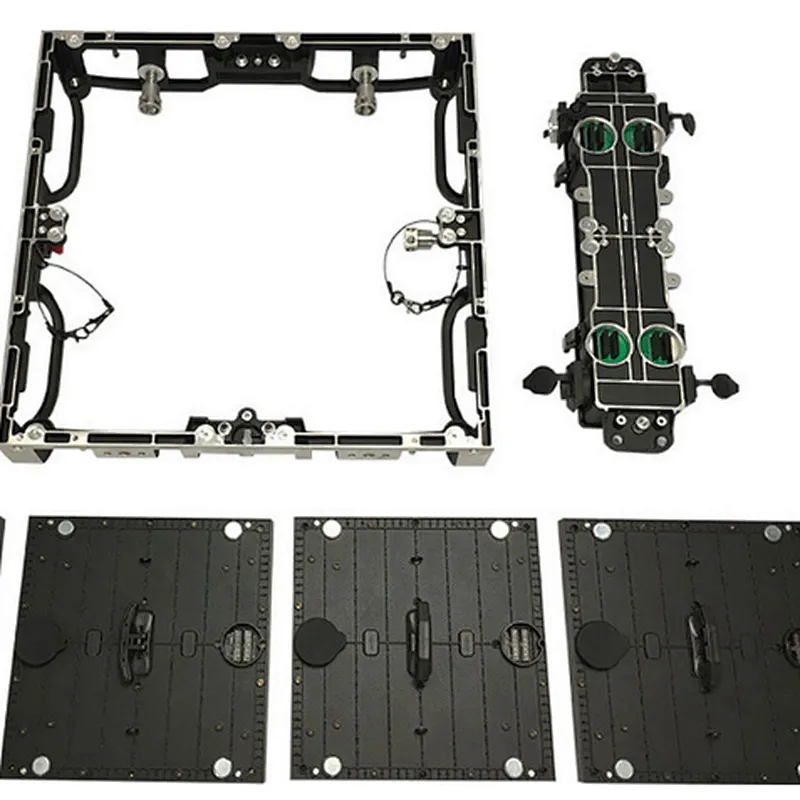

Accessories
M Series Indoor | MI 2.2 |
Pixel Pitch(mm) | 2.2 |
Pixel Matrix Per Sq.m | 200704 |
Pixel Configuration | SMD1010 |
Brightness (nits) | 750 |
Scan | 1/28 |
Cabinet Resolution | 224x224 |
Power Con. (Max / Avg) | 712/238 w/sq.m |
Module Dimension | 250x250mm / 0.82x0.82ft |
Cabinet Weight | 8kg / 17.6Ib ( Die-casting Aluminum) |
Cabinet Dimension | 500x500x87mm / 1.64x1.64x0.29ft |
Service Access | Front / Rear |
Refresh Rate (HZ) | ≥3840 |
Grey Scale (bit) | 16 |
Viewing Angle (H/V) | 160 / 160 |
IP Rate | IP40 |
Input Voltage (AC) | 110V / 240V |
* Specifications and photos are subject to change without prior notice.

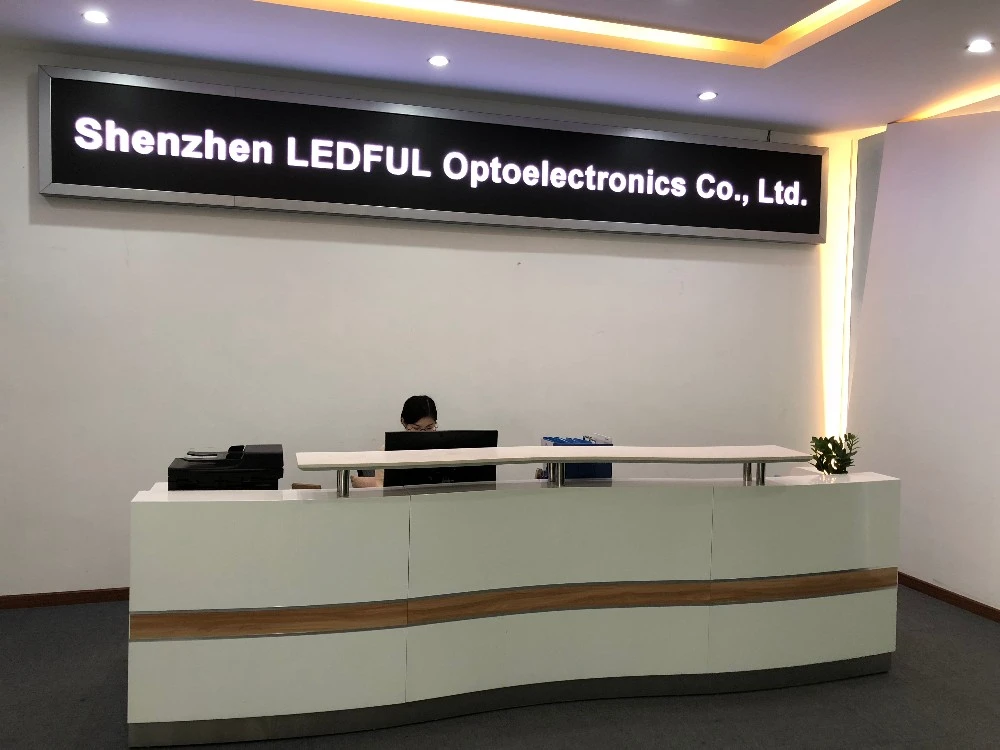

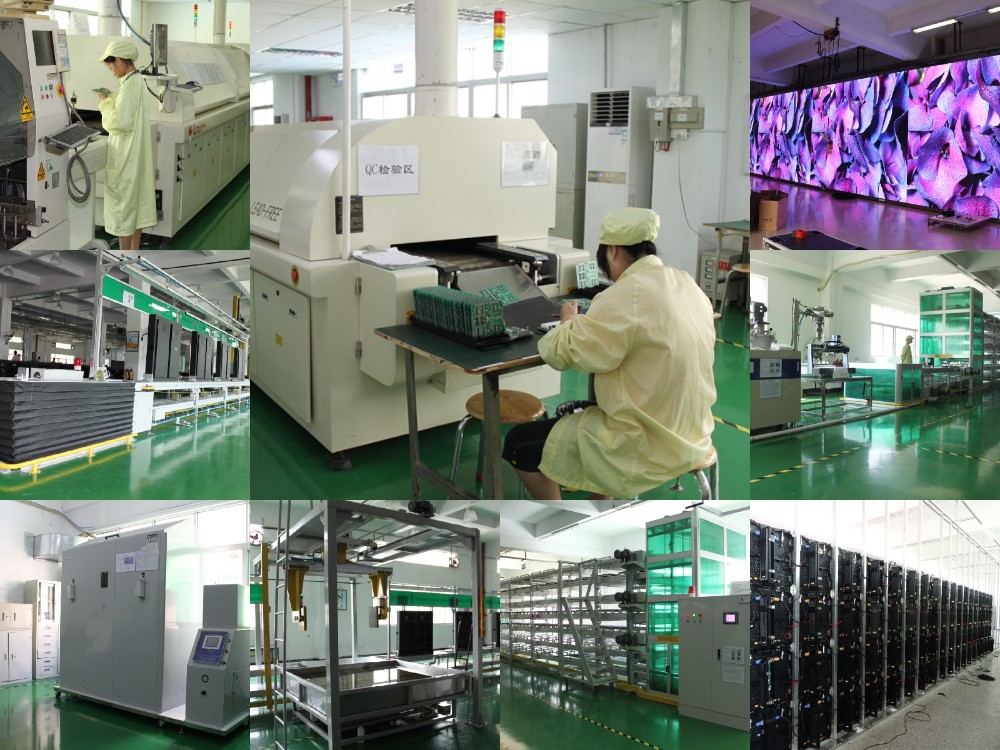

Top LED Display Manufacturer
Professional, High Efficient and Caring
Product Certificates

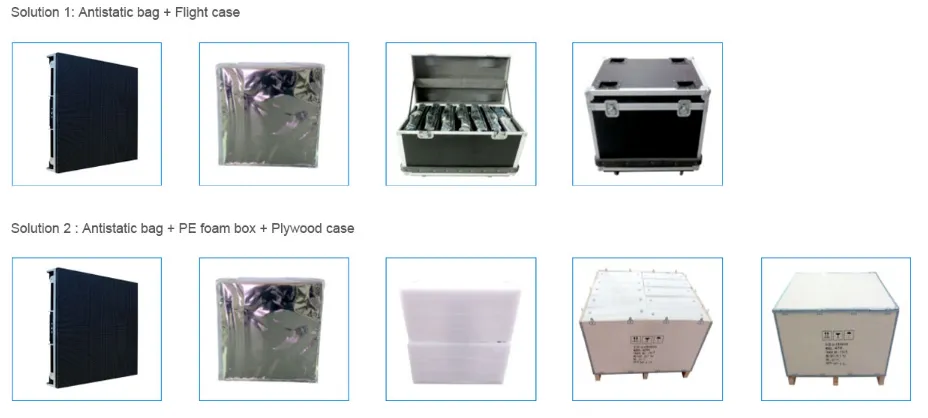

How We Protect Your LED Display?
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the
goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply free sample, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q9: What is the control system?
A: We use Nova control system.
Q10. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q11. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q12: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled
QC team with standard process to assure quality products.
