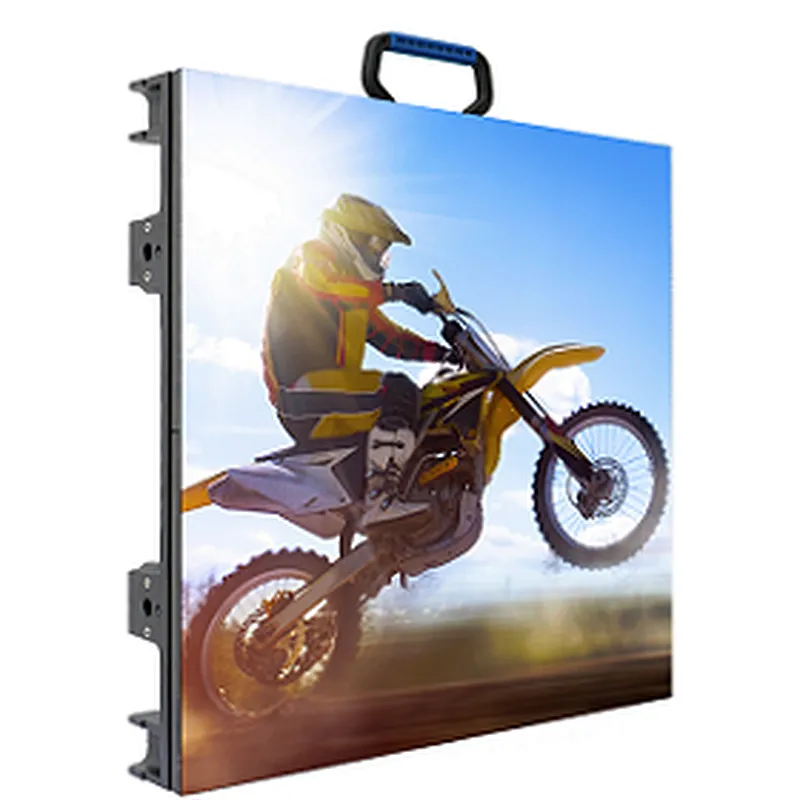

Rental P3.9 Outdoor Advertising waterproof p3 outdoor rental LED Display Screen for Events from China Manufacturer

Display Function:Video
Warranty: 3 Years:LED chip: Epistar
Certificate:CCC CE ROHS ISO
Screen Dimension:Customized
Application:Stage Rental
Control system:Linsn /Nova
Life span:100000 Hours
Cabinet material:Die-casting Aluminum
IC:ICN2038s
Input Voltage (AC):110V / 240V
Application:Rental Events
Color:Full Color
Panel Size:500x500mm
Pixel Pitch:3.9mm
Place of Origin:Guangdong, China (Mainland)
Model Number:MO3.9
Brand Name:LEDFUL

Product Description

M Series

Multi Functional Rental LED Display

MI1.9 | MI2.2 | MI2.5 | MI2.6 | MI2.8 | MI2.9 | MI3.9 | MI4.8 | MI5.9 | MO3.9 | MO4.8 | MO5.9 | MO6.9

★One for All
★Front Maintenance
★Front Installation
★Curved -7.5°~ 10°
★Climb Support
★Edge-care Design
★No Light Leakage

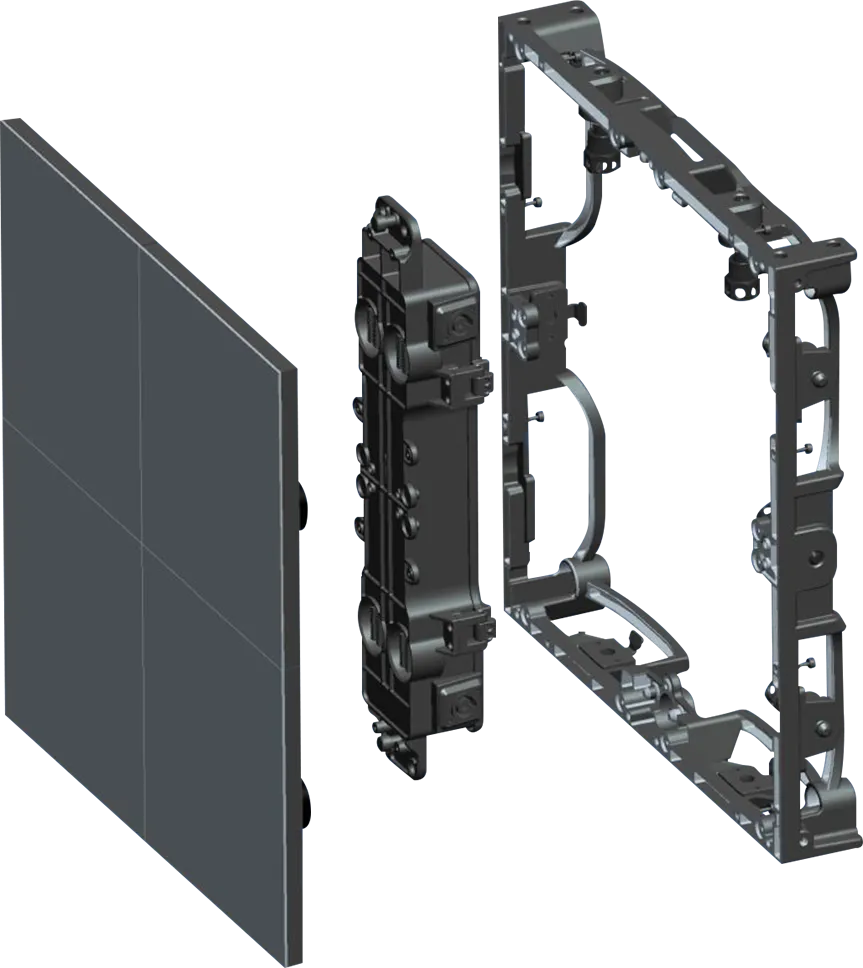

One for All

Indoor and Outdoor, P1.9 to P6.9, share the same cabinet frame, control box and accessories.

Stacking, hanging, or wall mounted, flat or curved. One (M series) for All your requirements.

Parameter
M Series Outdoor	MO 3.9	MO4.8	MO 5.9	MO 6.9
Pixel Pitch(mm)	3.91	4.81	5.95	6.94
Pixel Matrix Per Sq.m	65536	43264	28224	20736
Pixel Configuration	SMD1921	SMD2727	SMD2727	SMD3535
Brightness (nits)	5000	5500	5500	5500
Scan	1/16	1/13	1/7	1/6
Cabinet Resolution	240x240	192x192	160x160	120x120
Rotation Angle	-2° and +5°	-2° and +8°	-10° and +10°	-10° and +10°
Power Con. (Max / Avg)	720/240 w/sq.m	744/248 w/sq.m	640/213 w/sq.m	624/208 w/sq.m
Module Dimension	250x250mm / 0.82x0.82ft
Cabinet Weight	8kg / 17.6Ib ( Die-casting Aluminum)
Cabinet Dimension	500x500x87mm / 1.64x1.64x0.29ft
Service Access	Front / Rear
Refresh Rate (HZ)	≥3840
Grey Scale (bit)	16
Viewing Angle (H/V)	160 / 160
IP Rate	IP65
Input Voltage (AC)	110V / 240V

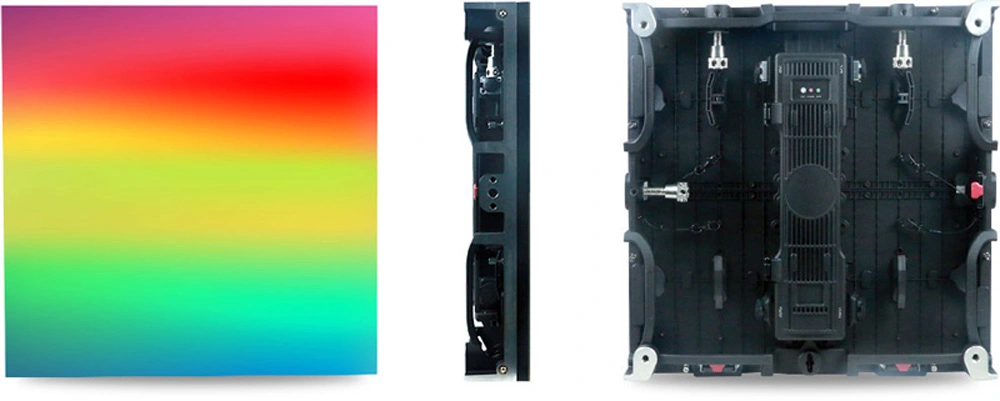

Products Show

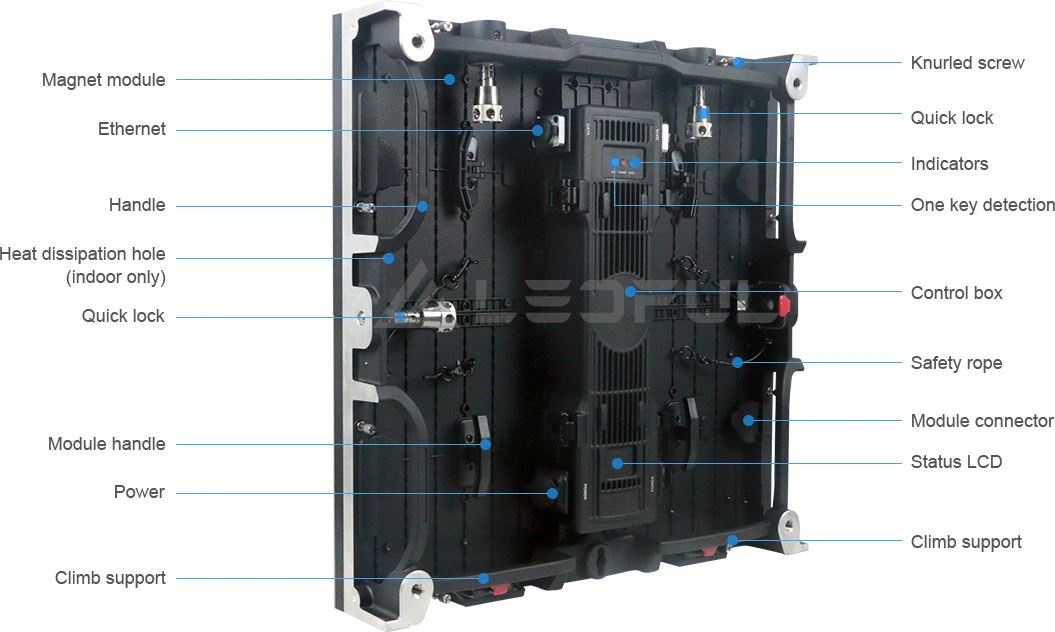

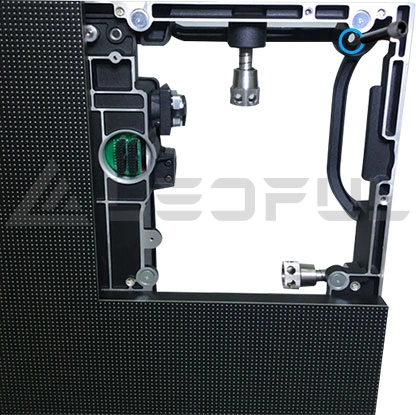

Full Front Maintenance

Not only module front service, but also power supply, receiver card, hub, etc.

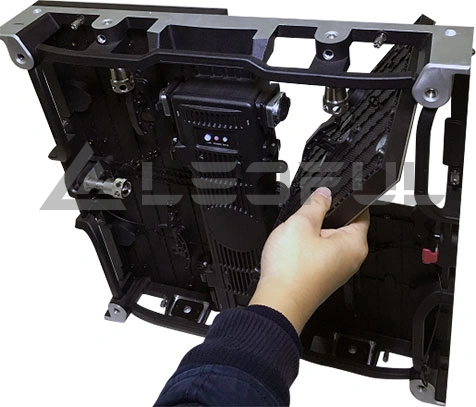

Remove the LED modules without disconnect cables

it will save a lot of time in the show.

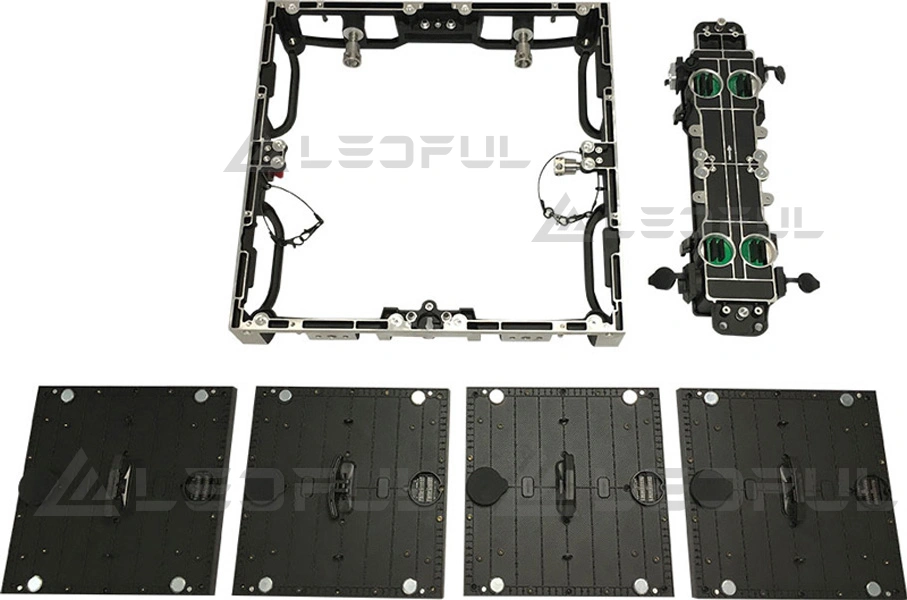

Disassemble modules by front maintenance tool

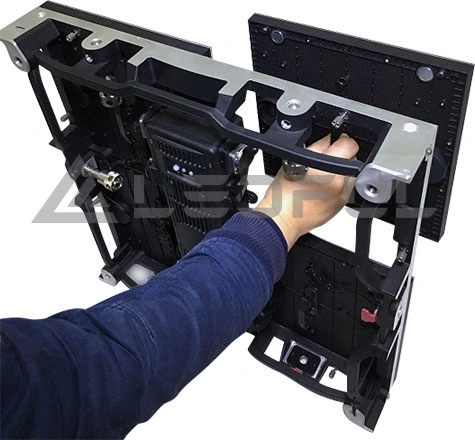

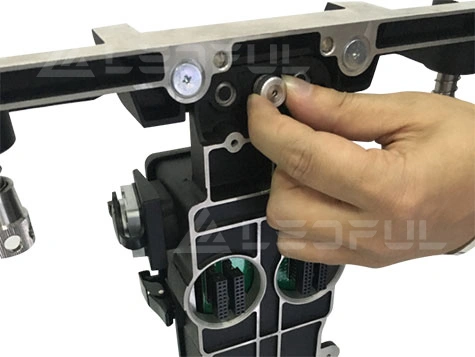

Loose set screw to disassemble complete control box

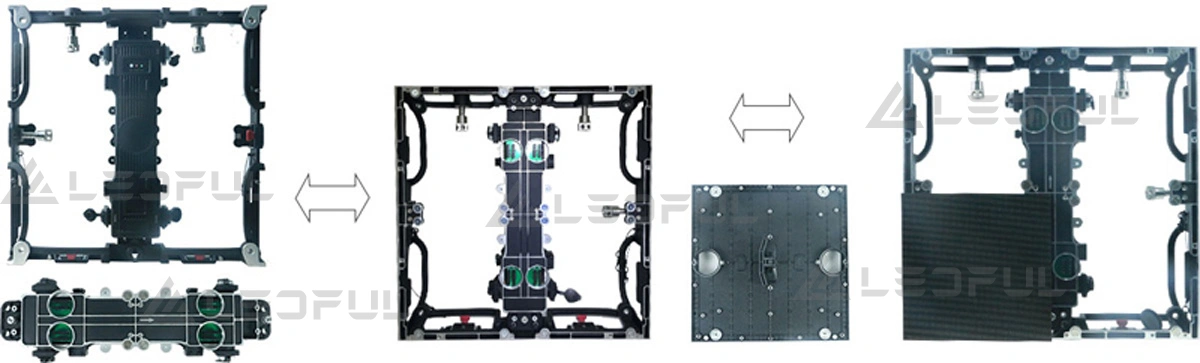

How to Set Safety Stock & Save Material Cost?

Different LED display pixel pitch match the same cabinet frame,

control box, power supply, data and power cable, flight casepacking, etc.

So you only need buy different pixel pitch modules to upgrade your screen resolution.

Saving Shipping Cost & Tax Cost

LED modules weight and volume is much lower than cabinet. So it will save shipping cost and tax cost.

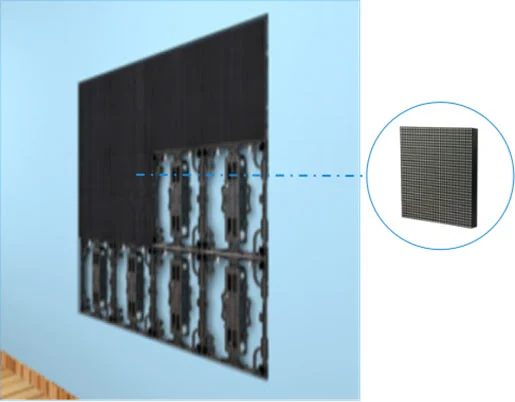

Wall Mounted for Fixed Installation

Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall.

Assembly modules onto the cabinet.

Each corner of cabinet has a screw hole,

screw the M8 bolts to fix bare cabinets on the wall.

Assemble modules onto the cabinet in order.

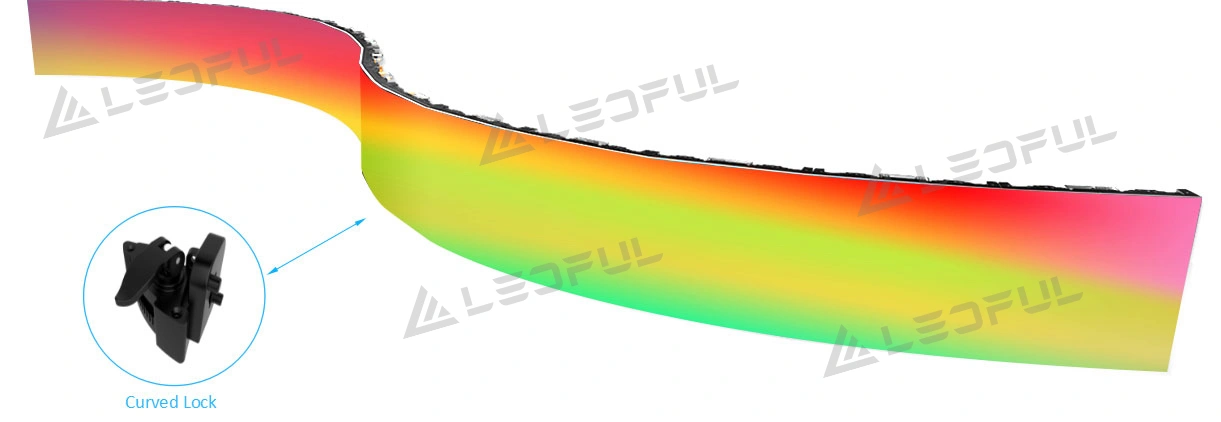

Curved Installation

Curved with every 2.5°between -7.5°and 10°, which can make convex and concave.

Climbing Support

Climbing structure can help you make convenient maintenance

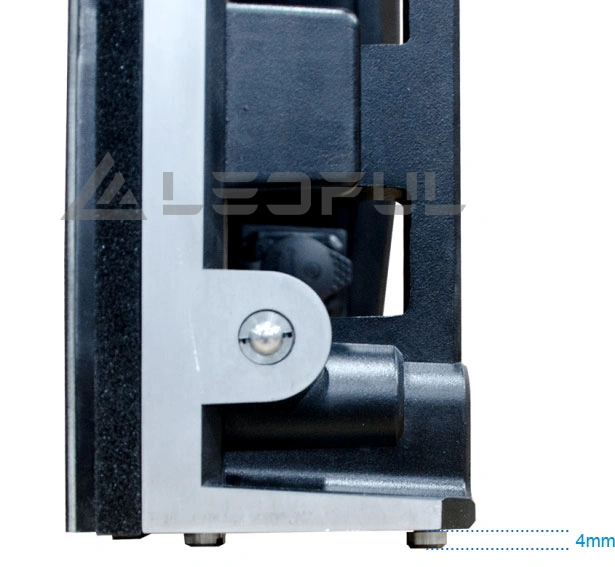

Edge-care Design

4mm stands at the bottom of cabinet, prevent edge pixels damage when put cabinet upright on the ground.

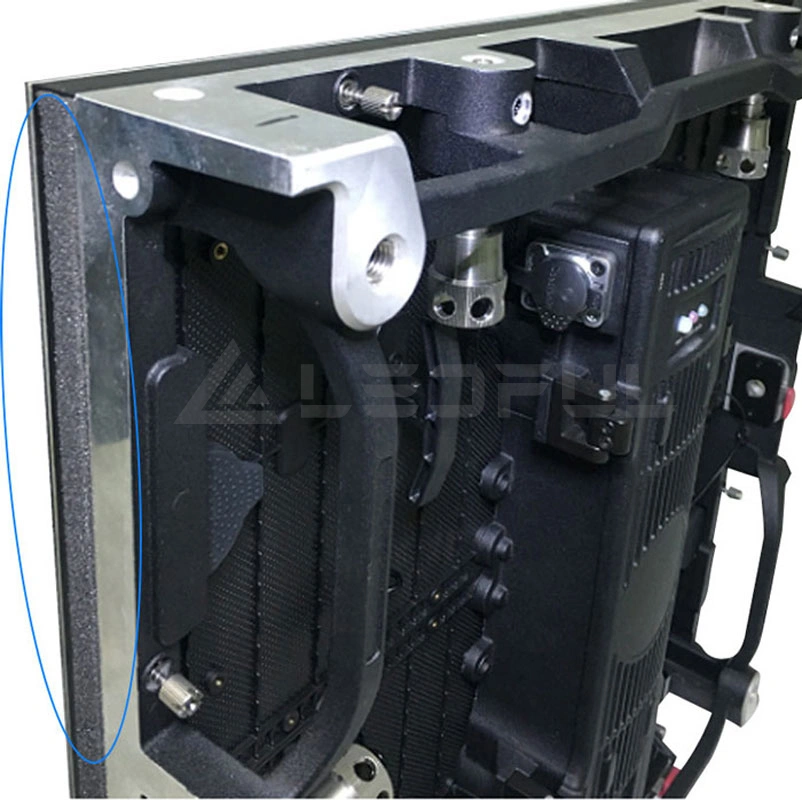

No Light Leakage Trouble

No light leakage design with specific strips on side of cabinet and behind neighbour module.

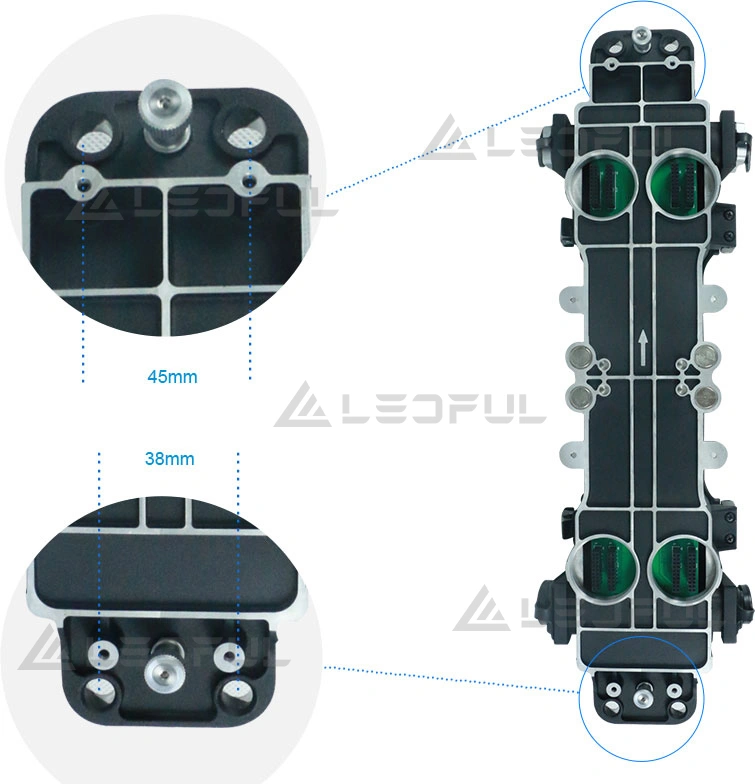

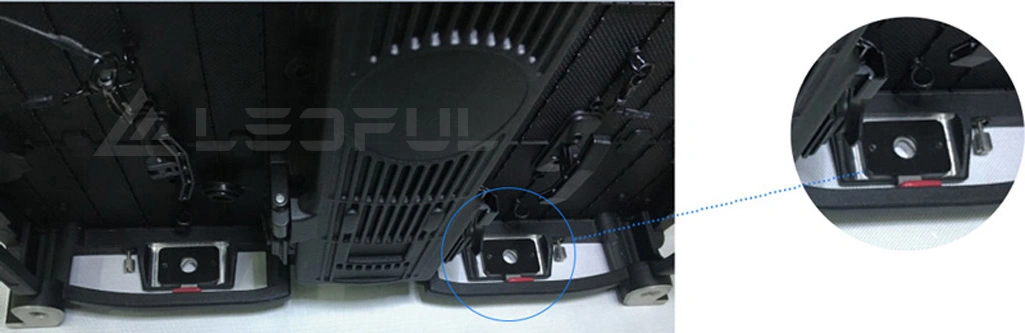

Say NO to Reversed Mounting

Different spacing of location pins on up and down sides of control box.

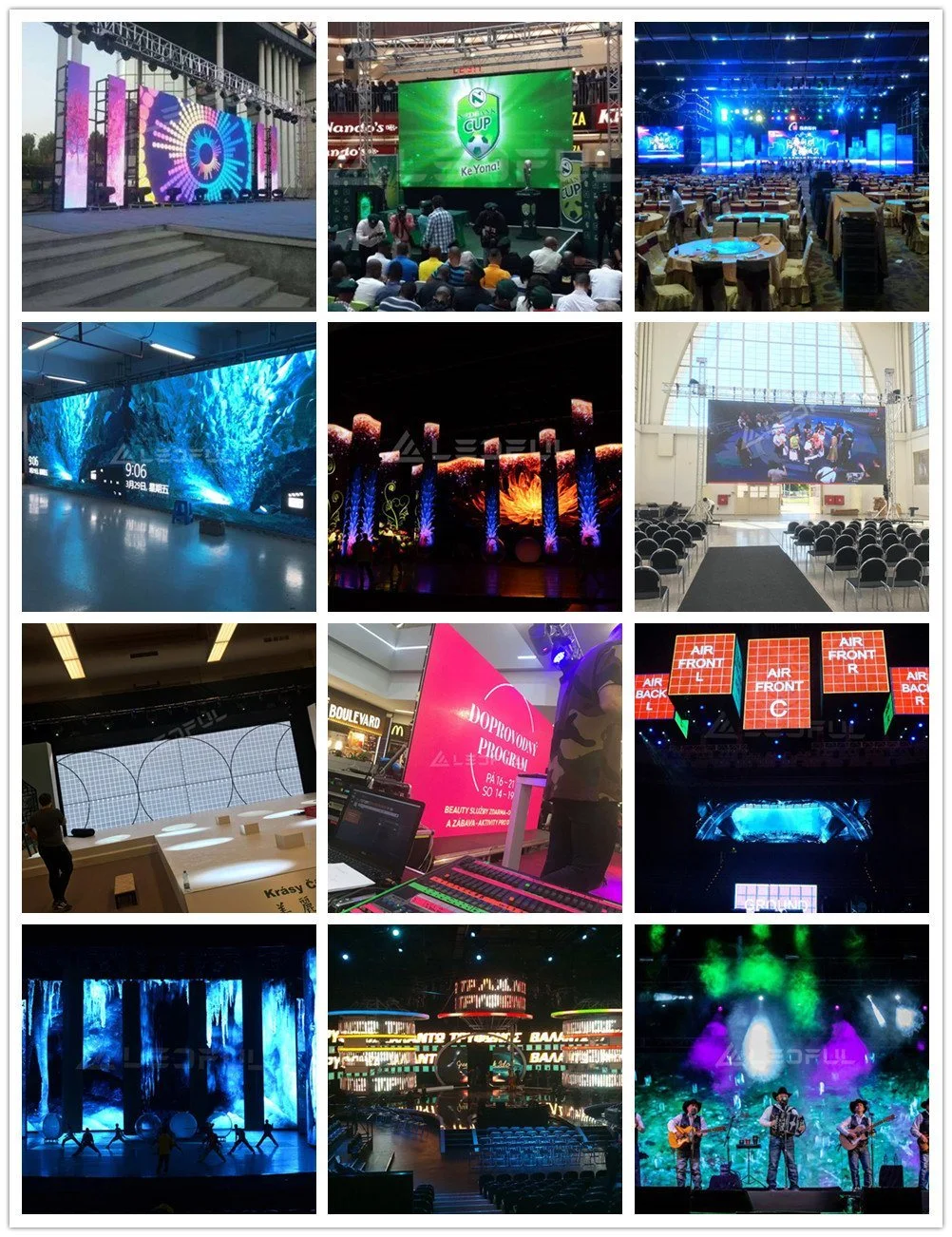

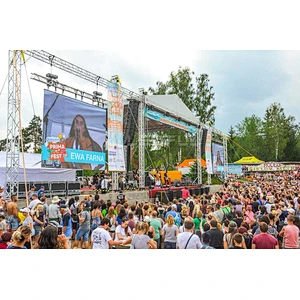

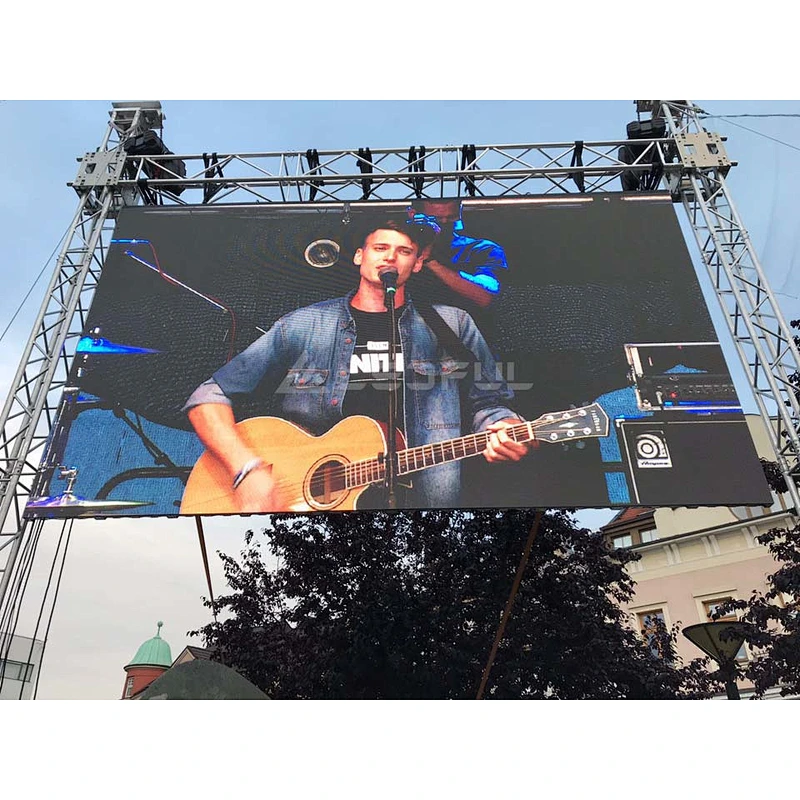

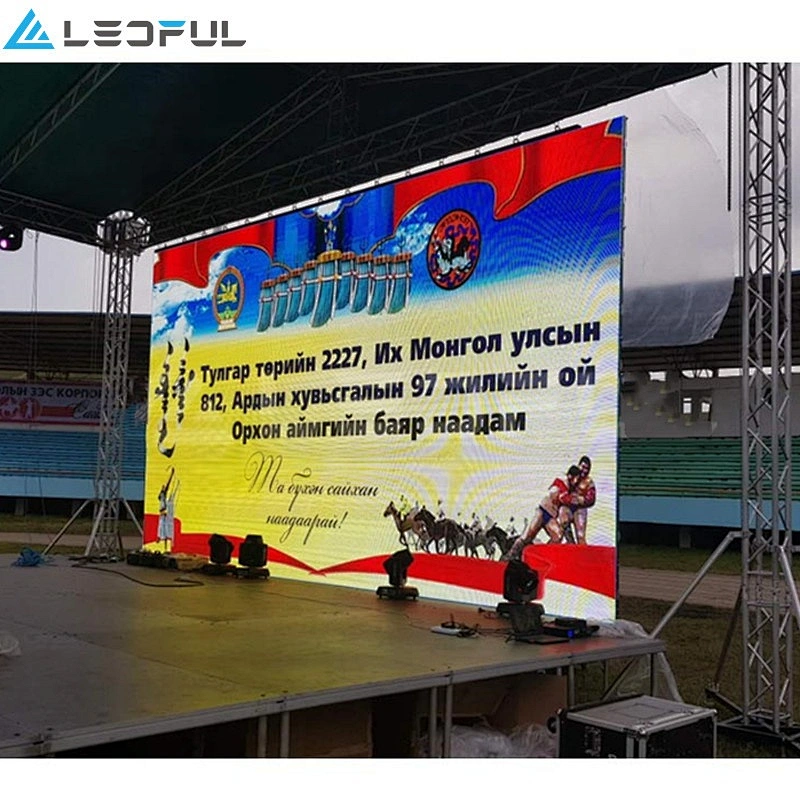

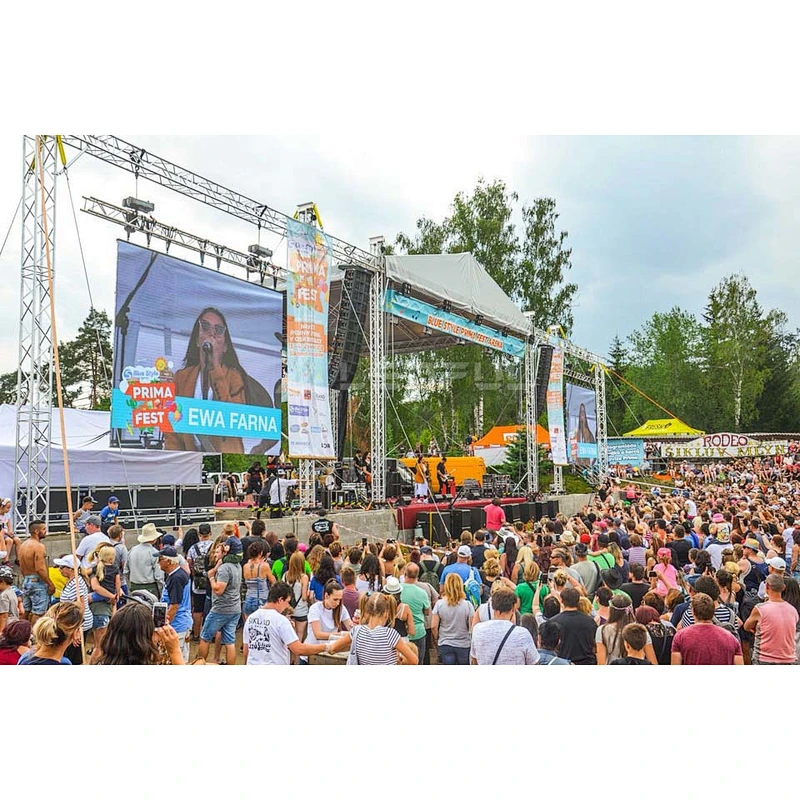

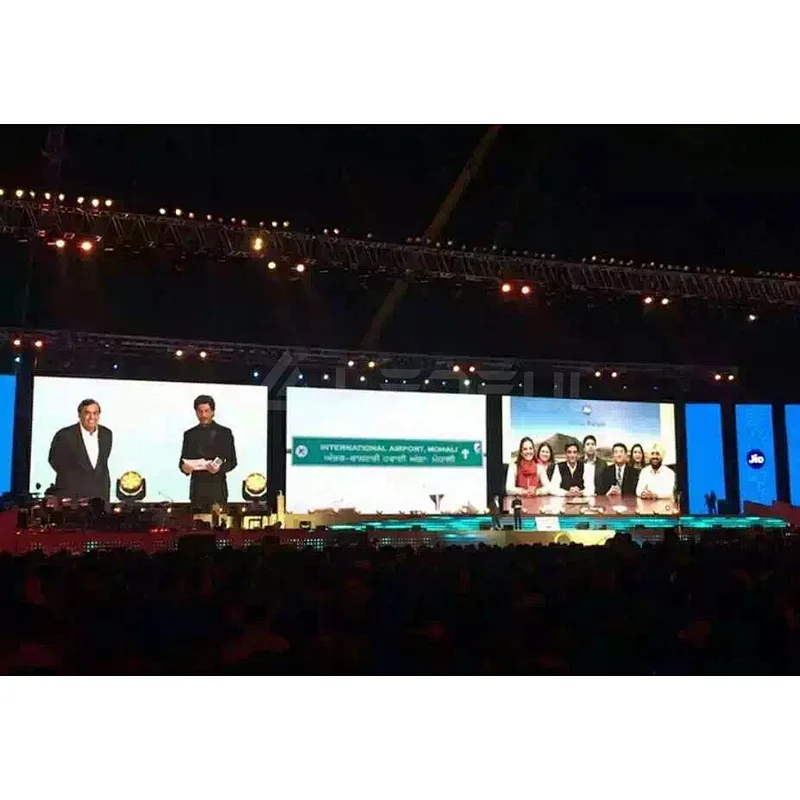

Applications

Rental applications such as live concert,shows,event, exhibitions,TV station,live broadcasting and theme parks and football matches.
