- Front Installation
- Full Front Service
- Black SMD LED
- Die Casting Aluminum

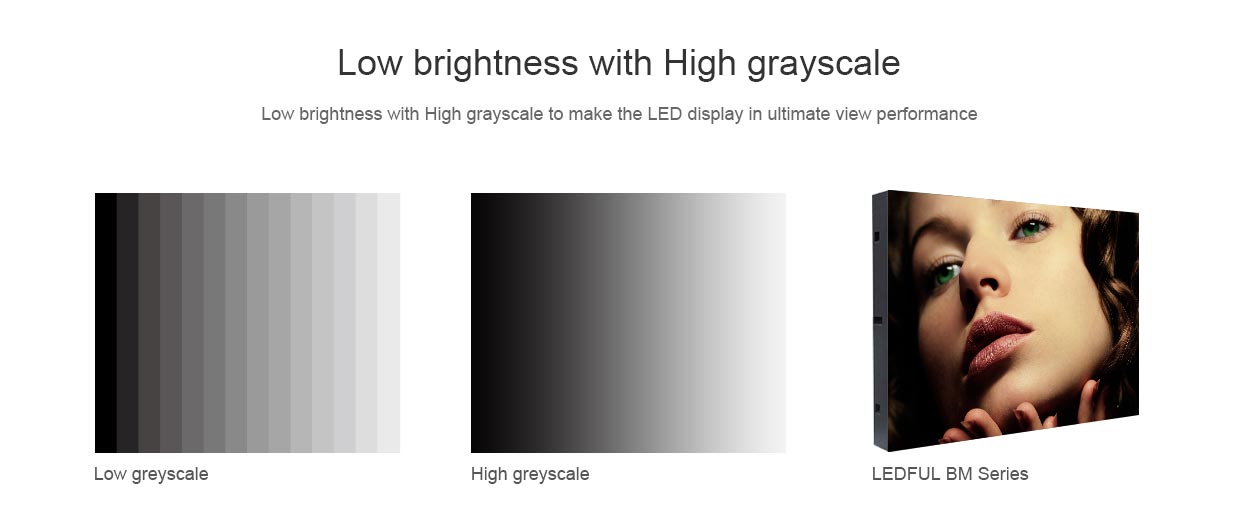

- High Grayscale
- High Refresh
- Light and Thin
- Pixel Pitch(mm):2.5
- Item:Led Display Wall
- Color:Full-color
- Certificate:CE ROHS FCC
- Brightness:1000nits
- Warranty:3 years

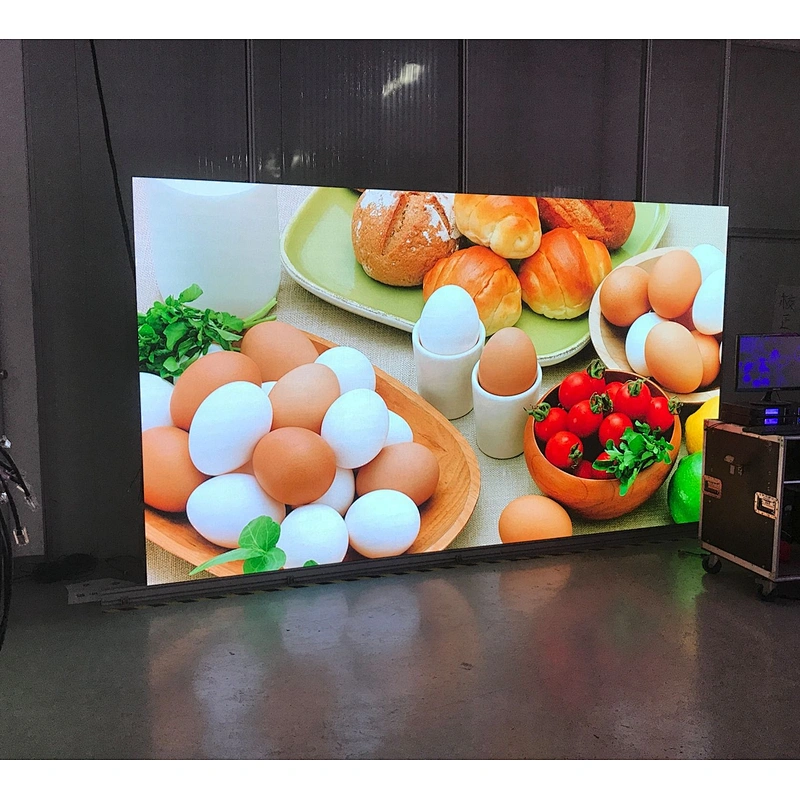

- Product name:LED Video Display Panel
- Module size:320*160 mm
- Service Access:Full Front
- Place of Origin:CN;GUA
- Application:Indoor HD 4K advertising screens
- Color:FULLCOLOR
- Panel Size:640x480mm
- Pixel Pitch:2.5
- Model Number:BM2.5
- Brand Name:LEDFUL
Product Description
BM Series
·Fine Pitch·Wall Mounted·Front Installation·Full Front Service LED display
BM1.6 | BM1.8 | BM2 | BM2.5 | BM3 | BM4

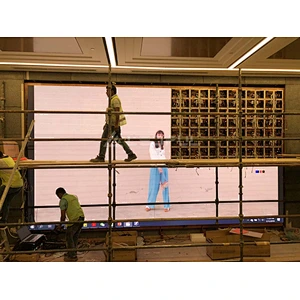

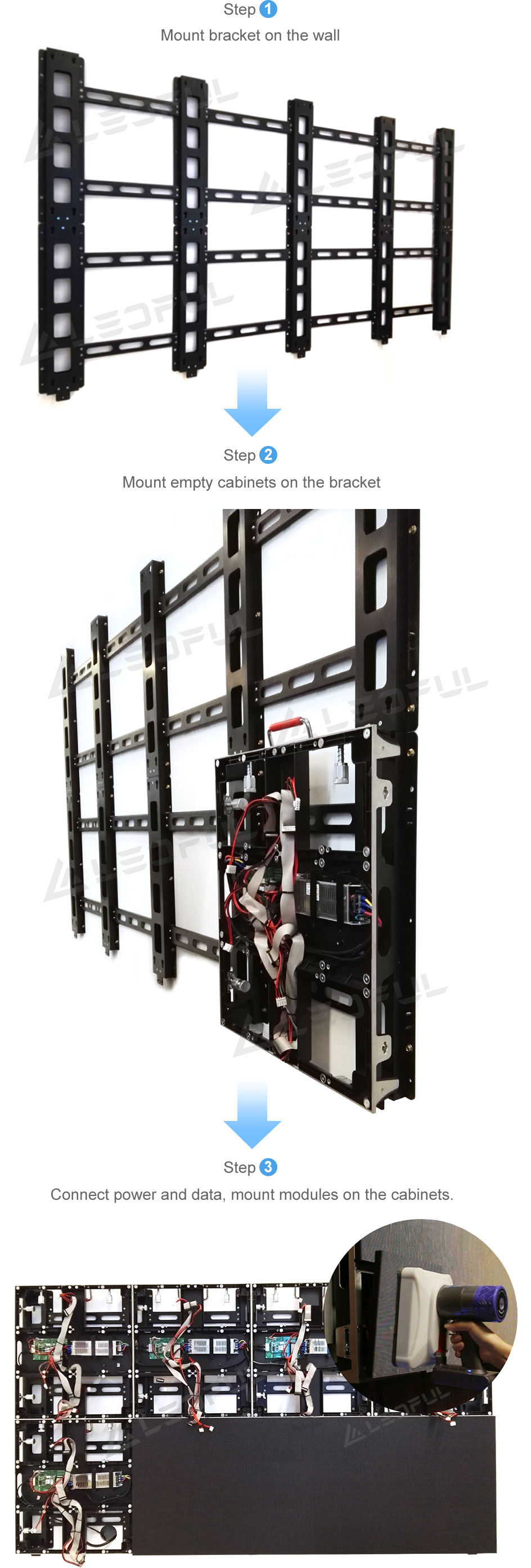

How to install LED cabinets in front side?

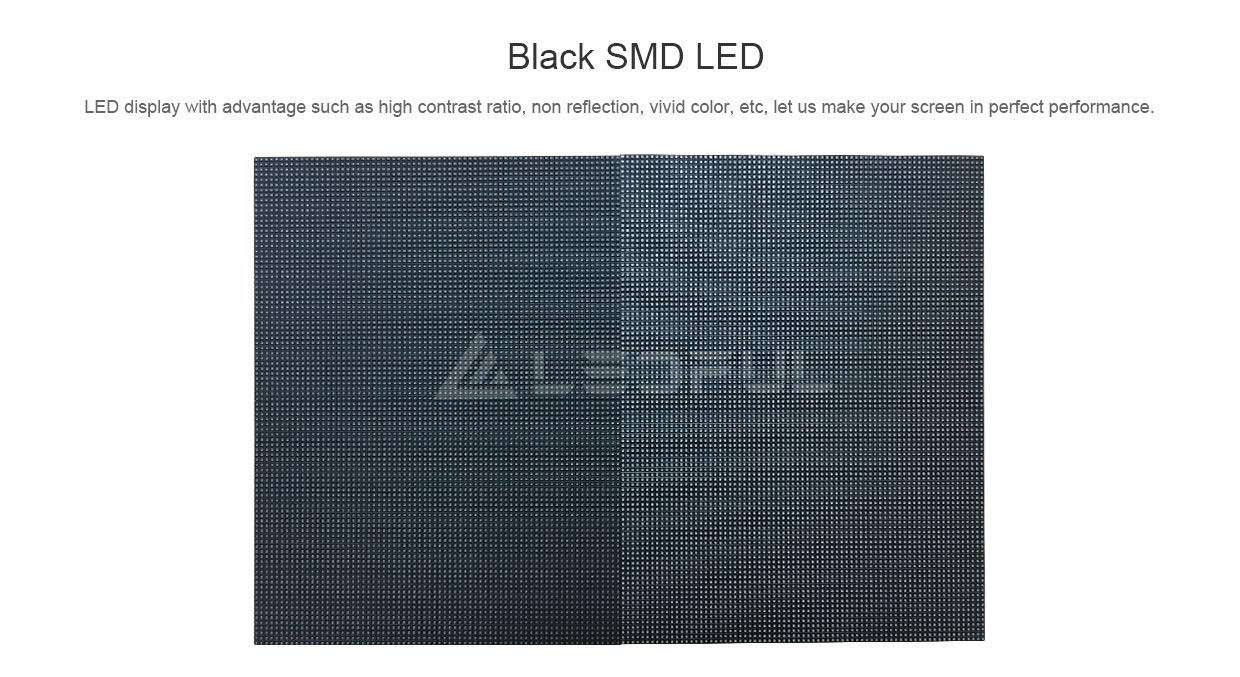

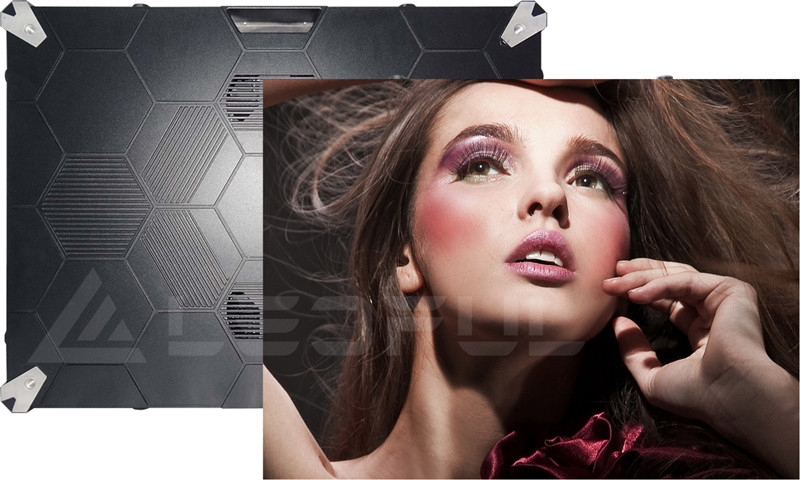

Black SMD LED
LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.

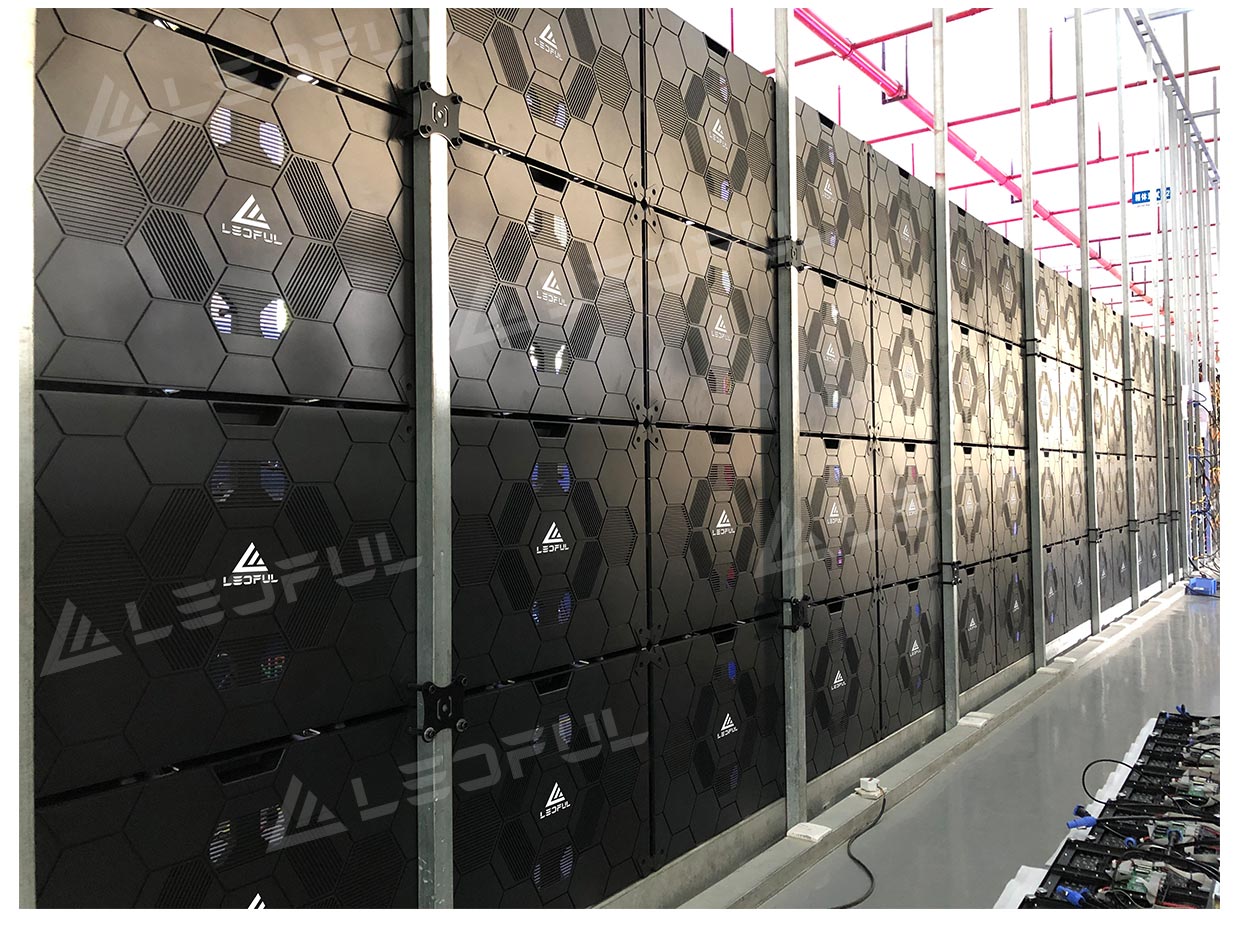

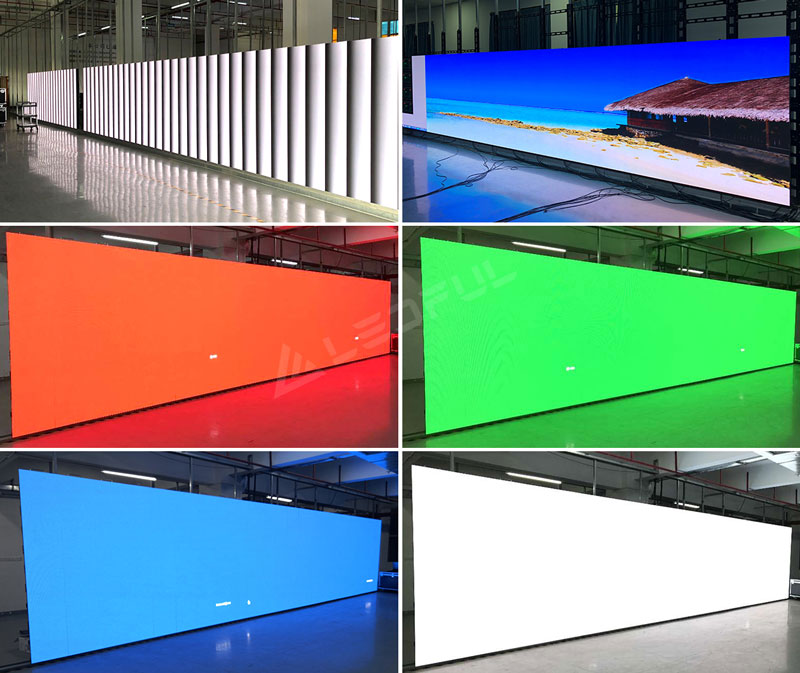

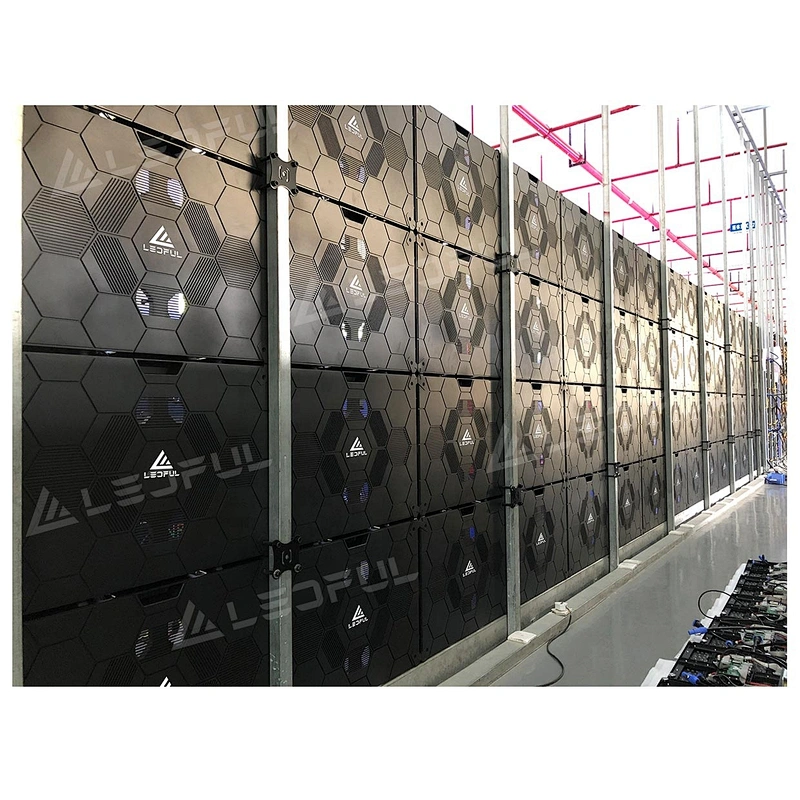

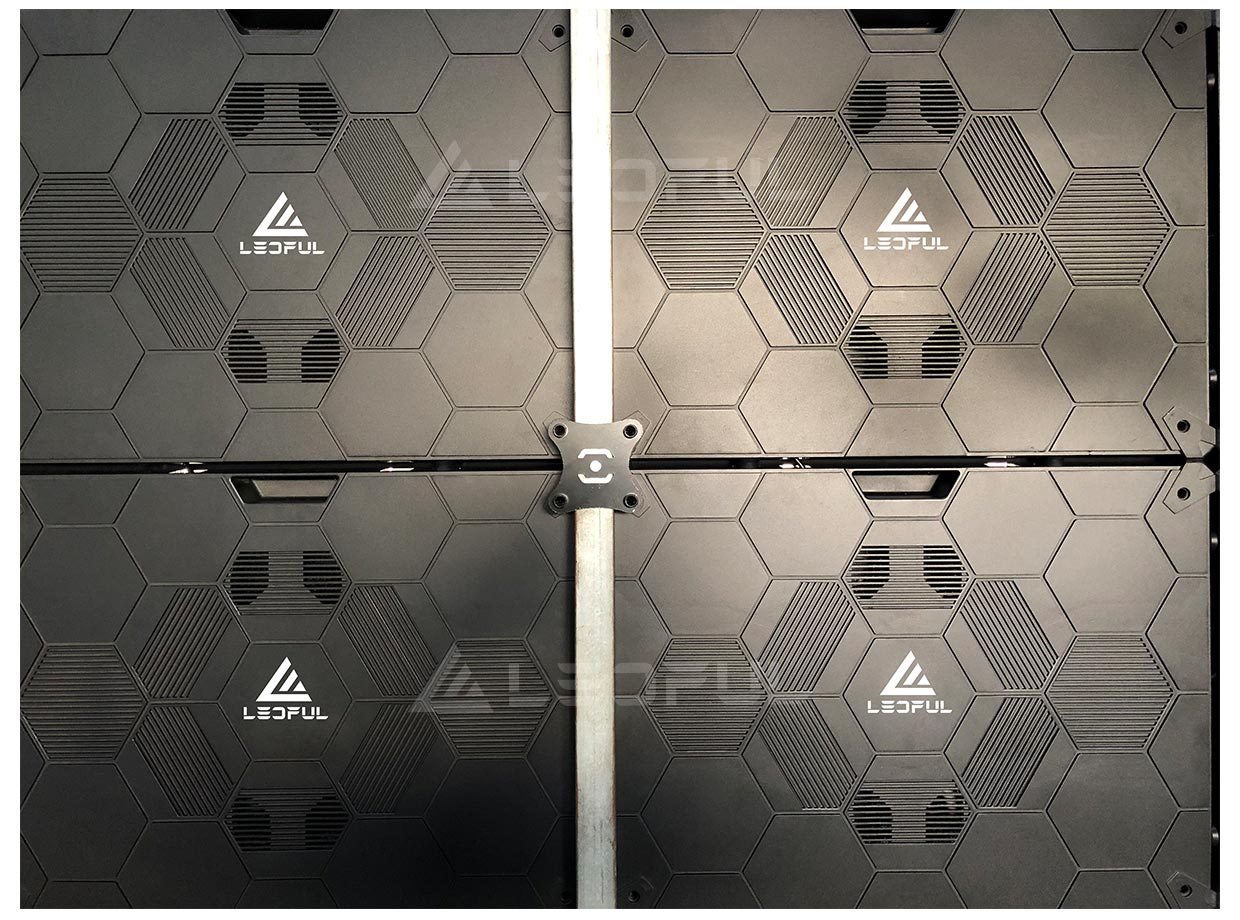

Back view and aging photos
LEDFUL design the CAD drawing on how to fix up the LED display forfree and some other expert suggestion. We will send our engineers to your place if we are expected after our negotiation.

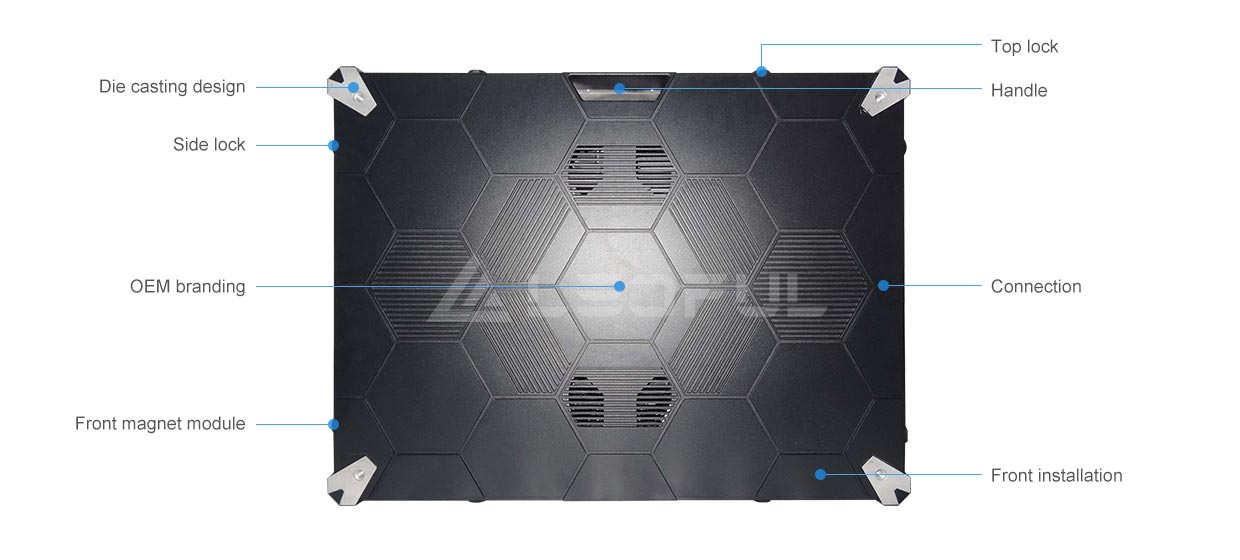

Details Images
Value | BM1.6 | BM1.8 | BM2 | BM2.5 | BM3 | BM4 | |||||
Pixel Pitch(mm) | 1.667 | 1.86 | 2 | 2.5 | 3.33 | 4 | |||||
Pixel Matrix Per Sq.m | 360,000 | 288,888 | 250,000 | 160,000 | 90,000 | 62,500 | |||||
Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | |||||
Brightness (nits) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |||||
Scan | 1/48 | 1/43 | 1/40 | 1/32 | 1/24 | 1/20 | |||||
Cabinet Resolution | 384x288 | 344x258 | 320x240 | 256X192 | 192X144 | 160X120 | |||||
Power Con. (Max / Avg) | 500/150 w/sq.m | ||||||||||
Module Dimension | 320x160mm / 1.06x0.53ft | ||||||||||
Cabinet Weight | 9kg / 19.84Ib ( Die-casting Aluminum) | ||||||||||
Cabinet Dimension | 640x480mm / 2.1x1.57ft | ||||||||||
Service Access | Full Front | ||||||||||
Refresh Rate (HZ) | ≥3840 | ||||||||||
Grey Scale (bit) | 16 | ||||||||||
Viewing Angle (H/V) | 160 / 160 | ||||||||||
IP Rate | IP41 | ||||||||||
Input Voltage (AC) | 110V / 240V | ||||||||||

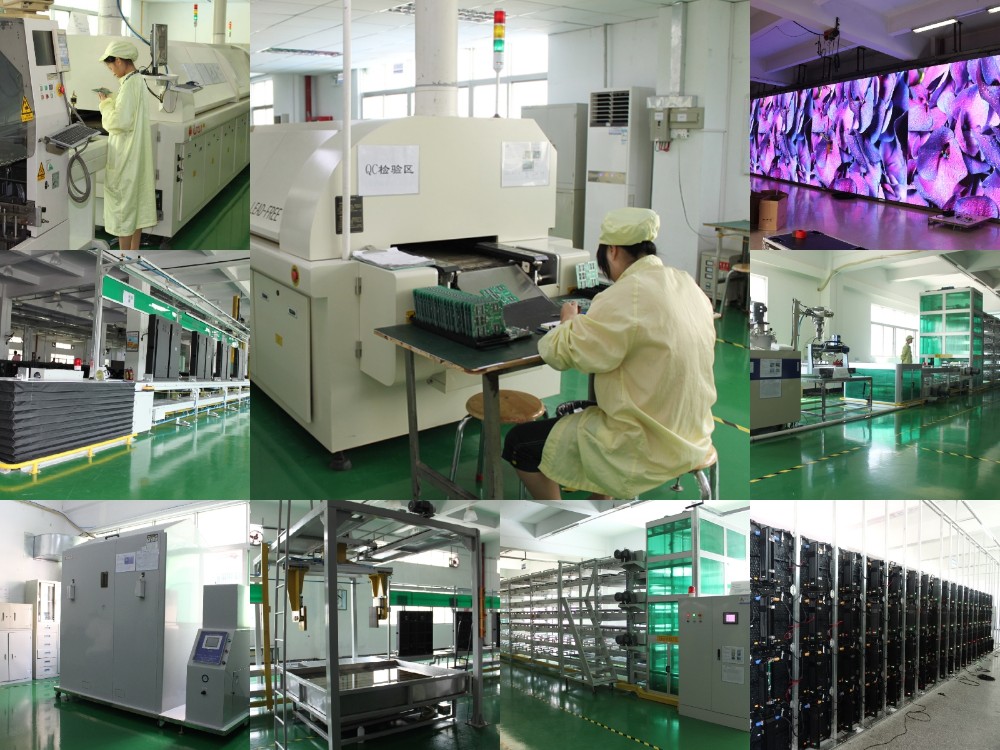

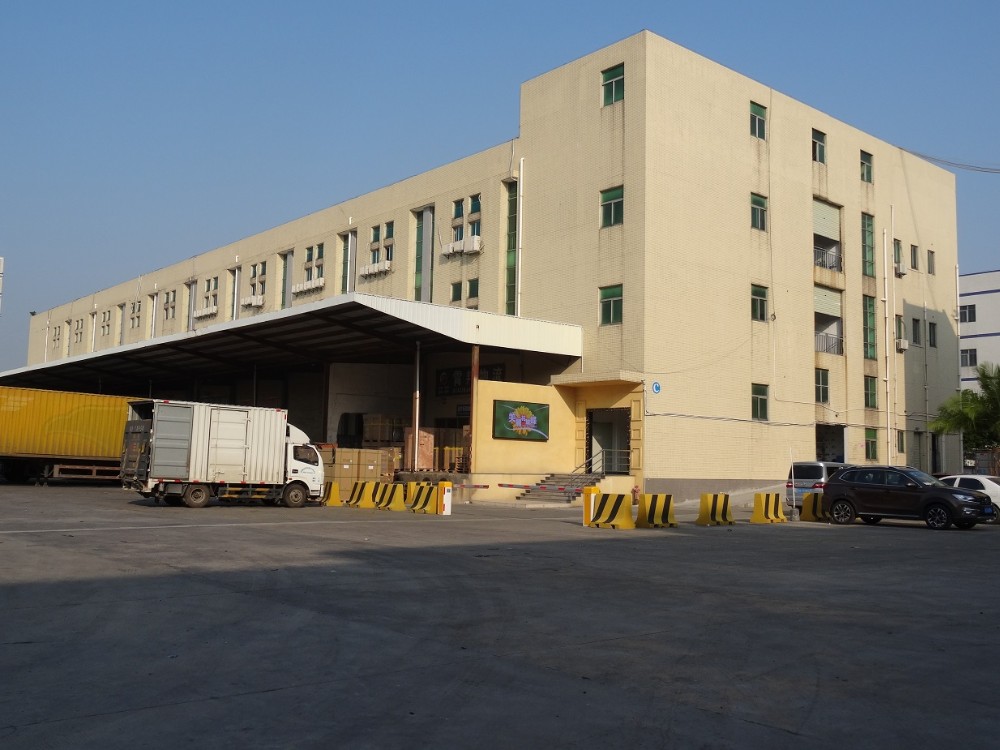

Company Profile
Top LED Display Manufacturer
1.One-stop solution provider
2.More designs and more solutions Wireless control, 4G, Wifi, Cluster control

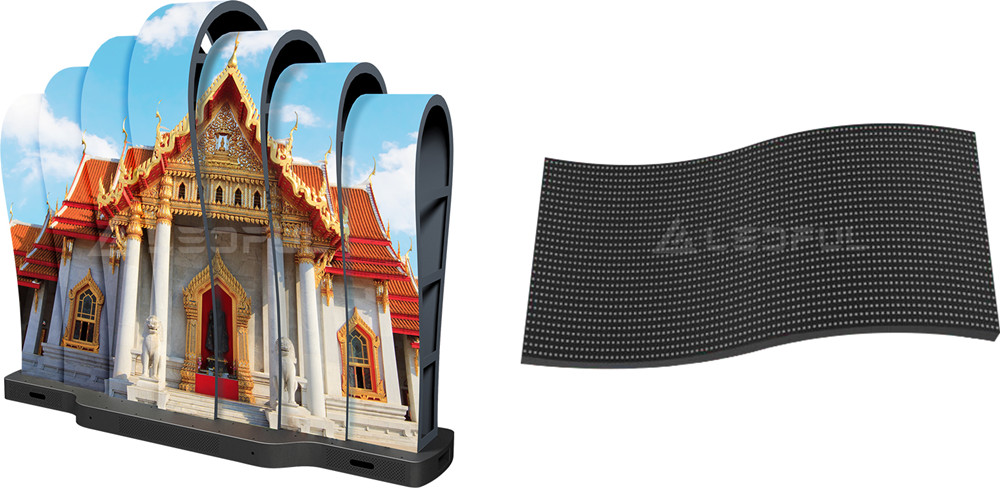

3.Truss hanging,stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round,sphere, cubic, customized Focus on the improvement LED cabinets
4.High efficient and enthusiastic team to make reliable LED display
2.More designs and more solutions Wireless control, 4G, Wifi, Cluster control
3.Truss hanging,stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round,sphere, cubic, customized Focus on the improvement LED cabinets
4.High efficient and enthusiastic team to make reliable LED display
Professional High Efficient
1.Deep Customized & OEM Listen to you, think more for you.
2.Reasonable price Clear cost initially to save your time and money.
3.Provide with innovative and satisfying products.
4.Excellent product quality, quick and professional services.
5.Always ready for your any change on LED display details.
6.Recommend the best proper solution for your LED project.
7.Catch things what you missed before LED display production.
3.Provide with innovative and satisfying products.
4.Excellent product quality, quick and professional services.
5.Always ready for your any change on LED display details.
6.Recommend the best proper solution for your LED project.
7.Catch things what you missed before LED display production.
8.Take good care of each detail for your products,packages,shipping.
Certifications
Recommend Products
Our Advantages
FAQ
Q1. Are you trading company or manufacturer?
A: We are led display manufacturer
Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4:Minimum distance of the audience? (Viewing distance)
A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more , P10/12/16/20/25: From 10/12/16/20/25 meter and more.This very important option
determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.
Q5. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q6. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: What is the control system?
A: We use Nova control system.
Q9: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
