- Usage:OUTDOOR
- Pixels:6mm

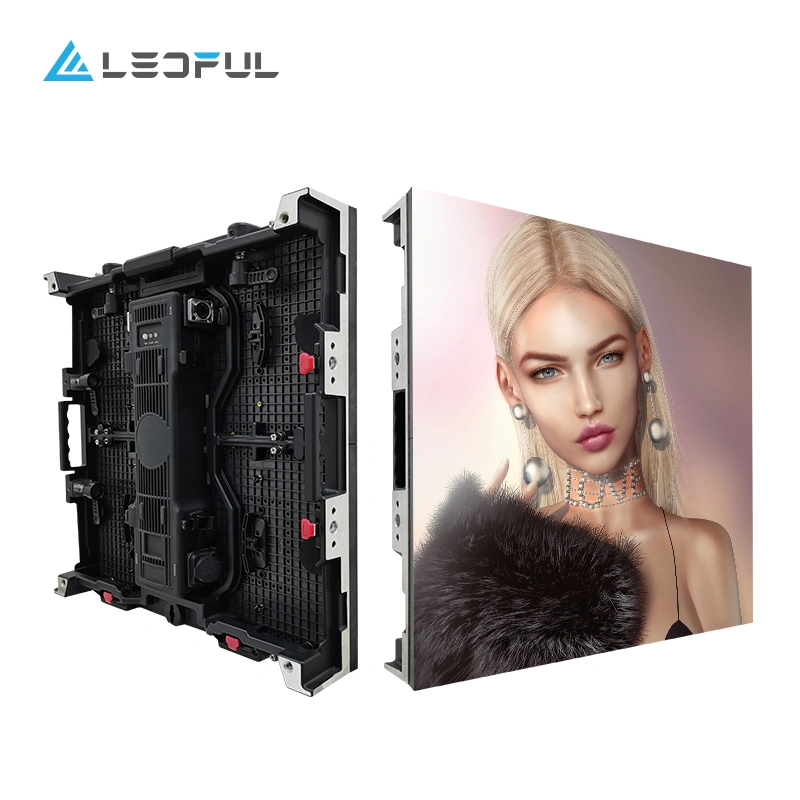

- Product name:Led Video Display Panel
- Certificate:CE ROHS FCC
- Module size:192*192mm
- Brightness:6500cd/sqm
- Cabinet size:960*960mm
- Refresh rate:1920Hz
- Viewing angle:H160/V160
- Place of Origin:CN;GUA
- Application:advertising
- Color:fullcolor
- Panel Size:960*960
- Pixel Pitch:6
- Model Number:OF6
- Brand Name:LEDFUL
Product Description

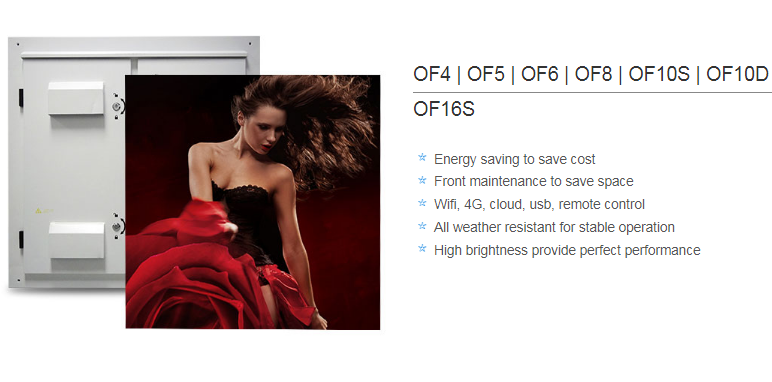

---OFSeries
.Hot Sale Customized Outdoor P6 LED Advertising Videowall Screen Display
How can we make Energy Saving LED display 30%?
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency

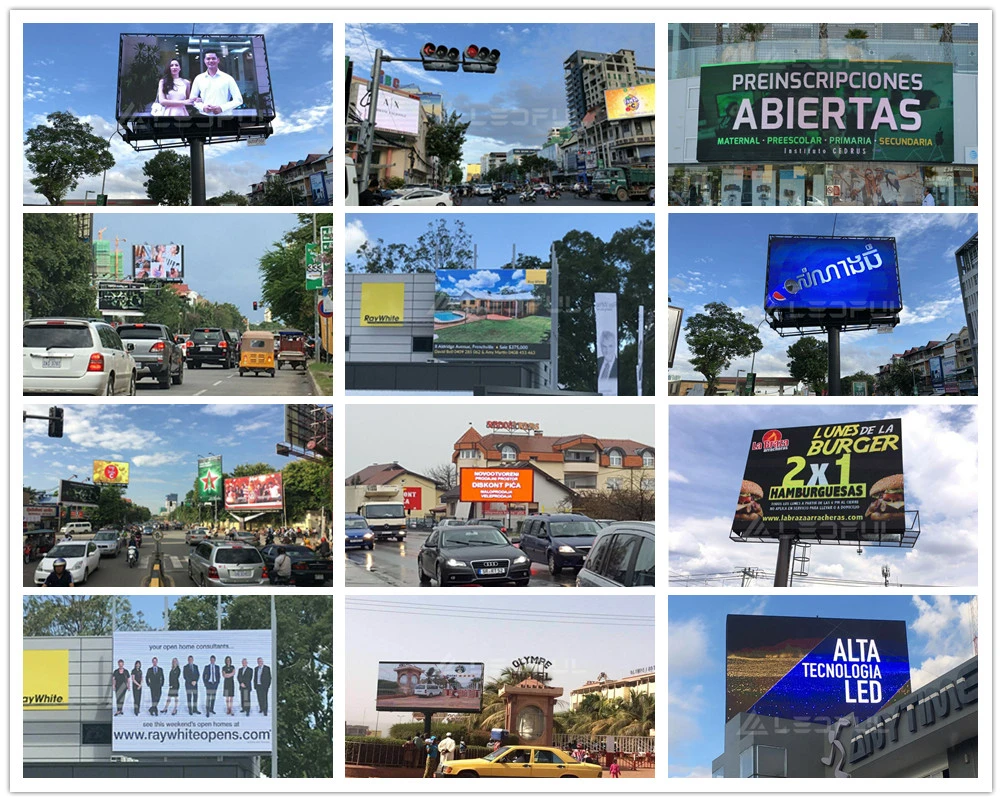

Where is LED display installed?

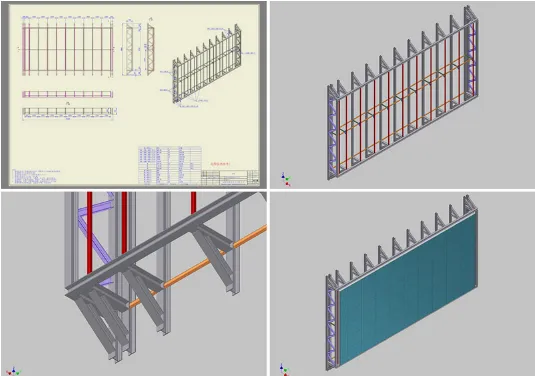

LEDFUL provide structure frame design drawing and installation suggestions.

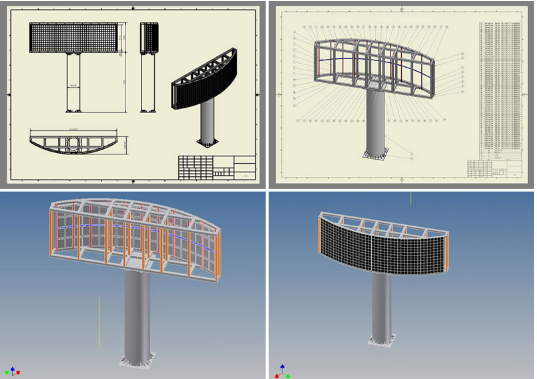

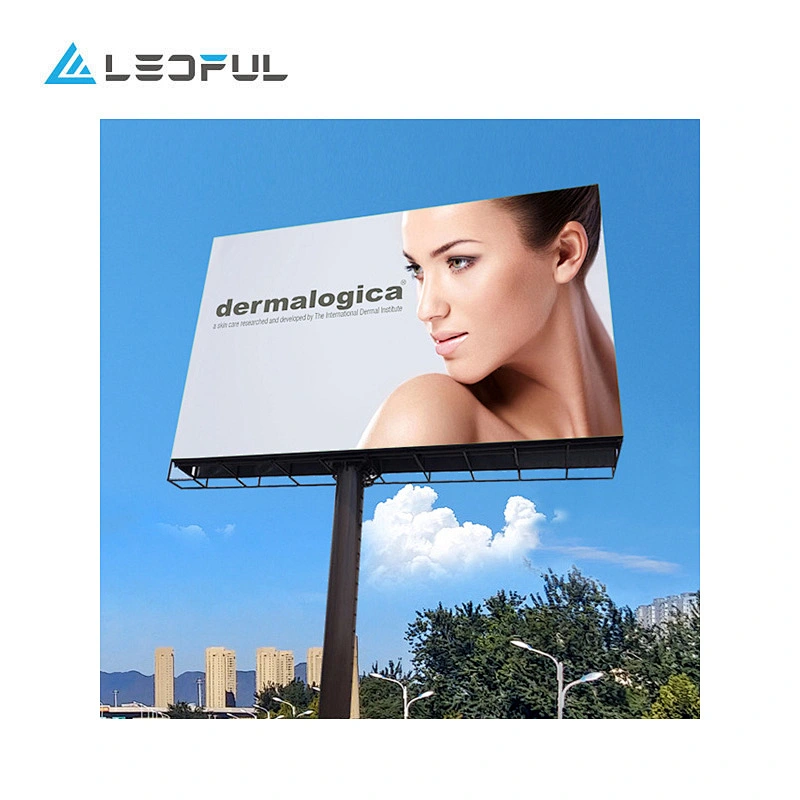

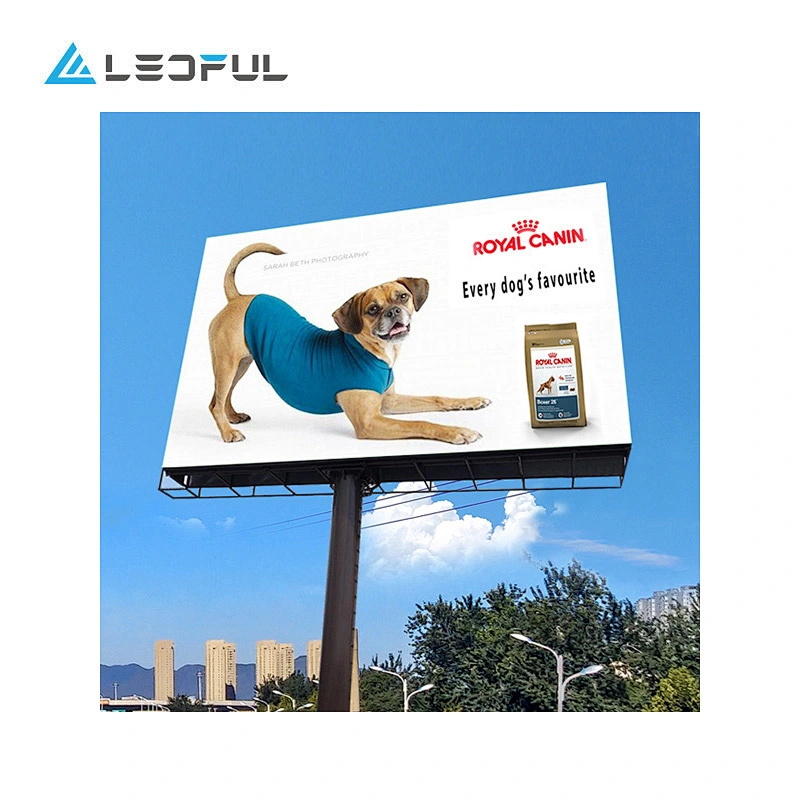

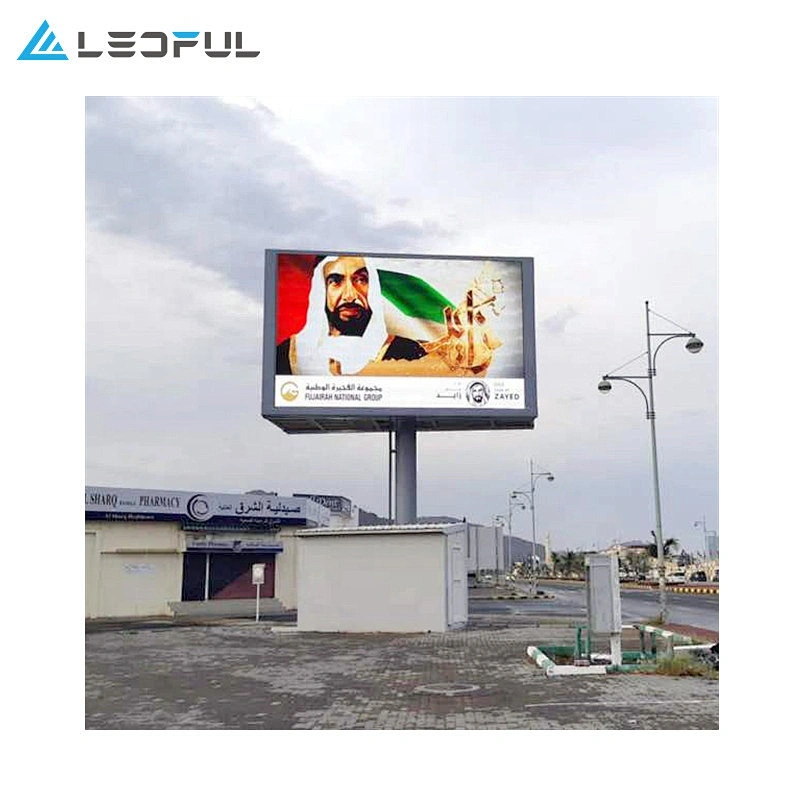

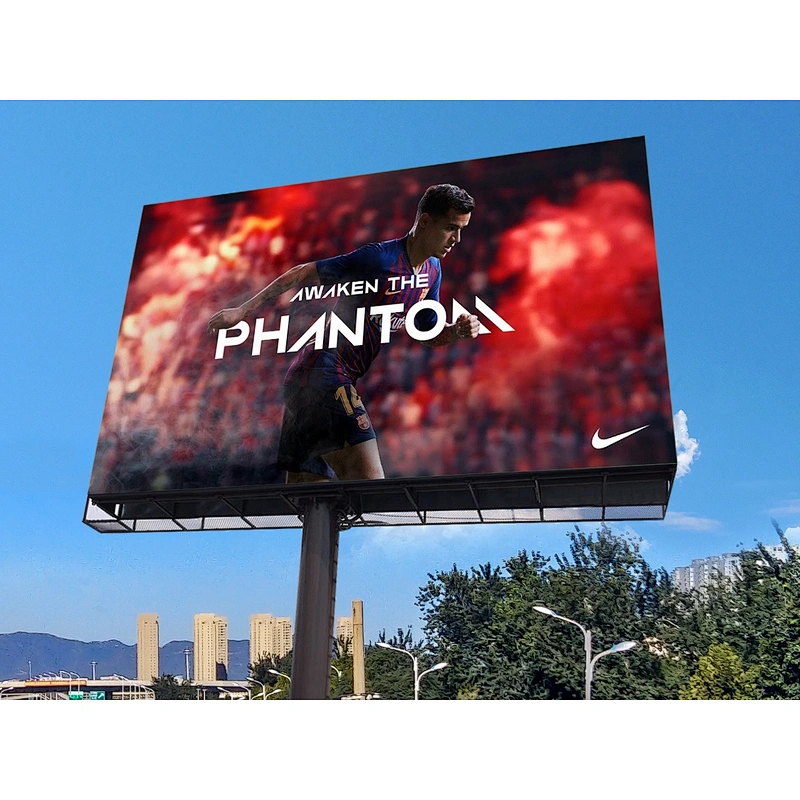

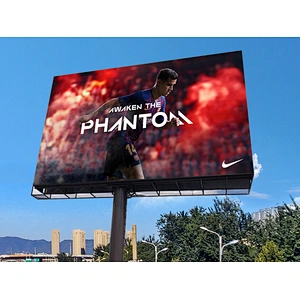

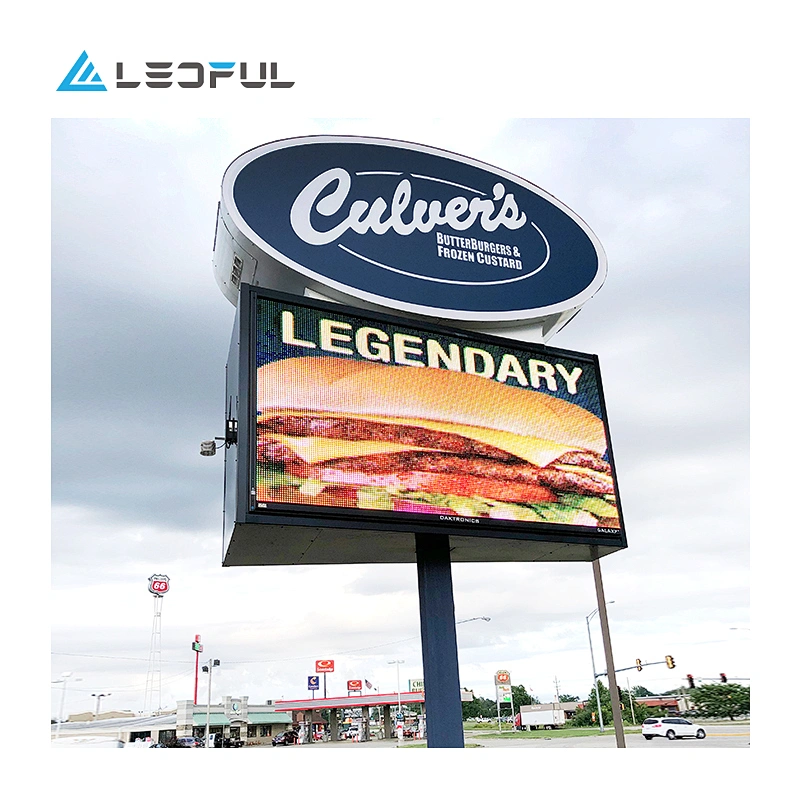

Pillar / Pole LED display

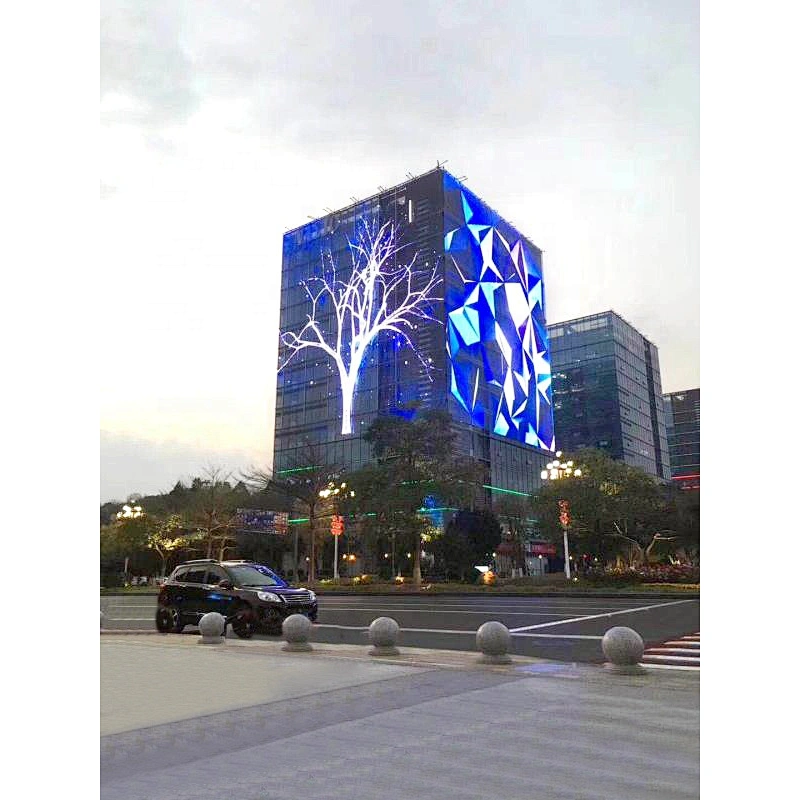

Wall mounted LED display

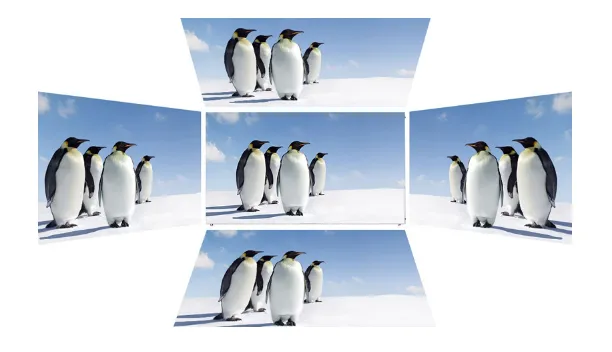

SMD Performance and View Angle
Better contrast ratio and viewing performance Wide viewing angle increasing its value by covering more viewing
Parameter
Value | OF4 | OF5 | OF6 | OF8 | OF10S | OF16S | |||||
Pixel Pitch(mm) | 4 | 5 | 6 | 8 | 10 | 16 | |||||
Pixel Matrix Per Sq.m | 62500 | 40000 | 27777 | 15625 | 10000 | 3906 | |||||
Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 | |||||
Brightness (nits) | 6500 | 6500 | 6500 | 6800 | 7500 | 8000 | |||||
Scan | 1/8 | 1/8 | 1/4 | 1/3 | 1/2 | 1/1 | |||||
Module Dimension | 192x192mm / 0.63x0.63ft | 160x160mm / 0.52x0.52ft | 192x192mm / 0.63x0.63ft | 320x160mm / 1.05x0.52ft | 320x160mm / 1.05x0.52ft | 256x256mm / 0.84x0.84ft | |||||
Cabinet Dimension | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 1024x1024mm /3.36x3.36ft | |||||
Cabinet Resolution | 192x192 | 192x192 | 160x160 | 120x120 | 96x96 | 64x64 | |||||
Cabinet Weight | 44kg / 97Ib ( Iron) | 43kg / 95Ib (Iron) | 42kg / 93Ib (Iron) | 41kg / 90Ib (Iron) | 40kg / 88Ib ( Iron) | 46kg / 101Ib (Iron) | |||||
Power Con. (Max / Avg) | 750 / 150 w/sq.m | 730 / 130 w/sq.m | 700 / 120 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m | 750 / 150 w/sq.m | |||||
Service Access | Front / Rear | ||||||||||
Refresh Rate (HZ) | ≥1920 | ||||||||||
Grey Scale (bit) | 16 | ||||||||||
Viewing Angle (H/V) | 140 / 140 | ||||||||||
IP Rate | IP65 | ||||||||||
Input Voltage (AC) | 110V / 240V | ||||||||||
Feature
OF Series More Features & More Advantages
* 3 times aging process
* Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
* Long service time and low attenuation by applying dual channels for heat dissipation
* High protection grade of IP65 achieved by patented mask design with waterproof and dustproof fuction
* No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation
* 3 times aging process
* Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
* Long service time and low attenuation by applying dual channels for heat dissipation
* High protection grade of IP65 achieved by patented mask design with waterproof and dustproof fuction
* No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation

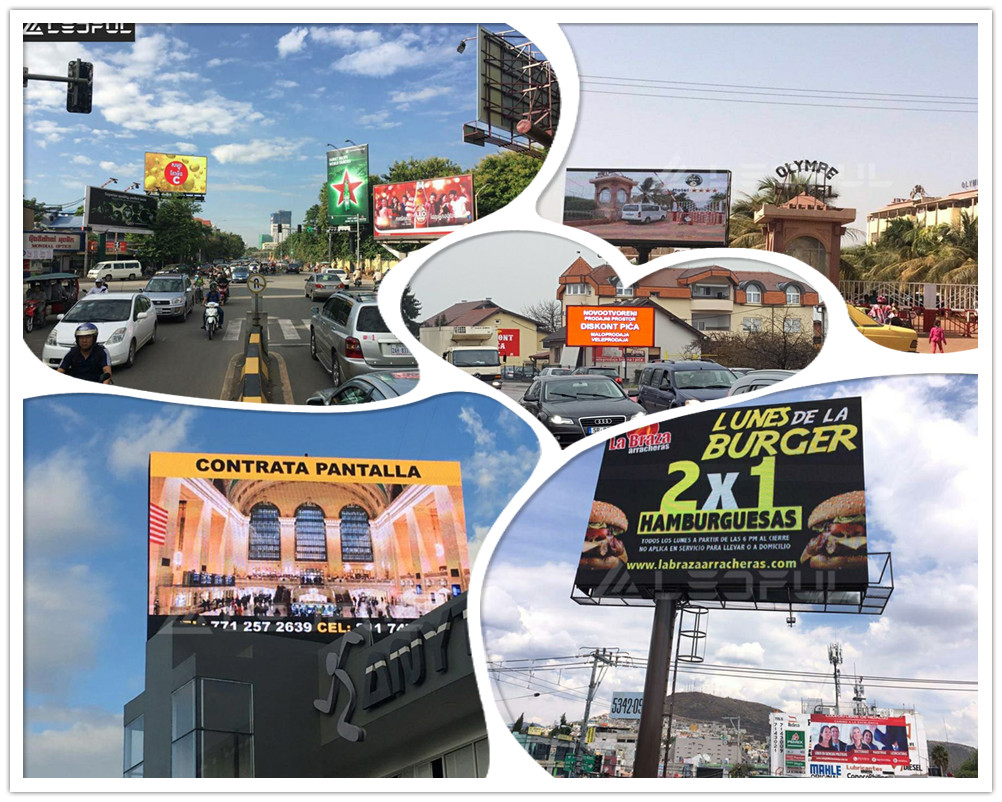

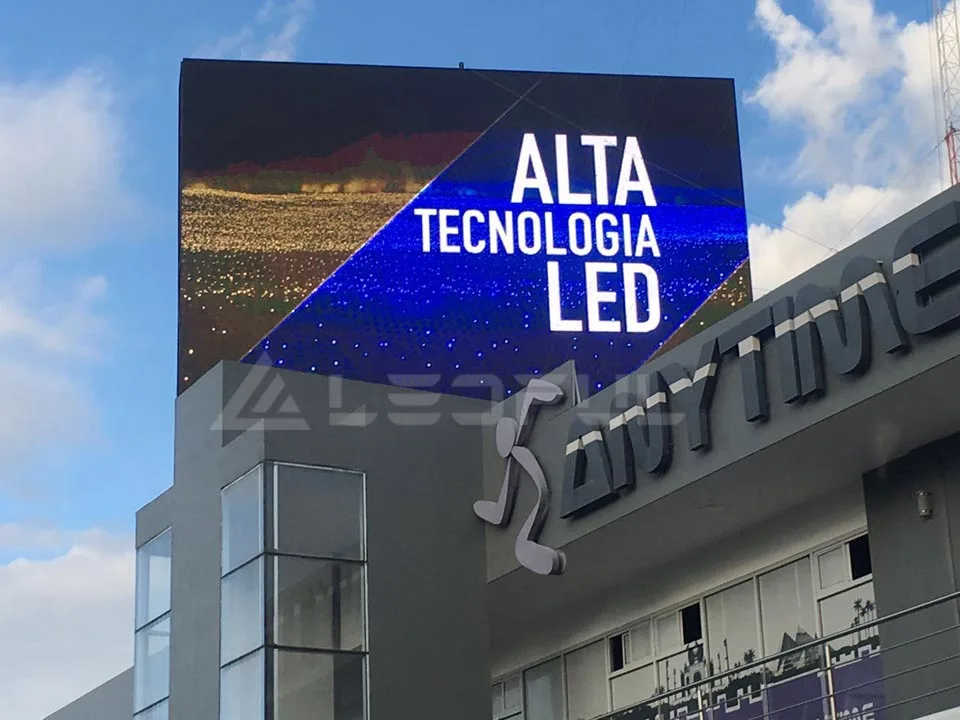

Mexico Outdoor Roof Display
Product Model:OF10S
Pitch: 10mm
Size: 60 sqm
Location:Mexico
Energy Saving Outdoor Fixed LED Display---OF Series--OF10S
OF10S is one of the most popular model for outdoor fixed installation display application.
High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc
Our Company
Related Products

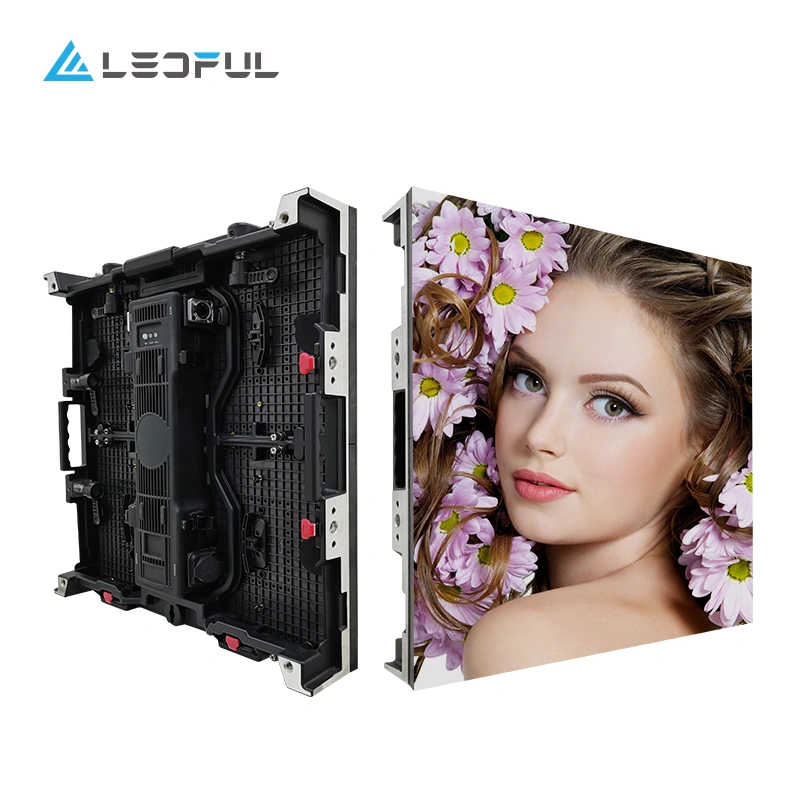

M-PLUS Series
Stage Rental Events Full Color HD Indoor Outdoor Rental Die Cast LED Panel Display LED Wall P1.9 P2.2 P2.6 P2.976 P3.91 P4.81 P5
M-PLUS Series
LEDFUL 2020 P2.97 P3.91 P4.81 SMD hot selling big indoor outdoor rental LED display panels screen
Custome Feedback

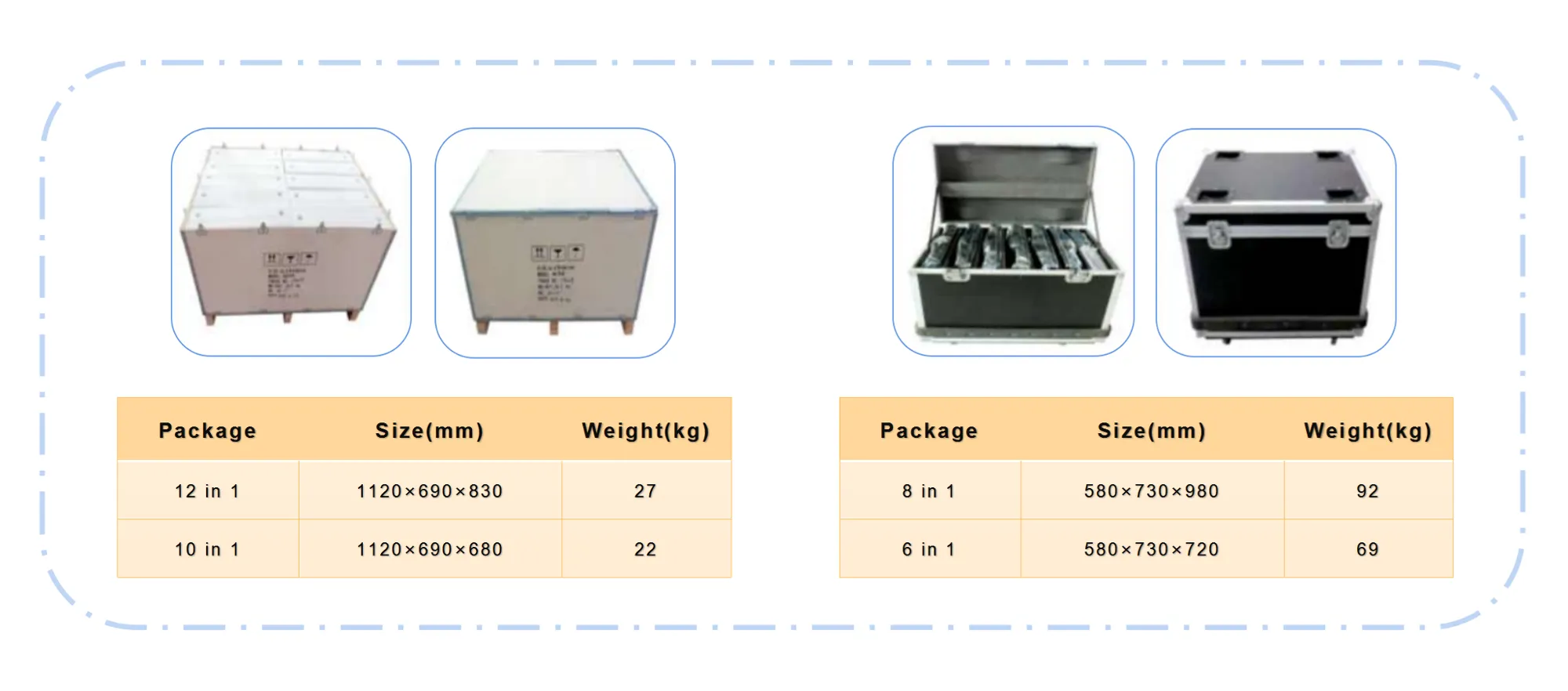

Packing & Delivery
FAQ
Q1. Are you trading company or manufacturer?
A: We are led display manufacturer
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
thequantity of your order.
Q3. What is your terms of delivery?
A: EXW
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
