Factory Waterproof IP65 High Brightness Advertising Outdoor exterior P4 P5 P6 P8 P10mm LED Display Screen

  • Minimum order quantity:1
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: Top Sale Products

    Product Description

    • LED chip:Epistar
    • Certificate:CCC CE ROHS ISO
    • Cabinet material:Die-casting Aluminum
    • Brightness:7500 Nits
    • Pixel Pitch:10mm
    • Warranty:3 -5 Years
    • Life span:100000 Hours
    • Screen Dimension:Customized
    • Control system:Nova
    • IP Rate:IP65
    • Application:Outdoor Advertising
    • Color:Full Color
    • Panel Size:960x960mm
    • Pixel Pitch:10mm
    • Place of Origin:Guangdong, China (Mainland)
    • Model Number:OF10S
    • Brand Name:LEDFUL
    Product Description



    OF Series Features & Advantages

    3 times aging process.
    ◆Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test.
    ◆Long service time and low attenuation by applying dual channels for heat dissipation.
    ◆High protection grade of IP65 achieved by patented mask design with waterproof and dustproof fuction.
    ◆No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.

    Parameter






    Value
    OF4
    OF5
    OF6
    OF8
    OF10S
    OF16S
    Pixel Pitch(mm)
    4
    5
    6
    8
    10
    16
    Pixel Matrix Per Sq.m
    62500
    40000
    27777
    15625
    10000
    3906
    Pixel Configuration
    SMD1921
    SMD2727
    SMD2727
    SMD3535
    SMD3535
    SMD3535
    Brightness (nits)
    6500
    6500
    6500
    6800
    7500
    8000
    Scan
    1/8
    1/8
    1/4
    1/3
    1/2
    1/1
    Module Dimension
    192x192mm
    160x160mm
    192x192mm
    320x160mm
    320x160mm
    256x256mm
    Cabinet Dimension
    960x960mm
    960x960mm
    960x960mm
    960x960mm
    960x960mm
    1024x1024mm
    Cabinet Resolution
    192x192
    192x192
    160x160
    120x120
    96x96
    64x64
    Cabinet Weight
    44kg / 97Ib
    43kg / 95Ib
    42kg / 93Ib
    41kg / 90Ib
    40kg / 88Ib
    46kg / 101Ib
    Power Con. (Max / Avg)
    750 / 150 w/sq.m
    730 / 130 w/sq.m
    700 / 120 w/sq.m
    680 / 120 w/sq.m
    650 / 110 w/sq.m
    750 / 150 w/sq.m
    Service Access
    Front / Rear
    Refresh Rate
    ≥1920 HZ
    Grey Scale (bit)
    16
    Viewing Angle
    140(H) / 140(V)
    IP Rate
    IP65
    Input Voltage (AC)
    110V / 240V

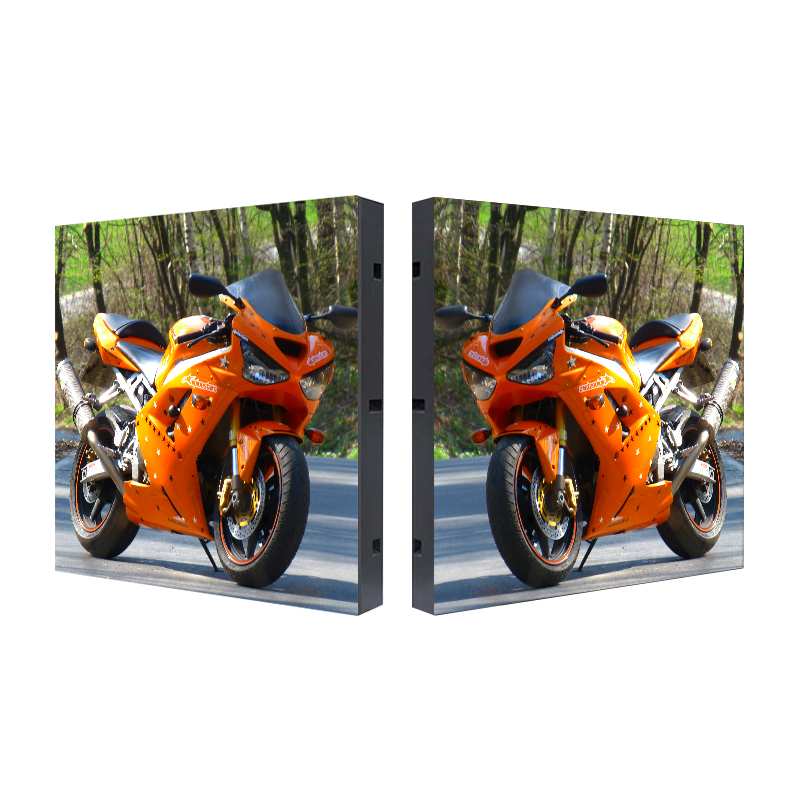

    Products Show



    Where is LED display installed?

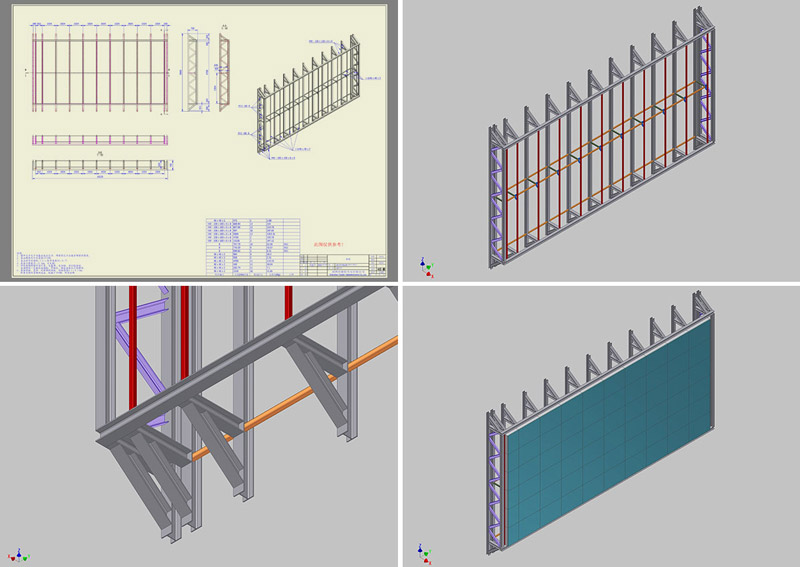

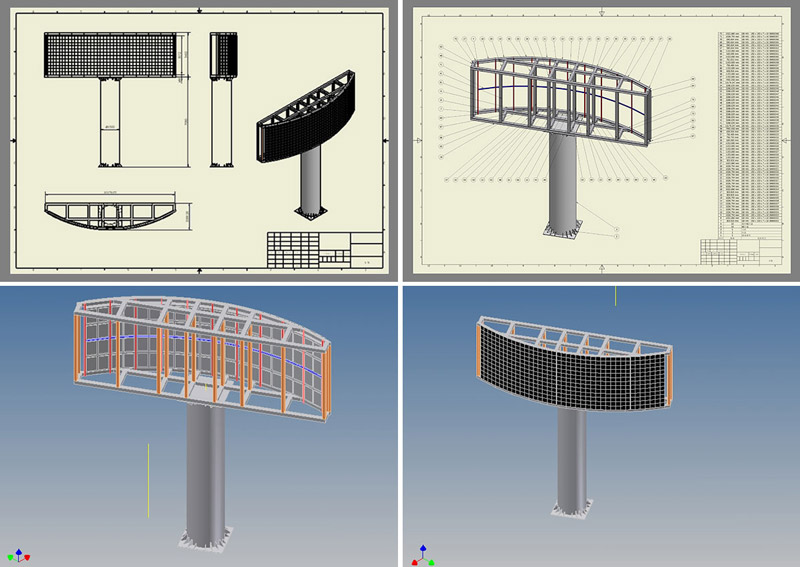

    LEDFUL provide structure frame design drawingandinstallation suggestions.

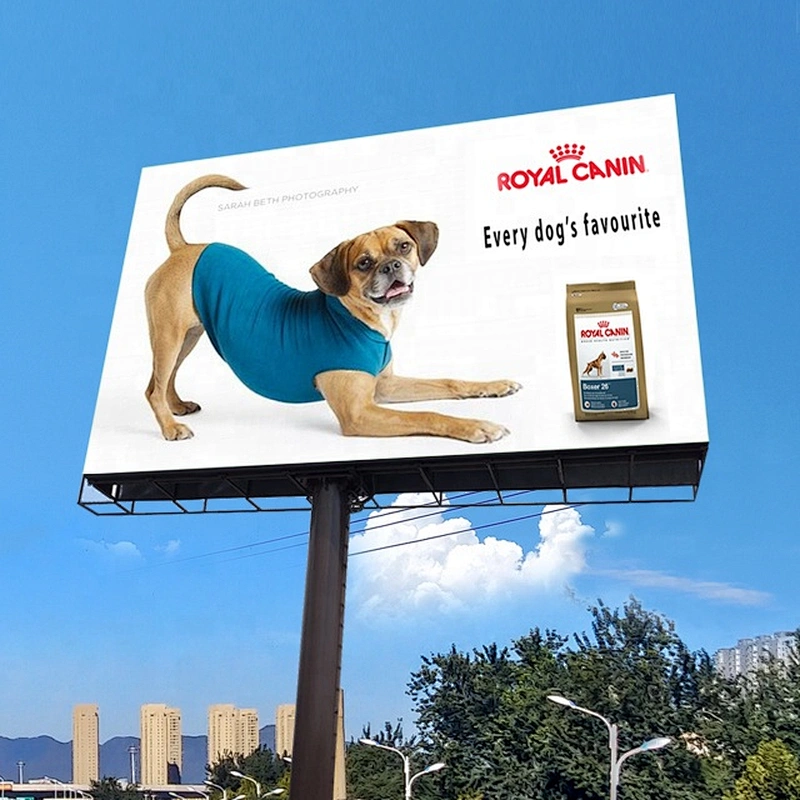

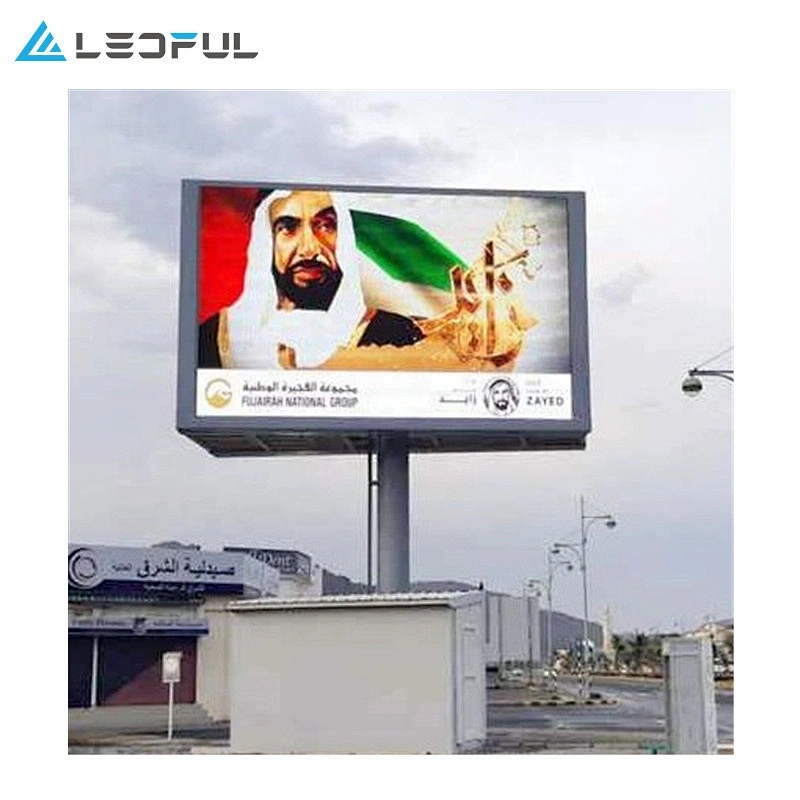

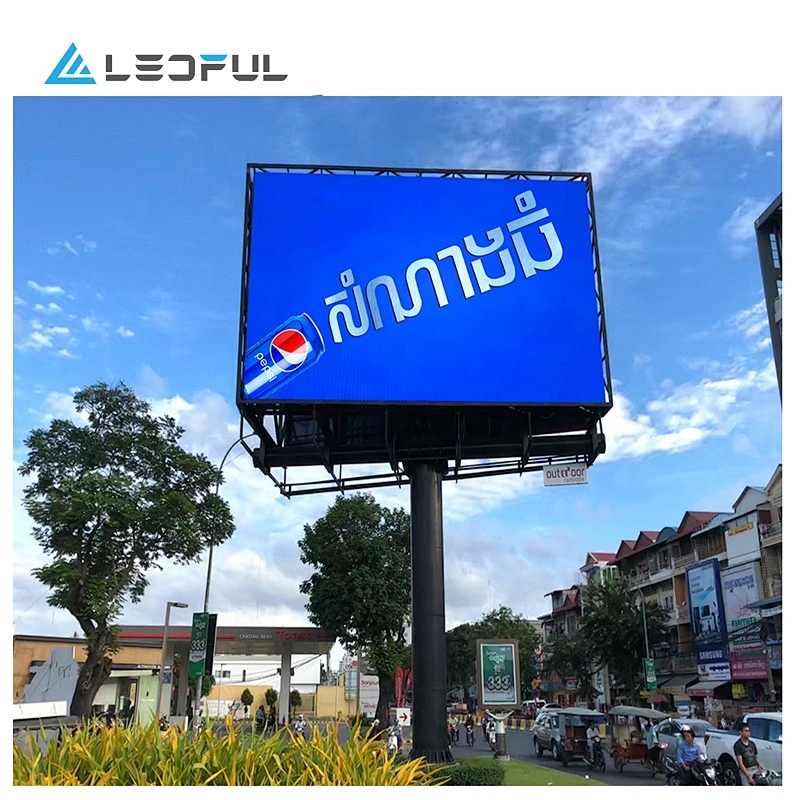

    Pillar / Pole LED display

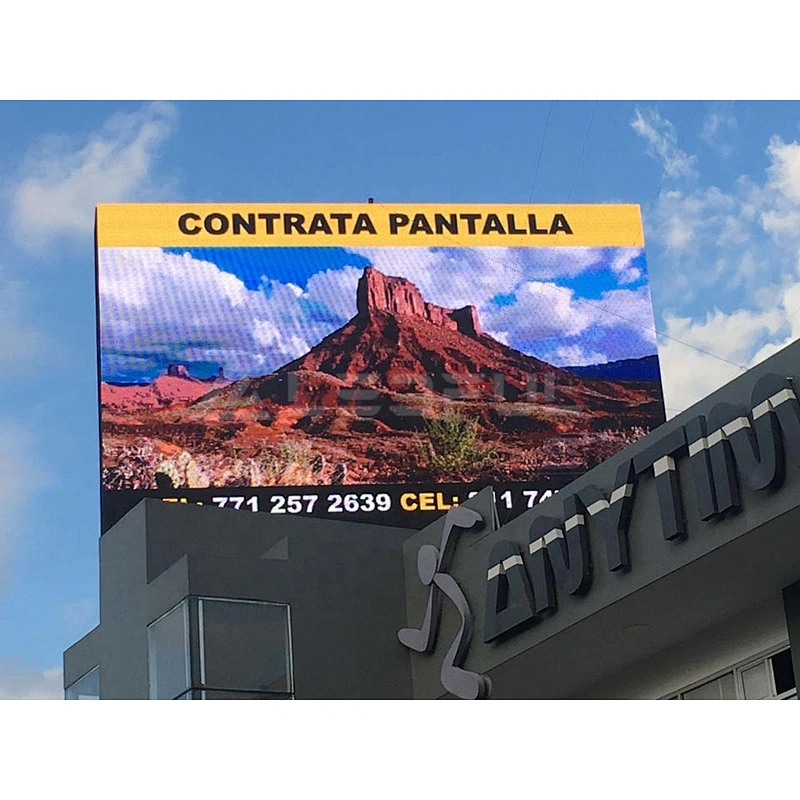

    Wall mounted LED display

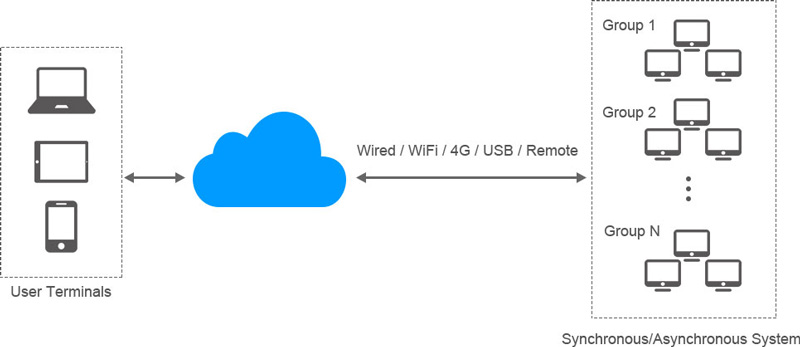

    How to control LED display?

    Bycomputer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.




    Ultra High / Low Temperature

    OF series designed for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.

    High Temperature

    Low Temperature




    SMD Performance and View Angle

    Bettercontrast ratioandviewing performance. Wide viewing angle increasing its value by covering more viewing.

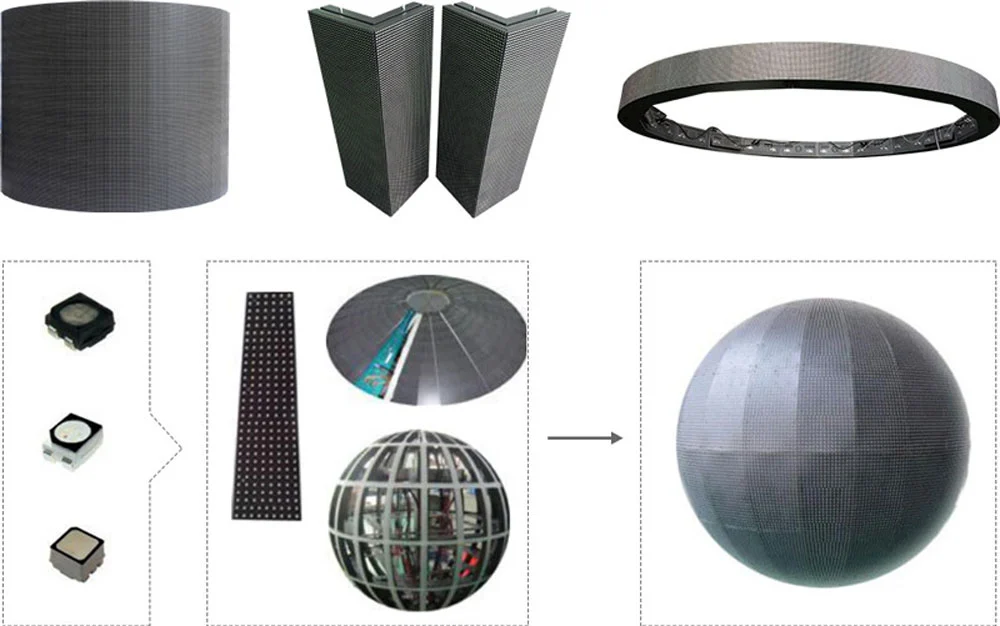

    Various Shaped LED Display

    Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball.
    LEDFUL supply more design and more solutions.




    How can we make Energy Saving LED display 30%?


    1) Using high efficiency IC driver

    2) improved PCBdesign
    3) Power conversion efficiency
    Applications

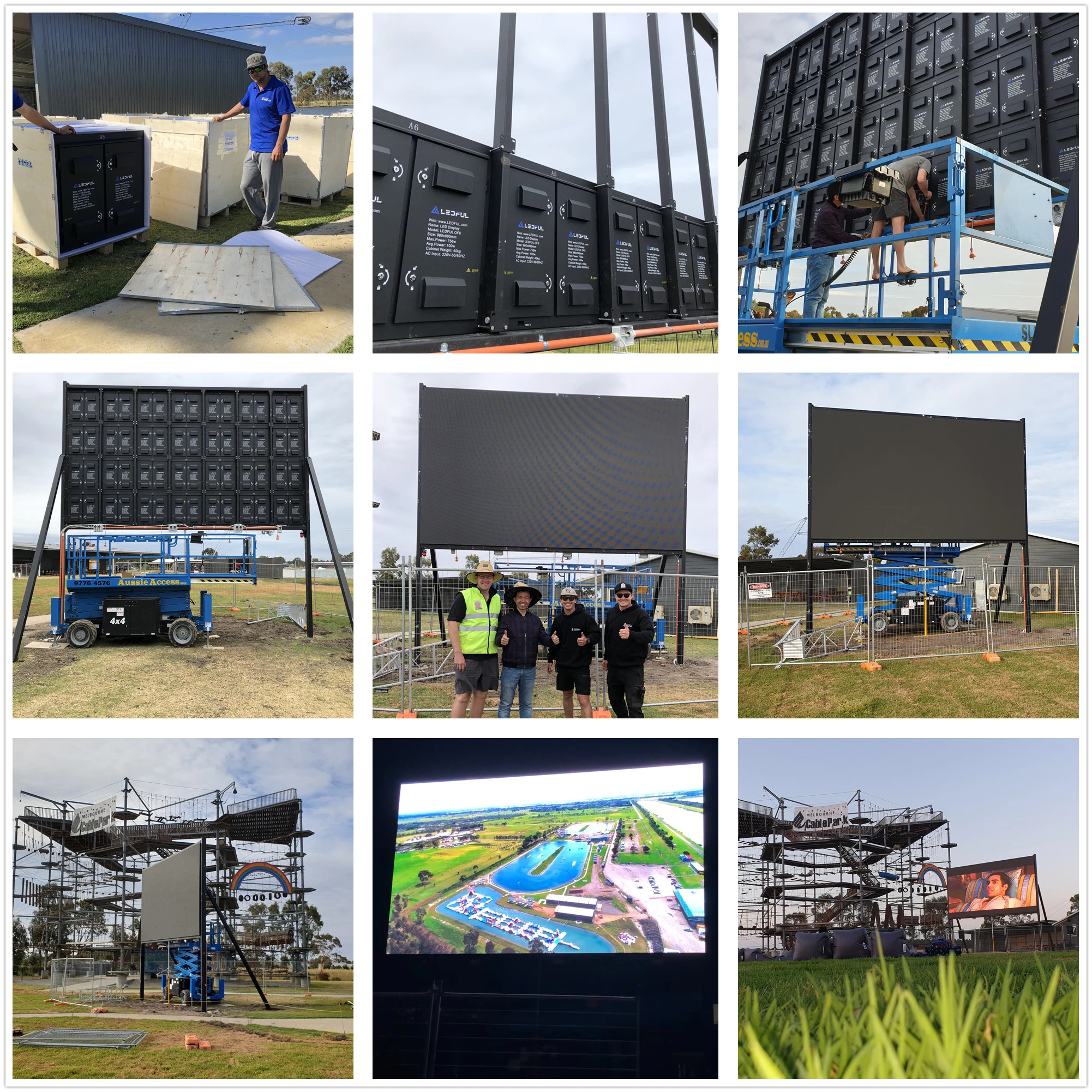

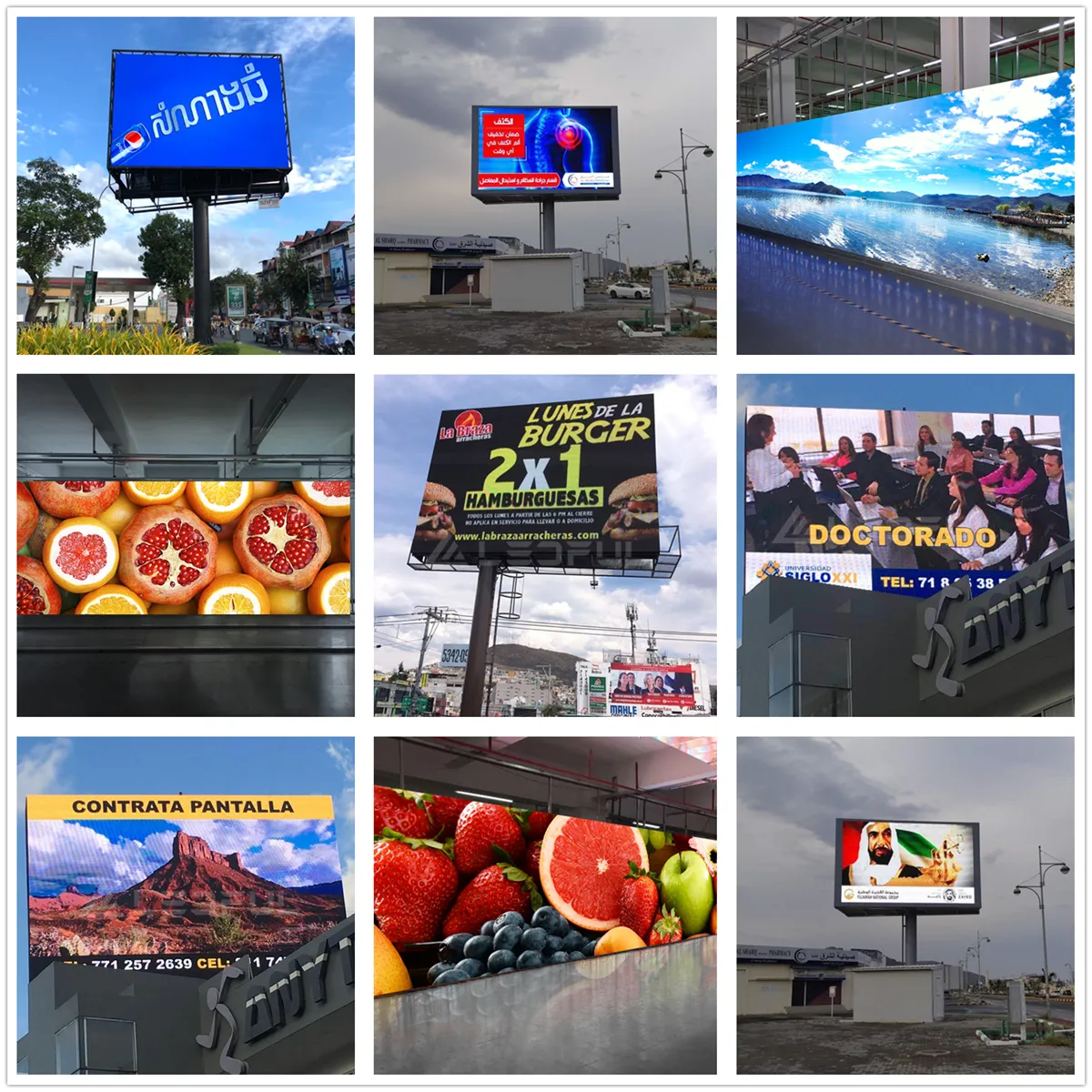

    Outdoor Double Poles Advertising Display


    Product Model: OF6
    Pitch: 6mm
    Size: 28 sqm
    Location: Australia


    Energy Saving Outdoor Fixed LED Display---OF Series--OF10S

    OF10S is one of the most popular model for outdoor fixed installation display application.

    OF series cover wider pixel pitch, start from P2.5, P3, ... to P10, P16 and all OF series design for working in all weather outdoor environments. High protection grade of IP65suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.

    Outdoor LEDFUL OF series is the perfect energy-saving outdoor fixed LED display solution, which use higher efficiency IC driver, perfect PCB design together with better power conversion efficiency.

    Besides, LEDFUL team provide structure frame design drawingand installation suggestions for each project according to the local site requirements.


    >>>>>More Applications


    Our Company
    >>>>>Why Choose LEDFUL
    ▲Deep Customized &OEM.
    ▲Listen to you, think more for you.
    ▲Lifelong maintenance with reasonable price.
    ▲Clear cost initially to save your time and money.
    ▲Provide with innovative and satisfying products.
    Excellent product quality, quick and professional services.
    ▲Always ready for your any change on LED display detail.
    ▲Recommend the best proper solution for your LED project.
    ▲Catch things what you missed before LED display production.
    Take good care of each detail for your products, packages,shipping.

    >>>>>>Best Balance of Quality & Price

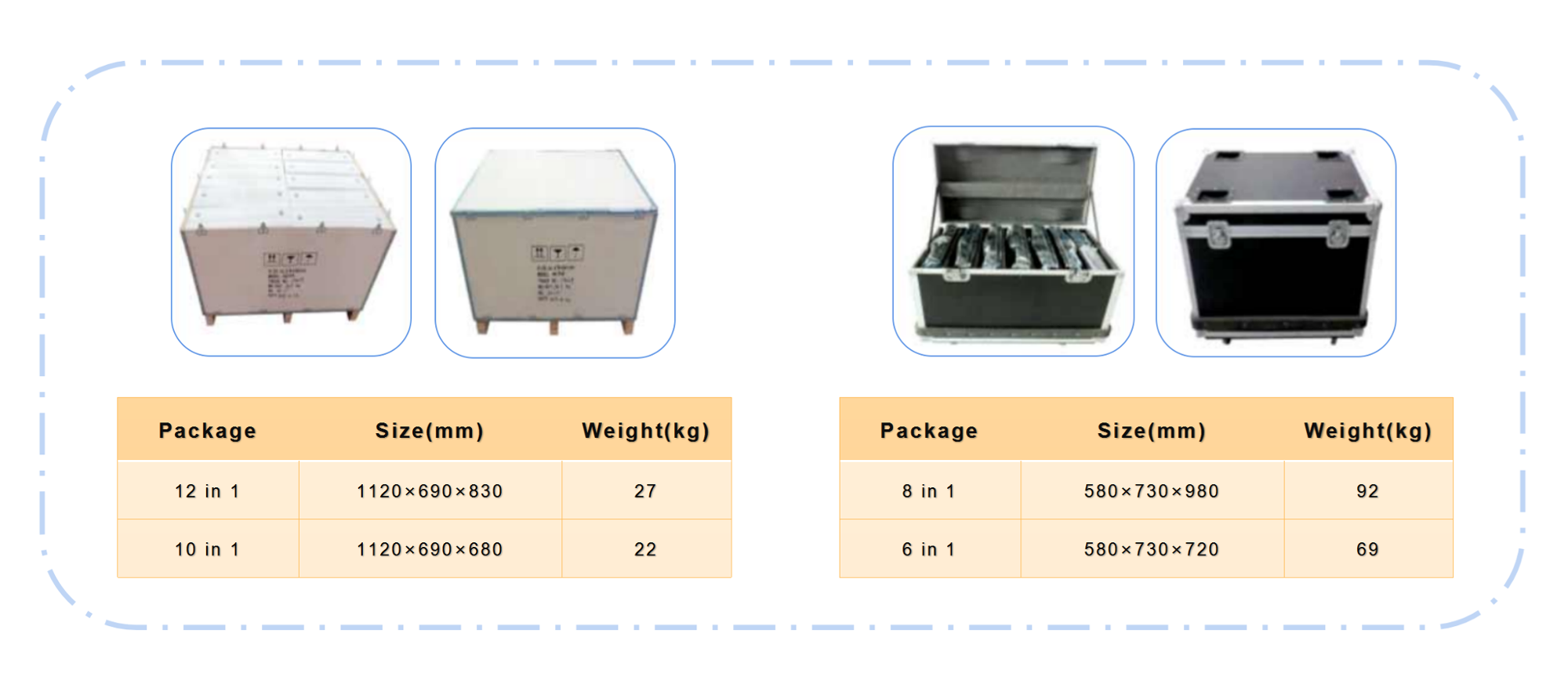

    Packing & Delivery
    More Products
    FAQ
    Q1: Are you trading company or manufacturer ?
    A: LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and skilled QC team for 12 years.

    Q2: What is the control system? How is it?
    A: We use Nova control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control the screen.

    Q3: What is your best service?
    A:One to one sales engineer to customer responsibility system. We will do:
    1. Know your project and provide the best solution for it;
    2. Track your order and let you know each step and detail of it;
    3. Teach you how to install and use the screen;
    4. Care the subsequent use of your screen and ensure your after - sales service be well,
    5…6…etc.

    Q4. How about your delivery time?
    A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q5:How about your Warranty Term?
    A:3-year warranty. Structure design, installation problem, program the screen, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.

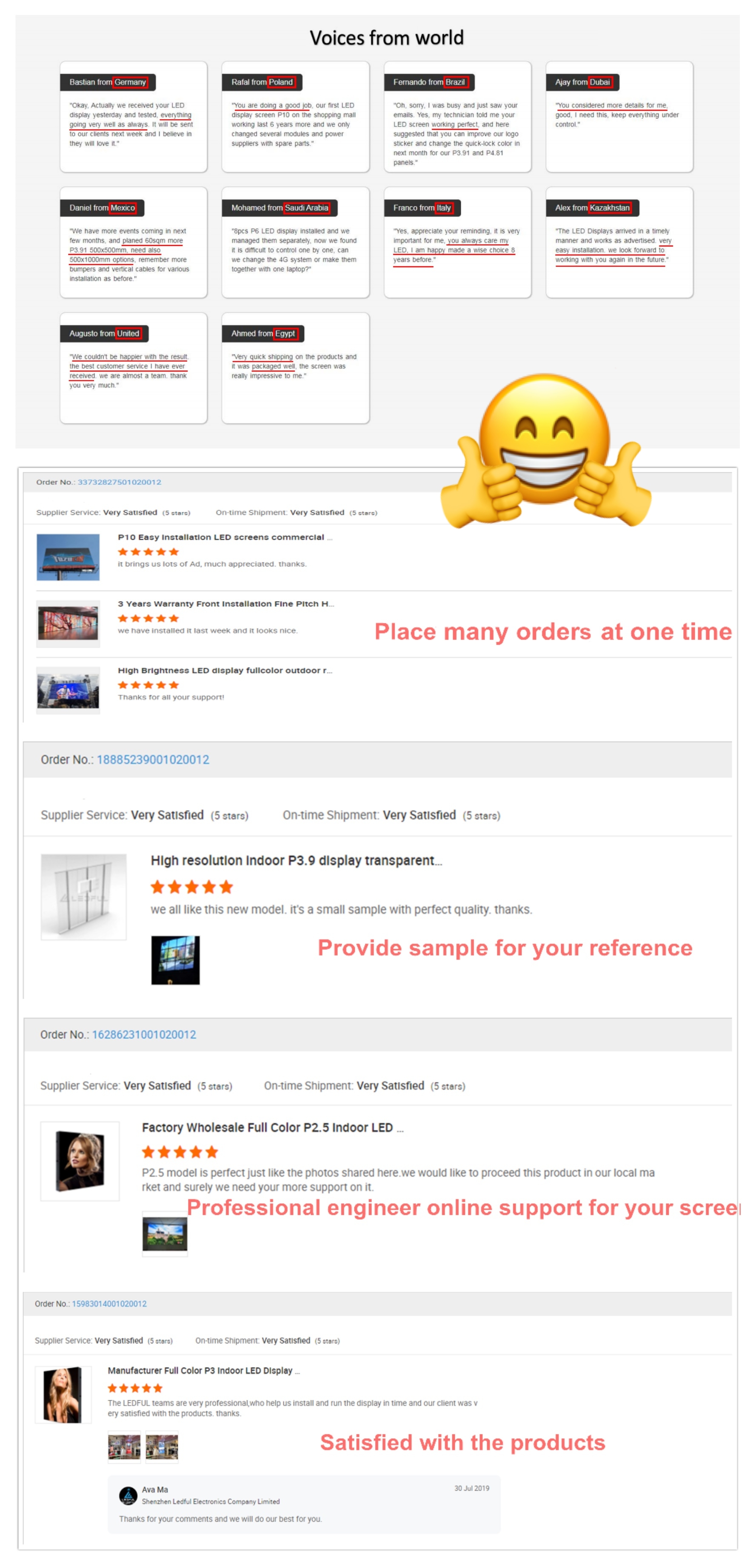

    Customer feesback
