- Usage:Outdoor
- Product name:Stage Rental LED Display
- Grey Scale (bit):16
- Brightness (nits):1000
- Pixel Configuration:SMD2121
- Cabinet Resolution:168x168
- Module Dimension:250x250mm / 0.82x0.82feet
- Cabinet Dimension:500x500x87mm / 1.64x1.64x0.29feet
- Cabinet Weight:8kg / 17.6Ib (( Die-casting Aluminum)
- Pixels:2.976mm
- Place of Origin:CN;GUA
- Model Number:KI2.9

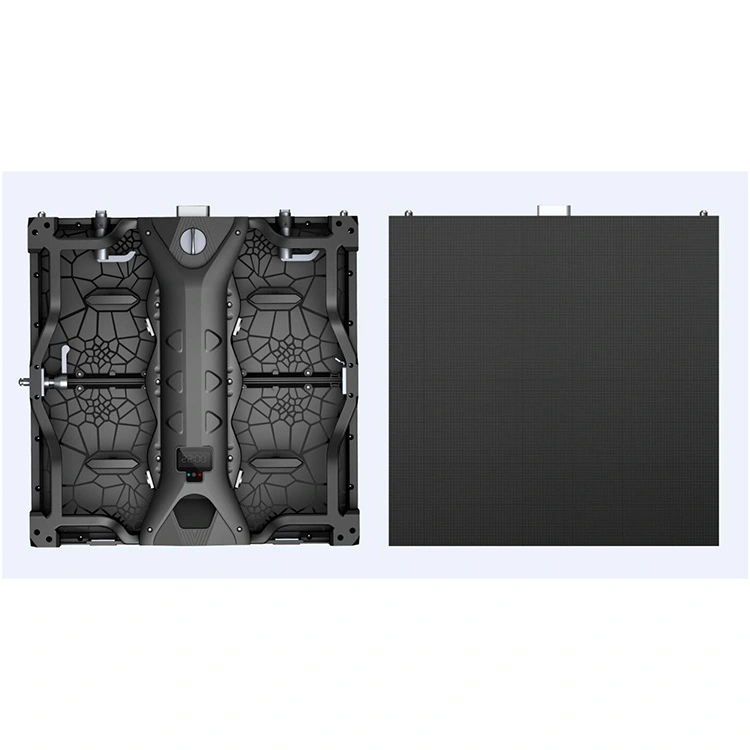

Product Description

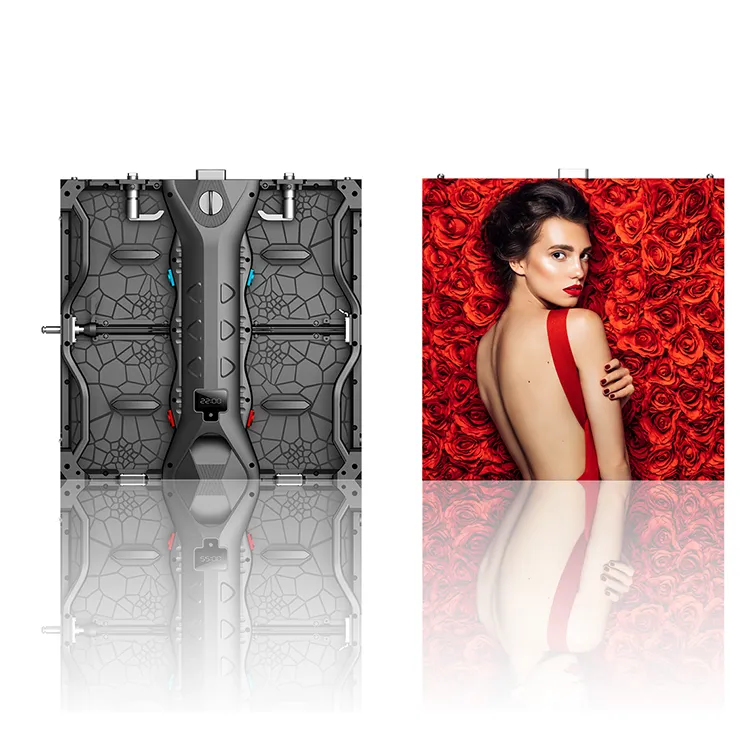

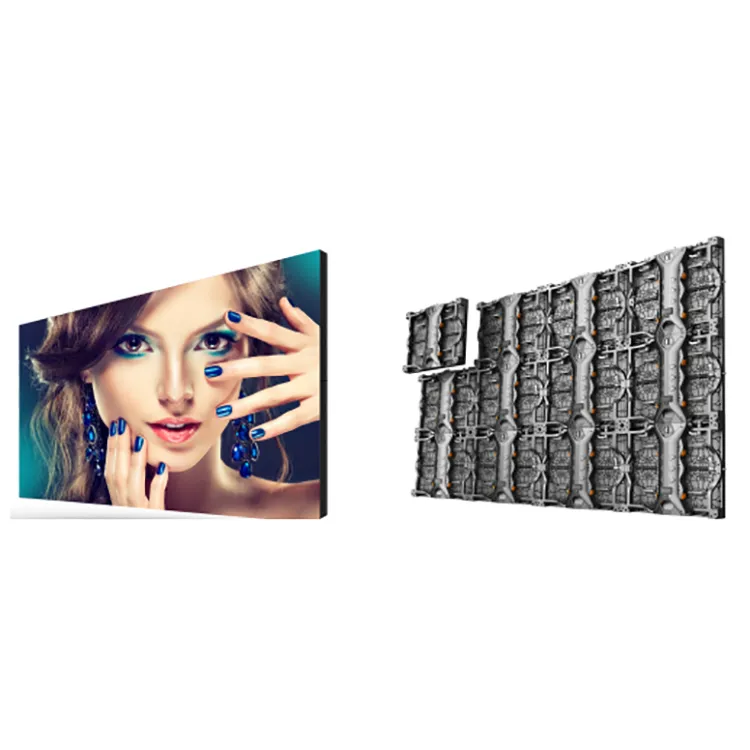

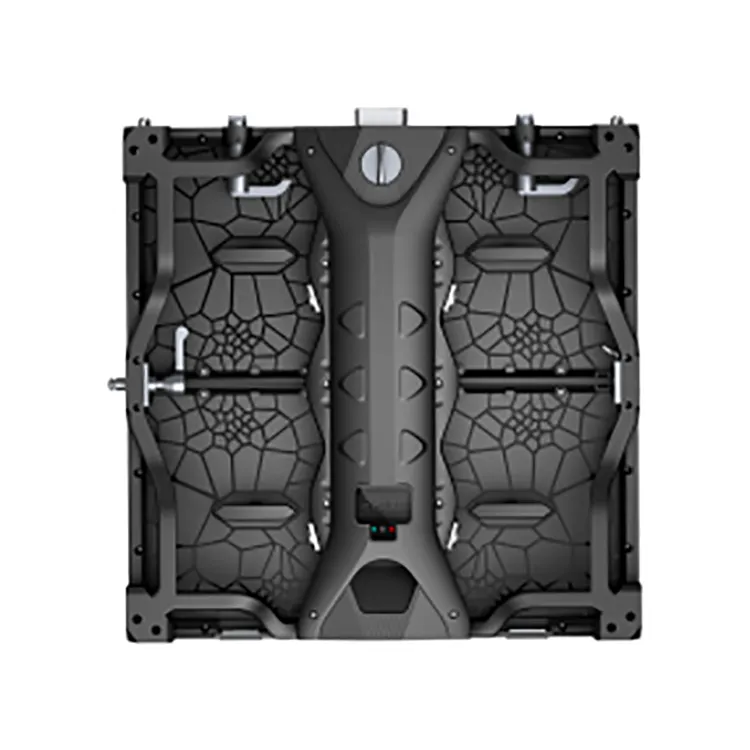

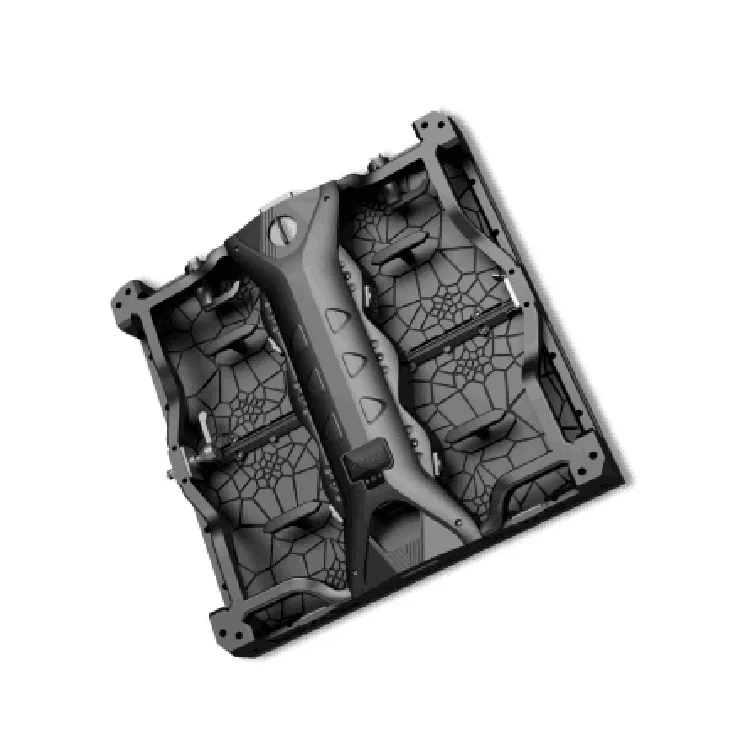

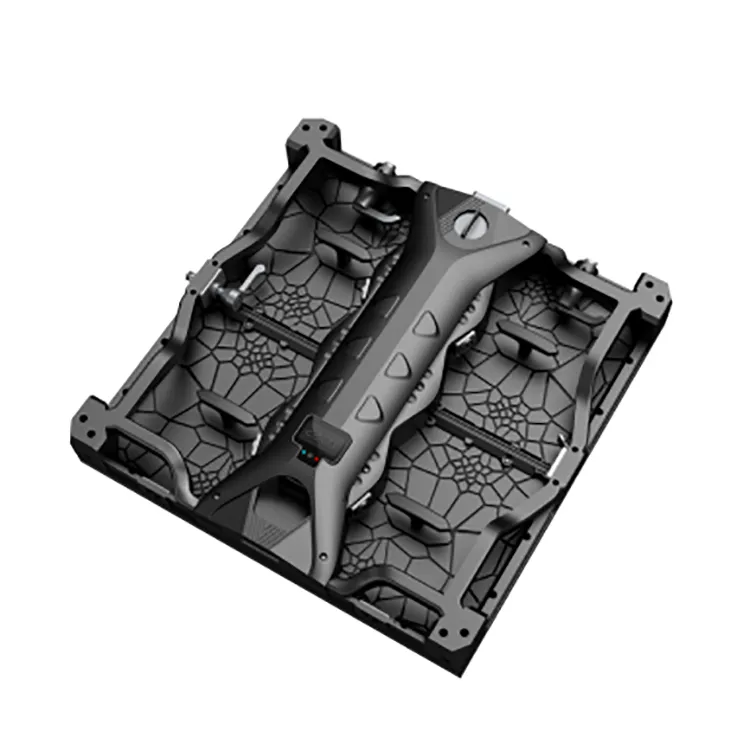

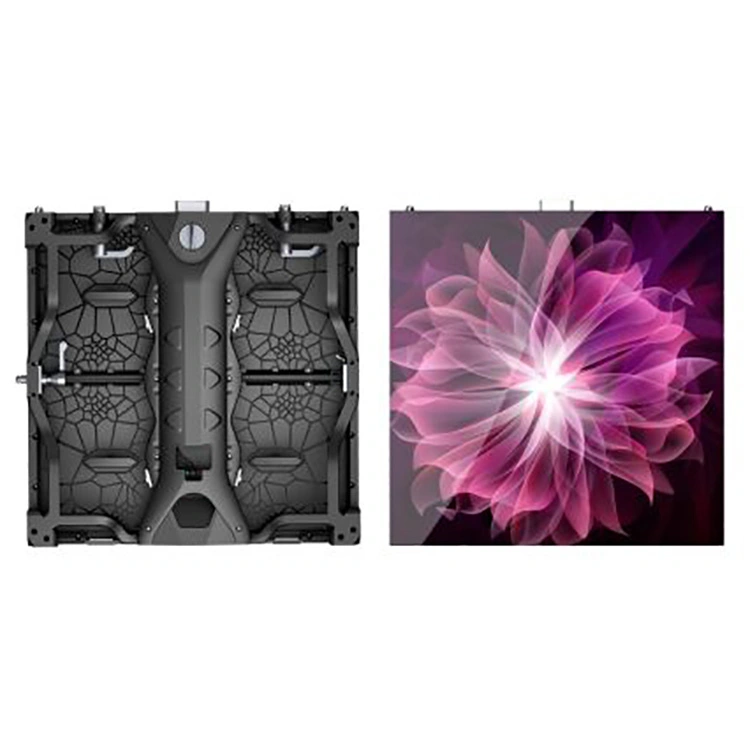

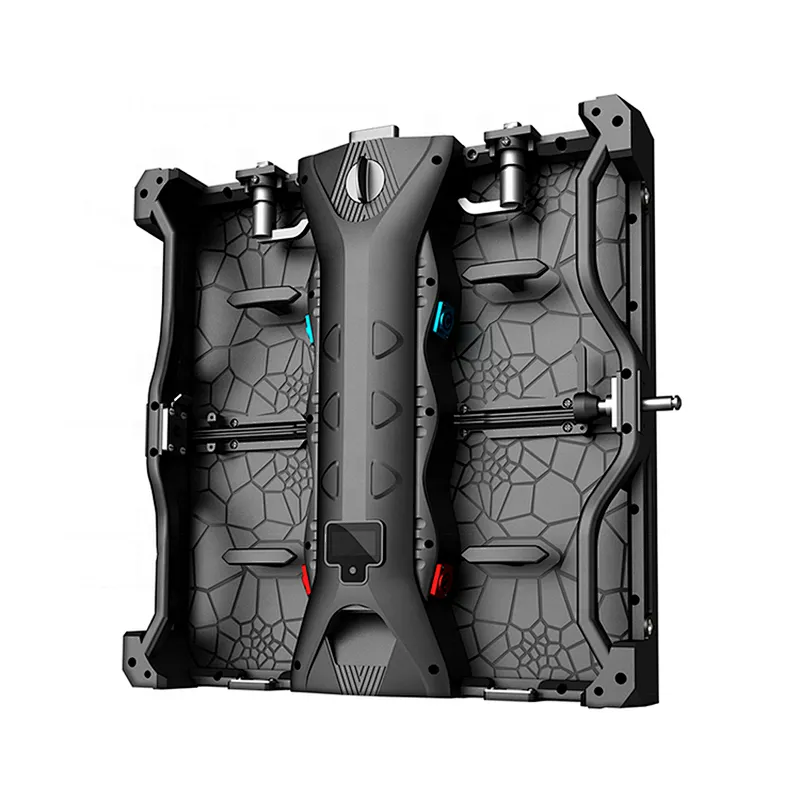

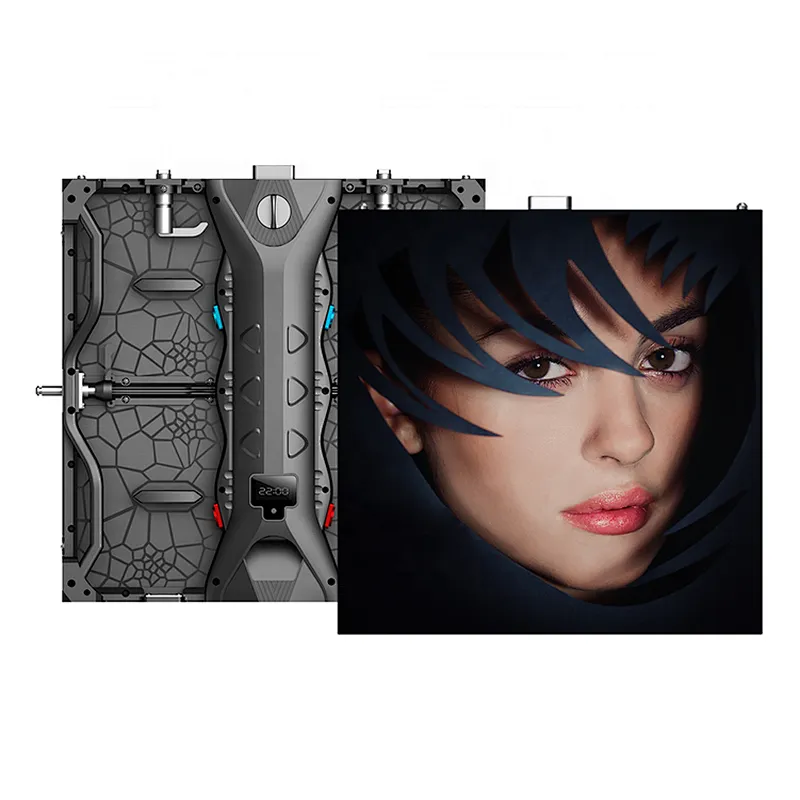

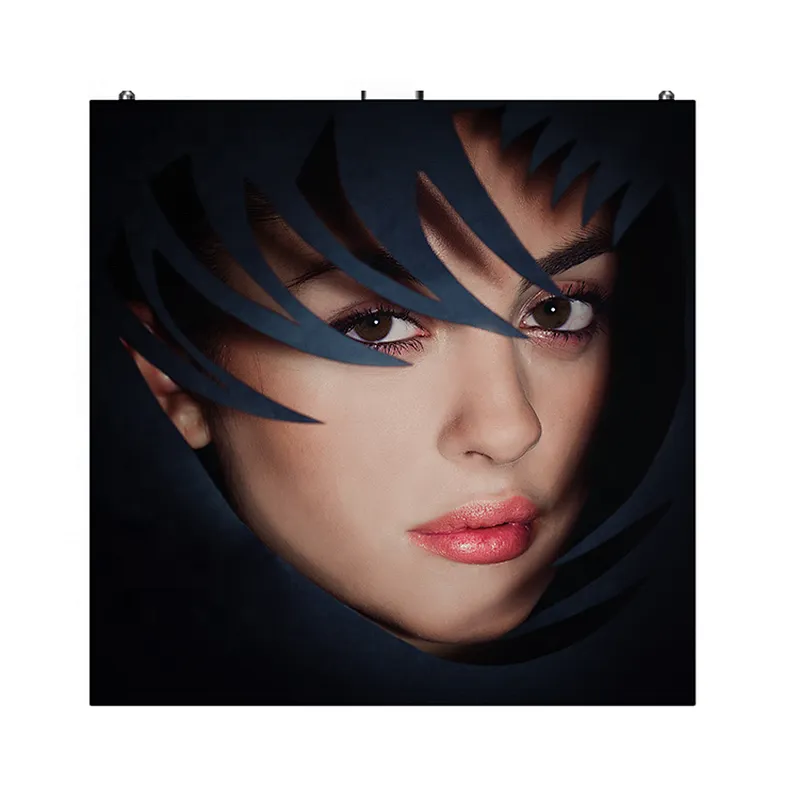

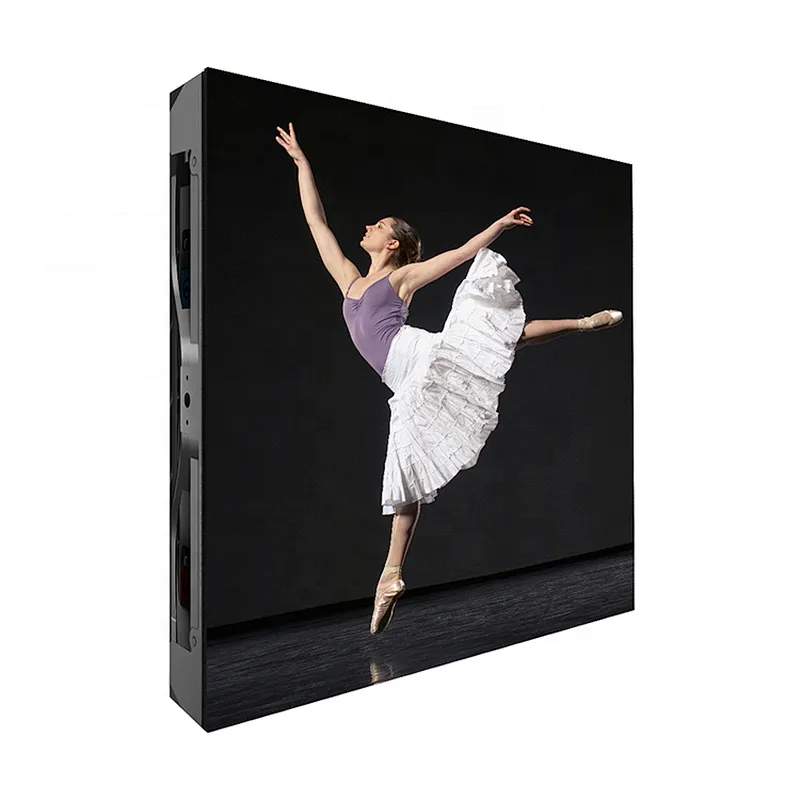

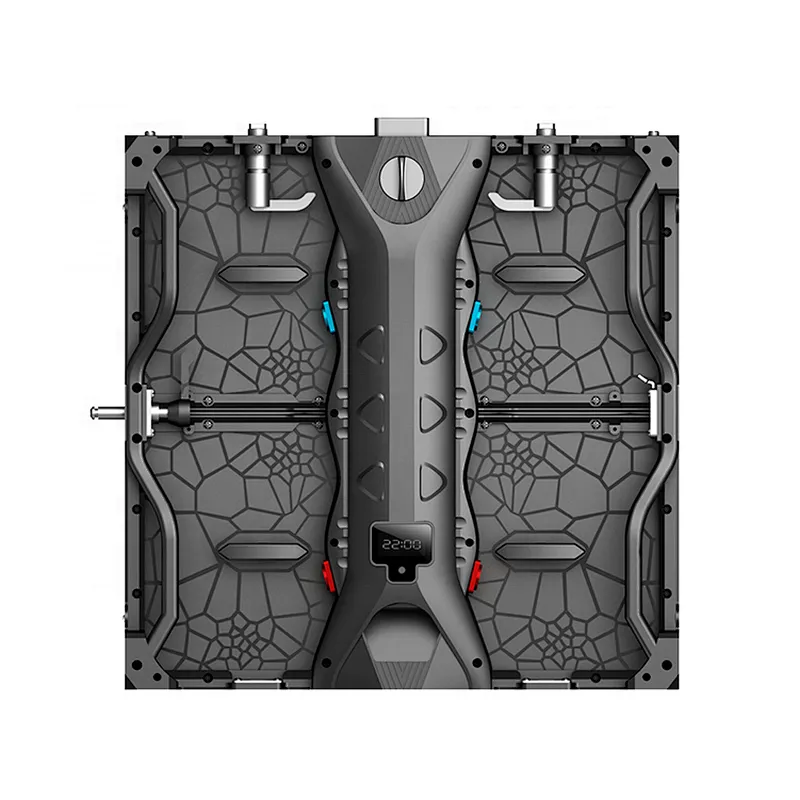

TTop Quality 2019 New Design No Light Leakage Stage Rental LED Display
| K Series Indoor | KI 2.9 |
| Pixel Pitch(mm) | 2.976mm |
| Pixel Matrix Per Sq.m | 112896 |
| Pixel Configuration | SMD2121 |
| Scan | 1/28 |
| Cabinet Resolution | 168×168 |
| Power Con. (Max / Avg) | 760/230w/sq.m |
| Module Dimension | 250x250mm / 0.82x0.82feet |

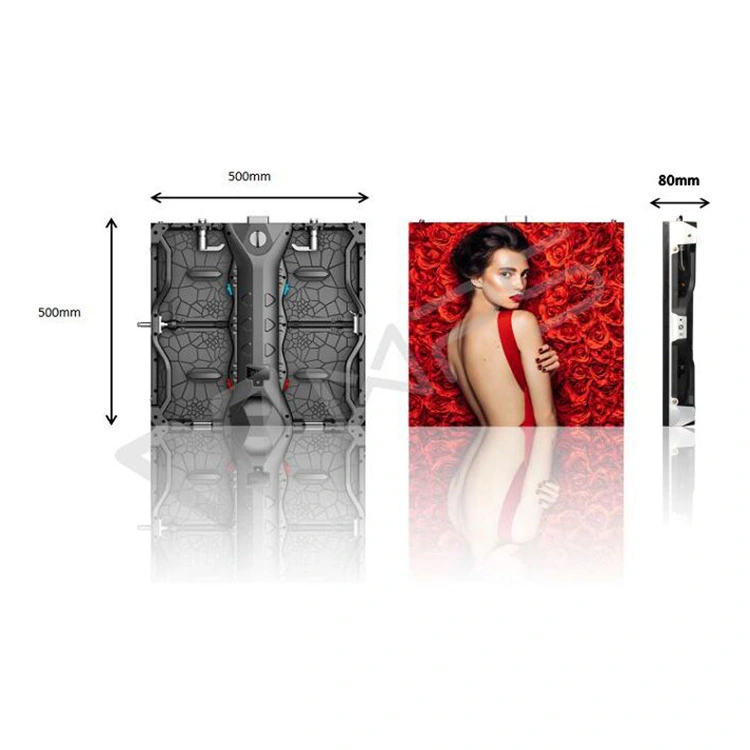

| Cabinet Dimension | 500x500x87mm / 1.64x1.64x0.29feet |
| Cabinet Weight | 8kg / 17.6Ib (( Die-casting Aluminum) |

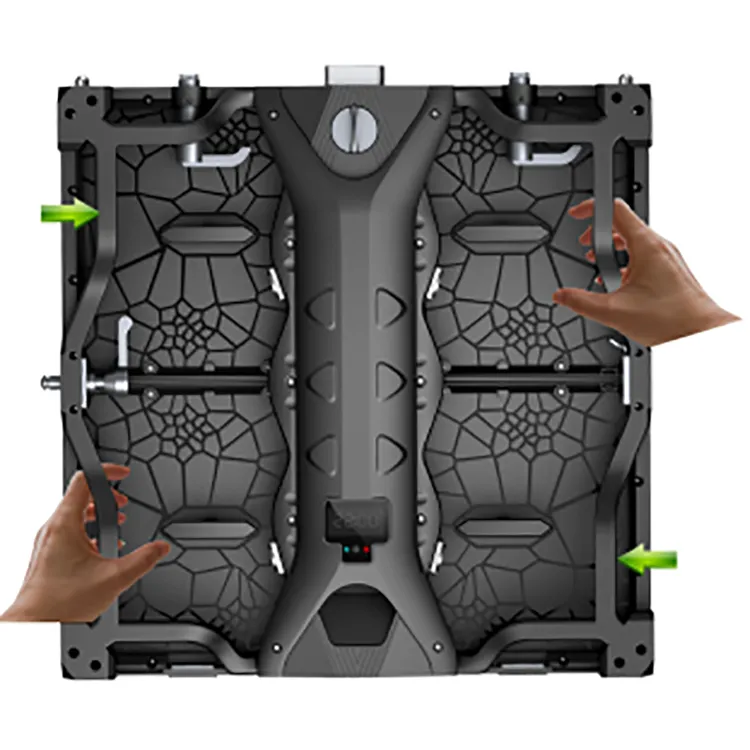

| Service Access | Front / Rear |
| Rotation Angle | -10° and +10° |
| Brightness (nits) | ≥1000 |
| Refresh Rate (HZ) | 3840 |
| Grey Scale (bit) | 16 |
| Viewing Angle (H/V) | 160 / 160 |
| IP Rate | IP31 |
| Input Voltage (AC) | 110 / 240 |
| * Specifications and photos are subject to change without prior notice. | |
