Two knobs make the control box exchange in 1 second.
- Warranty:3 Years
- Certificate:CCC CE ROHS ISO
- Screen Dimension:Customized
- Application:Rental
- Input Voltage (AC):110V / 240V
- LED chip:Epistar
- Life span:100000 Hours
- Cabinet material:Die-casting Aluminum
- Control system:Linsn /Nova
- Viewing Angle (H/V):140 / 140
- Application:Rental Outdoor
- Color:Full Color
- Panel Size:500x500mm
- Pixel Pitch:6.2
- Place of Origin:Guangdong, China (Mainland)
- Model Number:XO6.2
- Brand Name:LEDFUL
Product Description

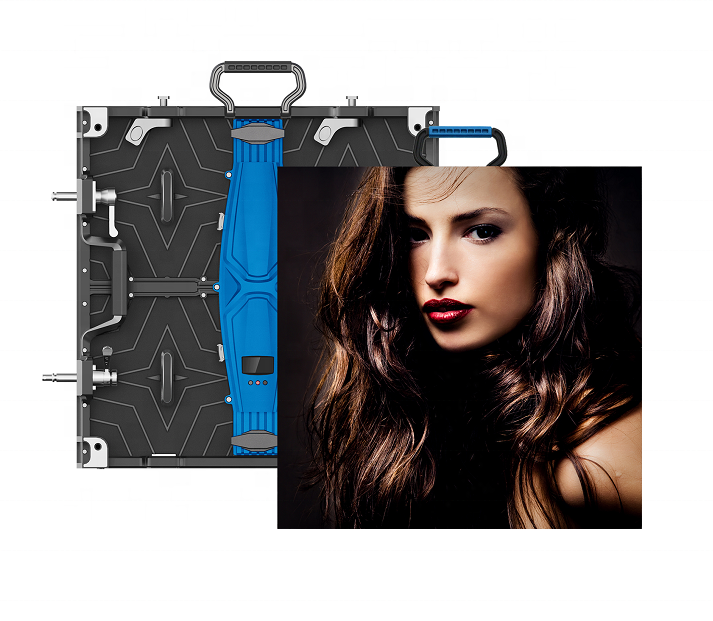

X Series
3rd Generation Rental LED Display
Small Pitch---XI1.9 | XI2.5 | XI2.6 | XI2.9 | XO2.6 | XO2.9Indoor---XI3.9 | XI4.8 | XI5.9 | XI6.2
Outdoor---XO3.9 | XO4.8 | XO5.9 | XO6.2
★1 Second Exchangeable Box
★Full Front Maintenance
★Curved Installation
★Work with T series
★Light and Thin
XO Series | XO2.6 | XO2.9 | XO3.9 | XO4.8 | XO5.9 | XO6.2 | |||||
Pixel Pitch(mm) | 2.6 | 2.97 | 3.91 | 4.81 | 5.95 | 6.25 | |||||
Pixel Matrix Per Sq.m | 147,456 | 112,896 | 65,536 | 43,264 | 28,264 | 25,600 | |||||
Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | |||||
Brightness (nits) | 4000 | 4000 | 5000 | 5000 | 5000 | 5000 | |||||
Scan | 32S | 28S | 16S | 13S | 7S | 10S | |||||
Cabinet Resolution | 192x192 | 168x168 | 128x128 | 104x104 | 84x84 | 80x80 | |||||
Power Con. (Max / Avg) | 800 / 240 w/sq.m | 780 / 230 w/sq.m | 750 / 200 w/sq.m | 700 / 220 w/sq.m | 700 / 200 w/sq.m | 680 / 190 w/sq.m | |||||
Module Dimension | 250x250mm / 0.82x0.82ft | ||||||||||
Cabinet Dimension | 500x500x78mm / 1.64x1.64x0.25ft | ||||||||||
Cabinet Weight | 7kg / 15.4Ib (( Die-casting Aluminum) | ||||||||||
Service Access | Front / Rear | ||||||||||
Rotation Angle | -7.5° and +7.5° | ||||||||||
Refresh Rate (HZ) | 2880 | ||||||||||
Grey Scale (bit) | 16 | ||||||||||
Viewing Angle (H/V) | 140 / 140 | ||||||||||
IP Rate | IP65 | ||||||||||
Input Voltage (AC) | 110 / 240 | ||||||||||
Products Show
Details

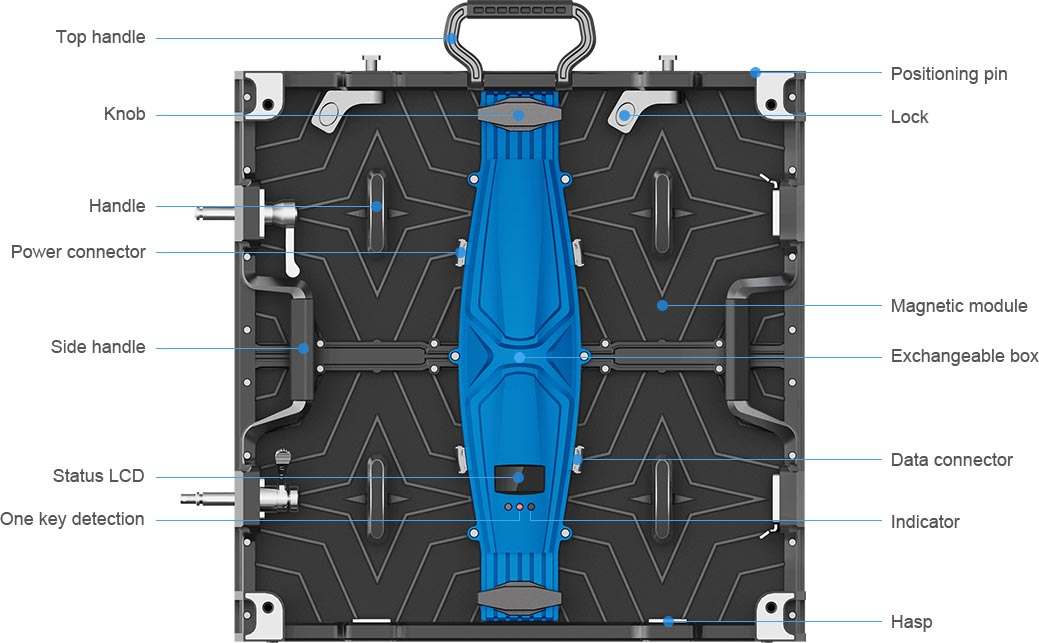

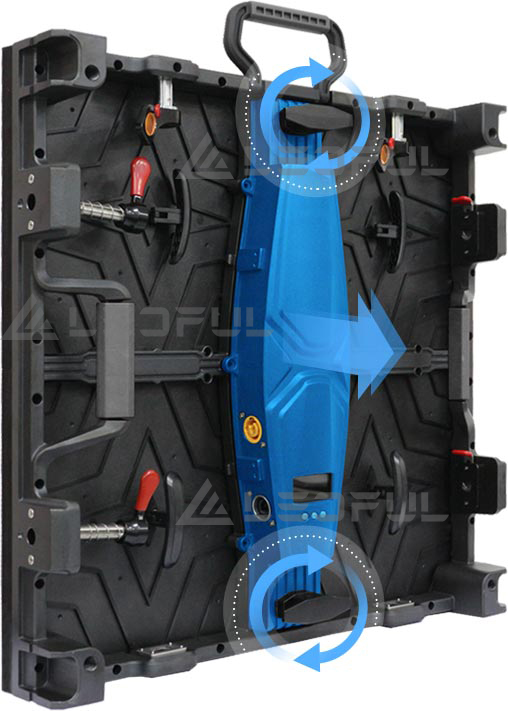

One Second Exchanged Box

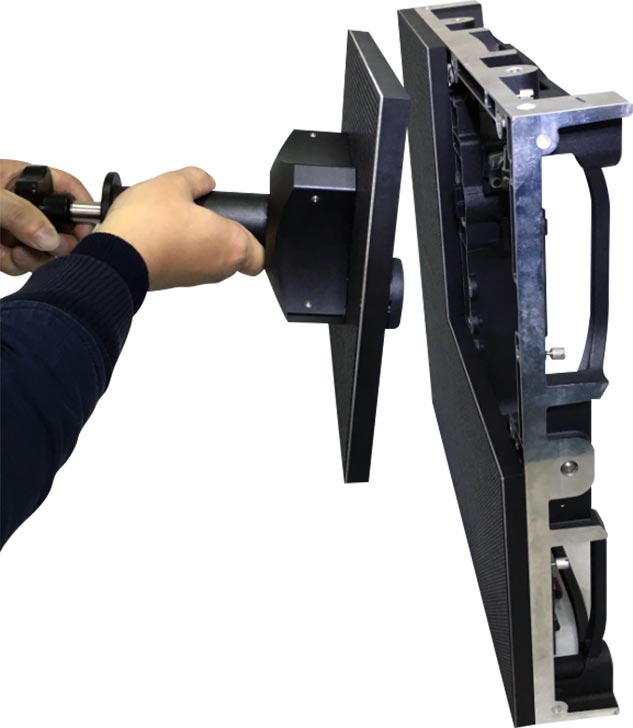

Full Front Maintenance
LED modules, power supply, receiver card, hub card, cables are all front service.

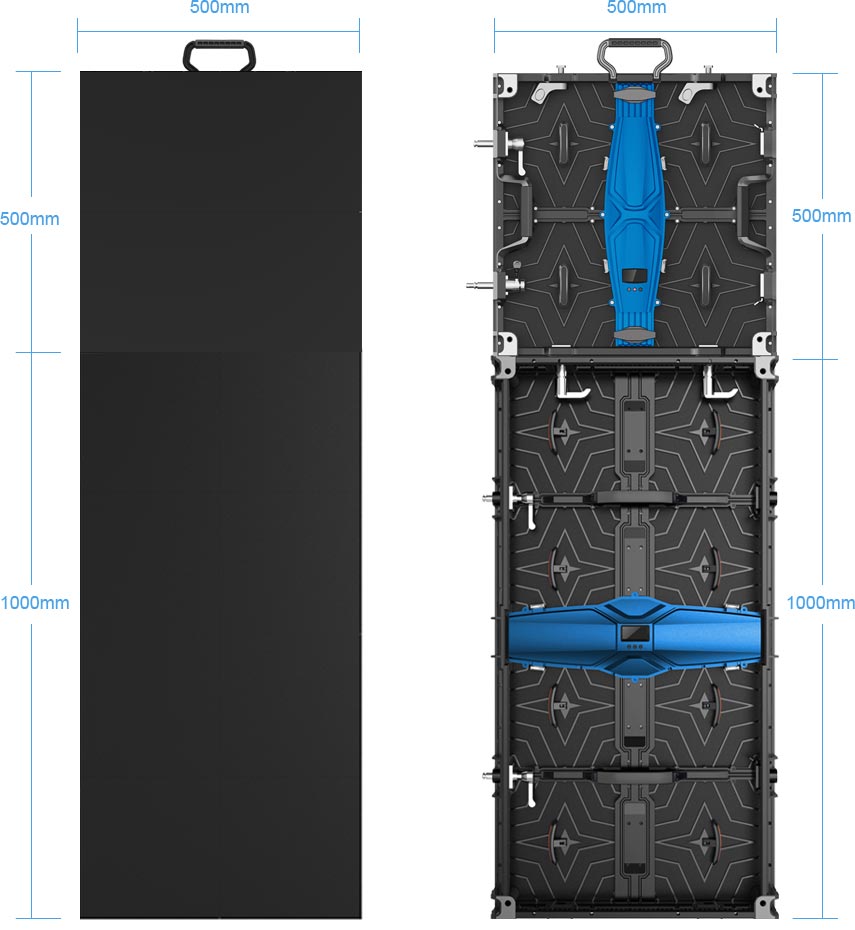

Work With T Series
X series and T series can be installed together for multiple eventrequirements.

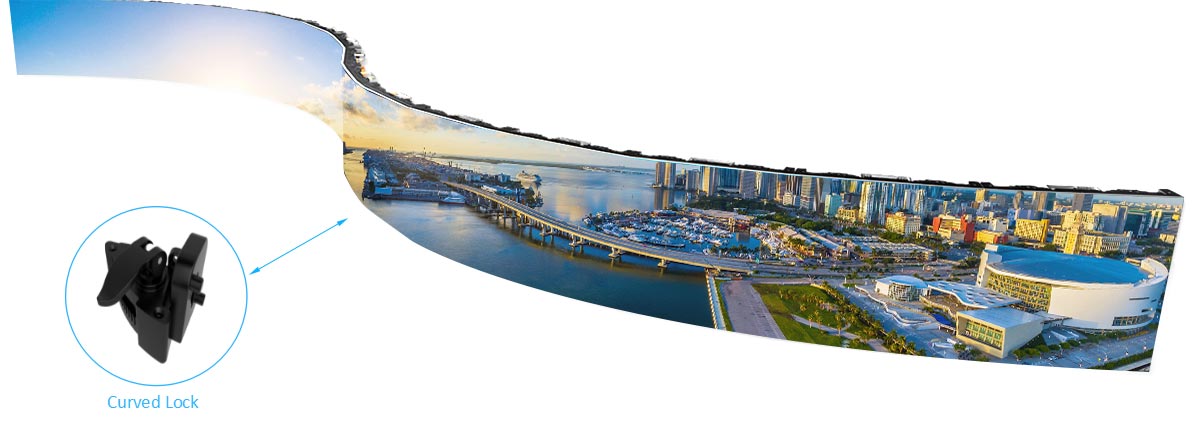

Curved Installation
Curved with every 2.5° between -10°and 10°, which can make convex and concave.

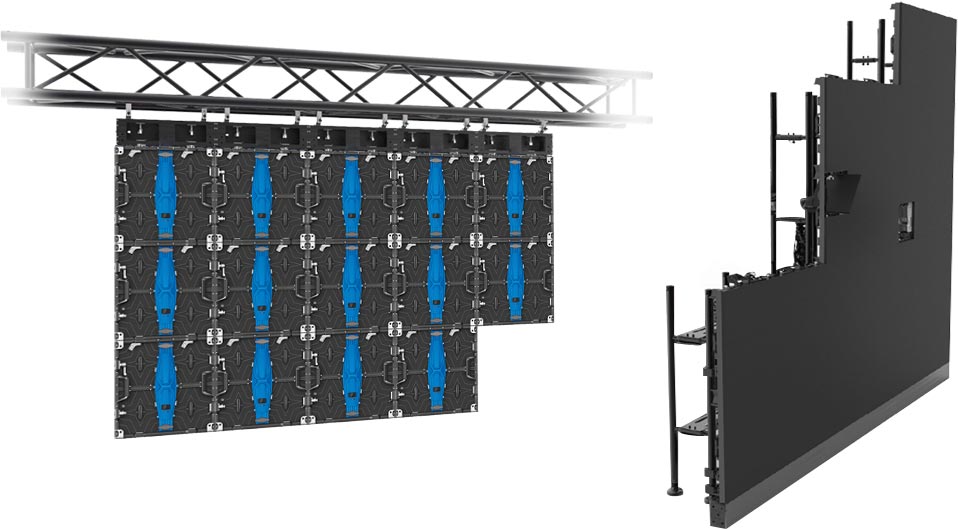

Faster & Easier Installation
Hanging or stacking, X series with light and thin features makes installation faster and easier.

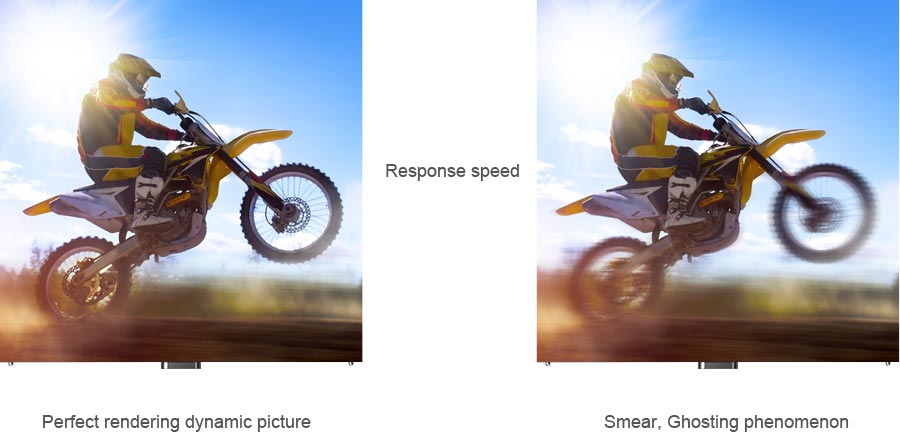

Ultra Fast Response
There will be no ghosting & twisting and it will perfectly provide the dynamic images.

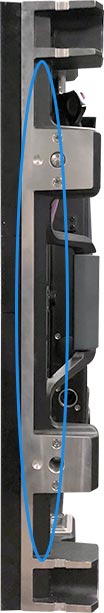

No Light Leakage Trouble
No light leakage design with specific strips on side of cabinet and behind neighbour module.

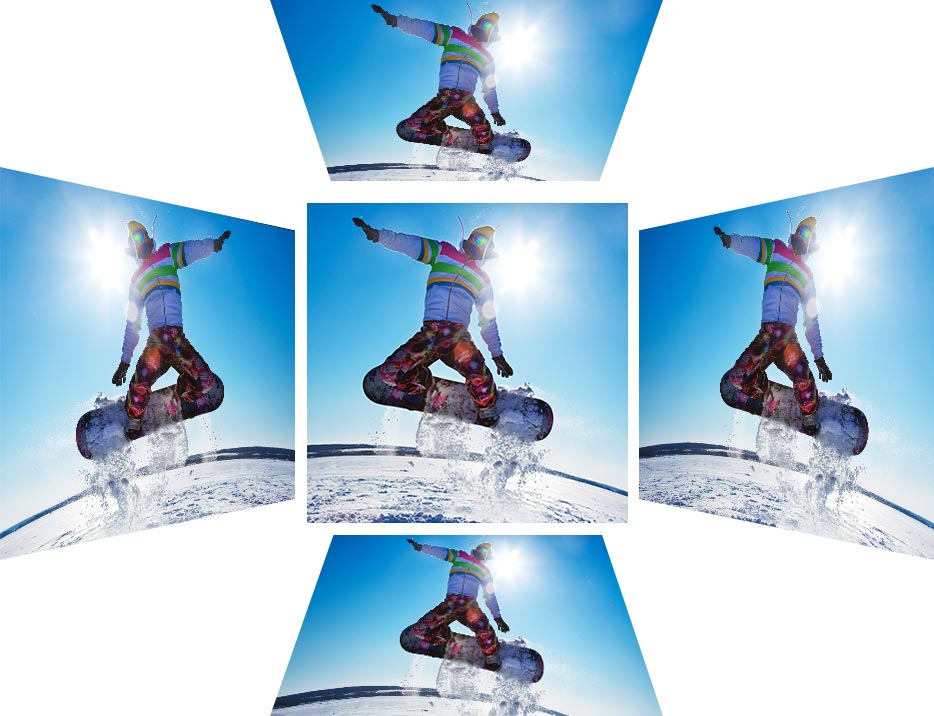

Wide View Angle
Seeing from five directions, it would be still the natural and clear image in an LED display.

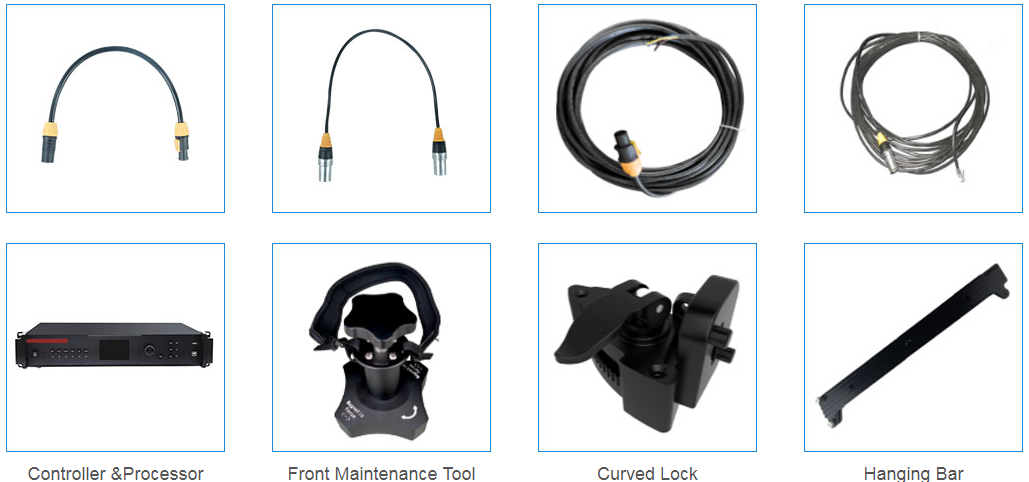

Assessories

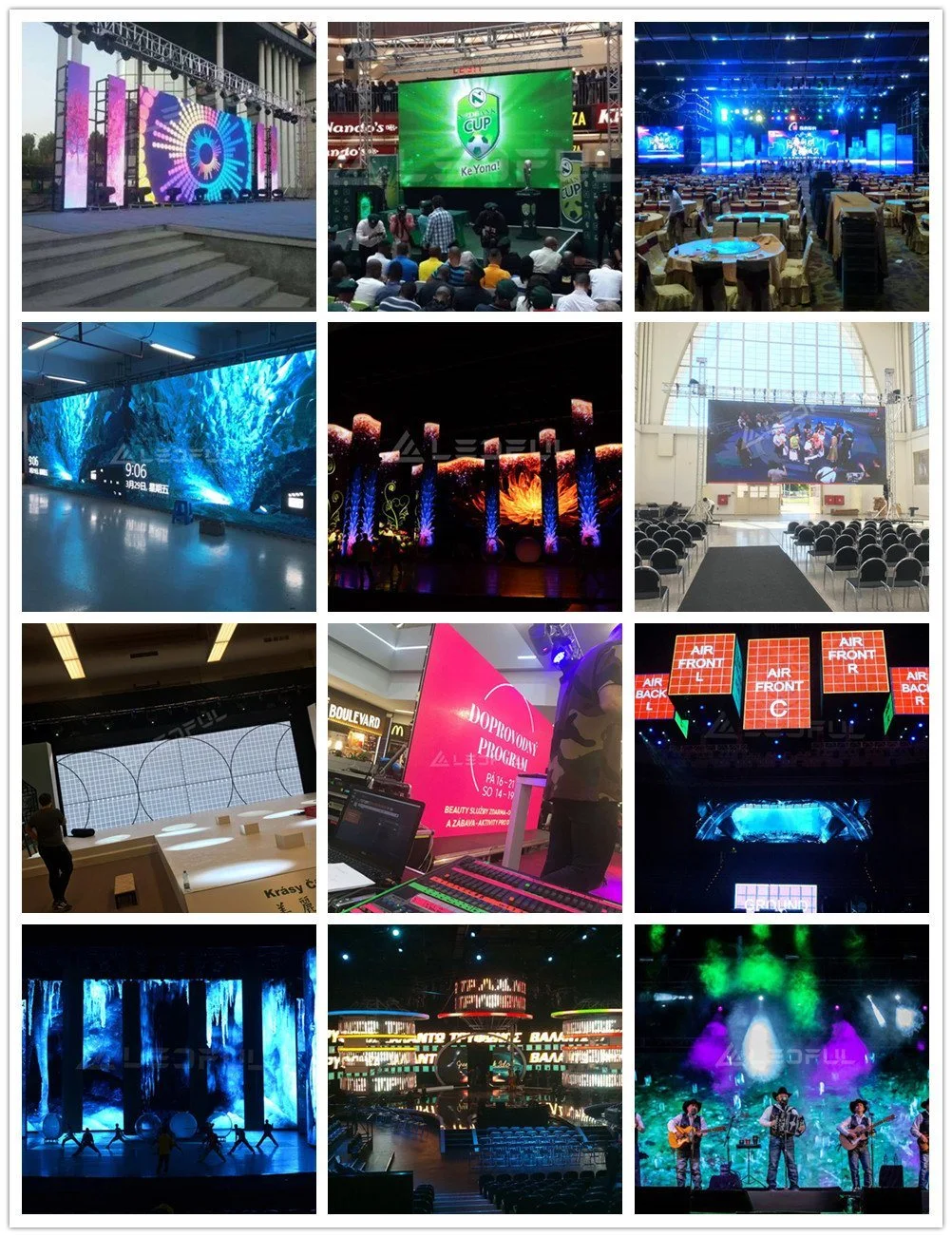

Applications

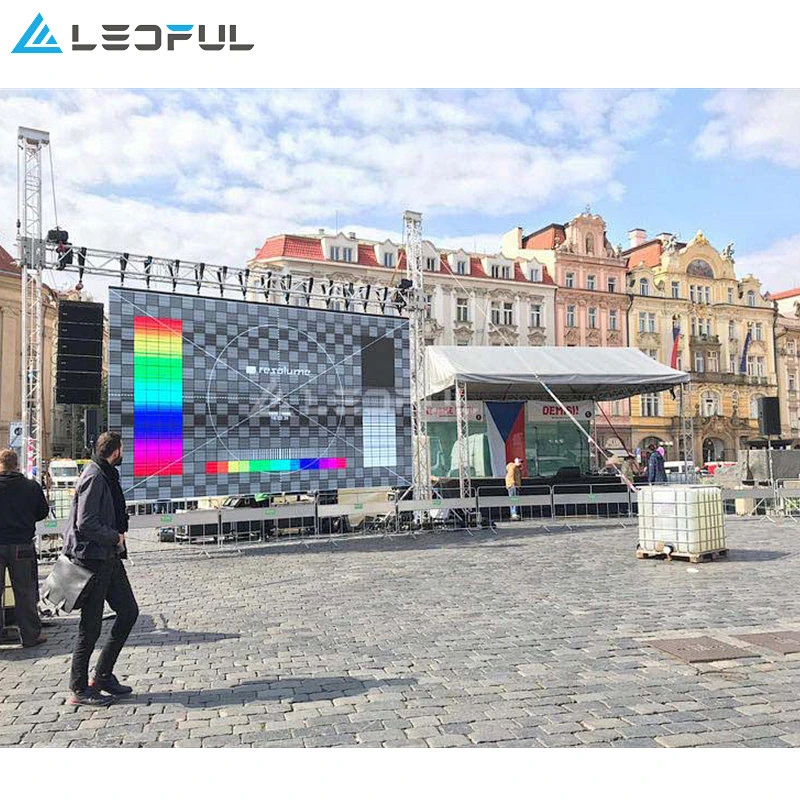

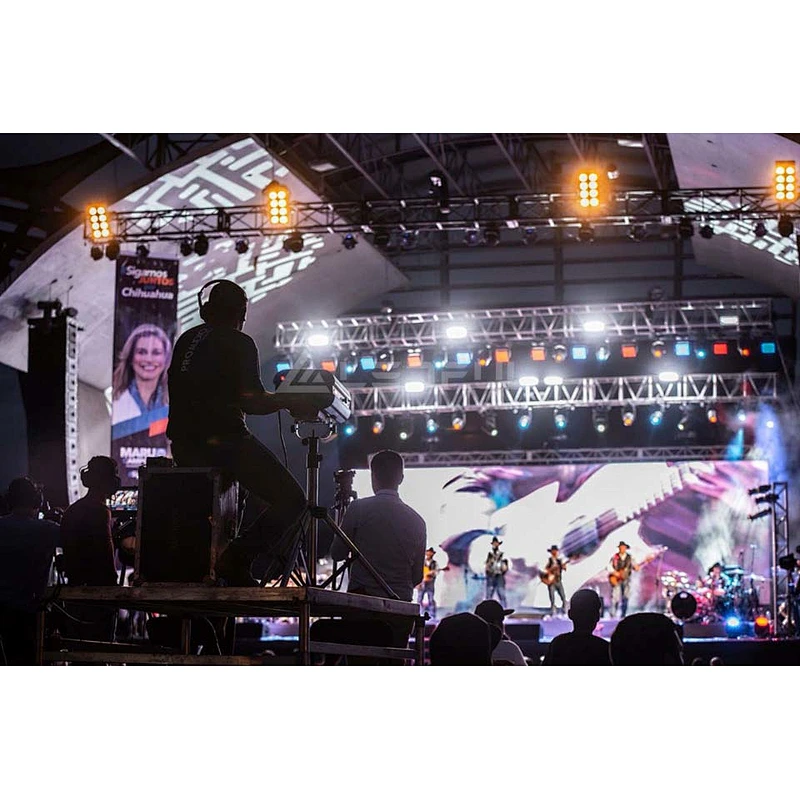

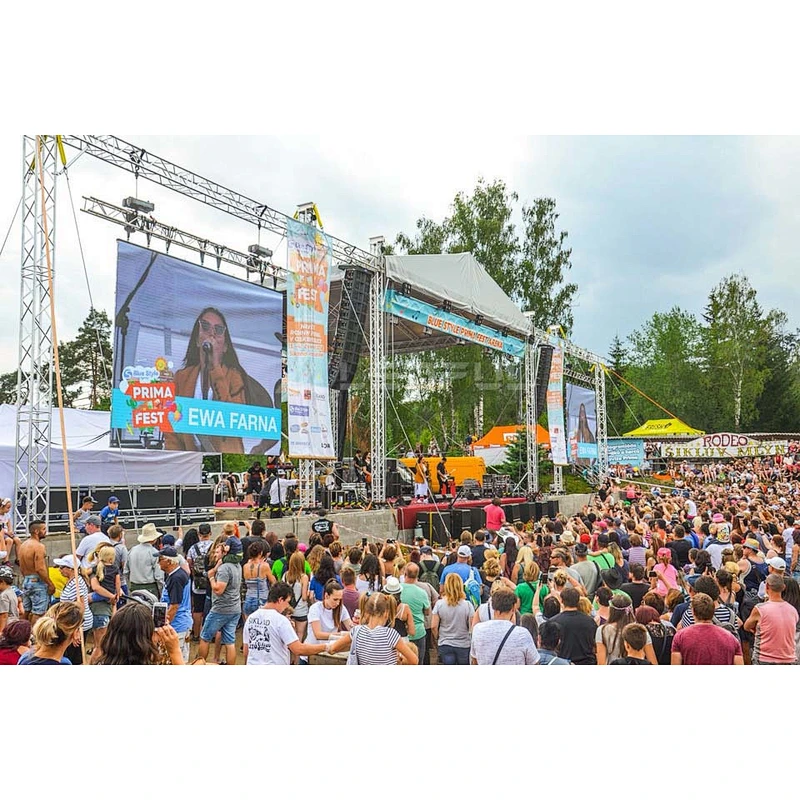

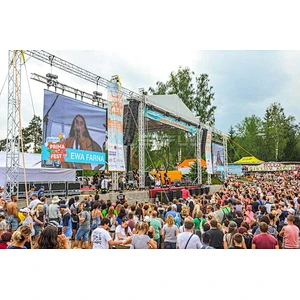

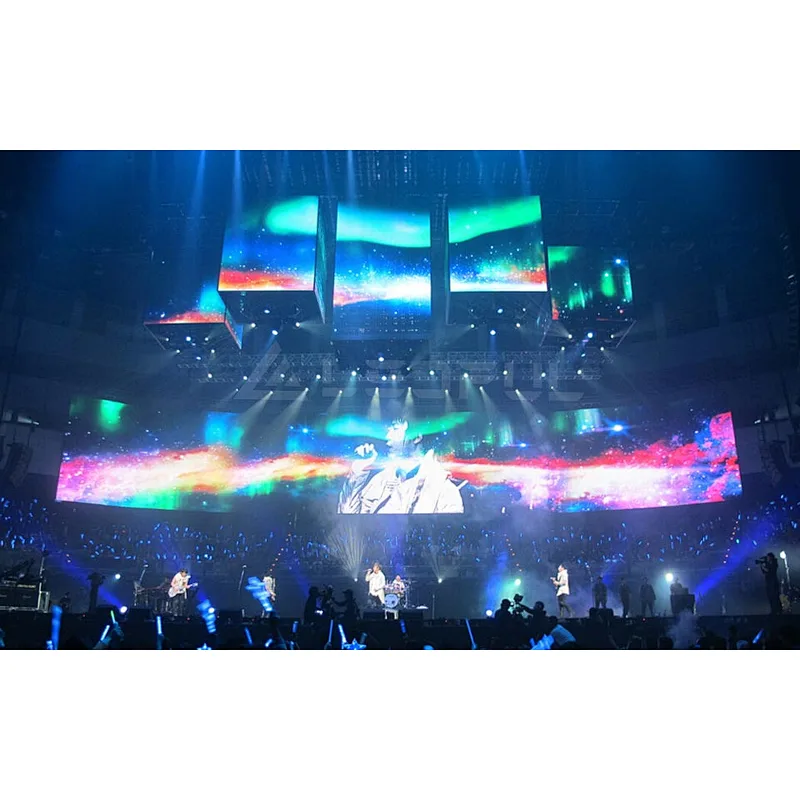

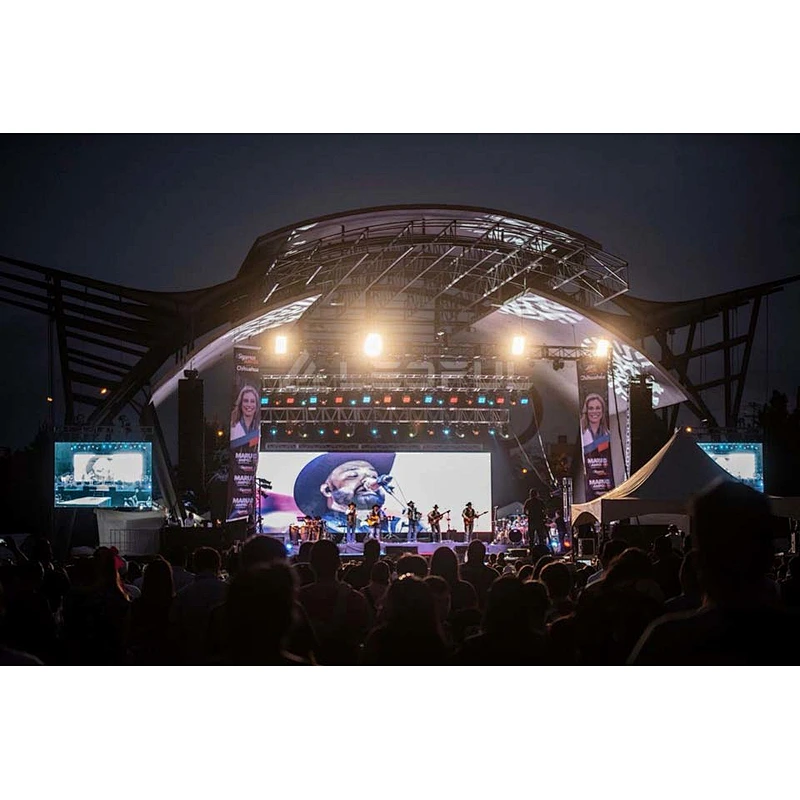

Rental applications such as live concert,shows,event, exhibitions,TV station,live broadcasting and theme parks and football matches.
More Products
Our Company
>>>Why Choose LEDFUL<<<
★DeepCustomized & OEM.
★Listen to you, think more for you.
★Lifelong maintenance with reasonable price.
★Clear cost initially to save your time and money.
★Provide with innovative and satisfying products.
★Excellent product quality, quick and professionalservices
★Always ready for your any change on LED display details.
★Recommend the best proper solution for your LED project.
★Catch things what you missed before LED display production.
★Take good care of each detail for your products, packages,shipping
-------------Best Balance of Quality & Price
>>>How We Do<<<
★One-stop solution provider.
★More designs and more solutions.
★Wireless control, 4G, Wifi,Cluster control.
★Truss hanging, stacking, touring, LED ceiling, video floor
★Irregular shaped, flex, curved, round, sphere, cubic, customized.
★Focus on the improvement and innovation of rental LED cabinets
★High efficient and enthusiastic team to make reliable LED display.
★Our partners are Media Companies, Stage Designer, Project Manager,Pro Audio, Light and Video companies, AV Rental Equipment companies,
Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.
-----------Professional, High Efficient and Caring
Packing & Delivery
Packing

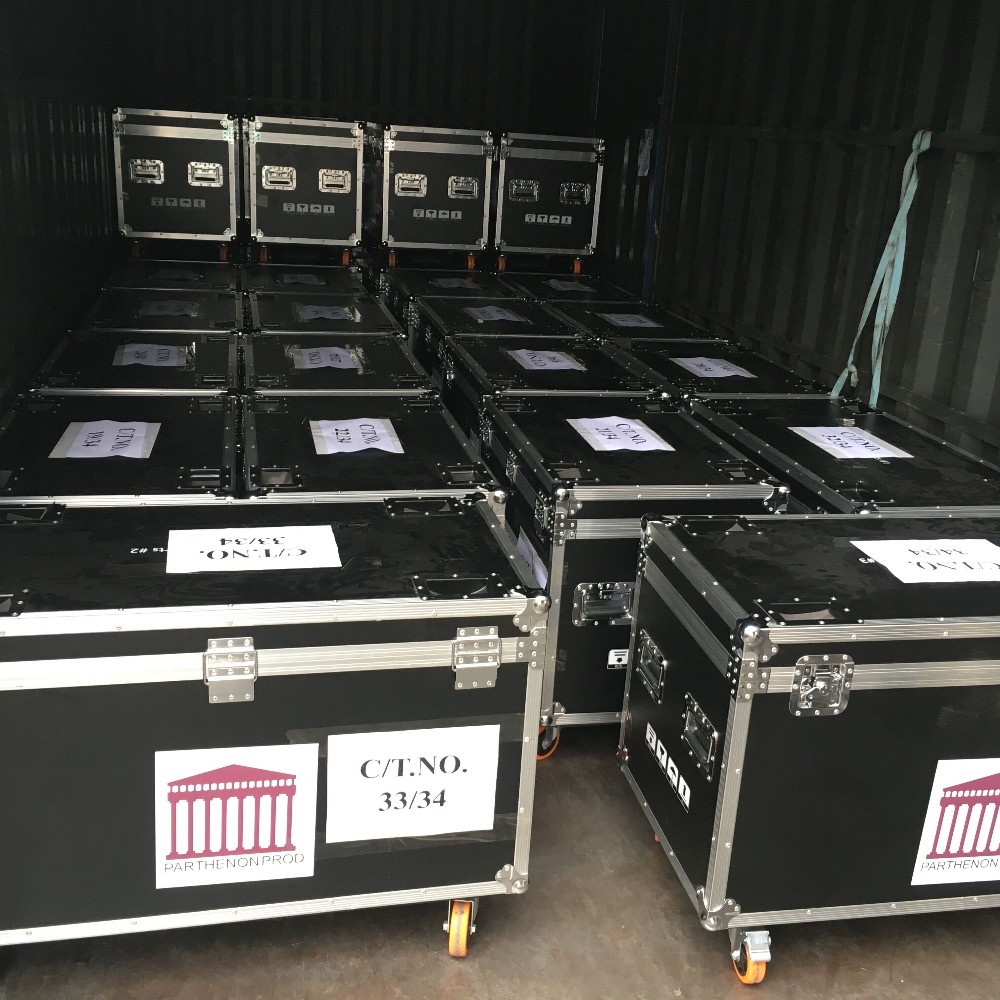

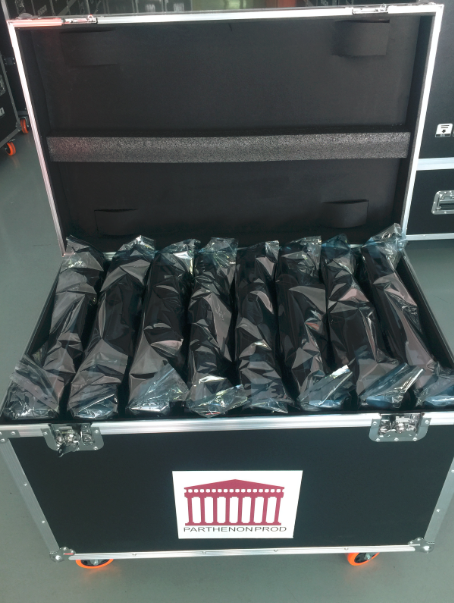

Flight case:
