- LED chip:Epistar
- Control system:Novastar
- Cabinet weight:7kg/ 15.4Ib
- Brightness:≥1300nits
- Refresh rate:3840Hz
- IP rate:IP43
- Cabinet material:Die-casting Alumimum
- Certificate:CE ROHS FCC ISO9001 CCC
- Screen Dimension:500*500mm
- Pixels:6.2mm
- Place of Origin:CN;GUA

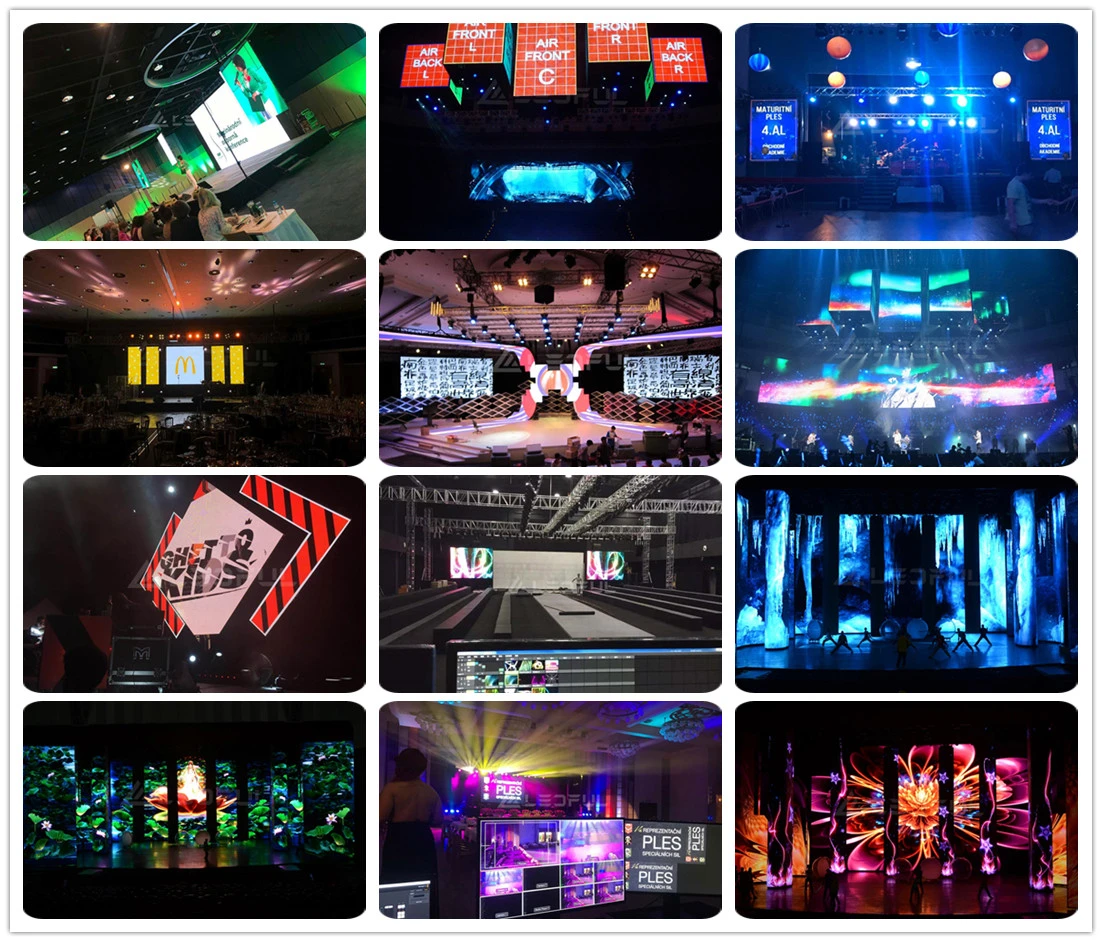

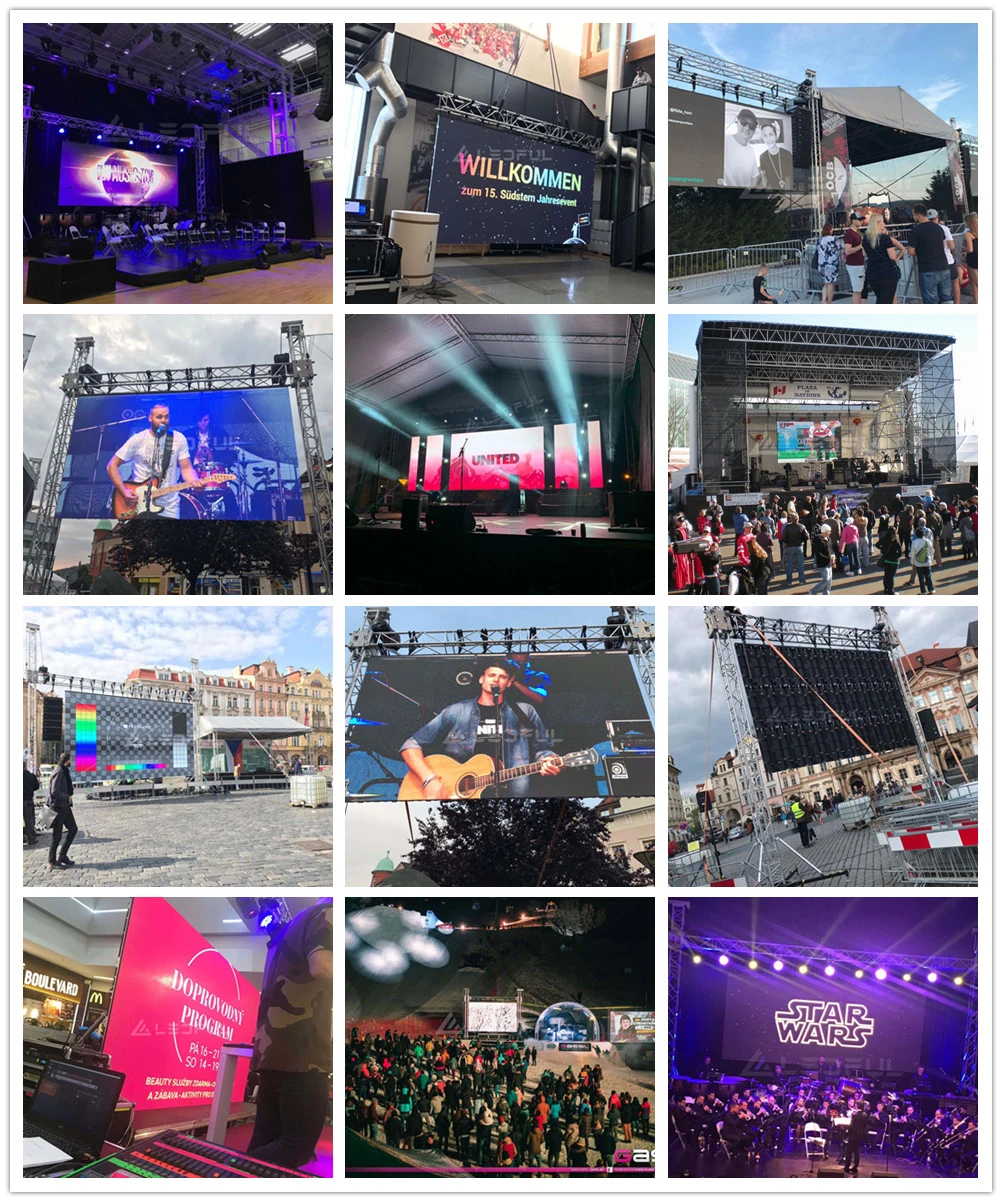

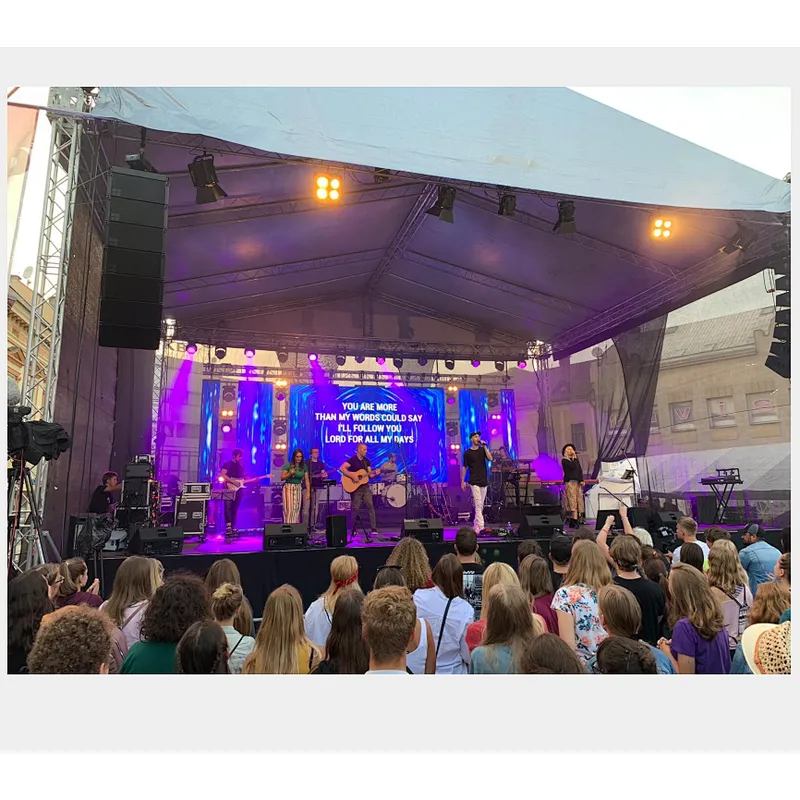

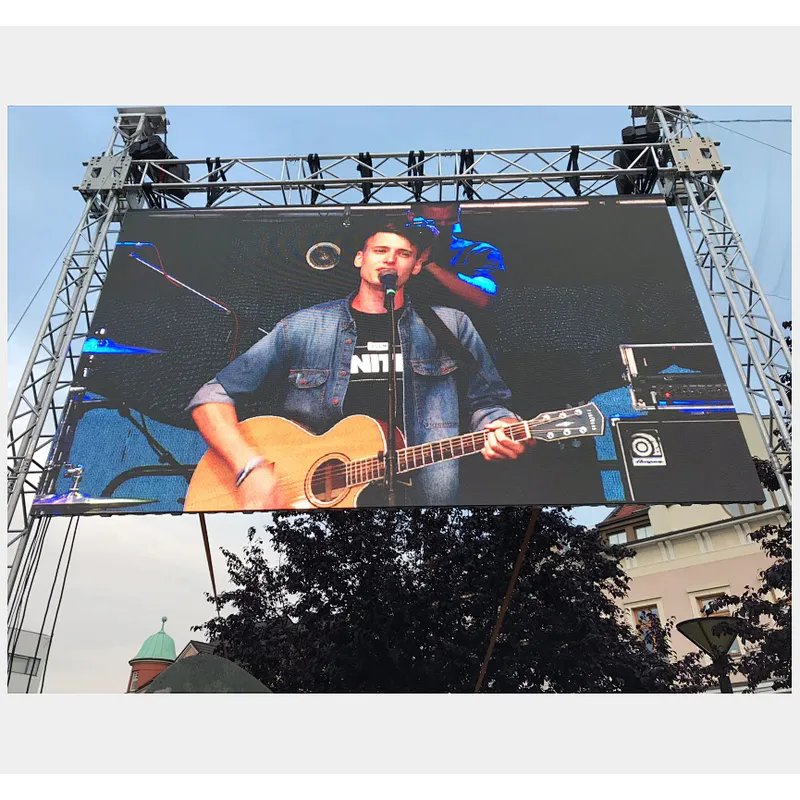

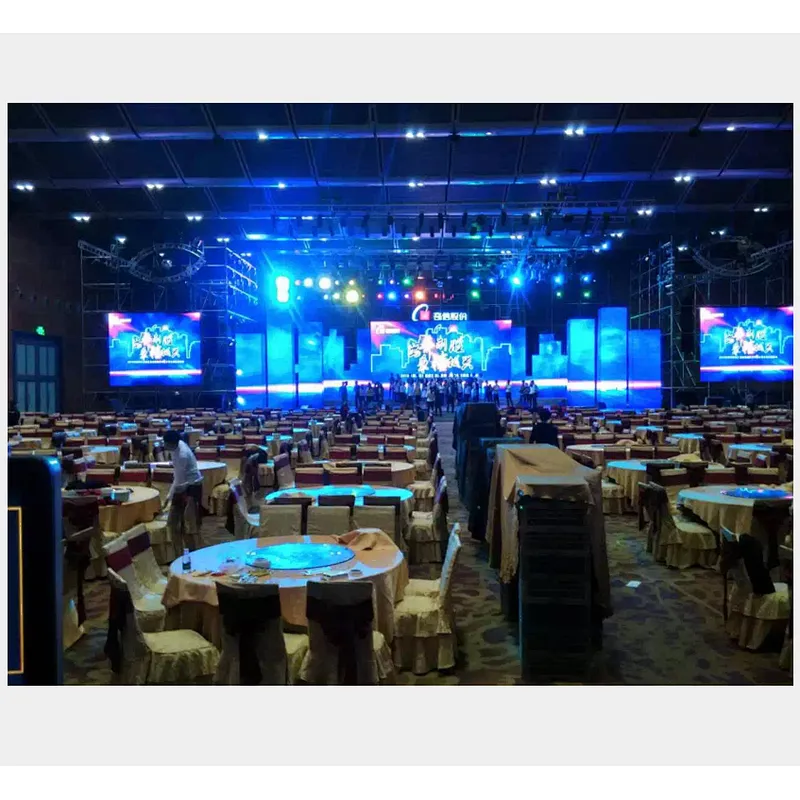

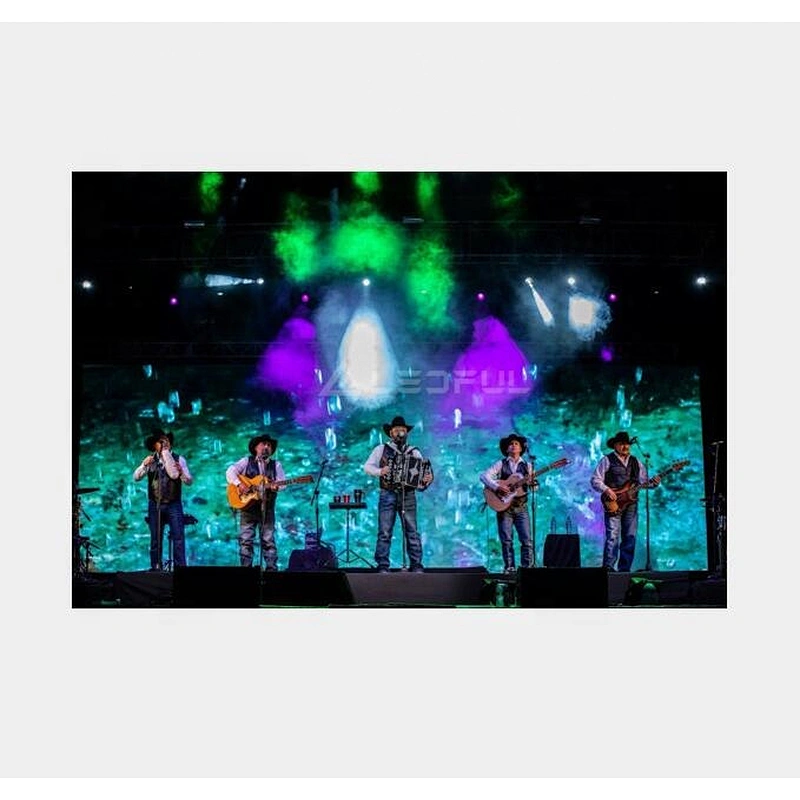

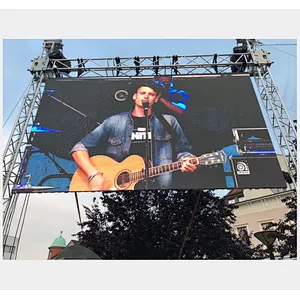

- Application:Rental LED display
- Color:fullcolor
- Panel Size:500*500mm
- Pixel Pitch:6.2mm
- Model Number:XI series
- Brand Name:LEDFUL

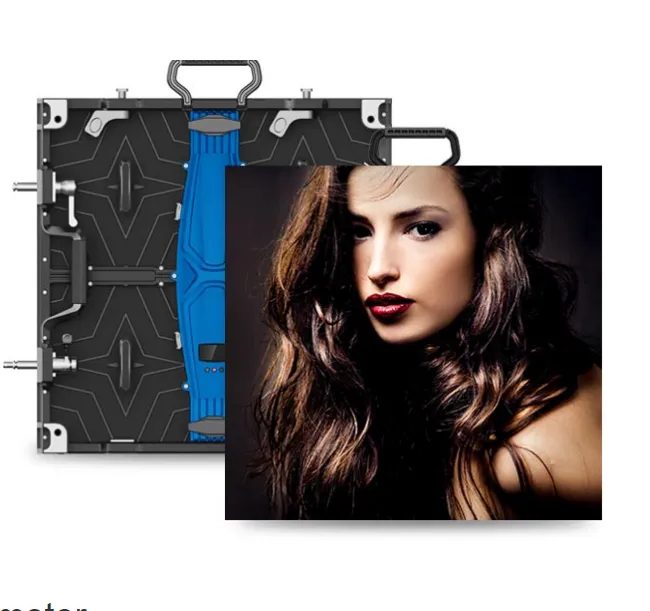

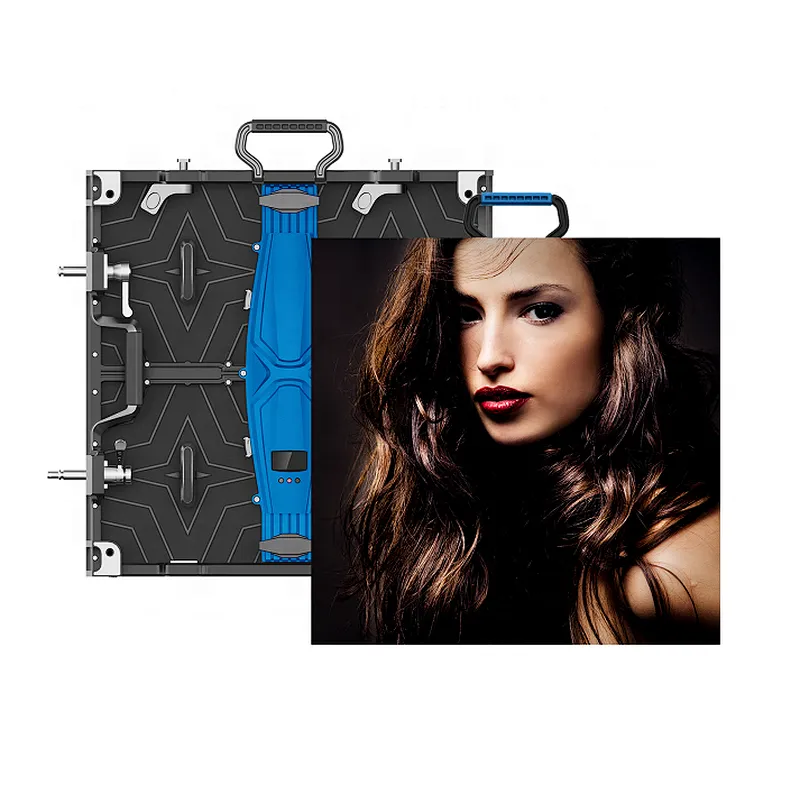

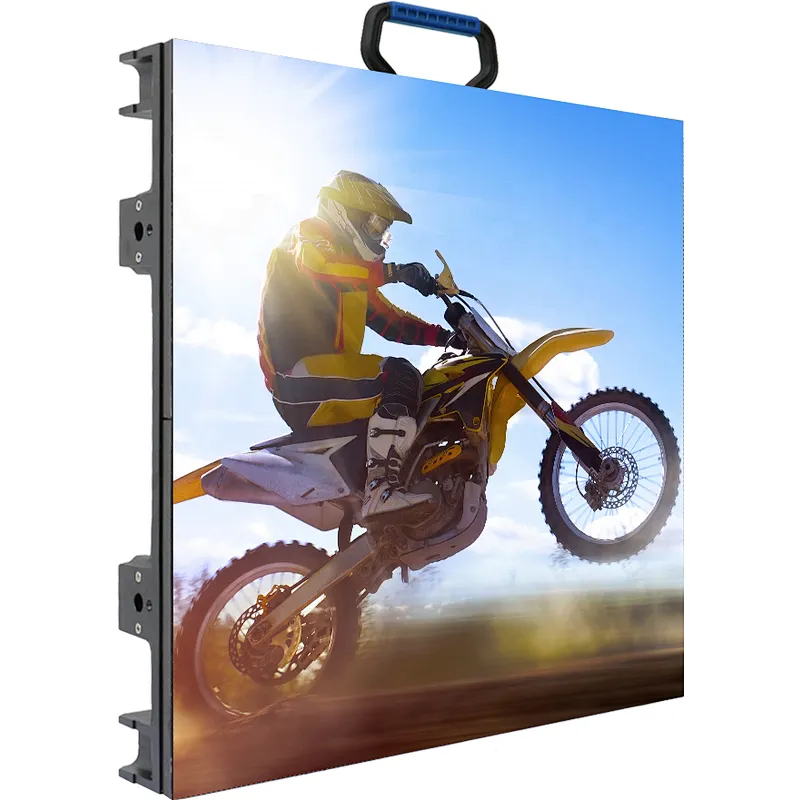

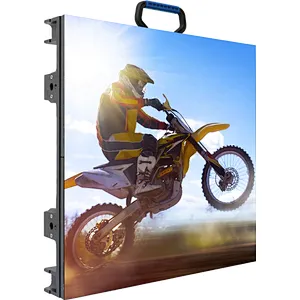

X Series
Specifications

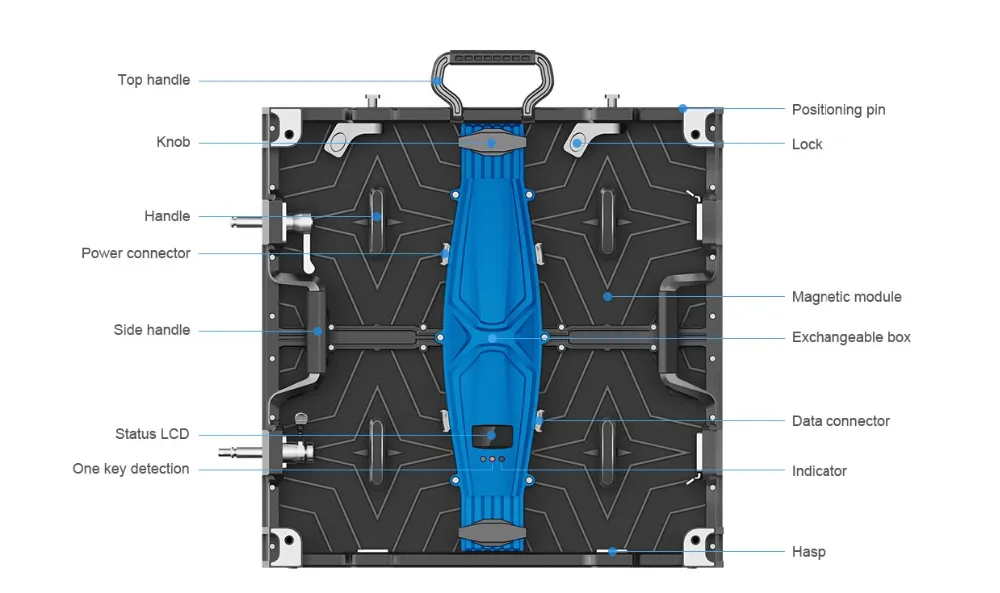

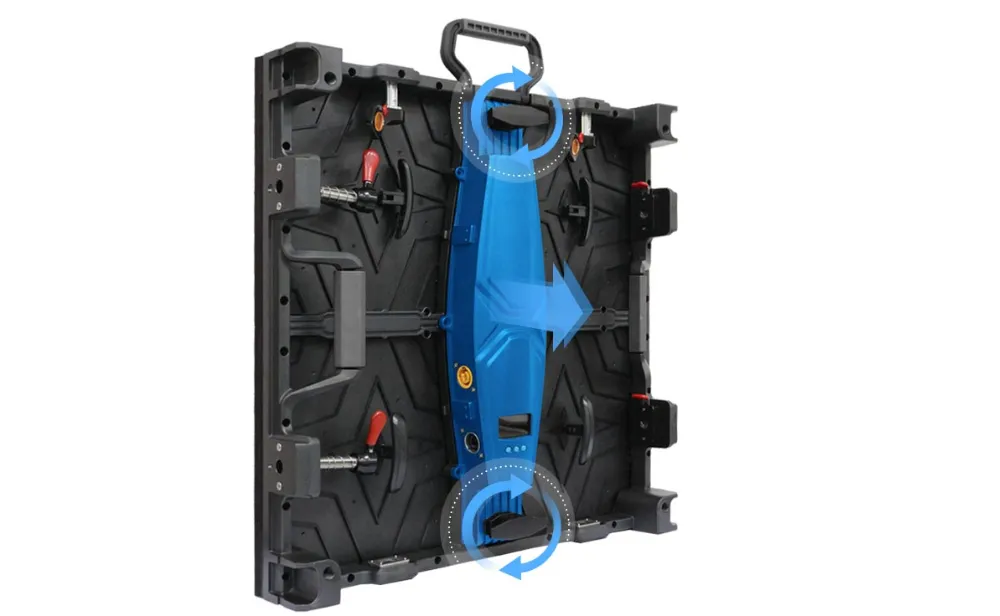

1.ONE Second Exchangeable Box

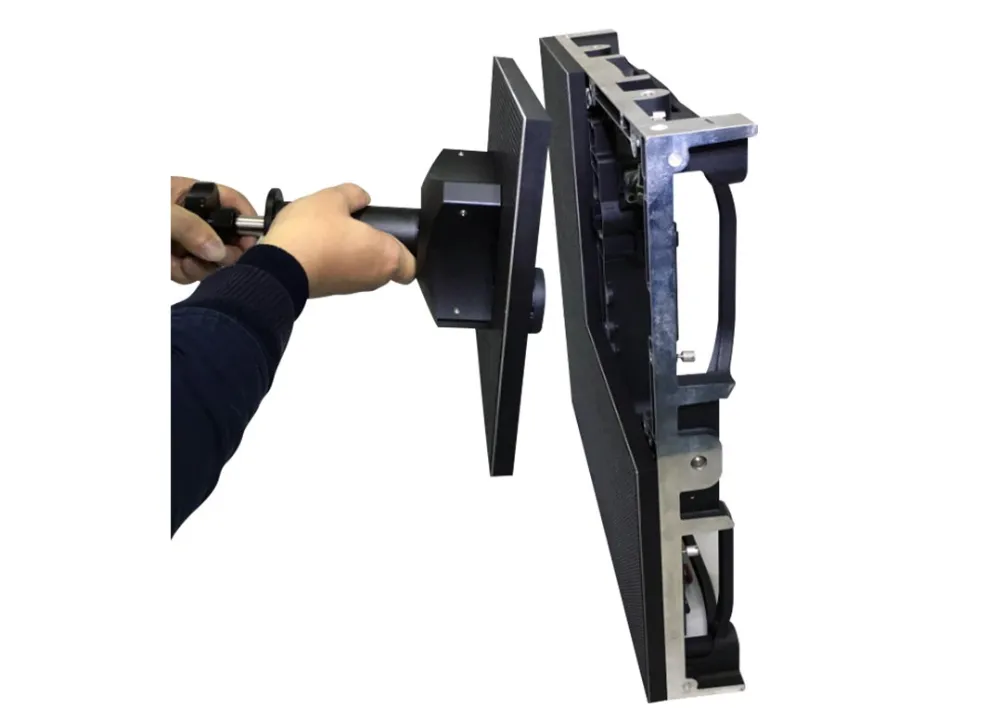

2.Full Front Maintenance

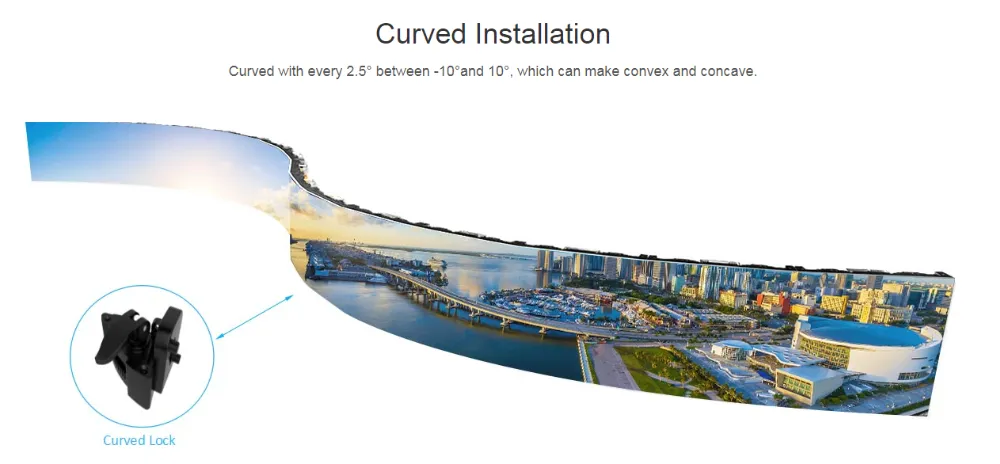

3.Curved Installation
4.Light and Thin
X Series Indoor | XI 6.2 | |||||
pixel pitch(mm) | 6.25mm | |||||
Pixel Matrix Per Sq.m | 25600 | |||||
Pixel Configuration | SMD3528 | |||||
Scan | 1/10 | |||||
Cabinet Resolution | 80×80 | |||||
Power Con. (Max / Avg) | 700 / 200w/sq.m | |||||
Module Dimension | 250x250mm / 0.82x0.82ft | |||||
Cabinet Dimension | 500x500x78mm / 1.64x1.64x0.25ft | |||||
Cabinet Weight | 7kg / 15.4Ib (( Die-casting Aluminum) | |||||
Service Access | Front / Rear | |||||
Rotation Angle | -7.5° and +7.5° | |||||
Brightness (nits) | ≥1300 | |||||
Refresh Rate (HZ) | 3840 | |||||
Grey Scale (bit) | 16 | |||||
Viewing Angle (H/V) | 140 / 140 | |||||
IP Rate | IP43 | |||||
Input Voltage (AC) | 110 / 240 | |||||
* Specifications and photos are subject to change without prior notice. | ||||||
1.OEM Manufacturing welcome: Product, Package...
2.Customized and professional products.
3.We will reply you for your inquiry in 24 hours.
4.After sending, we will track the products for you.
5.If you have any questions,we will offer the solve way for you.
6.3-5 years warranty will be provided by us.P2.6-6.2mm HD video stage background rental LED display for indoor event. P2.6-6.2mm HD video stage background rental LED display for indoor event.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply free sample, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q9: What is the control system?
A: We use Nova control system.
Q10. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q11. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q12: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
