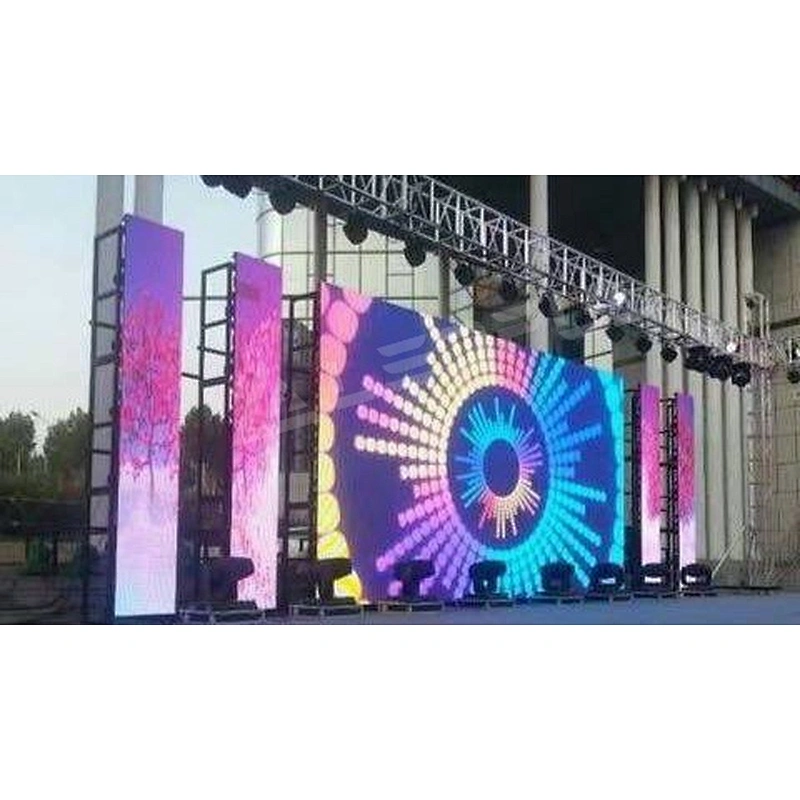

Ten years experience Indoor and outdoor Curved Rental Stage led screen display screen 500x1000mm
Ten years experience Indoor and outdoor Curved Rental Stage led screen display screen 500x1000mm
Ten years experience Indoor and outdoor Curved Rental Stage led screen display screen 500x1000mm
Ten years experience Indoor and outdoor Curved Rental Stage led screen display screen 500x1000mm
Ten years experience Indoor and outdoor Curved Rental Stage led screen display screen 500x1000mm
Ten years experience Indoor and outdoor Curved Rental Stage led screen display screen 500x1000mm
Ten years experience Indoor and outdoor Curved Rental Stage led screen display screen 500x1000mm

Ten years experience Indoor and outdoor Curved Rental Stage led screen display screen 500x1000mm

  • Minimum order quantity:4
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: 500*500 X Series

    Product Description

    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Pixels:4.81mm
    • Screen Dimension:500*1000mm
    • Certificate:CE ROHS FCC
    • Brightness:1000
    • Viewing angle:140 /140
    • Refresh rate:3840
    • Color:Fullcolor
    • Module size:250x250mm
    • Place of Origin:CN;GUA
    • Application:advertising
    • Color:fullcolor
    • Panel Size:500*500mm
    • Pixel Pitch:4.8
    • Model Number:SO4.8
    • Brand Name:LEDFUL

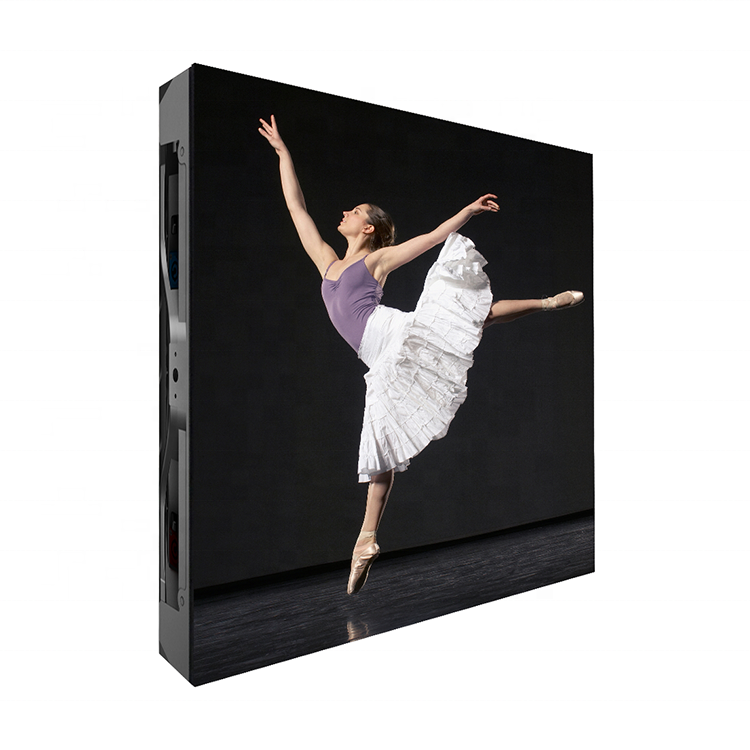

    Product Description


    S Series

    Rental Event LED Display

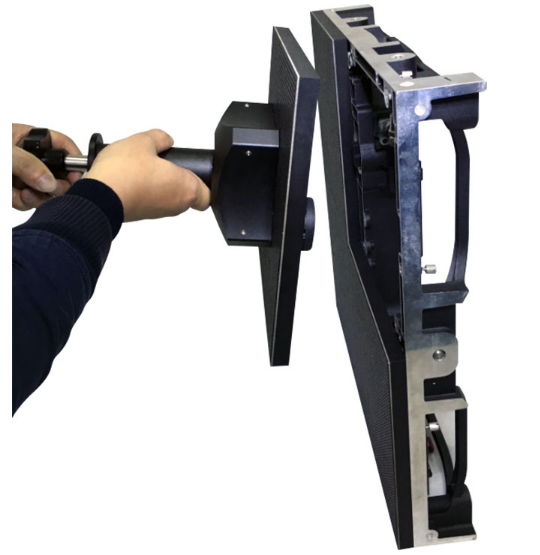

    Front Maintenance

    The magnet LED modules can be dismantled by tools on front side.


    No light leakage trouble

    No light leakage design with specific strips on side of cabinet and behind neighbour module.

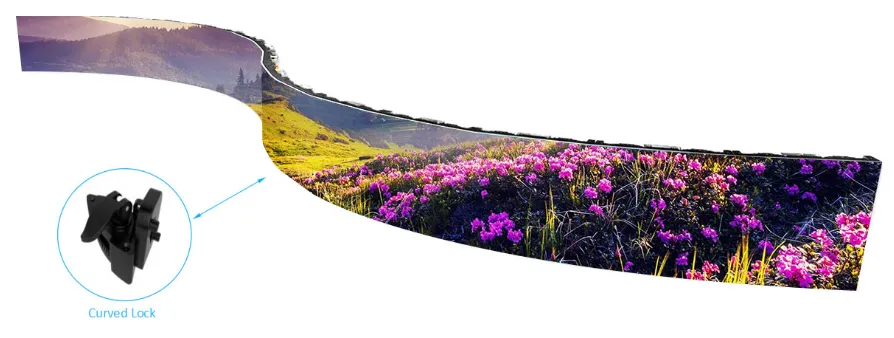

    Curved Installation

    Curved with every 2.5° between -10°and 10°, which can make convex and concave.

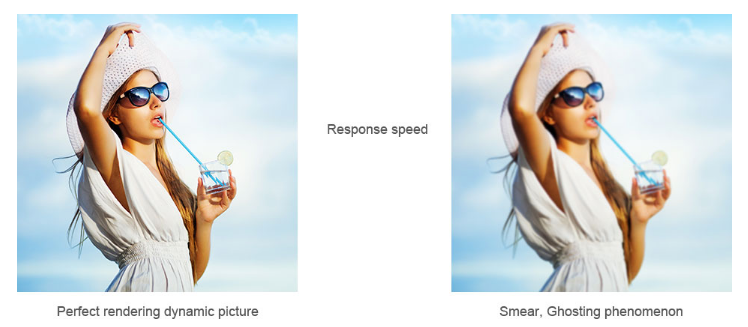

    Ultra Fast Response

                The response speed exceeds the response limit of the naked eyes,
              while playing the high speed dynamic images in an LED Screen,
          it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

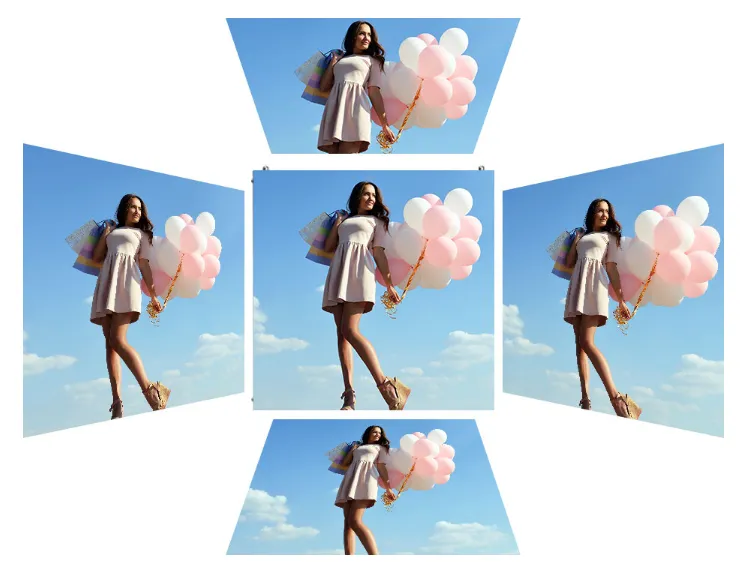

    Wide Viewing Angle

    Both 160° from horizontal & vertical for the viewing angle.
    Seeing from five directions, it would be still the natural and clear image in an LED display.

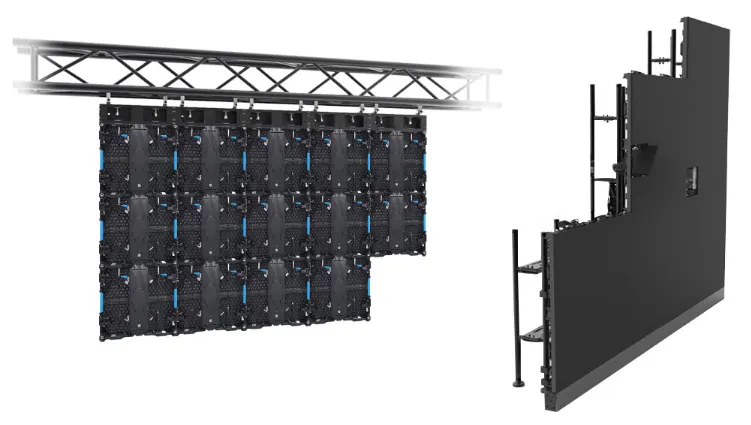

    Faster & Easier Installation

    Hanging or stacking, S series with light and thin features makes installation faster and easier.

    LEDFUL design the CAD drawing on how to fix up the LED display for free and some other expert suggestion. We will send our
    engineers to your place if we are expected after our negotiation.

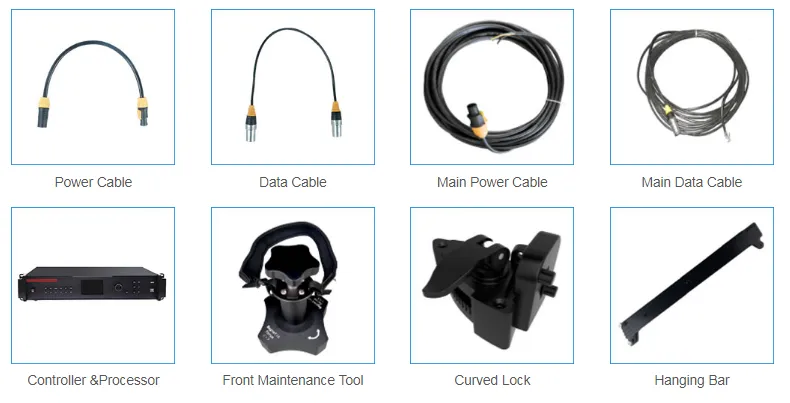

    Accessories

    Pararmeter
    S Series Outdoor
    SO 4.8
    Pixel Pitch(mm)
    4.81mm
    Pixel Matrix Per Sq.m
    43264
    Pixel Configuration
    SMD1921
    Brightness (nits)
    1000
    Scan
    13
    Cabinet Resolution
    104×208
    Power Con. (Max / Avg)
    650/ 220 w/sq.m
    Refresh Rate (HZ)
    1920
    Cabinet Weight
    8kg / 17.6Ib
    Module Dimension
    250x250mm / 0.82x0.82feet
    Cabinet Dimension
    500x1000x85mm
    Cabinet Material
    Die-casting Aluminum
    Service Access
    Front
    Grey Scale (bit)
    14
    Viewing Angle (H/V)
    140 / 140
    IP Rate
    IP65
    Input Voltage (AC)
    110 / 240

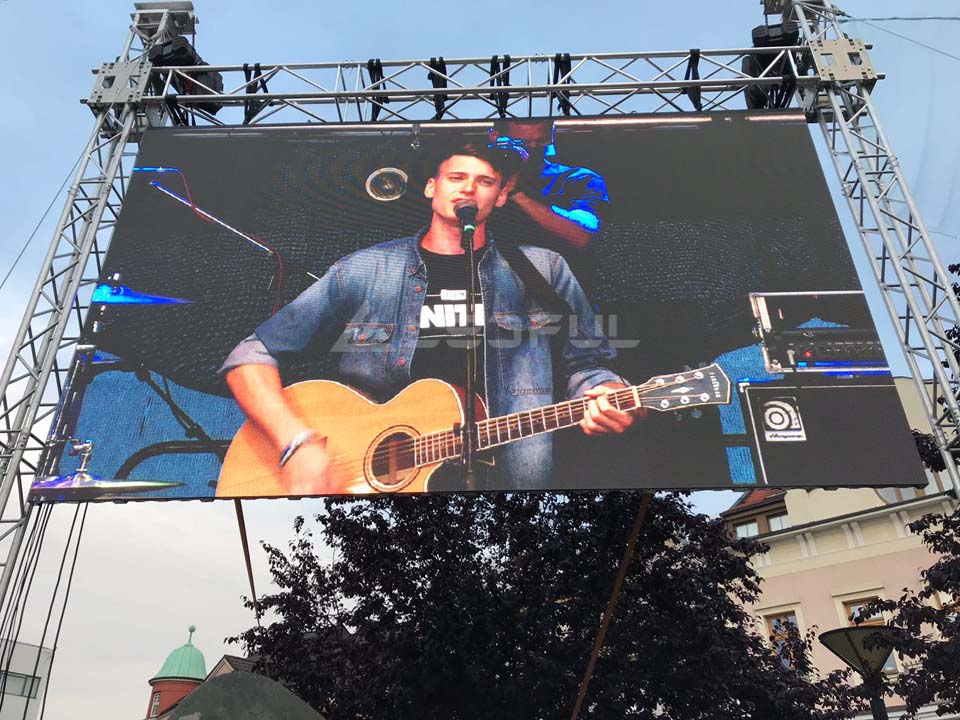

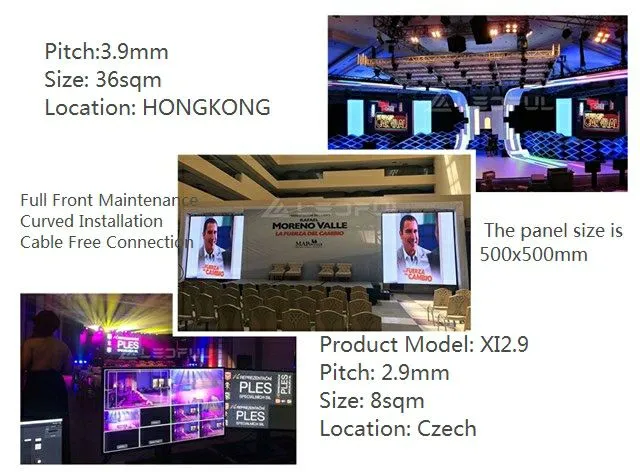

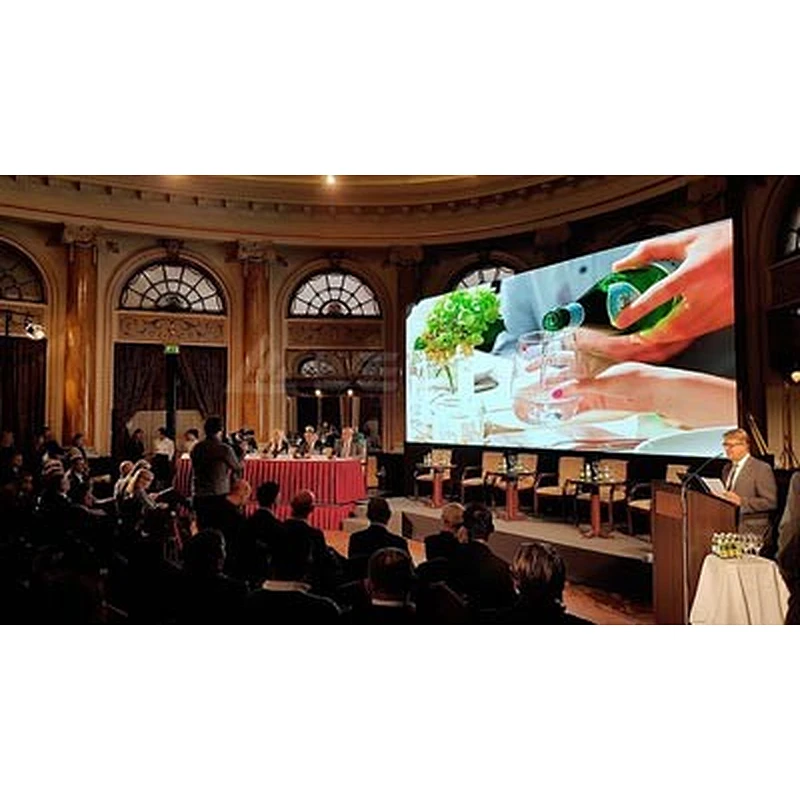

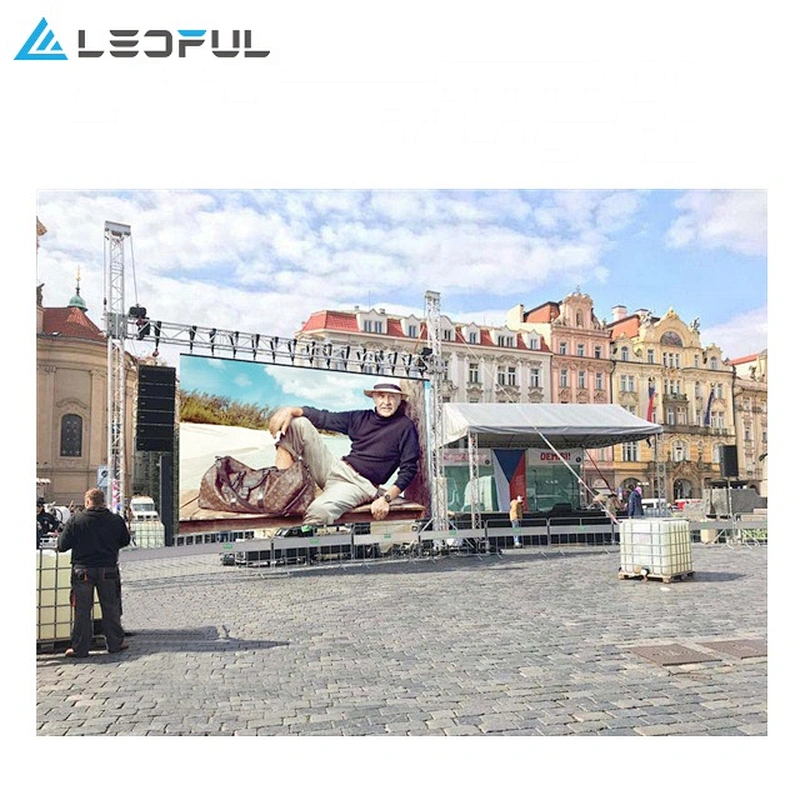

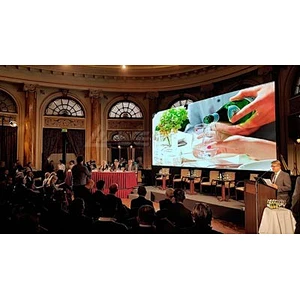

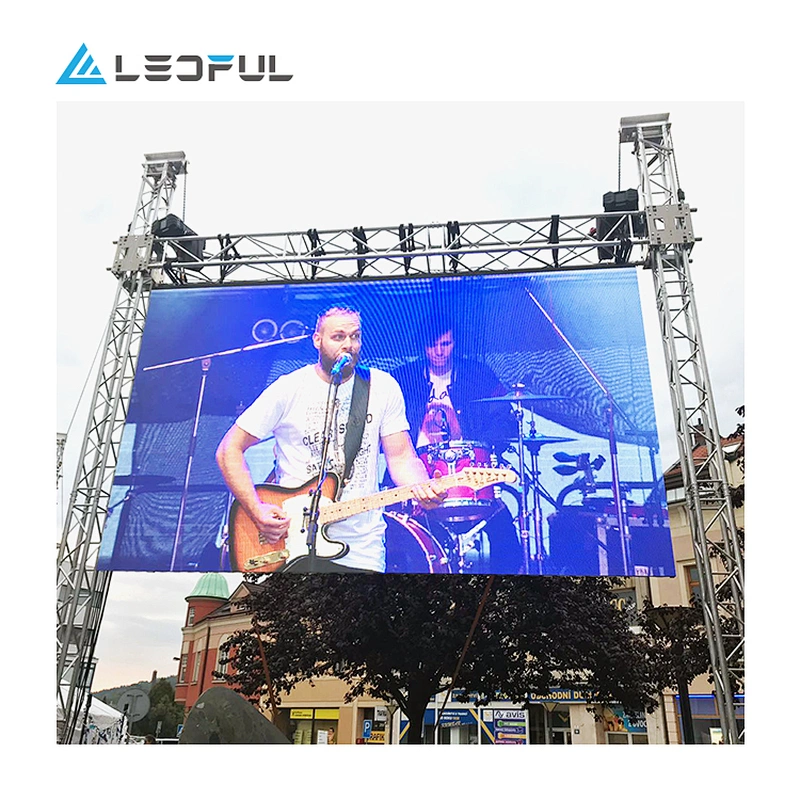

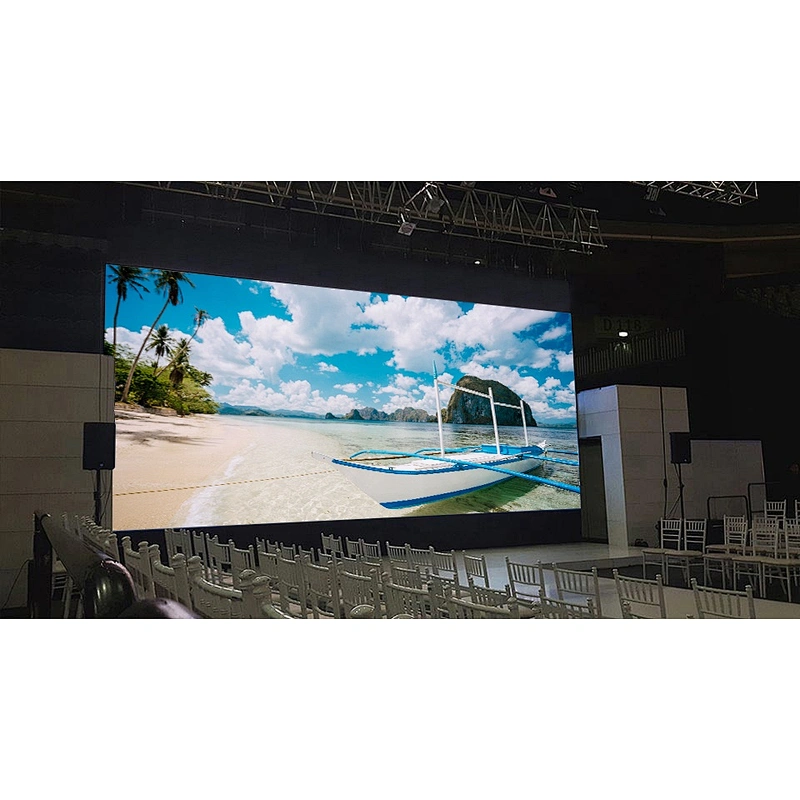

    Application
    Our Company
    Our Service
    Related Products

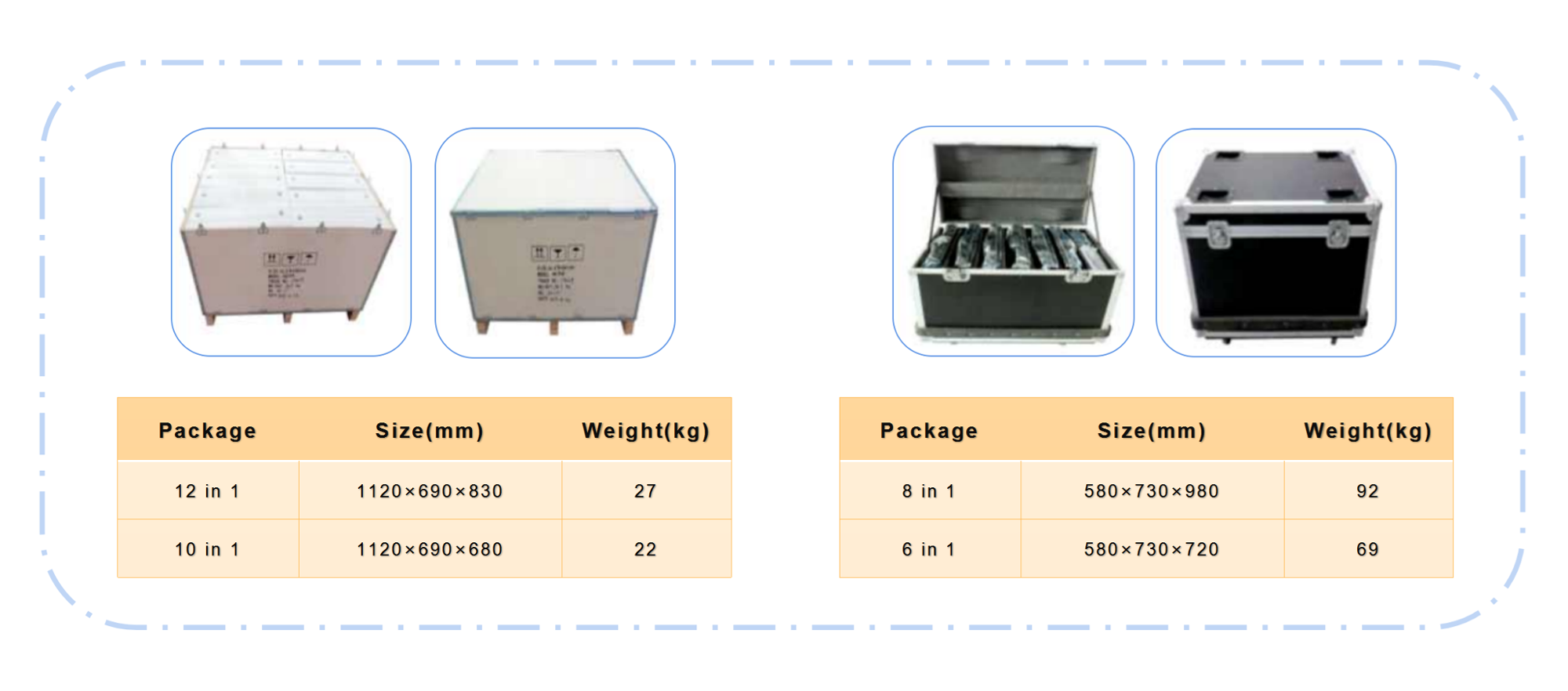

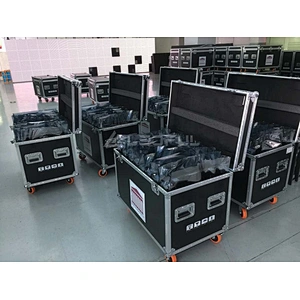

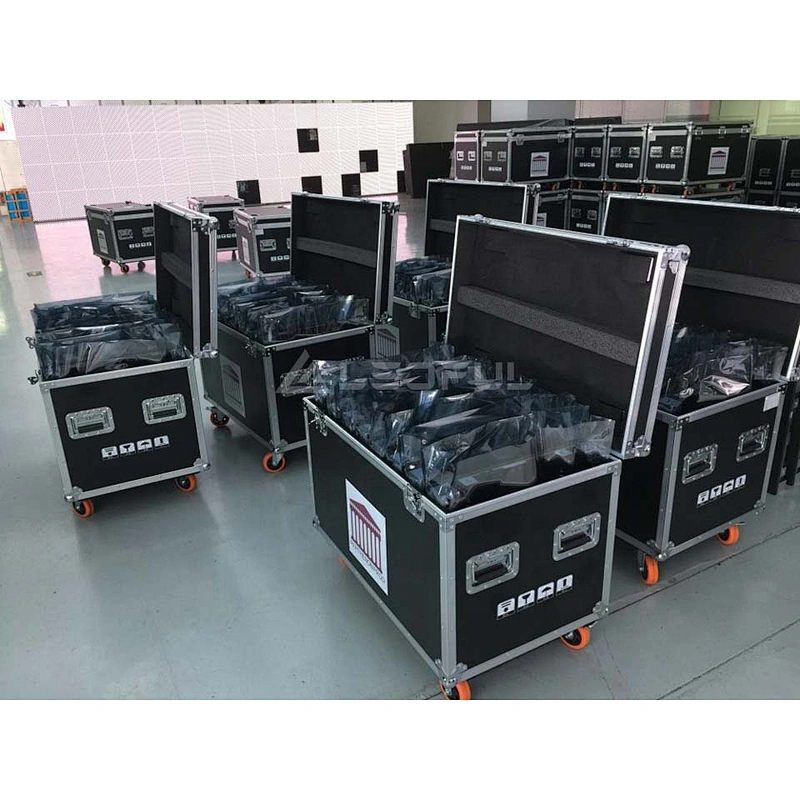

    Packing & Delivery
    FAQ


    Q1. Are you trading company or manufacturer?
    A: We are led display manufacturer

    Q2. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q3. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)
    A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more , P10/12/16/20/25: From 10/12/16/20/25 meter and more. This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

    Q6. What is your terms of payment?
    A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test for 72hrs before delivery.

    Q8: What is the control system?
    A: We use Nova control system.

    Q9: How can you ensure your led display product quality?
    A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
